Cb1.7 Caterpillar Vibratory Compactor Operation and Maintenance Manual

Product:VIBRATORYCOMPACTOR

Model:CB1.7VIBRATORYCOMPACTORSA7

Configuration:CB1.7VibratoryUtilityCompactorSA700001-UP(MACHINE)POWEREDBYC1.1Engine OperationandMaintenanceManual CB1.7andCB1.8UtilityCompactors MediaNumber-M0082430-01PublicationDate-01/12/2017DateUpdated-25/12/2017

CatProductIdentificationNumber

Product:VIBRATORYCOMPACTOR

Model:CB1.7VIBRATORYCOMPACTORSA7

Configuration:CB1.7VibratoryUtilityCompactorSA700001-UP(MACHINE)POWEREDBYC1.1Engine

OperationandMaintenanceManual

CB1.7andCB1.8UtilityCompactors

MediaNumber-M0082430-01PublicationDate-01/12/2017DateUpdated-25/12/2017 i07016192

EngineOilLevel-Check

SMCS-1348-535-FLV

NOTICE

Donotunderfilloroverfillenginecrankcasewithoil.Eithercondition cancauseenginedamage. Stoptheenginetochecktheoillevel.DONOTchecktheoillevelwhentheengineisrunning.

1.Parkthemachineonalevelsurface,andstoptheengine.

2.Allowtheoiltodrainbacktothesumpforaminimumof10minutes.

3.Opentheenginecompartment.

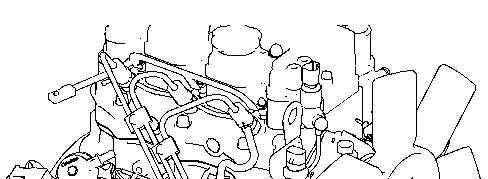

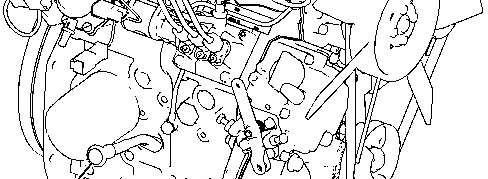

4.Removeengineoillevelgauge(1).Wipetheengineoillevelgaugewithacleancloth. Inserttheengineoillevelgauge.Removetheengineoillevelgaugeandnotetheoillevel. Inserttheengineoillevelgauge.

Note:RefertotheOperationandMaintenanceManual,"LubricantViscosities"and OperationandMaintenanceManual,"Capacities(Refill)"forthecorrectamountofoilthat isusedwhentheoilischanged.Thecorrectamountofoildeterminesthecorrectlevelofthe oilontheengineoillevelgauge.

NOTICE

Donotoverfillthecrankcase.Theoillevelmustnotreachthetopof theFULLrangemarkorabovetheFULLrangemark.

5.Maintaintheoillevelontheengineoillevelgaugebetweenthe"MIN"markandthe "MAX"mark.Addoiliftheoillevelistoolow.Iftheoilleveliscorrect,closetheengine compartment.

Note:Operatingyourenginewiththeoillevelabovethe"MAX"markontheoillevel gaugecouldcausethecrankshafttodipintotheoil.Thiscouldresultinexcessivelyhigh

operatingtemperatures.Thehighoperatingtemperaturescouldresultinreducedlubricating characteristicsoftheoil.Thiscouldcausebearingdamageandlossofenginepower.

AddTheEngineOil

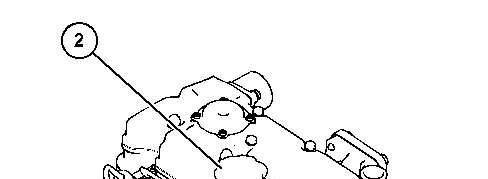

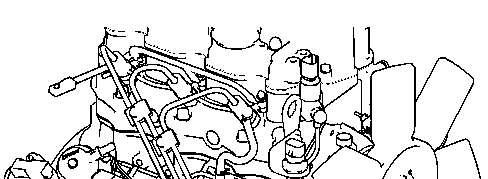

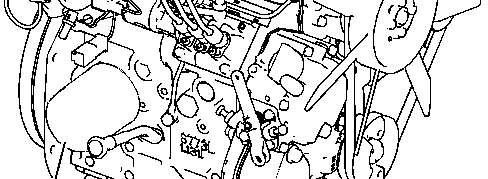

Illustration2g06266302

1.Opentheenginecompartment.

2.Removeoilfillercap(2).

3.Addtheoil.

4.Cleanoilfillercap(2).Installoilfillercap(2).

5.Closetheenginecompartment.

Copyright1993-2025CaterpillarInc. AllRightsReserved. PrivateNetworkForSISLicensees.

WedApr3002:12:54UTC+05302025

Product:VIBRATORYCOMPACTOR

Model:CB1.7VIBRATORYCOMPACTORSA7

Configuration:CB1.7VibratoryUtilityCompactorSA700001-UP(MACHINE)POWEREDBYC1.1Engine

OperationandMaintenanceManual

CB1.7andCB1.8UtilityCompactors

MediaNumber-M0082430-01PublicationDate-01/12/2017DateUpdated-25/12/2017

EngineMounts-Inspect

SMCS-1152-040

Opentheenginecompartment.

i07016190

Therearefourenginemounts.Therearetwoenginemountsontherightsideoftheengineand therearetwoenginemountsontheleftsideoftheengine.

Enginevibrationcanbecausedbyimpropermountingoftheengine.Enginevibrationcanbe causedbylooseenginemountsordeterioratedenginemounts.

Inspecttheenginemountsfordeterioration.

Replaceanyenginemountthatisdeteriorated.

Inspecttheenginemountsforcorrectbolttorque.

Tightenthemountsifthemountsareloose.

Closetheenginecompartment.

Copyright1993-2025CaterpillarInc. AllRightsReserved. PrivateNetworkForSISLicensees.

WedApr3002:12:54UTC+05302025

Product:VIBRATORYCOMPACTOR

Model:CB1.7VIBRATORYCOMPACTORSA7

Configuration:CB1.7VibratoryUtilityCompactorSA700001-UP(MACHINE)POWEREDBYC1.1Engine

OperationandMaintenanceManual

CB1.7andCB1.8UtilityCompactors

MediaNumber-M0082430-01PublicationDate-01/12/2017DateUpdated-25/12/2017 i07016181

EngineAirFilterSecondaryElement-Replace

SMCS-1054-510-SE

NOTICE

Alwaysreplacethesecondaryfilterelement.Neverattempttoreusethe secondaryfilterelementbycleaningtheelement.

Whentheprimaryfilterelementisreplaced,thesecondaryfilter elementshouldbereplaced.

Thesecondaryfilterelementshouldalsobereplacediftheexhaust smokeisstillblack.

1.Opentheengineaccessdoor.

2.SeeOperationandMaintenanceManual,"EngineAirFilterPrimaryElementClean/Replace".Removetheaircleanercoverfromtheaircleanerhousing.Removethe primaryfilterelementfromtheaircleanerhousing.

This is the sample of the manual Click on the download link for complete Manual

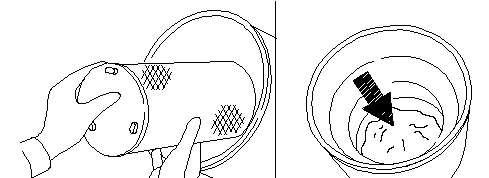

3.Removethesecondaryfilterelement.

4.Covertheairinletopening.Cleantheinsideoftheaircleanerhousing.

5.Removethecoverfromtheairinletopening.

6.Installthenewsecondaryfilterelement.

7.Installtheprimaryfilterelement.

8.Installtheaircleanercoverandclosethelatchessecurely.

9.Closetheengineaccessdoor.

Copyright1993-2025CaterpillarInc. AllRightsReserved. PrivateNetworkForSISLicensees.

WedApr3002:12:44UTC+05302025

Product:VIBRATORYCOMPACTOR

Model:CB1.7VIBRATORYCOMPACTORSA7

Configuration:CB1.7VibratoryUtilityCompactorSA700001-UP(MACHINE)POWEREDBYC1.1Engine

OperationandMaintenanceManual

CB1.7andCB1.8UtilityCompactors

MediaNumber-M0082430-01PublicationDate-01/12/2017DateUpdated-25/12/2017 i07016302

EngineOilSample-Obtain

SMCS-1000-008

Hotoilandhotcomponentscancausepersonalinjury.Donotallowhot oilorhotcomponentstocontacttheskin.

ObtaintheSampleandtheAnalysis

Inadditiontoagoodpreventivemaintenanceprogram,CaterpillarrecommendsusingS·O·Soil analysisatregularscheduledintervalsinordertomonitortheconditionoftheengineandthe maintenancerequirementsoftheengine.

Eachoilsampleshouldbetakenwhentheoiliswarmandwhentheoiliswellmixed.Thesample shouldbetakenatthistimeinordertoensurethatthesampleisrepresentativeoftheoilinthe crankcase.

ObtaintheS·O·SSample

UsethefollowingmethodinordertoobtainanS·O·Ssample:

•Usea1U-5718VacuumPumporuseanequivalentpumpthatisinsertedintothesump.

Toavoidcontaminationoftheoilsamples,thetoolsandthesuppliesthatareusedforobtainingoil samplesmustbeclean.

ConsultyourCaterpillardealerforcompleteinformationandassistanceinestablishinganS·O·S programforyourengine.

Ifyoufilltheenginetoofastwithoil,theoilmaysaturatetheenginebreather.Ifthebreatheris saturatedwithoil,oilwillblowoutofthebreatherhoseuntilthebreatherisfreeofoil.Addthe engineoilatarateof2L/min(0.5283USgpm).Thiswillhelppreventsaturatingthebreather withoil.

Copyright1993-2025CaterpillarInc. AllRightsReserved. PrivateNetworkForSISLicensees.

WedApr3002:12:42UTC+05302025

Product:VIBRATORYCOMPACTOR

Model:CB1.7VIBRATORYCOMPACTORSA7

Configuration:CB1.7VibratoryUtilityCompactorSA700001-UP(MACHINE)POWEREDBYC1.1Engine

OperationandMaintenanceManual

CB1.7andCB1.8UtilityCompactors

MediaNumber-M0082430-01PublicationDate-01/12/2017DateUpdated-25/12/2017

EngineAirFilterPrimaryElement-Clean/Replace

SMCS-1054-070-PY;1054-510-PY

NOTICE

Servicetheaircleaneronlywiththeenginestopped.Enginedamage couldresult.

Servicetheaircleanerfilterelementwhentheairfilterserviceindicatorhastriggeredand showsredintheindicatorwindow.RefertoOperationandMaintenanceManual,"Operator Controls".

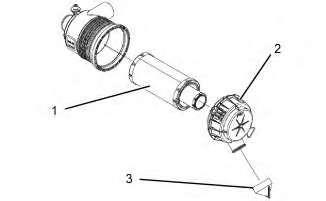

Illustration1g02874496

1.Removecover(2)fortheairfilterhousingbyunlatchingthe2clipsholdingthecoveronto thefilterhousing.

2.Removeprimaryfilterelement(1)fromtheairfilterhousing.

3.Cleantheinsidetheairfilterhousing.

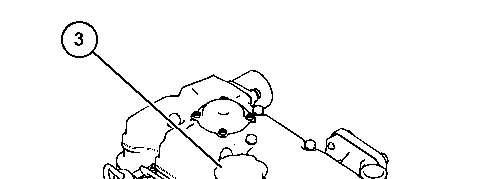

4.Cleandustcap(3).

5.Installacleanprimaryairfilterelement.Installthecoverfortheairfilterhousingwiththe dustcappointingdown.

6.Closethehood.

Aftercleaningtheprimaryfilterelement,iftheairfilterindicatortriggersafterstartingtheengine ortheexhaustsmokeisstillblack,installanewprimaryfilterelement.Iftheairfilterindicator remainsactivated,replacethesecondaryelement.

CleaningPrimaryAirFilterElements

NOTICE

Caterpillarrecommendscertifiedairfiltercleaningservicesavailable atparticipatingCaterpillardealers.TheCaterpillarcleaningprocess usesprovenprocedurestoassureconsistentqualityandsufficientfilter life.

Observethefollowingguidelinesifyouattempttocleanthefilter element:

Donottaporstrikethefilterelementinordertoremovedust.

Donotwashthefilterelement.

Uselowpressurecompressedairinordertoremovethedustfromthe filterelement.Airpressuremustnotexceed207kPa(30psi).Directthe airflowupthepleatsanddownthepleatsfromtheinsideofthefilter element.Takeextremecareinordertoavoiddamagetothepleats.

Donotuseairfilterswithdamagedpleats,gaskets,orseals.Dirt enteringtheenginewillcausedamagetoenginecomponents.

Theprimaryairfilterelementcanbeuseduptosixtimesiftheelementisproperlycleanedandif theelementisproperlyinspected.Whentheprimaryairfilterelementiscleaned,checkforripsor tearsinthefiltermaterial.Theprimaryairfilterelementshouldbereplacedatleastonetimeper year.Thisreplacementshouldbeperformedregardlessofthenumberofcleanings.

NOTICE

Donotcleantheairfilterelementsbybumpingortapping.Thiscould damagetheseals.Donotuseelementswithdamagedpleats,gaskets,or seals.Damagedelementswillallowdirttopassthrough.Engine damagecouldresult.

Visuallyinspecttheprimaryairfilterelementsbeforecleaning.Inspecttheairfilterelementsfor damagetotheseal,thegaskets,andtheoutercover.Discardanydamagedairfilterelements.

Therearetwocommonmethodsthatareusedtocleanprimaryairfilterelements:

•Pressurizedair

•Vacuumcleaning

PressurizedAir

Pressurizedaircanbeusedtocleantheprimaryairfilterelement.Donotcleantheprimaryair filterwithpressurizedairmorethantwotimes.Pressurizedairwillnotremovedepositsofcarbon andoil.Usefiltered,dryairwithamaximumpressureof207kPa(30psi).

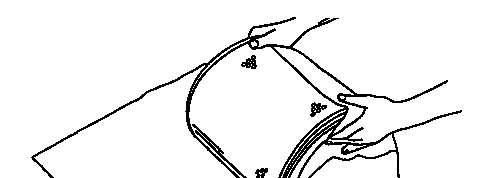

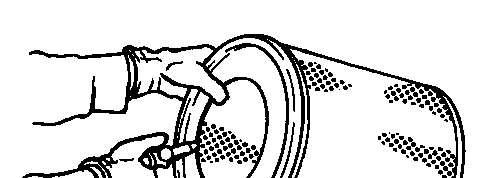

Illustration2g00281692

Note:Whentheprimaryairfilterelementsarecleaned,alwaysbeginwiththecleanside(inside) toforcedirtparticlestowardthedirtyside(outside).

Aimthehosesothattheairflowsinsidetheelementalongthelengthofthefiltertohelpprevent damagetothepaperpleats.Donotaimthestreamofairdirectlyattheprimaryairfilterelement. Dirtcouldbeforcedfurtherintothepleats.

VacuumCleaning

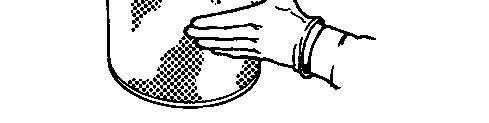

Vacuumcleaningisanothermethodforcleaningprimaryairfilterelementswhichrequiredaily cleaningbecauseofadry,dustyenvironment.Cleaningwithpressurizedairisrecommendedprior tovacuumcleaning.Vacuumcleaningwillnotremovedepositsofcarbonandoil.

InspectingthePrimaryAirFilterElements

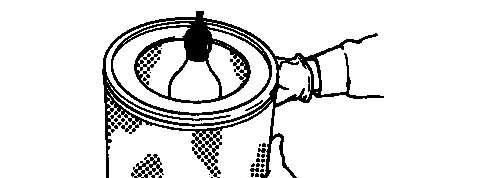

Inspecttheclean,dryprimaryairfilterelement.Usea60wattbluelightinadarkroomorina similarfacility.Placethebluelightintheprimaryairfilterelement.Rotatetheprimaryairfilter element.Inspecttheprimaryairfilterelementfortearsand/orholes.Inspecttheprimaryairfilter elementforlightthatmayshowthroughthefiltermaterial.Ifitisnecessarytoconfirmtheresult, comparetheprimaryairfilterelementtoanewprimaryairfilterelementthathasthesamepart number.

Donotuseaprimaryairfilterelementthathasanytearsand/orholesinthefiltermaterial.Donot useaprimaryairfilterelementwithdamagedpleats,gaskets,orseals.Discarddamagedprimary airfilterelements.

StoringPrimaryAirFilterElements

Ifaprimaryairfilterelementthatpassesinspectionwillnotbeused,theprimaryairfilterelement canbestoredforfutureuse.

Illustration4g00281694

Donotusepaint,awaterproofcover,orplasticasaprotectivecoveringforstorage.Anairflow restrictionmayresult.Toprotectagainstdirtanddamage,wraptheprimaryairfilterelementsin VolatileCorrosionInhibited(VCI)paper.

Placetheprimaryairfilterelementintoaboxforstorage.Foridentification,marktheoutsideof theboxandmarktheprimaryairfilterelement.Includethefollowinginformation:

•Dateofcleaning

•Numberofcleanings

Storetheboxinadrylocation.

Copyright1993-2025CaterpillarInc. AllRightsReserved. PrivateNetworkForSISLicensees.

WedApr3002:12:31UTC+05302025

Product:VIBRATORYCOMPACTOR

Model:CB1.7VIBRATORYCOMPACTORSA7

Configuration:CB1.7VibratoryUtilityCompactorSA700001-UP(MACHINE)POWEREDBYC1.1Engine

OperationandMaintenanceManual

CB1.7andCB1.8UtilityCompactors

MediaNumber-M0082430-01PublicationDate-01/12/2017DateUpdated-25/12/2017 i07016308

EngineOilandFilter-Change

SMCS-1318-510

Runtheenginetowarmuptheoil.Stoptheenginebeforeyoudraintheoil.Whentheoiliswarm, thewasteparticlesaresuspendedintheoil.Thewasteparticleswillberemovedwhentheoilis drained.

Astheoilcools,thewasteparticlessettletothebottomoftheoilpan.Thewasteparticleswillnot beremovediftheoilistoocool.

Thewasteparticlescanrecirculatethroughtheenginelubricationsystemiftherecommended procedureisnotfollowed.

1.Opentheenginehood.RefertotheOperationandMaintenanceManual,"AccessDoorsand Covers".

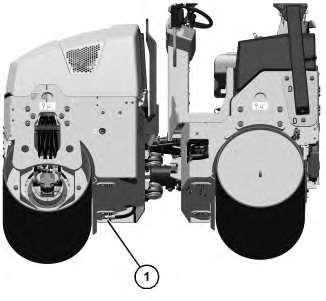

2.Placeasuitablecontainerunderthedrainplug(1).Thedrainplugislocatedbelowthefront frame.Removethedrainplug.RefertotheOperationandMaintenanceManual,"General HazardInformation"forinformationthatpertainstocontainingfluidspillage.

3.Allowtheoiltodrain.

4.Reinstallthedrainplug.

Illustration2g06266361

5.Removefilterelement(2).

Note:Discardtheusedfilterelementaccordingtolocalregulations.

6.Cleanthefilterhousingbase.Alltheoldfiltersealmustberemovedfromthefilterhousing base.

7.Applyathincoatofengineoiltothesealofthenewfilterelement.

8.Installthenewfilterbyhand.Whenthegasketcontactsthefilterbase,tightenthefilter elementforanextra3/4turn.Thiswilltightenthefiltersufficiently.

Everynewoilfilterhasrotationindexmarksthatarespacedat90degreeincrements.Use therotationindexmarksasaguidefortighteningtheoilfilter.

9.Removeoilfillercap(3).Fillthecrankcasewithnewoil.SeeOperationandMaintenance Manual,"LubricantViscosities"andOperationandMaintenanceManual,"Capacities (Refill)"forfurtherinformation.Cleantheoilfillercapandinstalltheoilfillercap.

10.Beforeyoustarttheengine,checktheoillevelonengineoillevelgauge(4).Theoillevel mustbebetweenthe"MAX"and"MIN"marks.

11.Starttheengine.Runtheenginefor2minutes.Inspectthemachineforleaks.Stopthe machine.

12.Waitfor10minutestoallowtheoiltodrainbackintothecrankcase.Checktheoillevel. Maintaintheoillevelbetweenthe"MAX"and"MIN"marksontheengineoillevelgauge.

13.Closetheenginehood.

Copyright1993-2025CaterpillarInc. AllRightsReserved. PrivateNetworkForSISLicensees.

WedApr3002:12:22UTC+05302025

Product:VIBRATORYCOMPACTOR

Model:CB1.7VIBRATORYCOMPACTORSA7

Configuration:CB1.7VibratoryUtilityCompactorSA700001-UP(MACHINE)POWEREDBYC1.1Engine

OperationandMaintenanceManual

CB1.7andCB1.8UtilityCompactors

MediaNumber-M0082430-01PublicationDate-01/12/2017DateUpdated-25/12/2017

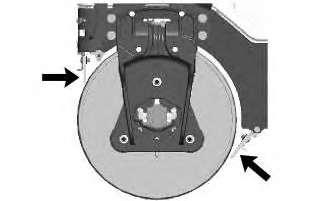

DrumScrapers-Inspect/Adjust/Replace

SMCS-6607-025;6607-040;6607-510

InspectScrapers

1.Removedirtanddebrisfromscrapers.

2.Thedrumscrapershouldbeadjustedinordertotouchthewidthofthedrum.

ReplaceScrapers

1.Loosentheboltsandremovethedamagedscraper.

2.Installthenewscraperandtightenthebolts.Therecommendedtorquefortheboltsis 34N·m(25lbft).

3.Thedrumscrapershouldbeadjustedinordertotouchthewidthofthedrum.

WedApr3002:12:21UTC+05302025

Product:VIBRATORYCOMPACTOR

Model:CB1.7VIBRATORYCOMPACTORSA7

Configuration:CB1.7VibratoryUtilityCompactorSA700001-UP(MACHINE)POWEREDBYC1.1Engine

OperationandMaintenanceManual

CB1.7andCB1.8UtilityCompactors

MediaNumber-M0082430-01PublicationDate-01/12/2017DateUpdated-25/12/2017 i07016309

EngineValveLash-Check

SMCS-1105-535

ThismaintenanceisrecommendedbyCaterpillaraspartofalubricationandpreventive maintenancescheduleinordertohelpprovidemaximumenginelife.

Foradditionalinformationrefertotheenginemanualforthemachine.

NOTICE

Onlyqualifiedservicepersonnelshouldperformthismaintenance. RefertotheServiceManualoryourCaterpillardealerforthe completevalvelashadjustmentprocedure.

OperationofCaterpillarengineswithimpropervalveadjustmentscan reduceengineefficiency.Thisreducedefficiencycouldresultin excessivefuelusageand/orshortenedenginecomponentlife.

Copyright1993-2025CaterpillarInc. AllRightsReserved. PrivateNetworkForSISLicensees.

WedApr3002:12:12UTC+05302025

Product:VIBRATORYCOMPACTOR

Model:CB1.7VIBRATORYCOMPACTORSA7

Configuration:CB1.7VibratoryUtilityCompactorSA700001-UP(MACHINE)POWEREDBYC1.1Engine

OperationandMaintenanceManual

CB1.7andCB1.8UtilityCompactors

MediaNumber-M0082430-01PublicationDate-01/12/2017DateUpdated-25/12/2017

CoolingSystemPressureCap-Clean/Replace

SMCS-1382-070;1382-510

Personalinjurycanresultfromhotcoolant,steamandalkali.

Atoperatingtemperature,enginecoolantishotandunderpressure.The radiatorandalllinestoheatersortheenginecontainhotcoolantor steam.Anycontactcancausesevereburns.

Removecoolingsystempressurecapslowlytorelievepressureonly whenengineisstoppedandcoolingsystempressurecapiscoolenough totouchwithyourbarehand.

Donotattempttotightenhoseconnectionswhenthecoolantishot,the hosecancomeoffcausingburns.

CoolingSystemCoolantAdditivecontainsalkali.Avoidcontactwith skinandeyes.

1.Opentheenginecompartment.RefertotheOperationandMaintenanceManual,"Access DoorsandCovers".
