Product:VIBRATORYCOMPACTOR
Model:CB-534DVIBRATORYCOMPACTORC8M
Configuration:CB534DCB534DXWVibratoryCompactorC8M00001-UP(MACHINE)POWEREDBY3054CEngine
OperationandMaintenanceManual
CB-534DandCB-564DAsphaltCompactors
MediaNumber-KEBU7514-16PublicationDate-01/02/2015DateUpdated-31/05/2016
Foreword
SMCS-1000;7000
LiteratureInformation
Thismanualshouldbestoredintheoperator'scompartmentintheliteratureholderorseatback literaturestoragearea.
Thismanualcontainssafetyinformation,operationinstructions,transportationinformation, lubricationinformationandmaintenanceinformation.
Somephotographsorillustrationsinthispublicationshowdetailsorattachmentsthatcanbe differentfromyourmachine.Guardsandcoversmighthavebeenremovedforillustrative purposes.
Continuingimprovementandadvancementofproductdesignmighthavecausedchangestoyour machinewhicharenotincludedinthispublication.Read,studyandkeepthismanualwiththe machine.
Wheneveraquestionarisesregardingyourmachine,orthispublication,pleaseconsultyourCat dealerforthelatestavailableinformation.
Safety
Thesafetysectionlistsbasicsafetyprecautions.Inaddition,thissectionidentifiesthetextand locationsofwarningsignsandlabelsusedonthemachine.
Readandunderstandthebasicprecautionslistedinthesafetysectionbeforeoperatingor performinglubrication,maintenanceandrepaironthismachine.
Operation
Theoperationsectionisareferenceforthenewoperatorandarefresherfortheexperienced operator.Thissectionincludesadiscussionofgauges,switches,machinecontrols,attachment controls,transportationandtowinginformation.
Photographsandillustrationsguidetheoperatorthroughcorrectproceduresofchecking,starting, operatingandstoppingthemachine.
Operatingtechniquesoutlinedinthispublicationarebasic.Skillandtechniquesdevelopasthe operatorgainsknowledgeofthemachineanditscapabilities.
Maintenance
Themaintenancesectionisaguidetoequipmentcare.TheMaintenanceIntervalSchedule(MIS) liststheitemstobemaintainedataspecificserviceinterval.Itemswithoutspecificintervalsare listedunderthe"WhenRequired"serviceinterval.TheMaintenanceIntervalScheduleliststhe pagenumberforthestep-by-stepinstructionsrequiredtoaccomplishthescheduledmaintenance. UsetheMaintenanceIntervalScheduleasanindexor"onesafesource"forallmaintenance procedures.
MaintenanceIntervals
Usetheservicehourmetertodetermineservicingintervals.Calendarintervalsshown(daily, weekly,monthly,etc.)canbeusedinsteadofservicehourmeterintervalsiftheyprovidemore convenientservicingschedulesandapproximatetheindicatedservicehourmeterreading. Recommendedserviceshouldalwaysbeperformedattheintervalthatoccursfirst.
Underextremelysevere,dustyorwetoperatingconditions,morefrequentlubricationthanis specifiedinthemaintenanceintervalschartmightbenecessary.
Performserviceonitemsatmultiplesoftheoriginalrequirement.Forexample,atevery500 servicehoursor3months,alsoservicethoseitemslistedunderevery250servicehoursor monthlyandevery10servicehoursordaily.
CaliforniaProposition65Warning
DieselengineexhaustandsomeofitsconstituentsareknowntotheStateofCaliforniatocause cancer,birthdefects,andotherreproductiveharm.
Batteryposts,terminalsandrelatedaccessoriescontainleadandleadcompounds.Washhands afterhandling.
CertifiedEngineMaintenance
Propermaintenanceandrepairisessentialtokeeptheengineandmachinesystemsoperating correctly.Astheheavydutyoff-roaddieselengineowner,youareresponsiblefortheperformance oftherequiredmaintenancelistedintheOwnerManual,OperationandMaintenanceManual,and ServiceManual.
Itisprohibitedforanypersonengagedinthebusinessofrepairing,servicing,selling,leasing,or tradingenginesormachinestoremove,alter,orrenderinoperativeanyemissionrelateddeviceor elementofdesigninstalledonorinanengineormachinethatisincompliancewiththe
regulations(40CFRPart89).Certainelementsofthemachineandenginesuchastheexhaust system,fuelsystem,electricalsystem,intakeairsystemandcoolingsystemmaybeemission relatedandshouldnotbealteredunlessapprovedbyCaterpillar.
MachineCapacity
Additionalattachmentsormodificationsmayexceedmachinedesigncapacitywhichcan adverselyaffectperformancecharacteristics.Includedwouldbestabilityandsystemcertifications suchasbrakes,steering,androlloverprotectivestructures(ROPS).ContactyourCatdealerfor furtherinformation.
CatProductIdentificationNumber
EffectiveFirstQuarter2001theCatProductIdentificationNumber(PIN)haschangedfrom8to 17characters.Inanefforttoprovideuniformequipmentidentification,Caterpillarandother constructionequipmentmanufacturersaremovingtocomplywiththelatestversionoftheproduct identificationnumberingstandard.Non-roadmachinePINsaredefinedbyISO10261.Thenew PINformatwillapplytoallCatmachinesandgeneratorsets.ThePINplatesandframemarking willdisplaythe17characterPIN.Thenewformatwilllooklikethefollowing:
1.Caterpillar'sWorldManufacturingCode(characters1-3)
2.MachineDescriptor(characters4-8)
3.CheckCharacter(character9)
4.MachineIndicatorSection(MIS)orProductSequenceNumber(characters10-17).Thesewere previouslyreferredtoastheSerialNumber.
MachinesandgeneratorsetsproducedbeforeFirstQuarter2001willmaintaintheir8character PINformat.
Componentssuchasengines,transmissions,axles,etc.andworktoolswillcontinuetousean8 characterSerialNumber(S/N).
Copyright1993-2022CaterpillarInc. AllRightsReserved. PrivateNetworkForSISLicensees.
WedMar1602:28:41UTC+05302022
WedMar1602:27:23UTC+05302022
This is the sample of the manual Click on the download link for complete Manual
Product:VIBRATORYCOMPACTOR
Model:CB-534DVIBRATORYCOMPACTORC8M Configuration:CB534DCB534DXWVibratoryCompactorC8M00001-UP(MACHINE)POWEREDBY3054CEngine
WedMar1602:29:23UTC+05302022
Product:VIBRATORYCOMPACTOR
Model:CB-534DVIBRATORYCOMPACTORC8M
Configuration:CB534DCB534DXWVibratoryCompactorC8M00001-UP(MACHINE)POWEREDBY3054CEngine
WedMar1602:29:36UTC+05302022
Product:VIBRATORYCOMPACTOR
Model:CB-534DVIBRATORYCOMPACTORC8M
Configuration:CB534DCB534DXWVibratoryCompactorC8M00001-UP(MACHINE)POWEREDBY3054CEngine
WedMar1602:29:49UTC+05302022

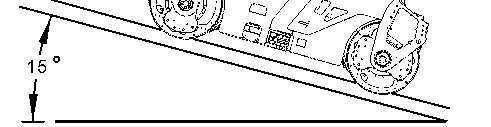

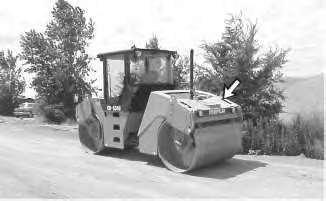

Personalinjurycanresultifthemachinemoveswhiletesting.
Ifthemachinebeginstomove,placethethrottlecontrolinHIGH IDLE,releasetheparkingbrakeandusethepropelleverinorder tomovethemachinetoalevelsurface.
NOTICE
Ifthemachinemovedduringthebraketest,consultyour Caterpillardealer.
Thedealermustinspectthebrakesystemandmakeany necessaryrepairsbeforethemachineisreturnedtooperation.
Copyright1993-2022CaterpillarInc.
WedMar1602:30:03UTC+05302022
Note:
WedMar1602:30:18UTC+05302022

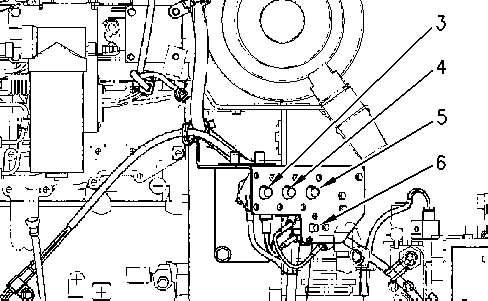

Lights(1)
Lights(2)
MainBreaker(3)
Alternator(4)
GlowPlugs(5)
High/LowThrottle(6)
Copyright1993-2022CaterpillarInc. AllRightsReserved. PrivateNetworkForSISLicensees.
WedMar1602:30:33UTC+05302022
Product:VIBRATORYCOMPACTOR
Model:CB-534DVIBRATORYCOMPACTORC8M
Configuration:CB534DCB534DXWVibratoryCompactorC8M00001-UP(MACHINE)POWEREDBY3054CEngine
OperationandMaintenanceManual
CB-534DandCB-564DAsphaltCompactors
MediaNumber-KEBU7514-16PublicationDate-01/02/2015DateUpdated-31/05/2016

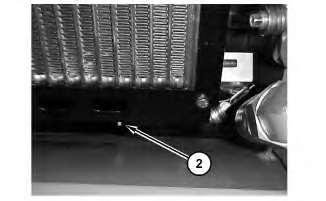

Personalinjurycanresultfromhotcoolant,steamandalkali.
Atoperatingtemperature,enginecoolantishotandunder pressure.Theradiatorandalllinestoheatersortheengine containhotcoolantorsteam.Anycontactcancausesevere burns.
Removecoolingsystempressurecapslowlytorelievepressure onlywhenengineisstoppedandcoolingsystempressurecapis coolenoughtotouchwithyourbarehand.
Donotattempttotightenhoseconnectionswhenthecoolantis hot,thehosecancomeoffcausingburns.
CoolingSystemCoolantAdditivecontainsalkali.Avoidcontact withskinandeyes.
NOTICE
Caremustbetakentoensurethatfluidsarecontainedduring performanceofinspection,maintenance,testing,adjustingand repairofthemachine.Bepreparedtocollectthefluidwith suitablecontainersbeforeopeninganycompartmentor disassemblinganycomponentcontainingfluids.
RefertoSpecialPublication,NENG2500,"CaterpillarToolsand ShopProductsGuide",fortoolsandsuppliessuitabletocollect andcontainfluidsinCaterpillarmachines.
Disposeofallfluidsaccordingtolocalregulationsand mandates.
NOTICE
Donotchangethecoolantuntilyoureadandunderstandthe materialintheCoolingSystemSpecificationssection.
NOTICE
MixingExtendedLifeCoolant(ELC)withotherproducts reducestheeffectivenessofthecoolantandshortenscoolant life.UseonlyCaterpillarproductsorcommercialproductsthat havepassedtheCaterpillarEC-1specificationsforpremixedor concentratecoolants.UseonlyCaterpillarExtenderwith CaterpillarELC.Failuretofollowtheserecommendationscould resultinthedamagetocoolingsystemscomponents.
IfELCcoolingsystemcontaminationoccurs,refertoOperation andMaintenance,"ExtendedLifeCoolant(ELC)"underthe topicELCCoolingSystemContamination.
