OperationandMaintenanceManual
MediaNumber-KEBU7520-07PublicationDate-01/02/2009DateUpdated-04/03/2009
EngineValveLash-Check
SMCS-1105-535
ThismaintenanceisrecommendedbyCaterpillaraspartofalubricationandpreventive maintenancescheduleinordertohelpprovidemaximumenginelife.
NOTICE
Onlyqualifiedservicepersonnelshouldperformthismaintenance. RefertotheServiceManualoryourCaterpillardealerforthe completevalvelashadjustmentprocedure.
OperationofCaterpillarengineswithimpropervalveadjustmentscan reduceengineefficiency.Thisreducedefficiencycouldresultin excessivefuelusageand/orshortenedenginecomponentlife.
Copyright1993-2023CaterpillarInc. AllRightsReserved. PrivateNetworkForSISLicensees.
SatFeb1821:19:59UTC+05302023
Product:VIBRATORYCOMPACTOR
Model:CB-224EVIBRATORYCOMPACTOR224
Configuration:CB-214E,CB-224E,CB-225EVibratoryCompactor22400001-UP(MACHINE)POWEREDBY3013CEngine
MediaNumber-KEBU7520-07PublicationDate-01/02/2009DateUpdated-04/03/2009
EngineOilandFilter-Change
SMCS-1318-510
Runtheengineinordertowarmuptheoil.Stoptheenginebeforeyoudraintheoil.Whentheoil iswarmthewasteparticlesaresuspendedintheoil.Thewasteparticleswillberemovedwhenthe oilisdrained.
Astheoilcools,thewasteparticlessettletothebottomoftheoilpan.Thewasteparticleswillnot beremovediftheoilistoocool.
Thewasteparticlescanrecirculatethroughtheenginelubricationsystemiftherecommended procedureisnotfollowed.
1.Opentheenginecompartment.RefertotheOperationandMaintenanceManual,"Access DoorsandCovers".
i01977942

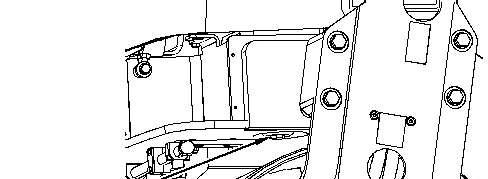

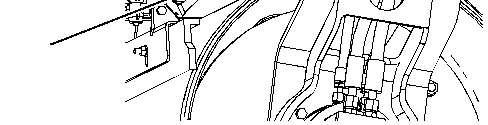

Illustration1g01033955
2.Placeasuitablecontainerunderthedrainhose.Thedrainhoseislocatedbelowthefront frame.Openthedrainvalve.RefertotheOperationandMaintenanceManual,"General HazardInformation"forinformationthatpertainstocontainingfluidspillage.
3.Allowtheoiltocompletelydrain.
4.Closethedrainvalve.

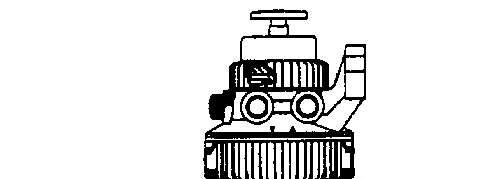

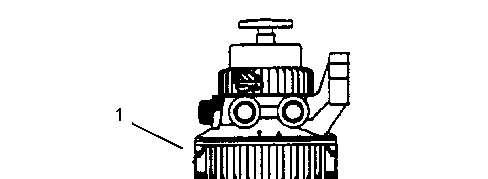

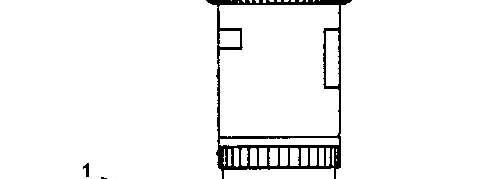

Illustration2g01033957

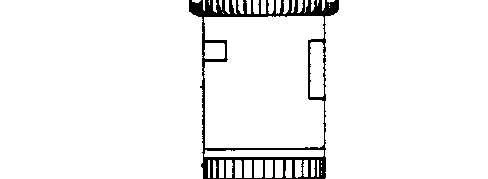

5.Removefilterelement(2).
Note:Discardtheusedfilterelementaccordingtolocalregulations.
6.Cleanthefilterhousingbase.Alloftheoldfiltersealmustberemovedfromthefilter housingbase.
7.Applyathincoatofengineoiltothesealofthenewfilterelement.
8.Installthenewfilterbyhand.Whenthegasketcontactsthefilterbase,tightenthefilter elementforanadditional3/4turn.Thiswilltightenthefiltersufficiently.
Everynewoilfilterhasrotationindexmarksthatarespacedat90degreeincrements.Use therotationindexmarksasaguidefortighteningtheoilfilter.

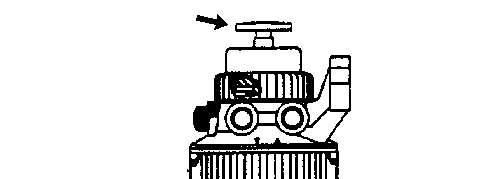

9.Removeoilfillercap(1).Fillthecrankcasewithnewoil.SeeOperationandMaintenance Manual,"LubricantViscosities"andOperationandMaintenanceManual,"Capacities (Refill)"forfurtherinformation.Cleantheoilfillercapandinstalltheoilfillercap.
10.Beforeyoustarttheengine,checktheoillevelondipstick(3).Theoillevelmustbewithin theFULLRANGEonthedipstick.
11.Starttheengine.Runtheenginefortwominutes.Inspectthemachineforleaks.Stopthe machine.
12.Waitfortenminutesinordertoallowtheoiltodrainbackintothecrankcase.Checktheoil level.MaintaintheoillevelwithintheFULLRANGEonthedipstick.
13.Closetheenginecompartment.
Copyright1993-2023CaterpillarInc. AllRightsReserved. PrivateNetworkForSISLicensees.
SatFeb1821:19:37UTC+05302023
Product:VIBRATORYCOMPACTOR
Model:CB-224EVIBRATORYCOMPACTOR224
Configuration:CB-214E,CB-224E,CB-225EVibratoryCompactor22400001-UP(MACHINE)POWEREDBY3013CEngine
Product:VIBRATORYCOMPACTOR
Model:CB-224EVIBRATORYCOMPACTOR224
Configuration:CB-214E,CB-224E,CB-225EVibratoryCompactor22400001-UP(MACHINE)POWEREDBY3013CEngine
OperationandMaintenanceManual CB-214E,CB-224EandCB-225EPavingCompactors
MediaNumber-KEBU7520-07PublicationDate-01/02/2009DateUpdated-04/03/2009
EngineOilSample-Obtain
SMCS-1000-008
Hotoilandhotcomponentscancausepersonalinjury.Donotallowhot oilorhotcomponentstocontacttheskin.
ObtaintheSampleandtheAnalysis
Inadditiontoagoodpreventivemaintenanceprogram,CaterpillarrecommendsusingS路O路Soil analysisatregularscheduledintervalsinordertomonitortheconditionoftheengineandthe maintenancerequirementsoftheengine.
Eachoilsampleshouldbetakenwhentheoiliswarmandwhentheoiliswellmixed.Thesample shouldbetakenatthistimeinordertoensurethatthesampleisrepresentativeoftheoilinthe crankcase.
ObtaintheS路O路SSample
UsethefollowingmethodinordertoobtainanS路O路Ssample:
鈥sea1U-5718VacuumPumporuseanequivalentpumpthatisinsertedintothesump.
Toavoidcontaminationoftheoilsamples,thetoolsandthesuppliesthatareusedforobtainingoil samplesmustbeclean.
ConsultyourCaterpillardealerforcompleteinformationandassistanceinestablishinganS路O路S programforyourengine.
i01175145
Ifyoufilltheenginetoofastwithoil,theoilmaysaturatetheenginebreather.Ifthebreatheris saturatedwithoil,oilwillblowoutofthebreatherhoseuntilthebreatherisfreeofoil.Addthe engineoilatarateof2L/min(0.5283USgpm).Thiswillhelppreventsaturatingthebreather withoil.
Copyright1993-2023CaterpillarInc. AllRightsReserved. PrivateNetworkForSISLicensees.
SatFeb1821:19:21UTC+05302023
Product:VIBRATORYCOMPACTOR
Model:CB-224EVIBRATORYCOMPACTOR224
Configuration:CB-214E,CB-224E,CB-225EVibratoryCompactor22400001-UP(MACHINE)POWEREDBY3013CEngine
OperationandMaintenanceManual CB-214E,CB-224EandCB-225EPavingCompactors
MediaNumber-KEBU7520-07PublicationDate-01/02/2009DateUpdated-04/03/2009 i01977939
EngineOilLevel-Check
SMCS-1348-535-FLV
Donotunderfilloroverfillenginecrankcasewithoil.Eithercondition cancauseenginedamage.
Stoptheengineinordertochecktheoillevel.DONOTchecktheoillevelwhentheengineis running.
Parkthemachineonalevelsurface.
1.Opentheenginecompartment.

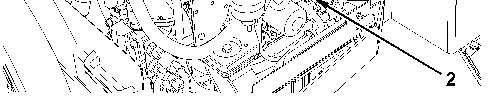

2.Removedipstick(2).Wipethedipstickwithacleancloth.Insertthedipstick.Removethe dipstickandnotetheoillevel.Insertthedipstick.
