Product:VIBRATORYCOMPACTOR
Model:CB-224CVIBRATORYCOMPACTOR3AL
Configuration:CB-214CCB-224CVibratoryCompactors3AL00001-UP(MACHINE)POWEREDBYHATZEngine
OperationandMaintenanceManual
CB-214C&CB-224CVIBRATORYCOMPACTORS
MediaNumber-KEBU6653-01PublicationDate-01/01/1998DateUpdated-29/01/2002
ProductIdentificationAndSerialNumberLocation
TheProductIdentificationNumber(PIN)isusedtoidentifyapoweredmachinethatisdesigned foranoperatortoride.
Caterpillarproductsnotdesignedforanoperatortoride(engines,transmissions,etc.)are identifiedbySerialNumbers.Also,mostmajorCaterpillarattachmentsareidentifiedbySerial Numbers.
Forquickreference,recordtheidentificationnumbersinthespacesprovidedbelowthe illustration.
MonJun3022:22:14UTC+05302025
Product:VIBRATORYCOMPACTOR
Model:CB-224CVIBRATORYCOMPACTOR3AL
Configuration:CB-214CCB-224CVibratoryCompactors3AL00001-UP(MACHINE)POWEREDBYHATZEngine
OperationandMaintenanceManual
CB-214C&CB-224CVIBRATORYCOMPACTORS
MediaNumber-KEBU6653-01PublicationDate-01/01/1998DateUpdated-29/01/2002
SpecificationsAndModelViews
VibratoryDrum(1),Operator'sStation(2),WaterTank(3),FuelTank(underaccesscover)(4).
EngineCompartment(5),VibrationMotor(6),PropelMotor(7)andScraper(8).
Enginestartswitch(9)andmonitoringsystem(10).

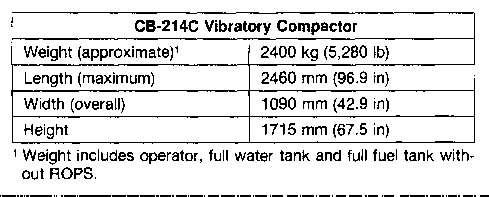

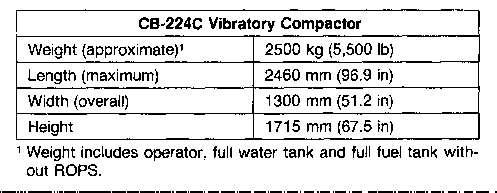

Basicmachineshippingspecificationsarelistedbelow.
Copyright1993-2025CaterpillarInc. AllRightsReserved. PrivateNetworkForSISLicensees.
MonJun3022:22:01UTC+05302025
Product:VIBRATORYCOMPACTOR
Model:CB-224CVIBRATORYCOMPACTOR3AL
Configuration:CB-214CCB-224CVibratoryCompactors3AL00001-UP(MACHINE)POWEREDBYHATZEngine
OperationandMaintenanceManual
CB-214C&CB-224CVIBRATORYCOMPACTORS
MediaNumber-KEBU6653-01PublicationDate-01/01/1998DateUpdated-29/01/2002
Foreword
LiteratureInformation
Thismanualshouldbestoredintheoperator'sstationintheliteratureholderorseatbackliterature storagearea.
Thismanualcontainssafety,operation,transportation,lubricationandmaintenanceinformation.
Somephotographsorillustrationsinthispublicationshowdetailsorattachmentsthatcanbe differentfromyourmachine.Guardsandcoversmighthavebeenremovedforillustrative purposes.
Continuingimprovementandadvancementofproductdesignmighthavecausedchangestoyour machinewhicharenotincludedinthispublication.Read,studyandkeepthismanualwiththe machine.
Wheneveraquestionarisesregardingyourmachine,orthispublication,pleaseconsultyour Caterpillardealerforthelatestavailableinformation.
Safety
TheSafetySectionlistsbasicsafetyprecautions.Inaddition,thissectionidentifiesthetextand locationsofwarningsignsandlabelsusedonthemachine.
ReadandunderstandthebasicprecautionslistedintheSafetySectionbeforeoperatingor performinglubrication,maintenanceandrepaironthismachine.
Operation
TheOperationSectionisareferenceforthenewoperatorandarefresherfortheexperiencedone. Thissectionincludesadiscussionofgauges,switches,machinecontrols,attachmentcontrols, transportationandtowinginformation.
Photographsandillustrationsguidetheoperatorthroughcorrectproceduresofchecking,starting, operatingandstoppingthemachine.
Operatingtechniquesoutlinedinthispublicationarebasic.Skillandtechniquesdevelopasthe operatorgainsknowledgeofthemachineanditscapabilities.
Maintenance
TheMaintenanceSectionisaguidetoequipmentcare.Theillustrated,step-by-stepinstructions aregroupedbyservicingintervals.ItemswithoutspecificintervalsarelistedunderWhen Requiredtopics.ItemsintheMaintenanceIntervalschartarereferencedtodetailedinstructions thatfollow.
MaintenanceIntervals
Usetheservicehourmetertodetermineservicingintervals.Calendarintervalsshown(daily, weekly,monthly,etc.)canbeusedinsteadofservicehourmeterintervalsiftheyprovidemore convenientservicingschedulesandapproximatetheindicatedservicehourmeterreading. Recommendedserviceshouldalwaysbeperformedattheintervalthatoccursfirst.
Underextremelysevere,dustyorwetoperatingconditions,morefrequentlubricationthanis specifiedintheMaintenanceIntervalschartmightbenecessary.
Performserviceonitemsatmultiplesoftheoriginalrequirement.Forexample,atEvery500 ServiceHoursor6Months,alsoservicethoseitemslistedunderEvery250ServiceHoursor3 MonthsandEvery10ServiceHoursorDaily.
MachineDescription
ThismachineisequippedwithaHatz2M40Ldieselengine.Itisaselfpropelledvibratory compactorwithahydrostatictransmissionandarticulationcapabilities.
Thismachineisdesignedprimarilyforasphaltandgravelbasecompaction.
Theprimaryjobapplicationsforthismachineareparkinglots,industrialsites,driveways,road repairsandsimilarprojects.
CaliforniaProposition65
DieselengineexhaustandsomeofitsconstituentsareknowntotheStateofCaliforniatocause cancer,birthdefects,andotherreproductiveharm.
Copyright1993-2025CaterpillarInc. AllRightsReserved. PrivateNetworkForSISLicensees.
MonJun3022:05:16UTC+05302025
Product:VIBRATORYCOMPACTOR
Model:CB-224CVIBRATORYCOMPACTOR3AL
Configuration:CB-214CCB-224CVibratoryCompactors3AL00001-UP(MACHINE)POWEREDBYHATZEngine
OperationandMaintenanceManual
CB-214C&CB-224CVIBRATORYCOMPACTORS
MediaNumber-KEBU6653-01PublicationDate-01/01/1998DateUpdated-29/01/2002
LiteratureReferenceMaterials
CaterpillarReferenceMaterial
ThefollowingliteraturecanbeobtainedthroughanyCaterpillardealer.
SEBD0518,KnowYourCoolingSystem
SEBD0970,CoolantandYourEngine
SEBD0717,DieselFuelsandYourEngine
SEHS9031,StorageProcedureforCaterpillarProducts
SEBU5898,ColdWeatherRecommendationsOperationandMaintenanceManual
SEBU6310,EMALubricatingOilsDataBookforengines
SEBD0640,OilandYourEngine
SEBU6250,CaterpillarMachineLubricantRecommendations
SEBU5614,SafetyManual
KENR2630,ServiceManual
TranslatedOperation&MaintenanceManualsareavailable.ContactanyCaterpillardealerfor manual.
MachineDecommissioningAndDisposal
Machinedecommissioninganddisposalwillvarywithlocalregulations.Contactthenearest Caterpillardealerforadditionalinformation.
AdditionalReferenceMaterial
ASTMD2896TBNMeasurements(Cannormallybeobtainedfromyourlocaltechnological society,libraryorcollege.)
SAEJ313DieselFuels(FoundintheSAEhandbookorcanbeobtainedfromanylocallibrary, collegeortechnologicalsociety.)
SAEJ754Nomenclature(NormallyfoundintheSAEhandbook.)
SAEJ183Classification(NormallyfoundintheSAEhandbook.)
Copyright1993-2025CaterpillarInc. AllRightsReserved. PrivateNetworkForSISLicensees.
MonJun3022:06:54UTC+05302025
Product:VIBRATORYCOMPACTOR
Model:CB-224CVIBRATORYCOMPACTOR3AL
Configuration:CB-214CCB-224CVibratoryCompactors3AL00001-UP(MACHINE)POWEREDBYHATZEngine OperationandMaintenanceManual
CB-214C&CB-224CVIBRATORYCOMPACTORS
MediaNumber-KEBU6653-01PublicationDate-01/01/1998DateUpdated-29/01/2002
Every10ServiceHoursOrDaily
YoumustreadandunderstandthewarningsandinstructionscontainedintheSafetysectionof thismanualbeforeperforminganyoperationormaintenanceprocedures.
Donotoverfillthecrankcase.Enginedamagecanresult.
This is the sample of the manual Click on the download link for complete Manual
NOTE:RefertotheLubricantViscositiesandRefillCapacitiessectionfortheproperamountof oiltodeterminethecorrectposition,betweenMINandMAXmarks,onthedipstickforyour application.
Badlycontaminatedordeterioratedoilshouldbereplacedearlyregardlessofthereplacement interval.
3.Addoilthroughthedipstick/fillopeningifnecessary.
4.ChecktheconditionofthedipstickO-ringsealandreplaceifdamaged.
5.Installthedipstick.
6.Closetheaccesscover.
HydraulicOil
CheckTheOilLevel
Thehydraulicoiltankandfillcaparelocatedundertheengineaccesscover.
1.Opentheengineaccesscover.
2.Checkthehydraulicoillevelinsightgauge(1).Whentheoiliscold,theoillevelshouldbeto themiddleofsightgauge(1).Whentheoilishot,theoillevelshouldfillsightgauge(1).
NOTE:RefertotheLubricantViscositiesandRefillCapacitiessectionfortheproperamountof oiltodeterminethecorrectpositionforyourapplication.
3.Removehydraulicoiltankcap(2).
4.Addoil.
5.Cleanandinstallhydraulicoiltankcap(2).
6.Closetheaccesscover.
1.Thedrainplugislocatedonthefront,rightsideofthemachine.
2.Removedrainplugandallowthewaterandsedimenttodrain.
3.Installthedrainplug.
WaterSystem
CleanFilter
1.ClosethewatersystemvalvebyturningtheT-handleclockwise.
2.Openthewaterfilteraccesscover.
3.Removethefilterbowlandusepressureairtocleanscreen.
4.Installscreenandfilterbowl.
5.Closethewaterfilteraccesscover.
6.Removethefillcapsandcleanthestrainers.
NOTE:Therearetwowatertankfillcaps;oneoneachsideoftheoperator'sseat.
7.Installstrainersandfillcaps.
Walk-AroundInspection
InspectMachine
NOTICE
Accumulatedgreaseandoilonamachineisafirehazard.Removethis debriswithsteamcleaningorhighpressurewater,atleastevery1000 hoursoranytimeasignificantquantityofoilisspilledonthemachine.
NOTE:Inspectcarefullyforleaks.Ifleakingisobserved,locatethesourceandcorrecttheleak. Checkfluidlevelsmorefrequentlythantherecommendedperiodsifleakingissuspectedor observed.
Inspectandreplacelights,brokenbulbsandlenses.
Inspectandremoveanytrashbuild-uparoundtheengine.
Inspectandrepairanyenginecomponentleaks.
Inspectstepsandhandholdsforconditionandcleanliness.InspecttheRolloverProtective Structure(ROPS)(ifequipped)fordamage.IfrepairisnecessarycontactyourCaterpillardealer. TightenanylooseROPSbolts.Repairorcleanifnecessary.
Inspectthehydraulicsystemforleaks.Inspectthetank,hoses,tubes,plugs,jointsandfittings. Correctanyleaks.
NOTICE
Wheneverinspectionormaintenanceworkisperformedonthe hydraulicsystem,allhydraulichosesandfittingsmustbechecked. Replacedamagedhosesimmediately.
Checkallhoses,fittingsandcomponentsforleaks.
Ifthemachineisequippedwithlights,turnonthelightswitch.Observethelightsandreplaceany thatarenotworking.
Besurecoversandguardsarefirmlyinplace.Inspectfordamage.
Inspectoperator'sstationforcleanlinessandremovealltrash.
Inspectandrepairtheinstrumentpanelgauges,controls,andswitcheswhennecessary.
Inspecttherubberisolationblocks,betweenthevibratorydrumandthemachineframefor damage,crackingorsplitting.ContactyourCaterpillardealerforthecompleteisolationblock replacementprocedure.
Startthemachineanddepressthehornbutton.Ifthehorndoesnotsoundmakeanynecessary repairsbeforeoperating.
Inspectoilfilterindicator.Servicefiltersbeforetherecommendedserviceintervaliftheindicators arenotinacceptablerange.RefertotheEvery500ServiceHoursor6MonthsinthisMaintenance Sectionformoredetailedinformation.

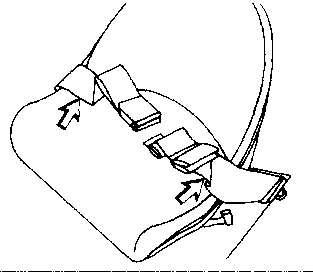

SeatBelt InspectForWearOrDamage
Replacetheseatbeltafterthreeyearsofusage,regardlessofappearance.
Seatbeltandmountinghardwaremustbeinspectedforwearordamagebeforeoperatingthe machine.Replacethebeltormountinghardwareifwornordamaged.
2.TurnthekeyswitchtotheONposition.
3.Allindicatorlightsshouldcomeonexceptthedirectionindicatorwhichcomesonifthe directionindicatorswitchisintheONposition.
4.Makeanyneededrepairsbeforeoperating.
Back-UpAlarm
CheckOperation
Theback-upalarmislocatedattherearofthemachine.
Whilethemachineisrunningmovethepropelcontrollevertoreverse.Iftheback-upalarmdoes notsoundmakeanyneededrepairsbeforeoperating.

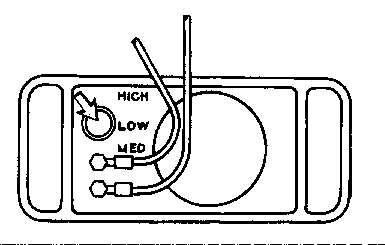

Thesoundlevelcanbeadjustedbymovingtheadjustmentonbackofalarmtomeetoperating requirements.Thealarmissetatthehighestsoundlevelwhenshippedfromthefactory.The settingshouldremainonhigh,unlessthejobsiterequiresalowerlevel.
RefertoMonitoringSystemsandOperatorStationFeaturesSectionformoredetailsonadjusting theback-upalarmsoundlevel.
NeutralStartSwitch
CheckOperation
Machinemaysuddenlylurchforwardiftheneutralstartswitchisout ofadjustment.Besureareaisclearofallpersonnelandequipment beforeperformingthistest.
1.Depressparkingbrakeknob(1).
2.Movepropelcontrollever(3)totheforwardposition.
3.Holdenginestartswitch(2)inthestartpositionwhileslowlymovingtheleverbacktoward neutral.Iftheengineattemptstostartbeforetheleverisinneutral,Theneutralstartswitch requiresadjustment.Donotoperatethemachineuntilrepairsaremade.
Scrapers
Inspect
1.Cleanthescrapersofdirtanddebris.
2.Adjustscraperstotouchthedrums.
1.Loosenboltsandremovedamagedscraper.
2.Installnewscraperandtightenbolts.
3.Adjustscrapertotouchthedrum.
Copyright1993-2025CaterpillarInc. AllRightsReserved. PrivateNetworkForSISLicensees.
MonJun3022:10:57UTC+05302025
Product:VIBRATORYCOMPACTOR
Model:CB-224CVIBRATORYCOMPACTOR3AL
Configuration:CB-214CCB-224CVibratoryCompactors3AL00001-UP(MACHINE)POWEREDBYHATZEngine
OperationandMaintenanceManual
CB-214C&CB-224CVIBRATORYCOMPACTORS
MediaNumber-KEBU6653-01PublicationDate-01/01/1998DateUpdated-29/01/2002
Every100ServiceHours
YoumustreadandunderstandthewarningsandinstructionscontainedintheSafetysectionof thismanualbeforeperforminganyoperationormaintenanceprocedures. ControlCables
3.Cleanandlubricatetheacceleratorlinkagewithengineoil.
4.Closetheaccesscover.
5.Cleanandlubricatethecableundertheboot.

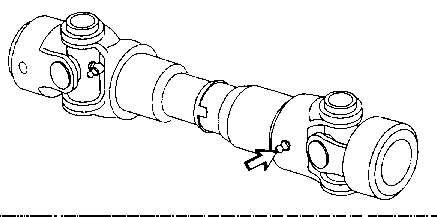

DriveshaftSlip-joint
Lubricate
Accessthroughopeningonvibrationmotorsideofeachdrum. Wipefittingbeforeservicing.
1.Lubricate(1)fitting.
2.Repeatprocedureforotherdrum.
Copyright1993-2025CaterpillarInc. AllRightsReserved. PrivateNetworkForSISLicensees.
MonJun3022:11:21UTC+05302025
Product:VIBRATORYCOMPACTOR
Model:CB-224CVIBRATORYCOMPACTOR3AL
Configuration:CB-214CCB-224CVibratoryCompactors3AL00001-UP(MACHINE)POWEREDBYHATZEngine
OperationandMaintenanceManual
CB-214C&CB-224CVIBRATORYCOMPACTORS
MediaNumber-KEBU6653-01PublicationDate-01/01/1998DateUpdated-29/01/2002
Every250ServiceHoursOr3Months
YoumustreadandunderstandthewarningsandinstructionscontainedintheSafetysectionof thismanualbeforeperforminganyoperationormaintenanceprocedures.
Thecrankcasedrainislocatedinthecenterofthemachineontherightside.
1.Removethecrankcasedrainplug.Allowtheoiltodrain.Cleanandinstallthedrainplug.
2.Opentheengineaccesscover.
3.Removefilterelement(1).
4.Cleanthefilterhousingbase.Makesurealloftheoldfiltergasketisremoved.
5.Applyalightcoatofengineoiltothegasketofthenewfilter.
6.Installthenewfilterbyhand.Whenthegasketcontactsthefilterbase,tightenthefilterthreequartersofaturnmore.
7.Removedipstick(2).Fillthecrankcasewithnewoil.SeeLubricantViscositiesandRefill Capacities.
8.ChecktheconditionofthedipstickO-ringsealandreplaceifdamaged.Installdipstick(2).
9.Starttheengineandallowtheoiltowarm.Checkforleaks.Stoptheengine.
10.Waitfiveminutestoallowtheoiltodrainbackintothecrankcase.Removedipstick(2)and wipeclean.Reinsertdipstick(2),thenremoveitagaintoreadactualoillevel.Maintaintheoil levelbetweentheMINandMAXmarks.
NOTE:RefertotheLubricantViscositiesandRefillCapacitiessectionfortheproperamountof oiltodeterminethecorrectposition,betweenMINandMAXmarks,onthedipstickforyour application. 11.Installthedipstick.
2.Removeupperenginecover(1).
3.Removethecylinderheadcoverlocatedatthefrontoftheengine.
4.Cleantheventilator,cylinderheadsandcylinderswithabrushandpressureair.
5.Removelowerenginecover(2).
6.Cleantheoilcoolerwithpressureair.
7.Installcylinderheadcoverandtheupperenginecover(1)andlowerenginecover(2).
8.Closetheaccesscover.
CoolingFanBelt
Inspect
1.Opentheengineaccesscover.
2.Inspecttheconditionofthecoolingfanbeltandreplaceifnecessary. Thecoolingfanbelttensioniscontrolledbytheautomaticbelttensioner.Noadjustmentis necessary.
3.Closetheaccesscover.
