Product:WHEELLOADER
Model:950MZWHEELLOADERHE8
Configuration:950MZWheelLoaderHE800001-UP(MACHINE)POWEREDBYC7.1Engine
OperationandMaintenanceManual 950MZand962MZWheelLoaders
MediaNumber-M0069086-03PublicationDate-01/02/2017DateUpdated-28/02/2017
Foreword
SMCS-1439
LiteratureInformation
Thismanualshouldbestoredintheoperator'scompartmentintheliteratureholderorseatback literaturestoragearea.
Thismanualcontainssafetyinformation,operationinstructions,transportationinformation, lubricationinformationandmaintenanceinformation.
Somephotographsorillustrationsinthispublicationshowdetailsorattachmentsthatcanbe differentfromyourmachine.Guardsandcoversmighthavebeenremovedforillustrative purposes.
Continuingimprovementandadvancementofproductdesignmighthavecausedchangestoyour machinewhicharenotincludedinthispublication.Read,studyandkeepthismanualwiththe machine.
Wheneveraquestionarisesregardingyourmachine,orthispublication,pleaseconsultyourCat dealerforthelatestavailableinformation.
Safety
Thesafetysectionlistsbasicsafetyprecautions.Inaddition,thissectionidentifiesthetextand locationsofwarningsignsandlabelsusedonthemachine.
Readandunderstandthebasicprecautionslistedinthesafetysectionbeforeoperatingor performinglubrication,maintenanceandrepaironthismachine.
Operation
Theoperationsectionisareferenceforthenewoperatorandarefresherfortheexperienced operator.Thissectionincludesadiscussionofgauges,switches,machinecontrols,attachment controls,transportationandtowinginformation.
Photographsandillustrationsguidetheoperatorthroughcorrectproceduresofchecking,starting, operatingandstoppingthemachine.
Operatingtechniquesoutlinedinthispublicationarebasic.Skillandtechniquesdevelopasthe operatorgainsknowledgeofthemachineanditscapabilities.
Maintenance
Themaintenancesectionisaguidetoequipmentcare.TheMaintenanceIntervalSchedule(MIS) liststheitemstobemaintainedataspecificserviceinterval.Itemswithoutspecificintervalsare listedunderthe"WhenRequired"serviceinterval.TheMaintenanceIntervalScheduleliststhe pagenumberforthestep-by-stepinstructionsrequiredtoaccomplishthescheduledmaintenance. UsetheMaintenanceIntervalScheduleasanindexor"onesafesource"forallmaintenance procedures.
MaintenanceIntervals
Usetheservicehourmetertodetermineservicingintervals.Calendarintervalsshown(daily, weekly,monthly,etc.)canbeusedinsteadofservicehourmeterintervalsiftheyprovidemore convenientservicingschedulesandapproximatetheindicatedservicehourmeterreading. Recommendedserviceshouldalwaysbeperformedattheintervalthatoccursfirst.
Underextremelysevere,dustyorwetoperatingconditions,morefrequentlubricationthanis specifiedinthemaintenanceintervalschartmightbenecessary.
Performserviceonitemsatmultiplesoftheoriginalrequirement.Forexample,atevery500 servicehoursor3months,alsoservicethoseitemslistedunderevery250servicehoursor monthlyandevery10servicehoursordaily.
CaliforniaProposition65Warning
DieselengineexhaustandsomeofitsconstituentsareknowntotheStateofCaliforniatocause cancer,birthdefects,andotherreproductiveharm.
Batteryposts,terminalsandrelatedaccessoriescontainleadandleadcompounds.Washhands afterhandling.
CertifiedEngineMaintenance
Propermaintenanceandrepairisessentialtokeeptheengineandmachinesystemsoperating correctly.Astheheavydutyoff-roaddieselengineowner,youareresponsiblefortheperformance oftherequiredmaintenancelistedintheOwnerManual,OperationandMaintenanceManual,and ServiceManual.
Itisprohibitedforanypersonengagedinthebusinessofrepairing,servicing,selling,leasing,or tradingenginesormachinestoremove,alter,orrenderinoperativeanyemissionrelateddeviceor elementofdesigninstalledonorinanengineormachinethatisincompliancewiththe
regulations(40CFRPart89).Certainelementsofthemachineandenginesuchastheexhaust system,fuelsystem,electricalsystem,intakeairsystemandcoolingsystemmaybeemission relatedandshouldnotbealteredunlessapprovedbyCaterpillar.
MachineCapacity
Additionalattachmentsormodificationsmayexceedmachinedesigncapacitywhichcan adverselyaffectperformancecharacteristics.Includedwouldbestabilityandsystemcertifications suchasbrakes,steering,androlloverprotectivestructures(ROPS).ContactyourCatdealerfor furtherinformation.
CatProductIdentificationNumber
EffectiveFirstQuarter2001theCatProductIdentificationNumber(PIN)haschangedfrom8to 17characters.Inanefforttoprovideuniformequipmentidentification,Caterpillarandother constructionequipmentmanufacturersaremovingtocomplywiththelatestversionoftheproduct identificationnumberingstandard.Non-roadmachinePINsaredefinedbyISO10261.Thenew PINformatwillapplytoallCatmachinesandgeneratorsets.ThePINplatesandframemarking willdisplaythe17characterPIN.Thenewformatwilllooklikethefollowing:
1.Caterpillar'sWorldManufacturingCode(characters1-3)
2.MachineDescriptor(characters4-8)
3.CheckCharacter(character9)
4.MachineIndicatorSection(MIS)orProductSequenceNumber(characters10-17).Thesewere previouslyreferredtoastheSerialNumber.
MachinesandgeneratorsetsproducedbeforeFirstQuarter2001willmaintaintheir8character PINformat.
Componentssuchasengines,transmissions,axles,etc.andworktoolswillcontinuetousean8 characterSerialNumber(S/N).
Copyright1993-2023CaterpillarInc. AllRightsReserved. PrivateNetworkForSISLicensees.
SunNov1203:42:42UTC+05302023
Product:WHEELLOADER
Model:950MZWHEELLOADERHE8
Configuration:950MZWheelLoaderHE800001-UP(MACHINE)POWEREDBYC7.1Engine
OperationandMaintenanceManual
950MZand962MZWheelLoaders
MediaNumber-M0069086-03PublicationDate-01/02/2017DateUpdated-28/02/2017
ArticulationBearings-Lubricate
SMCS-
CrushingHazard.Connectthesteeringframelockbetweenfrontand rearframesbeforeservicingthemachineinthearticulationarea. Disconnectthesteeringframelockandsecureitinthestoredposition beforeresumingoperation.Failuretodosocouldresultinserious injuryordeath. EnsurethatthemachineignitionswitchisintheOFFpositionandthattheparkingbrakeis engagedbeforeenteringthearticulationarea.
RefertoOperationandMaintenanceManual,"SteeringFrameLock" beforeenteringthearticulationjoint.Thehitchgreasefittingsareontherightsideofthemachine inthearticulationhitcharea.

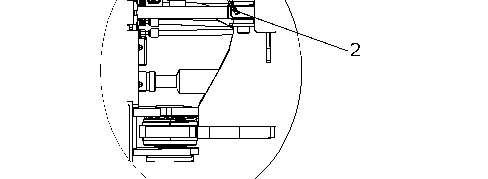

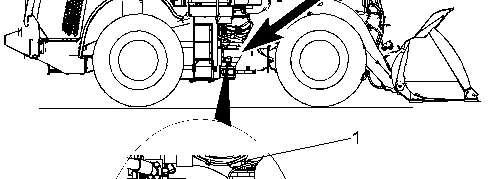

Illustration1g03565858
Wipeallfittingsbeforeapplyinggrease.
Applygreasetoonefittingontheupperpivotbearing(1)andonefittingonthelowerpivot bearing(2).
Copyright1993-2023CaterpillarInc. AllRightsReserved. PrivateNetworkForSISLicensees.
SunNov1204:06:32UTC+05302023
Product:WHEELLOADER
Model:950MZWHEELLOADERHE8
Configuration:950MZWheelLoaderHE800001-UP(MACHINE)POWEREDBYC7.1Engine
OperationandMaintenanceManual 950MZand962MZWheelLoaders MediaNumber-M0069086-03PublicationDate-01/02/2017DateUpdated-28/02/2017
SMCS-7540-070-HR
Note:ThisprocedureisonlyrequiredontheAutomaticTWINGreasingSystem.Thisprocedure isnotrequiredontheCatAutolube.

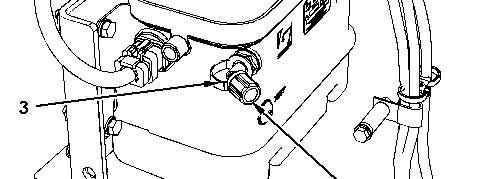

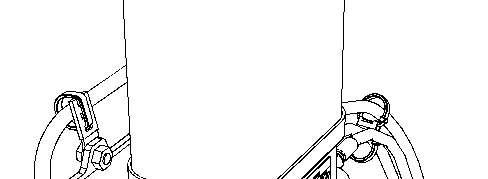

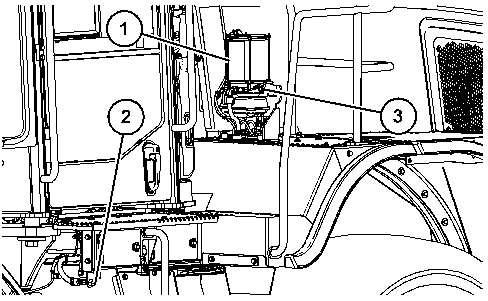

Illustration1g02494037
(1)Reservoir (2)DustCap (3)FillerTubeAssembly
1.Removedustcap(2)fromreservoir(1).
2.Cleanfillertubeassembly(3)andthecouplingonthefillertubeassembly.
3.Removefillertubeassembly(3)andthecoupling.
4.Removethegreasefittingfromthefilterandcleanthefilter.
5.Cleanthefilterwithsolventandcompressedair.Checkthefilterforcracks.Ifanycracks exist,replacethefilter.
6.Replacethegreasefittinginthefilter.
7.Fillthefilterwithgrease.
This is the sample of the manual Click on the download link for complete Manual
8.Installthefilter.
9.Installthefilterassemblyontofillertubeassembly(3).
10.Installfillertubeassembly(3)anddustcap(2).
Copyright1993-2023CaterpillarInc. AllRightsReserved. PrivateNetworkForSISLicensees.
SunNov1204:07:04UTC+05302023
Product:WHEELLOADER
Model:950MZWHEELLOADERHE8
Configuration:950MZWheelLoaderHE800001-UP(MACHINE)POWEREDBYC7.1Engine
OperationandMaintenanceManual 950MZand962MZWheelLoaders
MediaNumber-M0069086-03PublicationDate-01/02/2017DateUpdated-28/02/2017
i06759737 AutomaticLubricationGreaseTank-Fill-Autolube-If Equipped
SMCS-7540-544-TNK
TheAutomaticTWINGreasingSystem
Reference:RefertoSystemOperation,RENR6331formoreinformationontheAutomatic TWINGreasingSystem.
Apressurehazardispresent.Severepersonalinjuryordeathcanresult fromremovinghosesorfittingsthatareunderpressure.Relievethe pressureinthesystembeforeyouremovehosesorfittings.
Illustration1g02494037
(1)Reservoir
(2)DustCap
(3)FillerTubeAssembly
Greasereservoir(1)islocatedneartherearfenderontherightsideofthemachine.
FillingtheReservoir
1.Removedustcap(2)fromgreasereservoir(1).
2.Cleanthefittingbeforefilling.
3.Fillgreasereservoir(1)withgreasetothemaximumlevelwhichisindicatedonthegrease reservoir(1).
Note:Avoidfullyemptyingthereservoircausingairtoenterthesystem.Airmaybe pumpedintothereservoir.Thisaircanaccumulateunderthepiston.Theaircanberemoved
ifthereservoirisrefilledtoalevelslightlyabovethemaximumlevelmark.Excessairand excessgreasewillbereleasedfromthepumpattheoverflowpassage.
Reference:Forthecorrecttypeofgrease,refertoOperationandMaintenanceManual, "LubricantViscosities".
Note:Ifadifferentbrandofgreaseisused,checkforcompatibility.Ifthenewgreaseisnot compatiblewiththegreaseinthereservoir,thesystemmustbepurged.RefertoSystem Operation,RENR6331formoreinformationaboutpurgingthesystem.
4.Installdustcap(2).
TheCatAutolubeSystem
Reference:RefertoSystemOperation,M0073678formoreinformationontheCatAutolube System.
Apressurehazardispresent.Severepersonalinjuryordeathcanresult fromremovinghosesorfittingsthatareunderpressure.Relievethe pressureinthesystembeforeyouremovehosesorfittings.

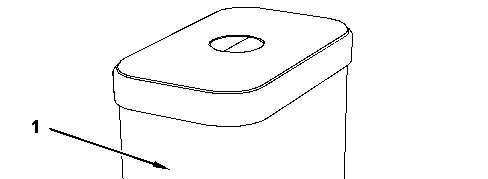

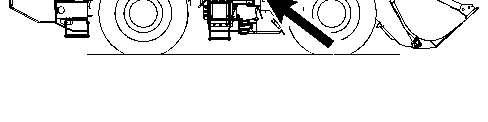

Illustration2g06110102
Greasereservoir(1)islocatedneartherearfenderontheleftsideofthemachine.Remotefill(2)islocatedto theleftoftheladderontheleftsideofthemachine.Thereisalsofilllocation(3)ontheautolubereservoir.
1.Cleanthefittingbeforefilling.
2.Fillgreasereservoir(1)withgreasetothemaximumlevelwhichisindicatedonthegrease reservoir(1).
Reference:Forthecorrecttypeofgrease,refertoOperationandMaintenanceManual,Lubricant Viscosities.
Note:IfadifferentBrandofgreaseisused,checkforcompatibility.Ifthenewgreaseisnot compatiblewiththegreaseinthereservoir,thesystemmustbepurged.RefertoSystem Operation,M0073678formoreinformationaboutpurgingthesystem.
Copyright1993-2023CaterpillarInc.
AllRightsReserved.
PrivateNetworkForSISLicensees.
SunNov1204:07:20UTC+05302023
Product:WHEELLOADER
Model:950MZWHEELLOADERHE8
Configuration:950MZWheelLoaderHE800001-UP(MACHINE)POWEREDBYC7.1Engine
OperationandMaintenanceManual
950MZand962MZWheelLoaders
MediaNumber-M0069086-03PublicationDate-01/02/2017DateUpdated-28/02/2017
AxleOscillationBearings-Lubricate
SMCS-3268-086-BD;3278-086-BD
CrushingHazard.Connectthesteeringframelockbetweenfrontand rearframesbeforeservicingthemachineinthearticulationarea. Disconnectthesteeringframelockandsecureitinthestoredposition beforeresumingoperation.Failuretodosocouldresultinserious injuryordeath.
i05904975
EnsurethatthemachineignitionswitchisintheOFFpositionandthattheparkingbrakeis engagedbeforeenteringthearticulationarea.
RefertoOperationandMaintenanceManual,"SteeringFrameLock" beforeenteringthearticulationjoint.

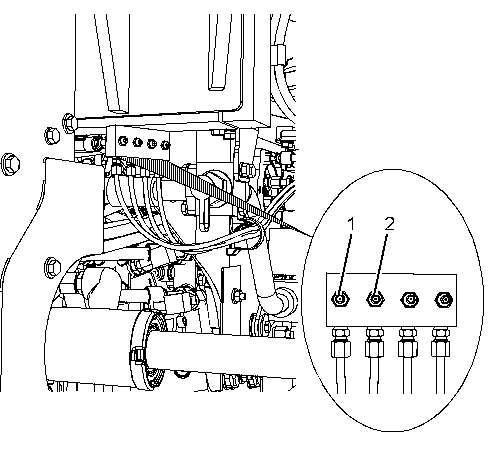

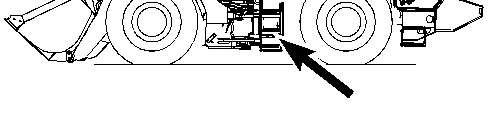

Illustration1g02109740 Theremotegreasefittingsareontherightsideofthemachineinthearticulationjoint.

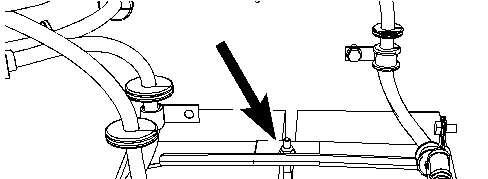

Illustration2g03718285 Wipeallfittingsbeforelubricating.
Greasefitting(1)willlubricatetheaxletrunnionthatisontherearoftherearaxle.Greasefitting (2)willlubricatetheaxletrunnionthatisonthefrontoftherearaxle.
Note:RefertoOperationandMaintenanceManual,"LubricantViscosities"forthepropergrease.
Copyright1993-2023CaterpillarInc. AllRightsReserved. PrivateNetworkForSISLicensees.
SunNov1204:07:44UTC+05302023
Product:WHEELLOADER
Model:950MZWHEELLOADERHE8
Configuration:950MZWheelLoaderHE800001-UP(MACHINE)POWEREDBYC7.1Engine
OperationandMaintenanceManual 950MZand962MZWheelLoaders
MediaNumber-M0069086-03PublicationDate-01/02/2017DateUpdated-28/02/2017
BackupAlarm-Test-IfEquipped
SMCS-7406-081
Thebackupalarmisontherearofthemachine.

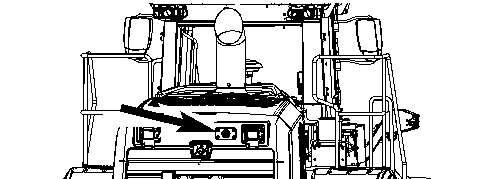

Illustration1g03335364
TurntheenginestartswitchtotheONpositioninordertoperformthetest. Applytheservicebrake.PlacethetransmissionintoREVERSE.
Thebackupalarmshouldsoundimmediately.Thebackupalarmwillcontinuetosounduntilthe transmissionisplacedintoNEUTRALorintoFORWARD.
Copyright1993-2023CaterpillarInc. AllRightsReserved. SunNov1204:08:13UTC+05302023
Product:WHEELLOADER
Model:950MZWHEELLOADERHE8
Configuration:950MZWheelLoaderHE800001-UP(MACHINE)POWEREDBYC7.1Engine
OperationandMaintenanceManual 950MZand962MZWheelLoaders
MediaNumber-M0069086-03PublicationDate-01/02/2017DateUpdated-28/02/2017
BatteryorBatteryCable-Clean/Inspect/Replace
SMCS-1401-040;1401-070;1401-510;1402-040;1402-070;1402-510
Personalinjurymayoccurfromfailuretoproperlyservicethebatteries.
Batteriesgiveoffflammablefumesthatcanexplode.Electrolyteisan acidandcancausepersonalinjuryifitcontactstheskinoreyes.
Preventsparksnearthebatteries.Sparkscouldcausevaporstoexplode. Donotallowjumpercableendstocontacteachotherortheengine. Improperjumpercableconnectionscancauseanexplosion.
Alwayswearprotectiveglasseswhenworkingwithbatteries.

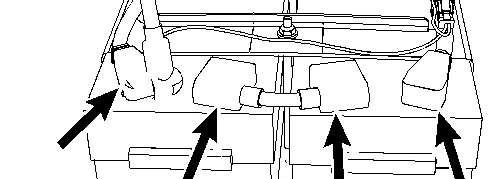

Illustration1g02494486
1.TurntheenginestartswitchkeyOFF.TurnalloftheswitchesOFF.
2.TurnthebatterydisconnectswitchOFF.Removethekey.
3.Removetheaccesscoversfromthebatterycompartments.
Note:Themachinemaycontainmorethanonesetofbatteries.

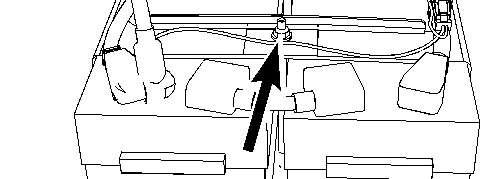

Illustration2g02161433
4.Removethebatteryhold-down.
5.Disconnectthenegativebatterycablefromthedisconnectswitch.
Note:Donotallowthedisconnectedbatterycabletocontactthedisconnectswitch.
6.Disconnectthenegativebatterycableatthebattery.
7.Disconnectthepositivebatterycableatthebattery.
8.Inspectthebatteryterminalsforcorrosion.Inspectthebatterycablesforwearordamage.
9.Makeanynecessaryrepairs.Ifnecessary,replacethebatterycablesorthebattery.
10.Cleanthebatteryterminalsandthesurfacesofthebatterieswithacleancloth.
11.Connectthepositivebatterycableatthebattery.
12.Connectthenegativebatterycableatthebattery.
13.Coatthebatteryterminalswithpetroleumjellytopreventcorrosion.
14.Reinstallthebatteryhold-down
15.Torquethelocknutsinthecenterofthehold-downto14±1N·m(10±2lbft)
16.Connectthebatterycableatthebatterydisconnectswitch.
17.InstallthekeyandturnthebatterydisconnectswitchON.
18.Reinstallbatterycompartmentcoverplates. RecycletheBattery
Alwaysrecycleabattery.Neverdiscardabattery.
Alwaysreturnusedbatteriestooneofthefollowinglocations: •Abatterysupplier
•Anauthorizedbatterycollectionfacility
•Recyclingfacility
Copyright1993-2023CaterpillarInc. AllRightsReserved. PrivateNetworkForSISLicensees.
SunNov1204:08:28UTC+05302023
Product:WHEELLOADER
Model:950MZWHEELLOADERHE8
Configuration:950MZWheelLoaderHE800001-UP(MACHINE)POWEREDBYC7.1Engine
OperationandMaintenanceManual 950MZand962MZWheelLoaders
MediaNumber-M0069086-03PublicationDate-01/02/2017DateUpdated-28/02/2017
Belt-Inspect/Adjust/Replace
SMCS-1397-025;1397-040;1397-510
i06949671
Yourmachineisequippedwithasingleserpentinebelt.Stoptheengine.Opentherearhood.The beltislocatedonthefrontoftheengine.

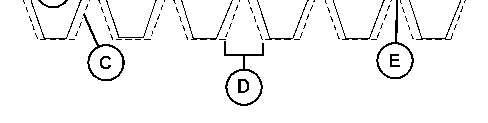

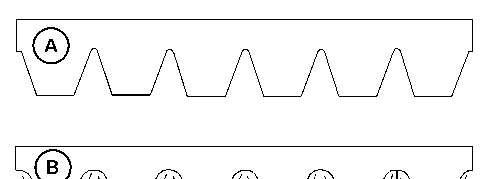

Illustration1g06114636 (A)Newbelt (B)Wornbelt
1.Inspecttheconditionoftheserpentinebelt.Overtimethebeltribswilllosematerial(C). Thespacebetweentheribswillincrease(D).Thelossofmaterialwillcausethepulley sheavetocontactthebeltvalley.Thiswillleadtobeltslippageandacceleratedwear(E). Replacethebeltifthebeltiswornorfrayed.
