CatProductIdentificationNumber

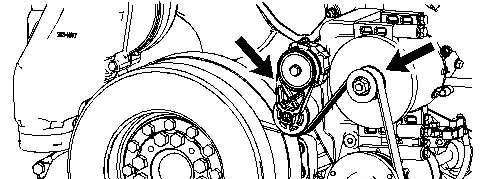

Accesstothealternatorisontherightsideofthemachine.Thealternatorislocatedonthefrontof theengine.
Caterpillarrecommendsascheduledinspectionofthealternator.Inspectthealternatorforloose connectionsandforproperbatterycharging.
Keepthebatteriesfullycharged.
Airtemperatureaffectsthecrankingpowerofthebatteries.Keepthebatterieswarm.Theengine willnotcrankifthebatteriesaretoocold.Awarmenginewillnotcrankifthebatteriesaretoo cold.
Whentheengineisoperatedonlyforshortperiodsoftime,thebatteriesmaynotfullyrecharge. Makesurethatthealternatorisproperlyfunctioning.Thealternatorwillchargethebattery.
ConsultyourCaterpillardealerformoreinformationabouttestingthealternator.
Copyright1993-2025CaterpillarInc. AllRightsReserved. PrivateNetworkForSISLicensees.
WedJul909:39:59UTC+05302025
Product:WHEELLOADER
Model:993KWHEELLOADERLWA
Configuration:993KWheelLoaderForSISWebUseOnlyLWA00001-UP(MACHINE)POWEREDBYC32Engine
OperationandMaintenanceManual 993KWheelLoader
MediaNumber-SEBU8076-14PublicationDate-01/07/2013DateUpdated-28/03/2017
ArticulationBearings-Lubricate
SMCS-7057-086-BD;7065-086-BD;7066-086-BD
Wipeoffthefittingsbeforeanylubricantisapplied.
This is the sample of the manual Click on the download link for complete Manual
Illustration2g01261483

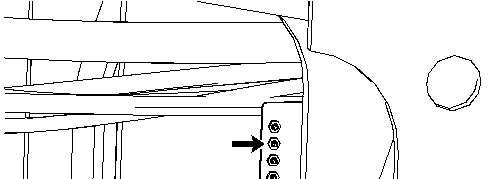

Theremotegreasefittingfortheupperhitchpinislocatedtotherightoftheservicecenteronthe rightsideofthemachine.
Illustration3g01289561

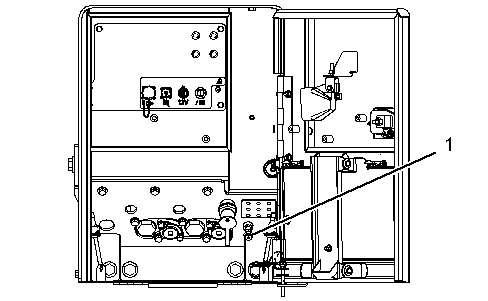

Theremotegreasefitting(1)forthelowerhitchpinislocatedinsidetheservicecenter. Applylubricantthroughthetwogreasefittings.
Reference:Foradditionalinformation,pleaserefertoOperationandMaintenanceManual, "ServiceCenter"
WedJul909:40:15UTC+05302025
Product:WHEELLOADER
Model:993KWHEELLOADERLWA
Configuration:993KWheelLoaderForSISWebUseOnlyLWA00001-UP(MACHINE)POWEREDBYC32Engine
OperationandMaintenanceManual 993KWheelLoader
MediaNumber-SEBU8076-14PublicationDate-01/07/2013DateUpdated-28/03/2017 i02520616
AutomaticLubricationGreaseTank-Fill-IfEquipped
SMCS-7540-544-TNK
Apressurehazardispresent.Severepersonalinjuryordeathcanresult fromremovinghosesorfittingsthatareunderpressure.Relievethe pressureinthesystembeforeyouremovehosesorfittings.
Thereisafastfillport(1)fortheautomaticlubricationsystemintheservicecenter.Attachthe properpumpandaddlubricantthroughtheportuntilthesystemisfull.
Note:Youmayalsousethe"FULL"indicatorlightintheservicecenterinordertodetermine whentheautomaticlubricationsystemisfull.
Reference:Formoreinformation,refertoOperationandMaintenanceManual,"ServiceCenter"
Copyright1993-2025CaterpillarInc. AllRightsReserved. PrivateNetworkForSISLicensees.
WedJul909:40:30UTC+05302025
Product:WHEELLOADER
Model:993KWHEELLOADERLWA
Configuration:993KWheelLoaderForSISWebUseOnlyLWA00001-UP(MACHINE)POWEREDBYC32Engine
OperationandMaintenanceManual 993KWheelLoader
MediaNumber-SEBU8076-14PublicationDate-01/07/2013DateUpdated-28/03/2017
AxleOilCoolerFilter-Replace
SMCS-3004-510-AOC
NOTICE
Caremustbetakentoensurethatfluidsarecontainedduring performanceofinspection,maintenance,testing,adjusting,andrepair oftheproduct.Bepreparedtocollectthefluidwithsuitablecontainers beforeopeninganycompartmentordisassemblinganycomponent containingfluids.
RefertoSpecialPublication,NENG2500,"DealerServiceTool Catalog"fortoolsandsuppliessuitabletocollectandcontainfluidson Cat®products.
Disposeofallfluidsaccordingtolocalregulationsandmandates.
Theaxleoilcoolerfiltershouldbereplacedwhenafailureoccursinthecoolingsystem.
Note:Theoilfilterscontaina140micronscreen.
i02517693
Thereareatotaloftwoaxleoilcoolerfiltersonyourmachine.Oneofthefiltersislocatedonthe rearframeunderneaththeradiator.Asecondfilterislocatedonthefrontframeabovethedrive shaft.
1.Stoptheengine.
2.Theaxleoilcoolerfilterislocatedinsidetheaccesspanelontheundersideofthemachine. Removetheaccesspanel.
3.Removetheoilfilteranddiscardthefilterproperly.Makesurethattheoldsealisremoved fromthefilterbase.
4.Installthenewfilter.
a.Applyathincoatofoiltothesealonthenewfilter.
b.Installthenewfilterhandtightuntilthesealofthefiltercontactsthebase.Notethe positionoftheindexmarksonthefilterinrelationtoafixedpointonthefilterbase.
Note:Therearerotationindexmarksontheoilfilterthatarespaced90degreesor1/4 ofaturnawayfromeachother.Whenyoutightenthefilter,usetherotationindex marksasaguide.
c.Tightenthefilteraccordingtotheinstructionsthatareprintedonthefilter.Usethe indexmarksasaguide.Fornon-Caterpillarfilters,usetheinstructionsthatare providedwiththefilter.
Note:YoumaywanttouseaCaterpillarstrapwrench,oranothersuitabletoolin ordertoturnthefiltertotheamountthatisrequiredforfinalinstallation.Makesure thattheinstallationtooldoesnotdamagethefilter.
5.Repeatsteps3through4.cfortheotherfilter.
6.Installtheaccesspanel.
Product:WHEELLOADER
Model:993KWHEELLOADERLWA
Configuration:993KWheelLoaderForSISWebUseOnlyLWA00001-UP(MACHINE)POWEREDBYC32Engine
OperationandMaintenanceManual
993KWheelLoader
MediaNumber-SEBU8076-14PublicationDate-01/07/2013DateUpdated-28/03/2017
AxleOscillationBearings-Lubricate
SMCS-3268-086-BD;3278-086-BD
Wipeoffthefittingsbeforeanylubricantisapplied.
Illustration1g01289568

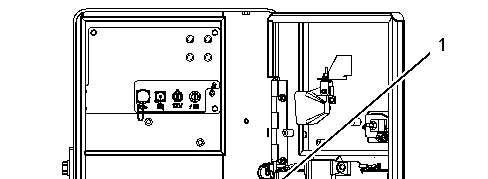

Theremotegreasefitting(1)fortheaxleoscillationbearingislocatedinsidetheservicecenter. Applylubricantthroughthefitting.
Reference:Foradditionalinformation,pleaserefertoOperationandMaintenanceManual, "ServiceCenter"
Copyright1993-2025CaterpillarInc. AllRightsReserved. PrivateNetworkForSISLicensees.
WedJul909:41:13UTC+05302025
i02520381
Product:WHEELLOADER
Model:993KWHEELLOADERLWA
Configuration:993KWheelLoaderForSISWebUseOnlyLWA00001-UP(MACHINE)POWEREDBYC32Engine
OperationandMaintenanceManual 993KWheelLoader
MediaNumber-SEBU8076-14PublicationDate-01/07/2013DateUpdated-28/03/2017
BackupAlarm-Test
SMCS-7406-081

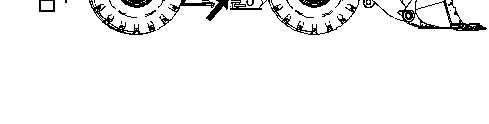

Illustration1g01232891

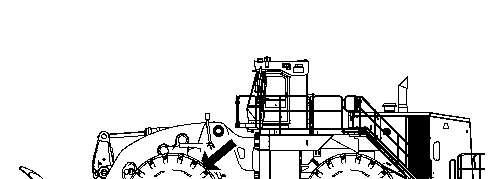

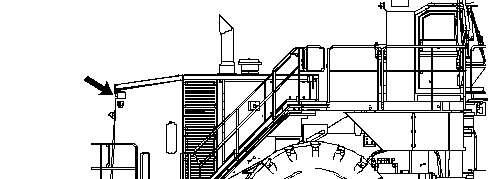

Thebackupalarmislocatedbehindthefanguardontherearofthemachine.
1.TurntheenginestartswitchkeytotheONpositioninordertoperformthetest.
2.Applytheservicebrake.
3.MovethetransmissiondirectioncontrolswitchtotheREVERSEposition. Thebackupalarmshouldimmediatelysound.Thebackupalarmwillcontinuetosounduntilthe transmissiondirectioncontrolswitchismovedtotheNEUTRALpositionortotheFORWARD position.
i02472018
Product:WHEELLOADER
Model:993KWHEELLOADERLWA
Configuration:993KWheelLoaderForSISWebUseOnlyLWA00001-UP(MACHINE)POWEREDBYC32Engine
OperationandMaintenanceManual 993KWheelLoader
MediaNumber-SEBU8076-14PublicationDate-01/07/2013DateUpdated-28/03/2017
Battery-Clean
SMCS-1401-070

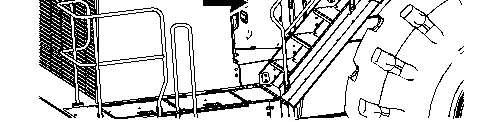

Illustration1g01227657

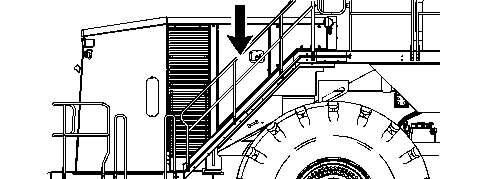

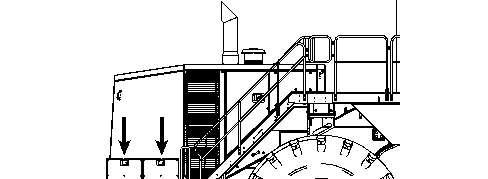

Openthebatterycompartmentsontherightsideofthemachineneartherearladder.
Cleanthebatteryterminalsandthesurfacesofthebatterieswithacleancloth.Coatthebattery terminalswithpetroleumjelly.Makesurethatthebatterycablesareinstalledsecurely.
Copyright1993-2025CaterpillarInc. AllRightsReserved. PrivateNetworkForSISLicensees.
WedJul909:41:43UTC+05302025
i02459900
Product:WHEELLOADER
Model:993KWHEELLOADERLWA
Configuration:993KWheelLoaderForSISWebUseOnlyLWA00001-UP(MACHINE)POWEREDBYC32Engine
OperationandMaintenanceManual 993KWheelLoader
MediaNumber-SEBU8076-14PublicationDate-01/07/2013DateUpdated-28/03/2017
Battery-Recycle
SMCS-1401-561
Alwaysrecycleabattery.Neverdiscardabattery.
Alwaysreturnusedbatteriestooneofthefollowinglocations:
•Abatterysupplier
•Anauthorizedbatterycollectionfacility
•Recyclingfacility
Copyright1993-2025CaterpillarInc. AllRightsReserved. PrivateNetworkForSISLicensees.
i06543763
WedJul909:41:57UTC+05302025
Product:WHEELLOADER
Model:993KWHEELLOADERLWA
Configuration:993KWheelLoaderForSISWebUseOnlyLWA00001-UP(MACHINE)POWEREDBYC32Engine
OperationandMaintenanceManual 993KWheelLoader
MediaNumber-SEBU8076-14PublicationDate-01/07/2013DateUpdated-28/03/2017
BatteryHold-Down-Tighten
SMCS-7257-527 Illustration1g01227657
Openthebatterycompartmentsontherightsideofthemachineneartherearladder.
Overtime,thevibrationofanoperatingmachinecancausethebatteryhold-downstoloosen.To helptopreventloosebatteriesandthepossibilityofloosecableconnections,tightentheeight locknuts(twoperbattery)toatorqueof14±2N·m(10±1.5lbft).
Copyright1993-2025CaterpillarInc. AllRightsReserved. PrivateNetworkForSISLicensees.
WedJul909:42:11UTC+05302025
i02459960
Product:WHEELLOADER
Model:993KWHEELLOADERLWA
Configuration:993KWheelLoaderForSISWebUseOnlyLWA00001-UP(MACHINE)POWEREDBYC32Engine
OperationandMaintenanceManual 993KWheelLoader
MediaNumber-SEBU8076-14PublicationDate-01/07/2013DateUpdated-28/03/2017
BatteryorBatteryCable-Inspect/Replace
SMCS-1401-040;1401-510;1402-040;1402-510
i01835250
1.TurntheenginestartswitchkeytotheOFFposition.TurnalloftheswitchestotheOFF position.
2.TurnthebatterydisconnectswitchtotheOFFposition.Removethekey.
3.Disconnectthepositivebatterycableatthebatterydisconnectswitch.Thebattery disconnectswitchisconnectedtothemachineframe.
Note:Donotallowthedisconnectedbatterycabletocontactthedisconnectswitch.
4.Disconnectthenegativebatterycableatthebatterythatisconnectedtothebattery disconnectswitch.Ifthemachinehasfour12voltbatteries,disconnectthenegativebattery cablesoftwoofthebatteries.
5.Makeanynecessaryrepairsorreplacethebattery.
6.Reconnectthenegativebatterycableatthebatterythatisconnectedtothebattery disconnectswitch.
7.Reconnectthepositivebatterycableatthebatterydisconnectswitch.
8.InstallthekeyandturnthebatterydisconnectswitchtotheONposition.
WedJul909:42:25UTC+05302025
Product:WHEELLOADER
Model:993KWHEELLOADERLWA
Configuration:993KWheelLoaderForSISWebUseOnlyLWA00001-UP(MACHINE)POWEREDBYC32Engine
OperationandMaintenanceManual 993KWheelLoader
MediaNumber-SEBU8076-14PublicationDate-01/07/2013DateUpdated-28/03/2017
Belt-Inspect/Replace
SMCS-1397-040;1397-510
Inspect
i06830914
1.Parkthemachineonlevelground.Lowerthebuckettotheground.Movethetransmission controlswitchtotheNEUTRALpositionandengagetheparkingbrake.Shutofftheengine.

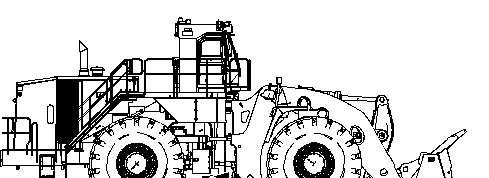

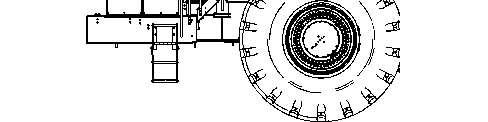

2.Removethegrillassemblyontherightsideofthemachine.

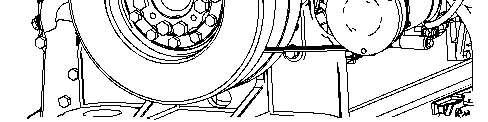

Illustration2g01254720 3.Removetheengineaccesscoverinordertogainaccesstothebelt.

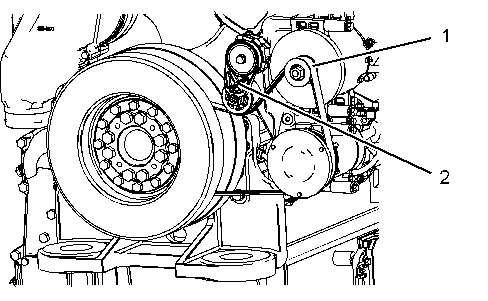

Illustration3g01233393
