992K Caterpillar Wheel Loader Operation and Maintenance Manual by quality service repair manual

Product:WHEELLOADER

Model:992KWHEELLOADERZMX

Configuration:992KWheelLoaderZMX00001-UP(MACHINE)POWEREDBYC32Engine

OperationandMaintenanceManual

992KWheelLoader

MediaNumber-SEBU8651-08PublicationDate-01/08/2015DateUpdated-12/09/2019

i07746362

OperatorStation

SMCS-7000

Anymodificationstotheinsideoftheoperatorstationshouldnotprojectintotheoperatorspaceor intothespaceforthecompanionseat(ifequipped).Theadditionofaradio,fireextinguisher,and otherequipmentmustbeinstalledsothatthedefinedoperatorspaceandthespaceforthe companionseat(ifequipped)ismaintained.Anyitemthatisbroughtintothecabshouldnot projectintothedefinedoperatorspaceorthespaceforthecompanionseat(ifequipped).Alunch boxorotherlooseitemsmustbesecured.Objectsmustnotposeanimpacthazardinroughterrain orintheeventofarollover.

WedMay2909:18:18UTC+05302024

Product:WHEELLOADER

Model:992KWHEELLOADERZMX

Configuration:992KWheelLoaderZMX00001-UP(MACHINE)POWEREDBYC32Engine

OperationandMaintenanceManual

992KWheelLoader

MediaNumber-SEBU8651-08PublicationDate-01/08/2015DateUpdated-12/09/2019

SoundInformationandVibrationInformation

SMCS-7000

SoundLevelInformation

TheoperatorEquivalentSoundPressureLevel(Leq)is72dB(A)when"ANSI/SAEJ1166 FEB2008"isusedtomeasurethevalueforanenclosedcab.Thisisaworkcyclesoundexposure level.Thecabwasproperlyinstalledandmaintained.Thetestwasconductedwiththecabdoors andthecabwindowsclosed.

Thedeclaredsoundlevelslistedaboveincludebothmeasurementuncertaintyanduncertaintydue toproductionvariation.

Hearingprotectionmaybeneededwhenthemachineisoperatedwithacabthatisnotproperly maintainedorwhenthedoorsorwindowsareopenforextendedperiodsorinanoisy environment.

Theaverageexteriorsoundpressurelevelis83dB(A)whenthe"SAEJ88FEB2006-Constant SpeedMovingTest"procedureisusedtomeasurethevalueforthestandardmachine.The measurementwasconductedunderthefollowingconditions:distanceof15m(49.2ft)and“the machinemovingforwardinanintermediategearratio”.

SoundLevelInformationforMachinesinEuropeanUnion

CountriesandinCountriesthatAdoptthe"EUDirectives"

Thedynamicoperatorsoundpressurelevelis70dB(A)when"ISO6396:2008"isusedtomeasure thevalueforanenclosedcab.Themeasurementwasconductedat70%ofthemaximumengine coolingfanspeed.Thesoundlevelmayvaryatdifferentenginecoolingfanspeeds.Thecabwas properlyinstalledandmaintained.Themeasurementwasconductedwiththecabdoorsand windowsclosed.

ThedeclaredexteriorsoundpowerlevelLWAis113dB(A)whenthevalueismeasuredaccording tothedynamictestproceduresandtheconditionsthatarespecifiedin"ISO6395:2008".The

i07776270

measurementwasconductedat70%ofthemaximumenginecoolingfanspeed.Thesoundlevel mayvaryatdifferentenginecoolingfanspeeds.

Thedeclaredsoundlevelslistedaboveincludebothmeasurementuncertaintyanduncertaintydue toproductionvariation.

SoundLevelInformationforMachinesinEurasianEconomic UnionCountries

Thedeclareddynamicoperatorsoundpressurelevelis71dB(A)when"ISO6396:2008"isusedto measurethevalueforanenclosedcab.Themeasurementwasconductedat70%ofthemaximum enginecoolingfanspeed.Thesoundlevelmayvaryatdifferentenginecoolingfanspeeds.The measurementwasconductedwiththecabdoorsandthecabwindowsclosed.

ThedeclaredexteriorsoundpowerlevelLWAis116dB(A)whenthevalueismeasuredaccording tothedynamictestproceduresandtheconditionsthatarespecifiedin"ISO6395:2008".The measurementwasconductedat70%ofthemaximumenginecoolingfanspeed.Thesoundlevel mayvaryatdifferentenginecoolingfanspeeds.

Thedeclaredsoundlevelslistedaboveincludebothmeasurementuncertaintyanduncertaintydue toproductionvariation.

"TheEuropeanUnionPhysicalAgents(Vibration)Directive 2002/44/EC"

VibrationDataforWheelLoaders

InformationConcerningHand/ArmVibrationLevel

Whenthemachineisoperatedaccordingtotheintendeduse,thehand/armvibrationofthis machineisbelow2.5meterpersecondsquared.

InformationConcerningWholeBodyVibrationLevel

Thissectionprovidesvibrationdataandamethodforestimatingthevibrationlevelforwheel loaders.

Note:V)brationlevelsareinfluencedbymanydifferentparameters.Manyitemsarelistedbelow.

•Operatortraining,behavior,mode,andstress

•Jobsiteorganization,preparation,environment,weather,andmaterial

•Machinetype,qualityoftheseat,qualityofthesuspensionsystem,attachments,and conditionoftheequipment

Itisnotpossibletogetprecisevibrationlevelsforthismachine.Theexpectedvibrationlevelscan beestimatedwiththeinformationinTable1tocalculatethedailyvibrationexposure.Asimple evaluationofthemachineapplicationcanbeused.

Estimatethevibrationlevelsforthethreevibrationdirections.Fortypicaloperatingconditions, usetheaveragevibrationlevelsastheestimatedlevel.Withanexperiencedoperatorandsmooth terrain,subtracttheScenarioFactorsfromtheaveragevibrationleveltoobtaintheestimated vibrationlevel.Foraggressiveoperationsandsevereterrain,addtheScenarioFactorstothe averagevibrationleveltoobtaintheestimatedvibrationlevel.

Note:Allvibrationlevelsareinmeterpersecondsquared.

Table1

"ISOReferenceTableA-Equivalentvibrationlevelsofwholebodyvibrationemission forearthmovingequipment."

(1)Loadingattheface

(2)Travelathighspeedonthejobsiteoronpublicroads

(3)Loadingatruckinshortcycles

Note:Referto"ISO/TR25398MechanicalVibration-Guidelinefortheassessmentofexposure towholebodyvibrationofrideonoperatedearthmovingmachines"formoreinformationabout vibration.Thispublicationusesdatathatismeasuredbyinternationalinstitutes,organizations,and manufacturers.Thisdocumentprovidesinformationaboutthewholebodyexposureofoperators ofearthmovingequipment.RefertoOperationandMaintenanceManual,SEBU8257,"The EuropeanUnionPhysicalAgents(Vibration)Directive2002/44/EC"formoreinformationabout machinevibrationlevels.

TheCaterpillarsuspensionseatmeetsthecriteriaof"ISO7096".Thisrepresentsverticalvibration levelundersevereoperatingconditions.Thisseatistestedwiththeinput"spectralclassEM3". Theseathasatransmissibilityfactorof“SEAT<1.0”.

Thewholebodyvibrationlevelofthemachinevaries.Thereisarangeofvalues.Thelowvalueis 0.5meterpersecondsquared.Themachinemeetstheshort-termlevelforthedesignoftheseatin "ISO7096".Thevalueis1.13meterpersecondsquaredforthismachine.

GuidelinesforReducingVibrationLevelsonEarthmovingEquipment

Properlyadjustmachines.Properlymaintainmachines.Operatemachinessmoothly.Maintainthe conditionsoftheterrain.Thefollowingguidelinescanhelpreducethewholebodyvibrationlevel:

1.Usetherighttypeandsizeofmachine,equipment,andattachments.

2.Maintainmachinesaccordingtothemanufacturer'srecommendations.

a.Tirepressures

b.Brakeandsteeringsystems

c.Controls,hydraulicsystem,andlinkages

3.Keeptheterrainingoodcondition.

a.Removeanylargerocksorobstacles.

b.Fillanyditchesandholes.

c.Providemachinesandscheduletimetomaintaintheconditionsoftheterrain.

4.Useaseatthatmeets"ISO7096".Keeptheseatmaintainedandadjusted.

a.Adjusttheseatandsuspensionfortheweightandthesizeoftheoperator.

b.Inspectandmaintaintheseatsuspensionandadjustmentmechanisms.

5.Performthefollowingoperationssmoothly.

a.Steer

b.Brake

c.Accelerate.

d.Shiftthegears.

6.Movetheattachmentssmoothly.

7.Adjustthemachinespeedandtheroutetominimizethevibrationlevel.

a.Drivearoundobstaclesandroughterrain.

b.Slowdownwhenitisnecessarytogooverroughterrain.

8.Minimizevibrationsforalongworkcycleoralongtraveldistance.

a.Usemachinesthatareequippedwithsuspensionsystems.

b.Usetheridecontrolsystemonwheelloaders.

c.Ifnoridecontrolsystemisavailable,reducespeedtopreventbounce.

d.Haulthemachinesbetweenworkplaces.

9.Lessoperatorcomfortmaybecausedbyotherriskfactors.Thefollowingguidelinescanbe effectivetoprovidebetteroperatorcomfort:

a.Adjusttheseatandadjustthecontrolstoachievegoodposture.

b.Adjustthemirrorstominimizetwistedposture.

c.Providebreakstoreducelongperiodsofsitting.

d.Avoidjumpingfromthecab.

e.Minimizerepeatedhandlingofloadsandliftingofloads.

f.Minimizeanyshocksandimpactsduringsportsandleisureactivities.

Sources

Thevibrationinformationandcalculationprocedureisbasedon"ISO/TR25398Mechanical Vibration-Guidelinefortheassessmentofexposuretowholebodyvibrationofrideonoperated earthmovingmachines".Harmonizeddataismeasuredbyinternationalinstitutes,organizations, andmanufacturers.

Thisliteratureprovidesinformationaboutassessingthewholebodyvibrationexposureof operatorsofearthmovingequipment.Themethodisbasedonmeasuredvibrationemissionunder realworkingconditionsforallmachines.

Youshouldchecktheoriginaldirective.Thisdocumentsummarizespartofthecontentofthe applicablelaw.Thisdocumentisnotmeanttosubstitutetheoriginalsources.Otherpartsofthese documentsarebasedoninformationfromtheUnitedKingdomHealthandSafetyExecutive.

RefertoOperationandMaintenanceManual,SEBU8257,"TheEuropeanUnionPhysicalAgents (Vibration)Directive2002/44/EC"formoreinformationaboutvibration.

ConsultyourlocalCaterpillardealerformoreinformationaboutmachinefeaturesthatminimize vibrationlevels.ConsultyourlocalCaterpillardealeraboutsafemachineoperation.

Usethefollowingwebsitetofindyourlocaldealer:

Caterpillar,Inc. www.cat.com

WedMay2909:18:01UTC+05302024

Product:WHEELLOADER

Model:992KWHEELLOADERZMX

Configuration:992KWheelLoaderZMX00001-UP(MACHINE)POWEREDBYC32Engine

OperationandMaintenanceManual

992KWheelLoader

MediaNumber-SEBU8651-08PublicationDate-01/08/2015DateUpdated-12/09/2019

EquipmentLoweringwithEngineStopped

SMCS-7000

Beforeloweringanyequipmentwiththeenginestopped,cleartheareaaroundtheequipmentof allpersonnel.Theproceduretousewillvarywiththetypeofequipmenttobelowered.Keepin mindmostsystemsuseahighpressurefluidorairtoraiseorlowerequipment.Theprocedurewill causehighpressureair,hydraulic,orsomeothermediatobereleasedinordertolowerthe equipment.Wearappropriatepersonalprotectiveequipmentandfollowtheestablishedprocedure intheOperationandMaintenanceManual,"EquipmentLoweringwithEngineStopped"inthe OperationSectionofthemanual.

WedMay2909:17:44UTC+05302024

i08229294

Product:WHEELLOADER

Model:992KWHEELLOADERZMX

Configuration:992KWheelLoaderZMX00001-UP(MACHINE)POWEREDBYC32Engine

OperationandMaintenanceManual

992KWheelLoader

MediaNumber-SEBU8651-08PublicationDate-01/08/2015DateUpdated-12/09/2019

SlopeOperation

SMCS-7000

i07746366

Machinesthatareoperatingsafelyinvariousapplicationsdependonthesecriteria:themachine model,configuration,machinemaintenance,operatingspeedofthemachine,conditionsofthe terrain,fluidlevels,andtireinflationpressures.Themostimportantcriteriaaretheskilland judgmentoftheoperator.

AwelltrainedoperatorthatfollowstheinstructionsintheOperationandMaintenanceManualhas thegreatestimpactonstability.Operatortrainingprovidesapersonwiththefollowingabilities: observationofworkingandenvironmentalconditions,feelforthemachine,identificationof potentialhazardsandoperatingthemachinesafelybymakingappropriatedecisions.

Whenyouworkonsidehillsandwhenyouworkonslopes,considerthefollowingimportant points:

Speedoftravel-Athigherspeeds,forcesofinertiatendtomakethemachinelessstable.

Roughnessofterrainorsurface-Themachinemaybelessstablewithuneventerrain.

Directionoftravel-Avoidoperatingthemachineacrosstheslope.Whenpossible,operatethe machineuptheslopesandoperatethemachinedowntheslopes.Placetheheaviestendofthe machineuphillwhenyouareworkingonanincline.

Mountedequipment-Balanceofthemachinemaybeimpededbythefollowingcomponents: equipmentthatismountedonthemachine,machineconfiguration,weights,andcounterweights.

Natureofsurface-Groundthathasbeennewlyfilledwithearthmaycollapsefromtheweightof themachine.

Surfacematerial-Rocksandmoistureofthesurfacematerialmaydrasticallyaffectthe machine'stractionandmachine'sstability.Rockysurfacesmaypromotesideslippingofthe machine.

Slippageduetoexcessiveloads-Thismaycausedownhilltracksordownhilltirestodigintothe ground,whichwillincreasetheangleofthemachine.

Widthoftracksortires-Narrowertracksornarrowertiresfurtherincreasethediggingintothe groundwhichcausesthemachinetobelessstable.

Implementsattachedtothedrawbar-Thismaydecreasetheweightontheuphilltracks.This mayalsodecreasetheweightontheuphilltires.Thedecreasedweightwillcausethemachineto belessstable.

Heightoftheworkingloadofthemachine-Whentheworkingloadsareinhigherpositions,the stabilityofthemachineisreduced.

Operatedequipment-Beawareofperformancefeaturesoftheequipmentinoperationandthe effectsonmachinestability.

Operatingtechniques-Keepallattachmentsorpulledloadslowtothegroundforoptimum stability.

Machinesystemshavelimitationsonslopes-Slopescanaffecttheproperfunctionand operationofthevariousmachinesystems.Thesemachinesystemsareneededformachinecontrol.

Note:Operatorswithlotsofexperienceandproperequipmentforspecificapplicationsarealso required.Safeoperationonsteepslopesmayalsorequirespecialmachinemaintenance.Referto LubricantViscositiesandRefillCapacitiesinthismanualfortheproperfluidlevelrequirements andintendedmachineuse.Fluidsmustbeatthecorrectlevelstoensurethatsystemswilloperate properlyonaslope.

WedMay2909:17:28UTC+05302024

Product:WHEELLOADER

Model:992KWHEELLOADERZMX

Configuration:992KWheelLoaderZMX00001-UP(MACHINE)POWEREDBYC32Engine

OperationandMaintenanceManual

992KWheelLoader

MediaNumber-SEBU8651-08PublicationDate-01/08/2015DateUpdated-12/09/2019

i03907830

Parking

SMCS-7000

Parkthemachineonalevelsurface.Ifyoumustparkthemachineonadowngrade,blockthetires.

Applytheservicebrakeinordertostopthemachine.Movethetransmissioncontroltothe NEUTRALposition.

Engagetheparkingbrake.

Lowerallworktoolstotheground.Activateanycontrollocks.

Stoptheengine.

TurntheenginestartswitchtotheOFFpositionandremovethekey.

AlwaysturnthebatterydisconnectswitchtotheOFFpositionbeforeleavingthemachine.

Ifthemachinewillnotbeoperatedforamonthormore,removethebatterydisconnectswitch key.

WedMay2909:17:13UTC+05302024

This is the sample of the manual Click on the download link for complete Manual

Product:WHEELLOADER

Model:992KWHEELLOADERZMX

Configuration:992KWheelLoaderZMX00001-UP(MACHINE)POWEREDBYC32Engine

OperationandMaintenanceManual

992KWheelLoader

MediaNumber-SEBU8651-08PublicationDate-01/08/2015DateUpdated-12/09/2019 i06299648

EngineStopping

SMCS-1000;7000

Donotstoptheengineimmediatelyafterthemachinehasbeenoperatedunderload.Stoppingthe engineimmediatelycancauseoverheatingandacceleratedwearofenginecomponents.

Afterthemachineisparkedandtheparkingbrakeisengaged,allowtheenginetorunatlowidle for5minutesbeforeshutdown.Runningtheengineallowshotareasoftheenginetocool gradually.

WedMay2909:16:57UTC+05302024

Product:WHEELLOADER

Model:992KWHEELLOADERZMX

Configuration:992KWheelLoaderZMX00001-UP(MACHINE)POWEREDBYC32Engine

OperationandMaintenanceManual

992KWheelLoader

MediaNumber-SEBU8651-08PublicationDate-01/08/2015DateUpdated-12/09/2019

Operation

SMCS-7000

Onlyoperatethemachinewhileyouaresittinginaseat.Theseatbeltmustbefastenedwhileyou operatethemachine.Onlyoperatethecontrolswhiletheengineisrunning.

Whileyouoperatethemachineslowlyinanopenarea,checkforproperoperationofallcontrols andallprotectivedevices.

Beforeyoumovethemachine,makesurethatnoonewillbeendangered.

Donotallowridersonthemachineunlessthemachinehasanadditionalseatwithaseatbelt.The ridermustbeseatedandtheseatbeltmustbefastened.

Neverusetheworktoolforaworkplatform.

Noteanyneededrepairsduringmachineoperation.Reportanyneededrepairs.

Carryworktoolsatapproximately40cm(15inches)abovegroundlevel.

Donotgoclosetotheedgeofacliff,anexcavation,oranoverhang.

Avoidoperatingthemachineacrosstheslope.Whenpossible,operatethemachineuptheslopes anddowntheslopes.Ifthemachinebeginstosidesliponadowngrade,immediatelyremovethe loadandturnthemachinedownhill.

Avoidanyconditionsthatcanleadtotippingthemachine.Themachinecantipwhenyouworkon hills,onbanks,andonslopes.Also,themachinecantipwhenyoucrossditches,ridges,orother unexpectedobstructions.

Maintaincontrolofthemachine.Donotoverloadthemachinebeyondthemachinecapacity.

Neverstraddleawirecable.Neverallowotherpersonneltostraddleawirecable.

Knowthemaximumdimensionsofyourmachine.

AlwayskeeptheRolloverProtectiveStructure(ROPS)installedduringmachineoperation.

i08246407

MachineOperatingTemperatureRange

available.ConsultyourCatdealerforadditionalinformationonspecialconfigurationsofyour machine.

FuelingMachine

UltraLowSulfurDiesel(ULSD)posesagreaterstaticignitionhazard thanearlierdieselformulations,withahigherSulfurcontent,which mayresultinafireorexplosion.Consultwithyourfuelorfuelsystem supplierfordetailsonpropergroundingandbondingpractices.

Toavoidpossibleinjuryordeath,donotsmokewhileinanareathat containsflammableliquids.

Allfuels,mostlubricants,andsomecoolantsareflammable.

Keepallfuelsandlubricantsstoredinproperlymarkedcontainersand awayfromunauthorizedpersons.

Fuelleakedorspilledontohotsurfacesorelectricalcomponentscan causeafire.

Storealloilyragsorotherflammablematerialsinaprotectivecontainer inasafeplace.

Removeallflammablematerialssuchasfuel,oil,andotherdebris beforetheyaccumulateonthemachine.

Donotexposethemachinetoflames,burningbrush,etc.,ifatall possible.

Locatefuelfillonmachine,andremovethefuelcap.Whenfuelingthemachineiscomplete, replacethefuelcapandlockintoplace.

Fuelcapmaybehot.Toavoidinjury,usepersonalprotectiveequipment.Allowthecaptocool beforefuelingthemachine.

LimitingConditionsandCriteria

Limitingconditionsareimmediateissueswiththismachinethatmustbeaddressedpriorto continuingoperation.

TheOperationandMaintenanceManual,SafetySectiondescribeslimitingconditioncriteriafor replacingitemssuchassafetymessages,seatbeltandmountinghardware,lines,tubes,hoses, batterycablesandrelatedparts,electricalwires,andrepairinganyfluidleak.

TheOperationandMaintenanceManual,MaintenanceIntervalScheduledescribeslimiting conditioncriteriathatrequirerepairorreplacementforitems(ifequipped)suchasalarms,horns, brakingsystem,steeringsystem,androlloverprotectivestructures.

TheOperationandMaintenanceManual,MonitoringSystem(ifequipped)providesinformation onlimitingconditioncriteria,includingaWarningCategory3thatrequiresimmediateshutdown oftheengine.

CriticalFailures

Thefollowingtableprovidessummaryinformationonseverallimitingconditionsfoundinthis OperationandMaintenanceManual.Thetableprovidescriteriaandrequiredactionforthe limitingconditionslisted.EachSystemorComponentinthistable,togetherwiththerespective limitingcondition,describesapotentialcriticalfailurethatmustbeaddressed.Notaddressing limitingconditionswithrequiredactionsmay,alongwithotherfactorsorcircumstances,resultin ariskofpersonalinjuryordeath.Ifanaccidentoccurs,notifyemergencypersonnelandprovide locationanddescriptionofaccident.

Table1

Systemor Component Name Limiting Condition Criteriafor Action Required Action

Line,tubes, andhoses

Endfittingsaredamaged orleaking.Outer coveringsarechafedor cut.Wiresareexposed. Outercoveringsare swellingorballooning. Flexiblepartsofthe hosesarekinked.Outer covershaveexposed embeddedarmoring.End fittingsaredisplaced.

Electrical Wiring

Batterycable (s)

Signsoffraying, abrasion,cracking, discoloration,cutsonthe insulation

Signsoffraying, abrasion,cracking, discoloration,cutsonthe

Visiblecorrosion, loose,ordamaged lines,tubes,or hoses.Visible fluidleaks. Immediatelyrepairanylines, tubes,orhosesthatare corroded,loose,ordamaged. Immediatelyrepairanyleaks asthesemayprovidefuelfor fires.

Visibledamageto electricalwiring Immediatelyreplacedamaged wiring

Visibledamageto batterycable(s) Immediatelyreplacedamaged batterycables

insulationofthecable, fouling,corroded terminals,damaged terminals,andloose terminals

Operator Protective Structure

SeatBelt

Structuresthatarebent, cracked,orloose.Loose, missing,ordamaged bolts.

Wornordamagedseat beltormounting hardware

SeatBeltAgeofseatbelt

Safety Messages Appearanceofsafety message

Audible Warning Device(s)(if equipped)

Camera(s)(if equipped)

Cab Windows(if equipped)

Soundlevelofaudible warning

Dirtordebrisoncamera lens

Visibledamageto structure.Loose, missing,or damagedbolts.

Visiblewearor damage

Threeyearsafter dateof installation

Damagetosafety messagesmaking themillegible

Reducedorno audiblewarning present

Dirtordebris obstructing cameraview

Dirt,debris,ordamaged windows

Mirrors(if equipped)

Dirt,debris,ordamaged mirror

Dirtordebris obstructing operatorvisibility. Anydamaged windows.

Dirtordebris obstructing operatorvisibility. Anydamaged mirrors.

Donotoperatemachinewith damagedstructureorloose, missing,ordamagedbolts. ContactyourCatdealerfor inspectionandrepairor replacementoptions.

Immediatelyreplacepartsthat arewornordamaged.

Replaceseatbeltthreeyears afterdateofinstallation

Replacetheillustrationsif illegible.

Immediatelyrepairorreplace audiblewarningdevicesnot workingproperly.

Cleancamerabeforeoperating machine.

Cleanwindowsbefore operatingmachine.Repairor replacedamagedwindows beforeoperatingmachine.

Cleanmirrorsbeforeoperating machine.Repairorreplace damagedmirrorsbefore operatingmachine.

Braking System

Inadequatebraking performance

Systemdoesnot passBraking System-Test(s) includedin Maintenance Sectionorinthe Testingand Adjusting Manual

ContactyourCatdealerto inspectand,ifnecessary,repair thebrakesystem.

Cooling System Thecoolanttemperature istoohigh.

EngineOil System

Engine system

FuelSystem

Aproblemhasbeen detectedwiththeengine oilpressure. Monitoring

Anenginefaulthasbeen detectedbytheengine ECM.

Aproblemhasbeen detectedwiththefuel system.

Monitoring Systemdisplays

HydraulicOil System Thehydraulicoil temperatureistoohigh. Monitoring

Steering System

Aproblemhasbeen detectedwiththesteering system.(Ifequippedwith steeringsystem monitoring.)

Overall Machine Machineserviceis required.

Stoptheengineimmediately. Checkthecoolantleveland checktheradiatorfordebris. RefertoOperationand MaintenanceManual,Cooling SystemCoolantLevel-Check. Checkthefandrivebeltsfor thewaterpump.Referto OperationandMaintenance Manual,Belts-Inspect/Adjust/ Replace.Makeanynecessary repairs.

Ifthewarningstaysonduring lowidle,stoptheengineand checktheengineoillevel. Performanynecessaryrepairs assoonaspossible.

Stoptheengineimmediately. ContactyourCatdealerfor service.

Stoptheengine.Determinethe causeofthefaultandperform anynecessaryrepairs.

Stoptheengineimmediately. Checkthehydraulicoillevel andcheckthehydraulicoil coolerfordebris.Performany necessaryrepairsassoonas possible.

Movemachinetoasafe locationandstoptheengine immediately.ContactyourCat dealertoinspectand,if necessary,repairthesteering system.

Stoptheengineimmediately. ContactyourCatdealerfor service.

Product:WHEELLOADER

Model:992KWHEELLOADERZMX

Configuration:992KWheelLoaderZMX00001-UP(MACHINE)POWEREDBYC32Engine

OperationandMaintenanceManual

992KWheelLoader

MediaNumber-SEBU8651-08PublicationDate-01/08/2015DateUpdated-12/09/2019

BeforeOperation

SMCS-7000

Makesurethattherearenopersonnelonthemachineorintheareaaroundthemachine.

Clearallobstaclesfromthepathofthemachine.Bewareofhazardssuchaswires,ditches,etc.

Makesurethatallwindows,displays(ifequipped),andcameras(ifequipped)areclean.Secure thedoorsandthewindowsintheopenpositionorintheshutposition.

Adjusttherearviewmirrors(ifequipped)forthebestvisionoftheareanearthemachine.

Ensurethatthehorn,thebackupalarm(ifequipped),quickcoupleralarm(ifequipped),andall otherwarningdevicesareworkingproperly.

Fastentheseatbeltsecurely.

WedMay2909:16:18UTC+05302024

i07747294

Product:WHEELLOADER

Model:992KWHEELLOADERZMX

Configuration:992KWheelLoaderZMX00001-UP(MACHINE)POWEREDBYC32Engine

OperationandMaintenanceManual

992KWheelLoader

MediaNumber-SEBU8651-08PublicationDate-01/08/2015DateUpdated-12/09/2019

EngineStarting

SMCS-1000;7000

i03690423

Ifawarningtagisattachedtotheenginestartswitchortothecontrols,donotstarttheengineand donotmoveanycontrols.

MoveallhydrauliccontrolstotheHOLDpositionbeforeyoustarttheengine.

MovethetransmissioncontroltotheNEUTRALposition.

Engagetheparkingbrake.

Dieselengineexhaustcontainsproductsofcombustionwhichcanbeharmfultoyourhealth. Alwaysoperatetheengineinawellventilatedarea.Ifyouareinanenclosedarea,ventthe exhausttotheoutside.

Brieflysoundthehornbeforeyoustarttheengine.

Checkforthepresenceofpersonnel.Ensurethatallpersonnelareclearofthemachine.

AllRightsReserved.

PrivateNetworkForSISLicensees.

WedMay2909:16:04UTC+05302024

Product:WHEELLOADER

Model:992KWHEELLOADERZMX

Configuration:992KWheelLoaderZMX00001-UP(MACHINE)POWEREDBYC32Engine

OperationandMaintenanceManual

992KWheelLoader

MediaNumber-SEBU8651-08PublicationDate-01/08/2015DateUpdated-12/09/2019 i03258403

RestrictedVisibility

SMCS-7000

Thesizeandtheconfigurationofthismachinemayresultinareasthatcannotbeseenwhenthe operatorisseated.Illustration1providesanapproximatevisualindicationofareasofsignificant restrictedvisibility.Illustration1indicatesrestrictedvisibilityareasatgroundlevelinsidearadius of12m(40ft)fromtheoperatoronamachinewithouttheuseofoptionalvisualaids.This illustrationdoesnotprovideareasofrestrictedvisibilityfordistancesoutsidearadiusof12m (40ft).

Thismachinemaybeequippedwithoptionalvisualaidsthatmayprovidevisibilitytosomeofthe restrictedvisibilityareas.RefertothisOperationandMaintenanceManual,"Mirror"formore informationonadditionalvisibility.Ifyourmachineisequippedwithcameras,refertothis OperationandMaintenanceManual,"Camera"formoreinformationonadditionalvisibility.For areasthatarenotcoveredbytheoptionalvisualaids,thejobsiteorganizationmustbeutilizedto minimizehazardsofthisrestrictedvisibility.Formoreinformationregardingjobsiteorganization refertoOperationandMaintenanceManual,"VisibilityInformation".

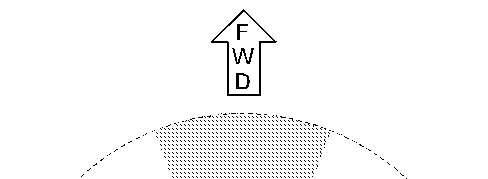

Illustration1g01660074

Topviewofthemachine

Note:Theshadedareasindicatetheapproximatelocationofareaswithsignificantrestricted visibility.

WedMay2909:15:47UTC+05302024

Product:WHEELLOADER

Model:992KWHEELLOADERZMX

Configuration:992KWheelLoaderZMX00001-UP(MACHINE)POWEREDBYC32Engine

OperationandMaintenanceManual

992KWheelLoader

MediaNumber-SEBU8651-08PublicationDate-01/08/2015DateUpdated-12/09/2019

VisibilityInformation

SMCS-7000

i07746368

Beforeyoustartthemachine,performawalk-aroundinspectioninordertoensurethatthereare nohazardsaroundthemachine.

Whilethemachineisinoperation,constantlysurveytheareaaroundthemachineinorderto identifypotentialhazardsashazardsbecomevisiblearoundthemachine.

Yourmachinemaybeequippedwithvisualaids.SomeexamplesofvisualaidsareClosedCircuit Television(CCTV)andmirrors.Beforeoperatingthemachine,ensurethatthevisualaidsarein properworkingconditionandthatthevisualaidsareclean.Adjustthevisualaidsusingthe proceduresthatarelocatedinthisOperationandMaintenanceManual.Ifequipped,theWork AreaVisionSystemshallbeadjustedaccordingtoOperationandMaintenanceManual, SEBU8157,"WorkAreaVisionSystem".Ifequipped,theCatDetectObjectDetectionshallbe adjustedaccordingtotheOperationandMaintenanceManual,"CatDetectObjectDetection"for yourmachine.

Itmaynotbepossibletoprovidedirectvisibilityonlargemachinestoallareasaroundthe machine.Appropriatejobsiteorganizationisrequiredinordertominimizehazardsthatarecaused byrestrictedvisibility.Jobsiteorganizationisacollectionofrulesandproceduresthat coordinatesmachinesandpeoplethatworktogetherinthesamearea.Examplesofjobsite organizationincludethefollowing:

•Safetyinstructions

•Controlledpatternsofmachinemovementandvehiclemovement

•Workersthatdirectsafemovementoftraffic

•Restrictedareas

•Operatortraining

•Warningsymbolsorwarningsignsonmachinesoronvehicles

•Asystemofcommunication

•Communicationbetweenworkersandoperatorspriortoapproachingthemachine

Modificationsofthemachineconfigurationbytheuserthatresultinarestrictionofvisibilityshall beevaluated.

WedMay2909:15:30UTC+05302024

Product:WHEELLOADER

Model:992KWHEELLOADERZMX

Configuration:992KWheelLoaderZMX00001-UP(MACHINE)POWEREDBYC32Engine

OperationandMaintenanceManual

992KWheelLoader

MediaNumber-SEBU8651-08PublicationDate-01/08/2015DateUpdated-12/09/2019

BeforeStartingEngine

SMCS-1000;7000

Thesteeringframelockmustbeintheunlockedpositioninordertosteerthemachine.

Starttheengineonlyfromtheoperatorcompartment.Nevershortacrossthestarterterminalsor acrossthebatteries.Shortingcouldbypasstheengineneutralstartsystem.Shortingcouldalso damagetheelectricalsystem.

Inspecttheconditionoftheseatbeltandtheconditionofmountinghardware.Replaceanyparts thatarewornordamaged.Regardlessoftheappearance,replacetheseatbeltafterthreeyearsof use.Donotuseaseatbeltextensiononaretractableseatbelt.

Adjusttheseatsothatthereisfullpedaltravelwhiletheoperator'sbackisagainstthebackofthe seat.

Makesurethatthemachineisequippedwithalightingsystemthatisadequateforthejob conditions.Makesurethatalllightsareworkingproperly.

Beforeyoustarttheengineorbeforeyoumovethemachine,makesurethatnooneisonthe machine,underneaththemachine,oraroundthemachine.Makesurethattherearenopersonnelin thearea.

WedMay2909:15:15UTC+05302024

i00934890

Product:WHEELLOADER

Model:992KWHEELLOADERZMX

Configuration:992KWheelLoaderZMX00001-UP(MACHINE)POWEREDBYC32Engine

OperationandMaintenanceManual

992KWheelLoader

MediaNumber-SEBU8651-08PublicationDate-01/08/2015DateUpdated-12/09/2019

ElectricalStormInjuryPrevention

SMCS-7000

i01122596

Whenlightningisstrikinginthevicinityofthemachine,theoperatorshouldneverattemptthe followingprocedures:

•Mountthemachine.

•Dismountthemachine.

Ifyouareintheoperator'sstationduringanelectricalstorm,stayintheoperator'sstation.Ifyou areonthegroundduringanelectricalstorm,stayawayfromthevicinityofthemachine.

WedMay2909:15:00UTC+05302024

Product:WHEELLOADER

Model:992KWHEELLOADERZMX

Configuration:992KWheelLoaderZMX00001-UP(MACHINE)POWEREDBYC32Engine

OperationandMaintenanceManual

992KWheelLoader

MediaNumber-SEBU8651-08PublicationDate-01/08/2015DateUpdated-12/09/2019

TireInformation

SMCS-7000

i06164462

Explosionsofairinflatedtireshaveresultedfromheat-inducedgascombustioninsidethetires. Explosionscanbecausedbyheatthatisgeneratedbywelding,byheatingrimcomponents,by externalfire,orbyexcessiveuseofbrakes.

Atireexplosionismuchmoreviolentthanablowout.Theexplosioncanpropelthetire,therim components,andtheaxlecomponentsfromthemachine.Stayoutofthetrajectorypath.Boththe forceoftheexplosionandtheflyingdebriscancausepropertydamage,personalinjury,ordeath.

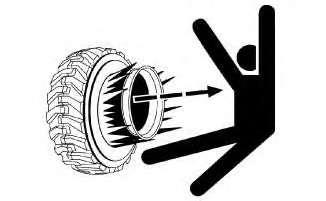

Illustration1g02166933

Typicalexampleoftireisshown

Donotapproachahotoranapparentlydamagedtire.

Caterpillarrecommendsagainstusingwaterorcalciumasaballastforthetiresexceptinmachines designedforthisadditionalmass.Forthoseapplicablemachines,themaintenancesectionwill containinstructionsonthecorrecttireinflationandfillingprocedures.Ballast,suchasfluidinthe tires,increasesoverallmachineweightandmayaffectbraking,steering,powertraincomponents, orthecertificationoftheprotectivestructuresuchastheROPS.Theuseoftire/rimrust preventativesorotherliquidadditivesisnotrequired.

Propernitrogeninflationequipment,andtraininginusingthe equipment,arenecessarytoavoidoverinflation.Atireblowoutorrim failurecanresultfromimproperormisusedequipmentandpersonal injuryordeathcanoccur.

Atireblowoutand/orrimfailurecanoccuriftheinflationequipmentis notusedcorrectly,duetothefactthatafullychargednitrogen cylinder'spressureisapproximately15000kPa(2200psi).

Drynitrogengasisrecommendedforinflationoftires.Ifthetireswereoriginallyinflatedwithair, nitrogenisstillpreferredforadjustingthepressure.Nitrogenmixesproperlywithair.

Nitrogeninflatedtiresreducethepotentialofatireexplosionbecausenitrogendoesnotaid combustion.Nitrogenhelpstopreventoxidationoftherubber,deteriorationofrubber,and corrosionofrimcomponents.

Toavoidoverinflation,propernitrogeninflationequipmentandtrainingintheusageofthe equipmentarenecessary.Atireblowoutorarimfailurecanresultfromimproperequipmentor frommisusedequipment.

Whenyouinflateatire,standbehindthetreadanduseaself-attachingchuck.

Servicingtiresandrimscanbedangerous.Onlytrainedpersonnelthatusepropertoolsandproper proceduresshouldperformthismaintenance.Ifcorrectproceduresarenotusedforservicingtires andrims,theassembliescouldburstwithexplosiveforce.Thisexplosiveforcecancauseserious personalinjuryordeath.Carefullyobeythespecificinstructionsfromyourtiredealer.

WedMay2909:14:42UTC+05302024

This is the sample of the manual Click on the download link for complete Manual
