Disassembly and Assembly
26SI Series Alternator
Media Number -RENR1252-01
Alternator - Assemble
SMCS - 1405-016
Assembly Procedure
Date -01/10/1999
Updated -09/10/2001
i01167078
Note: Cleanliness is an important factor. Before assembly, all partsshould be thoroughly cleaned in cleaning fluid. Allow the parts to air dry. Wiping cloths or rags should not be used to dry parts. Lint may be deposited on the partswhich may cause later trouble. Inspect all parts. If any parts are worn or damaged, use new parts for replacement.
Note: Do not strike the diodes. The shock of such an impact can damage the diodes. Use proper tools in order to press the diodes in the mountings.
Illustration 1

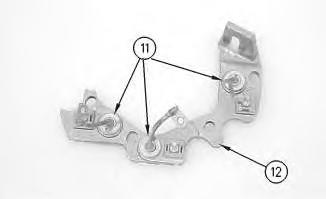

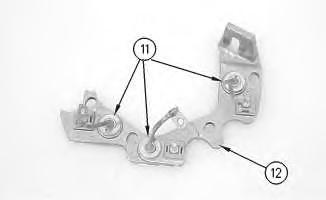

1. Install 3 diodes (11) in heat sink (12) .
g00628072
Illustration 2
g00628068
Note: Do not strike the bushing. Shocksfrom striking the housing can cause damage.
2. Press bushing (43) in housing (14) .
3. Install 3 diodes (13) in housing (14) .
Illustration 3

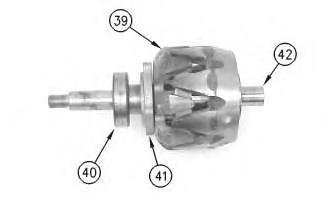

4. Press collar (42) on rotor (39) .
5. Slide retainer (41) on rotor (39) .
6. Press bearing (40) on rotor (39) .
g00628067
Illustration 4
g00628063
7. Press housing (31) on rotor (39) and bearing (40) .
8. Install 4 screws (38) in housing (31) .
Illustration 5
g00628057
Note: Do not strike the bearing. Shocksfrom striking the housing can cause damage.

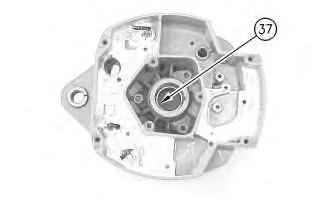

9. Install the inner race. Press bearing (37) into the housing.
Illustration 6
10. Press cap (36) in housing (14) .
Illustration 7
g00628041

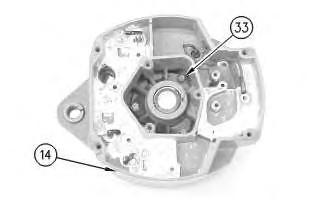

11. Install the coil and support (34) in housing (14). Guide the field leadsand the grommet through the hole as the coil is installed in housing (14). Install 3 screws(33) .
Illustration 8
g00628037

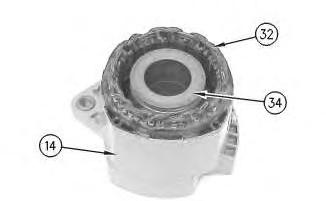

12. Press the stator (32) and housing (14) together. Guide the stator leads and the grommet through the hole as the stator isinstalled in housing (14) .
Illustration 9
g00628035
Note: Do not damage exposed stator windings or field windings. Bumping the windings or scraping the windings may break the insulation. Broken insulation may create a short circuit or a ground.

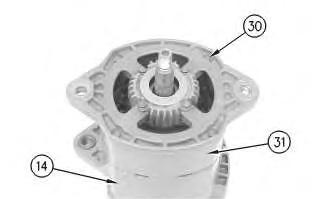

13. Join housing (31) and housing (14). Install 4 bolts (30) .
10
Note: Many of the alternator's internal components are covered with dielectric grease. If the grease is removed, reapply the grease.
11

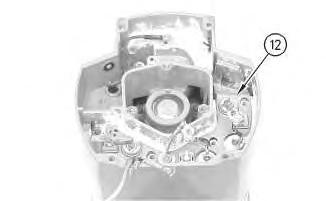

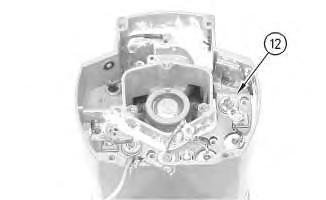

14. Install Insulator (29). Install the heat sink and diode assembly (12) in housing (14) .
This is the sample of the manual
Click on the download link for complete manual
12
15. Install separator (28) .
16. Install alternator output terminal (27). Install insulator (26). Install the nut and washer (25) .
17. Install diode trio (24) and install screw(23) .
Illustration 13
18. Install the 3 screws and insulators (18). Connect wire (19) .
19. If the "R" terminal is used, install the following components: nut (20), lead (21), the washer and terminal (21) .
Illustration 14
g00627820
20. Install the screw and insulator (16). Connect capacitor lead (17) .
Illustration 15
g00627810

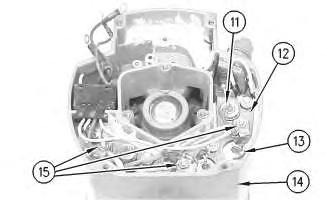

Note: The 3 output diodes (11) are located in heat sink (12). These diodes are identical in polarity. Diode (11) has red insulation on the wire. The 3 ground diodes (13) are located in housing (14). These diodes are identical in polarity. Diode (13) has black insulation on the wire.
21. Connect 6 diode leads. Connect 3 phase leads. Connect 3 stator phase leads. Install 3 nuts(15).
Table 1
Alternator Ground
Negative
Current Flow of the Output Diodes
Lead to the Heat Sink
Red Wire
Current Flowof the Ground Diodes
Housing to the Lead
Black Wire
16

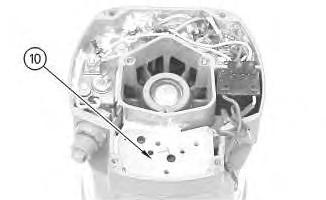

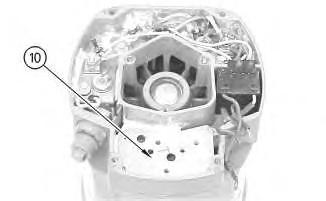

22. Install mounting plate (10).
Illustration 17

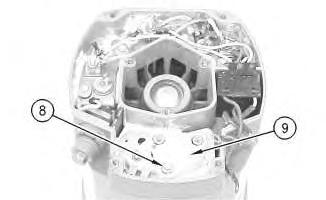

23. Install regulator (9) .
24. Install grounded mounting screw (8) .
18

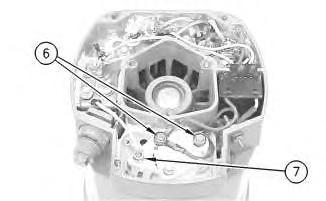

25. Install 2 insulated screws (6). Connect the 3 leads.
Note: The regulator and the mounting plate are coated with dielectric grease. If the grease is removed, reapply the grease.
26. Install nut (7) and connect the wire.
19

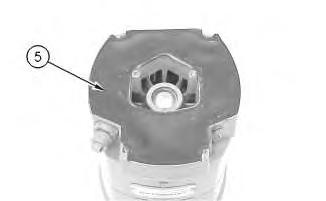

27. Install gasket (5) .
Illustration 20

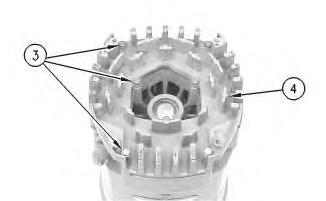

28. Position cover (4). Install 7 screws (3) .
Illustration 21

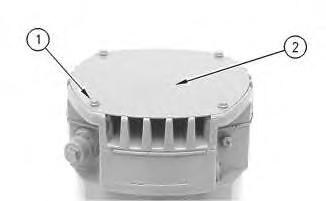

29. Position plate (2). Install 4 screws (1) .
30. Install the fan, the pulley, the washer, and the pulley nut. Copyright 1993 - 2020 Caterpillar Inc. All Rights Reserved. Private Network For SIS Licensees.
Product: WHEEL LOADER
Model: 970F WHEEL LOADER 7SK00792
Configuration: 970F Wheel Loader 7SK00224-UP (MACHINE) POWERED BY 3306 Engine
Disassembly and Assembly
26SI Series Alternator Media Number -RENR1252-01
i01167081
Alternator - Disassemble
SMCS - 1405-015
Disassembly Procedure
Table 1 Required Tools
Start By:
A. Remove the alternator. Refer to Disassembly and Assembly, "Alternator - Remove" for the machine that isbeing serviced.
Note: Cleanliness is an important factor. Before the disassembly procedure, the exterior of the component should be thoroughly cleaned. This will help to prevent dirt from entering the internal mechanism.
1. Remove the pulley nut, the washer, the pulley, and the fan.
1
2. Remove 4 screws (1). Remove plate (2) .
Illustration 2
3. Remove 7 screws (3). Remove cover (4) .
Illustration 3 g00627794
4. Remove gasket (5) .
Illustration 4
g00627796
5. Remove 2 insulated screws(6). Remove the 3 leads.
Note: The regulator and the mounting plate are coated with dielectric grease. If the grease is removed, reapply the grease.
6. Remove nut (7) .
Illustration 5 g00627804

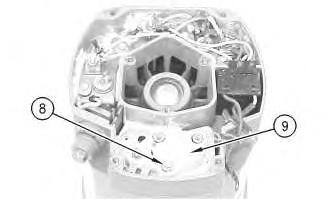

7. Remove grounded mounting screw (8) .
8. Remove regulator (9) .
Illustration 6
g00627808
9. Remove mounting plate (10). The mounting plate may be stuck to the regulator.
Illustration 7
g00627810
Note: The 3 output diodes (11) are located in heat sink (12). These diodes are identical in polarity. Diode (11) has red insulation on the wire. The 3 ground diodes (13) are located in housing (14). These diodes are identical in polarity. Diode (13) has black insulation on the wire.
10. Remove 3 nuts (15). Disconnect 3 stator phase leads. Disconnect 3 phase leads. Disconnect 6 diode leads.
Table 2
Alternator Ground
Current Flow of the Output Diodes
Lead to the Heat Sink
Negative
Current Flowof the Ground Diodes
Housing to the Lead Red Wire Black Wire
Illustration 8
g00627820

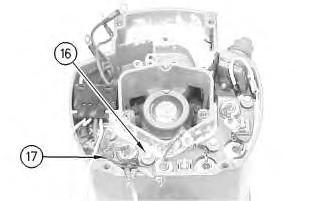

11. Remove the screw and insulator (16). Disconnect capacitor lead (17) .
Illustration 9
g00627832

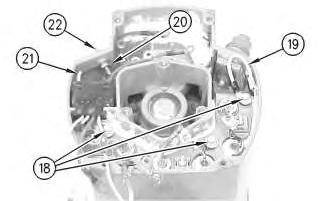

12. Remove the 3 screws and insulators (18). Disconnect wire (19) .
13. If the "R" terminal is used, remove the following components: nut (20), lead (21), the washer and terminal (21) .
10
14. Remove screw(23) and remove diode trio (24) .
15. Remove the nut and washer (25). Remove insulator (26). Remove alternator output terminal (27) .
16. Remove separator (28) .
Illustration 11
g00627853
Note: Many of the alternator's internal components are covered with dielectric grease. If the grease is removed, reapply the grease.
Illustration 12
g00627855

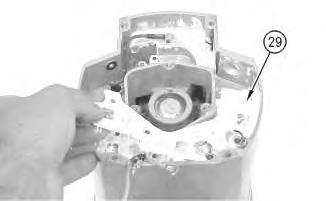

17. Remove the heat sink and diode assembly (12) from housing (14). Insulator (29) may be stuck to heat sink (12) .
Illustration 13
g00628035
Note: Do not damage exposed stator windings or field windings. Bumping the windings or scraping the windings may break the insulation. Broken insulation may create a short circuit or a ground.
18. Remove 4 bolts (30). Carefully separate housing (31) from housing (14) .
Illustration 14
g00628037
19. Pull apart stator (32) and housing (14). Guide the stator leads and the grommet through the hole as the stator is removed from housing (14) .
Illustration 15
g00628041
20. Remove 3 screws (33). Remove the coil and support (34) from housing (14). Guide the field leads and the grommet through the hole as the coil is removed from housing (14) .
Illustration 16
g00628043

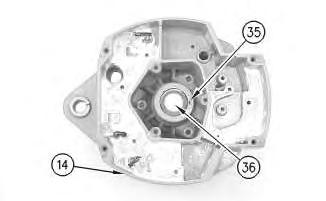

21. Position a small screwdriver in slot (35). Pry cap (36) from housing (14) .
Illustration 17
g00628057
Note: Do not strike the bearing. Shocksfrom striking the housing can cause damage.
22. Wipe the excess grease from the bearing well. Press bearing (37) into the housing. Remove the inner race.
Illustration 18
23. Remove 4 screws (38) from housing (31) .
24. Lift rotor (39) and bearing (40) from housing (31) .
Illustration 19
25. Pull bearing (40) from rotor (39) .
26.
.
.
Illustration 20
g00628068
Note: Do not strike the bushing. Shocksfrom striking the housing can cause damage.
28. Press bushing (43) from housing (14) .
Note: Do not strike the diodes. The shock of such an impact can damage the diodes. Use proper tools in order to press or pull the diodes from the mountings. As much as890 N (200 lb) of force may be needed to remove a diode.
29. Remove 3 diodes (13) from housing (14) .
Illustration 21
30. Remove diode (11) from heat sink (12) . Copyright 1993 - 2020 Caterpillar Inc. All Rights Reserved.
Network For SIS Licensees.
g00628072
Tue Dec 29 12:23:03 UTC+0530 2020
Product: WHEEL LOADER
Model: 970F WHEEL LOADER 7SK00792
Configuration: 970F Wheel Loader 7SK00224-UP (MACHINE) POWERED BY 3306 Engine
Disassembly and Assembly
Comfort Series Seat For Caterpillar Machines
Media Number -RENR2165-12
Air Suspension With Air Valve Knob Height Adjustment -
Assemble
SMCS - 7324-016-AJ
Assembly Procedure
Illustration 1 g00891451

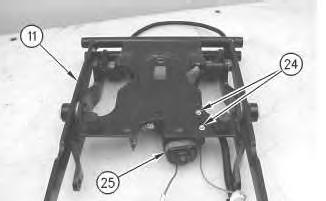

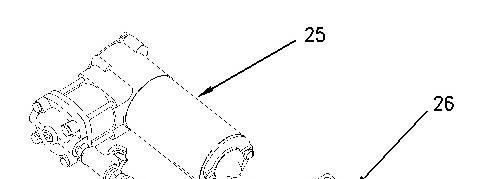

1. Install compressor assembly (25) to mount (26). Make sure that compressor assembly (25) isseated firmly in mount (26).
2
Install bolts (24) in order to attach compressor assembly (25) to scissor assembly (11).
3
Improper assembly of parts that are spring loadedcancause bodily injury.
To prevent possible injury, follow the established assembly procedure and wear protective equipment.
3. Install bolt (23) in order to attach spring assembly (18) to scissor assembly (11). Attach hose assembly (22) to spring assembly (18).
4

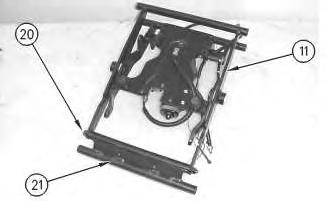

4. Install shaft (20) in order to attach toggle assembly (21) to scissor assembly (11). Tighten the two nuts for shaft (20) to a torque of 15 ±3 N·m (11 ± 2 lb ft).
Illustration 5
g00872031

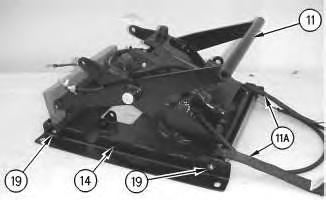

5. Install shaft assemblies (19) in order to attach tether straps (11A) and scissor assembly (11) to housing assembly (14). Tighten the nutson shaft assemblies (19) to a torque of 20 ± 5 N·m (15 ± 4 lb ft). Install blocking in order to prevent scissor assembly (11) from falling.
Illustration 6
g00872029
This is the sample of the manual
Click on the download link for complete manual
7

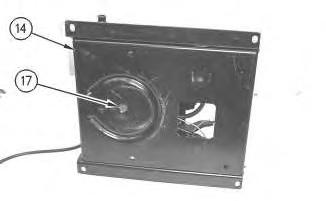

6. Install screw(17) in order to attach housing assembly (14) to spring assembly (18).

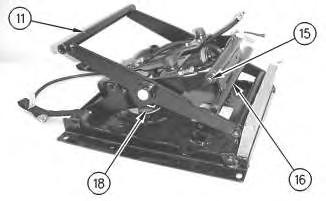

7. Install shaft (15) in order to attach toggle assembly (16) to scissor assembly (11). Tighten the two nuts for shaft (15) to a torque of 15 ±3 N·m (11 ± 2 lb ft).

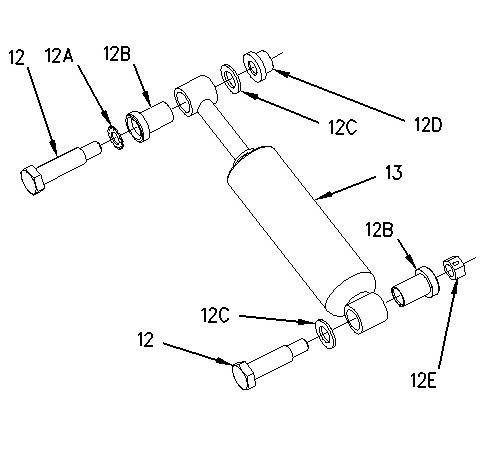

8 g00897454
