Product: TRACK LOADER
Model: 953D TRACK LOADER LBP
Configuration: 953D TRACK-TYPE LOADER LBP00001-UP (MACHINE) POWERED BY C6.6 Engine
Disassembly and Assembly
953D Track-Type Loader Engine Supplement
Media Number -KENR5171-00 Publication Date -01/02/2007 Date Updated -19/02/2007
i02580471
Aftercooler - Install
SMCS - 1063-012
Installation Procedure
Table 1 Required Tools
Tool Part Number Part Description Qty A 138-7573 Link Bracket 2
Illustration 1
Illustration 2
g01292470
1. Attach Tooling (A) and a suitable lifting device to aftercooler (1). The weight of aftercooler (1) is approximately 25 kg (56 lb).

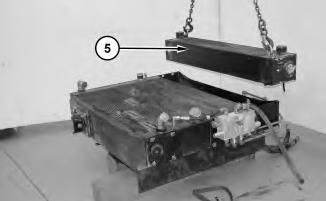

2. Install aftercooler (5). Install bolts (4) to each end of aftercooler (5). Install bolts (2) and (3).
Copyright 1993 - 2021 Caterpillar Inc. All Rights Reserved. Private Network For SIS Licensees. Sun May 9 21:43:03 UTC+0530 2021
Product: TRACK LOADER
Model: 953D TRACK LOADER LBP
Configuration: 953D TRACK-TYPE LOADER LBP00001-UP (MACHINE) POWERED BY C6.6 Engine
Disassembly and Assembly
953D Track-Type Loader Engine Supplement
Media Number -KENR5171-00 Publication Date -01/02/2007 Date Updated -19/02/2007
i02580169
Aftercooler - Remove
SMCS - 1063-011
Removal Procedure
Table 1
Required Tools
Tool Part Number Part Description Qty A 138-7573 Link Bracket 2
Start By:
A. Remove the cooling package. Refer to Disassembly and Assembly, "Radiator Guard and Support, Aftercooler, Hydraulic Oil Cooler, and Radiator - Remove".
Illustration 2
1. Attach Tooling (A) and a suitable lifting device to aftercooler (1). The weight of aftercooler (1) is approximately 25 kg (56 lb).

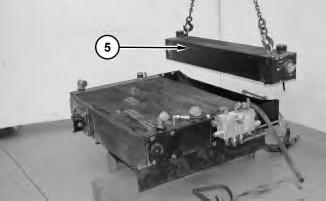

2. Remove bolts (2) and (3). Remove bolts (4) from each end of aftercooler (5). Remove aftercooler (5) .
Copyright 1993 - 2021 Caterpillar Inc. All Rights Reserved.
Private Network For SIS Licensees.
Product: TRACK LOADER
Model: 953D TRACK LOADER LBP
Configuration: 953D TRACK-TYPE LOADER LBP00001-UP (MACHINE) POWERED BY C6.6 Engine
Disassembly and Assembly
953D Track-Type Loader Engine Supplement
Media Number -KENR5171-00 Publication Date -01/02/2007 Date Updated -19/02/2007 i02570411
Air Cleaner - Remove and Install
SMCS - 1051-010
Removal Procedure
Start By:
A. Partially tilt the cab. Refer to Disassembly and Assembly, "Cab - Tilt".
Illustration 1

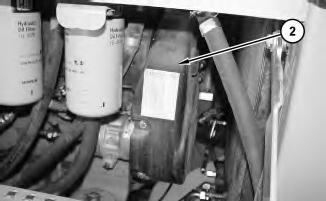

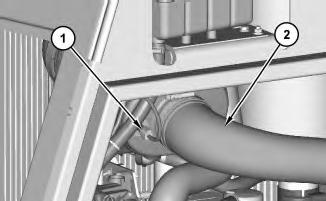

1. Disconnect harness assembly (1). Disconnect hose (2) .
This is the sample of the manual
Click on the download link for complete Manual
2

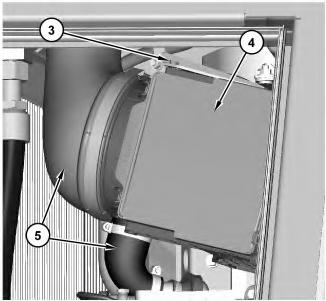

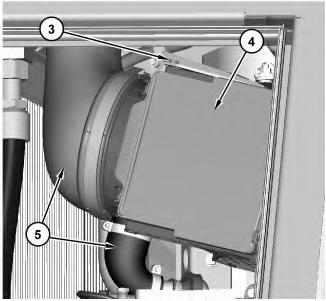

2. Disconnect hoses (5). Remove bolts (3) and air cleaner (4) .
Installation Procedure
3
1. Position air cleaner (4) and install bolts (3). Connect hoses (5) .
Illustration 4 g01287777
2. Connect hose (2). Connect harness assembly (1).
End By: Lower the cab. Refer to Disassembly and Assembly, "Cab - Tilt".
Copyright 1993 - 2021 Caterpillar Inc. All Rights Reserved.
Private Network For SIS Licensees.
Sun May 9 21:38:55 UTC+0530 2021
Product: TRACK LOADER
Model: 953D TRACK LOADER LBP
Configuration: 953D TRACK-TYPE LOADER LBP00001-UP (MACHINE) POWERED BY C6.6 Engine
Disassembly and Assembly
953D Track-Type Loader Engine Supplement
Media Number -KENR5171-00
Publication Date -01/02/2007
Alternator - Remove and Install
SMCS - 1405-010
Removal Procedure
1. Turn the battery disconnect switch to the OFF position.
Date Updated -19/02/2007
i02571154
Illustration 2
3. Remove cover (2) .
Illustration 3

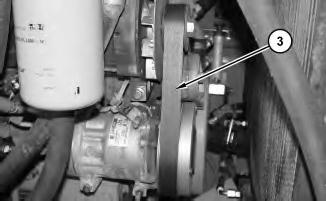

4. Remove belt (3). Refer to Operation and Maintenance Manual, "Belt - Inspect/Replace".

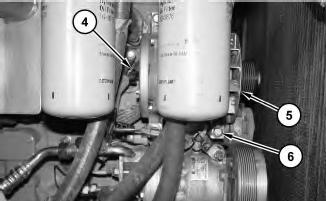

4

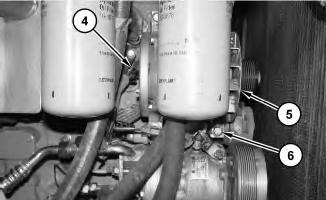

5. Disconnect harness assemblies (4). Remove bolts (6) and alternator (5) .
Installation Procedure
Illustration 5
g01301006
1. Position alternator (5) and install bolts (6). Connect harness assemblies (4) .
Illustration 6
g01300806
2. Install belt (3). Refer to Operation and Maintenance Manual, "Belt - Inspect/Replace".
Illustration 7
Install cover (2) .
8
Close doors (1) .
5. Turn the battery disconnect switch to the ON position. Copyright 1993 - 2021 Caterpillar Inc. All Rights Reserved. Private Network For SIS Licensees. Sun May 9 21:36:34 UTC+0530 2021
Product: TRACK LOADER
Model: 953D TRACK LOADER LBP
Configuration: 953D TRACK-TYPE LOADER LBP00001-UP (MACHINE) POWERED BY C6.6 Engine
Disassembly and Assembly
953D Track-Type Loader Engine Supplement
Media Number -KENR5171-00
Battery - Remove and Install
SMCS - 1401-010
Removal Procedure
-19/02/2007
i02575356
Note: Put identification marks on all lines, on all hoses, on all wires, and on all tubes for installation purposes.
1. Turn the battery disconnect switch into the OFF position. Refer to Operation and Maintenance Manual, "Battery Disconnect Switch".
Illustration 1

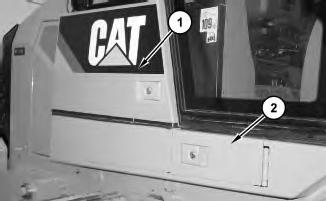

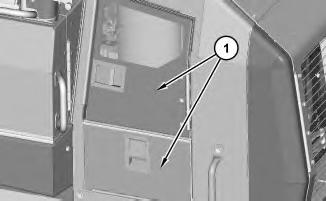

2. Open doors (1) and (2) .
Illustration 2
3
4

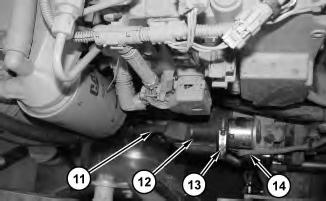

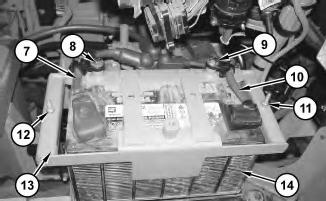

5. Remove clips (8) and (9). Disconnect cable assemblies (7) and (10). Remove nuts (11) and (12). Remove bracket (13). Remove battery (14) .
5

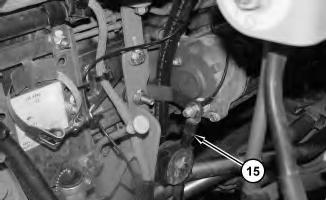

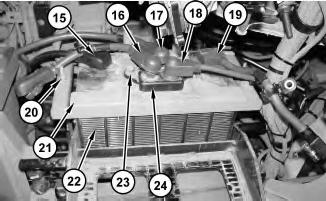

6. Disconnect cable assemblies (15), (16), (17), (18), and (19). Remove bolts (23) and block (24). Remove nuts (20) and bracket (21). Remove battery (22) .
Installation Procedure
Illustration 6
1. Install battery (22). Install bracket (21) and nuts (20). Install block (24) and bolts (23). Connect cable assemblies (15), (16), (17), (18), and (19) .
7
2. Install battery (14). Install bracket (13). Install nuts (11) and (12). Install clips (8) and (9). Connect cable assemblies (7) and (10) .
8

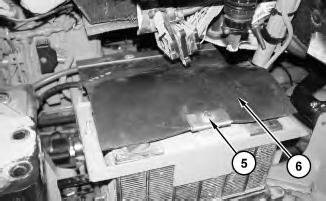

3. Install cover (6) and bolts (5) .
9

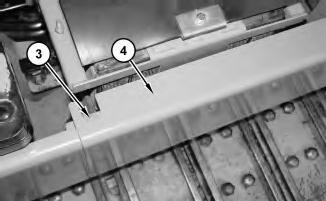

4. Install panel (4) and bolts (3) .
10
5. Close doors (1) and (2) .
6. Turn the battery disconnect switch into the ON position. Refer to Operation and Maintenance Manual, "Battery Disconnect Switch".
Sun May 9 21:36:46 UTC+0530 2021
Product: TRACK LOADER
Model: 953D TRACK LOADER LBP
Configuration: 953D TRACK-TYPE LOADER LBP00001-UP (MACHINE) POWERED BY C6.6 Engine
Disassembly and Assembly
953D Track-Type Loader Engine Supplement Media Number -KENR5171-00
Electric Starting Motor - Remove and Install
SMCS - 1453-010
Removal Procedure
i02576046
1. Turn the battery disconnect switch into the OFF position. Refer to Operation and Maintenance Manual, "Battery Disconnect Switch".
Illustration 1

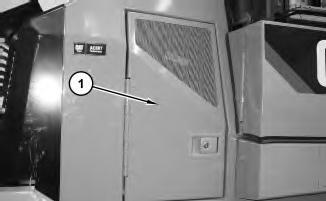

2. Open side door (1) .
g01290803

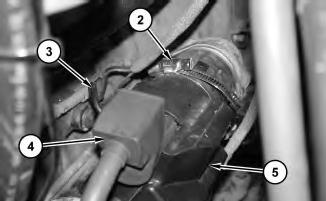

Illustration 2
g01290804
3. Disconnect harness assembly (3) and cable assembly (4). Loosen clamp (2) and remove cover (5) .
Illustration 3
g01290805

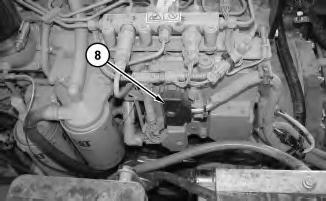

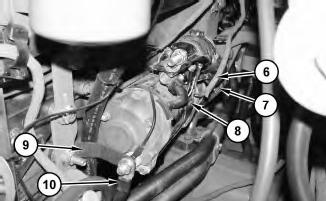

4. Disconnect harness assembly (6). Remove bracket (9) and disconnect cable assembly (10). Remove bolts (7) and electric starting motor (8) .
Installation Procedure
4
1. Install electric starting motor (8) and bolts (7). Connect cable assembly (10) and install bracket (9). Connect harness assembly (6).

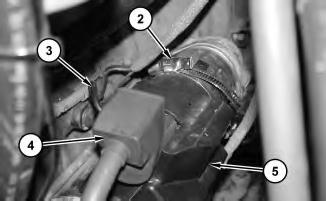

5
Install cover (5) and connect clamp (2). Connect harness assembly (3) and cable assembly (4) .
6
3. Close side door (1) .
4. Turn the battery disconnect switch into the OFF position. Refer to Operation and Maintenance Manual, "Battery Disconnect Switch". Copyright 1993 - 2021 Caterpillar Inc. All Rights Reserved.
Network For SIS Licensees. Sun May 9 21:36:58 UTC+0530 2021
Product: TRACK LOADER
Model: 953D TRACK LOADER LBP
Configuration: 953D TRACK-TYPE LOADER LBP00001-UP (MACHINE) POWERED BY C6.6 Engine
Disassembly and Assembly
953D Track-Type Loader Engine Supplement
Media Number -KENR5171-00 Publication Date -01/02/2007 Date Updated -19/02/2007
Engine - Install
SMCS - 1000-012
Installation Procedure
Table 1 Required Tools
i02563379
Note: Cleanliness is an important factor. Before assembly, all parts should be thoroughly cleaned in cleaning fluid. Allow the parts to air dry. Wiping cloths or rags should not be used to dry parts. Lint may be deposited on the parts which may cause later trouble. Inspect all parts. If any parts are worn or damaged, use new parts for replacement.
2

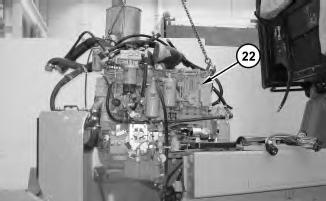

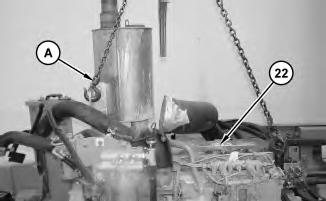

1. Use Tooling (A) and a suitable lifting device to position engine (22) on the machine. The weight of engine (22) is approximately 817 kg (1800 lb).
3
2. Install bolts (24) .
4

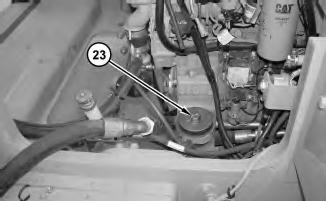

3. Install bolts (23) .

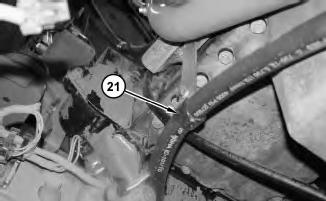

5

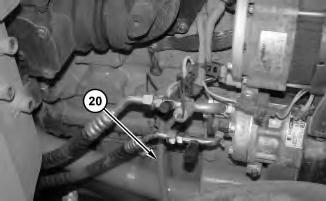

6

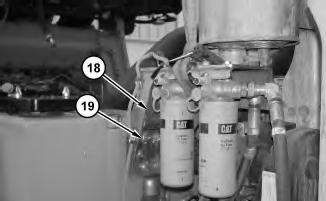

Illustration 7
g01283437
6. Use a suitable lifting device to reposition filter base assembly (19) and install bolts (18) .
Illustration 8
g01283433

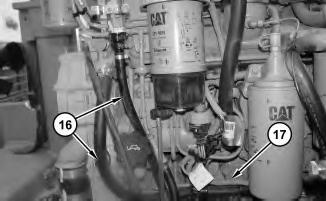

7. Connect hose assemblies (16) and harness assembly (17) .

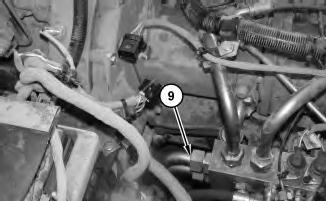

9
.
11.
This is the sample of the manual
Click on the download link for complete Manual

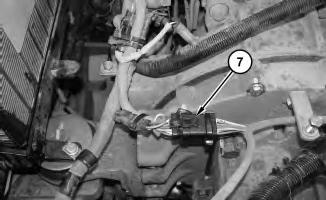

15. Connect harness assembly (7) .
Illustration 15
g01283426

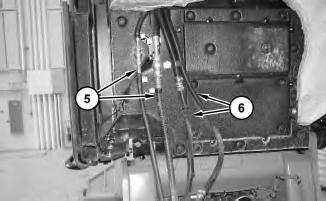

16. Connect hoses (6), and hose assemblies (5) .
Illustration 16
g01283425

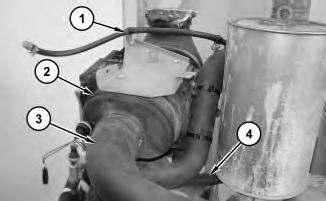

17. Position air cleaner assembly (2) on the machine.
18. Connect hose (4), hose (3), and clip (1) .
End By:
a. Lower the cab. Refer to Operation and Maintenance Manual, "Cab - Tilt".
b. Install the radiator module. Refer to Disassembly and Assembly, "Radiator Guard and Support, Aftercooler, Hydraulic Oil Cooler, and Radiator - Remove".
Sun May 9 21:44:37 UTC+0530 2021
