Lubrication,maintenanceorrepairofthismachinecanbe dangerousunlessperformedproperly.Eachpersonmustsatisfy himselfthathehasthenecessaryskillandinformation,proper toolsandequipment,andthathisworkmethodissafeand correct.Caterpillardealersareavailabletoprovidethisservice.
Performallmaintenanceoperations,unlessotherwisespecified withallequipmentlowered,transmissionleverinPARKwith lockappliedandengineoffwithdisconnectkeyremoved.
MonAug123:46:39UTC+05302022
Product:TRACKLOADER
Model:953TRACKLOADER05Z
Configuration:953LGPTRACKLOADER05Z00345-UP(MACHINE)POWEREDBY3204ENGINE
NOTICE
Neveraddcoolanttoanoverheatedengine;allowengineto coolfirst.
Checkspecificgravityofantifreezesolutionfrequentlyincold weathertoassureadequateprotection.
Ifmachineistobestoredin,orshippedto,anareawithbelow freezingtemperatures;thecoolingsystemmustbeprotectedto thelowestexpectedambienttemperature.
Alwaysdrain,cleanandflushacoolingsysteminwhich foamingispresentorthereisevidenceofcontaminationofthe coolingsystem.
DonotuseCaterpillarCoolingSystemConditionerwith Dowtherm209Full-FillCoolant.Followinstructionsprovided withtheDowtherm209Full-Fill.

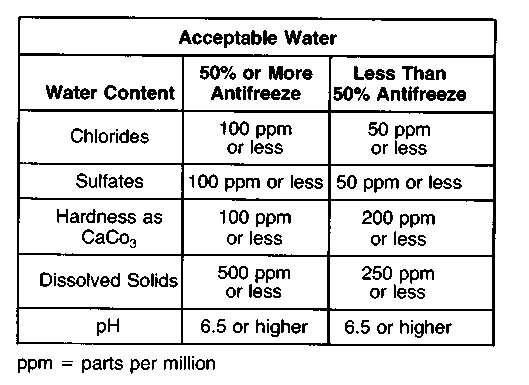

Usecleanwaterthatislowinscaleformingminerals,not softenedwater.AddCaterpillarCoolingSystemConditioner,or equivalent,tothewatertoprovidea3%to6%solutionfor corrosionprotection.Followtherecommendationsonthe containerforthequantityrequired.
Whenpermanentantifreezeandwatersolutionsareusedinthe coolingsystem,thesolutionshouldbedrainedandreplaced "EVERY2000SERVICEHOURSOR1YEAR."
ElectricalSystem
NOTICE
Whenjumpstartingmachine,followtheinstructionsinthe Operationsectiontoproperlystartthemachine.
Whenusingexternalelectricalsourcetostartmachine,turn disconnectswitchoffandremovekeybeforeattachingjumper cables.
HydraulicSystem
NOTICE
Make-upoiladdedtothehydraulicsystemmustmixwiththeoil alreadyinthetank.Useonlypetroleumproductsunlesssystem isequippedforusewithspecialproducts.
Wateroraircancausepumpfailure.Ifhydraulicoilbecomes cloudy,thenwaterorairisenteringthesystem.Drainfluid, retightenhydraulicsuctionlineclamps,purgeandrefillsystem. SeeyourCaterpillardealerforpurginginstructions.
NOTICE
Fillfueltankattheendofeachdayofoperationtodriveout moistureladenairandtopreventcondensation.Donotfillthe tanktothebrim.Thefuelexpandswhenitgetswarmandmay overflow.
AirIntakeSystem

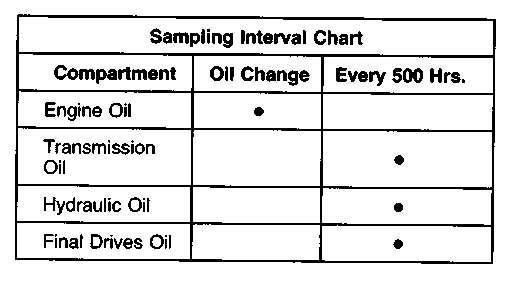

ScheduledOilSampling
General
NOTICE
Accumulatedgreaseandoilonamachineisafirehazard. Removethisdebriswithsteamcleaningorhighpressurewater, atleastevery1000hoursoreachtimeanysignificantquantity ofoilisspilledonamachine.
Wipeallfittings,capsandplugsbeforeservicing.
Keepaclosewatchforleaks.Ifleakingisobserved,findand correctthesourceoftheleak.
Checkthefluidlevelsmorefrequentlythantherecommended periodsifleakingissuspectedorobserved.
MonAug123:46:54UTC+05302022
MonAug123:47:13UTC+05302022
This is the sample of the manual Click on the download link for complete Manual
MonAug123:47:52UTC+05302022
MonAug123:48:11UTC+05302022
MonAug123:49:20UTC+05302022
Product:TRACKLOADER
Model:953TRACKLOADER05Z Configuration:953LGPTRACKLOADER05Z00345-UP(MACHINE)POWEREDBY3204ENGINE
EngineCoolingSystem-Cleaning
Atoperatingtemperature,enginecoolantishotandunder pressure.Steamcancausepersonalinjury.
CheckcoolantlevelONLYwhenengineisstoppedandradiator capiscoolenoughtotouchwithyourhand.
Removefillercapslowlytorelievepressure.
CoolingSystemConditionercontainsalkali.Avoidcontactwith skinandeyestopreventpersonalinjury.
Useallcleaningsolutionswithcare.
NOTICE
Allwateriscorrosiveatengineoperatingtemperatures.Use CaterpillarCoolingSystemConditionertotreateitherplain waterorethyleneglycolsolution.
DonotuseCaterpillarCoolingSystemConditionerorCoolant ConditionerelementswithDowtherm209Full-Fillcoolant. FollowrecommendationsprovidedwithDowtherm209Full-Fill.
Ifthemachineistobeshippedto,orstoredin,anareawith temperaturesbelow0°C(32°F),thecoolingsystemmustbe protectedtothelowestexpectedambienttemperature.
Cleanthecoolingsystemifitiscontaminated,ifengine overheatsoriffoamingisobservedintheradiator.
Whenusingpressureair,wearprotectivefaceshieldand clothing.Use205kPa(30psi)maximumairpressurefor cleaningpurposes.
NOTICE
Servicetheaircleanerwithenginestopped.
This is the sample of the manual Click on the download link for complete Manual
