Product:WHEELLOADER
Model:950MWHEELLOADEREMB
Configuration:950MWheelLoaderEMB00001-UP(MACHINE)POWEREDBYC7Engine
OperationandMaintenanceManual
950M,962M,966M,972M,980M,982M,950MZand962MZWheelLoaders
MediaNumber-SEBU9319-05PublicationDate-01/08/2015DateUpdated-22/01/2018
Foreword
LiteratureInformation
Thismanualshouldbestoredintheliteratureholder.
Thismanualcontainssafetyinformation,operationinstructions,andmaintenancerecommendations.
Somephotographsorillustrationsinthispublicationshowdetailsorattachmentsthatcanbedifferent fromyourproduct.
Continuingimprovementandadvancementofproductdesignmighthavecausedchangestoyour productwhicharenotincludedinthispublication.Read,studyandkeepthismanualwiththeproduct.
Wheneveraquestionarisesregardingyourproduct,orthispublication,pleaseconsultyourCatdealer forthelatestavailableinformation.
Safety
Thesafetysectionlistsbasicsafetyprecautions.Inaddition,thissectionidentifiesthetextand locationsofwarningsignsandlabelsusedontheproduct.
Operation
Theoperationsectionisareferenceforthenewoperatorandarefresherfortheexperiencedoperator. Thissectionincludesadiscussionofgauges,switches,productcontrols,attachmentcontrols,and programminginformation.
Photographsandillustrationsguidetheoperatorthroughcorrectproceduresofchecking,starting, operatingandstoppingtheproduct.
Operatingtechniquesoutlinedinthispublicationarebasic.Skillandtechniquesdevelopasthe operatorgainsknowledgeoftheproductanditscapabilities.
Maintenance
Themaintenancesectionisaguidetoequipmentcare.
Copyright1993-2023CaterpillarInc. AllRightsReserved. PrivateNetworkForSISLicensees.
WedFeb123:31:38UTC+05302023
Product:WHEELLOADER
Model:950MWHEELLOADEREMB
Configuration:950MWheelLoaderEMB00001-UP(MACHINE)POWEREDBYC7Engine
OperationandMaintenanceManual
950M,962M,966M,972M,980M,982M,950MZand962MZWheelLoaders
MediaNumber-SEBU9319-05PublicationDate-01/08/2015DateUpdated-22/01/2018 i06279815
SafetyMessages
SMCS-7000
ThereareseveralspecificsafetymessagesonthesemachinesthatareaddedfortheJapanese regulations.Thelocationofthemessagesandthedescriptionofthemessagesarereviewedinthis section.Becomefamiliarizedwithallsafetymessages.
Ensurethatallofthesafetymessagesarelegible.Cleanthesafetymessagesorreplacethesafety messagesifyoucannotreadthewords.Replacethefilmsiftheillustrationsarenotlegible.Whenyou cleanthesafetymessages,useacloth,water,andsoap.Donotusesolvent,gasoline,orotherharsh chemicalstocleanthesafetymessages.Solvents,gasoline,orharshchemicalscouldloosenthe adhesivethatsecuresthesafetymessage.Looseadhesivewillallowthesafetymessagetofall.
Replaceanysafetymessagethatisdamaged,ormissing.Ifasafetymessageisattachedtoapartthat isreplaced,installtherequiredsafetymessageonthereplacementpart.AnyCatdealercanprovide newsafetymessages.
Thissupplementalsafetyinformationincludessomesafetymessageswhicharerequiredbylaw.

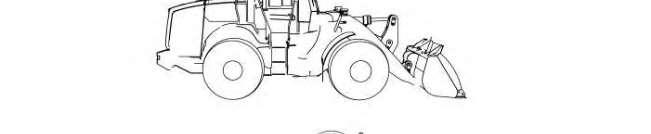

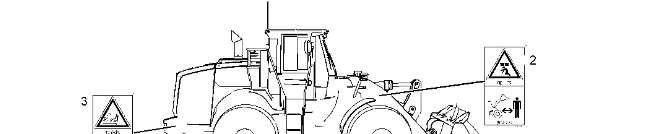

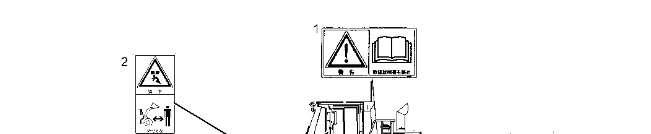

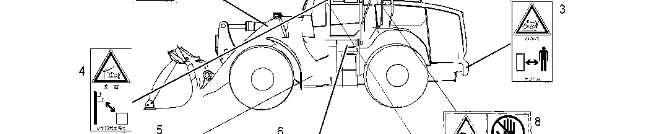

Illustration1g03882719
DoNotOperate(1)
Thissafetymessageislocatedonthetopsurfaceofthehydraulictank.
Donotoperateorworkonthismachineunlessyouhavereadand understandtheinstructionsandwarningsintheOperationand MaintenanceManual.Failuretofollowtheinstructionsorheedthe warningscouldresultininjuryordeath.ContactanyCaterpillardealer forreplacementmanuals.Propercareisyourresponsibility.
CrushingHazard(2)
Thissafetymessageislocatedonbothsidesoftheliftarm.
Illustration3g03094656
Stayclearoftheworktoolduringoperation.Entanglementcouldresult inpersonalinjuryordeath.
CrashHazard(3)
Thissafetymessageislocatedonbothsidesofthecounterweight.
Staybackasafedistance.Noclearanceforapersoninthisareawhen themachineturns.Severeinjuryordeathfromcrushingcouldoccur.
ThissafetymessageislocatedontheleftfrontROPSpost.

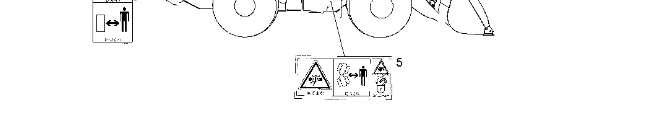

Illustration5g03094560
ElectrocutionHazard!Keepthemachineandattachmentsasafedistance fromelectricalpower.Stayclear3m(10ft)plustwicethelineinsulator length.Readandunderstandtheinstructionsandwarningsinthe OperationandMaintenanceManual.Failuretofollowtheinstructions andwarningswillcauseseriousinjuryordeath
CrushingHazard(5)
Thiswarningislocatedonbothsidesofthearticulationjointonthefrontframe.
CrushingHazard.Thereisnoclearanceforapersoninthisareawhen themachineturns.Severeinjuryordeathfromcrushingcouldoccur.
Connectthesteeringframelockbetweenfrontandrearframesbefore lifting,transporting,orservicingthemachineinthearticulationarea.
Disconnectthesteeringlockandsecurebeforeresumingoperation.
ExplosionHazard(6)
Thissafetymessageislocatedontheleftsideofthemachinenearthebattery.
Personalinjurycanresultfromimpropertroubleshootingandrepair procedures.
Thetroubleshootingandrepairproceduresshouldonlybeperformed byqualifiedpersonnelfamiliarwiththisequipment.
CrushingHazard(7)
ThissafetymessageislocatedinthecabontheleftfrontROPSpost.
This is the sample of the manual Click on the download link for complete Manual
CrushHazard!Amachinemaymoveunexpectedlyandwithout warningresultinginpersonalinjuryordeath.
Beforeleavingthemachinelowertheworktooltotheground,lock operatorcontrols,shutofftheengineandremovethekey.
HotSurface(8)
Thissafetymessageislocatedonthetopsurfaceofthehydraulictank.
Thecoolantishotandthecoolantisunderpressure.Donottouchthe hotsurfaces.RefertotheOperationandMaintenanceManualforthe proceduretofollowwhenyouchecktheradiator.
Copyright1993-2023CaterpillarInc. AllRightsReserved. PrivateNetworkForSISLicensees.
WedFeb123:32:25UTC+05302023
Product:WHEELLOADER
Model:950MWHEELLOADEREMB
Configuration:950MWheelLoaderEMB00001-UP(MACHINE)POWEREDBYC7Engine
OperationandMaintenanceManual
950M,962M,966M,972M,980M,982M,950MZand962MZWheelLoaders
MediaNumber-SEBU9319-05PublicationDate-01/08/2015DateUpdated-22/01/2018
AdditionalMessages
SMCS-7000
Thereareseveralspecificmessagesonthismachine.Theexactlocationofthemessagesandthe descriptionofthemessagesarereviewedinthissection.Becomefamiliarizedwithallmessages.
Makesurethatallthemessagesarelegible.Cleanthemessagesorreplacethemessagesifyoucannot readthewords.Replacetheillustrationsiftheillustrationsarenotlegible.Whenyoucleanthe messages,useacloth,water,andsoap.Donotusesolvent,gasoline,orotherharshchemicalstoclean themessages.Solvents,gasoline,orharshchemicalscouldloosentheadhesivethatsecuresthe messages.Looseadhesivewillallowthemessagestofall.
Replaceanymessagethatisdamaged,ormissing.Ifamessageisattachedtoapartthatisreplaced, installamessageonthereplacementpart.AnyCatdealercanprovidenewmessages.

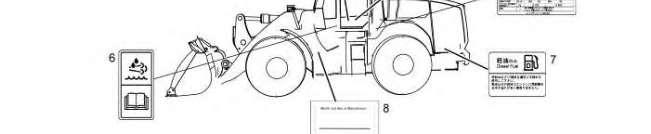

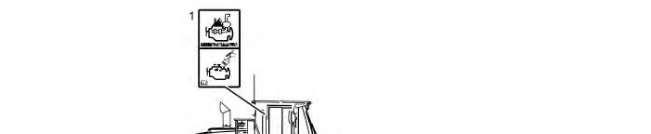

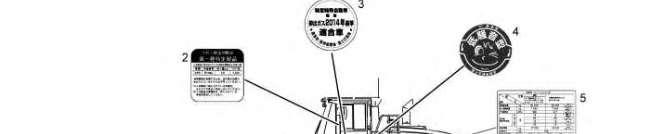

Illustration2g03146323
ThismessageisontherightsideontherearROPSpostinthecab.Forfireprevention,clean combustiblematerialsaccumulatedintheengineroom.RefertoOperationandMaintenanceManual, "FirePreventionandExplosionPrevention"formoreinformation.
RecycleHFCRefrigerant(2)
Illustration3g03882802
AsimilarmessageisontheleftfrontROPSpostinthecab.ConsultyourCaterpillardealerforthe maintenanceoftheairconditioningsystem.
EmissionCertification(3)
Illustration4g03735612
Thismessageisontheoutsideofthecabdoor.Thecertificationlabelverifiesthatthemachine conformstothe2014JapanNonroadSpecialMotorVehicleExhaustRegulation.
LowSoundCertification(4)
Illustration5g03316436
Thismessageisontheoutsideofthecabdoor.(onlyfor966M)Ifequipped,thiscertificationlabel verifiesthattheJapanMinistryofLand,Infrastructure,Transportation,andTourism(MLIT) designatesthemachineasa"LowNoise"typeconstructionmachine.
Illustration6g06058643
Illustration7g06058662
Illustration8g03736065
Illustration9g03736103
Illustration10g03736116
Illustration11g06058670
Illustration13g06058693

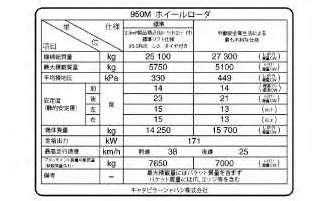

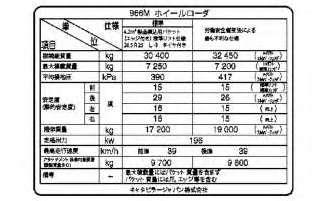

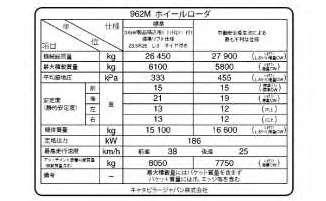

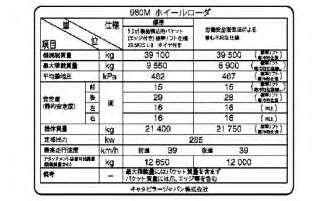

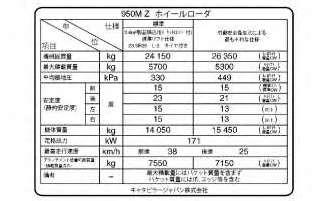

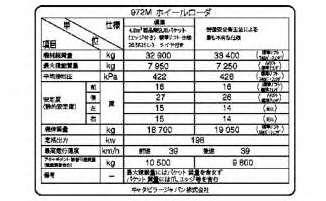

Asimilarspecificationdataplateisontheleft-handfender.TheJapaneseIndustrialSafetyandHealth Actrequiresmachinespecificationstobedisplayedonafilmthatcaneasilybeseenbytheoperator. DEF(6)
Illustration14g03736125
ThismessageisontheleftsideonthefrontROPSpostinthecab.FormoreinformationaboutDiesel ExhaustFluid,refertoOperationandMaintenanceManual.
DieselFuel(7)
Illustration15g03812886
Thismessageislocatednearthefuelfillcap.Useonlyspecifieddieselfuel.
Illustration16g03094703
Thisplateisattachedonthemachineserialnumberplateontheleftsideofthefrontframe.
Copyright1993-2023CaterpillarInc. AllRightsReserved. PrivateNetworkForSISLicensees.
WedFeb123:32:38UTC+05302023
Product:WHEELLOADER
Model:950MWHEELLOADEREMB
Configuration:950MWheelLoaderEMB00001-UP(MACHINE)POWEREDBYC7Engine
OperationandMaintenanceManual
950M,962M,966M,972M,980M,982M,950MZand962MZWheelLoaders
MediaNumber-SEBU9319-05PublicationDate-01/08/2015DateUpdated-22/01/2018
GeneralHazardInformation-OnlyJapanesemarket
SMCS-7000 Illustration1g03253902

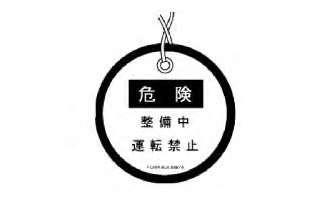

Attacha"DoNotOperate",orasimilarwarningtagtothestartswitchortothecontrolsbeforeyou serviceorrepairtheequipment.Thesewarningtags(SpecialInstruction,RJX88874)areavailable fromyourCatdealer.
Copyright1993-2023CaterpillarInc.
Product:WHEELLOADER
Model:950MWHEELLOADEREMB
Configuration:950MWheelLoaderEMB00001-UP(MACHINE)POWEREDBYC7Engine
OperationandMaintenanceManual
950M,962M,966M,972M,980M,982M,950MZand962MZWheelLoaders
MediaNumber-SEBU9319-05PublicationDate-01/08/2015DateUpdated-22/01/2018 i05361491
OperationInformation
SMCS-7000

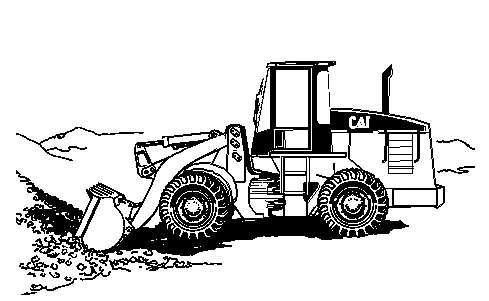

TypicalExamples
Carryaloadedbucketlowsothattheoperatorhasgoodvisibilityandsothatthemachinehasgood stability.
Cleantheworkareaduringwaitingperiodsandleveltheworkareaduringwaitingperiods.
Maintaintractionbyavoidingexcessivedownwardpressureonthebucket.
Travelinreversewhenyoucarryaloaddownasteepincline.Travelforwardwhenyougouphill.
Whenyouareworkinginhardmaterial,usebucketteethorbolt-oncuttingedges.
Makesurethatthebucketthatisbeingusedisappropriatefortheworkthatisbeingperformed. Exceedingthemachinelimitswillreducetheservicelifeofthemachine.
Bulldozing
Keepthebottomofthebucketparalleltothegroundwhenyouarebulldozing.

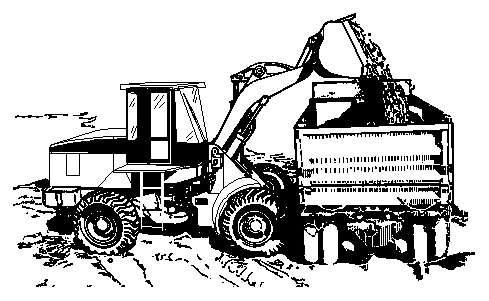

Dumping
Tocontroldumping,movethetiltcontrollevertotheDUMPposition.Then,returnthetiltcontrol levertotheHOLDposition.Repeatthisprocedureuntilthebucketisempty.
Dumpthebucketwhenthewindismovingtowardthefrontofthemachine.Thiswillhelptokeep dustawayfromtheengine.Thiswillalsohelptomaintainvisibility.
Toachievethemaximumanglefordumping,usethebucketstops.
NOTICE
Strikingthestopsunnecessarilyandrepetitivelycanresultin acceleratedwearandhighmaintenancecostoftheloaderlinkage.
