Product:WHEELLOADER
Model:950BWHEELLOADER65R
Configuration:950BWHEELLOADER65R00001-02823(MACHINE)POWEREDBY3304ENGINE
OperationandMaintenanceManual 950BWHEELLOADER MediaNumber-SEBU5933-04PublicationDate-01/08/1986DateUpdated-10/12/2004
AfterStarting
1.Keeptheenginespeedlowuntiltheoilpressurelightgoesout.Iftheoilpressurelightdoesnot gooutwithin10seconds,stoptheengineandinvestigate.
2.Pushthepaneltestswitchtothetestpositiontotesttheindicatorlights.
3.Ifthelightsdonotcomeon,makeanynecessaryrepairs.
4.Ifanyoftheindicatorlightsstayon,haveanynecessaryrepairsmadebeforeoperatingthe machine.
5.Lookattheoperator'spanelfrequentlyduringoperation.Ifanyoftheindicatorlightscomeon, stopthemachine,ifnecessary,andinvestigate.
Copyright1993-2022CaterpillarInc. AllRightsReserved. PrivateNetworkForSISLicensees.
WedJun1516:52:13UTC+05302022
Product:WHEELLOADER
Model:950BWHEELLOADER65R
Configuration:950BWHEELLOADER65R00001-02823(MACHINE)POWEREDBY3304ENGINE
OperationandMaintenanceManual
950BWHEELLOADER
MediaNumber-SEBU5933-04PublicationDate-01/08/1986DateUpdated-10/12/2004
BeforeStartingtheEngine
Walk-AroundInspection
Foryourownsafetyandmaximumservicelifeofthevehicle,makeathoroughwalk-around inspectionbeforemountingthemachinetostarttheengine.
Lookaroundandunderthemachineforsuchitemsaslooseormissingbolts,trashbuildup,oil, coolantorfuelleaks.Inspecttheconditionandinflationofthetires,conditionofthebucket,and thebucketlinkage.
Removeanytrashanddebris.Adjusttireinflationasneeded.Haveanynecessaryrepairsmade, looseconnectionsandpartstightentedtotheirspecifiedtorqueandanymissingpartsreplaced, beforestartingtheengineoroperatingthemachine.
1.Bucket
Inspectfordamageorexcessivewear.
2.BucketControlLinkage
Inspectfordamageorexcessivewear.
3.Lights
Inspectforbrokenbulbsandlenses.Checkforlooseorfrayedwires.
4.RadiatorGuard
Inspectfortrashbuildup.
5.CoolingSystem
Inspectforleaks-trashbuildup.
6.EnginePrecleaner
Inspectfordirtbuildup.
7.EngineCompartment
Inspectforleaks-trashbuildup.
8.StepsandGrabIrons
Inspecttheirconditionandcleanliness.
9.Differentials(frontandrear)
Inspectundermachineforleaks.
10.HydraulicSystem
Inspectforleaks.Checkforloosehoseconnections.Checkforfrayedhoses.
11.FinalDrives(frontandrear)
Inspectforleaks.
12.CoversandGuards
Besuretheyarefirmlyinplace.Inspectfordamage.
13.Transmission
Inspectforleaks.
14.Tires(frontandrear)
Inspectfordamageandproperinflation.
15.Operator'sCompartment
Inspectforcleanliness.
16.InstrumentPanel
Inspectforbrokengaugesandindicatorlights.

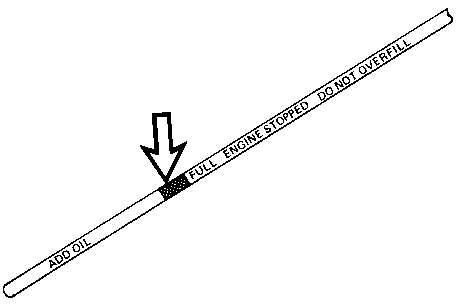

Measurethecrankcaseoillevel.ThelevelshouldbeabovetheADDmarkontheENGINE STOPPEDsideofthedipstick.
Observethehydraulicsystemoillevel.MaintaintheoillevelabovetheADDmarkinthesight gauge.
Inspecttheprecleaner.Emptytheprecleanercup,whendirtreachestheindicatormark.

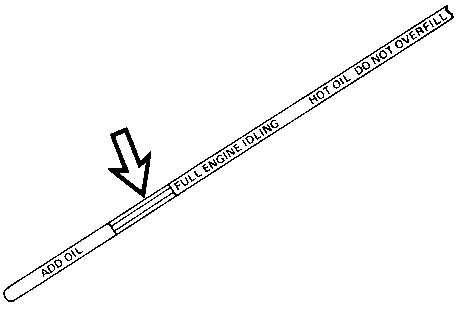

Measurethetransmissionoillevel.Oilmustshowonthedipstick.
Observethecoolantlevel.Maintainthecoolantwithin1cm(1/2inch)ofthebottomofthefill pipe.
Measurethetirepressure.Seethetopic"TireInflationInformation."
Measurethefuellevel.Fillthefueltankaftereachdayofoperationtohelppreventcondensation inthetank.
Inspectthewheelbrakesforoilleaks.
Copyright1993-2022CaterpillarInc. AllRightsReserved. PrivateNetworkForSISLicensees.
WedJun1516:51:50UTC+05302022
This is the sample of the manual Click on the download link for complete Manual
Atoperatingtemperature,enginecoolantishotandunder pressure.
Steamcancausepersonalinjury.
CheckcoolantlevelONLYwhenengineisstoppedandradiator fillercapiscoolenoughtotouchwithyourhand.
Removefillercapslowlytorelievepressure.
CoolingSystemConditionercontainsalkali.Avoidcontactwith skinandeyestopreventpersonalinjury.
Useallcleaningsolutionswithcare.
(6)IndicatorLights
WedJun1516:50:13UTC+05302022
Whenusingpressureair,wearaprotectivefaceshieldand protectiveclothing.Themaximumairpressuremustbebelow 205kPa(30psi)forcleaningpurposes.
WedJun1516:50:02UTC+05302022
(16)Batteries
Batteriesgiveoffflammablefumesthatcanexplode.
Electrolyteisanacidandcancausepersonalinjuryifitcontacts skinoreyes.
Donotsmokewhenobservingbatteryelectrolytelevel. Alwayswearprotectiveglasseswhenworkingwithbatteries.
WedJun1516:49:51UTC+05302022
Hotoilandcomponentscancauseinjury.Donotallowhotoilor componentstocontacttheskin.
NOTICE
Neverinstalladamagedfilter.Damagedfilterscancause severedamagetotheengine.
This is the sample of the manual Click on the download link for complete Manual
