Lubricatetwofittingsoneachsideofthemachine,foratotaloffourfittings.
EqualizerBarEndBearings
LubricateFittings
Lubricateonefittingoneachsideofthemachine,foratotaloftwofittings.
BulkHeadFittings
LubricateFittings
Removeplugontherollerframes.
Lubricateonefittingoneachsideofthemachine,foratotaloftwofittings.
Copyright1993-2023CaterpillarInc. AllRightsReserved. PrivateNetworkForSISLicensees.
WedApr1922:04:14UTC+05302023
Numéro :0413/ARE/2017
Date :12/06/2017
Product:TRACKLOADER
Model:943TRACKLOADER19Z
Configuration:943LGPTRACKLOADER/HIGHDRIVE/19Z00253-UP(MACHINE)POWEREDBY3204ENGINE
OperationandMaintenanceManual ProductLink101
MediaNumber-SEBU7373-00PublicationDate-01/06/2000DateUpdated-09/10/2001
Foreword
SMCS-1054;108K;1261;1263;1308;5068;7342
LiteratureInformation
Thismanualshouldbestoredintheliteratureholder.
Thismanualcontainssafetyinformation,operationinstructions,andmaintenance recommendations.
Somephotographsorillustrationsinthispublicationshowdetailsorattachmentsthatcanbe differentfromyourproduct.
Continuingimprovementandadvancementofproductdesignmighthavecausedchangestoyour productwhicharenotincludedinthispublication.Read,studyandkeepthismanualwiththe product.
Wheneveraquestionarisesregardingyourproduct,orthispublication,pleaseconsultyourCat dealerforthelatestavailableinformation.
Safety
Thesafetysectionlistsbasicsafetyprecautions.Inaddition,thissectionidentifiesthetextand locationsofwarningsignsandlabelsusedontheproduct.
Operation
Theoperationsectionisareferenceforthenewoperatorandarefresherfortheexperienced operator.Thissectionincludesadiscussionofgauges,switches,productcontrols,attachment controls,andprogramminginformation.
Photographsandillustrationsguidetheoperatorthroughcorrectproceduresofchecking,starting, operatingandstoppingtheproduct.
Operatingtechniquesoutlinedinthispublicationarebasic.Skillandtechniquesdevelopasthe operatorgainsknowledgeoftheproductanditscapabilities.
Maintenance
Themaintenancesectionisaguidetoequipmentcare.
Copyright1993-2023CaterpillarInc. AllRightsReserved. PrivateNetworkForSISLicensees.
WedApr1922:14:52UTC+05302023
Product:TRACKLOADER
Model:943TRACKLOADER19Z
Configuration:943LGPTRACKLOADER/HIGHDRIVE/19Z00253-UP(MACHINE)POWEREDBY3204ENGINE
OperationandMaintenanceManual ProductLink101
MediaNumber-SEBU7373-00PublicationDate-01/06/2000DateUpdated-09/10/2001 i01243314
SafetySignsandLabels
SMCS-7602
ThismachineisequippedwithaCaterpillarProductLinkradio communicationdevicewhichmustbedeactivatedwithin6.0m(20ft)of ablastzone.Failuretodosocouldresultinseriousinjuryordeath.
Copyright1993-2023CaterpillarInc. AllRightsReserved. PrivateNetworkForSISLicensees.
WedApr1922:15:19UTC+05302023
Product:TRACKLOADER
Model:943TRACKLOADER19Z
Configuration:943LGPTRACKLOADER/HIGHDRIVE/19Z00253-UP(MACHINE)POWEREDBY3204ENGINE
OperationandMaintenanceManual ProductLink101
MediaNumber-SEBU7373-00PublicationDate-01/06/2000DateUpdated-09/10/2001
GeneralHazardInformation
SMCS-7602
SpecialPrecaution:OperationAroundABlastZone
Inordertopreventinjuryordeath,allmachinesequippedwithaCaterpillarProductLinksystem arerequiredtohaveawarninglabelthatisclearlypostedinthecab:
ThismachineisequippedwithaCaterpillarProductLinkradio communicationdevicewhichmustbedeactivatedwithin6.0m(20ft)of ablastzone.Failuretodosocouldresultinseriousinjuryordeath.
Ifthemachineisrequiredtoworkwithin6.0m(20ft)ofablastarea,thentheoperatormusttake oneofthefollowingprecautions:
•DisconnecttheProductLinkmodulefromthepowersourcebydisconnectingthewiring harnessattheProductLinkmodule.
•TemporarilyremovetheProductLinkmodulefromthemachine.
•AddanON/OFFswitchinordertoallowtheProductLinkmoduletobeturnedofffromthe cab.
ConsultyourCaterpillarDealerifthereareanyquestions.
Copyright1993-2023CaterpillarInc. AllRightsReserved. PrivateNetworkForSISLicensees.
WedApr1922:15:27UTC+05302023
This is the sample of the manual Click on the download link for complete Manual
Product:TRACKLOADER
Model:943TRACKLOADER19Z
Configuration:943LGPTRACKLOADER/HIGHDRIVE/19Z00253-UP(MACHINE)POWEREDBY3204ENGINE
OperationandMaintenanceManual
ModelViewIllustrations
SMCS-7602

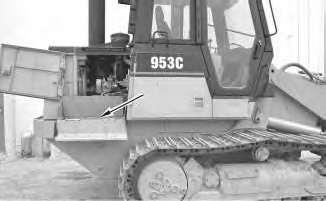

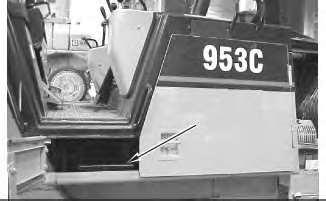

AppendixOfSampleInstallationLocations
ThisappendixillustratespossiblelocationsforinstallingtheProductLinkModuleonvarious machines.Otherlocationsarepossible.SeeSystemsOperation,"Installation"forguidelineswhen youareselectingthelocation.Duetothepossibleinstallationofoptionalequipment,someofthe locationspicturedmaynotbeavailableonyourmachine.Findalocationthatissimilarinnature tothesampleshere.Thetechnicianmustdeterminethefinallocationforinstallation.Ifthe techniciandecidesthatoneoftheexamplesisunacceptable,thenfindanothersuitablelocation.

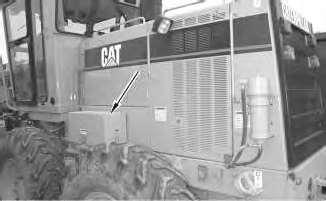

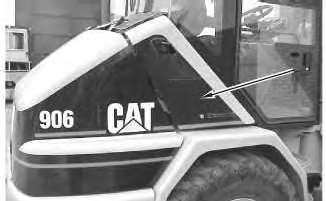

IntegratedToolcarrier

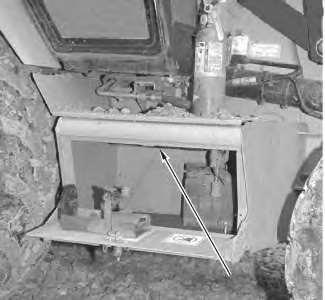

Illustration2g00568861

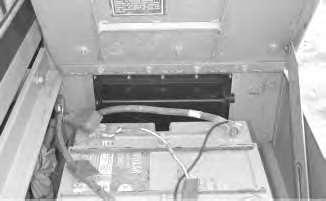

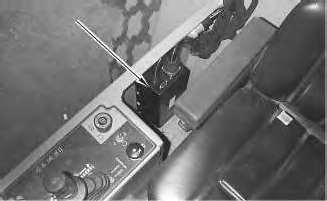

ProductLinkModuleShownInBatteryBox

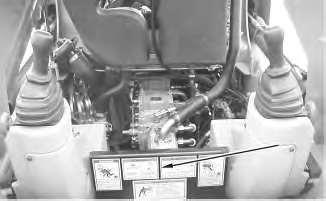

TillageChallenger

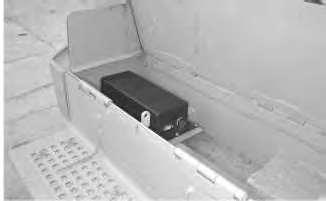

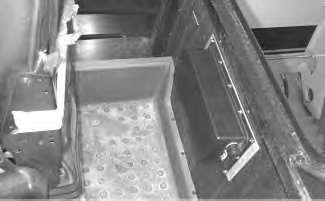

Illustration3g00568865

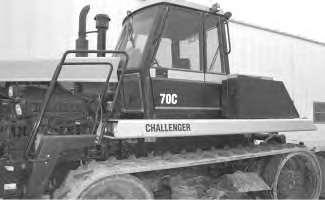

SampleInstallationLocationOnTillageChallenger(InBatteryBox)

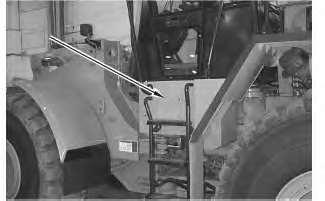

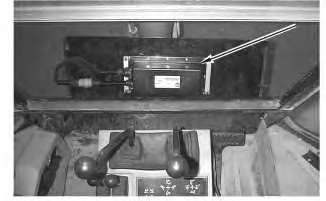

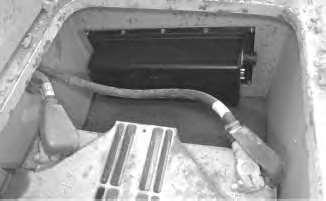

Illustration4g00568870

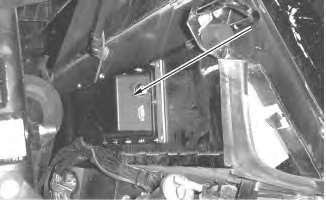

ProductLinkModuleInBatteryBox
RowCropChallenger

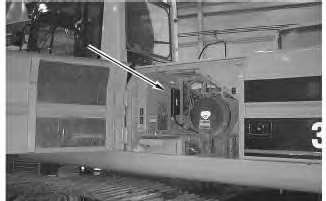

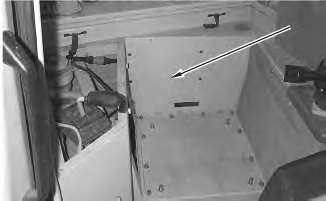

Illustration5g00568938

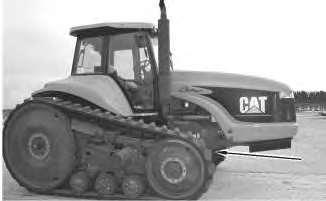

InstallationLocationOnRowCropChallenger(SideOfMachine,InsideOfFrameRail,MountedtoPanel)

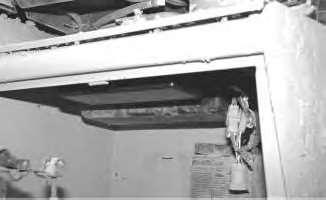

LexionCombine

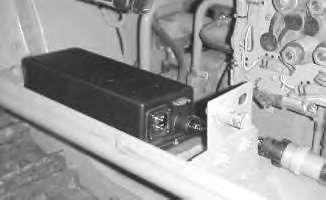

Illustration6g00569008

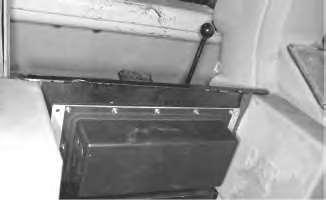

SampleInstallationOnLexionCombine(InElectronicsCloset)
OntheLexionCombine,themachineelectronicsarelocatedinaclosetontheleftsideofthe machine.Therackofelectronicsswingsoutforaccesstotherearoftherack.Behindthe electronicsrackisasuitablelocationfortheunit.
