Attachmentreleaseprocedure
Caution
BeforereleasingtheQuickCouplerfromtheattachment,verifythatthe attachment(fork,brush,bucket,etc,)isnotcarryinganyload.The attachmentcouldmove,causingloadtobecomeunstableandfall.

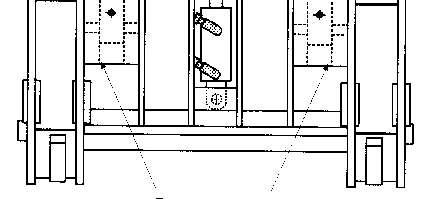

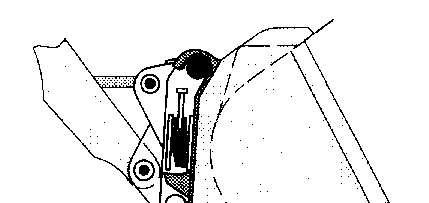

1.Levelattachment,approximately6"aboveground.Retractthewedgesbyoperatingthecarrier machine'sthirdhydraulicvalveuntilthewedgeoperatingcylinderisfullyextended.
2.SimultaneouslytilttheQuickCouplerforwardtowardsthedumpposition,reversethecarrier machineuntilthecouplerisfullydisengagedfromtheattachment.
MonDec1020:18:53UTC+02002018
Product:NOEQUIPMENTSELECTED
Model:NOEQUIPMENTSELECTED
Configuration:NOEQUIPMENTSELECTED
OperationandMaintenanceManual
HYDRAULICOPERATEDQUICKCOUPLER(WEDGETYPE)FORCATERPILLARLOAD
MediaNumber-KEBU6885-00PublicationDate-26/04/1996DateUpdated-10/10/2001
Generalinformation
ThismanualinstructsyouonyourQuickCoupleranditssafeoperationandmaintenance.Studythis manualbeforeinstalling,operatingorservicingthisequipment.Usewithoutpropercarecancause damage.
Tousethisattachmentcorrectly,youmustbeacompetentoperatorofthecarriermachine.DONOT installorusetheattachmentifyoucannotusethecarriermachine.
Donotrushthejoboflearning.Takeyourtimeandmostimportant,takeitsafely.
Ifthereisanythingyoudonotunderstand,askyourCaterpillardealer.Hewillbepleasedtoadvise you.
MonDec1020:18:01UTC+02002018
Product:NOEQUIPMENTSELECTED
Model:NOEQUIPMENTSELECTED
Configuration:NOEQUIPMENTSELECTED
OperationandMaintenanceManual
HYDRAULICOPERATEDQUICKCOUPLER(WEDGETYPE)FORCATERPILLARLOAD
MediaNumber-KEBU6885-00PublicationDate-26/04/1996DateUpdated-10/10/2001
Maintenance
Every8hoursordaily
CycleQuickCouplerandmachinethroughallmodes.
A.Checkforbinding.
B.Checkhydraulichoseassembliesandfittingsforleaks.
C.Checkboltsandtightenifnecessary.

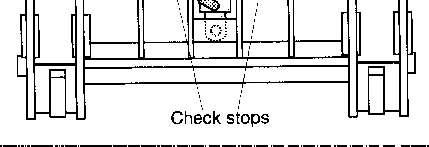

D.Checkcouplerstops.

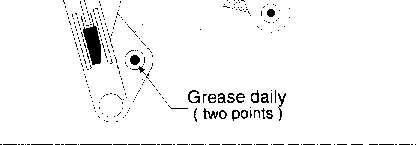

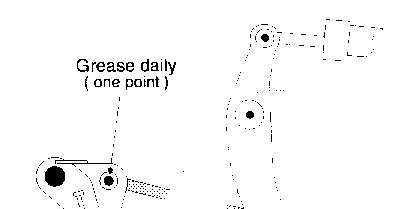

E.Greasecoupler.
F.CheckQuickCouplerlockingwedges.
ReportanydefectsorinstallationproblemstoyourCaterpillardealer.
Wearinspection

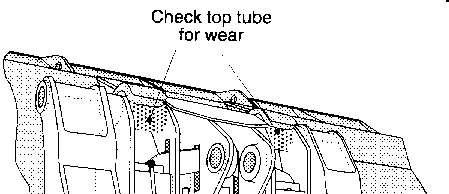

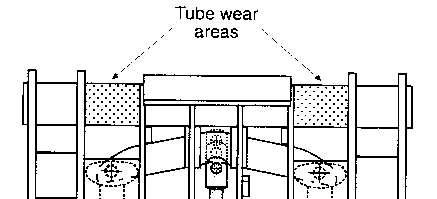

Applicationdictateswhencouplerrebuildingisrequired.Anexcessiveamountofplaybetween couplerandtheattachmentisanindicationthatwearhasoccurred.Thecoupler'stoptubematerialis designedtowearbeforetheattachment'shookcasting.
Todetermineifrebuildingisrequired,uncouplefromtheattachmentandplaceastraightedgeacross thecoupler'stoptube.Iftheareaswherehookcontactismadediffermorethan3mmfromoriginal toptubediameter,repairproceduresshouldbeimplemented.
UsingweldrodE7018orequivalent,repairhookcontactareabyapplyingweldbeadsacrossthetop tubeuntiltheoriginaldiameterisachieved.Tohelpreduceaccelerationofwearafterrebuilding, grindhighspotsfromtheareawhererepairswerecompleted.
Theendresultisfortheattachment'shookassemblytomakefullwidthcontactacrosscoupler'stop tubecontactarea.

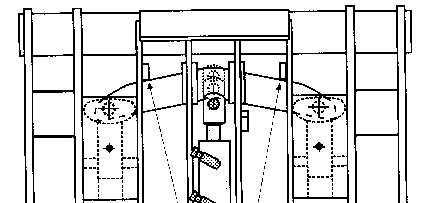

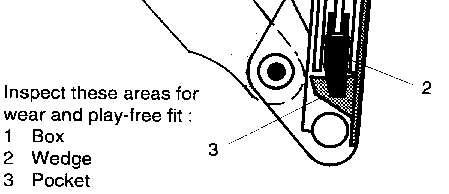

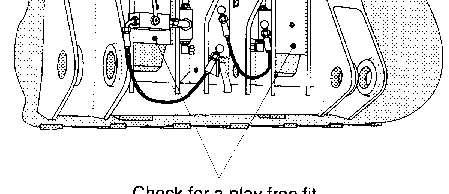

Reviewthefitofthelockingwedgeswiththepocketsoftheattachment.Ifaplayfreefitcannotbe obtainedthewedgesmayneedtobereplaced.
Afterrebuildingthecoupler,connecttoanattachmentandlockintoplace.Checkifarattlefree installationhasbeenachieved.
Whencarriermachinesareequippedwithfrontattachmentsotherthan buckets,liftingaloadthatisgreaterthanshownintheLoadingChart forthatmachinecouldcausetheattachmenttorotatedownward, allowingtheloadtoslideorpitchforwardresultinginpersonalinjury ordeath.
This is the sample of the manual Click on the download link for complete Manual

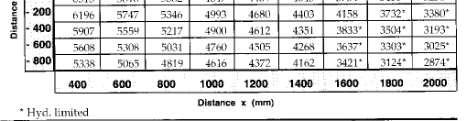

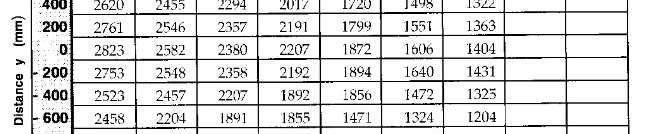

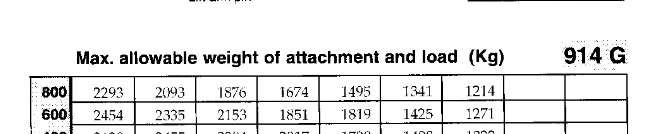

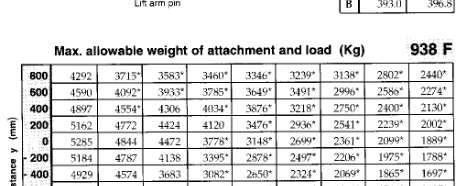

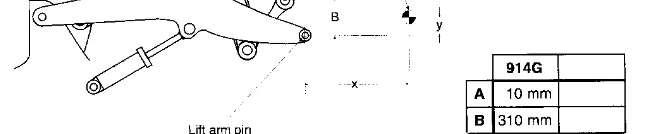

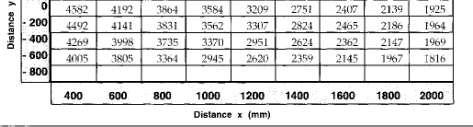

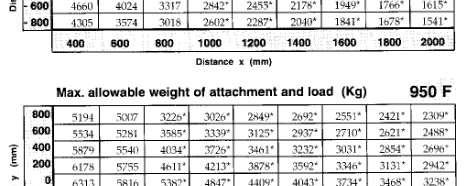

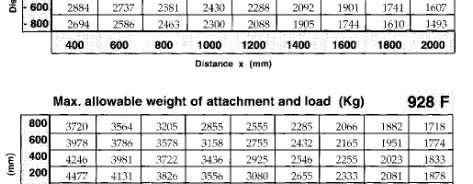

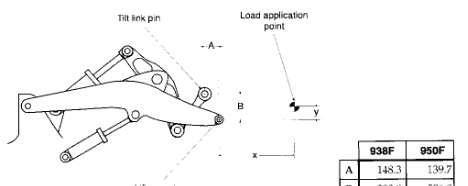

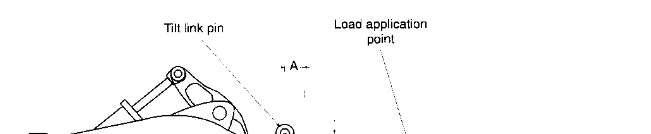

Thecombinedweightofthecoupler,attachmentandloadmustnotbegreaterthanthanthemaximum allowableloadattheloadapplicationpointasshownintheLoadingChartforthecarriermachine. ConsulttheLoadingChartsinthismanualorintheOperationandMaintenanceManualforthecarrier machinetodetermineyourequipment'smaximumallowableloadandattachmentcombination. ContactyourCaterpillardealerbeforeusinganyattachmentotherthanthestandardfactoryinstalled equipment.
MonDec1020:19:08UTC+02002018
Product:NOEQUIPMENTSELECTED
Model:NOEQUIPMENTSELECTED
Configuration:NOEQUIPMENTSELECTED
OperationandMaintenanceManual
Modelnumber
ThismanualdealswithallwedgetypemodelsQuickCouplers.
Itisimportanttomakecorrectreferencetothemodelnumberwhenorderingspareparts. Identificationofthemodelnumberistheonlypropermeansofidentifyingparts.
ThemodelnumberislocatedinthetoprightcorneroftheQuickCoupler.
MonDec1020:18:14UTC+02002018
Product:NOEQUIPMENTSELECTED
Model:NOEQUIPMENTSELECTED
Configuration:NOEQUIPMENTSELECTED
OperationandMaintenanceManual
OperatingPrinciple

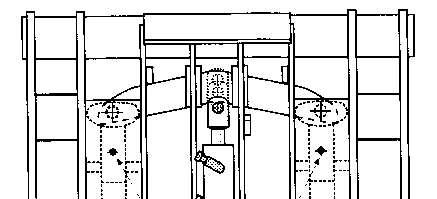

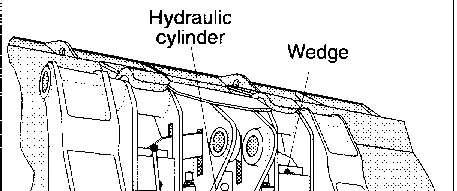

TheQuickCoupler'swedgesareactuatedbyahydrauliccylinderthatreceivespressureoilfromthe machine'sthirdhydraulicvalvecircuit.

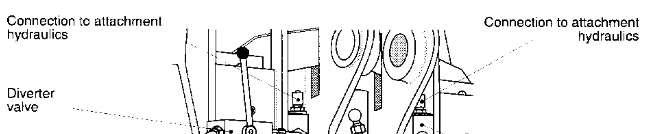

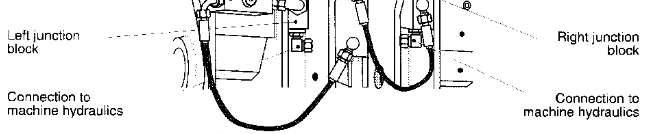

Hydraulichosesfromthemachine'sthirdvalveconnecttoleftandrightjunctionblocks,installedon therearsideoftheQuickCoupler.
Whenthedivertervalveisinthe"Coupler"position,hydraulicoilfromthemachine'sthirdvalve circuitwilloperatethecouplerlockingwedges.
Themachine'sthirdvalvecanalsobeusedtooperateanattachment.Inthiscasetheoperatormust, afterhavinginstalledtheattachment,connecttheattachmenthosestothequickdisconnectcouplings ontheleftandrightjunctionblocksandshiftthedivertervalveoverintothe"Attachment"position.
Thedivertervalveincorporatesalockvalvewhichpreventsthehydraulicoiltodrainfromthe cylinder.Wedgesarelockedhydraulicallyandkeptfirmlyinplace.
Product:NOEQUIPMENTSELECTED
Model:NOEQUIPMENTSELECTED
Configuration:NOEQUIPMENTSELECTED
OperationandMaintenanceManual
HYDRAULICOPERATEDQUICKCOUPLER(WEDGETYPE)FORCATERPILLARLOAD MediaNumber-KEBU6885-00PublicationDate-26/04/1996DateUpdated-10/10/2001
OperatingTechniques
Forattachmentsthatdonotrequirethirdvalvehydraulics.
Iftheoperatororanypersonisinthecabandatthecontrols,clearall personnelfromthemachineandfromtheareawhileperformingall stepslistedinoperatingtechniques.
AttachingFrontAttachments

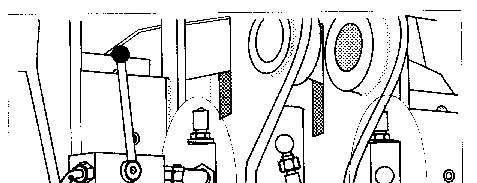

1.Placethedivertervalveinthe"Coupler"position.Movethecouplerlockingwedgesupwardby operatingthecarriermachine'sthirdhydraulicvalve.

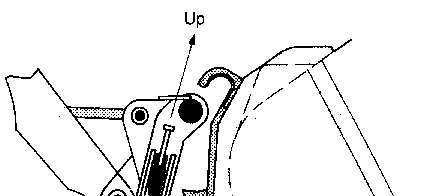

Tiltthecouplerforwardbypushingtiltleverforward.
NOTE:Makesurethatthetopcouplertubeisbelowthelevelofthehooksontheattachmenttobe installedbyadjustingtheloaderarmheight.
2.Drivemachineforwardslowly,aligningtheattachmenthookswiththecouplertube.
Pulltheliftleverbacktoslightlyraisecoupler.Raiseloaderarmsuntilcouplertubecontactsthe attachmenthooksandattachmentisliftedslightly.
NOTE:Makesuretheattachmentislevelfromsidetoside.

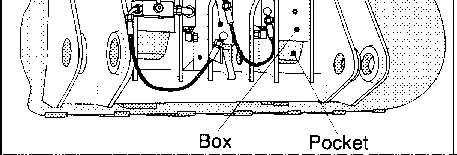

Alignattachmentpocketswiththeretainingboxesofthecouplerbypullingthetiltleverbackuntil theattachmentsquarelyrestsagainstthecouplerface.

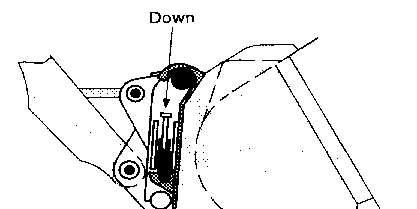

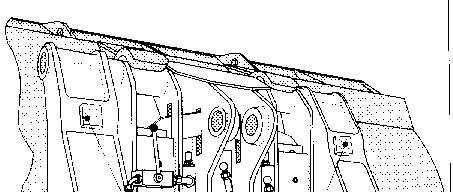

3.Engagecouplerlockingwedgesintotheattachmentretainingpocketsbyoperatingthecarrier machine'sthirdhydraulicvalve.
NOTE:Visuallycheckthatthecouplerlockingwedgesareengagedintoattachmentpockets.Make certainthatattachmentisengagedbyfollowingtheinstructionsbelow.
-Pushthetiltleverforwardtotilttheattachmentdown.
-Pushthetiltleverforwardtoputdownpressureontheattachment.
-Drivethemachinebackwardsandmakesurethatthereisnomovementbetweenthe attachmentandthecoupler.
NOTE:Thisistheonlypositiveindicationthatthecouplerlockingwedgeshavefullyengaged theattachmentretainerpockets.
-Placethedivertervalveinthe"Attachment"positiontopreventcouplerdisengagementby accidentallymovingthethirdvalvelever.
Improperinstallationofattachmentscouldresultininjuryordeath.Do notoperatethismachineuntilyouhavepositiveindicationthatthe couplerwedgesarefullyengaged.
OperatingTechniques
Forattachmentsthatrequirethecarriermachine'sthirdhydraulicvalvecircuit,these additionalstepsarerequired.
1.Stoptheengine.
2.Movealloftheattachment'shydrauliccontrolleverstorelieveanyhydraulicpressure.
3.ReturnallleverstotheNEUTRALposition.
4.Removethequickdisconnectdustplugsfromtheattachmenthoses,wipeoffallforeignmaterial.
5.Removethequickdisconnectdustplugsfromthejunctionblocksonthecoupler'srearside,wipe offallforeignmaterial.

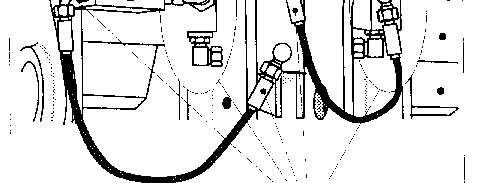

6.Connectattachmenthosestothequickdisconnectfittingsonthejunctionblocks.

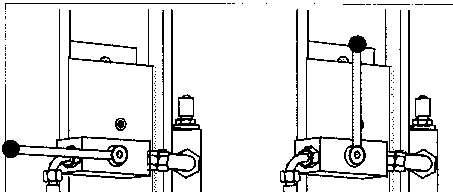

7.Movetheleverofthedivertervalveintothe"Attachment"position.
