WhenRequired
YoumustreadandunderstandthewarningsandinstructionscontainedintheSafetysectionofthis manualbeforeperforminganyoperationormaintenanceprocedures.
Alwaysreplacethesecondaryfilterelement.Neverattemptto reuseitbycleaning.
Thesecondaryfilterelementshouldbereplacedatthetimethe primaryelementisserviced,forthethirdtime.
Thesecondaryfilterelementshouldalsobereplacedifthe yellowpistoninthefilterelementindicatorenterstheredzone afterinstallationofacleanprimaryelement,oriftheexhaust smokeisstillblack.
Retainerpins,whenstruckwithforce,canflyoutandcause injurytonearbypeople.
Makesuretheareaisclearofpeoplewhendrivingretainerpins.
Toavoidinjurytoyoureyes,wearprotectiveglasseswhen strikingaretainerpin.
Alwaysweargloveswhenhandlingcable.
Certainstatelawsrequire,thatthecabledetaches,whenitis fullyunwound.
Checkthewireropecable.Ifthewireropecableiswornor frayed,installanewwireropecable.
NOTICE

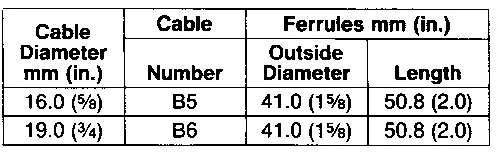

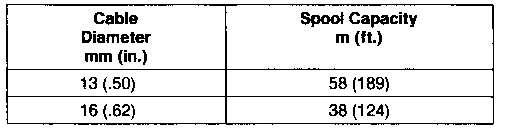

16mm(.62inch)diameterwireropecableistobeusedfor extendedwireropecablelifeonly.Itisnottobeusedfor increasingwinchcapacity.
MonNov1400:35:11UTC+05302022
Product:TRACKLOADER
Model:935CTRACKLOADER8CF
Configuration:935CTRACKLOADER/POWERSHIFT/8CF00001-UP(MACHINE)POWEREDBY3204ENGINE
MediaNumber-SEBU6159-02PublicationDate-01/03/1990DateUpdated-17/11/2015
TorqueSpecifications
Thefollowingchartgivesthetorquesforinitialinstallationof hoseclampsonnewhoseandforreassemblyorretighteningof hoseclampsonexistinghose.
This is the sample of the manual Click on the download link for complete Manual
TorquesforStandardFasteners
NOTICE

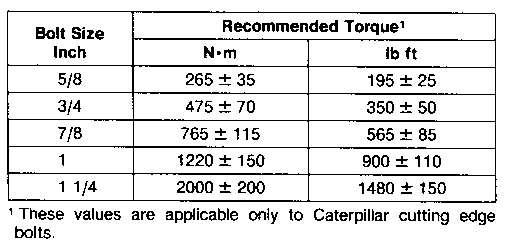

Thefollowingchartsgivegeneraltorquesforbolts,nutsand taperlockstudsofSAEGrade5orbetterquality.

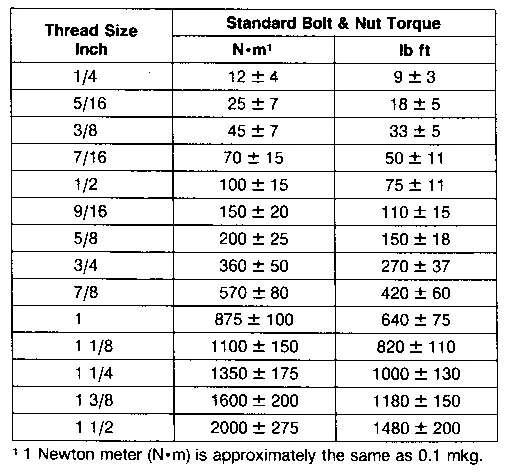

TorquesforBoltsandNuts

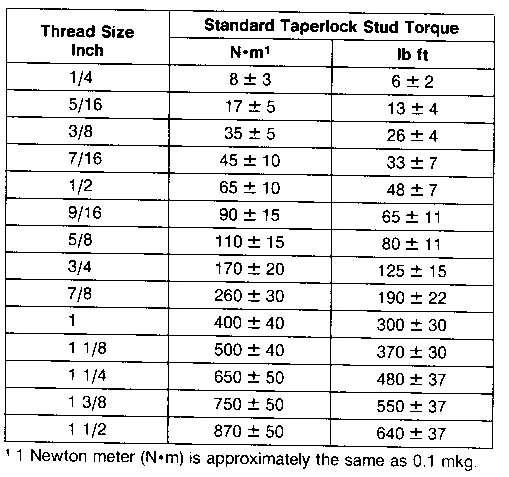

TorquesforTaperlockStuds
TorquesforMetricFasteners
NOTICE
BeverycarefulnevertomixmetricwithU.S.customary (standard)fasteners.Mismatchedorincorrectfastenerswill causemachinedamageormalfunctionandmayevenresultin personalinjury.
Originalfastenersremovedfromthemachineshouldbesaved forreassemblywheneverpossible.Ifnewfastenersareneeded, theymustbeofthesamesizeandgradeastheonesthatare beingreplaced.

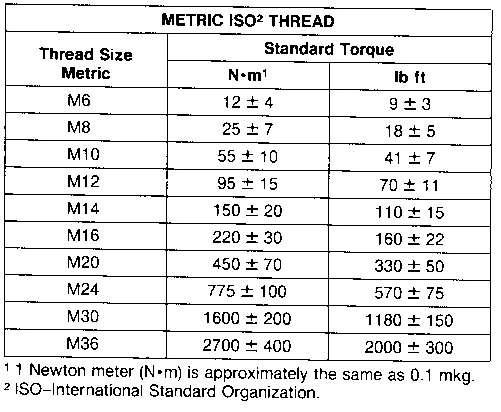

Thematerialstrengthidentificationisusuallyshownonthebolt headbynumbers(8.8,10.9,etc.).Thefollowingchartgives standardtorquesforboltsandnutswithGrade8.8.
TorquesforBoltsandNuts

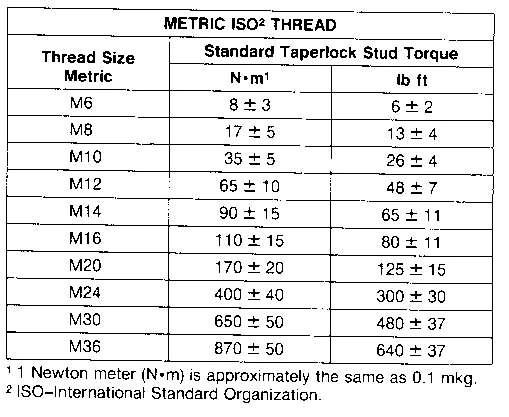

TorquesforTaperlockstuds
