LiteratureInformation
Thismanualshouldbestoredintheoperator'scompartmentintheliteratureholderorseatback literaturestoragearea.
Thismanualcontainssafetyinformation,operationinstructions,transportationinformation, lubricationinformation,andmaintenanceinformation.
Somephotographsorillustrationsinthispublicationshowdetailsorattachmentsthatcanbedifferent fromyourmachine.Guardsandcoversmighthavebeenremovedforillustrativepurposes.
Continuingimprovementandadvancementofproductdesignmighthavecausedchangestoyour machinewhicharenotincludedinthispublication.Read,study,andkeepthismanualwiththe machine.
Wheneveraquestionarisesregardingyourmachine,orthispublication,pleaseconsultyourCat dealerforthelatestavailableinformation.
Safety
Thesafetysectionlistsbasicsafetyprecautions.Inaddition,thissectionidentifiesthetextand locationsofwarningsignsandlabelsusedonthemachine.
Readandunderstandthebasicprecautionslistedinthesafetysectionbeforeoperatingorperforming lubrication,maintenance,andrepaironthismachine.
Operation
Theoperationsectionisareferenceforthenewoperatorandarefresherfortheexperiencedoperator. Thissectionincludesadiscussionofgauges,switches,machinecontrols,attachmentcontrols, transportation,andtowinginformation.
Photographsandillustrationsguidetheoperatorthroughcorrectproceduresofchecking,starting, operating,andstoppingthemachine.
Operatingtechniquesoutlinedinthispublicationarebasic.Skillandtechniquesdevelopasthe operatorgainsknowledgeofthemachineanditscapabilities.
Maintenance
Themaintenancesectionisaguidetoequipmentcare.TheMaintenanceIntervalSchedule(MIS)lists theitemstobemaintainedataspecificserviceinterval.Itemswithoutspecificintervalsarelisted underthe"WhenRequired"serviceinterval.TheMaintenanceIntervalScheduleliststhepage numberforthestep-by-stepinstructionsrequiredtoaccomplishthescheduledmaintenance.Usethe MaintenanceIntervalScheduleasanindexor"onesafesource"forallmaintenanceprocedures.
MaintenanceIntervals
Usetheservicehourmetertodetermineservicingintervals.Calendarintervalsshown(daily,weekly, monthly,etc.)canbeusedinsteadofservicehourmeterintervalsifthecalendarintervalsprovide moreconvenientservicingschedulesandapproximatetheindicatedservicehourmeterreading. Performtherecommendedserviceattheintervalthatoccursfirst.
Undersevere,dusty,orwetoperatingconditions,morefrequentlubricationthanisspecifiedinthe maintenanceintervalschartmightbenecessary.
Performserviceonitemsatmultiplesoftheoriginalrequirement.Forexample,atevery500service hoursor3months,alsoservicethoseitemslistedunderevery250servicehoursormonthlyandevery 10servicehoursordaily.
CertifiedEngineMaintenance
Propermaintenanceandrepairareessentialtokeeptheengineandmachinesystemsoperating correctly.Astheheavy-dutyoff-roaddieselengineowner,youareresponsiblefortheperformanceof therequiredmaintenancelistedintheOwnerManual,OperationandMaintenanceManual,and ServiceManual.
Itisprohibitedforanypersonengagedinthebusinessofrepairing,servicing,selling,leasing,or tradingenginesormachinestoremove,alter,ortorenderinoperative,anyemission-relateddeviceor elementofdesigninstalledonorinanengineormachinethatisincompliancewithallapplicable regulationsoftheintendedcountrytowhichithasbeenshipped.Certainelementsofthemachineand enginesuchastheexhaustsystem,fuelsystem,electricalsystem,intakeairsystem,andcooling systemmaybeemission-relatedandshouldnotbealteredunlessapprovedbyCaterpillar.
MachineCapacity
Additionalattachmentsormodificationsmayexceedmachinedesigncapacitywhichcanadversely affectperformancecharacteristics.Includedwouldbestabilityandsystemcertificationssuchas brakes,steering,androlloverprotectivestructures(ROPS).ContactyourCatdealerforfurther information.
ProductIdentificationNumber
EffectiveFirstQuarter2001theProductIdentificationNumber(PIN)haschangedfrom8to17 characters.Toprovideuniformequipmentidentification,constructionequipmentmanufacturersare movingtocomplywiththelatestversionoftheproductidentificationnumberingstandard.Non-road machinePINsaredefinedbyISO10261.ThenewPINformatwillapplytoallmachinesand generatorsets.ThePINplatesandframemarkingwilldisplaythe17characterPIN.Thenewformat willlooklikethefollowing:
Illustration1g03891925
Where:
1.WorldManufacturingCode(characters1-3)
2.MachineDescriptor(characters4-8)
3.CheckCharacter(character9)
4.MachineIndicatorSection(MIS)orProductSequenceNumber(characters10-17).Thesewere previouslyreferredtoastheSerialNumber.
MachinesandgeneratorsetsproducedbeforeFirstQuarter2001willmaintaintheir8characterPIN format.
Componentssuchasengines,transmissions,axles,andworktoolswillcontinuetousean8character SerialNumber(S/N).
Copyright1993-2025CaterpillarInc. AllRightsReserved. PrivateNetworkForSISLicensees.
ThuJul2401:21:53UTC+05302025
Product:WHEELLOADER
Model:930MWHEELLOADERF5K
Configuration:930MSmallWheelLoaderF5K00001-UP(MACHINE)POWEREDBYC7.1Engine
AirCleanerDustValve-Clean/Inspect
SMCS-1051-571-VL
1.Opentherightsideenginecompartment.

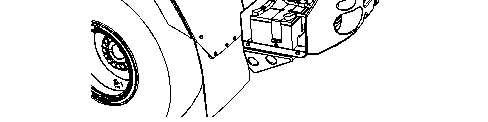

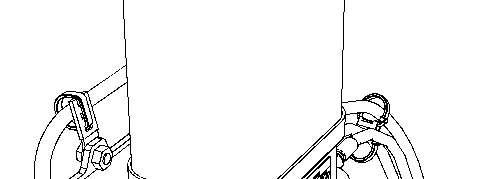

2.Theairfilterhousingislocatedontherightsideofthemachine.Theaircleanerdustvalve islocatedbelowtheairfilterhousing.
i04329031

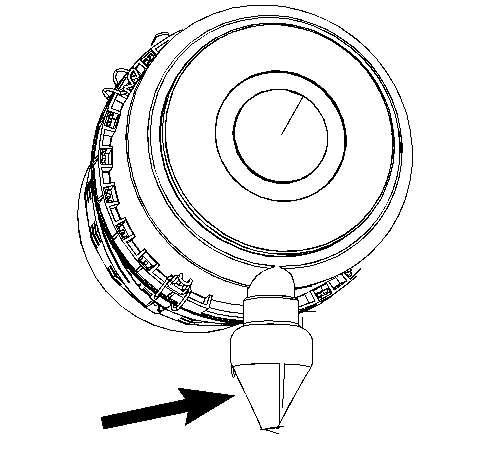

3.Checktheaircleanerdustvalveafterevery10servicehoursorattheendofeachday. Actuatethevalvebysqueezingthelipsofthevalveinordertoremoveanyaccumulated debris.
4.Closetheenginecompartment.
Copyright1993-2025CaterpillarInc. AllRightsReserved. PrivateNetworkForSISLicensees. ThuJul2401:27:39UTC+05302025
Product:WHEELLOADER
Model:930MWHEELLOADERF5K
Configuration:930MSmallWheelLoaderF5K00001-UP(MACHINE)POWEREDBYC7.1Engine OperationandMaintenanceManual 926M,930M,and938MSmallWheelLoader MediaNumber-M0102414-05PublicationDate-01/03/2015DateUpdated-25/08/2020
AlternatorAirFilter-Clean/Replace
SMCS-1405-571-FI;1405-FI
Ifyourmachineisequippedwiththeheavy-dutyalternator,performthefollowingprocedure.
i05998689

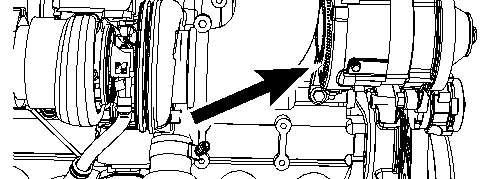

Atthesametimethattheprimaryfilterelementiscleaned,checkandcleanthealternatorfilter. Visiblyinspectcoverandfiltertodetermineifexcessivedebrisbuilduphasoccurred.Removethe threefastenersholdingthecovertothealternator.Removethefilterandcleanorreplaceas needed.Cleandebrisbuildupfromthecover.Insertthefilterandinstallthecoverandfilterwith theoriginalfasteners.Torquetheboltsto2.5±0.5N·m(1.8±0.4lbft).
Note:Iftheturbohoseisremoved,keeptheareaclean.Ensurethatallhosesandclampsare properlyinstalledbeforeoperatingtheengine.
Copyright1993-2025CaterpillarInc. AllRightsReserved. PrivateNetworkForSISLicensees.
ThuJul2401:27:52UTC+05302025
This is the sample of the manual Click on the download link for complete Manual
Product:WHEELLOADER
Model:930MWHEELLOADERF5K
Configuration:930MSmallWheelLoaderF5K00001-UP(MACHINE)POWEREDBYC7.1Engine
OperationandMaintenanceManual 926M,930M,and938MSmallWheelLoader
MediaNumber-M0102414-05PublicationDate-01/03/2015DateUpdated-25/08/2020
ArticulationBearings-Lubricate
SMCS-7057-086-BD;7065-086-BD;7066-086-BD
CrushingHazard.InsurethatthemachineignitionswitchisintheOFF positionandthattheparkingbrakeisengagedbeforeenteringthe articulationarea.Failuretodosocouldresultinseriousinjuryordeath.
Note:Thebearingwillrequiredailygreasingforapplicationswherethebearingisimmersedin waterormud.
i08139667

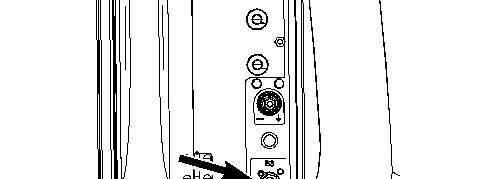

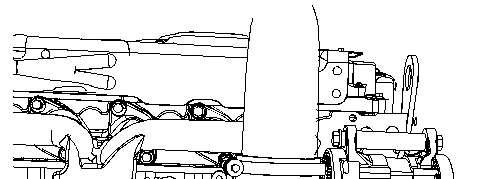

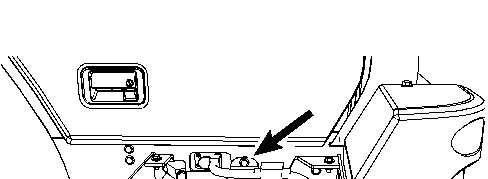

Illustration1g02795039
Note:Oncertainmodels,thefittingswillbeaccessiblefromtheleftsideofthemachine.
Wipeoffthefittingsbeforeanylubricantisapplied. Applylubricantthroughfittingsonthearticulationhitches.
Copyright1993-2025CaterpillarInc. AllRightsReserved. PrivateNetworkForSISLicensees.
ThuJul2401:28:06UTC+05302025
Product:WHEELLOADER
Model:930MWHEELLOADERF5K
Configuration:930MSmallWheelLoaderF5K00001-UP(MACHINE)POWEREDBYC7.1Engine
OperationandMaintenanceManual 926M,930M,and938MSmallWheelLoader
MediaNumber-M0102414-05PublicationDate-01/03/2015DateUpdated-25/08/2020
AutomaticLubricationGreaseTank-Fill-Autolube-If Equipped
SMCS-7540-544-HR;7540-544-TNK;7540-544
TheAutomaticTWINGreasingSystem
Reference:RefertoSystemOperation,RENR6331formoreinformationontheAutomatic TWINGreasingSystem.
Apressurehazardispresent.Severepersonalinjuryordeathcanresult fromremovinghosesorfittingsthatareunderpressure.Relievethe pressureinthesystembeforeyouremovehosesorfittings.
i06989057

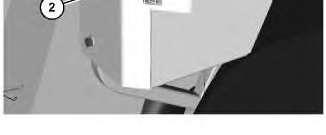

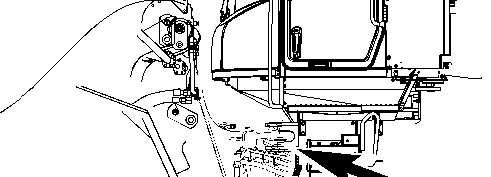

Illustration1g02494037
(1)Reservoir
(2)DustCap
(3)FillerTubeAssembly
Greasereservoir(1)islocatedneartherearfenderontherightsideofthemachine.
FillingtheReservoir
1.Removedustcap(2)fromgreasereservoir(1).
2.Cleanthefittingbeforefilling.
3.Fillgreasereservoir(1)withgreasetothemaximumlevelwhichisindicatedonthegrease reservoir(1).
Note:Avoidfullyemptyingthereservoircausingairtoenterthesystem.Airmaybe pumpedintothereservoir.Thisaircanaccumulateunderthepiston.Theaircanberemoved
ifthereservoirisrefilledtoalevelslightlyabovethemaximumlevelmark.Excessairand excessgreasewillbereleasedfromthepumpattheoverflowpassage.
Reference:Forthecorrecttypeofgrease,refertoOperationandMaintenanceManual, "LubricantViscosities".
Note:Ifadifferentbrandofgreaseisused,checkforcompatibility.Ifthenewgreaseisnot compatiblewiththegreaseinthereservoir,thesystemmustbepurged.RefertoSystem Operation,RENR6331formoreinformationaboutpurgingthesystem.
4.Installdustcap(2).
TheCatAutolubeSystem
Reference:RefertoSystemOperation,M0079258formoreinformationontheCatAutolube System.
Apressurehazardispresent.Severepersonalinjuryordeathcanresult fromremovinghosesorfittingsthatareunderpressure.Relievethe pressureinthesystembeforeyouremovehosesorfittings.

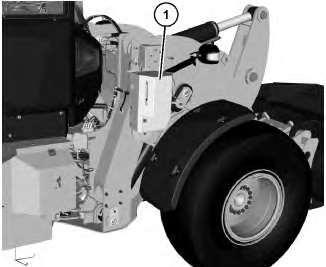

Illustration2g06166657
Greasereservoir(1)islocatednearthefrontfenderontherightsideofthemachine.

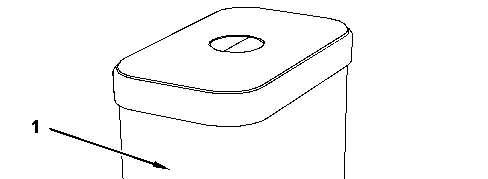

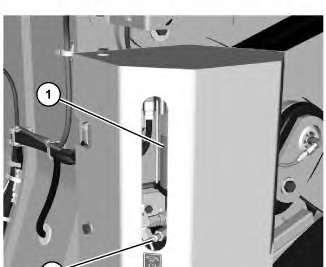

Illustration3g06166791 (1)Reservoir (2)FillerTubeAssembly
1.Cleanthefittingbeforefilling.
2.Placetheautolubesystemincontinuousmode(secondarydisplay)
3.Fillgreasereservoir(1)withgreasetothemaximumlevelwhichisindicatedonthegrease reservoir(1).
4.Returntheautolubesystembacktoautomaticmode(secondarydisplay)
Reference:Forthecorrecttypeofgrease,refertoOperationandMaintenanceManual,Lubricant Viscosities.
Note:IfadifferentBrandofgreaseisused,checkforcompatibility.Ifthenewgreaseisnot compatiblewiththegreaseinthereservoir,thesystemmustbepurged.RefertoSystem Operation,M0079258formoreinformationaboutpurgingthesystem.
Copyright1993-2025CaterpillarInc. AllRightsReserved. PrivateNetworkForSISLicensees.
ThuJul2401:28:18UTC+05302025
Product:WHEELLOADER
Model:930MWHEELLOADERF5K
Configuration:930MSmallWheelLoaderF5K00001-UP(MACHINE)POWEREDBYC7.1Engine
OperationandMaintenanceManual 926M,930M,and938MSmallWheelLoader
MediaNumber-M0102414-05PublicationDate-01/03/2015DateUpdated-25/08/2020
AxleOscillationBearings-Lubricate
SMCS-3268-086-BD;3278-086-BD
CrushingHazard.InsurethatthemachineignitionswitchisintheOFF positionandthattheparkingbrakeisengagedbeforeenteringthe articulationarea.Failuretodosocouldresultinseriousinjuryordeath.
Note:Thebearingwillrequiredailygreasingforapplicationswherethebearingisimmersedin waterormud.
i08139665
Illustration1g02795083
Wipeoffthefittingsbeforeyouapplyanylubricant.
Applylubricantthroughtworemotefittingsnearthearticulationhitchontherightsideofthe machine.
Copyright1993-2025CaterpillarInc. AllRightsReserved. PrivateNetworkForSISLicensees.
ThuJul2401:28:35UTC+05302025
Product:WHEELLOADER
Model:930MWHEELLOADERF5K
Configuration:930MSmallWheelLoaderF5K00001-UP(MACHINE)POWEREDBYC7.1Engine
OperationandMaintenanceManual 926M,930M,and938MSmallWheelLoader
MediaNumber-M0102414-05PublicationDate-01/03/2015DateUpdated-25/08/2020
BackupAlarm-Test
SMCS-7406-081
TurntheenginestartswitchkeytoONinordertoperformthetest.
Applypressuretotheleftpedal.MovethetransmissiondirectioncontrollevertoREVERSE position.
Thebackupalarmshouldimmediatelysound.Thebackupalarmwillcontinuetosounduntilthe transmissiondirectioncontrolleverismovedtotheNEUTRALpositionortotheFORWARD position.
Thebackupalarmismountedinthebackofthemachinebehindthereargrill.
Copyright1993-2025CaterpillarInc. AllRightsReserved. PrivateNetworkForSISLicensees. ThuJul2401:28:51UTC+05302025
i04662010
Product:WHEELLOADER
Model:930MWHEELLOADERF5K
Configuration:930MSmallWheelLoaderF5K00001-UP(MACHINE)POWEREDBYC7.1Engine OperationandMaintenanceManual 926M,930M,and938MSmallWheelLoader MediaNumber-M0102414-05PublicationDate-01/03/2015DateUpdated-25/08/2020
Battery-Clean

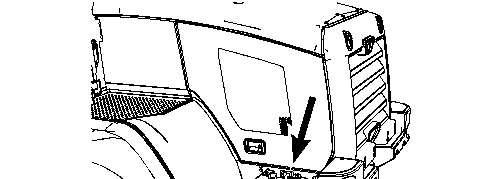

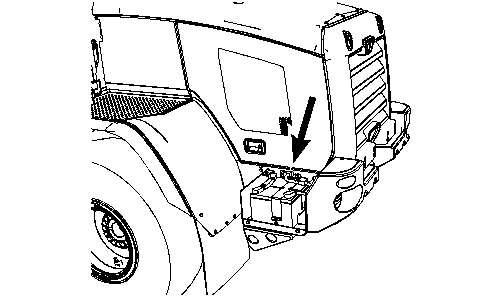

Illustration1g03743805
Thebatteryislocatedinthebatterycompartmentontheleftsideattherearmachine.Ifyour machineisequippedwiththecold-weatherpackage,thereisalsoabatterylocatedontheright sideattherearmachine.
Cleanthebatterysurfaceswithacleancloth.Keeptheterminalscleanandkeeptheterminals coatedwithpetroleumjelly.Installthepostcoversafteryoucoattheterminalpostswith petroleumjelly.
Copyright1993-2025CaterpillarInc. AllRightsReserved. PrivateNetworkForSISLicensees. ThuJul2401:29:08UTC+05302025
i05972698
Product:WHEELLOADER
Model:930MWHEELLOADERF5K
Configuration:930MSmallWheelLoaderF5K00001-UP(MACHINE)POWEREDBYC7.1Engine
OperationandMaintenanceManual 926M,930M,and938MSmallWheelLoader MediaNumber-M0102414-05PublicationDate-01/03/2015DateUpdated-25/08/2020
BatteryHold-Down-Tighten
SMCS-7257-527

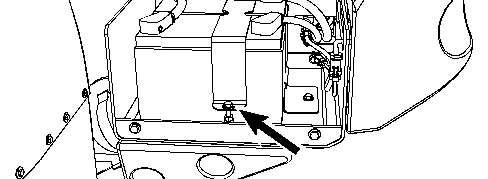

Illustration1g03743829
Thebatteryislocatedinthebatterycompartmentontheleftsideattherearmachine.Ifyour machineisequippedwiththecold-weatherpackage,thereisalsoabatterylocatedontheright sideattherearmachine.
i05972723
Besurethatbatteriesonbothsidesarechecked.
Tightentheboltsonthehold-downsforthebatteryinordertopreventthebatteriesfrommoving duringmachineoperation.
Copyright1993-2025CaterpillarInc. AllRightsReserved. PrivateNetworkForSISLicensees.
ThuJul2401:29:30UTC+05302025
Product:WHEELLOADER
Model:930MWHEELLOADERF5K
Configuration:930MSmallWheelLoaderF5K00001-UP(MACHINE)POWEREDBYC7.1Engine
OperationandMaintenanceManual 926M,930M,and938MSmallWheelLoader
MediaNumber-M0102414-05PublicationDate-01/03/2015DateUpdated-25/08/2020
BatteryorBatteryCable-Inspect/Replace
SMCS-1401-040;1401-510;1402-040;1402-510
1.TurntheenginestartswitchtotheOFFposition.TurnallswitchestotheOFFposition.
2.Opentheengineaccessdoorontheleftsideofthemachine.
i06041359
3.TurnthebatterydisconnectswitchtotheOFFposition.Removethebatterydisconnect switchkey.
4.Thebatteryislocatedinthebatterycompartmentontheleftsideattherearmachine.Ifyour machineisequippedwiththecold-weatherpackage,thereisalsoabatterylocatedonthe rightsideattherearmachine.Removetheaccesspanelforthebatteryontheleftsideand ontherightside(ifequipped).
NOTICE
Donotallowthedisconnectedbatterycabletocontactthedisconnect switch.
5.Disconnectthenegativebatterycableatthebattery.
6.Atthebatterydisconnectswitch,disconnectthenegativebatterycablethatisconnectedto theframe.
7.Performthenecessaryrepairs.Replacethecableorthebattery,asneeded.
8.Connectthebatterycableatthebatterydisconnectswitch.
9.Connectthenegativebatterycableatthebattery.Replacethebatterycover.
10.Installthebatterydisconnectswitchkey.TurnthebatterydisconnectswitchtotheON position.
Alwaysrecycleabattery.Neverdiscardabattery.
Alwaysreturnusedbatteriestooneofthefollowinglocations:
•Abatterysupplier
•Anauthorizedbatterycollectionfacility
•Recyclingfacility
Copyright1993-2025CaterpillarInc. AllRightsReserved.
PrivateNetworkForSISLicensees.
ThuJul2401:29:47UTC+05302025
Product:WHEELLOADER
Model:930MWHEELLOADERF5K
Configuration:930MSmallWheelLoaderF5K00001-UP(MACHINE)POWEREDBYC7.1Engine
OperationandMaintenanceManual 926M,930M,and938MSmallWheelLoader
MediaNumber-M0102414-05PublicationDate-01/03/2015DateUpdated-25/08/2020
Belts-Inspect/Replace
SMCS-1397-040;1397-510
SerpentineBelt
1.Opentheengineaccessdoorontheleftsideofthemachine.
2.Ensurethatthebatterydisconnectswitchhasbeenturnedoff.
3.Removetheaccesspanel.
i05972753
