Product: WHEEL LOADER
Model: 926 WHEEL LOADER 8NB
Configuration: 926E WHEEL LOADER 8NB02452-UP (MACHINE) POWERED BY 3204 ENGINE
Disassembly and Assembly N3 Series Brushless Alternators
Alternator - Assemble
SMCS - 1405-016
Assembly Procedure
Soldering
Vise
Press
Illustration 1 g00871248
1. Install the roller bearing (1) with tooling (B) .
Note: If necessary, apply grease to the bearing.
Illustration 2
2. Install the ring (2) in the rear frame.
g00871460
Illustration 3 g00871252

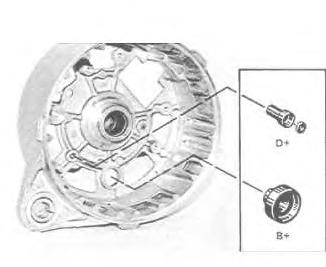

3. Install the insulators for terminal "B+" and terminal "D+".
Illustration 4
4. Install the "R" terminal, if the "R" terminal was replaced.
5. Install the rectifier (3) in the rear frame.
6. Install the two screws. Solder the sleeve (4) over terminal "R".
g00871347

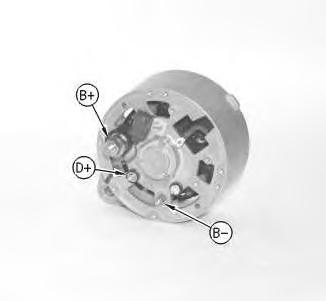

7. Install the following components on terminals: "D+", "B+" and B-: terminal insulators, washers and nuts.
Illustration 5 g00871376

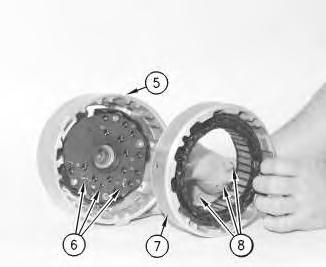

8. Position the stator frame (7) on the rear frame (5). Use the marks on the alternator that were made in the disassembly procedure for alignment.
Illustration 6
g00871382

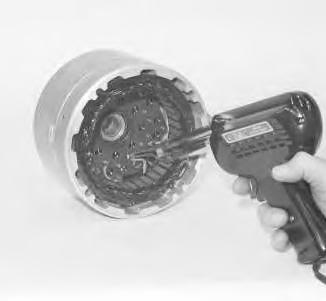

9. Solder the leads for the stator winding (8) to the terminals for the rectifier (6) .
Illustration 7 g00871385

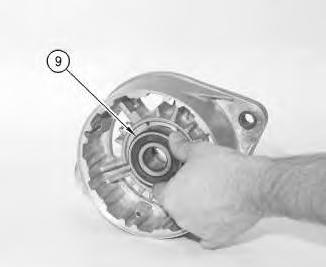

10. Install the bearing (9) in the rear frame.
Note: The bearing is a loose fit.
Illustration 8
11. Install the intermediate ring (10) .
g00871389
Illustration 9 g00871402

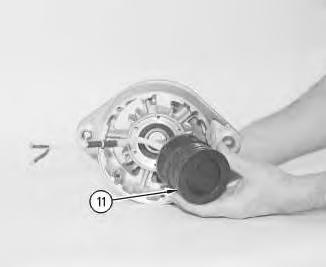

12. Install the field winding (11). The leads for the winding must fit in the deep groove. Install the six screws on the reverse side of the frame.
13. Apply the epoxy putty 5P-3321 Adhesive over the lead and the groove.
Illustration 10

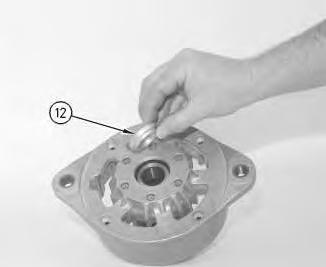

14. Install the spacer ring (12) .
g00871407
This is the sample of the manual click on the download link for complete manual
DOWNLOAD LINK
In the next step you must support the spacer ring. The spacer ring is supported in order to support the bearing inner race.
Illustration 11 g00871415
15. Install the rotor assembly (13) in the drive end frame (14).
Illustration 12 g00871417
16. Heat the bearing race (15) to 135 °C (275 °F). Install the bearing race on the shaft.
Illustration 13
g00871447

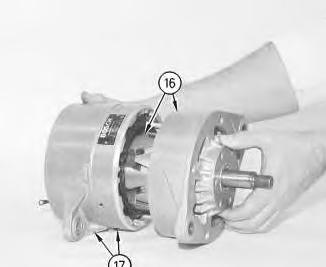

17. Connect the drive end and the rotor (16) to the rear housing and the stator frame (17). The marks that were made during the disassembly procedure will help align the alternator. Install the four hex socket screws. Do Not Tighten the hex socket screws.
Illustration 14
g00871452

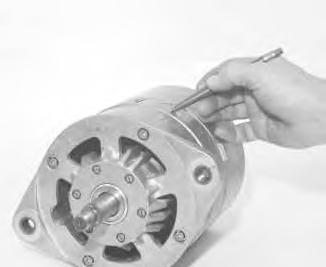

18. Insert three 0.3 mm (0.01 inch) feeler gauges (18) between the rotor and the stator. Tighten the screws to a torque of 4.8 ± .7 N·m (3.5 ± .5 lb ft).
15

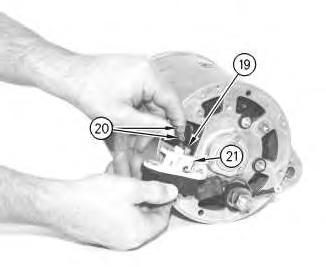

19. Connect the lead for the field coil to the regulator (21). The screw is large in diameter (19) .
20. Connect the lead for the rectifier and the remaining lead for the field coil (20) to the regulator terminal.
Note: In order to maintain the proper polarity, one lead for the field coil has a hole that is small in diameter.
16
Illustration
g00871457
Illustration
g00871458
21. Install the regulator (21) on the rear frame assembly. Install the two screws for the regulator.
22. Install the lead for the suppression capacitor on the "D+" terminal (22) .
Illustration 17
g00871459

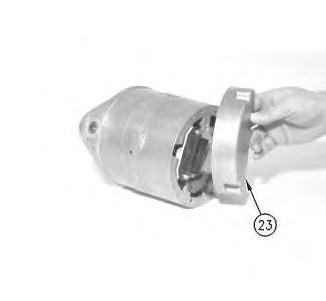

23. Install the regulator cover (23). Install the screws for the regulator cover. Copyright 1993 - 2021 Caterpillar Inc. All Rights Reserved. Private Network For SIS Licensees.
Product: WHEEL LOADER
Model: 926 WHEEL LOADER 8NB
Configuration: 926E WHEEL LOADER 8NB02452-UP (MACHINE) POWERED BY 3204 ENGINE
Disassembly and Assembly
N3 Series Brushless Alternators
Alternator - Disassemble
SMCS - 1405-015
Disassembly Procedure
Start By:
A. Remove the alternator from the machine. Refer to Disassembly and Assembly, "AlternatorRemove" for the machine that is being serviced.
Note: Before disassembly, clean the exterior of the alternator in order to prevent dirt from entering the unit. Table 1
Tooling that is needed
Soldering iron (180 watt)
Vise or clamping support with vee blocks
Press
The following disassembly procedure shows the disassembly of the N3 series alternator (35 amperes).
NOTICE
Care must be taken in the following step not to damage the alternator. Do not overtighten the vise.
1. Position the alternator in a vise or a similar clamping device.
2. Remove the following components: the pulley nut, the pulley and the fan.
Illustration 1

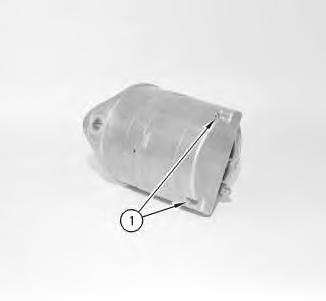

3. Remove the two screws (1). Then remove the regulator cover.
Illustration 2 g00870086

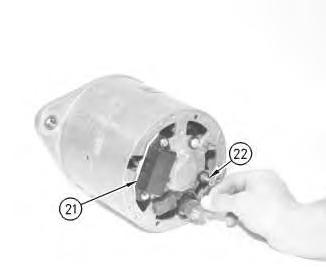

4. Remove the nut from the "D+" terminal (2) .
5. Disconnect the lead for the suppression capacitor (3) .
6. Remove the two screws (4) that mount the regulator.
Note: The step may be unnecessary, if the component will not be tested or replaced.
3
Illustration

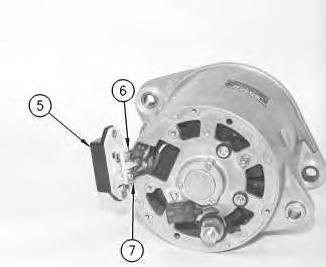

7. Pull the regulator (5) partially away from the frame. This will expose the terminals for the regulator. The terminals for the regulator are the "D+" (7) and the "DF" terminals (6) .
8. Disconnect the two leads for the "D+" terminal (7). Disconnect the one lead for the "DF" terminal (6) .
Illustration 4
g00870150
9. Mark the following components with a marker for proper alignment during assembly:front frame, stator, end frame and drive end housing face
Illustration 5
g00870170

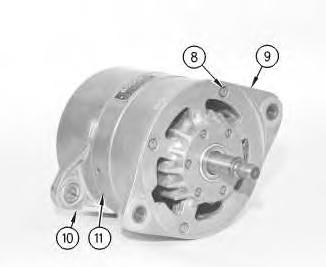

10. Remove the four hex socket head bolts (8). Separate the drive end housing face (9) and the rotor as an assembly from the rear housing (10) and the stator frame (11) .
Illustration 6
g00870533

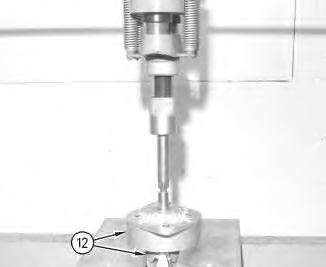

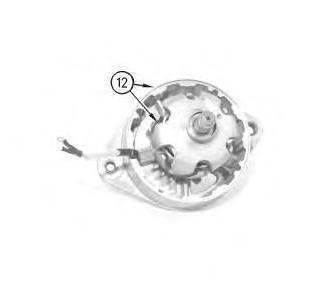

11. Position the following items in the press: drive end housing face, rotor assembly and the tooling (12) .
In the next step, the bearing may be damaged.
Illustration 7 g00870539

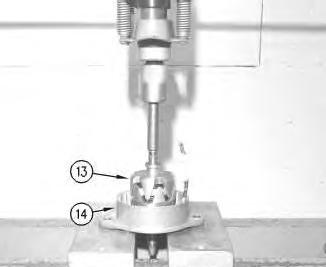

12. Use the press to remove the rotor assembly from the drive end housing face.
Illustration 8

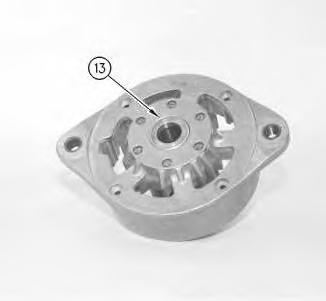

13. Remove the spacer ring (13) .
g00870541
Illustration 9
g00870558

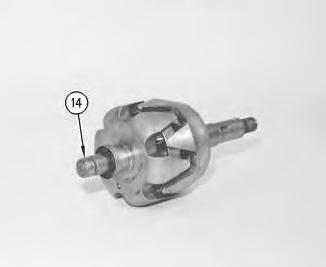

14. Inspect the bearing inner race (14). Replace the bearing inner race (14), if the bearing inner race is worn, damaged, or the bearing has been replaced.
Illustration 10 g00870562

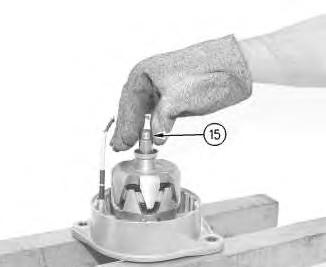

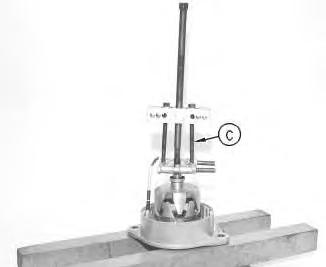

15. Use tooling (C) to remove the bearing race.
Illustration 11
g00870563
NOTICE

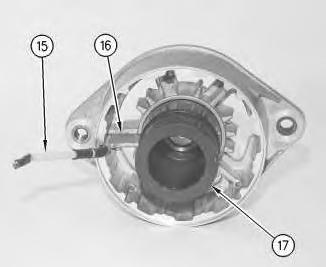

Epoxy putty (16) covers the lead for the field winding (15). Care must be taken in the next step when removing the epoxy, so that the lead is not damaged.
16. Remove the epoxy (16) from the deep groove in the drive end housing face.
Illustration 12 g00870583

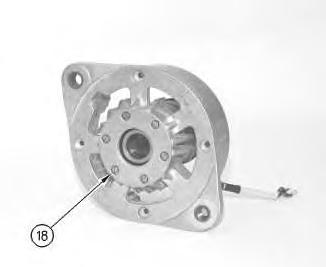

17. Remove the six screws (18) on the front side of the drive end housing face.
Illustration 13 g00870563
18. Remove the lead for the field winding (15) and the field winding (17) .
Illustration 14

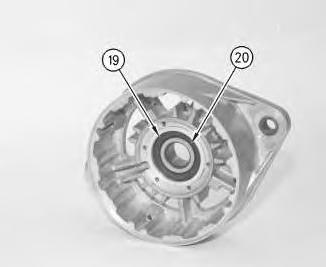

19. Remove the intermediate ring (19) .
g00870589
20. Remove the bearing (20) from the seat in the drive end housing face.
Illustration 15
g00870592

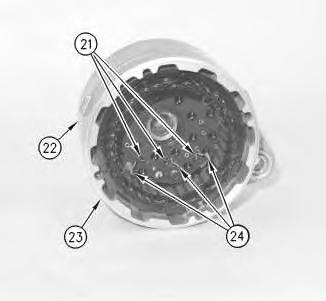

21. Disconnect the three leads for the stator windings (24) from the three rectifier bridge terminals (21).
22. Remove the stator frame (23) from the rear frame assembly.
Illustration 16 g00870596
NOTICE

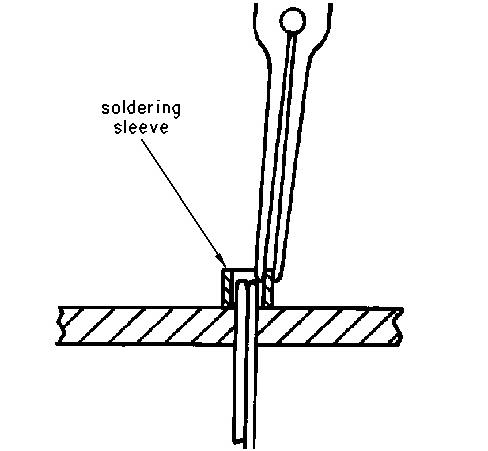

When unsoldering the "R" terminal in the next step, do not grip both of the outside edges of the sleeve. The sleeve will collapse with too much pressure. While heating with the soldering iron, grip the edge with long nose pliers.
Illustration 17

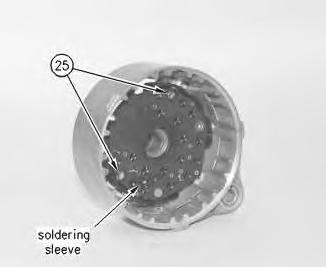

23. Unsolder the soldering sleeve from the "R" terminal.
24. Remove the two screws (25) .
Illustration 18
25. Remove the following retaining nuts for the rectifier terminal on the outside of the rear frame assembly: (B+), (D+) and (B-) .
g00870559
g00870600
26. Remove the following components: rectifier, washers for the rectifier terminal and insulators.
Illustration 19

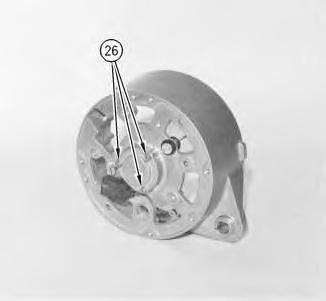

27. Remove the three screws (26) .
Illustration 20
28. Remove the ring (27) from the rear frame.
g00870602
g00870601
Illustration 21 g00870603
Illustration 22 g00870604
NOTICE
Do not remove the bearing in the next step. The bearing will be destroyed if removed in the next step.

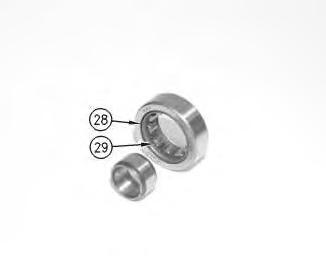

29. Use tooling "A" in order to remove the roller bearings (29) and the retaining cage (28) .
Illustration 23
g00870605

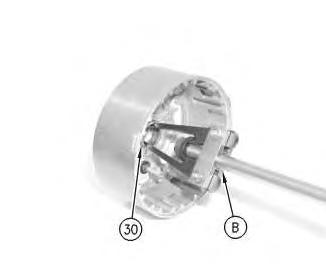

30. Remove bearing outer race (30) with tooling (B) .
Copyright 1993 - 2021 Caterpillar Inc. All Rights Reserved. Private Network For SIS Licensees. Thu Sep 2 12:01:04 UTC+0530 2021
