Broomreleaseprocedure
SMCS-7606
1.Raiseloaderarmsuntilthebroomisslightlyelevatedandlevelwiththeground.
2.Lowerandsecurethebroomparkingsupportsintheirlowerstorageposition.
3.Putthedivertervalveinthe"Coupler"positionanddisengagethecouplerlockingpins.
NOTE:Thebrushcanbedeformedifthesupportsarenotusedwhenthebroomisparked.
4.Lowertheloaderarmsandputthebroomontheground.
5.Disconnectthebroomwiringconnectorfromthecarriermachine'swiringharness.
6.Disconnectthebroomhydrauliclines.
7.Disengagecouplerandcarriermachine.
NOTE:Whendisconnectingthebroomfromthecarriermachine,thecouplerlockingpinsmustbe releasedbeforethebroomisloweredtotheground!
Neglectingthismaycausedamagetothebroomssuspensionsystem.
Copyright1993-2021CaterpillarInc. AllRightsReserved. PrivateNetworkForSISLicensees.
MonSep611:57:02UTC+05302021
Product:WHEELLOADER
Model:926WHEELLOADER8NB
Configuration:926EWHEELLOADER8NB01542-02451(MACHINE)POWEREDBY3204ENGINE
OperationandMaintenanceManual HYDRAULICBROOMFORCATERPILLARBACK
MediaNumber-KEBU6901-00PublicationDate-20/03/1997DateUpdated-10/10/2001
Caution
SMCS-7606
Thebroomshouldbepositionedonit'sparkingsupportsthatshouldbeintheirloweredstorage position.
2.ConnectthebroomhosestotheQuickDisconnectCouplersonthecoupler.Turnthedivertervalve intothe"Attachment"position.(Ifequipped)
3.Connectthebroomwiringconnectortothewiringharnessprovidedonthemachine.
4.Raiseloaderarmsuntilthebroomisslightlyelevated.
5.Securetheparkingsupportsintheirraisedoperatingposition.
6.Startthebroombymovingthecontrolhandleofthecarriermachine'sthirdvalvetothelocking position.
7.Checkthebrushrotation.Ifthebrushrotatesintheoppositedirection,shiftthelockingpositionof thecontrolleverofthethirdvalveor,withcontrolvalveclosed,reversethebroom'shydraulic connections.
NOTE:Aleverlockingkitmayberequiredincasetheloaderisnotalreadyequipped.Contactthe Caterpillardealertoinquireifthekitisavailableforyourmachine.
Copyright1993-2021CaterpillarInc. AllRightsReserved. PrivateNetworkForSISLicensees.
MonSep611:56:26UTC+05302021
PreviousScreen
Product:WHEELLOADER
Model:926WHEELLOADER8NB
Configuration:926EWHEELLOADER8NB01542-02451(MACHINE)POWEREDBY3204ENGINE
OperationandMaintenanceManual HYDRAULICBROOMFORCATERPILLARBACK
MediaNumber-KEBU6901-00PublicationDate-20/03/1997DateUpdated-10/10/2001
Generalinformation
SMCS-7606
ThismanualinstructsyouonyourHydraulicBroomanditssafeoperationandmaintenance.Study thismanualbeforeinstalling,operatingorservicingthisequipment.Usewithoutpropercarecan causedamage.
Tousethisattachmentcorrectly,youmustbeacompetentoperatorofthecarriermachine.DONOT installorusetheattachmentifyoucannotusethecarriermachine.
Donotrushthejoboflearning.Takeyourtimeandmostimportant,takeitsafely.
Ifthereisanythingyoudonotunderstand,askyourCaterpillardealer.Hewillbepleasedtoadvise you.
Copyright1993-2021CaterpillarInc. AllRightsReserved. PrivateNetworkForSISLicensees.
MonSep611:53:39UTC+05302021
PreviousScreen
Product:WHEELLOADER
Model:926WHEELLOADER8NB
Configuration:926EWHEELLOADER8NB01542-02451(MACHINE)POWEREDBY3204ENGINE
OperationandMaintenanceManual HYDRAULICBROOMFORCATERPILLARBACK
MediaNumber-KEBU6901-00PublicationDate-20/03/1997DateUpdated-10/10/2001
HeightandTiltsetting
SMCS-7606
1.Liftupthebroomandplacetheparkingsupportsintheirupperposition.
2.Startbrushrotation.
3.Slowlylowerthebroomuntiltheyellowmarkersoftheheightindicatorareinline.(fig.5)
4.Tiltthebroomuntilthetiltindicatormarkersareinline.(fig.6)
5.Re-adjust,ifnecessary,thebroomheightasdescribedinpoint3.
MonSep612:00:46UTC+05302021
PreviousScreen
Product:WHEELLOADER
Model:926WHEELLOADER8NB
Configuration:926EWHEELLOADER8NB01542-02451(MACHINE)POWEREDBY3204ENGINE
OperationandMaintenanceManual
MediaNumber-KEBU6901-00PublicationDate-20/03/1997DateUpdated-10/10/2001

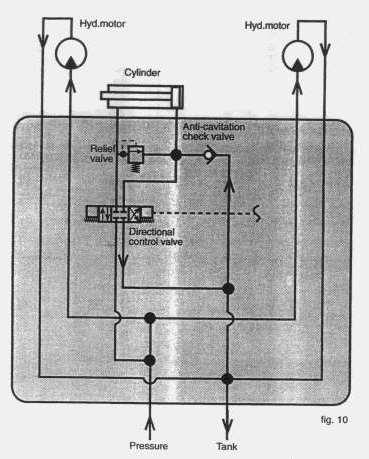

Hydraulicschematic
SMCS-7606 Copyright1993-2021CaterpillarInc.
MonSep612:03:11UTC+05302021
PreviousScreen
Product:WHEELLOADER
Model:926WHEELLOADER8NB
Configuration:926EWHEELLOADER8NB01542-02451(MACHINE)POWEREDBY3204ENGINE
OperationandMaintenanceManual HYDRAULICBROOMFORCATERPILLARBACK
MediaNumber-KEBU6901-00PublicationDate-20/03/1997DateUpdated-10/10/2001
Maintenance
SMCS-7606
Every8hoursordaily
CycleBroomandmachinethroughallmodes.
A.Checkforbinding.
B.Checkhydraulichoseassembliesandfittingsfordamageandleaks.
C.Checkboltsandtightenifnecessary.
D.Checkleafspring.
E.Inspectbrushprotectors.
F.CheckQuickCouplerhooksandpinlocatorsfordamageandwear.
ReportanydefectsorinstallationproblemstoyourCaterpillardealer.

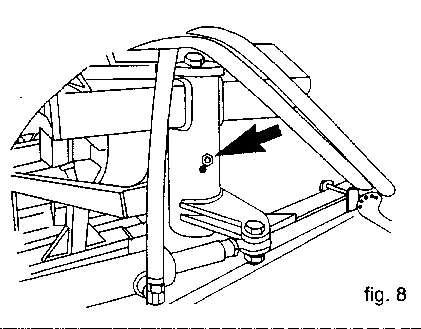

Every3monthsor250hours
Cleangreasenippleofthebartubebearingandapplygreaseuntilfreshgreaseisextrudedfromthe joint.(fig.8)
Whenrequired

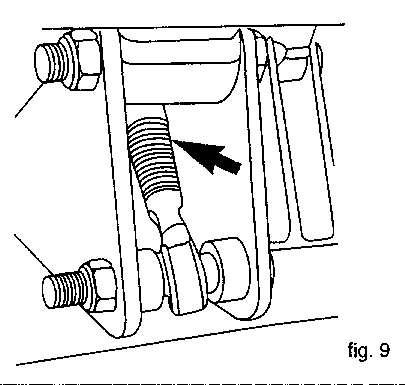

Regularlyinspecttheriggingscrew.Coatthethreadswithgreaseorwithacorrosionprotection productwhenneeded.(fig.9)
NOTE:Whenthebroomisnotinoperation,alwaysemploytheparkingsupports,otherwiseflatspots willappearonthebrusheswhichwillspoilproperfunctions.
PreviousScreen
Product:WHEELLOADER
Model:926WHEELLOADER8NB
Configuration:926EWHEELLOADER8NB01542-02451(MACHINE)POWEREDBY3204ENGINE
OperationandMaintenanceManual
MediaNumber-KEBU6901-00PublicationDate-20/03/1997DateUpdated-10/10/2001
Modelnumber
SMCS-7606
ThismanualdealswithallHydraulicBroommodels
Itisimportanttomakecorrectreferencetotheattachmenttypeandserialnumberwhenordering spareparts.Identificationoftheserialnumberistheonlypropermeansofidentifyingparts.
Themodelnumberisstampedonanidentificationplate,locatedonthetopright-handsideofthe coupleradapterframe.
Whenorderingsparepartsforthehydraulicmotorsyoushouldmentionthemotorserialnumber whichislocatedontheendplateofthemotor.
Copyright1993-2021CaterpillarInc. AllRightsReserved. PrivateNetworkForSISLicensees.
MonSep611:54:08UTC+05302021
PreviousScreen
Product:WHEELLOADER
Model:926WHEELLOADER8NB
Configuration:926EWHEELLOADER8NB01542-02451(MACHINE)POWEREDBY3204ENGINE
OperationandMaintenanceManual
MediaNumber-KEBU6901-00PublicationDate-20/03/1997DateUpdated-10/10/2001
OperatingPrinciple
SMCS-7606
Thecarriermachine'sthirdvalveisusedtooperatetheattachment.Theoperatormust,afterhaving installedtheattachment,connecttheattachmenthosestothequickdisconnectcouplingsontheleft andrightjunctionblocksoftheQuickCouplerandshiftthedivertervalveoverintothe"Attachment" position.(Ifequipped).
Whenthedivertervalveisinthe"Attachment"position,hydraulicoilfromthemachine'sthirdvalve circuitwilloperatethebrushmotors.
Theelectricallyactuatedselectorvalveiscontrolledbyaswitchinthecabin.Thisvalve,when actuated,directsoiltothebroomanglingcylinder.
Alwaysstopthebroomcompletelybeforeyoumakeanyadjustments. Failuretodosomayresultinseriousinjury.
This is the sample of the manual Click on the download link for complete Manual
Copyright1993-2021CaterpillarInc. AllRightsReserved. PrivateNetworkForSISLicensees.
MonSep611:55:31UTC+05302021
Product:WHEELLOADER
Model:926WHEELLOADER8NB
Configuration:926EWHEELLOADER8NB01542-02451(MACHINE)POWEREDBY3204ENGINE
OperationandMaintenanceManual HYDRAULICBROOMFORCATERPILLARBACK
MediaNumber-KEBU6901-00PublicationDate-20/03/1997DateUpdated-10/10/2001
Safety
SMCS-7606
Allmechanicalequipmentcanbehazardousifoperatedwithoutcareorcorrectmaintenance.
Inthismanualyouwillfindwarningmessages.Readthemandunderstandthem.Theytellyouof hazardsandhowtoavoidthem.
Safetyisnotjustamatterofrespondingtothewarnings.Allthetimeyouareworkingwithyour equipmentyoumustbethinkingwhathazardstheremightbeandhowtoavoidthem.
Donotworkwiththeequipmentuntilyouaresurethatyoucontrolit.
Donotstartajobuntilyouaresurethatyouandthepersonsaroundyouwillbesafe.
Readcarefullyfollowingwarningmessages.Theytellyouofdifferent hazardsandhowtoavoidthem.Ifproperprecautionsarenottakenyou orotherscouldbeseriouslyinjured.
1.Learnmachinesafety
Carefullyreadappropriatemanuals.Learnhowtooperatethe machineandhowtousethecontrolsproperly.
Studythismanualbeforeinstalling,operatingorservicingthe HydraulicBroom.Ifthereisanythingthatyoudonotunderstand, askyouremployeroryourCaterpillardealertoexplainit.Keep manualscleanandingoodcondition.
Studyalsotheoperatingandmaintenancemanualofthecarrier machinebeforeoperatingtheattachment.
2.Clothing
Youcanbeinjuredifyoudonotwearproperclothing.Loose clothingcangetcaughtinthemachinery.Wearfairlytight protectiveclothingtosuitthejob.
Wearasuitablehearingprotectivedevicesuchasearmuffsorear plugstoprotectagainstobjectionableoruncomfortableloud noises.
Furthersafetyequipmentincludes:asafetyhelmet,safetyshoes, safetyglasses,well-fittingoverallsandindustrialgloves.
Donotwearanecktieorscarf.Keeplonghairrestrained.
3.Careandalertness
Allthetimeyouareworkingwiththeattachmenttakecareand stayalert.Alwaysbecareful.Alwaysbealertforhazards.
4.Liftingequipment
Youcanbeinjuredifyouusefaultyliftingequipment.
Makesurethatliftingequipmentisingoodcondition.Makesure thatliftingtacklecomplieswithalllocalregulationsandis suitableforthejob.Liftingequipmentmustbestrongenoughfor thejobandyoumustknowhowtouseit.
5.Regulationsandlaws
Obeyalllaws,worksiteandlocalregulationswhichaffectyou andyourequipment.
6.Equipmentlimits
Operatingequipmentbeyonditsdesignlimitscancausedamage. Itcanalsobedangerous.
Donottrytoupgradetheequipment'sperformanceby unapprovedmodifications.
7.Equipmentinspection
Inspectthemachineandattachmentdailybywalkingaroundit beforeyoustartit.
Donotoperateequipmentwhichisdefectiveorhasmissingparts.
Makesurethemaintenanceproceduresinthismanualare completedbeforeusingtheequipment.
8.Practice
Youandotherscanbekilledorinjuredifyoudounfamiliar operationswithoutpracticingthemfirst.Practiceawayfromthe jobsite,onacleararea.
Keepotherpeopleaway.
Donotperformnewoperationsuntilyouaresureyoucando themsafely.
9.Communications
Badcommunicationscancauseaccidents.
Keeppeoplearoundyouinformedofwhatyouwillbedoing.If youwillbeworkingwithotherpeoplemakesuretheyunderstand anyhandsignalsyouwillbeusing.
Worksitescanbenoisy.Donotrelyonspokencommands.
10.Worksite
Worksitescanbehazardous.Inspectthesitebeforeworkingon it.
Makesuretheworksitefootinghassufficientstrengthtofirmly supportthemachine.Checkforpotholes,hiddenrocksetc.
11.Banksandtrenches
Bankedmaterialandtrenchescancollapse.
Donotworktooclosetobanksandtrencheswherethereis dangerofcollapse.
12.Metalsplinters
Youcanbeinjuredbyflyingsplinterswhendrivingmetalpinsin andout.
Guardagainstinjuryfromflyingpiecesofmetalordebris,wear gogglesorsafetyglasses.
Useasoft-facedhammerordrifttoremoveorfitmetalpins,such aspivotpins.
13.Safetybarriers
Unguardedequipmentinpublicplacescanbedangerous.Place barriersaroundthemachine,tokeeppeopleaway.
14.Inspections
Alwaysusetwopeoplewhenmakingcheckswiththeengine running.
Theoperatormustbeatthecontrols,abletoseethepersondoing thechecks.
15.Repairsandmaintenance
Besureyouunderstandaserviceprocedurebeforeworkingon themachineorattachment.
Ifpossible,makeallrepairswiththemachineparkedonalevel, hardsurface.Blockthemachinesoitdoesnotrollwhileworking onorunderit.
Attacha"DONOTOPERATE"tagtothemachine.
Disablethevehicletopreventaccidentalstartupduring maintenance.
16.Supportattachment
Donotworkunderaraisedattachment.Lowerattachmenttothe ground,ontoblocksorstands.
Alwaysuseliftarmsupportstokeeploaderarmsraisedand attachmenttilteddownifmaintenanceproceduresrequirethe attachmenttobeintheraisedposition.
Supporttheattachmentwhenlooseningorremovingpinsorbolts.
17.Modificationsandwelding
Non-approvedmodificationstothemachinecanimpairthe functionand/orsafetyandaffectmachinelife.Contactyour Caterpillardealerforadvisebeforemodifyingtheattachment.
Beforeweldingontheattachmentwhileitisinstalledonthe carrier,disconnectthealternatorandthebattery.
18.Hydraulicfluid
Finejetsofhydraulicfluidathighpressurecanpenetratethe skin.
Keephandsandbodyawayfrompinholesandnozzleswhicheject fluidunderhighpressure.
Useapieceofcardboardtosearchforleaks.Donotuseyour fingerstocheckforhydraulicfluidleaks.
IfANYfluidisinjectedintotheskin,itmustbesurgically removedwithinafewhoursbyadoctorfamiliarwiththistypeof injuryorgangrenemayresult
19.Pressures
Relieveallpressuresinair,wateroroilsystemsbeforeanylines, fittingsorrelateditemsaredisconnectedorremoved.Hydraulic fluidatsystempressurecaninjureyou.
Beforedisconnectingorconnectinghydraulichoses,stopthe carrierengineandoperatethecontrolstoreleasepressure trappedinthehoses.
20.Handholdsandsteps
Whenyougetonandofthemachine,alwaysmaintainathree pointcontactwithstepsandhandrailsandfacethemachine.Do notusecontrolsashandholds.
Neverjumpeitheronoroffthemachine.Nevermountof dismountamovingmachine.
Becarefulofslipperyconditionsonplatforms,stepsandhandrails whenmountingordismounting.
Neverclimbontotheattachmentunlessequippedwithproper handholdsandsteps.
21.Tools
Alwaysusepropertoolsthatareingoodconditionandbesure thatyouunderstandhowtousethembeforeperformingany servicework
MonSep611:55:01UTC+05302021
Product:WHEELLOADER
Model:926WHEELLOADER8NB
Configuration:926EWHEELLOADER8NB01542-02451(MACHINE)POWEREDBY3204ENGINE
OperationandMaintenanceManual HYDRAULICBROOMFORCATERPILLARBACK
MediaNumber-KEBU6901-00PublicationDate-20/03/1997DateUpdated-10/10/2001
Settingofgroundpressure.
SMCS-7606
Alwaysstopthebroomcompletelybeforemakinganyadjustments.Failuretodosomayresult inseriousinjury.
Thegroundpressureofthebroomcanbeadjustedtomeetdifferentrequirements.
1.Setthebroomheightandtilt.
2.Rotatethebrushforashortwhileagainsttheground.
3.Measurethewidthofthecleansweptstrip.Correctwidthis150-200mm
4.Ifthestripistoowidereducethegroundpressurebyunscrewingtheriggingscrew.(fig.7)
5.Ifthestripistoonarrow,increasethegroundpressurebytighteningtheriggingscrew.(fig.7)
NOTE:Donotusetheloaders'liftortiltfunctiontoadjustthegroundpressure.
Copyright1993-2021CaterpillarInc. AllRightsReserved. PrivateNetworkForSISLicensees.
MonSep612:01:24UTC+05302021
PreviousScreen
Product:WHEELLOADER
Model:926WHEELLOADER8NB
Configuration:926EWHEELLOADER8NB01542-02451(MACHINE)POWEREDBY3204ENGINE
MediaNumber-KEBU6901-00PublicationDate-20/03/1997DateUpdated-10/10/2001

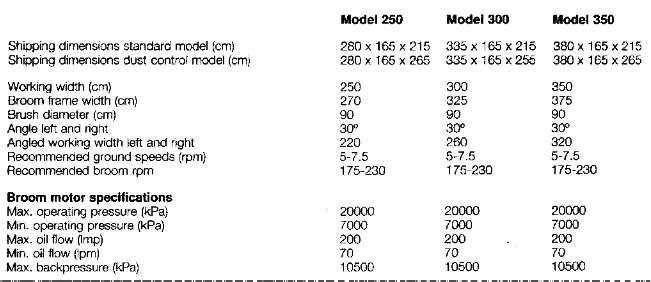

Specifications
SMCS-7606
Copyright1993-2021CaterpillarInc. AllRightsReserved. PrivateNetworkForSISLicensees.
MonSep612:03:27UTC+05302021
PreviousScreen
Product:WHEELLOADER
Model:926WHEELLOADER8NB
Configuration:926EWHEELLOADER8NB01542-02451(MACHINE)POWEREDBY3204ENGINE
OperationandMaintenanceManual HYDRAULICBROOMFORCATERPILLARBACK
MediaNumber-KEBU6901-00PublicationDate-20/03/1997DateUpdated-10/10/2001
Sweeping
SMCS-7606
Refertothesection"Settingbroomheightandtilt"Theyellowmarkersoftheheightandtilt indicators,oneithersideofthebroomframe,musteachbeinline.
Theloadercouplerisnowverticaltotheground.Thebrushoperateswithevenpressureoverits wholewidth.(Seefigures2aand2b)
NOTE:Donotusetheloadersliftortiltfunctiontoadjustthegroundpressure.
Sometimesahigherappliedweightingmayberequiredateitherendofthebroom,sweepingalitlebit hardernearacurbsideorwhenbroombristtleshavebecomeconicalshapedfromunevenwear.
Bytiltingthebroombackwardshigherpressureisobtainedonthesideofthebrushthatisangled towardsthecarriermachine.(seefigures3aand3b)
Bytiltingthebroomforward,higherpressureisobtainedonthesideofthebrushthatisangledaway fromthecarriermachine.(seefigures4aand4b)
MonSep611:57:43UTC+05302021
PreviousScreen
Product:WHEELLOADER
Model:926WHEELLOADER8NB
Configuration:926EWHEELLOADER8NB01542-02451(MACHINE)POWEREDBY3204ENGINE
OperationandMaintenanceManual
MediaNumber-KEBU6901-00PublicationDate-20/03/1997DateUpdated-10/10/2001

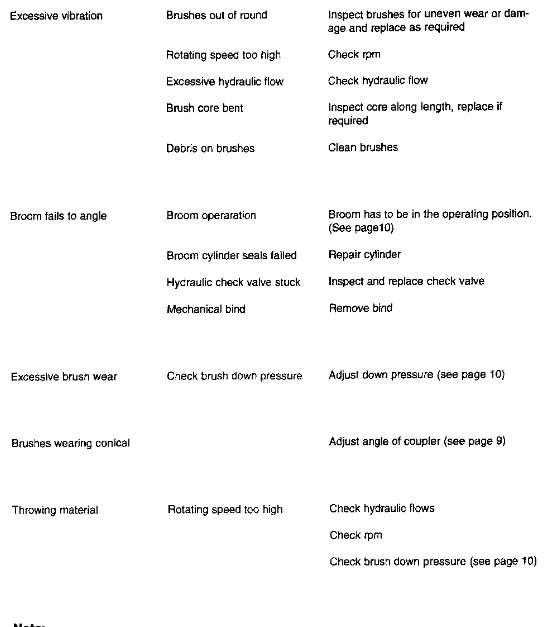

Troubleshooting
SMCS-7606
Copyright1993-2021CaterpillarInc. AllRightsReserved. PrivateNetworkForSISLicensees.
MonSep612:02:55UTC+05302021
PreviousScreen
Product:WHEELLOADER
Model:926WHEELLOADER8NB
Configuration:926EWHEELLOADER8NB01542-02451(MACHINE)POWEREDBY3204ENGINE
OperationandMaintenanceManual HYDRAULICBROOMFORCATERPILLARBACK
MediaNumber-KEBU6901-00PublicationDate-20/03/1997DateUpdated-10/10/2001
Usingthemanual
SMCS-7606
Thismanualisarrangedtogiveyouagoodunderstandingoftheattachmentanditssafeoperation.It containsoperatingandmaintenanceinformation.
Readthismanualentirelybeforeusingorservicingthisattachmentforthefirsttime.Ifyoudonot understandsomethingoryouarenotsure,askyourCaterpillardealer.Donotguess.
Readallsafetystatementscarefully.
Theunitsofmeasurementaremetric.Forexample,weightsaregiveninkilograms(kg).
Copyright1993-2021CaterpillarInc. AllRightsReserved. PrivateNetworkForSISLicensees.
MonSep611:54:44UTC+05302021
Product:WHEELLOADER
Model:926WHEELLOADER8NB
Configuration:926EWHEELLOADER8NB01542-02451(MACHINE)POWEREDBY3204ENGINE
OperationandMaintenanceManual
MediaNumber-M0085473-03PublicationDate-01/02/2018DateUpdated-14/02/2018
Foreword
SMCS-7606
LiteratureInformation
s02590205
Thismanualshouldbereadcarefullybeforeusingthisproductforthefirsttimeandbefore performingmaintenance.Thismanualshouldbestoredintheproductliteratureholderorinthe productliteraturestoragearea.Immediatelyreplacethismanualiflost,damaged,orunreadable.This manualmaycontainsafetyinformation,operationinstructions,transportationinformation,lubrication information,andmaintenanceinformation.Somephotographsorillustrationsinthispublicationshow detailsorattachmentsthatcanbedifferentfromyourproduct.Guardsandcoversmighthavebeen removedforillustrativepurposes.Continuingimprovementandadvancementofproductdesignmight havecausedchangestoyourproduct,whicharenotincludedinthispublication.Wheneveraquestion arisesregardingyourproduct,orthispublication,consultyourdealerforthelatestavailable information.
Safety
Thesafetysection,ifpresent,listsbasicsafetyprecautions.Inaddition,thissectionidentifiesthetext andlocationsofsafetymessagesusedontheproduct.Readandunderstandthebasicprecautions listedinthesafetysectionbeforeoperatingorperforminglubrication,maintenance,andrepaironthis product.
Operation
Theoperationsection,ifpresent,isareferenceforthenewoperatorandarefresherforthe experiencedoperator.Thissectionincludesadiscussionofgauges,switches,controls,attachment controls,transportation,andtowinginformation(ifapplicable).Photographsandillustrationsguide theoperatorthroughcorrectproceduresofchecking,starting,operating,andstoppingtheproduct.
This is the sample of the manual Click on the download link for complete Manual
