PreviousScreen
Product:COMPACTWHEELLOADER
Model:910MCOMPACTWHEELLOADERH22
Configuration:910MCompactWheelLoaderH2200001-UP(MACHINE)POWEREDBYC4.4Engine
OperationandMaintenanceManual
910M,914M,918M,910K,and914KCompactWheelLoaders
MediaNumber-M0064226-07PublicationDate-01/08/2015DateUpdated-19/02/2018
Foreword
SMCS-7606
CaliforniaProposition65Warning
DieselengineexhaustandsomeofitsconstituentsareknowntotheStateofCaliforniatocause cancer,birthdefects,andotherreproductiveharm.
WARNING-Thisproductcanexpose youtochemicalsincludingethylene glycol,whichisknowntotheStateof Californiatocausebirthdefectsorother reproductiveharm.Formoreinformation goto: www.P65Warnings.ca.gov
Donotingestthischemical.Washhandsafterhandlingtoavoidincidentalingestion.
WARNING-Thisproductcanexpose youtochemicalsincludingleadandlead compounds,whichareknowntotheState ofCaliforniatocausecancer,birthdefects, orotherreproductiveharm.Formore informationgoto:
www.P65Warnings.ca.gov
Washhandsafterhandlingcomponentsthatmaycontainlead.
LiteratureInformation
Thismanualshouldbestoredintheoperator'scompartmentintheliteratureholderorseatback literaturestoragearea.
Thismanualcontainssafetyinformation,operationinstructions,transportationinformation, lubricationinformation,andmaintenanceinformation.
Somephotographsorillustrationsinthispublicationshowdetailsorattachmentsthatcanbedifferent fromyourmachine.Guardsandcoversmighthavebeenremovedforillustrativepurposes.
Continuingimprovementandadvancementofproductdesignmighthavecausedchangestoyour machinewhicharenotincludedinthispublication.Read,study,andkeepthismanualwiththe machine.
Wheneveraquestionarisesregardingyourmachine,orthispublication,pleaseconsultyourCat dealerforthelatestavailableinformation.
Safety
Thesafetysectionlistsbasicsafetyprecautions.Inaddition,thissectionidentifiesthetextand locationsofwarningsignsandlabelsusedonthemachine.
Readandunderstandthebasicprecautionslistedinthesafetysectionbeforeoperatingorperforming lubrication,maintenance,andrepaironthismachine.
Operation
Theoperationsectionisareferenceforthenewoperatorandarefresherfortheexperiencedoperator. Thissectionincludesadiscussionofgauges,switches,machinecontrols,attachmentcontrols, transportation,andtowinginformation.
Photographsandillustrationsguidetheoperatorthroughcorrectproceduresofchecking,starting, operating,andstoppingthemachine.
Operatingtechniquesoutlinedinthispublicationarebasic.Skillandtechniquesdevelopasthe operatorgainsknowledgeofthemachineanditscapabilities.
Maintenance
Themaintenancesectionisaguidetoequipmentcare.TheMaintenanceIntervalSchedule(MIS)lists theitemstobemaintainedataspecificserviceinterval.Itemswithoutspecificintervalsarelisted underthe"WhenRequired"serviceinterval.TheMaintenanceIntervalScheduleliststhepage numberforthestep-by-stepinstructionsrequiredtoaccomplishthescheduledmaintenance.Usethe MaintenanceIntervalScheduleasanindexor"onesafesource"forallmaintenanceprocedures.
MaintenanceIntervals
Usetheservicehourmetertodetermineservicingintervals.Calendarintervalsshown(daily,weekly, monthly,etc.)canbeusedinsteadofservicehourmeterintervalsifthecalendarintervalsprovide moreconvenientservicingschedulesandapproximatetheindicatedservicehourmeterreading. Performtherecommendedserviceattheintervalthatoccursfirst.
Undersevere,dusty,orwetoperatingconditions,morefrequentlubricationthanisspecifiedinthe maintenanceintervalschartmightbenecessary.
Performserviceonitemsatmultiplesoftheoriginalrequirement.Forexample,atevery500service hoursor3months,alsoservicethoseitemslistedunderevery250servicehoursormonthlyandevery 10servicehoursordaily.
CertifiedEngineMaintenance
Propermaintenanceandrepairareessentialtokeeptheengineandmachinesystemsoperating correctly.Astheheavy-dutyoff-roaddieselengineowner,youareresponsiblefortheperformanceof therequiredmaintenancelistedintheOwnerManual,OperationandMaintenanceManual,and ServiceManual.
Itisprohibitedforanypersonengagedinthebusinessofrepairing,servicing,selling,leasing,or tradingenginesormachinestoremove,alter,ortorenderinoperative,anyemission-relateddeviceor elementofdesigninstalledonorinanengineormachinethatisincompliancewithallapplicable regulationsoftheintendedcountrytowhichithasbeenshipped.Certainelementsofthemachineand enginesuchastheexhaustsystem,fuelsystem,electricalsystem,intakeairsystem,andcooling systemmaybeemission-relatedandshouldnotbealteredunlessapprovedbyCaterpillar.
MachineCapacity
Additionalattachmentsormodificationsmayexceedmachinedesigncapacitywhichcanadversely affectperformancecharacteristics.Includedwouldbestabilityandsystemcertificationssuchas brakes,steering,androlloverprotectivestructures(ROPS).ContactyourCatdealerforfurther information.
ProductIdentificationNumber
EffectiveFirstQuarter2001theProductIdentificationNumber(PIN)haschangedfrom8to17 characters.Toprovideuniformequipmentidentification,constructionequipmentmanufacturersare movingtocomplywiththelatestversionoftheproductidentificationnumberingstandard.Non-road machinePINsaredefinedbyISO10261.ThenewPINformatwillapplytoallmachinesand generatorsets.ThePINplatesandframemarkingwilldisplaythe17characterPIN.Thenewformat willlooklikethefollowing:
Illustration1g03891925
Where:
1.WorldManufacturingCode(characters1-3)
2.MachineDescriptor(characters4-8)
3.CheckCharacter(character9)
4.MachineIndicatorSection(MIS)orProductSequenceNumber(characters10-17).Thesewere previouslyreferredtoastheSerialNumber.
MachinesandgeneratorsetsproducedbeforeFirstQuarter2001willmaintaintheir8characterPIN format.
Componentssuchasengines,transmissions,axles,andworktoolswillcontinuetousean8character SerialNumber(S/N).
Copyright1993-2021CaterpillarInc. AllRightsReserved. PrivateNetworkForSISLicensees.
FriApr1610:04:26UTC+05302021
PreviousScreen
Product:COMPACTWHEELLOADER
Model:910MCOMPACTWHEELLOADERH22
Configuration:910MCompactWheelLoaderH2200001-UP(MACHINE)POWEREDBYC4.4Engine
OperationandMaintenanceManual
910M,914M,918M,910K,and914KCompactWheelLoaders
MediaNumber-M0064226-07PublicationDate-01/08/2015DateUpdated-19/02/2018
i06790059
AccessDoorsandCovers
SMCS-7273-573;7273-572

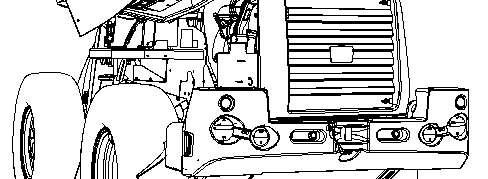

EngineHood
Pullupontheleftorrightsidehandle.Raisetheleftsideortherightsideenginehooduntilthehood supportcylinderlocksinposition.

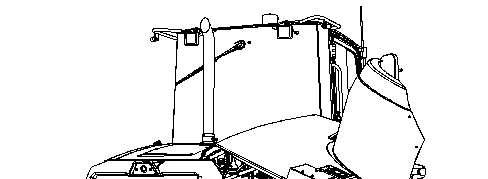

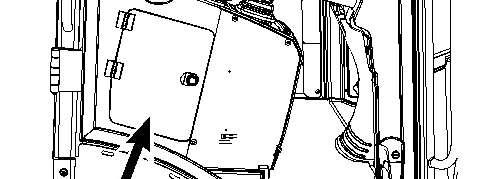

Illustration1g06115848
LeftsideEngineaccess

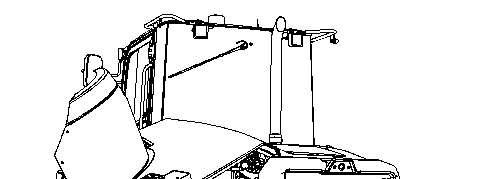

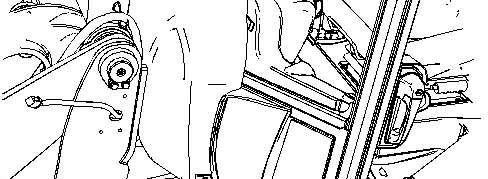

Illustration2g06115870
RightsideEngineaccess
Squeezethelockonthecylinderinordertolowerthehood.Lowerthehooduntilthehoodlatches. BottomAccessCover

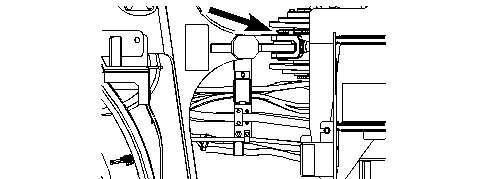

Illustration3g06115875
Loosenandremovefourboltstoremovecoverunderneathmachine.
FuseAccessDoor

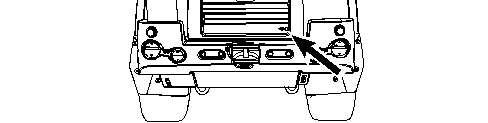

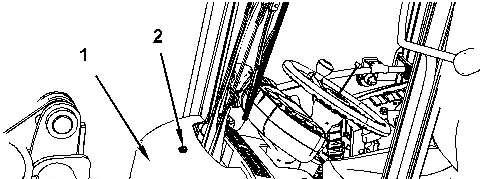

Illustration5g01358974
(1)AccessDoor (2)KeySlot
Usetheignitionkeytoopenthefrontaccessdoor.Openthedoorawayfromthewindow.
RearAccess
Copyright1993-2021CaterpillarInc. AllRightsReserved. PrivateNetworkForSISLicensees.
FriApr1610:17:51UTC+05302021
PreviousScreen
Product:COMPACTWHEELLOADER
Model:910MCOMPACTWHEELLOADERH22
Configuration:910MCompactWheelLoaderH2200001-UP(MACHINE)POWEREDBYC4.4Engine
OperationandMaintenanceManual
910M,914M,918M,910K,and914KCompactWheelLoaders
MediaNumber-M0064226-07PublicationDate-01/08/2015DateUpdated-19/02/2018

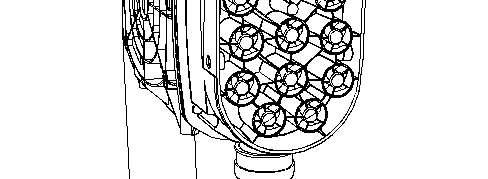

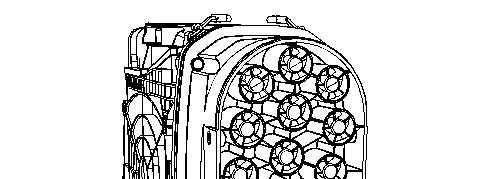

AirCleanerDustValve-Clean/Inspect
SMCS-1051-571-VL
Servicetheairfilterelementswhenthealertindicatorforairfilterrestrictionlights.Referto OperationandMaintenanceManual,"AlertIndicators" forinformationabouttheindicator.
1.Opentheengineaccessdoor.
2.Theairfilterhousingislocatedontherightsideoftheenginecompartment.
i06535052
3.Checkthedustvalveafterevery10servicehoursorattheendofeachday.Actuatethevalve bysqueezingthelipsofthevalvetoremoveanyaccumulateddebris.
Copyright1993-2021CaterpillarInc. AllRightsReserved. PrivateNetworkForSISLicensees.
FriApr1610:21:10UTC+05302021
This is the sample of the manual Click on the download link for complete Manual
PreviousScreen
Product:COMPACTWHEELLOADER
Model:910MCOMPACTWHEELLOADERH22
Configuration:910MCompactWheelLoaderH2200001-UP(MACHINE)POWEREDBYC4.4Engine
OperationandMaintenanceManual
910M,914M,918M,910K,and914KCompactWheelLoaders
MediaNumber-M0064226-07PublicationDate-01/08/2015DateUpdated-19/02/2018

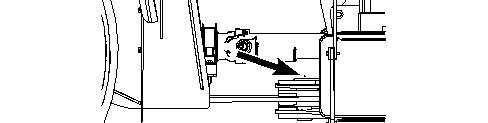

ArticulationBearings-Lubricate
SMCS-7057-086-BD;7065-086-BD;7066-086-BD
1.Wipeoffthegreasefittingsbeforeyouapplylubricant.
2.Applylubricanttothegreasefittingsforthepivotbearings.
Copyright1993-2021CaterpillarInc. AllRightsReserved. PrivateNetworkForSISLicensees. FriApr1610:21:29UTC+05302021
PreviousScreen
Product:COMPACTWHEELLOADER
Model:910MCOMPACTWHEELLOADERH22
Configuration:910MCompactWheelLoaderH2200001-UP(MACHINE)POWEREDBYC4.4Engine
OperationandMaintenanceManual
910M,914M,918M,910K,and914KCompactWheelLoaders
MediaNumber-M0064226-07PublicationDate-01/08/2015DateUpdated-19/02/2018 i05662728
AxleBreathers-Clean/Replace
SMCS-3278-070-BRE;3278-510-BRE

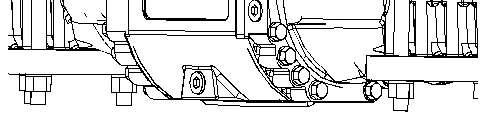

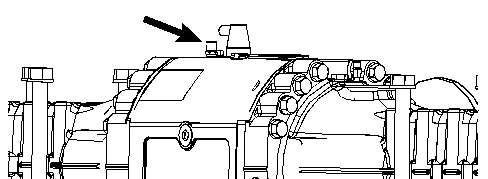

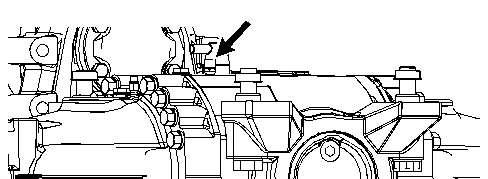

Illustration1g03589993
Thefrontaxlebreatherislocatedonthetopleftofthedifferentialhousing.
Illustration2g03590032
Therearaxlebreatherislocatedonthetopleftofthedifferentialhousing
1.Cleantheareaaroundthebreathers.Removethebreatherfromthefrontandrearaxle.
2.Washthebreatherincleannonflammablesolvent.Wipethebreatherdryandcheckthebreather fordamage.
3.Installthecleanbreatherbackintotheaxle.Replacethebreatherifthebreatherisdamaged.
Copyright1993-2021CaterpillarInc. AllRightsReserved. PrivateNetworkForSISLicensees.
FriApr1610:21:46UTC+05302021
PreviousScreen
Product:COMPACTWHEELLOADER
Model:910MCOMPACTWHEELLOADERH22
Configuration:910MCompactWheelLoaderH2200001-UP(MACHINE)POWEREDBYC4.4Engine
OperationandMaintenanceManual 910M,914M,918M,910K,and914KCompactWheelLoaders
MediaNumber-M0064226-07PublicationDate-01/08/2015DateUpdated-19/02/2018

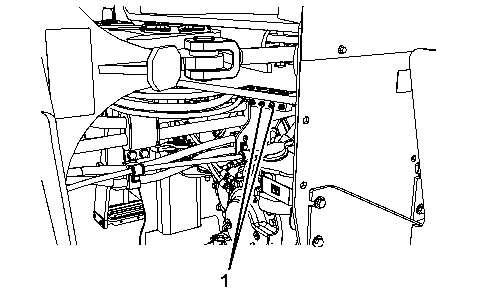

AxleOscillationBearings-Lubricate
SMCS-3268-086-BD;3278-086-BD
i06668449
Wipethetworemotegreasefittingsbeforeyouapplylubricanttotheremotegreasefittings. Thetworemotegreasefittings(1)fortheaxleoscillationbearingsarelocatedinthecenterofthe machineontheleftside. Illustration1g06065990
Applylubricanttothetworemotegreasefittingsfortheaxleoscillationbearings.
FriApr1610:22:02UTC+05302021
PreviousScreen
Product:COMPACTWHEELLOADER
Model:910MCOMPACTWHEELLOADERH22
Configuration:910MCompactWheelLoaderH2200001-UP(MACHINE)POWEREDBYC4.4Engine
OperationandMaintenanceManual
910M,914M,918M,910K,and914KCompactWheelLoaders
MediaNumber-M0064226-07PublicationDate-01/08/2015DateUpdated-19/02/2018
BackupAlarm-Test
SMCS-7406-081
1.TurntheenginestartswitchtoON.
2.Applytheservicebrakes.
3.MovethedirectionalcontroltoREVERSE.
Thebackupalarmshouldsoundimmediately.Thebackupalarmshouldcontinuetosounduntilthe directionalcontrolismovedtotheNEUTRALpositionortotheFORWARDposition.
Copyright1993-2021CaterpillarInc. AllRightsReserved. PrivateNetworkForSISLicensees. FriApr1610:22:19UTC+05302021
PreviousScreen
Product:COMPACTWHEELLOADER
Model:910MCOMPACTWHEELLOADERH22
Configuration:910MCompactWheelLoaderH2200001-UP(MACHINE)POWEREDBYC4.4Engine OperationandMaintenanceManual 910M,914M,918M,910K,and914KCompactWheelLoaders
MediaNumber-M0064226-07PublicationDate-01/08/2015DateUpdated-19/02/2018 i06543992
1.Removethebatteryaccesscover.
2.Cleanthebatterysurfacewithacleancloth.Keeptheterminalscleanandkeeptheterminals coatedwithpetroleumjelly.Installthepostcoverafteryoucoatthepostwithpetroleumjelly. Makesurethatthebatterycablesareinstalledsecurely.
3.Installtheaccesscover.
Copyright1993-2021CaterpillarInc. AllRightsReserved. PrivateNetworkForSISLicensees.
FriApr1610:22:41UTC+05302021
PreviousScreen
Product:COMPACTWHEELLOADER
Model:910MCOMPACTWHEELLOADERH22
Configuration:910MCompactWheelLoaderH2200001-UP(MACHINE)POWEREDBYC4.4Engine
OperationandMaintenanceManual
910M,914M,918M,910K,and914KCompactWheelLoaders
MediaNumber-M0064226-07PublicationDate-01/08/2015DateUpdated-19/02/2018
Battery-Recycle
SMCS-1401-561
Alwaysrecycleabattery.Neverdiscardabattery.
Alwaysreturnusedbatteriestooneofthefollowinglocations:
•Abatterysupplier
•Anauthorizedbatterycollectionfacility
•Recyclingfacility
Copyright1993-2021CaterpillarInc. AllRightsReserved. PrivateNetworkForSISLicensees.
FriApr1610:22:58UTC+05302021
Product:COMPACTWHEELLOADER
Model:910MCOMPACTWHEELLOADERH22
Configuration:910MCompactWheelLoaderH2200001-UP(MACHINE)POWEREDBYC4.4Engine
OperationandMaintenanceManual
910M,914M,918M,910K,and914KCompactWheelLoaders
MediaNumber-M0064226-07PublicationDate-01/08/2015DateUpdated-19/02/2018 i01586700
BatteryHold-Down-Tighten
SMCS-7257-527
Tightenthehold-downsforthebatteryinordertopreventthebatteriesfrommovingduringmachine operation.
Copyright1993-2021CaterpillarInc. AllRightsReserved. PrivateNetworkForSISLicensees.
FriApr1610:23:14UTC+05302021
PreviousScreen
Product:COMPACTWHEELLOADER
Model:910MCOMPACTWHEELLOADERH22
Configuration:910MCompactWheelLoaderH2200001-UP(MACHINE)POWEREDBYC4.4Engine
OperationandMaintenanceManual 910M,914M,918M,910K,and914KCompactWheelLoaders
MediaNumber-M0064226-07PublicationDate-01/08/2015DateUpdated-19/02/2018 i06544653
BatteryorBatteryCable-Inspect/Replace
SMCS-1401-040;1401-510;1402-040;1402-510
1.TurntheenginestartswitchtotheOFFposition.TurnallswitchestotheOFFposition.
2.Thebatteryislocatedneartherearofthemachineonrightsideofthemachine.Removebattery accesscover.
3.Disconnectthenegativebatterycableatthebattery.
Note:Donotallowthedisconnectedbatterycabletocontactthenegativebatterypost.
4.Disconnectthenegativebatterycablefromtheframeinordertoinspectthecable.
5.Disconnectthepositivebatterycableatthebattery.
6.Performthenecessaryrepairs.Replacethecablesorthebattery,asneeded.
7.Connectthepositivebatterycableatthebattery.
8.Connectthenegativebatterycabletotheframeofthemachine.
9.Connectthenegativebatterycableatthebattery.
10.Installthebatteryaccesscover.
RecycletheBattery
Alwaysrecycleabattery.Neverdiscardabattery.
Alwaysreturnusedbatteriestooneofthefollowinglocations:
•Abatterysupplier
•Anauthorizedbatterycollectionfacility
•Recyclingfacility
Copyright1993-2021CaterpillarInc. AllRightsReserved. PrivateNetworkForSISLicensees.
FriApr1610:23:32UTC+05302021
Product:COMPACTWHEELLOADER
Model:910MCOMPACTWHEELLOADERH22
Configuration:910MCompactWheelLoaderH2200001-UP(MACHINE)POWEREDBYC4.4Engine
OperationandMaintenanceManual
910M,914M,918M,910K,and914KCompactWheelLoaders
MediaNumber-M0064226-07PublicationDate-01/08/2015DateUpdated-19/02/2018 i07109903
Belts-Inspect/Adjust/Replace
SMCS-1357-025;1357-040;1357-510
Belts
1.Stoptheengineinordertoinspectthebelt.
2.Opentheengineaccessdoor.RefertoOperationandMaintenanceManual,"AccessDoorsand Covers".

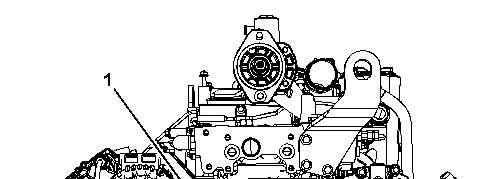

Illustration1g06229664
Notequippedwithairconditioning (1)Serpentinebelt (2)Belttensioner

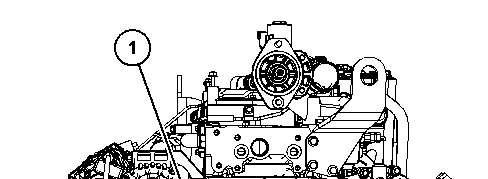

Illustration2g06229669
Equippedwithairconditioning
(1)Serpentinebelt
(2)Belttensioner
(3)Airconditioningcompressor
3.Inspecttheconditionoftheserpentinebelt(1).Ensurethebeltisingoodconditionandthe tensionisheldtightbybelttensioner(2).Ifreplacementisnecessaryreferto"Belt Replacement".
BeltReplacement
1.Inserta1/2in.breakerbarorratchetintothesquaredriveholeonbelttensioner(2).Usethebar orratchettorotatethetensionerclockwisetoreleasetension.Onceenoughtensionisletoffof thebelt,removethebeltfromoneofthepulleysandreleasethetensionser.Removethebelt fromtheengine.
2.Cleanallofthebeltpulleys.Ensurethatthepulleysarefreefromdirtandbuildupfromtheold belt.
3.Checktherotationofeachpulley.Ensuretherotationissmoothwithnoloosenessorgrinding noises.Ifdamageisevidentorapulleybearingissuspect,contactyourCatdealerforrepair.
4.InstallthebeltoverthepulleysandtensionerasshowninIllustrations1or2.Leavethebeltoff ofthealternatorpulley.Ensurethebeltisproperlycenteredoneachpulley.
5.Insertthe1/2in.breakerbarontothebelttensioner.Usethebarorratchettorotatethe tensionerclockwise.Onceenoughslackisavailable,slipthebeltontothealternatorpulleyand releasethetensioner.Ensurethebeltisproperlycenteredonthepulley.
6.Closetheengineaccessdoor.
Copyright1993-2021CaterpillarInc. AllRightsReserved. PrivateNetworkForSISLicensees.
FriApr1610:23:47UTC+05302021
