908H Caterpillar Compact Wheel Loader Service Manual

Page 1


Product: COMPACT WHEEL LOADER

Model: 908H COMPACT WHEEL LOADER LMD

Configuration: 908H Wheel Loader LMD00001-UP (MACHINE) POWERED BY C3.4 IND Engine

Disassembly and Assembly

906H, 907H and 908H

Compact Wheel Loaders Engine Supplement

Media Number -KENR5207-01

Air Cleaner - Remove and Install

SMCS - 1051-010

Removal Procedure

Date -01/09/2008

Hot engine components can cause injury from burns. Before performing maintenance on the engine, allowthe engine and the components to cool.

Updated -23/09/2008

OFF position.

i02839765
1. Open the hood.
2. Turn the disconnect switch to the
Illustration 1
g01416419

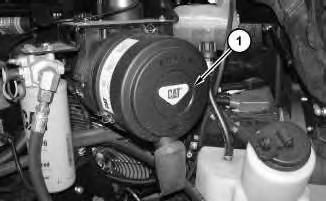

3. Remove cover (1) .
Illustration 2
g01416421

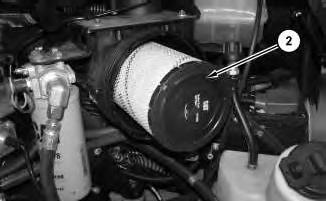

4. Remove primary air filter element (2) .

Illustration 3

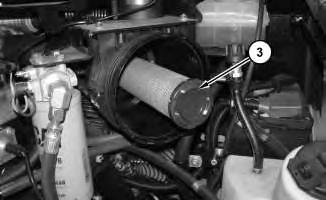

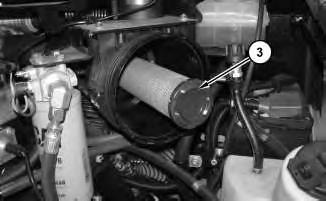

5. Remove secondary air filter element (3) .

4

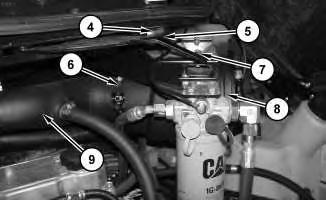

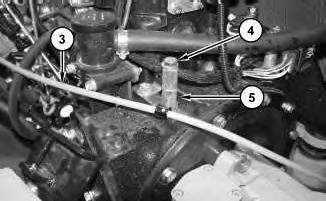

6. Loosen clamp (4) from tube (5) .

7. Loosen clamp (6) and remove tube (9) from housing (8) .

8. Remove bolts (7) and remove housing (8) .

Installation Procedure

Illustration 5

1. Install housing (8) and bolts (7) .

2. Install tube (9) to housing (8) and tighten clamp (6) .

g01416422
Illustration
g01416423
g01416423

3. Tighten clamp (4) to tube (5) .

6

4. Install secondary air filter element (3) .

5. Install primary air filter element (2) .

Illustration
g01416422
Illustration 7
g01416421

8

6. Install cover (1) .

7. Turn the disconnect switch to the ONposition.

8. Close the hood.

Copyright 1993 - 2021 Caterpillar Inc. All Rights Reserved.

Private Network For SIS Licensees. Thu Jan 7 20:59:09 UTC+0530 2021

This is the sample of the manual click on the download link for complete manual

DOWNLOAD LINK

Product: COMPACT WHEEL LOADER

Model: 908H COMPACT WHEEL LOADER LMD

Configuration: 908H Wheel Loader LMD00001-UP (MACHINE) POWERED BY C3.4 IND Engine

Disassembly and Assembly

906H, 907H and 908H

Compact Wheel Loaders Engine Supplement

Media Number -KENR5207-01 Publication Date -01/09/2008

Updated -23/09/2008

Alternator - Remove and Install

SMCS - 1405-010

Removal Procedure

Hot engine components can cause injury from burns. Before performing maintenance on the engine, allowthe engine and the components to cool.

2. Turn the disconnect switch to the OFF position.

i02839759
1. Open the hood.

1

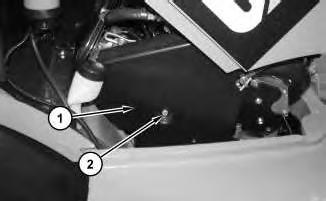

3. Remove bolts (2) and guard (1) .

2

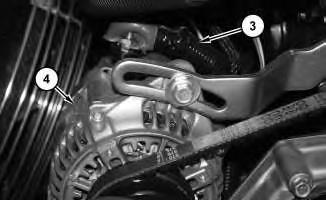

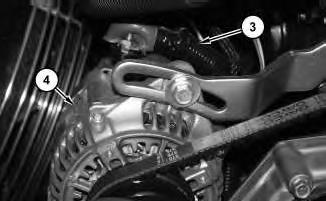

4. Remove the nut and disconnect harness assembly (3) from alternator (4) .

Illustration
g01417317
Illustration
g01417318

Illustration 3 g01417325

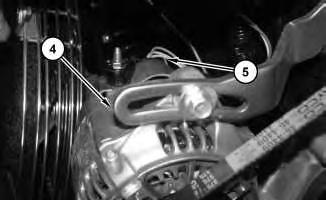

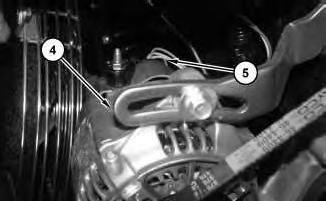

5. Disconnect harnessassembly (5) from alternator (4) .

4

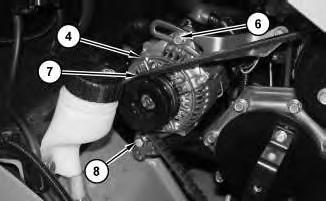

6. Loosen bolt (6) and bolt (8) and remove V-belt (7) .

7. Remove bolt (6), bolt (8), and alternator (4) .

Installation Procedure

Illustration 5 g01417326

1. Install alternator (4). Install bolt (8) and bolt (6) loosely.

2. Install V-belt (7). Adjust the V-belt to the proper tension and tighten bolt (6) and bolt (8). Refer to Operation and Maintenance Manual for the correct procedure.

Illustration
g01417326

6

3. Connect harness assembly (5) to alternator (4) .

7

4. Connect harness assembly (3) to alternator (4) and install the nut.

Illustration
g01417325
Illustration
g01417318

8

5. Install guard (1) and bolts(2) .

6. Turn the disconnect switch to the ONposition.

7. Close the hood.

Copyright 1993 - 2021 Caterpillar Inc. All Rights Reserved.

Private Network For SIS Licensees. Thu Jan 7 20:57:12 UTC+0530 2021

Product: COMPACT WHEEL LOADER

Model: 908H COMPACT WHEEL LOADER LMD

Configuration: 908H Wheel Loader LMD00001-UP (MACHINE) POWERED BY C3.4 IND Engine

Disassembly and Assembly

906H, 907H and 908H

Compact Wheel Loaders Engine Supplement

Battery - Remove and Install

SMCS - 1401-010

Removal Procedure

1. Open the hood.

2. Turn the battery disconnect switch to the OFFposition.

Illustration 1

g01419045

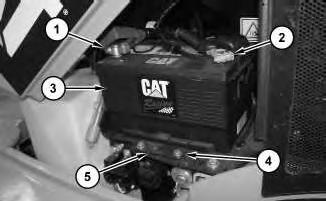

3. Disconnect negative battery cable (2) and positive battery cable (1) .

4. Remove bolts (4) and bracket (5).

5. Remove battery (3) .

i02845771

Installation Procedure

Illustration 2

1. Install battery (3) .

2. Install bracket (5) and bolts(4) .

3. Connect positive battery cable (1) and negative battery cable (2) .

4. Turn the battery disconnect switch to the ON position.

5. Close the hood.

Product: COMPACT WHEEL LOADER

Model: 908H COMPACT WHEEL LOADER LMD

Configuration: 908H Wheel Loader LMD00001-UP (MACHINE) POWERED BY C3.4 IND Engine

Disassembly and Assembly

906H, 907H and 908H

Compact Wheel Loaders Engine Supplement

Electric Starting Motor - Remove and Install

SMCS - 1453-010

Removal Procedure

Start By:

A. Remove the alternator. Refer to Alternator, "Alternator - Remove and Install".

Illustration 1

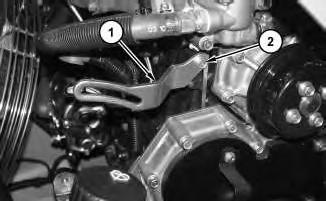

1. Remove bolt (2) and bracket (1) .

i02841190

2

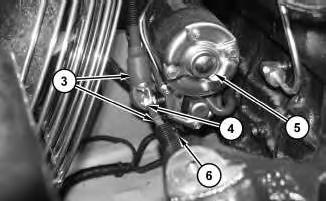

2. Remove nut (4) and disconnect cable assemblies (3) from electric starting motor (5) .

3. Loosen the screwand disconnect harness assembly (6) from electric starting motor (5) .

3

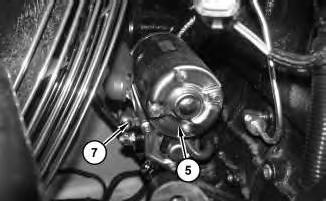

4. Remove nuts(7) and remove electric starting motor (5) .

Installation Procedure

Illustration
g01417966
Illustration
g01417967

4

1. Install electric starting motor (5) and nuts (7) .

5

2. Connect harness assembly (6) to electric starting motor (5) and tighten the screw.

3. Connect cable assemblies (3) to electric starting motor (5) and install nut (4) .

Illustration
g01417967
Illustration
g01417966

4. Install bracket (1) and bolt (2) .

End By: Install the alternator. Refer to Alternator, "Alternator - Remove and Install".

Copyright 1993 - 2021 Caterpillar Inc. All Rights Reserved. Private Network For SIS Licensees.

Product: COMPACT WHEEL LOADER

Model: 908H COMPACT WHEEL LOADER LMD

Configuration: 908H Wheel Loader LMD00001-UP (MACHINE) POWERED BY C3.4 IND Engine

Disassembly and Assembly

906H, 907H and 908H

Compact Wheel Loaders Engine Supplement

Media Number -KENR5207-01 Publication Date -01/09/2008 Date Updated -23/09/2008

Engine - Install

SMCS - 1000-012

Installation Procedure

Table 1 RequiredTools

138-7573 Link Bracket 1

Illustration 1

i02843473

2

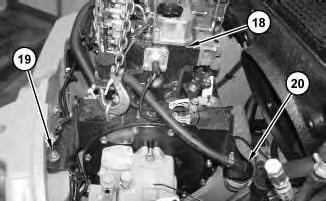

1. Attach Tooling (A) and a suitable lifting device to engine (18). The weight of engine (18) is approximately 635 kg (1400 lb).

2. Install engine (18) .

3. Install bolts (20) and (19) .

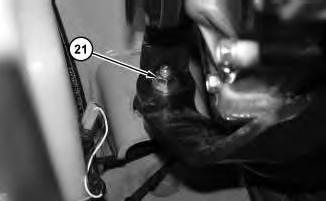

4. Install the bolt, the washers, and nut (21). Remove Tooling (A) from engine (18) .

Illustration 3

5. Place cable harness (13) and harness assembly (17) into position. Install cable strap (16) .

Illustration
g01418057
g01417995

4

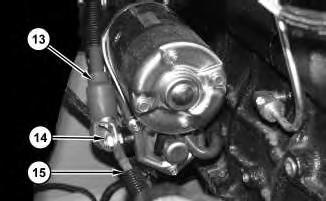

6. Install cable harness (13), cable harness (15), and nut (14) .

5

7. Place the fuel lines and the hose into position. Install bolt (12) .

Illustration
g01417994
Illustration
g01417992

Illustration 6

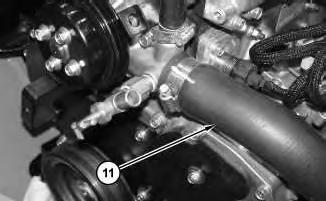

8. Install hose (11) and tighten the clamp.

Illustration 7

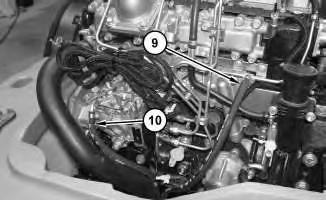

9. Install hoses (9) and (10). Tighten the clamps.

Illustration 8

10. Connect harness assemblies(7), (6), and (8) .

g01417991
g01417990
g01417989

9

11. Place throttle cable (3) into position. Install spacers (5) and bolt (4) .

10

12. Install throttle cable (3) from the engine and tighten nut (2) .

Illustration
g01417988
Illustration
g01417986

13. Install the ground strap and bolt (1) .

End By:

a. Install the gear motor (hydraulic fan). Refer to Disassembly and Assembly, "Gear Motor (Hydraulic Fan) - Install".

b. Install the gear pump. Refer to Disassembly and Assembly, "Gear Pump - Remove and Install".

Product: COMPACT WHEEL LOADER

Model: 908H COMPACT WHEEL LOADER LMD

Configuration: 908H Wheel Loader LMD00001-UP (MACHINE) POWERED BY C3.4 IND Engine

Disassembly and Assembly

906H, 907H and 908H

Compact Wheel Loaders Engine Supplement

Media Number -KENR5207-01 Publication Date -01/09/2008 Date Updated -23/09/2008

Engine - Remove

SMCS - 1000-011

Removal Procedure

Table 1 RequiredTools

Tool Part Number Part Description Qty

A 138-7573 Link Bracket 1

Start By:

A. Remove the gear pump. Refer to Disassembly and Assembly, "Gear Pump - Remove and Install".

B. Remove the gear motor (hydraulic fan). Refer to Disassembly and Assembly, "Gear Motor (Hydraulic Fan) - Remove".

i02843472

1

2

Illustration
g01417978

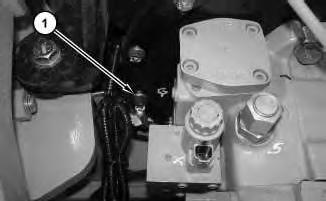

1. Remove bolt (1) and the ground strap.
Illustration
g01417986
2. Loosen nut (2) and remove throttle cable (3) from the engine.

Illustration 3 g01417988

3. Remove bolt (4) and spacers (5). Lay throttle cable (3) out of the way.

4

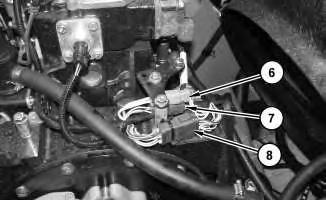

4. Disconnect harnessassemblies(6), (7), and (8) .

Illustration 5

5. Loosen the clamps. Remove hoses (9) and (10) .

Illustration
g01417989
g01417990

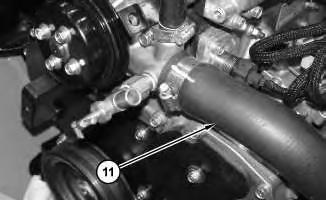

6. Loosen the clamp and remove hose (11) .

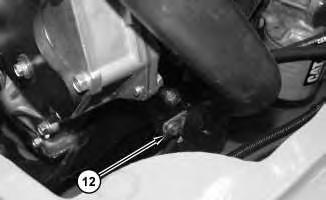

7. Remove bolt (12). Lay the fuel lines and the hose out of the way.

Illustration 6
g01417991
Illustration 7
g01417992

Illustration 8

g01417994

8. Remove nut (14), cable harness (15), and cable harness (13) .

Illustration 9

g01417995

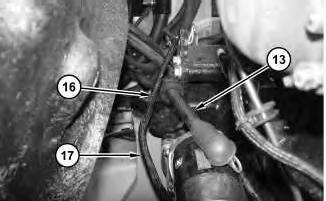

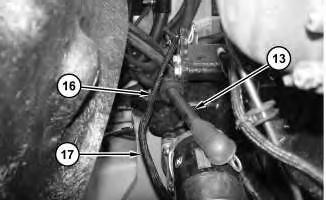

9. Remove cable strap (16). Lay cable harness (13) and harnessassembly (17) out of the way.

Illustration 10

g01418059
