907H Caterpillar Compact Wheel Loader Service Manual

Page 1


Product: COMPACT WHEEL LOADER

Model: 907H COMPACT WHEEL LOADER MJF

Configuration: 907H Wheel Loader MJF00001-UP (MACHINE) POWERED BY 3044C Engine

Disassembly and Assembly

906H, 907H and 908H

Compact Wheel Loaders Engine Supplement

Media Number -KENR5207-01

Air Cleaner - Remove and Install

SMCS - 1051-010

Removal Procedure

Hot engine components can cause injury from burns. Before performing maintenance on the engine, allow the engine and the components to cool.

1. Open the hood.

2. Turn the disconnect switch to the OFF position.

i02839765
Illustration 1
g01416419

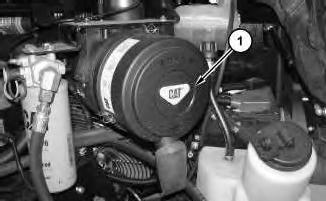

3. Remove cover (1) .
Illustration 2
g01416421

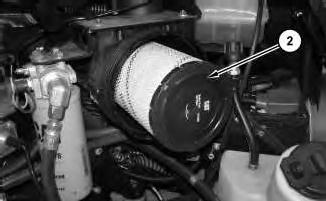

4. Remove primary air filter element (2) .

Illustration 3

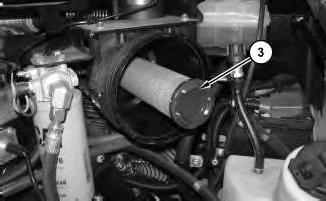

5. Remove secondary air filter element (3) .

4

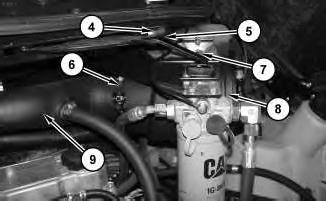

6. Loosen clamp (4) from tube (5) .

7. Loosen clamp (6) and remove tube (9) from housing (8) .

8. Remove bolts (7) and remove housing (8) .

Installation Procedure

Illustration 5

1. Install housing (8) and bolts (7) .

2. Install tube (9) to housing (8) and tighten clamp (6) .

Illustration
g01416423
g01416423

3. Tighten clamp (4) to tube (5) .

4. Install secondary air filter element (3) .

5. Install primary air filter element (2) .

Illustration 6
g01416422
Illustration 7
g01416421

8

6. Install cover (1) .

7. Turn the disconnect switch to the ON position.

8. Close the hood.

Copyright 1993 - 2020 Caterpillar Inc.

All Rights Reserved.

Private Network For SIS Licensees.

Thu Oct 1 11:12:41 UTC+0530 2020

Product: COMPACT WHEEL LOADER

Model: 907H COMPACT WHEEL LOADER MJF

Configuration: 907H Wheel Loader MJF00001-UP (MACHINE) POWERED BY 3044C Engine

Disassembly and Assembly

906H, 907H and 908H

Compact Wheel Loaders Engine Supplement

Media Number -KENR5207-01

Alternator - Remove and Install

SMCS - 1405-010

Removal Procedure

Hot engine components can cause injury from burns. Before performing maintenance on the engine, allow the engine and the components to cool.

1. Open the hood.

2. Turn the disconnect switch to the OFF position.

i02839759

1

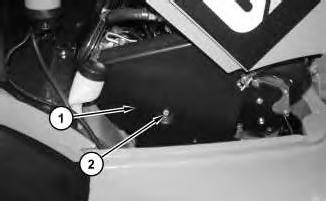

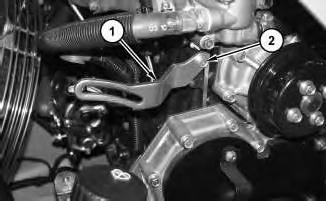

3. Remove bolts (2) and guard (1) .

2

4. Remove the nut and disconnect harness assembly (3) from alternator (4) .

Illustration
g01417317
Illustration
g01417318

Illustration 3 g01417325

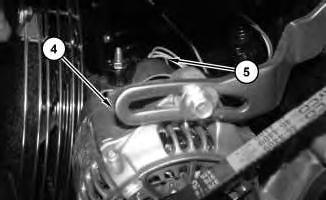

5. Disconnect harness assembly (5) from alternator (4) .

4

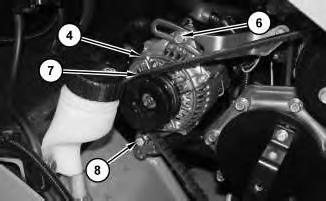

6. Loosen bolt (6) and bolt (8) and remove V-belt (7) .

7. Remove bolt (6), bolt (8), and alternator (4) .

Installation Procedure

Illustration 5 g01417326

1. Install alternator (4). Install bolt (8) and bolt (6) loosely.

2. Install V-belt (7). Adjust the V-belt to the proper tension and tighten bolt (6) and bolt (8). Refer to Operation and Maintenance Manual for the correct procedure.

Illustration
g01417326

6

3. Connect harness assembly (5) to alternator (4) .

7

4. Connect harness assembly (3) to alternator (4) and install the nut.

Illustration
g01417325
Illustration
g01417318

8 g01417317

5. Install guard (1) and bolts (2) .

6. Turn the disconnect switch to the ON position.

7. Close the hood.

Copyright 1993 - 2020 Caterpillar Inc.

All Rights Reserved.

Private Network For SIS Licensees. Thu Oct 1 11:10:11 UTC+0530 2020

Product: COMPACT WHEEL LOADER

Model: 907H COMPACT WHEEL LOADER MJF

Configuration: 907H Wheel Loader MJF00001-UP (MACHINE) POWERED BY 3044C Engine

Disassembly and Assembly

906H, 907H and 908H

Compact Wheel Loaders Engine Supplement

Battery - Remove and Install

SMCS - 1401-010

Removal Procedure

1. Open the hood.

2. Turn the battery disconnect switch to the OFF position.

Illustration 1

g01419045

3. Disconnect negative battery cable (2) and positive battery cable (1) .

4. Remove bolts (4) and bracket (5).

5. Remove battery (3) .

i02845771

Installation Procedure

Illustration 2

1. Install battery (3) .

2. Install bracket (5) and bolts (4) .

3. Connect positive battery cable (1) and negative battery cable (2) .

4. Turn the battery disconnect switch to the ON position.

5. Close the hood.

Product: COMPACT WHEEL LOADER

Model: 907H COMPACT WHEEL LOADER MJF

Configuration: 907H Wheel Loader MJF00001-UP (MACHINE) POWERED BY 3044C Engine

Disassembly and Assembly

906H, 907H and 908H

Compact Wheel Loaders Engine Supplement

Electric Starting Motor - Remove and Install

SMCS - 1453-010

Removal Procedure

Start By:

A. Remove the alternator. Refer to Alternator, "Alternator - Remove and Install".

Illustration 1

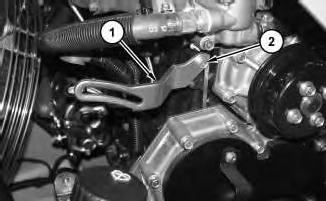

1. Remove bolt (2) and bracket (1) .

g01417965

i02841190

2

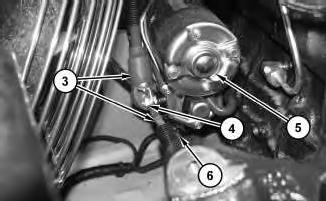

2. Remove nut (4) and disconnect cable assemblies (3) from electric starting motor (5) .

3. Loosen the screw and disconnect harness assembly (6) from electric starting motor (5) .

3

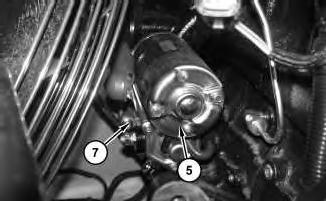

4. Remove nuts (7) and remove electric starting motor (5) .

Installation Procedure

Illustration
g01417966
Illustration
g01417967

4

1. Install electric starting motor (5) and nuts (7) .

5

2. Connect harness assembly (6) to electric starting motor (5) and tighten the screw.

3. Connect cable assemblies (3) to electric starting motor (5) and install nut (4) .

Illustration
g01417967
Illustration
g01417966

4. Install bracket (1) and bolt (2) .

End By: Install the alternator. Refer to Alternator, "Alternator - Remove and Install".

Copyright 1993 - 2020 Caterpillar Inc. All Rights Reserved. Private Network For SIS Licensees. Thu Oct 1 11:10:25 UTC+0530 2020

Product: COMPACT WHEEL LOADER

Model: 907H COMPACT WHEEL LOADER MJF

Configuration: 907H Wheel Loader MJF00001-UP (MACHINE) POWERED BY 3044C Engine

Disassembly and Assembly

906H, 907H and 908H

Compact Wheel Loaders Engine Supplement

Media Number -KENR5207-01

i02843473

Engine - Install

SMCS - 1000-012

Installation Procedure

Table 1 Required Tools Tool Part Number Part Description Qty A 138-7573 Link Bracket 1

Illustration 1

2

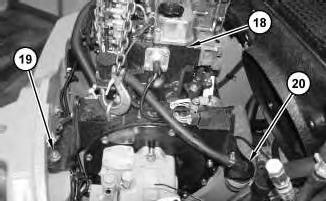

1. Attach Tooling (A) and a suitable lifting device to engine (18). The weight of engine (18) is approximately 635 kg (1400 lb).

2. Install engine (18) .

3. Install bolts (20) and (19) .

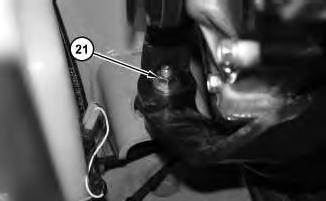

4. Install the bolt, the washers, and nut (21). Remove Tooling (A) from engine (18) .

3

5. Place cable harness (13) and harness assembly (17) into position. Install cable strap (16) .

Illustration
g01418057
Illustration
g01417995

4

6. Install cable harness (13), cable harness (15), and nut (14) .

5

7. Place the fuel lines and the hose into position. Install bolt (12) .

Illustration
g01417994
Illustration
g01417992

Illustration 6

8. Install hose (11) and tighten the clamp.

Illustration 7

9. Install hoses (9) and (10). Tighten the clamps.

Illustration 8

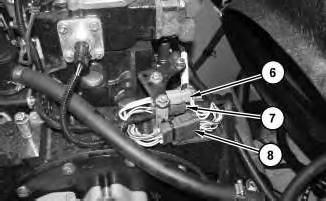

10. Connect harness assemblies (7), (6), and (8) .

g01417991
g01417990
g01417989

9

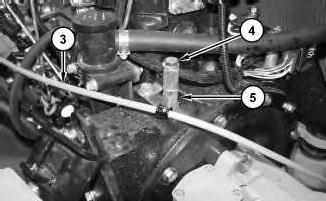

11. Place throttle cable (3) into position. Install spacers (5) and bolt (4) .

10

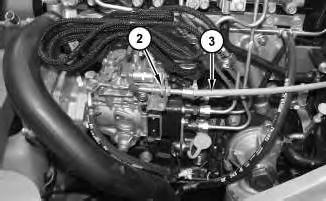

12. Install throttle cable (3) from the engine and tighten nut (2) .

Illustration
g01417988
Illustration
g01417986

13. Install the ground strap and bolt (1) .

End By:

a. Install the gear motor (hydraulic fan). Refer to Disassembly and Assembly, "Gear Motor (Hydraulic Fan) - Install".

b. Install the gear pump. Refer to Disassembly and Assembly, "Gear Pump - Remove and Install".

Product: COMPACT WHEEL LOADER

Model: 907H COMPACT WHEEL LOADER MJF

Configuration: 907H Wheel Loader MJF00001-UP (MACHINE) POWERED BY 3044C Engine

Disassembly and Assembly

906H, 907H and 908H

Compact Wheel Loaders Engine Supplement

Engine - Remove

SMCS - 1000-011

Removal Procedure

Table 1 Required Tools

Tool Part Number Part Description Qty

A 138-7573 Link Bracket 1

Start By:

i02843472

A. Remove the gear pump. Refer to Disassembly and Assembly, "Gear Pump - Remove and Install".

B. Remove the gear motor (hydraulic fan). Refer to Disassembly and Assembly, "Gear Motor (Hydraulic Fan) - Remove".

1

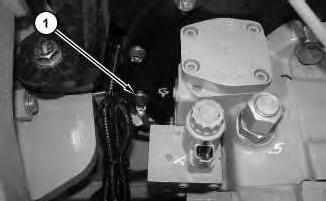

1. Remove bolt (1) and the ground strap.

2

2. Loosen nut (2) and remove throttle cable (3) from the engine.

Illustration
g01417978
Illustration
g01417986

Illustration 3

3. Remove bolt (4) and spacers (5). Lay throttle cable (3) out of the way.

4

4. Disconnect harness assemblies (6), (7), and (8) .

Illustration 5

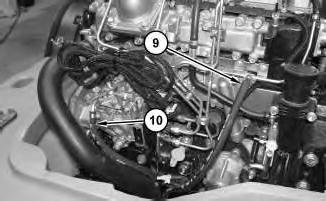

5. Loosen the clamps. Remove hoses (9) and (10) .

g01417988
Illustration
g01417989
g01417990

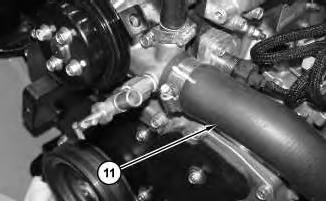

6. Loosen the clamp and remove hose (11) .

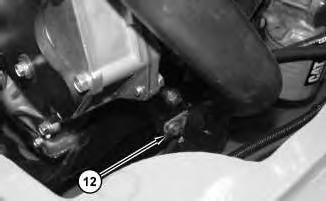

7. Remove bolt (12). Lay the fuel lines and the hose out of the way.

Illustration 6
g01417991
Illustration 7
g01417992

Illustration 8 g01417994

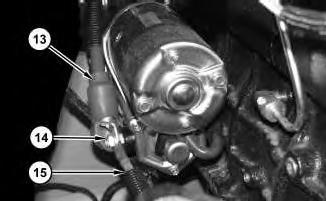

8. Remove nut (14), cable harness (15), and cable harness (13) .

Illustration 9

g01417995

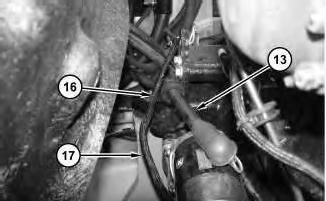

9. Remove cable strap (16). Lay cable harness (13) and harness assembly (17) out of the way.

Illustration 10

g01418059
