Product: COMPACT WHEEL LOADER
Model: 907H2 COMPACT WHEEL LOADER JRS
Configuration: 907H2 Wheel Loader JRS00001-UP (MACHINE) POWERED BY C3.3B Engine
Disassembly and Assembly
906, 907 and 908 Compact Wheel Loaders Power Train
Differential and Bevel Gear (Locking) - Assemble
SMCS - 3254-016; 3256-016; 3270-016
Assembly Procedure Table 1
Illustration 1 g01666677

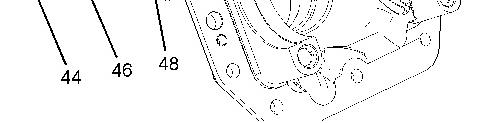

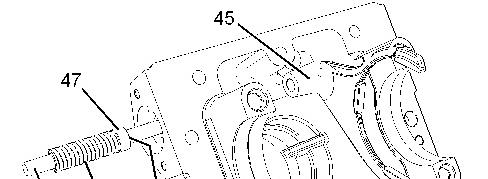

1. Install retaining ring (48) on pin (44). Install spacer (47) and spring (46) on pin (44). Position fork (45). Reposition pin (44).
Illustration 2 g01666713

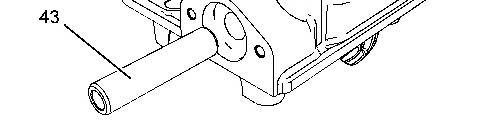

2. Install bushing (43).

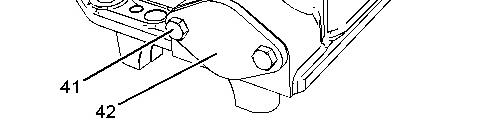

Illustration 3 g01666653
Personal injury can result from being struck by parts propelled by a released spring force.
Make sure to wear all necessary protective equipment.
Follow the recommended procedure and use all recommendedtooling to release the spring force.
Illustration 4 g01666095

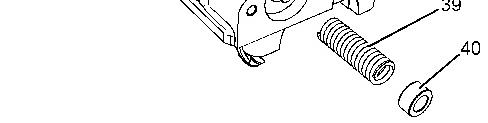

4. Install spring (39). Install spacer (40).

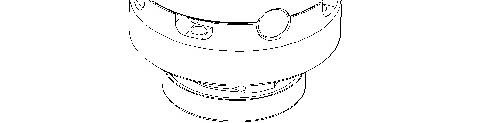

Illustration 5 g01666093
Personal injury can result from being struck by parts propelled by a released spring force.
Make sure to wear all necessary protective equipment.
Follow the recommended procedure and use all recommendedtooling to release the spring force.

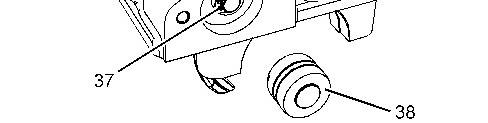

5. Install retaining ring (37). Install the piston and O-ring seal (38).
Illustration 6
g01666034
Personal injury can result from being struck by parts propelled by a released spring force.
Make sure to wear all necessary protective equipment.
Follow the recommended procedure and use all recommendedtooling to release the spring force.

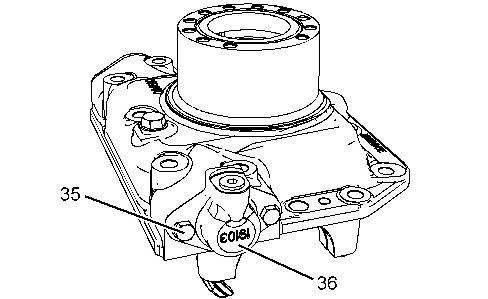

6. Position support (36). Install bolts (35).
Illustration 7 g01665922

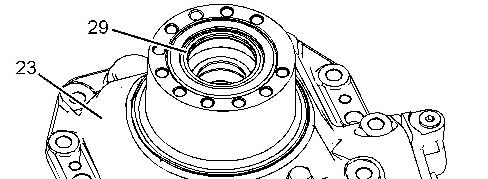

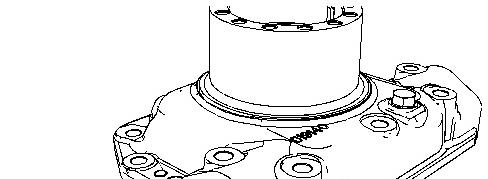

7. Use Tooling (B) to install bearing cups (29) in housing (23).
Illustration 8 g01667055

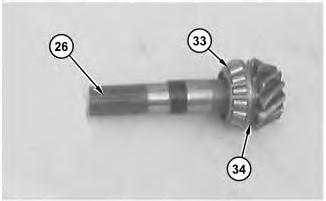

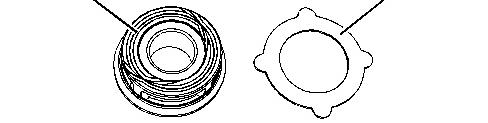

8. Install shim (34) and bearing cone (33) to pinion (26).
Illustration 9 g01667056
9. Install pinion (26) in housing (23).

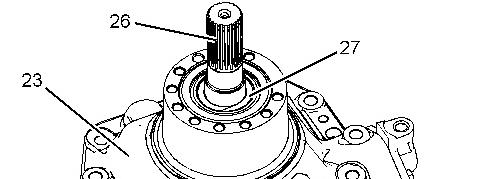

10. Install bearing cone (27) to pinion (26).
Illustration 10 g01665918

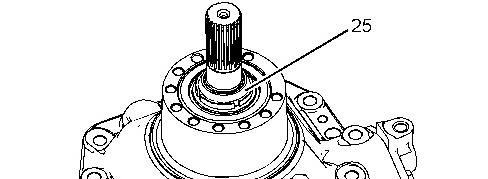

11. Install nut (25) and the washer. Use Tooling (C) and (D) in order to tighten nut (25) and remove the end play.
Illustration 11 g01667057
12. Rotate housing (23).

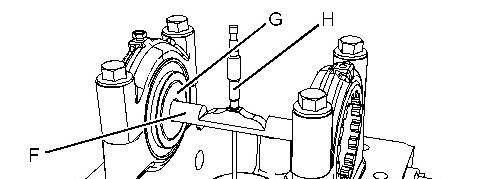

13. Use Tooling (F), Tooling (G), and Tooling (H) to measure the distance to the pinion. This will determine if the pinion is in the correct position. Record the measurement. Compare the measurement to the number on the face of the pinion.
14. Use the following formula: Measurement (mm) + 35.25mm = stamp(mm). If depth is not correct, adjust shim (31).
Illustration 12 g01665918
15. Remove nut (25) and the washer.
Illustration 13 g01667056
16. Remove bearing cone (27) from pinion (26).
17. Remove pinion (26) from housing (23).
Illustration 14 g01670455

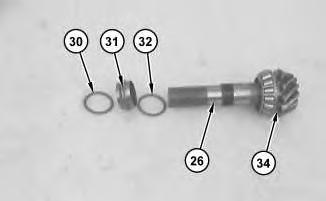

18. Install washer (32) to pinion (26).
19. Install a new crush sleeve (31) to pinion (26).
20. Install washer (30) to pinion (26).
Illustration 15 g01667056
21. Install pinion (26) to housing (23).
22. Install bearing cone (27) to pinion (26).
Illustration 16 g01665918
23. Install nut (25) and the washer. Use Tooling (C) and (D) in order to ensure that the bearings are seated.
Illustration 17

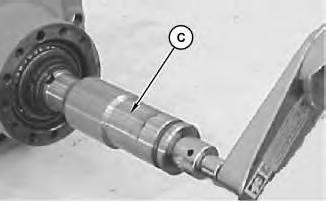

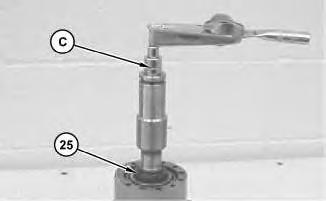

24. Use Tooling (C) with a needle type torque wrench in order to set the rotating torque. Tighten nut (25) to a torque of 1.6 to 2.4 N路m (14 to 21 lb in).
Illustration 18
g01667294

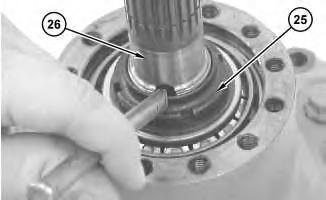

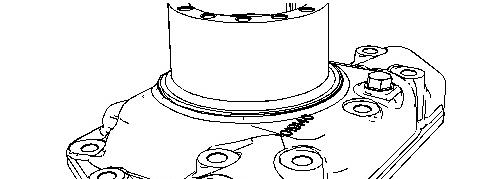

25. Lock retaining nut (25) by peening the collar in the slot on pinion shaft (26).
Illustration 19 g01665917

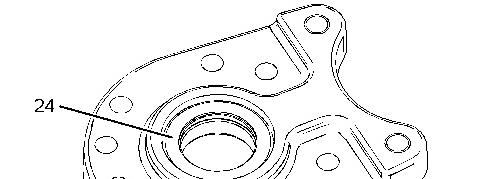

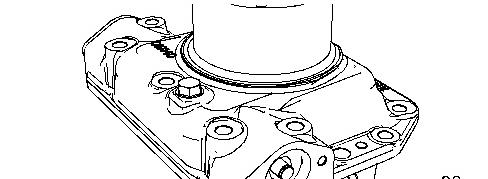

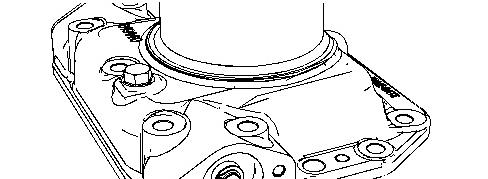

26. Use Tooling (B) to install lip seal (24).

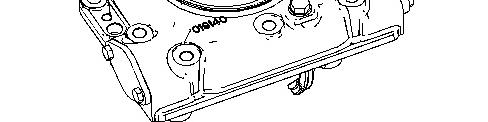

Illustration 20 g01665914

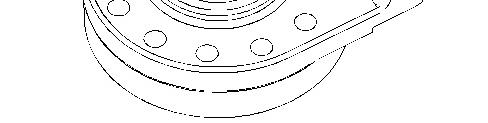

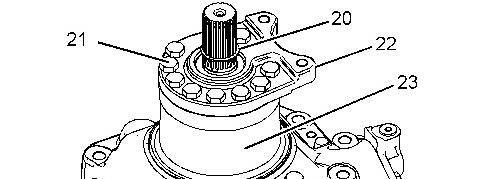

27. Install bracket (22) to housing (23). Apply sealant to bracket (22) before assembling to housing (23).
28. Install bolts (21) to bracket (22). Tighten bolts (21) to a torque of 50 N路m (37 lb ft).
29. Use Tooling (A) to install retaining ring (20).
21 g01665781
22 g01665780
23

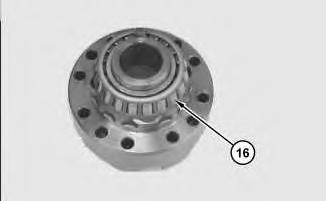

Install bearing cone (16).
Illustration 24

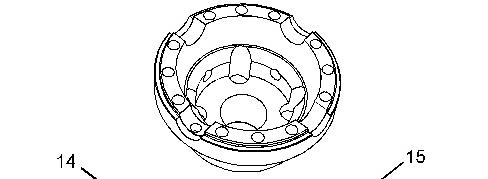

33. Install counter disk (15).
34. Install bevel pinion (14).
Illustration 25
Illustration 26
35. Install bevel gears (11) to shaft (13).
36. Install thrust washer (12) to bevel gears(11).

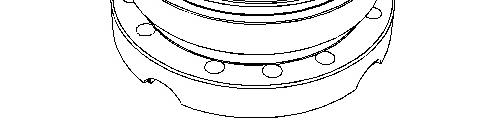

Illustration 27 g01453544

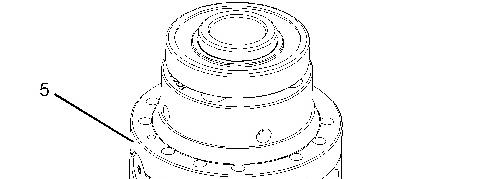

37. Join differential case (5).
Illustration 28 g01453353

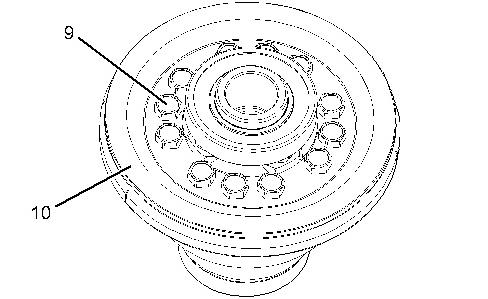

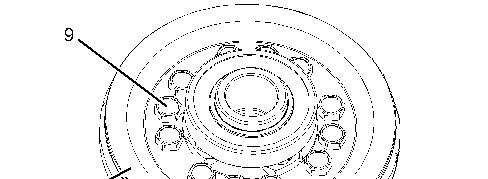

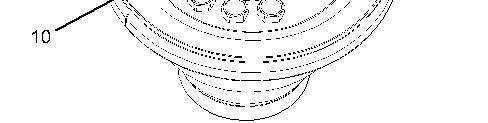

38. Install ring gear (10) to differential case. Install bolts (9). Tighten bolts (9) to a torque of 95 卤 4.75 N路m (70 卤 3 lb ft).
Illustration 29 g01463348

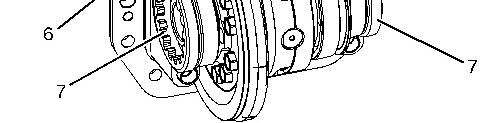

39. Install differential case (5) to housing (6).
40. Install bearing nuts (7). Make sure that the bearing nuts (7) can turn freely.

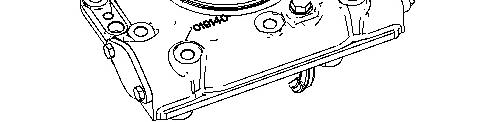

Illustration 30 g01453350
Note: Marks need to be oriented correctly for the installation.

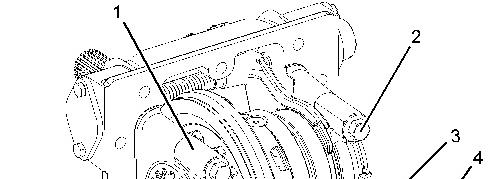

41. Install bearing caps (1).
Illustration 31 g01648223

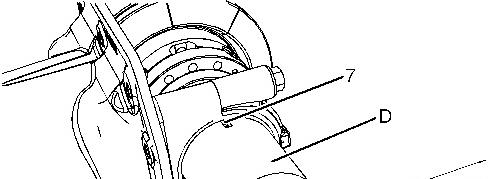

42. Oscillate the bevel gear and advance bearing nut (7). Continue to advance the adjustment nut until there isno backlash. Back off the adjustment nut by 1/2 turn.
Illustration 32
g01648436
43. Use a torque wrench and Tooling (C) in order to measure the overall rolling torque at the pinion shaft. Torque should be 1.6 N路m to 2.4 N路m (14 lb in to 21lb in) above measured rotating torque of pinion.

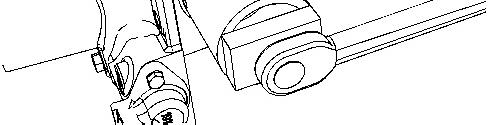

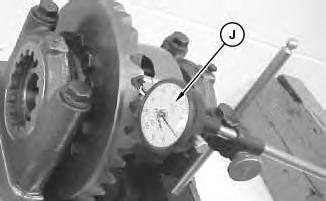

44. Mount Tooling (J) on the carrier, as shown. Measure the backlash at four places on the bevel gear at 90 degree intervals. Compare the lowest reading to the specifications. The proper backlash setting is 0.180 mm to 0.230 mm (0.0071 inch to 0.0091 inch).
45. If the backlash is not within the specification, retract one adjustment nut and advance the opposite adjustment nut equally. This will maintain the bearing preload.
46. When proper backlash isobtained, tighten bearing cap bolts (2) to a torque of 266 N路m (196 lb ft).
47. Install lock plates (3) and bolts (4).
End By:
a. Install the differential. Refer to Disassembly and Assembly, "Differential (Limited Slip) - Install".
Product: COMPACT WHEEL LOADER
Model: 907H2 COMPACT WHEEL LOADER JRS
Configuration: 907H2 Wheel Loader JRS00001-UP (MACHINE) POWERED BY C3.3B Engine
Disassembly and Assembly
906, 907 and 908 Compact Wheel Loaders Power Train
Differential and Bevel Gear (Locking) - Disassemble
SMCS - 3254-015; 3256-015; 3270-015
Disassembly Procedure Table 1
E 8H-0663 Bearing Puller Gp 1
Start By:
a. Remove the differential. Refer to Disassembly and Assembly, "Differential (Limited Slip) - Remove".
NOTICE
Failure to properly assemble parts or failure to followestablished procedurescanlead to damage of the partsand assembly.
To avoid damage to parts, alwaysidentify and mark the parts so that they can be installed in the same location. Ensure that gear surfaces align. Never force parts during assembly.
NOTICE
Care must be taken to ensure that fluids are containedduring performance of inspection, maintenance, testing, adjusting and repair of the product. Be preparedto collect the fluid with suitable containers before opening any compartment or disassembling any component containing fluids.
Refer to Special Publication, NENG2500, "Caterpillar Dealer Service Tool Catalog" for toolsand supplies suitable to collect and contain fluids on Caterpillar products.
Dispose of all fluids according to local regulations and mandates.

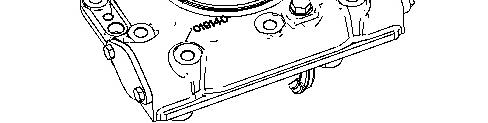

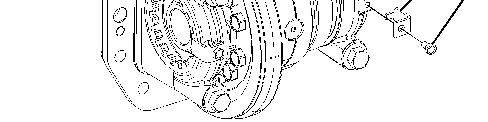

Illustration 1 g01453350

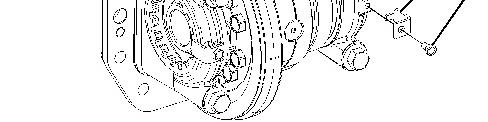

1. Mark caps (1) before removal. Remove bolts (4) from lock plates (3). Remove bolts(2) from caps (1). Remove caps (1).
Illustration 2 g01453520
Note: Mark the ring gear and the housing for installation.

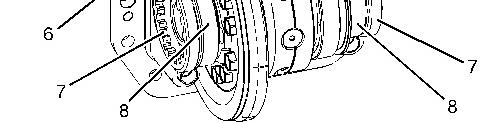

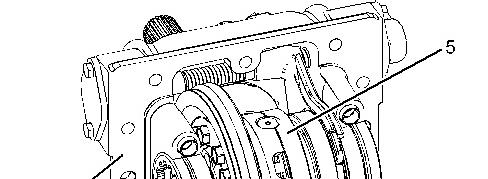

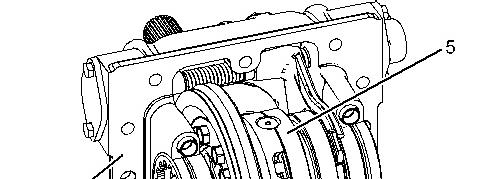

2. Remove the differential case (5) from the housing (6). Remove bearing nuts (7). Leave the bearing cones (8) on at this time.
Illustration 3 g01453353
3. Remove bolts (9) from ring gear (10).
4. Remove ring gear (10).
Illustration 4 g01453544
Note: Mark the differential case for assembly.
5. Split the differential case (5).
Illustration 5 g01455030
Illustration 6
g01455053

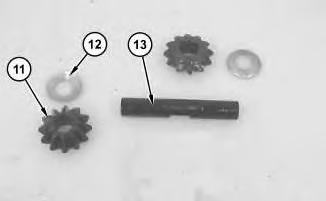

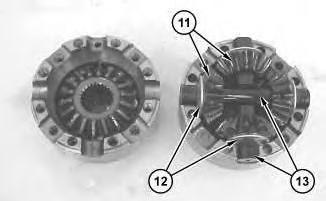

6. Remove bevel gears (11) and thrust washers (12). separate bevel gears (11) from shaft (13).
Illustration 7
7. Remove bevel pinion (14).
8. Remove counter disk (15).
g01648202
Illustration 8
9. Remove bearing cone (16).
Illustration 9 g01665780

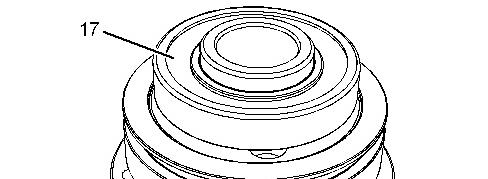

10. Remove bearing cone (17).
Illustration 10 g01665781

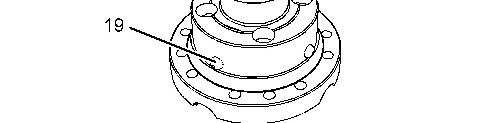

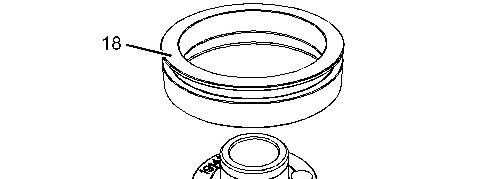

11. Remove collar (18). Remove pins (19).

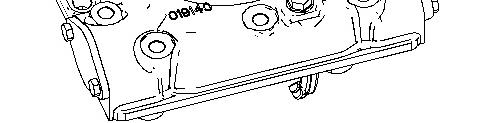

Illustration 11 g01665914
12. Use Tooling (A) to remove retaining ring (20).
13. Remove bolts (21) from bracket (22).

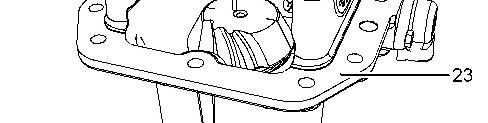

14. Remove bracket (22) from housing (23).
