906H Caterpillar Compact Wheel Loader Operation and Maintenance Manual by quality service repair manual

Product:COMPACTWHEELLOADER

Model:906HCOMPACTWHEELLOADERSDH

Configuration:906HWheelLoaderSDH00001-UP(MACHINE)POWEREDBYC3.4INDEngine

OperationandMaintenanceManual 906H,907Hand908HCompactWheelLoaders

MediaNumber-SEBU8458-03PublicationDate-01/03/2015DateUpdated-14/08/2017

Foreword

LiteratureInformation

Thismanualshouldbestoredintheoperator'scompartmentintheliteratureholderorseatback literaturestoragearea.

Thismanualcontainssafetyinformation,operationinstructions,transportationinformation, lubricationinformationandmaintenanceinformation.

Somephotographsorillustrationsinthispublicationshowdetailsorattachmentsthatcanbedifferent fromyourmachine.Guardsandcoversmighthavebeenremovedforillustrativepurposes.

Continuingimprovementandadvancementofproductdesignmighthavecausedchangestoyour machinewhicharenotincludedinthispublication.Read,studyandkeepthismanualwiththe machine.

Wheneveraquestionarisesregardingyourmachine,orthispublication,pleaseconsultyourCat dealerforthelatestavailableinformation.

Safety

Thesafetysectionlistsbasicsafetyprecautions.Inaddition,thissectionidentifiesthetextand locationsofwarningsignsandlabelsusedonthemachine.

Readandunderstandthebasicprecautionslistedinthesafetysectionbeforeoperatingorperforming lubrication,maintenanceandrepaironthismachine.

Operation

s00037320

Theoperationsectionisareferenceforthenewoperatorandarefresherfortheexperiencedoperator. Thissectionincludesadiscussionofgauges,switches,machinecontrols,attachmentcontrols, transportationandtowinginformation.

Photographsandillustrationsguidetheoperatorthroughcorrectproceduresofchecking,starting, operatingandstoppingthemachine.

Operatingtechniquesoutlinedinthispublicationarebasic.Skillandtechniquesdevelopasthe operatorgainsknowledgeofthemachineanditscapabilities.

Maintenance

Themaintenancesectionisaguidetoequipmentcare.TheMaintenanceIntervalSchedule(MIS)lists theitemstobemaintainedataspecificserviceinterval.Itemswithoutspecificintervalsarelisted underthe"WhenRequired"serviceinterval.TheMaintenanceIntervalScheduleliststhepage numberforthestep-by-stepinstructionsrequiredtoaccomplishthescheduledmaintenance.Usethe MaintenanceIntervalScheduleasanindexor"onesafesource"forallmaintenanceprocedures.

MaintenanceIntervals

Usetheservicehourmetertodetermineservicingintervals.Calendarintervalsshown(daily,weekly, monthly,etc.)canbeusedinsteadofservicehourmeterintervalsiftheyprovidemoreconvenient servicingschedulesandapproximatetheindicatedservicehourmeterreading.Recommendedservice shouldalwaysbeperformedattheintervalthatoccursfirst.

Underextremelysevere,dustyorwetoperatingconditions,morefrequentlubricationthanisspecified inthemaintenanceintervalschartmightbenecessary.

Performserviceonitemsatmultiplesoftheoriginalrequirement.Forexample,atevery500service hoursor3months,alsoservicethoseitemslistedunderevery250servicehoursormonthlyandevery 10servicehoursordaily.

CaliforniaProposition65Warning

DieselengineexhaustandsomeofitsconstituentsareknowntotheStateofCaliforniatocause cancer,birthdefects,andotherreproductiveharm.

Batteryposts,terminalsandrelatedaccessoriescontainleadandleadcompounds.Washhandsafter handling.

CertifiedEngineMaintenance

Propermaintenanceandrepairisessentialtokeeptheengineandmachinesystemsoperating correctly.Astheheavydutyoff-roaddieselengineowner,youareresponsiblefortheperformanceof therequiredmaintenancelistedintheOwnerManual,OperationandMaintenanceManual,and ServiceManual.

Itisprohibitedforanypersonengagedinthebusinessofrepairing,servicing,selling,leasing,or tradingenginesormachinestoremove,alter,orrenderinoperativeanyemissionrelateddeviceor elementofdesigninstalledonorinanengineormachinethatisincompliancewiththeregulations (40CFRPart89).Certainelementsofthemachineandenginesuchastheexhaustsystem,fuel system,electricalsystem,intakeairsystemandcoolingsystemmaybeemissionrelatedandshould notbealteredunlessapprovedbyCaterpillar.

MachineCapacity

Additionalattachmentsormodificationsmayexceedmachinedesigncapacitywhichcanadversely affectperformancecharacteristics.Includedwouldbestabilityandsystemcertificationssuchas brakes,steering,androlloverprotectivestructures(ROPS).ContactyourCatdealerforfurther information.

CatProductIdentificationNumber

EffectiveFirstQuarter2001theCatProductIdentificationNumber(PIN)haschangedfrom8to17 characters.Inanefforttoprovideuniformequipmentidentification,Caterpillarandotherconstruction equipmentmanufacturersaremovingtocomplywiththelatestversionoftheproductidentification numberingstandard.Non-roadmachinePINsaredefinedbyISO10261.ThenewPINformatwill applytoallCatmachinesandgeneratorsets.ThePINplatesandframemarkingwilldisplaythe17 characterPIN.Thenewformatwilllooklikethefollowing:

2.MachineDescriptor(characters4-8)

3.CheckCharacter(character9)

4.MachineIndicatorSection(MIS)orProductSequenceNumber(characters10-17).Thesewere previouslyreferredtoastheSerialNumber.

MachinesandgeneratorsetsproducedbeforeFirstQuarter2001willmaintaintheir8characterPIN format.

Componentssuchasengines,transmissions,axles,etc.andworktoolswillcontinuetousean8 characterSerialNumber(S/N).

MonFeb809:44:53UTC+05302021

PreviousScreen

Product:COMPACTWHEELLOADER

Model:906HCOMPACTWHEELLOADERSDH

Configuration:906HWheelLoaderSDH00001-UP(MACHINE)POWEREDBYC3.4INDEngine

MediaNumber-SEBU8458-03PublicationDate-01/03/2015DateUpdated-14/08/2017 i02699184

AccessDoorsandCovers

SMCS-7273-572;7273-573

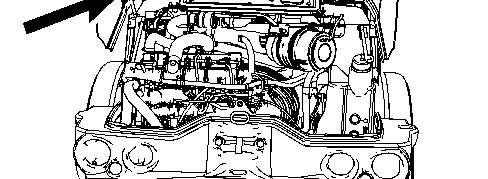

EngineHood

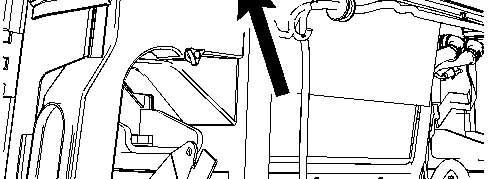

Illustration1g01355455

Pulluponthehandle.Raisetheenginehooduntilthehoodsupportcylinderlocksinposition.

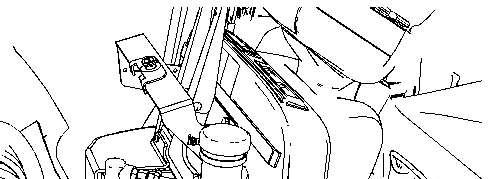

Illustration2g01355456

Squeezethelockonthecylinderinordertolowerthehood.Lowerthehooduntilthehoodlatches.

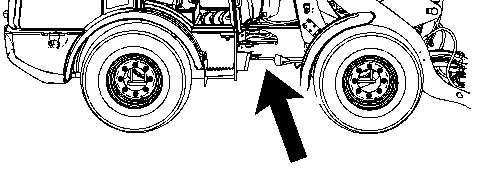

RightSideandLeftSideAccessDoorsandCovers

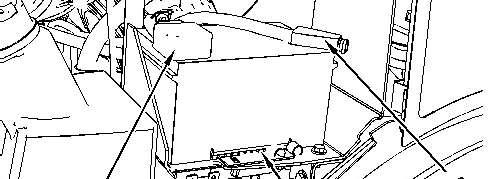

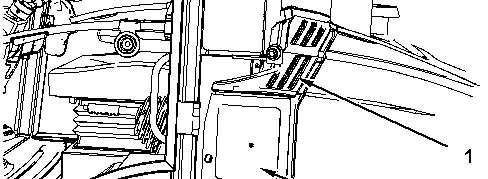

Illustration3g01355651

(1)AccessCover (2)AccessDoor

Themachineisequippedwithrightsideandleftsideaccesspanels.

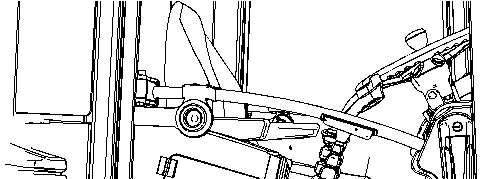

Illustration4g01355653 Thumbscrewfortheaccesspanel Notethattheenginehoodisremovedforclarity.

Opentheaccessdoorinordertogainaccesstothethumbscrew.Usethethumbscrewtoremovethe accesspanel.

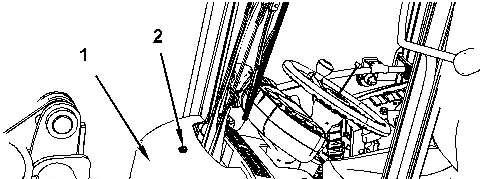

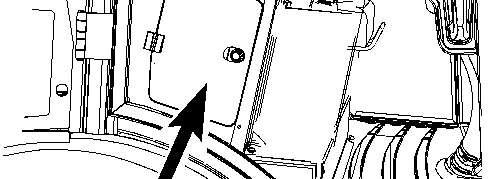

Illustration6g01358974

(1)AccessDoor (2)KeySlot

Usetheignitionkeyinordertoopenthefrontaccessdoor.Openthedoorawayfromthewindshield.

MonFeb812:04:55UTC+05302021

PreviousScreen

Product:COMPACTWHEELLOADER

Model:906HCOMPACTWHEELLOADERSDH

Configuration:906HWheelLoaderSDH00001-UP(MACHINE)POWEREDBYC3.4INDEngine

OperationandMaintenanceManual 906H,907Hand908HCompactWheelLoaders

MediaNumber-SEBU8458-03PublicationDate-01/03/2015DateUpdated-14/08/2017 i02957879

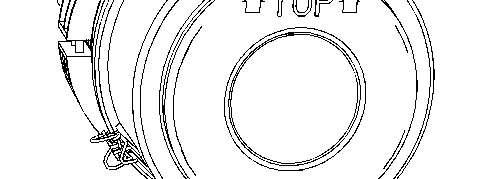

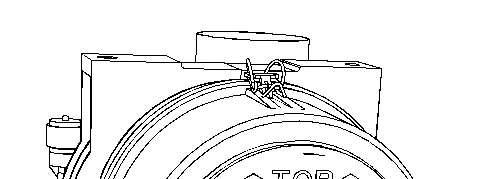

AirCleanerDustValve-Clean/Inspect

SMCS-1051-571-VL

1.Opentheenginehood.

2.Theairfilterhousingislocatedontherightsideoftheenginecompartment.

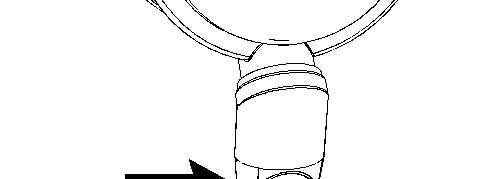

3.Checkthedustvalveaftereverytenservicehoursorattheendofeachday.Actuatethevalve bysqueezingthelipsofthevalveinordertoremoveanyaccumulateddebris.

4.Closetheenginehood.

PreviousScreen

Product:COMPACTWHEELLOADER

Model:906HCOMPACTWHEELLOADERSDH

Configuration:906HWheelLoaderSDH00001-UP(MACHINE)POWEREDBYC3.4INDEngine

OperationandMaintenanceManual

MediaNumber-SEBU8458-03PublicationDate-01/03/2015DateUpdated-14/08/2017

ArticulationBearings-Lubricate

SMCS-7057-086-BD;7065-086-BD;7066-086-BD

Wipethegreasefittingsbeforeyoulubricatethegreasefittings.

i02699187

This is the sample of the manual Click on the download link for complete Manual

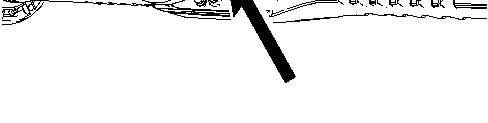

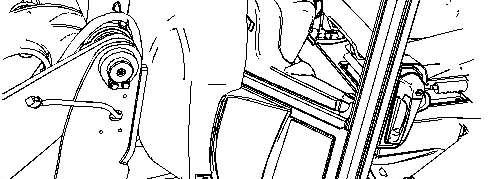

Illustration1g01355727

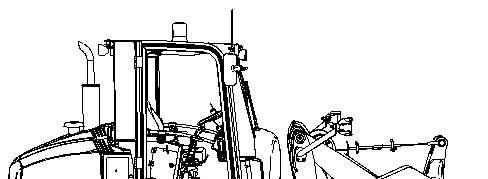

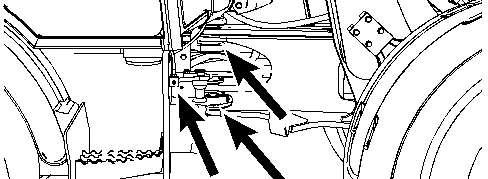

Illustration2g01355731 Applylubricanttothegreasefittingsfortheupperandlowerbearingandfortheoscillationbearing.

MonFeb812:10:22UTC+05302021

PreviousScreen

Product:COMPACTWHEELLOADER

Model:906HCOMPACTWHEELLOADERSDH

Configuration:906HWheelLoaderSDH00001-UP(MACHINE)POWEREDBYC3.4INDEngine

OperationandMaintenanceManual

MediaNumber-SEBU8458-03PublicationDate-01/03/2015DateUpdated-14/08/2017 i01390799

BackupAlarm-Test

SMCS-7406-081

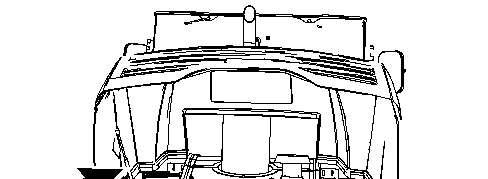

Thebackupalarmismountedbelowtheradiatorintheenginecompartment. Thebackupalarmhasonesoundlevel.Thesoundlevelisnotadjustable.

TurntheenginestartswitchkeytotheONpositioninordertoperformthetest. Applytheservicebrake.MovethedirectioncontrolswitchtotheREVERSEposition.

Thebackupalarmshouldimmediatelysound.Thebackupalarmwillcontinuetosounduntilthe directioncontrolswitchismovedtotheNEUTRALpositionortotheFORWARDposition.

MonFeb812:10:36UTC+05302021

PreviousScreen

Product:COMPACTWHEELLOADER

Model:906HCOMPACTWHEELLOADERSDH

Configuration:906HWheelLoaderSDH00001-UP(MACHINE)POWEREDBYC3.4INDEngine

OperationandMaintenanceManual 906H,907Hand908HCompactWheelLoaders

MediaNumber-SEBU8458-03PublicationDate-01/03/2015DateUpdated-14/08/2017

BatteryorBatteryCable-Inspect/Replace

SMCS-1401-040;1401-510;1402-040;1402-510

1.TurntheenginestartswitchtotheOFFposition.TurnallswitchestotheOFFposition.

2.Thebatteryislocatedunderthehoodontherightsideofthemachine.Openthehood.

i03704739

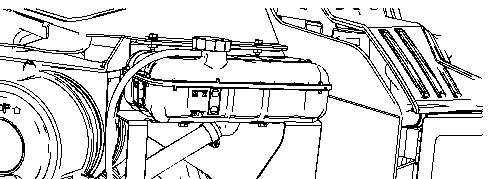

Illustration1g01355762

BatteryonRightSide

(1)PositiveBatteryTerminal

(2)BatteryHoldDown

(3)NegativeBatteryTerminal

Toavoidpersonalinjuryfromelectricalshock,ensurethatthenegative batterycableisdisconnectedfirst.

3.Disconnectthenegativebatterycableatthebattery.

4.Performthenecessaryrepairs.Replacethecableorthebattery,asneeded.

5.Disconnectthepositivebatterycable.Removetheoldbatteryfromthemachine.

6.Placethenewbatteryinthemachine.Connectthepositivebatterycabletothebattery.

7.Connectthenegativebatterycableatthebattery.

RecycletheBattery

Alwaysrecycleabattery.Neverdiscardabattery.

Alwaysreturnusedbatteriestooneofthefollowinglocations:

•Abatterysupplier

•Anauthorizedbatterycollectionfacility

•Recyclingfacility

MonFeb812:10:49UTC+05302021

PreviousScreen

Product:COMPACTWHEELLOADER

Model:906HCOMPACTWHEELLOADERSDH

Configuration:906HWheelLoaderSDH00001-UP(MACHINE)POWEREDBYC3.4INDEngine

MediaNumber-SEBU8458-03PublicationDate-01/03/2015DateUpdated-14/08/2017

BrakePads-Check

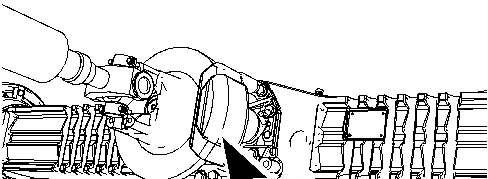

Thebrakepadsarelocatedbehindthefrontaxleonthedriveshaft.Measurethethicknessofthebrake pads.Ifthethicknessofeitherofthetwobrakepadsislessthan4.00mm(0.16inch),replacethe brakepads.RefertoDisassemblyandAssembly,"BrakeCaliper-Remove"andDisassemblyand Assembly,"BrakeCaliper-Install".

i02699193

PreviousScreen

Product:COMPACTWHEELLOADER

Model:906HCOMPACTWHEELLOADERSDH

Configuration:906HWheelLoaderSDH00001-UP(MACHINE)POWEREDBYC3.4INDEngine

OperationandMaintenanceManual 906H,907Hand908HCompactWheelLoaders

MediaNumber-SEBU8458-03PublicationDate-01/03/2015DateUpdated-14/08/2017 i02699194

BrakeSystemFluid-Change-IfEquipped

SMCS-4258-044;7579-044-BRK

Hotoilandcomponentscancausepersonalinjury. Donotallowhotoilorcomponentstocontactskin.

NOTICE

Caremustbetakentoensurethatfluidsarecontainedduring performanceofinspection,maintenance,testing,adjusting,andrepair oftheproduct.Bepreparedtocollectthefluidwithsuitablecontainers beforeopeninganycompartmentordisassemblinganycomponent containingfluids.

RefertoSpecialPublication,NENG2500,"DealerServiceTool Catalog"fortoolsandsuppliessuitabletocollectandcontainfluidson Catproducts.

Disposeofallfluidsaccordingtolocalregulationsandmandates.

Note:Brakefluidreservoirsareavailableonlyonstandardmachines.

Purgevalvesforthebrakesystemarelocatedonservicebrakecylinders.Thecylindersarelocatedon thedriveaxle.Accessthepurgevalvesbelowthemachine.

1.Parkthemachineonahard,levelsurface.Stoptheengine.Allowthefluidtocoolforfive minutes.However,thebrakefluidshouldbewarmforthisprocedure.

2.Thoroughlycleantheoutsideofthepurgevalves.Attachalinetothepurgevalve.Drainthe fluidfromeachpurgevalveintoasuitablecontainer.

Illustration1g01355891

3.Removethelidonthebrakefluidreservoir.Thefluidreservoirislocatedinthecompartmentin frontofthecab.Addthecorrecttypeofbrakefluidtothereservoir.RefertoOperationand MaintenanceManual,"LubricantViscositiesChart"forthecorrectfluid.

4.Openthepurgevalve.

5.Fullydepresstheservicebrakethatisbeingpurged.

6.Closethepurgevalve.

7.Releasetheservicebrake.

8.RepeatSteps4through7untilnoairisinthefluidthatdrainsfromthepurgevalve.Ensurethat thereservoirremainsfulloffluid.

9.Starttheengine.Runthemachineforafewminutes.Checkforanyleaks.Maintainthefluid levelbetweenthemarksonthereservoir.

MonFeb812:13:43UTC+05302021

PreviousScreen

Product:COMPACTWHEELLOADER

Model:906HCOMPACTWHEELLOADERSDH

Configuration:906HWheelLoaderSDH00001-UP(MACHINE)POWEREDBYC3.4INDEngine

OperationandMaintenanceManual 906H,907Hand908HCompactWheelLoaders

MediaNumber-SEBU8458-03PublicationDate-01/03/2015DateUpdated-14/08/2017 i02699196

BrakeSystemFluidLevel-Check-IfEquipped

SMCS-4258-535-FLV;7579-535-BRK

Hotoilandcomponentscancausepersonalinjury. Donotallowhotoilorcomponentstocontactskin.

NOTICE

RefertoSpecialPublication,NENG2500,"DealerServiceTool Catalog"fortoolsandsuppliessuitabletocollectandcontainfluidson Catproducts.

Disposeofallfluidsaccordingtolocalregulationsandmandates.

Note:Brakefluidreservoirsareavailableonlyonstandardmachines.

1.Parkthemachineonahard,levelsurface.

2.Thefluidreservoirislocatedinthecompartmentinfrontofthecab.

3.Checkthefluidlevelwhentheengineisstopped.

4.Maintainthefluidlevelbetweenthemarksonthereservoir.

5.Ifthefluidlevelislow,addfluid.

a.Removethelidonthebrakefluidreservoir.

b.Addthecorrecttypeofbrakefluidtothereservoir.RefertoOperationandMaintenance Manual,"LubricantViscositiesChart"forthecorrectfluid.

c.Installthelidonthereservoir.

6.Checkforanyleaks.Maintainthefluidlevelbetweenthemarksonthereservoir.

MonFeb812:15:22UTC+05302021

PreviousScreen

Product:COMPACTWHEELLOADER

Model:906HCOMPACTWHEELLOADERSDH

Configuration:906HWheelLoaderSDH00001-UP(MACHINE)POWEREDBYC3.4INDEngine

OperationandMaintenanceManual 906H,907Hand908HCompactWheelLoaders

MediaNumber-SEBU8458-03PublicationDate-01/03/2015DateUpdated-14/08/2017 i03751342

BrakingSystem-Test

SMCS-4011-081;4267-081

ServiceBrakeHoldingAbilityTest

Personalinjurycanresultifthemachinemoveswhiletesting.

Ifthemachinebeginstomoveduringtest,reducetheenginespeed immediatelyandengagetheparkingbrake.

Checktheareaaroundthemachine.Makesurethatthemachineisclearofpersonnelandclearof obstacles.

MakesurethatthesteeringframelocklinkisintheSTOREDposition.

Testthebrakesonadry25%slope.

Fastentheseatbeltbeforeyoutestthebrakes.

Thefollowingtestsareusedtodetermineiftheservicebrakeisfunctional.Thesetestsarenot intendedtomeasurethemaximumbrakeholdingeffort.

1.Starttheengine.Raisetheworktoolslightly.

2.Applytheservicebrake.Releasetheparkingbrake.

Themachineshouldnotmoveunderthefollowingconditions. Theengineisatlowidle.

Thebucketisempty.

Themachineiswarmedupandthemachineisfullystopped.

Theservicebrakeisfirmlydepressed.

Ifthemachinemoves,consultyourCaterpillardealer.

3.Engagetheparkingbrake.Lowertheworktooltotheground.Stoptheengine.

NOTICE

Ifthemachinemovedwhiletestingthebrakes,contactyour Caterpillardealer.Havethedealerinspectand,ifnecessary,repairthe servicebrakebeforereturningthemachinetooperation.

ParkingBrakeHoldingAbilityTest

Checktheareaaroundthemachine.Makesurethatthemachineisclearofpersonnelandclearof obstacles.

MakesurethatthesteeringframelocklinkisintheSTOREDposition. Testthebrakesonadry20%slope.

Note:ThetestconditionisdifferentfromtheServiceBraketest. Fastentheseatbeltbeforeyoutestthebrakes.

Thefollowingtestsareusedtodetermineiftheparkingbrakeisfunctional.Thesetestsarenot intendedtomeasurethemaximumbrakeholdingeffort.

1.Starttheengine.Raisetheworktoolslightly.

2.Engagetheparkingbrake.Releasetheservicebrakegradually.

Note:Theparkingbrakeindicatorlightshouldcomeon.Theparkingbrakelightshouldflashif themachineisingear.

Themachineshouldnotmoveunderthefollowingconditions. Theengineisatlowidle.

Thebucketisempty.

Themachineiswarmedupandthemachineisfullystopped.

Theparkingbrakeispulledupfirmly.

Ifthemachinemoves,consultyourCaterpillardealer.

Ifthemachinebeginstomove,reducetheenginespeedimmediatelyand applytheservicebrakepedal.

3.Lowerthebuckettotheground.Stoptheengine.

NOTICE

Ifthemachinemovedwhiletestingthebrakes,contactyour Caterpillardealer.

Havethedealerinspectand,ifnecessary,repairtheparkingbrakes beforereturningthemachinetooperation.

MonFeb812:15:41UTC+05302021

PreviousScreen

Product:COMPACTWHEELLOADER

Model:906HCOMPACTWHEELLOADERSDH

Configuration:906HWheelLoaderSDH00001-UP(MACHINE)POWEREDBYC3.4INDEngine

OperationandMaintenanceManual 906H,907Hand908HCompactWheelLoaders

MediaNumber-SEBU8458-03PublicationDate-01/03/2015DateUpdated-14/08/2017 i07285169

BucketCuttingEdges-Inspect/Replace

SMCS-6801-040;6801-510

Personalinjuryordeathcanresultfrombucketfalling. Blockthebucketbeforechangingbucketcuttingedges.

Note:Checkforboltsthatareloose,damaged,ormissing.Tightenloosebolts,andreplaceand tightendamageormissingbolts.Usecautionwithdamagebolts.Thereisachanceoftheboltshaving sharpedgesleadingtoaninjuryorlaceration.

1.Lowertheliftarmsfully.Tiltbackthebucketsothatthebucketcuttingedgeisaccessible.

2.Placeblocksundertheraisededgeofthebucket.

3.Removethebolts.Removethecuttingedgeandtheendbits.

4.Cleanthecontactsurfaces.

5.Usetheoppositesideofthecuttingedge,ifthissideisnotworn.

6.Installanewcuttingedge,ifbothedgesareworn.

7.Installthebolts.

8.Removetheblocksthatareunderthebucket.

9.Afterafewhoursofoperation,checktheboltsforpropertorque.

MonFeb812:15:57UTC+05302021

PreviousScreen

Product:COMPACTWHEELLOADER

Model:906HCOMPACTWHEELLOADERSDH

Configuration:906HWheelLoaderSDH00001-UP(MACHINE)POWEREDBYC3.4INDEngine

OperationandMaintenanceManual 906H,907Hand908HCompactWheelLoaders

MediaNumber-SEBU8458-03PublicationDate-01/03/2015DateUpdated-14/08/2017 i01764331

BucketTips-Inspect/Replace

SMCS-6805-040;6805-510

Personalinjuryordeathcanresultfrombucketfalling. Blockthebucketbeforechangingbucketcuttingedges.

1.Lowertheliftarmsfully.Tiltbackthebucketsothatthebuckettipsareaccessible.

2.Placeblocksundertheraisededgeofthebucket.

3.Removethemountingbolts.Removethebuckettips.

4.Cleanthemountingsurface.

5.Replacethebuckettips.

6.Installthebolts.

7.Removetheblocksthatareunderthebucket.

8.Afterafewhoursofoperation,checktheboltsforpropertorque.

MonFeb812:16:11UTC+05302021

This is the sample of the manual Click on the download link for complete Manual
