C1.7, C1.8 and C2.4 Tier 4 Interim and EU Stage 3A Engines for Caterpillar Built Machines Media
Bearing Clearance - Check
SMCS - 1203-535; 1219-535
Measurement Procedure
Table 1
Required Tools
(Green)
Gauge (Red)
to 0.152 mm (0.002 to 0.006 inch)
Plastic Gauge (Blue)
to 0.229 mm (0.004 to 0.009 inch)
Plastic Gauge (Yellow) 0.230 to 0.510 mm (0.009 to 0.020 inch)
Note: Refer to Specification UENR0995 "Engine Design" for non-specified engine Torque Values.
Note: Plastic gauge may not be necessary when the engine is in the chassis.
i05242994
NOTICE
Keep all parts clean from contaminants.
Contaminants may cause rapid wear and shortened component life.
Note: Caterpillar does not recommend the checking of the actual bearing clearances particularly on small engines. The checking can result in the possibility of obtaining inaccurate information and the possibility of damaging the bearing or the journal surfaces. Each Caterpillar engine bearing is quality checked for specific wall thickness.
Note: The measurements should be within specifications and the correct bearings should be used. If the crankshaft journals and the bores for the block and the rods were measured during disassembly, no further checks are necessary. However, if the technician still wants to measure the bearing clearances, Tooling (A) is an acceptable method. Tooling (A) is less accurate on journals with small diameters if clearances are less than 0.10 mm (0.004 inch).
NOTICE
Lead wire, shim stock or a dial bore gauge can damage the bearing surfaces.
sample
The technician must be careful to use Tooling (A) correctly. The following points must be remembered:
• Ensure that the backs of the bearings and the bores are clean and dry.
• Ensure that the bearing locking tabs are properly seated in the tab grooves.
• The crankshaft must be free of oil at the contact points of Tooling (A).
1. Put a piece of Tooling (A) on the crown of the bearing that is in the cap.
Note: Do not allow Tooling (A) to extend over the edge of the bearing.
2. Use the correct torque-turn specifications in order to install the bearing cap. Do not use an impact wrench. Be careful not to dislodge the bearing when the cap is installed.
Note: Do not turn the crankshaft when Tooling (A) is installed.
3. Carefully remove the cap, but do not remove Tooling (A). Measure the width of Tooling (A) while Tooling (A) is in the bearing cap or on the crankshaft journal. Refer to Illustration 1.
Illustration 1 g01152855
Typical Example
4. Remove all of Tooling (A) before you install the bearing cap.
Note: When Tooling (A) is used, the readings can sometimes be unclear. For example, all parts of Tooling (A) are not the same width. Measure the major width in order to ensure that the parts are within the specification range. Refer to Specifications Manual, "Connecting Rod Bearing Journal" and Specifications Manual, "Main Bearing Journal" for the correct clearances.
Copyright 1993 - 2020 Caterpillar Inc. All Rights Reserved. Private Network For SIS Licensees.
C1.7, C1.8 and C2.4 Tier 4 Interim and EU Stage 3A Engines for Caterpillar Built Machines
Media Number -UENR0128-11
Camshaft Gear - Remove and Install
SMCS - 1210-010-GE
Removal Procedure Table 1 Required Tools
Start By:
a. Remove the camshaft. NOTICE
Keep all parts clean from contaminants.
Contaminants may cause rapid wear and shortened component life.
i05243616
Care must be taken to ensure that fluids are contained during performance of inspection, maintenance, testing, adjusting and repair of the product. Be prepared to collect the fluid with suitable containers before opening any compartment or disassembling any component containing fluids.
Dispose of all fluids according to local regulations and mandates.

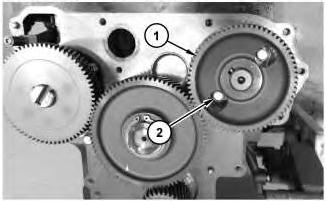

Illustration 1

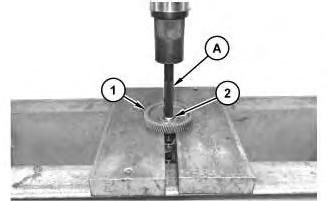

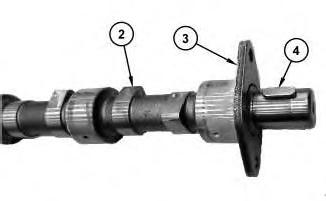

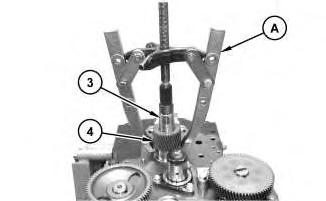

1. Use Tooling (A) in order to remove camshaft gear (1) from camshaft (2). Use Tooling (B) in order to install camshaft gear (1) onto camshaft (2).
Illustration 2
sample
2. Remove plate (3) from camshaft (2).
3. If necessary, remove the key from the nose of the camshaft.

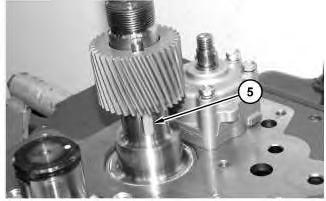

Installation Procedure
g02721209
g02721212
1. Install camshaft gear (1) in the reverse order of removal.
a. Ensure that the camshaft gear and the key are clean and free from wear and damage.
Copyright 1993 - 2020 Caterpillar Inc. All Rights Reserved. Private Network For SIS Licensees.
Wed Jul 15 13:56:40 UTC+0530 2020
sample
This is the sample of the manual click on the download link for complete manual
C1.7, C1.8 and C2.4 Tier 4 Interim and EU Stage 3A Engines for Caterpillar Built Machines
Media Number -UENR0128-11 Publication Date -01/08/2015 Date Updated -09/06/2016
Connecting Rod Bearings - Install
SMCS - 1219-012
Installation Procedure
NOTICE
Keep all parts clean from contaminants.
Contaminants may cause rapid wear and shortened component life.
NOTICE
Discard all used Connecting Rod fasteners.
1. Ensure that the bearing shells are clean and free from wear and damage. If necessary, replace the bearing shells.
i05399036
1

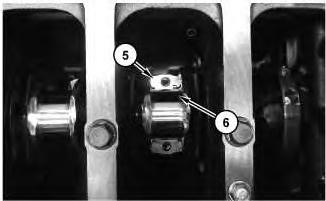

2. Install upper bearing shell (6) into connecting rod (5) . Ensure that the locating tab for the upper bearing shell is correctly seated in the slot in connecting rod (5) .
Note: The ends of the upper bearing shell must be centered in the connecting rod. The ends of the upper bearing shell are to be positioned equally in relation to the mating faces of the connecting rod.
3. Lubricate upper bearing shell (6) with clean engine oil.
2
4. Carefully pull connecting rod (5) against the crankshaft.
5. Clean connecting rod cap (4) . Install the lower bearing shell into connecting rod cap (4) . Ensure that the locating tab for the lower bearing shell is correctly seated in the slot in connecting rod cap (4) .
6. Lubricate the crankshaft and lubricate the lower bearing shell with clean engine oil.
7. Install connecting rod cap (4) to the connecting rod.
Illustration
g02720402
Illustration
g02720401
Note: Ensure that etched Number on connecting rod cap (4) matches etched Number on the connecting rod. Ensure the correct orientation of the connecting rod cap. The locating tab for the upper bearing shell and the lower bearing shell should be on the same side.
8. Install new bolts (3) to the connecting rod. Apply engine oil to the threads and tighten the bolts evenly to a torque of 41 to 46 N·m (30 to 34 lb ft).
sample
3
9. Position engine oil screen (1) and install the O-ring seal and bolt (2) .
10. Repeat Step 2 through Step 8 for the remaining connecting rod bearings.
Note: If all connecting rod bearings require replacement, the procedure can be carried out on two cylinders at the same time. The procedure can be carried out on the following pairs of cylinders. 1 with 4 and 2 with 3. Ensure that both pairs of the connecting rod bearings are installed before changing from one pair of cylinders to another pair of cylinders. Refer to Disassembly and Assembly, "Connecting Rod Bearings - Install" for the correct procedure.
C1.7, C1.8 and C2.4 Tier 4 Interim and EU Stage 3A Engines for Caterpillar Built Machines
Media Number -UENR0128-11
Connecting Rod Bearings - Remove
SMCS - 1219-011
Removal Procedure
Start By:
a. Remove the engine oil pan.
NOTICE
Keep all parts clean from contaminants.
Contaminants may cause rapid wear and shortened component life.
-09/06/2016
sample
NOTICE
Discard all used Connecting Rod fasteners.
Note: If all connecting rod bearings require replacement, the procedure can be carried out on two cylinders at the same time. The procedure can be carried out on the following pairs of cylinders. 1 with 4 and 2 with 3Ensure that both pairs of the connecting rod bearings are installed before changing
i05243649
from one pair of cylinders to another pair of cylinders. Refer to Disassembly and Assembly, "Connecting Rod Bearings - Install" for the correct procedure.
Illustration 1
sample
g02720399

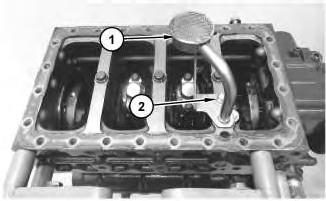

1. Remove bolt (2), the O-ring seal, and oil pump screen (1).
Illustration 2
g02720401
2. The connecting rod and the connecting rod cap should have an etched Number (X) on the side. The number on the connecting rod and the connecting rod cap must match. If necessary, make a temporary mark on the connecting rod and connecting rod cap (4) in order to identify the cylinder number.

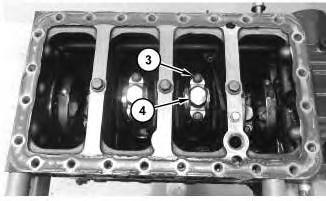

3. Remove bolts (3). Remove connecting rod cap (4) from the connecting rod.
3
4. Carefully push connecting rod (5) into the cylinder bore until connecting rod (5) is clear of the crankshaft. Remove upper bearing shell (6) from connecting rod (5). Keep the bearing shells together.
5. Repeat Step 2 through Step 4 for the remaining bearing shells.
Copyright 1993 - 2020 Caterpillar Inc. All Rights Reserved. Private Network For SIS Licensees. Wed Jul 15 13:58:06 UTC+0530 2020
C1.7, C1.8 and C2.4 Tier 4 Interim and EU Stage 3A Engines for Caterpillar Built Machines
Media Number -UENR0128-11 Publication Date -01/08/2015 Date Updated -09/06/2016
Coolant Temperature Sensor - Remove and Install
SMCS - 1906-010
Removal Procedure
NOTICE
Keep all parts clean from contaminants.
Contaminants may cause rapid wear and shortened component life.
NOTICE
Care must be taken to ensure that fluids are contained during performance of inspection, maintenance, testing, adjusting and repair of the product. Be prepared to collect the fluid with suitable containers before opening any compartment or disassembling any component containing fluids.
Dispose of all fluids according to local regulations and mandates.
i05243665
1. Drain the coolant from the cooling system to a level below the coolant temperature sensor. Refer to Operation and Maintenance Manual, "Cooling System Coolant - Change" for the correct draining procedure.
Illustration 1
sample
g02798196

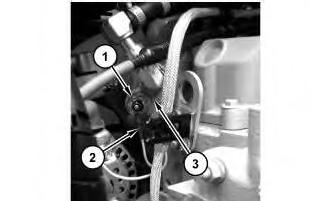

2. Disconnect harness assembly (2) from coolant temperature sensor (1).
3. Use a deep socket in order to remove coolant temperature sensor (1) from water temperature regulator (3).
Installation Procedure
1. Install coolant temperature sensor (1) in the reverse order of removal.
a. Use caution when tighten down harness assembly (2).
C1.7, C1.8 and C2.4 Tier 4 Interim and EU Stage 3A Engines for Caterpillar Built Machines
Media Number -UENR0128-11 Publication Date -01/08/2015 Date Updated -09/06/2016
sample
Crankshaft Front Seal - Remove
SMCS - 1160-011
Removal Procedure
Start By:
a. Remove the crankshaft pulley.
NOTICE
Keep all parts clean from contaminants.
Contaminants may cause rapid wear and shortened component life.
NOTICE
Care must be taken to ensure that fluids are contained during performance of inspection, maintenance, testing, adjusting and repair of the product. Be prepared to collect the fluid with suitable containers before opening any compartment or disassembling any component containing fluids.
Dispose of all fluids according to local regulations and mandates.
i05243500
sample
1

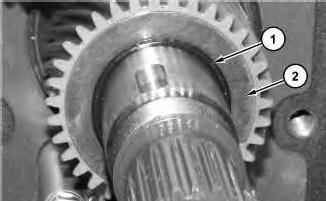

1. Remove key (1) and sleeve (2) from the crankshaft.
Illustration 2

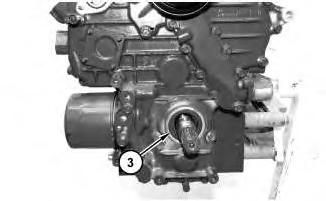

2. Remove crankshaft front seal (3).
Copyright 1993 - 2020 Caterpillar Inc. All Rights Reserved. Private Network For SIS Licensees.
C1.7, C1.8 and C2.4 Tier 4 Interim and EU Stage 3A Engines for Caterpillar Built Machines
Media Number -UENR0128-11 Publication
Crankshaft Main Bearings - Install
SMCS - 1203-012
Installation Procedure
Table 1
Required Tools Tool
B 387-1351
Crankshaft Bearing Driver -
C 129-1967 Multipurpose White Grease 1
-09/06/2016
i05243660
NOTICE
Keep all parts clean from contaminants.
Contaminants may cause rapid wear and shortened component life.
Note: Install the main bearings dry when the clearance checks are made.
Note: Install the crankshaft main bearings upper and lower halves, with the bearing tabs fitting into the notch of the crankshaft main bearing cases.
sample
1
2

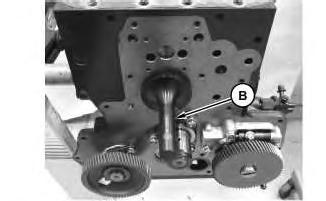

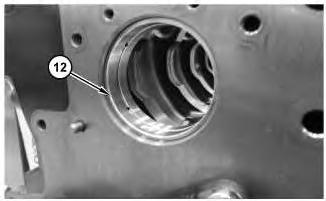

1. Use Tooling (B) and install crankshaft main bearing (12) into the front of the cylinder block. Install crankshaft main bearing (12) with the seam on the right or left side of the cylinder block.
Note: When the bearing clearance is checked, and the engine is in an upright position, or on the side. The crankshaft must be supported against the upper halves of the main bearings. Procedure is done in order to get a correct measurement with Tooling (B). If the crankshaft is not supported, the weight of the crankshaft will cause an incorrect reading. If the engine is not in an upright position or on the side, is not necessary to support the crankshaft.
Note: Refer to Guideline For Reusable Parts, SEBV0544, "Engine Bearings and Crankshafts" for complete details concerning the measurement of bearing clearances.
Illustration
g02715940
Illustration
g02719957
sample
3

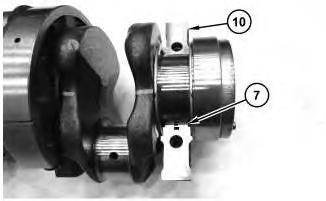

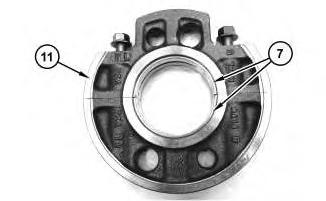

2. Apply Tooling (C) to crankshaft main bearings (7). Install crankshaft main bearings (7) in the upper and lower halves of crankshaft main bearing cases (11). Install three crankshaft main bearing cases (11).
Note: Be careful not to damage the bearings. Match each lower crankshaft main bearing case and the upper main bearing case in order to ensure installation in the original location. The three crankshaft main bearing cases are marked A-B-C with side markings FLYW and HEEL to face toward the flywheel. The rear crankshaft main bearing case to be installed with the bolt holes facing toward the rear of the cylinder block.
Illustration 4
Illustration
g02715307
g02715313
