ThrustPin
AdjustClearance HitchPins CheckforWear
Atoperatingtemperature,theenginecoolantishotandunder pressure.
Steamcancausepersonalinjury.
Checkthecoolantlevelonlyaftertheenginehasbeenstopped andthefillcapiscoolenoughtotouchwithyourbarehand.
Removethefillcapslowlytorelievepressure.
Coolingsystemconditionercontainsalkali.Avoidcontactwith theskinandeyestopreventpersonalinjury.
NOTICE
Allwateriscorrosiveatengineoperatingtemperatures.Usea Caterpillarcoolantconditionerelementtotreateitherplain waterorethyleneglycolsolution.
DonotuseCaterpillarcoolantconditionerelementswith Dowtherm209Full-Fillcoolant.Followrecommendations providedwithDowtherm209Full-Fillcoolant.
Ifthemachineistobeshippedto,orstoredin,anareawith temperaturesbelow0°C(32°F),thecoolingsystemmustbe protectedtothelowestexpectedambienttemperature.
Cleanthecoolingsystemifitiscontaminated,ifengine overheatsoriffoamingisobservedintheradiator.
EngineValveLash

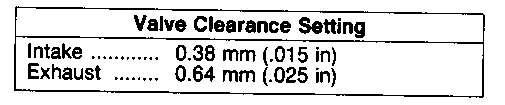

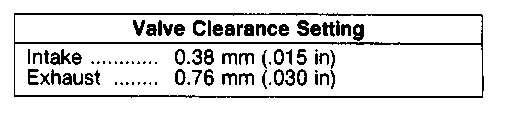

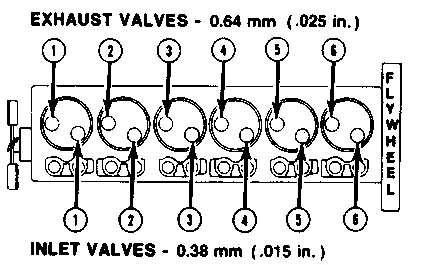

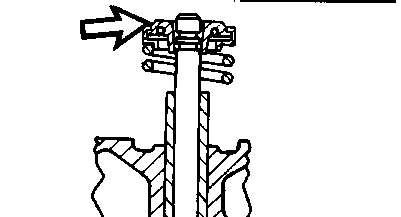

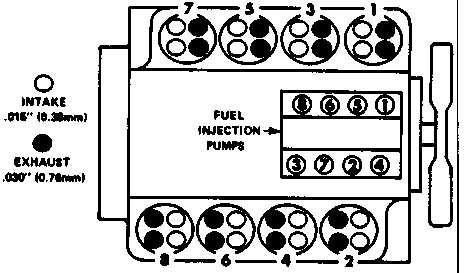

MeasureValveLash(Clearance)
Topreventpossibleinjury,donotusethestartermotortoturn theflywheel.
Hotenginecomponentscancauseburns.Allowadditionaltime fortheenginetocoolbeforemeasuringvalveclearance.
NOTICE
Measurethevalvelashwiththeenginestopped.Toobtainan accuratemeasurement,allowatleast20minutesforthevalves tocooltoenginecylinderheadandblocktemperature.
NOTE:
This is the sample of the manual Click on the download link for complete Manual
TueOct402:13:26UTC+05302022
Withalackofwheelcoolant,thebrakescangenerateenough heattoburnthetirebead.Aburningbeadproducesgases insidethetiresthatcanexplode,endangeringpersonnelwithin 500m(1500ft).
TueOct402:12:05UTC+05302022
Donotdroporrapthemagnetsonhardobjects.Replace damagedmagnets.
Fuelleakedorspilledontohotsurfacesorelectrical componentscancauseafire.
TurnthedisconnectswitchOFFordisconnectthebatterywhen changingfuelfilters.
NOTICE
Donotfillthefuelfilterswithfuelbeforeinstallingthem.This fuelwouldnotbefilteredandcouldbecontaminated. Contaminatedfuelwillcauseacceleratedweartothefuel systemparts.
Donotovertightenthefilterelement.
Thetractorfuelsystemisequippedwithtwofinalfuelfilter elements.Bothfilterelementsmustbechanged.
