i05237789 GeneralHazardInformation
Foreword
Donotoperateorworkonthismachineunlessyouhaveread andunderstandtheinstructionsandwarningsintheOperation andMaintenanceManuals.Failuretofollowtheinstructionsor heedthewarningscouldresultininjuryordeath.Contactyour Catdealerforreplacementmanuals.Propercareisyour responsibility.
Introduction
Copyright1993-2024CaterpillarInc. AllRightsReserved. PrivateNetworkForSISLicensees.
FriFeb223:13:46UTC+05302024
Product:WHEELTRACTOR
Model:627BWHEELTRACTOR14S
Configuration:627BTRACTOR14S00662-01079(MACHINE)POWEREDBY3306ENGINE
OperationandMaintenanceManual
ProductLink-121SR/321SR/420/421/522/523
MediaNumber-SEBU8142-04PublicationDate-01/01/2013DateUpdated-24/10/2017 i05237749
SafetySignsandLabels
Donotoperateorworkonthismachineunlessyouhaveread andunderstandtheinstructionsandwarningsintheOperation andMaintenanceManuals.Failuretofollowtheinstructionsor heedthewarningscouldresultininjuryordeath.Contactyour Catdealerforreplacementmanuals.Propercareisyour responsibility.
SafetyMessages
ThewarningfilminIllustration1canbefoundinalocationsuchasthedash.Thewarningfilm willbeclearlyvisibletotheoperatorduringthenormaloperationofthemachine.
ThismachineisequippedwithaCaterpillarProductLink communicationdevice.Whenelectricdetonatorsareused,this communicationdeviceshouldbedeactivatedwithin12m(40ft) ofablastsite,orwithinthedistancemandatedunderapplicable legalrequirements.Failuretodosocouldcauseinterference withblastingoperationsandresultinseriousinjuryordeath.
Copyright1993-2024CaterpillarInc. AllRightsReserved. PrivateNetworkForSISLicensees.
FriFeb223:13:24UTC+05302024
Product:WHEELTRACTOR
Model:627BWHEELTRACTOR14S
Configuration:627BTRACTOR14S00662-01079(MACHINE)POWEREDBY3306ENGINE
i07161769
FriFeb223:14:42UTC+05302024
This is the sample of the manual Click on the download link for complete Manual
Product:WHEELTRACTOR
Model:627BWHEELTRACTOR14S
Configuration:627BTRACTOR14S00662-01079(MACHINE)POWEREDBY3306ENGINE
OperationandMaintenanceManual
ProductLink-121SR/321SR/420/421/522/523
MediaNumber-SEBU8142-04PublicationDate-01/01/2013DateUpdated-24/10/2017
NOTICE
ThetransmissionofinformationusingaCaterpillarProduct Linkcommunicationdeviceissubjecttolegalrequirements. Thelegalrequirementsmayvaryfromlocationtolocation, including,butnotlimitedto,radiofrequencyuseauthorization. TheuseofaCaterpillarProductLinkcommunicationdevice mustbelimitedtothoselocationswherealllegalrequirements fortheuseoftheCaterpillarProductLinkcommunication deviceandcommunicationnetworkhavebeensatisfied.
IfequipmentoutfittedwiththeCaterpillarProductLink communicationdeviceislocatedinorrelocatedtoalocation where(i)legalrequirementsarenotsatisfiedor(ii)transmitting orprocessingofsuchinformationacrossmultiplelocations wouldnotbelegal,Caterpillardisclaimsanyliabilityrelatedto suchfailuretocomply,andCaterpillarmaydiscontinuethe transmissionofinformationfromthatequipment.
ConsultyourCatdealerwithanyquestionsthatconcernthe operationoftheProductLinksysteminaspecificcountry.
Copyright1993-2024CaterpillarInc. AllRightsReserved. PrivateNetworkForSISLicensees.
FriFeb223:14:28UTC+05302024
OperationinaBlastSiteforProductLinkRadios
ThisequipmentisequippedwithaCat®ProductLink communicationdevice.Whenelectricdetonatorsarebeingused forblastingoperations,radiofrequencydevicescancause interferencewithelectricdetonatorsforblastingoperations whichcanresultinseriousinjuryordeath.TheProductLink communicationdeviceshouldbedeactivatedwithinthedistance mandatedunderallapplicablenationalorlocalregulatory requirements.Intheabsenceofanyregulatoryrequirements Caterpillarrecommendstheenduserperformtheirownrisk assessmenttodeterminesafeoperatingdistance.
Note:
Product:WHEELTRACTOR
Model:627BWHEELTRACTOR14S
Configuration:627BTRACTOR14S00662-01079(MACHINE)POWEREDBY3306ENGINE
s00514343
Product:WHEELTRACTOR
Model:627BWHEELTRACTOR14S
Configuration:627BTRACTOR14S00662-01079(MACHINE)POWEREDBY3306ENGINE
OperationandMaintenanceManual
627BWHEELTRACTOR-SCRAPER
MediaNumber-SEBU5751-00PublicationDate-01/05/1984DateUpdated-11/10/2001
AfterStartingtheEngines
Besureallgaugesareinthenormaloperatingrange.Makesuretheparkingbrakeisapplied.
Checkthetractortransmissionoillevelwiththeenginerunningatlowidle.
MaintaintheoillevelbetweentheADDandFULLmarksonthesightgauge.
Checkthetractorengineoillevelbetweenshiftswiththeenginerunningifitisnottobestopped

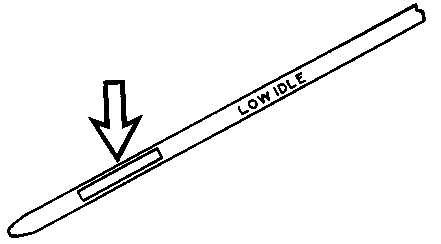

MaintaintheoillevelbetweentheADDandFULLmarksontheLOWIDLEsideofthedipstick.
Checkthescrapertransmissionoillevel.MaintaintheoillevelbetweentheADDandFULLmarkson thesightgauge.
Checkthescraperengineoillevelbetweenshiftswiththeenginerunningifitisnottobestopped.

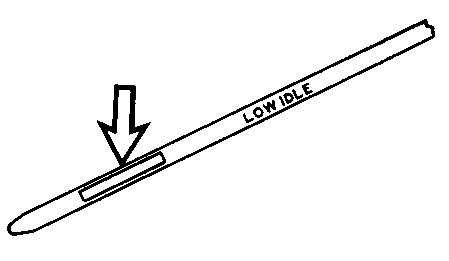

MaintaintheoillevelintheareaindicatedontheLOWIDLEsideofthedipstick. Operatetheenginesatlowidleuntilthehydraulicoiliswarm. Testthehydrauliccontrols.Allowextrawarmuptimeiftheyaresluggish.
Copyright1993-2024CaterpillarInc. AllRightsReserved. PrivateNetworkForSISLicensees.
FriFeb223:18:28UTC+05302024
Product:WHEELTRACTOR
Model:627BWHEELTRACTOR14S
Configuration:627BTRACTOR14S00662-01079(MACHINE)POWEREDBY3306ENGINE
OperationandMaintenanceManual
627BWHEELTRACTOR-SCRAPER
MediaNumber-SEBU5751-00PublicationDate-01/05/1984DateUpdated-11/10/2001
BeforeStartingtheEngines
Walk-AroundInspection
Forpersonalsafetyandmaximumservicelifeofthemachine,itisimportanttomakeathoroughwalk -aroundinspectionofthefollowingmachineareasbeforestartingtheengines.
Lookaroundandunderthemachineforsuchitemsaslooseormissingbolts,trashbuildup,andoil, fuelorcoolantleaks.Inspecttheconditionandinflationofthetires,conditionofthebowl,hitch,draft armsandhydrauliccomponents.
Tractor
1.Inspectthetiresfordamageandproperinflation.See"TireInflationInformation."
2.Inspecttheconditionandcleanlinessofstepsandhandholds.Repairandcleanstepsandhandholds ifnecessary.
3.InspecttheRolloverProtectiveStructure(ROPS)forbent,crackedordamagedstructureandfor loosemountingbolts.Abent,crackedordamagedROPSshouldbereplaced.
4.Inspectthetractorenginecompartmentforoil,fuelandcoolantleaks.Lookfortrashbuildup.Stop anyleaksandremovealltrash.
5.Inspectthetractoraircleanerelementsifthepistonintheaircleanerindicatorshowsred.
6.Inspectthetractorradiatorcoreandtheguardfordirtanddebris.Removeanydirtanddebris.
7.Inspectthetractorenginecompartmentforloose,damagedormissingsprayshields.Makerepairs asnecessary.
8.Inspecttheairinletscreenfordirtanddebris.Removeanydirtanddebris.
9.Inspectthehydraulicandfueltanksforcracks,leaksandmissingbolts.Makerepairsasnecessary.
10.Inspectthedifferentialandfinaldrivesforleaks.Stopanyleaks.
11.Inspectthetransmissionforleaks.Stopanyleaks.
12.Inspectthehitchcomponentsforcracksincastings,wornpinjointsanddamagedstops.Make repairsasnecessary.
13.Inspectthehydraulictubesandhosesforlooseclampsandmountingbolts.Inspectforwornor frayedhoses.Makerepairsasnecessary.
14.Inspectthesteeringlinkageforcracksandwornordamagedcomponents.Makerepairsas necessary.
15.Inspectthedraftframegooseneckandcrosstubeforcracks,damageordistortion.Inspectfor looseormissingdraftarmmountingbolts.Makerepairsasnecessary.
16.Inspectthebowlfordamageordistortion.Makerepairsasnecessary.
17.Inspectthedraftarmsforcracksordistortion.Theclearancebetweenthedraftarmwearplateand thesidesofthebowlshouldbe.76to3.00mm(.03to.12in).Makerepairsasnecessary.
18.Inspecttheejectorfordamageordistortion.Makerepairsasnecessary.
19.Inspectthecuttingedgesforwear,damageormissingbolts.Makerepairsasnecessary.
20.Inspectthescraperdifferentialandfinaldrivesforleaks.Stopanyleaks.
This is the sample of the manual Click on the download link for complete Manual
