545D Caterpillar Wheel Skidder Operation and Maintenance Manual by quality service repair manual

Product:WHEELSKIDDER

Model:545DWHEELSKIDDER4L5

Configuration:545DWHEELSKIDDER4L500001-UP(MACHINE)POWEREDBYC7.1Engine

Foreword

CaliforniaProposition65Warning

handling.

ThuMay3011:02:37UTC+05302024

s02215701

Product:WHEELSKIDDER

Model:545DWHEELSKIDDER4L5

Configuration:545DWHEELSKIDDER4L500001-UP(MACHINE)POWEREDBYC7.1Engine

OperationandMaintenanceManual 525D,535D,545D,555DWheelSkidder

MediaNumber-SEBU8540-15PublicationDate-01/08/2019DateUpdated-12/08/2019

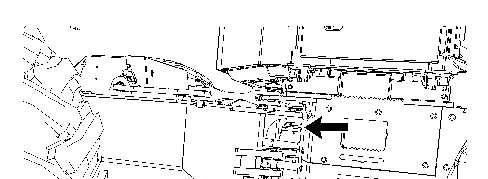

ArticulationBearings-Lubricate

SMCS-7057-086-BD;7065-086-BD;7066-086-BD

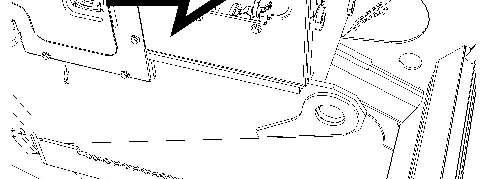

CrushingHazard.Connectthesteeringframelockbetweenfrontand rearframesbeforeservicingthemachineinthearticulationarea. Disconnectthesteeringframelockandsecureitinthestoredposition beforeresumingoperation.Failuretodosocouldresultinserious injuryordeath.

EnsurethatthemachineignitionswitchisintheOFFpositionandthattheparkingbrakeis engagedbeforeenteringthearticulationarea.

RefertoOperationandMaintenanceManual,"SteeringFrameLock" beforeenteringthearticulationjoint.

Wipeallfittingsbeforeapplyinggrease.

i05907103

Product:WHEELSKIDDER

Model:545DWHEELSKIDDER4L5

Configuration:545DWHEELSKIDDER4L500001-UP(MACHINE)POWEREDBYC7.1Engine

OperationandMaintenanceManual 525D,535D,545D,555DWheelSkidder

MediaNumber-SEBU8540-15PublicationDate-01/08/2019DateUpdated-12/08/2019

AxleOscillationBearings-Lubricate

SMCS-3278-086-BD

i05325226

Illustration2g03385754

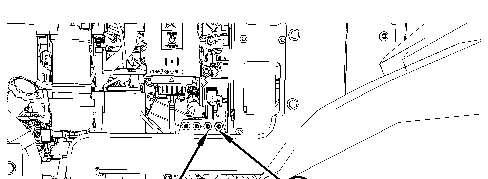

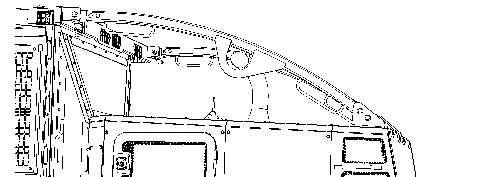

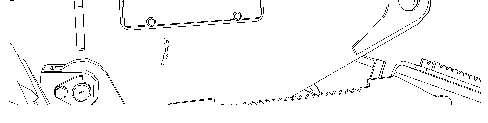

Opentheengineaccessdoorontheleft-handsideofthemachine. Wipeoffthefittingsbeforeyouapplyanylubricant.

Applylubricantthroughtworemotefittings(1)and(2)inordertogreasethebearingsforthe oscillatingaxle.

ThuMay3011:14:49UTC+05302024

Product:WHEELSKIDDER

Model:545DWHEELSKIDDER4L5

Configuration:545DWHEELSKIDDER4L500001-UP(MACHINE)POWEREDBYC7.1Engine

i07469252

BackupAlarm-Test

SMCS-7406-081

1.TurntheenginestartswitchtotheONposition.Donotstarttheengine.

2.MovethetransmissiondirectioncontrolswitchtotheREVERSEposition.

3.Thebackupalarmshouldimmediatelysound.Thebackupalarmwillcontinuetosounduntilthe transmissioncontrolismovedtotheNEUTRALpositionortotheFORWARDposition.

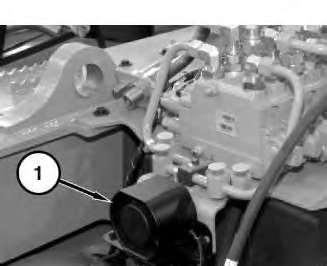

Thebackupalarm(1)ismountedontherearofthemachine.

Accesstothebackupalarmrequiresremovalofupperrearaccesspanel.

Note:OnmachinesequippedwithaHighRotationSeat,anadditionalalarmismountedatthefrontof themachine.Whichalarmsoundswilldependonseatposition.

Athree-positionswitchattherearofthebackupalarmregulatesthesoundofthealarm(HIGH, LOW,andMEDIUM).

Thealarmissetatthemaximumsoundlevelwhenthemachineisshippedfromthefactory.The settingshouldremainonHIGHunlessthejobsiterequiresalowersoundlevel.

ThuMay3011:15:03UTC+05302024

This is the sample of the manual Click on the download link for complete Manual

Product:WHEELSKIDDER

Model:545DWHEELSKIDDER4L5

Configuration:545DWHEELSKIDDER4L500001-UP(MACHINE)POWEREDBYC7.1Engine

OperationandMaintenanceManual 525D,535D,545D,555DWheelSkidder

MediaNumber-SEBU8540-15PublicationDate-01/08/2019DateUpdated-12/08/2019

Personalinjurymayoccurfromfailuretoproperlyservicethebatteries.

Batteriesgiveoffflammablefumesthatcanexplode.Electrolyteisan acidandcancausepersonalinjuryifitcontactstheskinoreyes.

Preventsparksnearthebatteries.Sparkscouldcausevaporstoexplode. Donotallowjumpercableendstocontacteachotherortheengine. Improperjumpercableconnectionscancauseanexplosion.

Alwayswearprotectiveglasseswhenworkingwithbatteries.

Illustration1g03385980

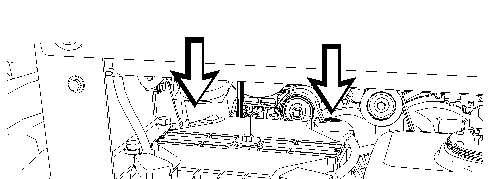

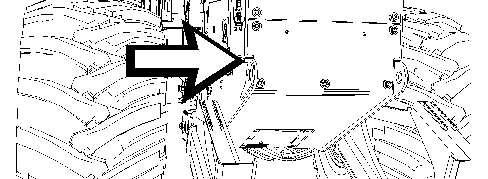

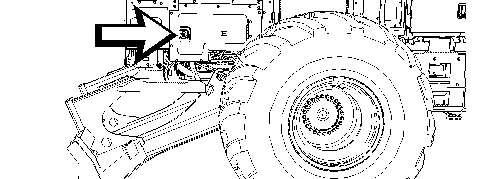

Beforeyoucancleanthebatteryterminals,removethefrontlowerenginecompartmentaccesspanel. Thefrontlowerenginecompartmentaccesspanelisboltedtothemachine.

Removeboltsfromtheenginecompartmentaccesspanel.

Illustration2g03386187

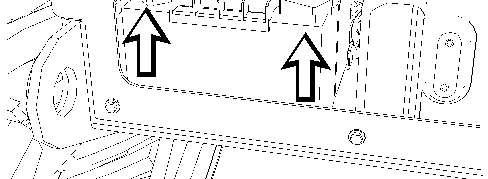

Loosenandremovethebatterycoverknob(1).

Removethebatteryholddownplate(2).

Cleanthebatteryterminalsandthesurfacesofthebatterieswithacleancloth.Coatthebattery terminalswithpetroleumjelly.Makesurethatthebatterycablesareinstalledsecurely.

Reinstallthebatteryholddownplate,thebatteryholddownknobandtheenginecompartmentaccess panel.

ThuMay3011:15:17UTC+05302024

Product:WHEELSKIDDER

Model:545DWHEELSKIDDER4L5

Configuration:545DWHEELSKIDDER4L500001-UP(MACHINE)POWEREDBYC7.1Engine

OperationandMaintenanceManual 525D,535D,545D,555DWheelSkidder

MediaNumber-SEBU8540-15PublicationDate-01/08/2019DateUpdated-12/08/2019

Battery-Recycle

SMCS-1401-561

i08232552

Alwaysrecycleabattery.Neverdiscardabattery.Returnusedbatteriestooneofthefollowing locations:

•Abatterysupplier

•Anauthorizedbatterycollectionfacility

•Arecyclingfacility

ThuMay3011:15:31UTC+05302024

Product:WHEELSKIDDER

Model:545DWHEELSKIDDER4L5

Configuration:545DWHEELSKIDDER4L500001-UP(MACHINE)POWEREDBYC7.1Engine

MediaNumber-SEBU8540-15PublicationDate-01/08/2019DateUpdated-12/08/2019

BatteryHold-Down-Tighten

SMCS-7257-527

i05326609

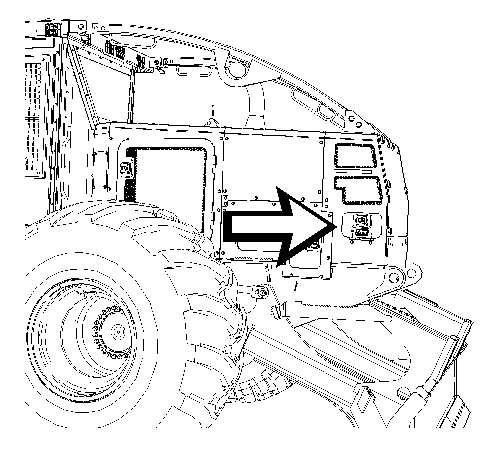

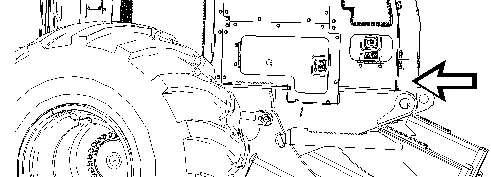

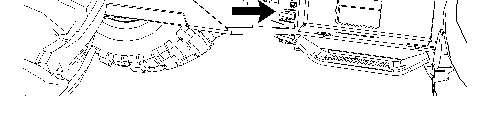

Thebatteriesarelocatedinthefrontengineaccesscompartmentofthemachine.Theaccessdoorfor thebatteriesislocatedontheleft-handsideofthemachine.

Illustration2g03386628

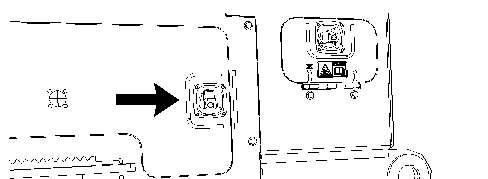

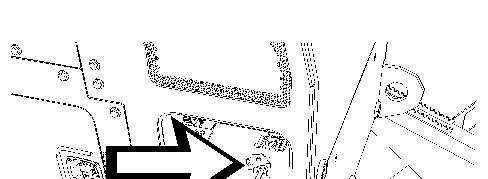

Opentheaccessdoorontheleft-handsideofthemachinetoaccessthebatteryholddownknob.

Illustration3g03386807

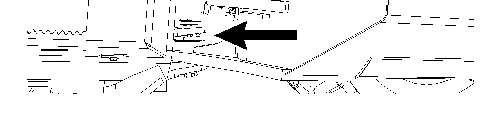

Tightentheknobbyturningclockwise.

Illustration4g03386658

Overtime,thevibrationofanoperatingmachinecancausethebatteryhold-downtoloosen.Tohelp preventloosebatteriesandthepossibilityofloosecableconnections,tightenallfasteninghardware refertoOperationandMaintenanceManual,"Battery-Clean"forproperaccesstobattery.

ThuMay3011:15:45UTC+05302024

Product:WHEELSKIDDER

Model:545DWHEELSKIDDER4L5

Configuration:545DWHEELSKIDDER4L500001-UP(MACHINE)POWEREDBYC7.1Engine

OperationandMaintenanceManual

525D,535D,545D,555DWheelSkidder

MediaNumber-SEBU8540-15PublicationDate-01/08/2019DateUpdated-12/08/2019

BatteryorBatteryCable-Inspect/Replace

SMCS-1401-040;1401-510;1402-510;1402-040

Personalinjurymayoccurfromfailuretoproperlyservicethebatteries.

Batteriesgiveoffflammablefumesthatcanexplode.Electrolyteisan acidandcancausepersonalinjuryifitcontactstheskinoreyes.

Preventsparksnearthebatteries.Sparkscouldcausevaporstoexplode. Donotallowjumpercableendstocontacteachotherortheengine. Improperjumpercableconnectionscancauseanexplosion.

Alwayswearprotectiveglasseswhenworkingwithbatteries.

1.Preparethemachineformaintenance.RefertoOperationandMaintenanceManual,Preparethe MachineforMaintenance.

2.TurntheenginestartswitchkeyOFF.TurnalloftheswitchesOFF.

3.TurnthebatterydisconnectswitchOFF.Removethekey.

4.Disconnectthenegativebatterycablefromthedisconnectswitch.

Note:Donotallowthedisconnectedbatterycabletocontactthedisconnectswitch.

5.Disconnectthenegativebatterycableatthebattery.

i08185587

6.Disconnectthepositivebatterycableatthebattery.

7.Inspectthebatteryterminalsforcorrosion.Inspectthebatterycablesforwearordamage.

8.Makeanynecessaryrepairs.Ifnecessary,replacethebatterycablesorthebattery.

9.Connectthepositivebatterycableatthebattery.

10.Connectthenegativebatterycableatthebattery.

11.Connectthebatterycableatthebatterydisconnectswitch.

12.InstallthekeyandturnthebatterydisconnectswitchON.

RecycletheBattery

Alwaysrecycleabattery.Neverdiscardabattery.

Alwaysreturnusedbatteriestooneofthefollowinglocations:

•Abatterysupplier

•Anauthorizedbatterycollectionfacility

•Recyclingfacility

AllRightsReserved. PrivateNetworkForSISLicensees.

ThuMay3011:16:02UTC+05302024

Product:WHEELSKIDDER

Model:545DWHEELSKIDDER4L5

Configuration:545DWHEELSKIDDER4L500001-UP(MACHINE)POWEREDBYC7.1Engine

OperationandMaintenanceManual 525D,535D,545D,555DWheelSkidder

MediaNumber-SEBU8540-15PublicationDate-01/08/2019DateUpdated-12/08/2019

Belt-Inspect

SMCS-1357-040;1357;1397-040

i05877651

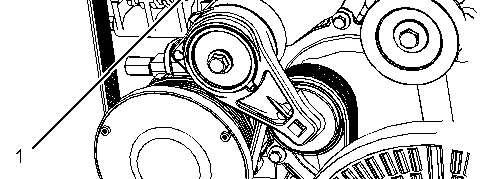

Tomaximizetheengineperformance,inspectthebelt(1)forwearandforcracking.Replacethebelt ifthebeltiswornordamaged.

•Inspectthebeltforcracks,splits,glazing,grease,displacementofthecordandevidenceof fluidcontamination.

Thebeltmustbereplacedifthefollowingconditionsarepresent.

•Thebelthasacrackinmorethanonerib.

•Morethanonesectionofthebeltisdisplacedinoneribofamaximumlengthof50.8mm(2 inch).

Toreplacethebelt,refertoDisassemblyandAssembly,"AlternatorBelt-RemoveandInstall".If necessary,replacethebelttensioner.RefertoDisassemblyandAssembly,"AlternatorBelt-Remove andInstall"forthecorrectprocedure.

ThuMay3011:16:19UTC+05302024

Product:WHEELSKIDDER

Model:545DWHEELSKIDDER4L5

Configuration:545DWHEELSKIDDER4L500001-UP(MACHINE)POWEREDBYC7.1Engine

OperationandMaintenanceManual

525D,535D,545D,555DWheelSkidder

MediaNumber-SEBU8540-15PublicationDate-01/08/2019DateUpdated-12/08/2019

Belt-Inspect/Adjust/Replace

SMCS-1397-025;1397-040;1397-510

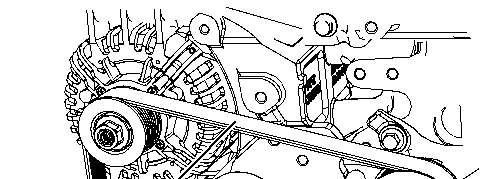

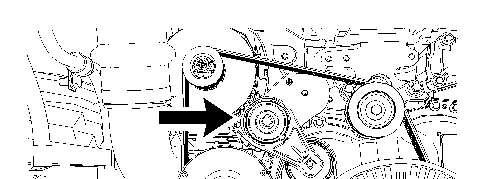

Note:Thisengineisequippedwithabelttightenerthatautomaticallyadjuststhebelttothecorrect tension. Illustration1g03642922

1.Gainaccesstothebeltthroughtheright-handlowerengineaccessdoor.

2.Inspectthebeltforwearandforcracking.

3.Ifthebeltrequiresreplacement,performStep3.athroughStep3.e.

i05731200

Illustration2g03642930

a.Rotatethebelttensionerclockwiseinordertoremovethebelt.

b.Removethebelt.

c.Installanewbelt.

d.Rotatethebelttensionerclockwiseinordertoinstallthebelt.

e.Installtheupperfanguard.

f.Closetheengineaccessdoor.

ThuMay3011:16:33UTC+05302024

Product:WHEELSKIDDER

Model:545DWHEELSKIDDER4L5

Configuration:545DWHEELSKIDDER4L500001-UP(MACHINE)POWEREDBYC7.1Engine

SMCS-1358-535

i05877649

Removethebelt.RefertoDisassemblyandAssembly,"AlternatorBelt-RemoveandInstall".

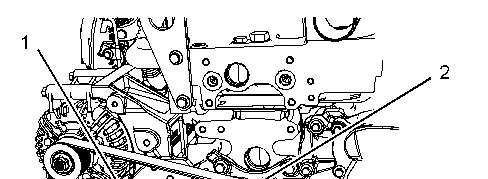

Ensurethatthebelttensionerissecurelyinstalled.Visuallyinspectthebelttensioner(1)fordamage. Checkthatthepulleyonthetensionerrotatesfreelyandthatthebearingisnotloose.Someengines haveanidlerpulley(2).Ensurethattheidlerpulleyissecurelyinstalled.Visuallyinspecttheidler pulleyfordamage.Ensurethattheidlerpulleycanrotatefreelyandthatthebearingisnotloose.If necessary,replacedamagedcomponents.

Installthebelt.RefertoDisassemblyandAssembly,"AlternatorBelt-RemoveandInstall".

ThuMay3011:16:48UTC+05302024
