ArticulationBearings-Lubricate
SMCS-7057-086-BD;7065-086-BD;7066-086-BD
CrushingHazard.Connectthesteeringframelockbetweenfrontand rearframesbeforeservicingthemachineinthearticulationarea. Disconnectthesteeringframelockandsecureitinthestoredposition beforeresumingoperation.Failuretodosocouldresultinserious injuryordeath.
EnsurethatthemachineignitionswitchisintheOFFpositionandthattheparkingbrakeis engagedbeforeenteringthearticulationarea.
RefertoOperationandMaintenanceManual,"SteeringFrameLock" beforeenteringthearticulationjoint.
Wipeallfittingsbeforeapplyinggrease.

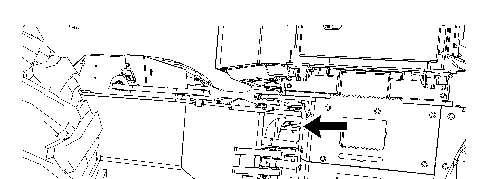

Illustration2g03719182
Applygreasetoonefittingontheupperpivotbearingandonefittingonthelowerpivotbearing.
ThuFeb2320:43:07UTC+05302023
Product:WHEELSKIDDER
Model:535DWHEELSKIDDERMTP
Configuration:535DWHEELSKIDDERMTP00001-UP(MACHINE)POWEREDBYC7.1Engine
OperationandMaintenanceManual
525D,535D,545D,555DWheelSkidder
MediaNumber-SEBU8540-09PublicationDate-01/01/2018DateUpdated-02/01/2018
AxleOscillationBearings-Lubricate
SMCS-3278-086-BD

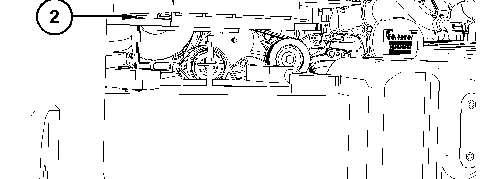

Illustration2g03385754
Opentheengineaccessdoorontheleft-handsideofthemachine.
Wipeoffthefittingsbeforeyouapplyanylubricant.
Applylubricantthroughtworemotefittings(1)and(2)inordertogreasethebearingsforthe oscillatingaxle.
Copyright1993-2023CaterpillarInc. AllRightsReserved. PrivateNetworkForSISLicensees.
ThuFeb2320:43:32UTC+05302023
Product:WHEELSKIDDER
Model:535DWHEELSKIDDERMTP
Configuration:535DWHEELSKIDDERMTP00001-UP(MACHINE)POWEREDBYC7.1Engine
OperationandMaintenanceManual
525D,535D,545D,555DWheelSkidder
MediaNumber-SEBU8540-09PublicationDate-01/01/2018DateUpdated-02/01/2018
BackupAlarm-Test
SMCS-7406-081
1.TurntheenginestartswitchtotheONposition.Donotstarttheengine.
2.MovethetransmissiondirectioncontrolswitchtotheREVERSEposition.
3.Thebackupalarmshouldimmediatelysound.Thebackupalarmwillcontinuetosounduntil thetransmissioncontrolismovedtotheNEUTRALpositionortotheFORWARDposition.

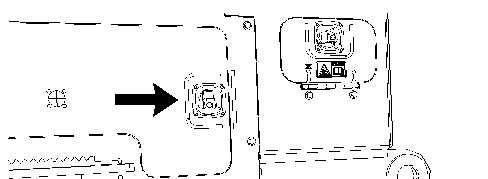

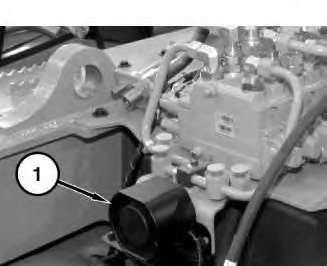

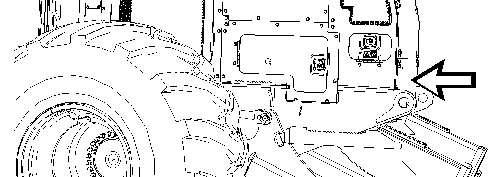

Thebackupalarm(1)ismountedontherearofthemachine. Accesstothebackupalarmrequiresremovalofupperrearaccesspanel.
Athree-positionswitchattherearofthebackupalarmregulatesthesoundofthealarm(HIGH, LOW,andMEDIUM).
Thealarmissetatthemaximumsoundlevelwhenthemachineisshippedfromthefactory.The settingshouldremainonHIGHunlessthejobsiterequiresalowersoundlevel.
Copyright1993-2023CaterpillarInc. AllRightsReserved. PrivateNetworkForSISLicensees. ThuFeb2320:43:45UTC+05302023
This is the sample of the manual Click on the download link for complete Manual
Product:WHEELSKIDDER
Model:535DWHEELSKIDDERMTP
Configuration:535DWHEELSKIDDERMTP00001-UP(MACHINE)POWEREDBYC7.1Engine
OperationandMaintenanceManual
525D,535D,545D,555DWheelSkidder
MediaNumber-SEBU8540-09PublicationDate-01/01/2018DateUpdated-02/01/2018
Battery-Clean
SMCS-1401-070
Personalinjurymayoccurfromfailuretoproperlyservicethebatteries.
Batteriesgiveoffflammablefumesthatcanexplode.Electrolyteisan acidandcancausepersonalinjuryifitcontactstheskinoreyes.
Preventsparksnearthebatteries.Sparkscouldcausevaporstoexplode. Donotallowjumpercableendstocontacteachotherortheengine. Improperjumpercableconnectionscancauseanexplosion. Alwayswearprotectiveglasseswhenworkingwithbatteries.
Illustration1g03385980

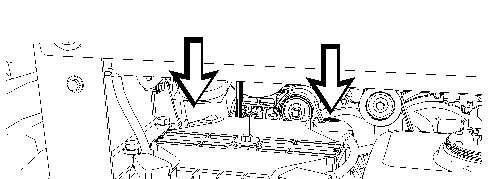

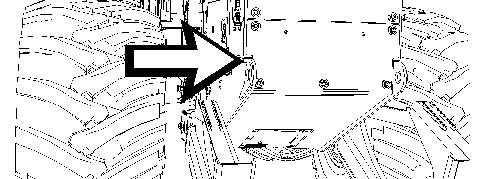

Beforeyoucancleanthebatteryterminals,removethefrontlowerenginecompartmentaccess panel.Thefrontlowerenginecompartmentaccesspanelisboltedtothemachine.
Removeboltsfromtheenginecompartmentaccesspanel.
Illustration2g03386187
Loosenandremovethebatterycoverknob(1).
Removethebatteryholddownplate(2).
Cleanthebatteryterminalsandthesurfacesofthebatterieswithacleancloth.Coatthebattery terminalswithpetroleumjelly.Makesurethatthebatterycablesareinstalledsecurely.
Reinstallthebatteryholddownplate,thebatteryholddownknobandtheenginecompartment accesspanel.
Copyright1993-2023CaterpillarInc. AllRightsReserved. PrivateNetworkForSISLicensees.
ThuFeb2320:43:58UTC+05302023
Product:WHEELSKIDDER
Model:535DWHEELSKIDDERMTP
Configuration:535DWHEELSKIDDERMTP00001-UP(MACHINE)POWEREDBYC7.1Engine
OperationandMaintenanceManual 525D,535D,545D,555DWheelSkidder
MediaNumber-SEBU8540-09PublicationDate-01/01/2018DateUpdated-02/01/2018
Battery-Recycle
SMCS-1401-561
Alwaysrecycleabattery.Neverdiscardabattery.Returnusedbatteriestooneofthefollowing locations:
•Abatterysupplier
•Anauthorizedbatterycollectionfacility
•Arecyclingfacility
Copyright1993-2023CaterpillarInc. AllRightsReserved. PrivateNetworkForSISLicensees.
ThuFeb2320:44:10UTC+05302023
Product:WHEELSKIDDER
Model:535DWHEELSKIDDERMTP
Configuration:535DWHEELSKIDDERMTP00001-UP(MACHINE)POWEREDBYC7.1Engine
OperationandMaintenanceManual 525D,535D,545D,555DWheelSkidder
MediaNumber-SEBU8540-09PublicationDate-01/01/2018DateUpdated-02/01/2018
BatteryHold-Down-Tighten
SMCS-7257-527 Illustration1g03386656
Thebatteriesarelocatedinthefrontengineaccesscompartmentofthemachine.Theaccessdoor forthebatteriesislocatedontheleft-handsideofthemachine.
Illustration2g03386628

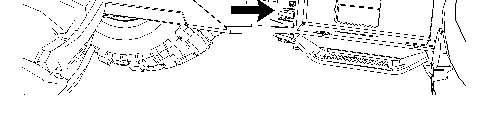

Opentheaccessdoorontheleft-handsideofthemachinetoaccessthebatteryholddownknob.
Illustration3g03386807 Tightentheknobbyturningclockwise.
Illustration4g03386658
Overtime,thevibrationofanoperatingmachinecancausethebatteryhold-downtoloosen.To helppreventloosebatteriesandthepossibilityofloosecableconnections,tightenallfastening hardwarerefertoOperationandMaintenanceManual,"Battery-Clean"forproperaccessto battery.
Copyright1993-2023CaterpillarInc. AllRightsReserved. PrivateNetworkForSISLicensees.
ThuFeb2320:44:23UTC+05302023
Product:WHEELSKIDDER
Model:535DWHEELSKIDDERMTP
Configuration:535DWHEELSKIDDERMTP00001-UP(MACHINE)POWEREDBYC7.1Engine
OperationandMaintenanceManual
525D,535D,545D,555DWheelSkidder
MediaNumber-SEBU8540-09PublicationDate-01/01/2018DateUpdated-02/01/2018
BatteryorBatteryCable-Inspect/Replace
SMCS-1401-040;1401-510;1402-040;1402-510
Personalinjurymayoccurfromfailuretoproperlyservicethebatteries.
Batteriesgiveoffflammablefumesthatcanexplode.Electrolyteisan acidandcancausepersonalinjuryifitcontactstheskinoreyes.
Preventsparksnearthebatteries.Sparkscouldcausevaporstoexplode. Donotallowjumpercableendstocontacteachotherortheengine. Improperjumpercableconnectionscancauseanexplosion.
Alwayswearprotectiveglasseswhenworkingwithbatteries.
1.TurntheenginestartswitchkeyOFF.TurnalloftheswitchesOFF.
2.TurnthebatterydisconnectswitchOFF.Removethekey.
3.Disconnectthenegativebatterycablefromthedisconnectswitch.
Note:Donotallowthedisconnectedbatterycabletocontactthedisconnectswitch.
4.Disconnectthenegativebatterycableatthebattery.
5.Disconnectthepositivebatterycableatthebattery.
6.Inspectthebatteryterminalsforcorrosion.Inspectthebatterycablesforwearordamage.
7.Makeanynecessaryrepairs.Ifnecessary,replacethebatterycablesorthebattery.
8.Connectthepositivebatterycableatthebattery.
9.Connectthenegativebatterycableatthebattery.
10.Connectthebatterycableatthebatterydisconnectswitch.
11.InstallthekeyandturnthebatterydisconnectswitchON.
RecycletheBattery
Alwaysrecycleabattery.Neverdiscardabattery.
Alwaysreturnusedbatteriestooneofthefollowinglocations:
•Abatterysupplier
•Anauthorizedbatterycollectionfacility
•Recyclingfacility
Copyright1993-2023CaterpillarInc. AllRightsReserved. PrivateNetworkForSISLicensees.
ThuFeb2320:44:35UTC+05302023
Product:WHEELSKIDDER
Model:535DWHEELSKIDDERMTP
Configuration:535DWHEELSKIDDERMTP00001-UP(MACHINE)POWEREDBYC7.1Engine
OperationandMaintenanceManual 525D,535D,545D,555DWheelSkidder
MediaNumber-SEBU8540-09PublicationDate-01/01/2018DateUpdated-02/01/2018
Belt-Inspect
SMCS-1357-040;1357;1397-040;1397
Tomaximizetheengineperformance,inspectthebelt(1)forwearandforcracking.Replacethe beltifthebeltiswornordamaged.
•Inspectthebeltforcracks,splits,glazing,grease,displacementofthecordandevidenceof fluidcontamination.
Thebeltmustbereplacedifthefollowingconditionsarepresent.
•Thebelthasacrackinmorethanonerib.
•Morethanonesectionofthebeltisdisplacedinoneribofamaximumlengthof50.8mm(2 inch).
Toreplacethebelt,refertoDisassemblyandAssembly,"AlternatorBelt-RemoveandInstall".If necessary,replacethebelttensioner.RefertoDisassemblyandAssembly,"AlternatorBeltRemoveandInstall"forthecorrectprocedure.
Copyright1993-2023CaterpillarInc. AllRightsReserved. PrivateNetworkForSISLicensees.
ThuFeb2320:44:48UTC+05302023
Product:WHEELSKIDDER
Model:535DWHEELSKIDDERMTP
Configuration:535DWHEELSKIDDERMTP00001-UP(MACHINE)POWEREDBYC7.1Engine
OperationandMaintenanceManual
525D,535D,545D,555DWheelSkidder
MediaNumber-SEBU8540-09PublicationDate-01/01/2018DateUpdated-02/01/2018
Belt-Inspect/Adjust/Replace
SMCS-1397-510;1397-025;1397-040

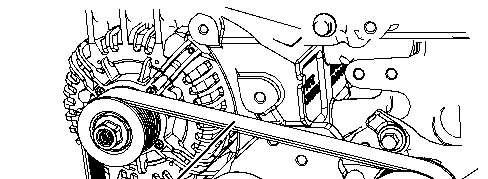

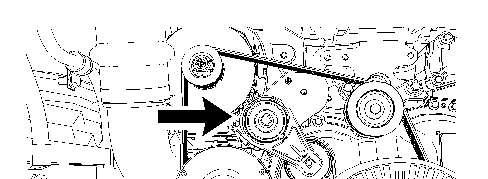

Note:Thisengineisequippedwithabelttightenerthatautomaticallyadjuststhebelttothe correcttension. Illustration1g03642922
1.Gainaccesstothebeltthroughtheright-handlowerengineaccessdoor.
2.Inspectthebeltforwearandforcracking.
3.Ifthebeltrequiresreplacement,performStep3.athroughStep3.e.
Illustration2g03642930
a.Rotatethebelttensionerclockwiseinordertoremovethebelt.
b.Removethebelt.
c.Installanewbelt.
d.Rotatethebelttensionerclockwiseinordertoinstallthebelt.
e.Installtheupperfanguard.
f.Closetheengineaccessdoor.
Copyright1993-2023CaterpillarInc. AllRightsReserved. PrivateNetworkForSISLicensees.
ThuFeb2320:45:01UTC+05302023
Product:WHEELSKIDDER
Model:535DWHEELSKIDDERMTP
Configuration:535DWHEELSKIDDERMTP00001-UP(MACHINE)POWEREDBYC7.1Engine
OperationandMaintenanceManual 525D,535D,545D,555DWheelSkidder
MediaNumber-SEBU8540-09PublicationDate-01/01/2018DateUpdated-02/01/2018
BeltTensioner-Check
SMCS-1358-535
Removethebelt.RefertoDisassemblyandAssembly,"AlternatorBelt-RemoveandInstall".

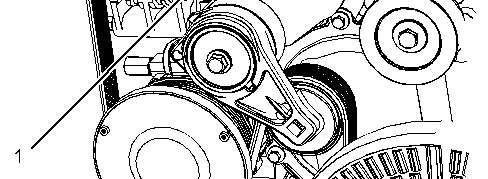

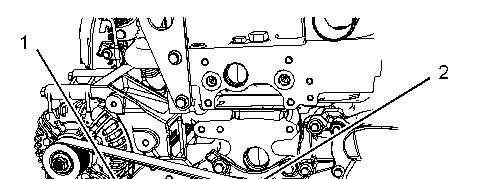

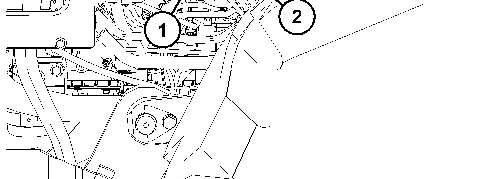

Ensurethatthebelttensionerissecurelyinstalled.Visuallyinspectthebelttensioner(1)for damage.Checkthatthepulleyonthetensionerrotatesfreelyandthatthebearingisnotloose. Someengineshaveanidlerpulley(2).Ensurethattheidlerpulleyissecurelyinstalled.Visually inspecttheidlerpulleyfordamage.Ensurethattheidlerpulleycanrotatefreelyandthatthe bearingisnotloose.Ifnecessary,replacedamagedcomponents.
