Engine Valve Lash - Check

SMCS - 1102-535; 1102-082; 1209-082; 1209

Date Updated -14/03/2019

i01897328

Note: A qualified service person should perform the valve lash check and/or the valve lash adjustment. Special tools and training are required.

Refer to your machine's Service Manual for complete instructions.

Product: BACKHOE LOADER

Model: 432E BACKHOE LOADER BXE

Configuration: 432E Backhoe Loader Parallel Lift Side Shift Boom BXE00001-UP (MACHINE) POWERED BY 3054C Engine

Operation and Maintenance Manual

420E, 430E, 432E, 434E, 442E and 444E Backhoe Loaders

Media Number -SEBU7687-11

Publication Date -01/02/2015

Engine Oil and Filter - Change

SMCS - 1302; 1318; 1326

Date Updated -14/03/2019

i02363963

Note: If the sulfur content in the fuel is greater than 1.5% by weight, use an oil with a TBN of 30. With the high sulfur fuel, change the oil and the filter element after every 250 hours or after every month. If the API category is CF-4 or less, change the oil and change the filter element after every 250 hours or after every month. Otherwise, change the oil and the filter element after every 500 hours or after every three months.

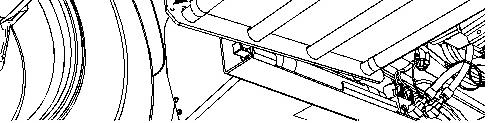

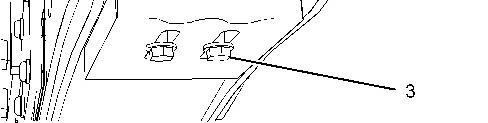

Illustration 1 g01217542

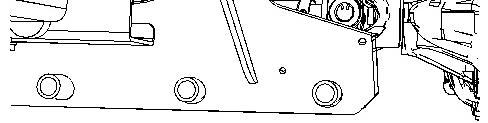

1. If equipped, remove the sound plate from the bottom of the transmission guard. Remove the four clips that secure the sound plate to the transmission guard.

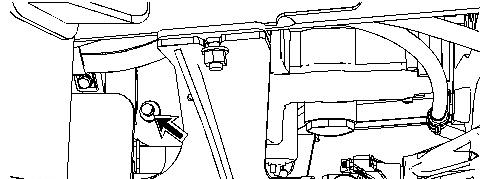

Illustration 2 g01180759

2. Remove the crankcase drain plug and drain the oil into a suitable container. Clean the crankcase drain plug and replace the crankcase drain plug.

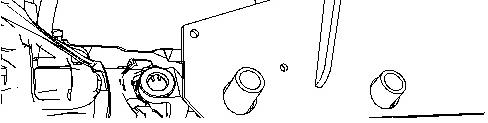

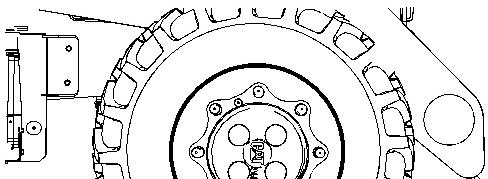

Illustration 3 g01180774

3. Remove the filter element with a strap type wrench.

4. Clean the filter mounting base with a clean cloth. Make sure that the old filter gasket has been removed.

5. Apply a thin film of clean engine oil to the sealing surface of the new filter element.

6. Install the new oil filter by hand.

Instructions for the installation of the filter are printed on the side of each Caterpillar spinon filter. For non-Caterpillar filters, refer to the installation instructions that are provided by the supplier of the filter.

7. Open the engine access door on the top of the machine.

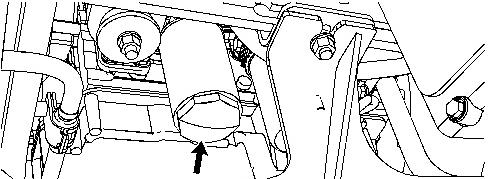

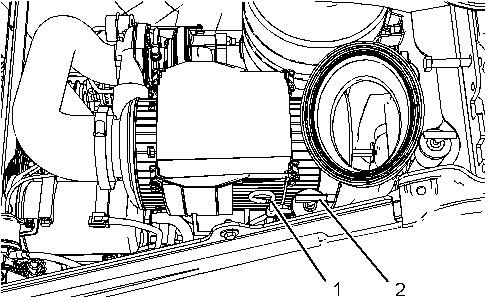

Illustration 4

8. Remove the oil filler cap (2). Fill the crankcase with new oil. Refer to Operation and Maintenance Manual, "Lubricant Viscosities" and Operation and Maintenance Manual, "Capacities (Refill)". Clean the oil filler cap and install the oil filler cap.

9. Start the engine and allow the oil to warm. Check for leaks.

10. Stop the engine and allow the oil to drain back into the oil pan. Maintain the oil level in the crosshatched region of the engine oil dipstick (1). Add oil, if necessary.

11. Replace the engine access panel and close the engine access door.

1993 - 2022 Caterpillar Inc.

SIS Licensees. Tue Dec 20 02:44:29 UTC+0530 2022

Product: BACKHOE LOADER

Model: 432E BACKHOE LOADER BXE

Configuration: 432E Backhoe Loader Parallel Lift Side Shift Boom BXE00001-UP (MACHINE) POWERED BY 3054C Engine

Operation and Maintenance Manual

420E, 430E, 432E, 434E, 442E and 444E Backhoe Loaders

Media Number -SEBU7687-10 Publication Date -01/02/2015 Date Updated -26/02/2015

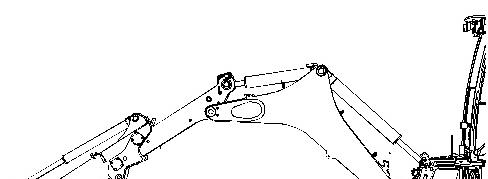

Extendable Stick Pads - Inspect/Adjust - If Equipped

Note:

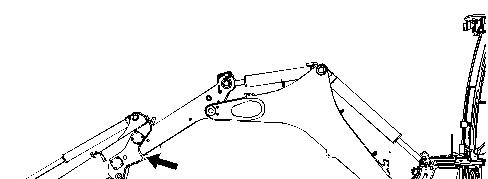

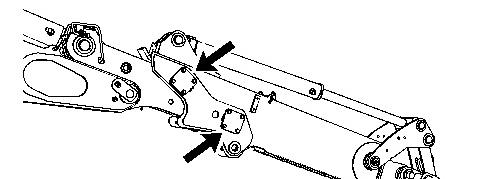

Upper Wear Pad



 

Note:  



 



 

 

Note:



 

 

  







 

Note: 







Note:

Note: 

   

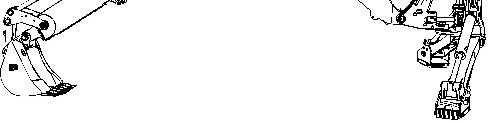

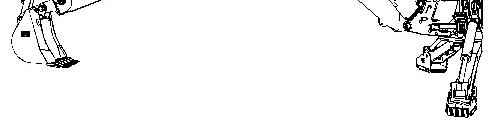

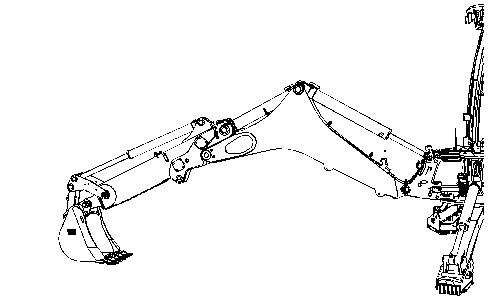

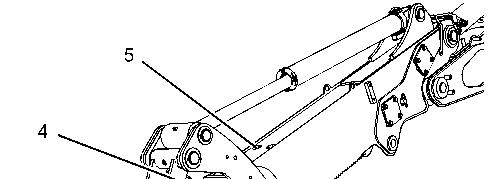

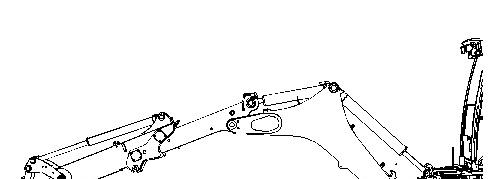

Checking Extension of the Stick

 

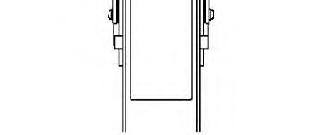

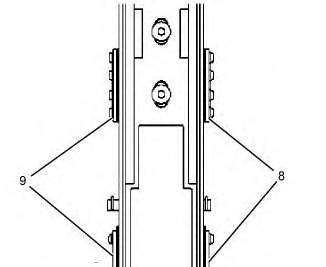

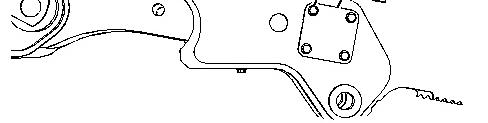

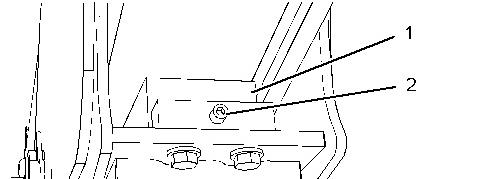

Adjustment of the Side Pad







 





 

   

Note:

Product: BACKHOE LOADER

Model: 432E BACKHOE LOADER BXE

Configuration: 432E Backhoe Loader Parallel Lift Side Shift Boom BXE00001-UP (MACHINE) POWERED BY 3054C Engine

Operation and Maintenance Manual

420E, 430E, 432E, 434E, 442E and 444E Backhoe Loaders

Media Number -SEBU7687-11

Publication Date -01/02/2015

Engine Oil Sample - Obtain

SMCS - 1348-008; 7542-008

Date Updated -14/03/2019

i05339847

Use the sampling valve in order to obtain a sample of the engine oil. The sampling valve is located on the side of the engine next to the oil filter base. The engine must be running in order to take a sample of the engine oil.

Note: Depending on machine configuration, a sampling valve may not be equipped. If no sampling valve is present, obtain an engine oil sample from the engine oil filler tube.

Refer to Special Publication, SEBU6250, "Caterpillar Machine Fluids Recommendations", "S·O·S Oil Analysis" for information that pertains to obtaining an oil sample. Refer to Special Publication, PEHP6001, "How To Take A Good Oil Sample" for more information about obtaining an oil sample.

Private Network For SIS Licensees.

Tue Dec 20 02:44:17 UTC+0530 2022

Product: BACKHOE LOADER

Model: 432E BACKHOE LOADER BXE

Configuration: 432E Backhoe Loader Parallel Lift Side Shift Boom BXE00001-UP (MACHINE) POWERED BY 3054C Engine

Operation and Maintenance Manual

420E, 430E, 432E, 434E, 442E and 444E Backhoe Loaders

Media Number -SEBU7687-11

Publication Date -01/02/2015

Engine Oil Level - Check

SMCS - 1302; 1318; 1326

Date Updated -14/03/2019

NOTICE

Do not overfill the crankcase. Engine damage can result.

1. Open the engine access door on the top of the machine.

Illustration 1 g01180730

2. While the engine is stopped, maintain the oil level between the "ADD" mark and the "FULL" mark on the engine oil dipstick (1).

i02363877

3. If necessary, remove the oil filler cap (2) and add oil.

4. Clean the oil filler cap and install the oil filler cap.

5. Close the engine access door.

Product: BACKHOE LOADER

Model: 432E BACKHOE LOADER BXE

Configuration: 432E Backhoe Loader Parallel Lift Side Shift Boom BXE00001-UP (MACHINE) POWERED BY 3054C Engine

Operation and Maintenance Manual

420E, 430E, 432E, 434E, 442E and 444E Backhoe Loaders

Media Number -SEBU7687-11

Publication Date -01/02/2015

Engine Crankcase Breather - Replace

SMCS - 1317-510

Date Updated -14/03/2019

i02409844

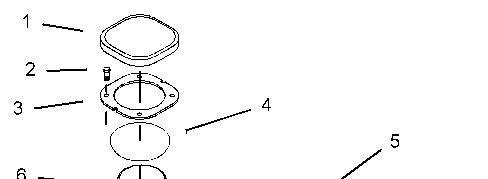

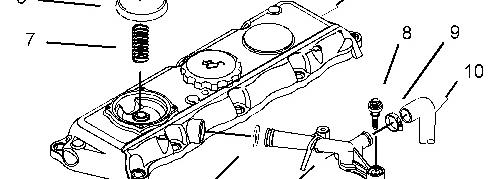

Illustration 1 g01149576
