Air Cleaner - Remove and Install
SMCS - 1051-010
Removal Procedure
Start By:
a. Remove the left side engine panel.
Illustration 1 g03789820

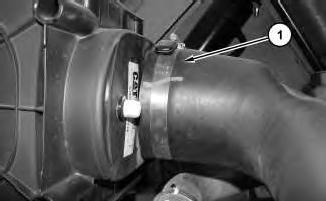

1. Disconnect hose assembly (1).
Illustration 2

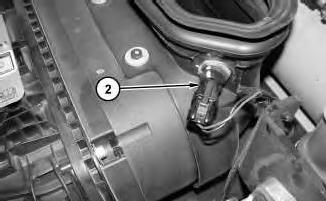

2. Disconnect harness assemblies (2).
Illustration 3
g03790285

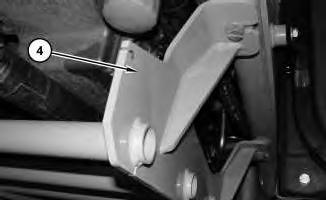

3. Remove nuts (3), air cleaner (4), and the bracket assembly.
Installation Procedure
1. Install air cleaner (4) in the reverse order of removal.
Copyright 1993 - 2023 Caterpillar Inc. All Rights Reserved. Private Network For SIS Licensees. Thu Apr 13 00:57:00 UTC+0530 2023
Product: BACKHOE LOADER
Model: 430F2 BACKHOE LOADER HWE
Configuration: 430F2 Center Pivot Backhoe Loader HWE00001-UP (MACHINE) POWERED BY C4.4 Engine
Disassembly and Assembly
416F2, 420F2 IT, 420F2 ST, 428F2, 430F2 IT, 430F2 ST, 432F2, 434F2 and 444F2
Backhoe Loaders Engine Supplement
Media Number -UENR6150-00
Alternator - Remove and Install
SMCS - 1405-010
Removal Procedure
Start By:
a. Remove the right side engine panel.
Illustration 1 g02974497

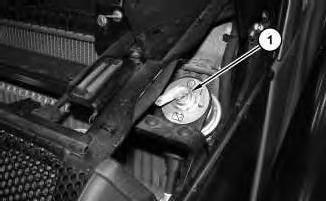

1. Turn battery disconnect switch (1) to the OFF position.
-10/04/2015
2

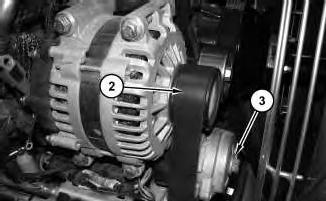

2. Release the tension on belt tensioner (3). Remove belt (2). Refer to Operation and Maintenance Manual , "Belts, Inspect/Adjust/Replace " to remove and install belt (2).
Illustration 3
g02974677

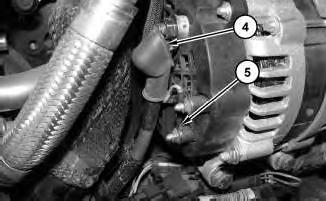

3. Disconnect cable assembly (4). Disconnect harness assembly (5).
Illustration 4
This is the sample of the manual Click on the download link for complete Manual

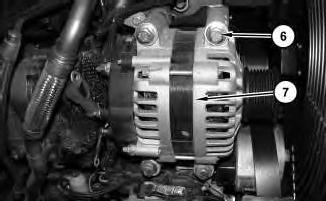

4. Remove bolts (6) and alternator (7).
Installation Procedure
1. Install alternator (7) in the reverse order of removal.
Copyright 1993 - 2023 Caterpillar Inc. All Rights Reserved. Private Network For SIS Licensees. Thu Apr 13 00:56:33 UTC+0530 2023
Product: BACKHOE LOADER
Model: 430F2 BACKHOE LOADER HWE
Configuration: 430F2 Center Pivot Backhoe Loader HWE00001-UP (MACHINE) POWERED BY C4.4 Engine
Disassembly and Assembly
416F2, 420F2 IT, 420F2 ST, 428F2, 430F2 IT, 430F2 ST, 432F2, 434F2 and 444F2
Backhoe Loaders Engine Supplement
Media Number -UENR6150-00
Battery - Remove and Install
SMCS - 1401-010
Removal Procedure
Updated -10/04/2015
Personal injury can result from failure to disconnect the battery.
First, disconnect the negative battery cable. Then, disconnect the positive battery cable.
A positive power lead can cause sparks if the battery is not disconnected. Sparks can possibly result in battery explosion or fire.
Illustration 1

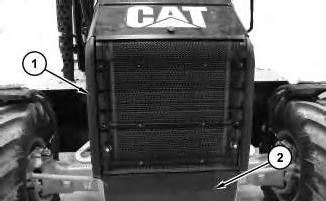

1. Open hood assembly (1). Remove lower panel (2).
Illustration 2

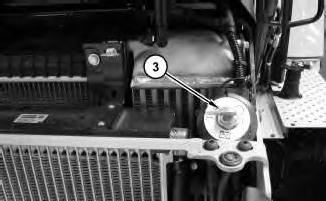

2. Turn disconnect (3) to OFF position.
Illustration 3
3. Remove wing nuts (4). Relocate cover (5).
Illustration 4

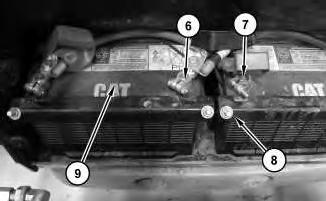

4. Remove hold down brackets (8). Remove all negative ground cables (6) first, then remove positive cables (7). Remove batteries (9).
Installation Procedure
Personal injury can result from failure to disconnect the battery.
First, disconnect the negative battery cable. Then, disconnect the positive battery cable.
A positive power lead can cause sparks if the battery is not disconnected. Sparks can possibly result in battery explosion or fire.
1. Install batteries (9) in the reverse order of removal. Connect positive cable assemblies first. Connect negative cable assemblies next.
Copyright 1993 - 2023 Caterpillar Inc. All Rights Reserved. Private Network For SIS Licensees. Thu Apr 13 00:33:59 UTC+0530 2023
Product: BACKHOE LOADER
Model: 430F2 BACKHOE LOADER HWE
Configuration: 430F2 Center Pivot Backhoe Loader HWE00001-UP (MACHINE) POWERED BY C4.4 Engine
Disassembly and Assembly
416F2, 420F2 IT, 420F2 ST, 428F2, 430F2 IT, 430F2 ST, 432F2, 434F2 and 444F2
Backhoe Loaders Engine Supplement
Media Number -UENR6150-00
Diesel Exhaust Fluid Filter - Remove and Install
SMCS - 108K-010-FI
Removal Procedure
-10/04/2015
1. Drain the Diesel Exhaust Fluid (DEF) into a suitable container for storage or disposal.
Illustration 1 g03788038

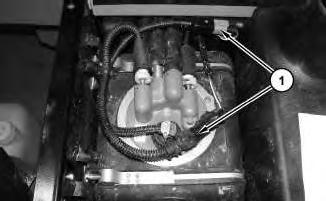

2. Disconnect harness assemblies (1) .

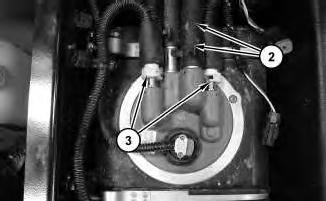

Illustration 2
3. Disconnect hose assemblies (3).
Note: Refer to Special Instruction, REHS8231, "Removal Procedures for Diesel Exhaust Fluid (DEF) Connectors" for the correct removal procedure of hose assemblies (3) .
4. Install clamps on hoses (2). Remove hoses (2).

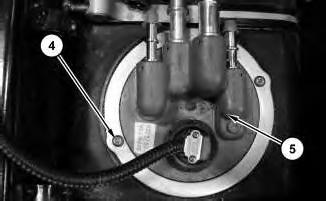

Illustration 3
g03788107

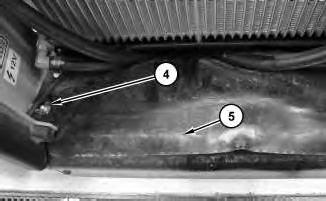

5. Remove screws (4) and the plate. Remove diesel exhaust fluid filter (5).
Installation Procedure
1. Install Diesel Exhaust Fluid (DEF) filter (5) in the reverse order of removal.
Copyright 1993 - 2023 Caterpillar Inc.
For SIS
Thu Apr 13 00:58:08 UTC+0530 2023
Product: BACKHOE LOADER
Model: 430F2 BACKHOE LOADER HWE
Configuration: 430F2 Center Pivot Backhoe Loader HWE00001-UP (MACHINE) POWERED BY C4.4 Engine
Disassembly and Assembly
416F2, 420F2 IT, 420F2 ST, 428F2, 430F2 IT, 430F2 ST, 432F2, 434F2 and 444F2
Backhoe Loaders Engine Supplement
Media Number -UENR6150-00
Diesel Exhaust Fluid Pump - Remove and Install
SMCS - 108J-010
Removal Procedure
Updated -10/04/2015
NOTICE
Care must be taken to ensure that fluids are contained during performance of inspection, maintenance, testing, adjusting, and repair of the product. Be prepared to collect the fluid with suitable containers before opening any compartment or disassembling any component containing fluids.
Refer to Special Publication, NENG2500, "Dealer Service Tool Catalog" for tools and supplies suitable to collect and contain fluids on Cat products.
Dispose of all fluids according to local regulations and mandates.

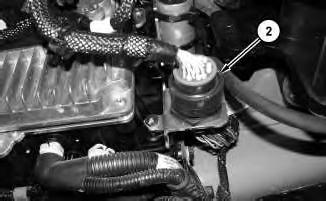

2. Disconnect harness assemblies (2).
Illustration 3
g03787866
Note: Refer to Special Instruction, REHS8231, "Removal Procedures for Diesel Exhaust Fluid (DEF) Connectors" for the correct removal procedure of hose assemblies (3) .

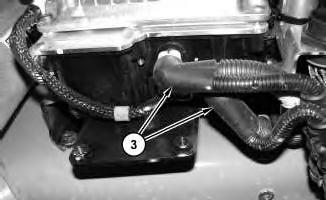

3. Disconnect hose assemblies (3).

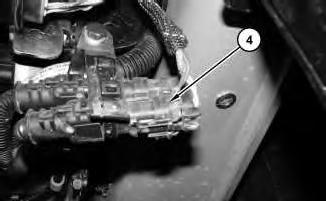

Illustration 4
4. Disconnect harness assemblies (4) .
g03787871
Illustration 5 g03787886

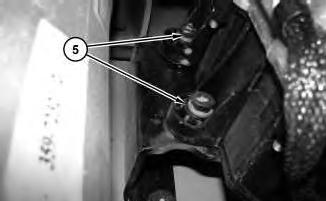

5. Remove bolts (5) and diesel exhaust fluid pump (6) .
Installation Procedure
1. Install diesel exhaust fluid pump (6) in the reverse order of removal.
Copyright 1993 - 2023 Caterpillar Inc.
All Rights Reserved. Private Network For SIS Licensees. Thu Apr 13 00:58:19 UTC+0530 2023
Product: BACKHOE LOADER
Model: 430F2 BACKHOE LOADER HWE
Configuration: 430F2 Center Pivot Backhoe Loader HWE00001-UP (MACHINE) POWERED BY C4.4 Engine
Disassembly and Assembly
416F2, 420F2 IT, 420F2 ST, 428F2, 430F2 IT, 430F2 ST, 432F2, 434F2 and 444F2
Backhoe Loaders Engine Supplement
Media Number -UENR6150-00
Diesel Particulate Filter - Remove and Install
SMCS - 108F-010; 108F
Removal Procedure
Table 1
Required Tools
Tool Part Number Part Description Qty
A 439-3938 Link Bracket 2
Wear goggles, gloves, protective clothing, and a National Institute for Occupational Safety and Health (NIOSH) approved P95 or N95 halfface respirator when handling a used Diesel Particulate Filter or Catalytic Converter Muffler. Failure to do so could result in personal injury.
The muffler, catalytic converter/muffler, and diesel particulate filter will become extremely hot during engine operation. A hot muffler,
catalytic converter/muffler and diesel particulate filter can cause serious burns. Allow adequate cooling time before working on or near the muffler, catalytic converter/muffler and diesel particulate filter.
Note: Do not strike any part of the assembly of the diesel particulate filter . Do not allow any object to contact the internal element of the diesel particulate filter. If the internal element of the diesel particulate filter becomes damaged, the assembly must be replaced.
1. Drain Diesel Exhaust Fluid (DEF) into a suitable container for storage or disposal.

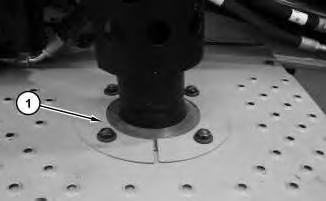

1

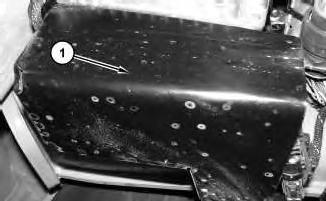

2. Remove covers (1) .
2
3. Remove bolts (2) and remove exhaust extension (3) .
3
Remove lower guard (4) .

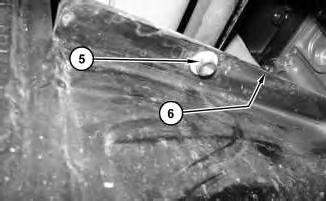

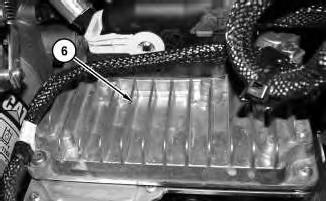

Illustration 4
5. Remove bolts (5) . Remove upper cover (6) .
5

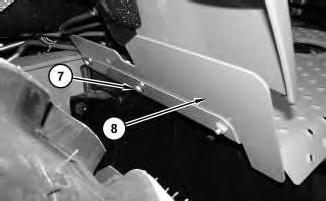

6. Remove bolts (7) and panel (8) .
6

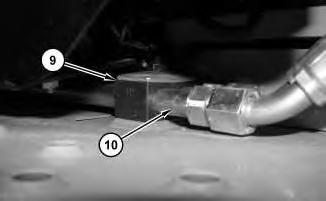

7
7. Remove clamp (9) that holds tube assemblies (10) .

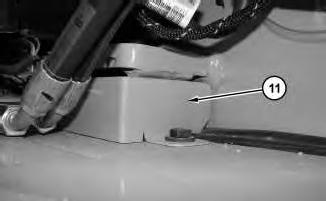

8. Remove cover (11) .
Illustration 8
g03786808

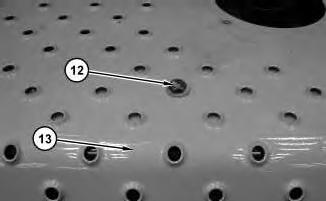

9. Remove bolts (12) and deck assembly (13) .
Illustration 9

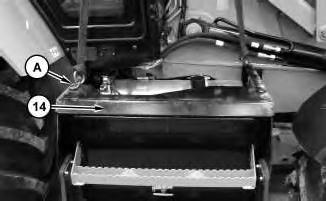

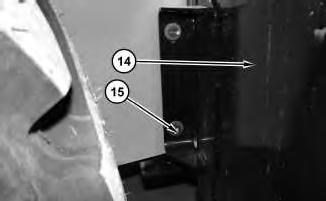

10. Attach Tooling (A) and a suitable lifting device to enclosure assembly (14) . The weight of enclosure assembly (14) is approximately 91 kg (200 lb). Remove bolts (15) and lower enclosure assembly (14) straight downward in order to clear the back side of the diesel particulate filter.
Illustration 12
g03786877

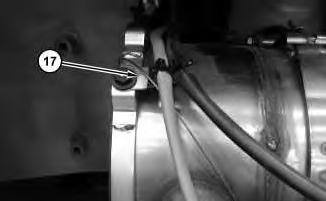

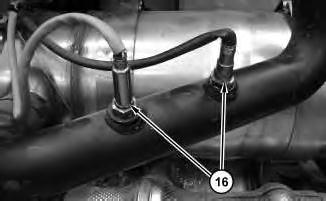

11. Remove sensors (16) from the exhaust pipe. Disconnect bracket (17) and relocate sensors (16) .
Illustration 13
Illustration 14
g03787128

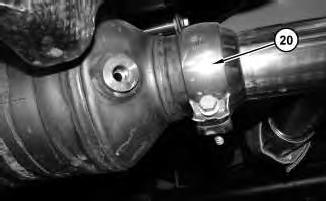

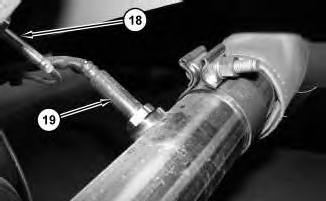

12. Disconnect all soot sensors (18) and sensors (19) . Remove band clamp (20) .
Illustration 15
Illustration 16
g03787158

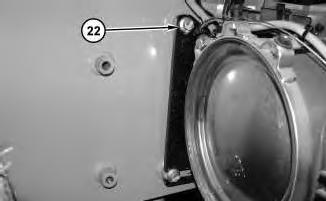

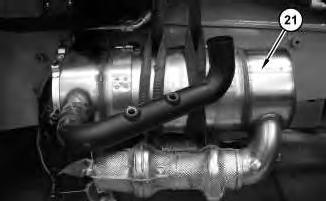

1. Attach a suitable lifting device to diesel particulate filter (21) . The weight of diesel particulate filter (21) is approximately 50 kg (110 lb). Remove bolts (22) . Remove diesel particulate filter (21) .
Installation Procedure
1. Install diesel particulate filter (21) in the reverse order of the removal.
a. Lubricate the threads of soot sensor (14) . Tighten to a torque of 45 ± 5 N·m (33. ± 4 lb ft).
Copyright 1993 - 2023 Caterpillar Inc. All
Thu Apr 13 00:57:29 UTC+0530 2023
Product: BACKHOE LOADER
Model: 430F2 BACKHOE LOADER HWE
Configuration: 430F2 Center Pivot Backhoe Loader HWE00001-UP (MACHINE) POWERED BY C4.4 Engine
Disassembly and Assembly
416F2, 420F2 IT, 420F2 ST, 428F2, 430F2 IT, 430F2 ST, 432F2, 434F2 and 444F2
Backhoe Loaders Engine Supplement
Media Number -UENR6150-00
Electric Starting Motor - Remove and Install
SMCS - 1453-010
Removal Procedure
1. Raise loader arms and lock into place. Remove the left-hand side panel.

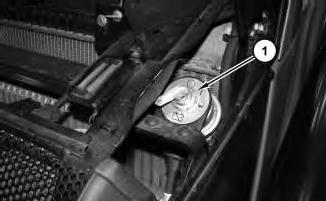

Illustration 1
2. Turn battery disconnect switch (1) to the OFF position.

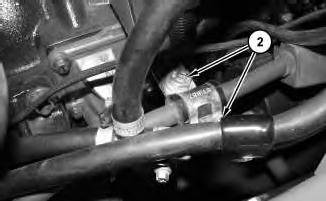

2
3. Disconnect cable and clamp assemblies (2) from the bracket and move the cables out of the way.
Illustration 3
g02982160

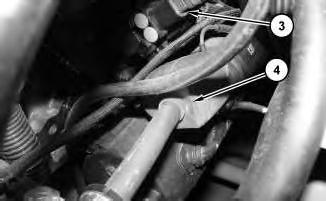

4. Disconnect harness assembly (3). Disconnect cable assembly (4).
Illustration 4
g02982311
5. Remove nuts (5) and electric starting motor (6).
Installation Procedure
1. Install electric starting motor (6) in the reverse order of removal.
Copyright 1993 - 2023 Caterpillar Inc. All Rights Reserved. Private Network For SIS Licensees.
Thu Apr 13 00:34:16 UTC+0530 2023
Product: BACKHOE LOADER
Model: 430F2 BACKHOE LOADER HWE
Configuration: 430F2 Center Pivot Backhoe Loader HWE00001-UP (MACHINE) POWERED BY C4.4 Engine
Disassembly and Assembly
416F2, 420F2 IT, 420F2 ST, 428F2, 430F2 IT, 430F2 ST, 432F2, 434F2 and 444F2 Backhoe Loaders Engine Supplement
Media Number -UENR6150-00

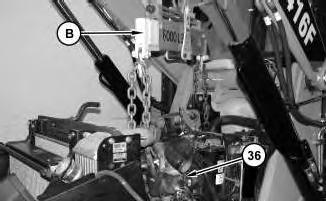

Engine - Install
Installation Procedure Table 1
This is the sample of the manual Click on the download link for complete Manual
