Maintenance
The maintenance section is a guide to equipment care.
Copyright 1993 - 2023 Caterpillar Inc. All Rights Reserved. Private Network For SIS Licensees. Mon Feb 6 09:15:56 UTC+0530 2023
Product: BACKHOE LOADER
Model: 430F2 BACKHOE LOADER HWE
Configuration: 430F2 Center Pivot Backhoe Loader HWE00001-UP (MACHINE) POWERED BY C4.4 Engine
Operation and Maintenance Manual
Caterpillar Short Body Radio
Media Number -M0086999-05
Radio - Entertainment If Equipped
SMCS - 7338
-14/05/2019
When driving, always keep your eyes on the road and hands on the steering wheel, paying careful attention to normal driving tasks. As always, the driver is responsible for safe vehicle operation. Not keeping your eyes on the road and hands on the wheel while driving could result in injury to you or others.
Introduction
Information included in this owners manual was accurate at the time of publication. Caterpillar, however, reserves the right to change specifications and performance without prior notice. Check with your dealer for details regarding changes that may have occurred since time of printing.
The Radio system is controlled by using the buttons, RSA (Rear Seat Audio), or steering wheel controls.
Stereo Receivers
i07257802

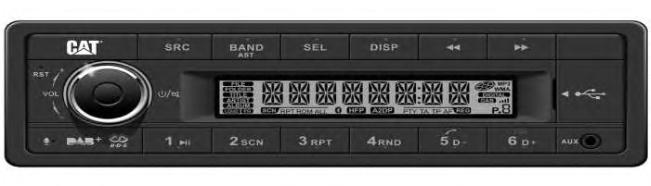

Illustration 1 g06244205
RADIO/USB MP3/USB/DAB+/DAB/Bluetooth Receiver

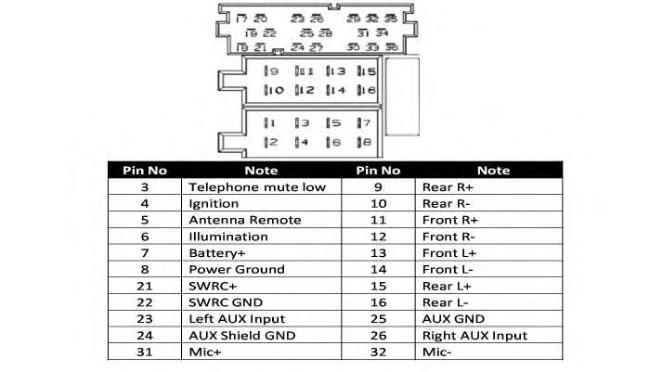

Radio Pin out
Radio pinout is shown below
Illustration 2 g06247913
General Radio Receiver Functions
Illustration 3
(1) Microphone
(2) Power ON/ OFF / Mute
(3) Power button
(4) Band / AST Button
(5) Source (SRC) Button
(6) DISP (Display) Play/Pause (7) PREV (Previous)
(8) Next Button
(9) USB Slot
(10) MP3 Folder ahead / Phone Hang Up (11) MP3 Folder back / Phone Pick Up (12) MP3 Random play
(13) MP3 Repeat play (14) Program intro Play (SCAN)
(15) MP3 / Bluetooth Play / Pause (16) Front Auxiliary input
Options
• An AM band with 6 AM presets
• Three FM bands with a total of 18 FM presets
• One weather band with six WX presets
General Operation
Power ON / OFF / Mute
To Switch on the Radio push the Power ON/OFF button. To switch off the Radio, push the Power ON/OFF button for more than 2 sec. The Radio will be muted by pushing the Power ON/OFF button for less that 2 sec.
Ignition Logic
With ignition logic activated (Default setting) the Radio can be switched on and off manually even if the vehicles ignition pin is not connected. To avoid battery discharge, the radio is switched off after 1h without user operation.
System Settings
The system settings menu is entered by long pressing the [DISP] button. To access the available menu entries, push the search buttons [ << />> ]. To select the available options of each menu entry, rotate the [VOL] knob.
Source (SRC) Button
Press the [SRC] button to switch between and select available sources: TUNER->USB->AUX F>AUX R-> Bluetooth->DAB (applicable to DAB feature). USB and Bluetooth is only visible in the menu when connected.
Reception Area
This Radio is designed to work in different regions with different frequency ranges. The Reception area can be adjusted via the System Settings menu
The following Areas are available:
• EUROPE
• ASIA
• JAPAN
• North Africa
• United States of America (USA)
Clock Setting
The clock time can be adjusted manually by long pressing the [DISP] button to set the time.
Select [CLOCK] with the search buttons [ << />> ]. Press [SEL] button and rotate [VOL] knob to adjust the minutes.
VOLUME KNOB/OK
To adjust the Volume, rotate the [VOL] knob
Predefined sound effects
The Radio provides different predefined sound effects . Press the [SEL] button to enter the Sound settings menu. Rotate the [VOL] knob to select one of the following options: EQ OFF -> POP -> ROCK -> CLASSIC -> JAZZ -> CUSTOM.
Balance. Fade and Loudness
This is the sample of the manual Click on the download link for complete Manual
To adjust Balance, Fader and Loudness press the [SEL] button and then push [ << / >> ] button to select BALANCE -> FADER -> LOUDNESS. Rotate the [VOL] knob to adjust Balance, Fade, and Loudness according to your needs.
Manual Sound Adjustment
For manual sound adjustments first select CUSTOM. Push the [SEL] button again and then select BASS or TREBLE with the [ << / >> ] button. Rotate the [VOL] knob to adjust BASS and TREBLE according to your needs.
Note: The default setting
AM-FM Radio
To access AM/FM Radio, press the [SRC] button and select Tuner.
Select Band
Press the [ BAND ] Button to select one of the available Radio Bands. The Radio bands will be changed in the following order: FM1 -> FM2 -> FM3 -> AM1 -> AM2
Note: The AM Band can be deactivated by the user via the system settings menu.
Automatic Tuning
For Automatic tuning press the [ << / >> ] button. The Radio will search and select the next receivable station.
When Traffic Announcement is activated (“TA = ON”), only stations that broadcast Traffic announcements will be tuned.
Manual tuning
For manual station selections press the [ << / >> ] button for longer than 2 sec. “MANUAL” is shown in the display. Pressing the [ << / >> ] button again the frequency will be incrementally increased/decreased.
Manual Storing Favorites
There are 18 FM , 12 AM Favorite banks available. Select the favorite bank where to store the station and tune the station that shall be stored. Push the preset button longer than 2 sec .to store the station
Recall Stored Favorites
To recall a stored favorite, push the preset button corresponding to the stored favorite.
Auto Memory Store
To search for the best receivable stations and store as favorite, press the (BAND/AST] button for 2 sec. The Radio searches the best receivable station and stores those stations.
Many FM Stations in Europe transmit RDS data (Radio Data System) in addition to audio programs.
With RDS the user has the following benefits:
• The best audible frequency (AF) of a selected station is tuned automatically for best reception quality. To enable automatic selection of best audible frequency, select “AF=ON” in the Settings menu.
• The Radio recognizes Traffic Announcement and can switch to Radio, even if another Audio source is selected. To enable automatic Traffic announcement, select “TA=ON” in the Settings menu.
• Some Stations provide regional specific programs. With the regional (REG) function only those frequencies are followed that broadcast the selected regional program. To follow regional programs, select “REG=ON” in the Settings menu.
• The stations name can be displayed.
Note: For further settings see System Menu.
Program Type (PTY)
Via the RDS System FM stations in many countries transmit the type of program (Program Type , PTY) that is broadcasted.
To search for a desired Program type, push [SRC] for about 2 seconds and select the Program type by rotating the [VOL] knob. The Radio will search for a Radio-Program with the selected Program type when the [SEL] button is pushed. “PTY SEEK” is shown in the Display.
If no station with the selected Program Type can be found, the last tuned station will be selected and “NO PTY” is shown in the Display.
The following program types are available:
• NEWS
• AFFAIRS
• INFO
• SPORTS
• EDUCATE
• DRAMA
• CULTURE
• SCIENCE
• VARIED
• POP-M
• ROCK-M
• EASY-M
• LIGHT-M
• CLASSICS-M
• OTHER-M
• WEATHER
• FINANCE
• CHILDREN
• SOCIAL
• RELIGION
• PHONE IN
• TRAVEL
• LEISURE
• JAZZ
• COUNTRY
• NATIONAL-M
• OLDI ES
• FOLK-M
• DOCUMENT
• TEST
• ALARM
DAB Radio (applicable to DAB feature)
DAB/DAB+ Provides radio programs in digital sound quality.
DAB Radio Selection
To access Digital Audio Broadcast (DAB), press the [SRC] button and select DAB.
DAB Service SCAN
To search for receivable DAB Services, the DAB service SCAN has to be started by pushing [BAND/AST] for 2 sec. “SCAN” is shown in the display.
Tuning a DAB Service
To tune a DAB service, push [<< / >> ] to select the next/previous DAB service. “Tuning” is shown on the Display.
Storing DAB Favorites
There are 3 DAB favorite bands available. Press the [BAND] Button to select one of the available DAB Bands. The DAB bands will be changed in the following order:
• DAB1 ->
• DAB2 ->
• DAB3
Push the preset button longer than 2 seconds, to store the station.
Recall Stored Favorites
To recall a stored favorite, push the corresponding preset button.
DAB Service List
To get an overview of receivable DAB services, a DAB Service List can be displayed.
Push [SEL] for 2 sec. to open the DAB Service List. Rotate the [VOL] Button to scroll through the list of receivable stations.
To tune a DAB service, push [SEL]. “Tuning” is shown on the display.
In the case that a Service is temporary not receivable “No Service” will be shown on the display.
Switching between DAB and FM
When the DAB signal quality drops significantly, switch to FM and listen to the service via FM.
Switching between DAB and FM (DABFMLNK) can be disabled via the system settings menu.
USB/MP3/WMA
MP3 is short for MPEG Audio Layer 3 and refers to an audio compression technology standard. This product allows playback of MP3 files. The unit cannot read an MP3 file that has a file extension other than ".mp3". •If you play a non-MP3 file that has the “.mp3" extension, you may hear some noise. In this manual, refer to what are called "MP3 file" and "folder " in PC terminology as "track" and "Album," respectively. Maximum number of directories and files is 65535, including the root directory. Maximum number of files per folder is 1000. The unit may not play tracks in the order of Track numbers. Supports bit rate from 8 to 320 kbps and VBR (Variable Bit Rate).
Note: Supports bit rate from 5 to 384 kbps and VBR (Variable Bit Rate).
USB
USB functions (flash memory type) MP3 music play:
• USB flash memory 2 in 1 support
• FAT 12 / FAT 16 / FAT 32 format supported
• File name: 64 byte / directory (DIR) name: 64 byte/tag name: 30 byte
• Tag (id3 tag ver 2.0) - title/artist/album: 32 byte support.
• USB 1.1 support, USB 2.0 support (For 2.0, speed performance is as USB 1.1)
Note: Not all USB devices are compatible with the unit. USB connector can support maximum work power with 500 mA.
Loading / Removal and Functions of USB Device
Insert a USB device into the USB-slot “Reading” is shown on the Display. MP3 Playback will start immediate afterwards.
Before removing the USB Device switch to another Source by pushing the [SRC] button.
The USB Devices has the following functions:
• MP3 Playback/Pause To pause and resume MP3 Playback push button [1>].
• Next/Previous MP3 Track To select the next/previous track push the [>II] button.
• Fast forward/fast rewind To fast forward/fast rewind the current track push the [>II] button longer than 2 sec.
• Random Play To activate random play push the button [4 RND].
• Repeat Push the [3 RPT] button to activate repeat Track/repeat directory/repeat all.
• SCAN To activate/stop the scan function push the button [2 SCN]. In scan mode all titles are played for 10 sec.
Bluetooth
The Bluetooth allows you to utilize your vehicles built-in audio system for wireless mobile phone or music hands free communication. Some Bluetooth mobile phones have the audio features, and some portable audio players support Bluetooth feature. This system can play audio data stored in a Bluetooth audio device. The vehicle stereo with Bluetooth will be able to retrieve phonebook contacts, received call, dialed call, missed call, incoming calls, outgoing call and listen to music
Note: Do not leave the microphone on Bluetooth hands free in the places with wind passing such as air outlet of the air conditioner. Leaving the microphone in the aforementioned manner may cause a malfunction.
Note: If left in places subjected to direct sun, high temperature can cause distortion, discoloration which may result in a malfunction.
Note: This system will not operate or may operate improperly with some Bluetooth audio players.
Note: Compatibility of all mobile phones with this unit is not guaranteed.
Note: Audio playback will be set to the same volume level as set during telephone call. The volume level might cause problems, if extreme volume level is set during telephone call.
Hands free Operations
Pairing:
1. Turn on Bluetooth function of your mobile phone.
2. Enter mobile phones Bluetooth setup menu.
3. Search for new Bluetooth devices.
4. Select Bluetooth "Cat Radio" devices from the pairing list on the mobile phone.
5. Enter “ 1234 ” as the password ( The password default setting is “ 1234 ”).
Note: After pairing successfully, BT and HPF icons will light up. A2DP icon will light up after A2DP connected
Dial Number
LCD screen displays dialing information.
Unit dialing:
1. Press [SRC] button switch to BT /Audio mode
2. Press [5 D+] to choose the DIAL ON function, press [SEL] button / [<</>>] button and rotate the knob to input dialing numbers.
Transfer Call
You can switch between hands free call and mobile phone call. Press the [5 /] button during call.
Answering a call
You can answer an incoming call by pressing the [5/] button. Press the [6 /] button to reject an incoming call.
Audio Streaming
Audio streaming is a technique for transferring audio data, audio streaming can be processed as a steady, and continuous stream. Users can stream music from external audio players to the stereo wirelessly and listen to the tracks through the speakers. Consult your nearest dealer for more information on the product of wireless audio streaming transmitter offered.
Note: Avoid operating your connected mobile phone while audio streaming, doing so may cause noise or sound choppy on the song playback. Audio streaming may or may not resume after telephone interruption and depends on the mobile phone. The system will always return to Radio mode if audio streaming is disconnected. Be sure to read the chapter “Pairing” before proceeding.
BT /Audio mode (A2DP)
• Playback/Pause To pause and resume Playback push button [1>].
• Next/Previous Track To select the next/previous track push the [<</>>] button.
Note: Playing order will depend on Bluetooth audio player. When the [>II] button is pressed, some A2DP devices will restart the current track depends on the duration of playback. During music streaming playback, “A2DP and HFP” will be shown on the display. When A2DP device is disconnected, “DISCONN” will be shown on the display Some Bluetooth audio players may not have play / pause synchronized with this unit. Make sure that both device and main unit are in the same play/ pause status in BT /Audio mode.
Dimming
The display and buttons can be dimmed. This radio allows manual or automatic dimming. Select “DIMMING” in the settings menu and select one of the following options:
1. Select “OFF” to disable Dimming.
2. Select “Manual” dimming when the radio is not connected to the vehicles illumination pin.
3. Select “Auto” dimming when the Radio is connected correct to the vehicles illumination-pin.
Brightness adjustment
To adjust your favorite brightness-setting for display- and button brightness select manual mode.
Select Manual dimming to adjust Brightness of Display and Buttons
DAY/ Night Selection
Select DIMMAN and change between day mode and night mode by selecting “DIMDAY“ or “DIMNIGHT”
Night Brightness adjustment of display and Buttons
To adjust Night Brightness of the display and buttons, select “DIMNIGHT”. Then select, “DIM DISP” and adjust the brightness of the Display accordingly. Then select “DIMNIGHT” and adjust the brightness of the Buttons accordingly.
Day Brightness adjustment of display and Buttons
To adjust Day Brightness of the display and buttons, select “DIMDAY”. Then, select “DIM DISP” and adjust the brightness of the Display accordingly. Then, select “DIM KEY” and adjust the brightness of the Buttons accordingly.
Manual Mode
Change between Day and Night Mode by selecting “DIMDAY” or “DIMNIGHT”
Automatic Mode
In automatic mode the display will change automatically between day and night mode when the radio is connected to the vehicles illumination pin.

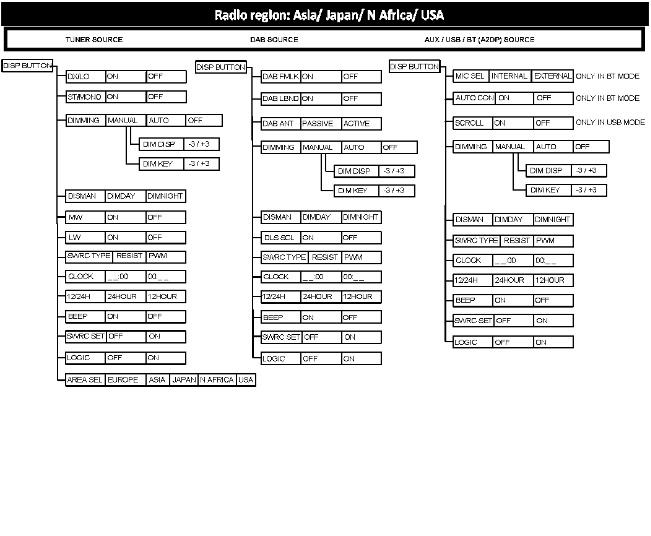

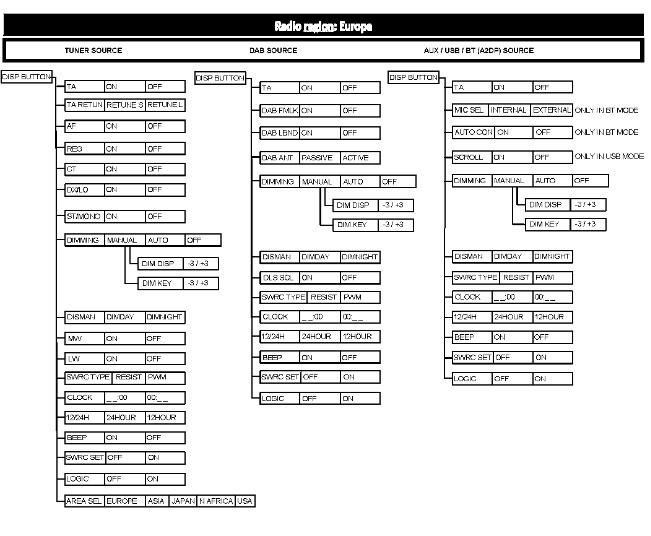

System Setting Item List
4 g06247829
Illustration
Illustration 5
AM/FM Tuner Options
The AM/FM tuner has the following options:
• "TA" Enable /Disable automatic switching to FM-tuner mode if there is incoming Traffic announcements.
• "TA Return" Switch back time in the case that Announcement-Signal cannot be detected any more.
• "AF" Enable/Disable automatic selection of best audible frequency in FM-Tuner Mode (RDS).
• "REG" Enable/Disable automatic selection of better audible frequencies that broadcast different regional content.
• "CT" Automatic synchronization of Clock with time received via RDS-Signal.
• "DX/LO" Search Level of AM/FM-Tuner.
• "ST/MONO" Selection of Stereo or Mono output of FM/AM tuner.
g06247868
• "AREA SEL" To adjust the AM/FM tuner to your region.
DAB Tuner Options
The following features are applicable to DAB feature:
• "DAB FMLINK" Enable /Disable automatic switching to FM-tuner when DAB-Signal drops.
• "DAB LBND" Enable/Disable L-Band Decoding.
• "DAB ANT" Selection of Active or Passive antenna is connected.
• "DLS SCROLL" Enable display of Artist and Song
Bluetooth Options
• "SCROLL" ON: Display ID3 tag information cyclic: Track - Folder -File - Album - TitleArtist - Track. OFF: Display Track.
• "MIC SEL" Use of integrated Microphone in front panel or external Microphone connected by rear connector.
• "AUTO CON" To disable/enable Bluetooth connection.
Steering Wheel Control Options
The following are the steering wheel control options:
• "SWRC TYPE"Selection of Steering Wheel control type (Resistance / PWM).
• "SWRC SET" To enable/disable steering wheel control.
Dimming Options
The following are the Dimming options:
• "DIMMING" To Select Dimming Mode (OFF, Manual, automatic).
• "DIM DISP" To Adjust Display brightness.
• "DIM KEY" To adjust Button brightness.
• "DIS MAN" To switch between DAY and Night Mode
Other options
• "AM / MW" To enable/disable AM / MW Reception.
• "LW" To enable/disable LW Reception.
• "BEEP" To enable/disable confirmation signal.
• "Logic" To enable/disable ignition logic.
• "Clock" To adjust hours and minutes.
Electrical Connections

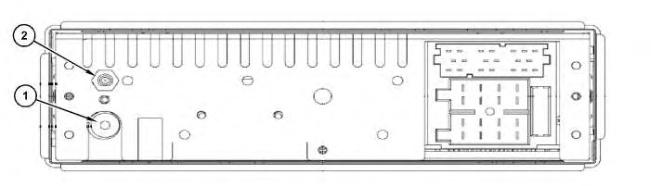

Illustration 6 g06247910
(1) DAB SMB Connector
(2) AM/FM ISO Connector
Tips and Troubleshooting Chart
The following checklist can help you solve some problems which you may encounter when using the unit. Before consulting a service representative, check the connections and follow the instructions in the user manual. Do not use the unit in abnormal condition. Examples of abnormal conditions area as follows, no sound, smoke, or foul smell. The aforementioned examples can cause fire or electric shock. Immediately stop using radio and call the store where your radio was purchased.
Table 1
Problem Possible Cause Solution
General
The unit will not switch on.
No sound
The unit or screen does not work normally.
Mode Tuner
Unable to receive stations.
Poor quality reception of radio station.
Mode USB
vehicle ignition is not on. Cable is not properly connected. Fuse is burnt.
Volume is set at minimum or the mute function is on.
Turn your vehicle key in the ignition. Check cable connection. Replace fuse with a new fuse of the same capacity.
Check the volume or switch off the mute function.
The unit system is unstable Press the RESET button.
The antenna is not connected properly. Connect the antenna properly.
The antenna is not fully extended or broken.
Fully extend the antenna and if broken, replace with a new one.
Unable to insert USB device. The USB device has been inserted the wrong way around.
The USB device cannot be read.
NTFS format is not supported.
Insert the other way around.
Check that the file system is in FAT or FAT32 format. Due to different formats, some models of storage devices or MP3 players may not be read.

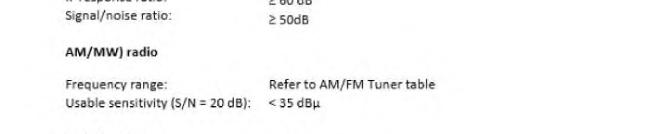

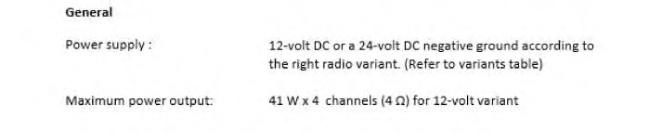

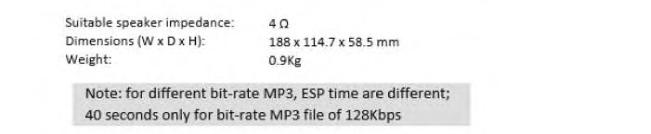

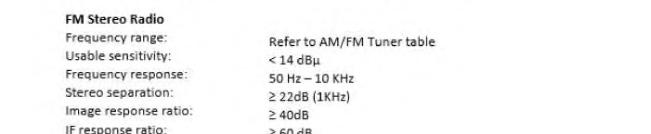

Specifications
The following information pertains to specifications of the radio.
Illustration 7
Table 2
Europe
Asia
Japan
Latam
FM 87.5 - 108.0MHz 100KHz 50KHz
MW 522 - 1620KHz 9KHz 9KHz
LW 144 - 288KHz 3KHz 3KHz
FM 87.5 - 108.0MHz 50KHZ 50KHz
AM 522 - 1629KHz 9KHz 9KHz
FM 76.0 - 95,0MHz 100KHz 100KHz
AM 522 - 1629KHz 9KHz 9KHZ
FM 76.0 - 107.9MHz 50KHz 50KHz
AM 530 - 1710KHz 10KHz 10KHz
FM 87.5 - 108.0MHz 100KHz 50KHZ
N Africa
MW 531 - 1602KHz 9KHz 9KHz
LW 153 - 252KHz 3KHz 3KHz
Table 3
Digital (DAB) Radio
DAB Band III: 174.928MHz ~ 239.200 MHz
Frequency range:
DAB Band L: 1452.960MHz ~ 1490.624 MHz
Usable sensitivity (RF=72dBM) -95dBM
Frequency response: 20Hz-20KHz
Stereo separation
Signal/noise ratio:
Far off selectivity: 42dB 60dB
Adjacent channel rejection: 35dB 40dB
Note: Specifications and the design are subject to change without notice due to improvements in technology.
Table 4
Bluetooth
Output power 4 dBm (Class 2)
Frequency band 2.4000 GHz - 2.4835 GHz (ISM Band)
Range 10 m (free space)
Standard Bluetooth 2.0 specification
Illustration 8 g06248183
Radio accessories
(1) Metal sleeve
(2) Removal tools
(3) Bezel
Copyright 1993 - 2023 Caterpillar Inc. All Rights Reserved. Private Network For SIS Licensees.
Mon Feb 6 09:20:40 UTC+0530 2023
Product: BACKHOE LOADER
Model: 430F2 BACKHOE LOADER HWE
Configuration: 430F2 Center Pivot Backhoe Loader HWE00001-UP (MACHINE) POWERED BY C4.4 Engine
Operation and Maintenance Manual
Caterpillar Short Body Radio
Media Number -M0086999-05
Entertainment Radio - Continental - If Equipped
SMCS - 7338
Table 1
Model Cat Part Number
Continental 525-1508
Specifications
i07724274
The following communication device specifications are provided to aid in conducting any related hazard assessment and to ensure compliance with all local regulations:
Table 2
Radio Transmitter Specifications
Declaration of Conformity - European Union
Table 3
CATERPILLAR®
EU Declaration of Conformity
This Declaration of Conformity is issued under the sole responsibility of the manufacturer.
The undersigned, representing the manufacturer:
CATERPILLAR INC
100 N.E. Adams Street
Peoria, IL 61629
USA hereby declares that the product, the object of this description: Caterpillar Entertainment Radios Brand: Caterpillar Model: Caterpillar Short Body Utility Radio Part #: 525-1508
Antenna: 8E-1118
Is in conformity with the relevant Union harmonization legislation:
Directive 2014/53/EU
Directive 2011/65/EU
Conformity is shown by compliance with applicable requirement of the following documents:
Assessment Procedure: ______ Annex II, ___X____ Annex III, _______Annex IV
2014/53/EU: RED LVD (Sec. 3.1a): EN 60065:2014
EN 62479:2010
EMC (Sec. 3.1b): EN 301 489-1 V2.2.0
EN 301 489-17 V3.2.0
RF (Sec. 3.2)
EN 300 328 V2.1.1
Final Draft EN 303 345 V1.1.7
2011/65/EU RoHS EN 50581:2012
Notified Body Name: Siemic Inc.
Notified Body Number: 2200
Examination Certificate #: RE-17101308
Product: BACKHOE LOADER
Model: 430F2 BACKHOE LOADER HWE
Configuration: 430F2 Center Pivot Backhoe Loader HWE00001-UP (MACHINE) POWERED BY C4.4 Engine
Operation and Maintenance Manual
Caterpillar Short Body Radio
Media Number -M0086999-05
General Hazard Information
SMCS - 7606
Date -01/05/2019 Date Updated -14/05/2019
Do not operate or work on this equipment unless you have read and understand the instructions and warnings in the Operation and Maintenance Manuals. Failure to follow the instructions or heed the warnings could result in injury or death. Contact your Caterpillar dealer for replacement manuals. Proper care is your responsibility.
Foreword
This document is a supplement to the Operation and Maintenance Manual for the equipment. Permanently attach this document to the Operation and Maintenance Manual for the equipment.
Introduction
This document provides information about the operation of the Caterpillar AM/FM Radio System.
Operation of the equipment and the maintenance of the equipment must not occur unless the instructions and warnings in the Operation and Maintenance Manual for the equipment have been read and the instructions and the warnings are understood. The contents of this document must be understood before the equipment that is equipped with the CaterpillarAM/FM Radio System is operated.
Warnings and Compliance
i07545194
Thank you for purchasing this product, read the manual carefully before operating, and reserve manual for future reference.
Precaution
• Use only in a 12-volt DC negative- ground electrical system.
• Disconnect the vehicles negative battery terminal while mounting and connecting the unit.
• When replacing the fuse, be sure to use one with an identical amperage rating.
• Using a fuse with a higher amperage rating may cause serious damage to the unit.
• Make sure that pins or obstacles do not get inside the unit, pins and obstacles may cause malfunctions, or create safety hazards such as electrical shock.
• If you have parked the vehicle for a long time in hot or cold weather, wait until the temperature in the vehicle becomes normal before operating the unit.
Before Operation
Do not raise the volume level too high. Keep the volume at a level at which you can hear outside warning sounds (horns sirens, and so on).
Stop the vehicle before performing any complicated operations.
Caution
Do not open the cover and do not repair. Ask your authorized dealer for help.
Note: According to models with different wiring harness to connect the definition of the specific content, refer to the model label.
Note: Specifications and the design are subject to change without notice due to improvements in technology.
Operation and Maintenance Manuals (OMM) are currently available at: http://www.cat.com/en_US/support/operations/technology/product-link-owners-manuals.html
For mobile equipment or equipment that is located in areas where direct internet access is not available while the product is in use, a paper copy of the OMM must be printed and kept with the product.
For more information or for a paper copy of the OMM contact your nearest Cat Dealer: www.cat.com/en_US/support/dealer-locator.html
Copyright 1993 - 2023 Caterpillar Inc.
All Rights Reserved.
Private Network For SIS Licensees.
Mon Feb 6 09:17:11 UTC+0530 2023
Product: BACKHOE LOADER
Model: 430F2 BACKHOE LOADER HWE
Configuration: 430F2 Center Pivot Backhoe Loader HWE00001-UP (MACHINE) POWERED BY C4.4 Engine
Operation and Maintenance Manual
Snow Push and Plows Work Tool Supplement
Media Number -M0090409-00 Publication Date -01/06/2018 Date Updated -21/06/2018
Foreword
Literature Information
This manual should be stored in the operator's compartment in the literature holder or seat back literature storage area.
This manual contains safety information, operation instructions, transportation information, lubrication information and maintenance information.
Some photographs or illustrations in this publication show details that can be different from your work tool. Guards and covers might have been removed for illustrative purposes.
Continuing improvement and advancement of product design might have caused changes to your work tool which are not included in this publication. Read, study and keep this manual with the machine that your work tool is installed on.
Whenever a question arises regarding your work tool, or this publication, please consult your Caterpillar dealer for the latest available information.
Safety
The safety section lists basic safety precautions. In addition, this section identifies the text and locations of safety signs and labels used on the work tool.
Read and understand the basic precautions listed in the safety section before operating or performing lubrication, maintenance and repair on this work tool.
Operation
The operation section is a reference for the new operator and a refresher for the experienced operator. This section includes a discussion of gauges, switches, machine controls, work tool controls, transportation and towing information.
s00272057
This is the sample of the manual Click on the download link for complete Manual
