Product: BACKHOE LOADER
Model: 428C BACKHOE LOADER 8RN
Configuration: 428C Backhoe Loader 8RN00001-04088 (MACHINE) POWERED BY 3054 Engine
Disassembly and Assembly
3054 ENGINE SUPPLEMENT FOR 416C, 426C, 428C, 436C & 438C BAC
Media Number -SENR1203-01 Publication Date -21/01/1998 Date Updated -01/11/2007
Water Separator
SMCS - 1263-017
Disassemble & Assemble Water Separator
Start By:
a. remove water separator
Fluid Spillage Containment
SENR12030029
Care must be taken to ensure that fluids are contained during performance of inspection, maintenance, testing, adjusting and repair of the machine. Be prepared to collect the fluid with suitable containers before opening any compartment or disassembling any component containing fluids. Refer to "Tools And Shop Products Guide", NENG2500 for tools and supplies suitable to collect and contain fluids in Caterpillar machines. Dispose fluids according to local regulations and mandates.
1. Remove valve (5) and washer (4).
2. Remove nut (3) and filter element (2) from filter base (1).
3. Remove nut (11), cap (10), seal (9), and regulator (8) from filter base (1).
4. Remove plugs (12) and washers (13) from filter base (1).
5. Remove plug (7) and O-ring seal (6) from filter base (1).
NOTE: Assembly the water separator in reverse order. End By: install water separator
Product: BACKHOE LOADER
Model: 428C BACKHOE LOADER 8RN
Configuration: 428C Backhoe Loader 8RN00001-04088 (MACHINE) POWERED BY 3054 Engine
Disassembly and Assembly 3054 ENGINE SUPPLEMENT FOR 416C, 426C, 428C, 436C & 438C BAC
Water Separator
SMCS - 1263-010
Remove & Install Water Separator
Start By:
a. remove left engine cover
Fluid Spillage Containment
Care must be taken to ensure that fluids are contained during performance of inspection, maintenance, testing, adjusting and repair of the machine. Be prepared to collect the fluid with suitable containers before opening any compartment or disassembling any component containing fluids. Refer to "Tools And Shop Products Guide", NENG2500 for tools and supplies suitable to collect and contain fluids in Caterpillar machines. Dispose fluids according to local regulations and mandates.
At operating temperature, the engine coolant is hot and under pressure. The radiator and all lines to heaters or the engine contain hot water or steam. Any contact can cause severe burns. Look at the sight gauge to check the coolant level. The coolant level should be in the green range. If necessary, remove the fill cap only after the engine has been stopped and the cap is cool enough to remove with your bare hand. Remove the cooling system fill cap slowly to relieve pressure. Cooling system condition contains alkali that can cause personal injury. Avoid contact with the skin and eyes and do not drink. Allow cooling system components to cool before draining.
NOTE: Put identification on all lines, hoses, wires and tubes for installation purposes. Cap and plug all lines, hoses and tubes to prevent foreign material from entering the system.
1. Loosen nut (1) and remove water canister (5).
2. Drain water from water separator into a suitable container for storage or disposal.
3. Disconnect two tube assemblies (4).
4. Remove two bolts (2) and remove water separator (3).
NOTE: Install the water separator in the reverse order.
NOTE: Refer to the Topic "Lubricant Viscosities and Refill Capacities" in the Operation and Maintenance Manual for the proper filling procedure and the proper levels for the hydraulic system and the cooling system.
End By:
a. install left engine cover
1993 - 2023 Caterpillar Inc.
Product: BACKHOE LOADER
Model: 428C BACKHOE LOADER 8RN
Configuration: 428C Backhoe Loader 8RN00001-04088 (MACHINE) POWERED BY 3054 Engine
Disassembly and Assembly 3054 ENGINE SUPPLEMENT FOR 416C, 426C, 428C, 436C & 438C BAC
Engine & Transmission
SMCS - 1004-029
Separate & Connect Engine From Transmission
Start By:
a. remove engine, torque converter & transmission
Fluid Spillage Containment
SENR12030027
Care must be taken to ensure that fluids are contained during performance of inspection, maintenance, testing, adjusting and repair of the machine. Be prepared to collect the fluid with suitable containers before opening any compartment or disassembling any component containing fluids. Refer to "Tools And Shop Products Guide", NENG2500 for tools and supplies suitable to collect and contain fluids in Caterpillar machines. Dispose fluids according to local regulations and mandates.
1. Attach a suitable lifting device to the transmission as shown.
2. Remove twelve bolts (1) from the transmission. Separate the engine from the transmission. The weight of the transmission is 204 Kg (450 lb).
NOTE: Connect the engine to the transmission in reverse order.
End By:
- 2023 Caterpillar Inc.
Network For SIS Licensees. Fri Dec 8 12:07:12 UTC+0530 2023
Product: BACKHOE LOADER
Model: 428C BACKHOE LOADER 8RN
Configuration: 428C Backhoe Loader 8RN00001-04088 (MACHINE) POWERED BY 3054 Engine
Disassembly and Assembly
3054 ENGINE SUPPLEMENT FOR 416C, 426C, 428C, 436C & 438C BAC
Media Number -SENR1203-01
SENR12030026
Engine, Torque Converter, Transmission & Implement Pump
SMCS - 1004-010
Remove & Install Engine, Torque Converter, Transmission & Implement Pump
Start By:
a. remove radiator, oil cooler and condenser
b. remove muffler assembly
c. remove front drive shaft
d. remove main drive shaft
Fluid Spillage Containment
Care must be taken to ensure that fluids are contained during performance of inspection, maintenance, testing, adjusting and repair of the machine. Be prepared to collect the fluid with suitable containers before opening any compartment or disassembling any component containing fluids. Refer to "Tools And Shop Products Guide", NENG2500 for tools and supplies suitable to collect and contain fluids in Caterpillar machines. Dispose fluids according to local regulations and mandates.
Effective July 1, 1992 regulations prohibit the venting of any refrigerant into the atmosphere. Refer to Caterpillar publication SENR5664 and NEDG5065 for the proper procedure, equipment and tools to reclaim refrigerant from any Caterpillar machine.
Always wear goggles when working on air conditioning systems. The system is under pressure at all times, engine running or not. Escaping refrigerant R-134A can cause freezing of human flesh.
Do not smoke while working on air conditioning systems. INHALING REFRIGERANT 134A THROUGH ANY SMOKING MATERIAL, ALTHOUGH NOT TOXIC OR FLAMMABLE, CAN GENERATE LETHAL PHOSGENE GAS AND CAUSE VIOLENT ILLNESS OR DEATH. ALSO, HEAT MUST NEVER BE APPLIED TO A CHARGED SYSTEM. See Air Conditioning And Heating Service Manual, Form number SENR5664, for more information on removal and installation of lines and refrigerant from the system.
NOTE: For purging and charging the air conditioning system, refer to the Air Conditioning And Heating Service Manual SENR5664.
NOTE: Loader lift arms have been removed for photographic purposes.
NOTE: Put identification on all lines, hoses, wires and tubes for installation purposes. Cap and plug all lines, hoses and tubes to prevent foreign material from entering the system.
NOTE: Drain all fluids in a suitable container for storage or disposal.
1. Disconnect cable assembly (1) from the hood assembly.
2. Remove two bolts (2) from the hood assembly and remove the hood assembly.
6. Disconnect hose assembly (7) from the transmission.
7. Remove bolt (8) from the transmission.
8. Disconnect hose assembly (9) from the transmission.
9. Remove two bolts (10) and remove the valve and the hose assemblies.
10. Disconnect three wires (11) from the starter.
This is the sample of the manual Click on the download link for complete Manual
11. Disconnect wire (12) and plug (13) from the alternator.
12. Disconnect wire (14) from the water temperature regulator.
13. Remove the tie wraps and disconnect the wire from the engine.
14. Remove bolt (15) from the frame.
15. Disconnect hose assemblies (16) and (17).
16. Disconnect hose assembly (18).
17. Disconnect hose assemblies (19) and (20) and disconnect throttle linkage (21).
18. Disconnect wiring harness (21).
19. Disconnect wiring harnesses (22) and (23).
20. Disconnect wires (24), (25) and (26).
21. Disconnect two wires (27).
22. Purge refrigerant from the system. Disconnect air conditioning hose assembly (28).
23. Disconnect hose assembly (29).
24. Disconnect the wiring harnesses.
30. Remove six bolts and remove plate assembly (36).
31. Attach a suitable lifting device as shown to the hydraulic tank so that it does not fall during removal of engine, torque converter, transmission and implement pump.
32. Remove the four bolts on two hydraulic tank mounting brackets (37).
33. Attach tooling (A) and a suitable lifting device to the engine as shown.
34. Remove four mounting bolts (38).
35. Remove the engine, torque converter, transmission and implement pump from the machine as a unit. The weight of the unit is 704 kg (1550 lbs).
NOTE: Install the engine, torque converter, transmission and implement pump in the reverse order of removal.
End By:
a. install main drive shaft
b. install front drive shaft
c. install muffler assembly
d. install radiator, oil cooler and condenser
NOTE: Refer to the Topic "Lubricant Viscosities and Refill Capacities" in the Operation and Maintenance Manual, publication number SEBU6873 for the proper filling procedure and the proper levels for the hydraulic system and the cooling system. Copyright 1993 - 2023 Caterpillar Inc.
Fri Dec 8 12:06:59 UTC+0530 2023
Product: BACKHOE LOADER
Model: 428C BACKHOE LOADER 8RN
Configuration: 428C Backhoe Loader 8RN00001-04088 (MACHINE) POWERED BY 3054 Engine
Disassembly and Assembly
3054 ENGINE SUPPLEMENT FOR 416C, 426C, 428C, 436C & 438C BAC
Media Number -SENR1203-01
SENR12030025
Cab
SMCS - 7301-010
Remove & Install Cab
Start By:
a. remove rear wheels
Fluid Spillage Containment
Care must be taken to ensure that fluids are contained during performance of inspection, maintenance, testing, adjusting and repair of the machine. Be prepared to collect the fluid with suitable containers before opening any compartment or disassembling any component containing fluids. Refer to "Tools And Shop Products Guide", NENG2500 for tools and supplies suitable to collect and contain fluids in Caterpillar machines. Dispose fluids according to local regulations and mandates.
Effective July 1, 1992 regulations prohibit the venting of any refrigerant into the atmosphere. Refer to Caterpillar publication SENR5664 and
NEDG5065 for the proper procedure, equipment and tools to reclaim refrigerant from any Caterpillar machine.
Always wear goggles when working on air conditioning systems. The system is under pressure at all times, engine running or not. Escaping refrigerant R-134A can cause freezing of human flesh.
Do not smoke while working on air conditioning systems. INHALING REFRIGERANT 134A THROUGH ANY SMOKING MATERIAL, ALTHOUGH NOT TOXIC OR FLAMMABLE, CAN GENERATE LETHAL PHOSGENE GAS AND CAUSE VIOLENT ILLNESS OR DEATH. ALSO, HEAT MUST NEVER BE APPLIED TO A CHARGED SYSTEM. See Air Conditioning And Heating Service Manual, Form number SENR5664, for more information on removal and installation of lines and refrigerant from the system.
NOTE: For purging and charging the air conditioning system, refer to the Air Conditioning And Heating Service Manual SENR5664.
At operating temperature, the hydraulic oil tank is hot and under pressure. Hot oil can cause burns. Remove the breather filter cap only when the engine is stopped and the breather filter cap is cool enough to touch. Slowly loosen the breather filter cap to release any pressure in the hydraulic tank. Be cautious of hot hydraulic oil when any lines are disconnected in the hydraulic system.
NOTE: Put identification on all lines, hoses, wires and tubes for installation purposes. Cap and plug all lines, hoses and tubes to prevent foreign material from entering the system.
NOTE: Drain all fluids in a suitable container for storage or disposal.

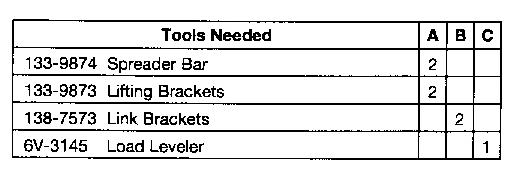

1. Attach Tool (A) to each end of Tool (C). Attach straps to Tool (B).
2. Remove four knobs (1), eight fastener clips (2), panel (3), four boots (4), two bolts (5) and lever (6).
3. Remove two bolts (7), two pedals (8), four bolts (9), rear console (10), four screws (11), and plate (12).
4. Remove eight clips (13) and eight pins (14).
5. Remove clip (15) and pin (16).
6. Remove bolt (17) and disconnect the ground braid.
7. Remove two bolts (18) and disconnect the two hose clamps.
8. Disconnect two air conditioning hoses (19). Remove two hose clamps (20) and disconnect the two heater hoses.
13. Disconnect wire harnesses (26).
14. Remove clip (27), pin (28) and the throttle linkage.
15. Remove two bolts (29), clip (30) and pin (31). Remove the parking brake.
16. Remove bolt (32) and disconnect the clip.
17. Remove three clips (33) and three pins (34) and disconnect the linkages.
22. Disconnect two wire harnesses (40).
23. Disconnect two wire harnesses (41).
24. Disconnect cable (42) from the positive terminal cable.
24. Remove two cab mounting bolts (43).
25. Adjust all lifting Tooling and raise slowly making sure all wiring harnesses and hoses have been disconnected and remove cab.
NOTE: Install in reverse order of removal.
NOTE: Refer to the Operation & Maintenance Manual, publication number SEBU6873 for all fluid capacities and the proper filling procedures.
End By:
a. install rear wheels
Product: BACKHOE LOADER
Model: 428C BACKHOE LOADER 8RN
Configuration: 428C Backhoe Loader 8RN00001-04088 (MACHINE) POWERED BY 3054 Engine
Disassembly and Assembly
3054 ENGINE SUPPLEMENT FOR 416C, 426C, 428C, 436C & 438C BAC
Media Number -SENR1203-01 Publication Date -21/01/1998 Date Updated -01/11/2007
Oil Filter & Oil Filter Base
SMCS - 1306-010; 1306-017
Remove & Install Oil Filter, Oil Filter Base
Fluid Spillage Containment
SENR12030024
Care must be taken to ensure that fluids are contained during performance of inspection, maintenance, testing, adjusting and repair of the machine. Be prepared to collect the fluid with suitable containers before opening any compartment or disassembling any component containing fluids. Refer to "Tools And Shop Products Guide", NENG2500 for tools and supplies suitable to collect and contain fluids in Caterpillar machines. Dispose fluids according to local regulations and mandates.
1. Attach Tool (A) and remove oil filter (1).
2. Remove nut (2) and remove clip (3).
3. Loosen clamps (4) and remove the tube.
4. Remove three bolts (5) and remove oil filter base (6).
NOTE: Install the oil filter and oil filter base in the reverse order.
Disassemble & Assemble Oil Filter Base
Start By:
a. remove oil filter, oil filter base
Fluid Spillage Containment
Care must be taken to ensure that fluids are contained during performance of inspection, maintenance, testing, adjusting and repair of the machine. Be prepared to collect the fluid with suitable containers before opening any compartment or disassembling any component containing fluids. Refer to "Tools And Shop Products Guide", NENG2500 for tools and supplies suitable to collect and contain fluids in Caterpillar machines. Dispose fluids according to local regulations and mandates.
1. Remove oil filter assembly (6) from head assembly (1).
2. Remove cap (5) from oil cooler (4).
3. If necessary, remove oil cooler (4) from head assembly (1) and check seal (2) and (3) for wear and damage, replace if necessary.
NOTE: Assemble oil filter base in the reverse order.
End By:
