428C Caterpillar Backhoe Loader Operation and Maintenance Manual by quality service repair manual

Product: BACKHOE LOADER

Model: 428C BACKHOE LOADER 8RN

Configuration: 428C Backhoe Loader 8RN00001-04088 (MACHINE) POWERED BY 3054 Engine

Operation and Maintenance Manual

416C, 426C, 428C, 436C and 438C Backhoe Loaders

Media Number -SEBU6873-06

Publication Date -01/07/2008

Foreword

SMCS - 7606

California Proposition 65 Warning

Date Updated -01/04/2019

Diesel engine exhaust and some of its constituents are known to the State of California to cause cancer, birth defects, and other reproductive harm.

WARNING - This product can expose you to chemicals including ethylene glycol, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to:

www.P65Warnings.ca.gov

Do not ingest this chemical. Wash hands after handling to avoid incidental ingestion.

WARNING - This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information go to:

www.P65Warnings.ca.gov

Wash hands after handling components that may contain lead.

Literature Information

s03548206

This manual should be stored in the operator's compartment in the literature holder or seat back literature storage area.

This manual contains safety information, operation instructions, transportation information, lubrication information, and maintenance information.

Some photographs or illustrations in this publication show details or attachments that can be different from your machine. Guards and covers might have been removed for illustrative purposes.

Continuing improvement and advancement of product design might have caused changes to your machine which are not included in this publication. Read, study, and keep this manual with the machine.

Whenever a question arises regarding your machine, or this publication, please consult your Cat dealer for the latest available information.

Safety

The safety section lists basic safety precautions. In addition, this section identifies the text and locations of warning signs and labels used on the machine.

Read and understand the basic precautions listed in the safety section before operating or performing lubrication, maintenance, and repair on this machine.

Operation

The operation section is a reference for the new operator and a refresher for the experienced operator. This section includes a discussion of gauges, switches, machine controls, attachment controls, transportation, and towing information.

Photographs and illustrations guide the operator through correct procedures of checking, starting, operating, and stopping the machine.

Operating techniques outlined in this publication are basic. Skill and techniques develop as the operator gains knowledge of the machine and its capabilities.

Maintenance

The maintenance section is a guide to equipment care. The Maintenance Interval Schedule (MIS) lists the items to be maintained at a specific service interval. Items without specific intervals are listed under the "When Required" service interval. The Maintenance Interval Schedule lists the page number for the step-by-step instructions required to accomplish the scheduled maintenance. Use the Maintenance Interval Schedule as an index or "one safe source" for all maintenance procedures.

Maintenance Intervals

Use the service hour meter to determine servicing intervals. Calendar intervals shown (daily, weekly, monthly, etc.) can be used instead of service hour meter intervals if the calendar intervals

provide more convenient servicing schedules and approximate the indicated service hour meter reading. Perform the recommended service at the interval that occurs first.

Under severe, dusty, or wet operating conditions, more frequent lubrication than is specified in the maintenance intervals chart might be necessary.

Perform service on items at multiples of the original requirement. For example, at every 500 service hours or 3 months, also service those items listed under every 250 service hours or monthly and every 10 service hours or daily.

Certified Engine Maintenance

Proper maintenance and repair are essential to keep the engine and machine systems operating correctly. As the heavy-duty off-road diesel engine owner, you are responsible for the performance of the required maintenance listed in the Owner Manual, Operation and Maintenance Manual, and Service Manual.

It is prohibited for any person engaged in the business of repairing, servicing, selling, leasing, or trading engines or machines to remove, alter, or to render inoperative, any emission-related device or element of design installed on or in an engine or machine that is in compliance with all applicable regulations of the intended country to which it has been shipped. Certain elements of the machine and engine such as the exhaust system, fuel system, electrical system, intake air system, and cooling system may be emission-related and should not be altered unless approved by Caterpillar.

Machine Capacity

Additional attachments or modifications may exceed machine design capacity which can adversely affect performance characteristics. Included would be stability and system certifications such as brakes, steering, and rollover protective structures (ROPS). Contact your Cat dealer for further information.

Product Identification Number

Effective First Quarter 2001 the Product Identification Number (PIN) has changed from 8 to 17 characters. To provide uniform equipment identification, construction equipment manufacturers are moving to comply with the latest version of the product identification numbering standard. Non-road machine PINs are defined by ISO 10261. The new PIN format will apply to all machines and generator sets. The PIN plates and frame marking will display the 17 character PIN. The new format will look like the following:

Illustration 1 g03891925

Where:

1. World Manufacturing Code (characters 1-3)

2. Machine Descriptor (characters 4-8)

3. Check Character (character 9)

4. Machine Indicator Section (MIS) or Product Sequence Number (characters 10-17). These were previously referred to as the Serial Number.

Machines and generator sets produced before First Quarter 2001 will maintain their 8 character PIN format.

Components such as engines, transmissions, axles, and work tools will continue to use an 8 character Serial Number (S/N).

Private Network For SIS Licensees. Fri Apr 12 09:28:34 UTC+0530 2024

Product: BACKHOE LOADER

Model: 428C BACKHOE LOADER 8RN

Configuration: 428C Backhoe Loader 8RN00001-04088 (MACHINE) POWERED BY 3054 Engine

Operation and Maintenance Manual

416C, 426C, 428C, 436C and 438C Backhoe Loaders

Media Number -SEBU6873-06

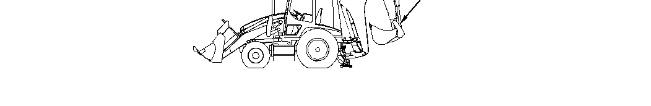

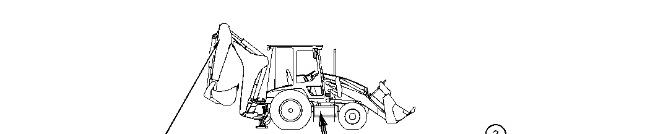

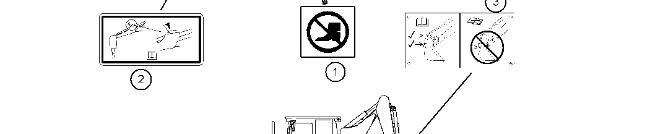

Additional Messages

SMCS - 7000; 7405

Publication Date -01/07/2008

Date Updated -01/04/2019

i03150004

No Step (1)

2 g00936182

This message is located inside the battery box.

Do not step here. Stepping here could cause damage to the work tool and personal injury.

Illustration

Pin the Extendable Stick (2)

Illustration 3 g01187333

This message is located on the stick.

The E-Stick must be pinned before using attachments, to prevent movement which could cause personal injury.

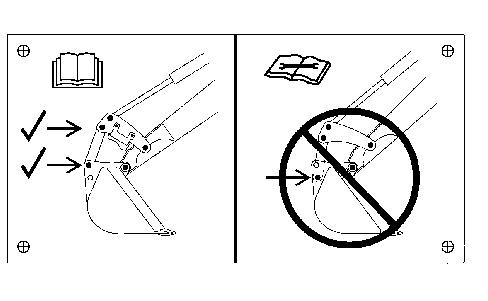

Improper Location of the Backhoe Bucket (3)

Illustration 4 g01034294

This message is located by the linkage for the backhoe bucket.

Improper bucket pin connection can cause machine damage. Make sure the bucket pins are connected properly.

Product: BACKHOE LOADER

Model: 428C BACKHOE LOADER 8RN

Configuration: 428C Backhoe Loader 8RN00001-04088 (MACHINE) POWERED BY 3054 Engine

Operation and Maintenance Manual

416C, 426C, 428C, 436C and 438C Backhoe Loaders

Media Number -SEBU6873-06

Publication Date -01/07/2008

Before Operation

SMCS - 7000

Clear all personnel from the machine and from the area.

Date Updated -01/04/2019

Clear all obstacles from the path of the machine. Beware of hazards such as electrical wires, ditches, etc.

The stabilizers must be in the correct position before you operate the machine. Completely raise the stabilizers for transporting the machine or for loader operation. Lower the stabilizers before you operate the backhoe. DO NOT DIG UNDER THE STABILIZERS!

Stand on the outside of the machine on the ground in order to reposition the flip-over stabilizer pads. DO NOT REPOSITION THE STABILIZER PADS WHILE YOU ARE IN THE CAB!

Make sure that all windows are clean. Secure the doors in the open position or in the shut position. Secure the windows in the open position or in the shut position.

For the best visibility of the area that is close to the machine, adjust the rearview mirrors (if equipped).

Make sure that the machine horn, the backup alarm (if equipped) and all other warning devices are working properly.

Fasten the seat belt securely.

Private Network For SIS Licensees.

Fri Apr 12 09:33:04 UTC+0530 2024

i01388947

Product: BACKHOE LOADER

Model: 428C BACKHOE LOADER 8RN

Configuration: 428C Backhoe Loader 8RN00001-04088 (MACHINE) POWERED BY 3054 Engine

Operation and Maintenance Manual

416C, 426C, 428C, 436C and 438C Backhoe Loaders

Media Number -SEBU6873-06

Publication Date -01/07/2008

Before Starting Engine

SMCS - 1000; 7000

Date Updated -01/04/2019

Start the engine only from the operator's compartment. Never short across the starter terminals or across the batteries. Shorting could bypass the engine neutral start system. Shorting could also damage the electrical system.

Inspect the condition of the seat belt and the condition of mounting hardware. Replace any damaged parts or worn parts. Regardless of appearance, replace the seat belt after three years of use. Do not use an extension for a seat belt on a retractable seat belt.

Adjust the seat so that full pedal travel can be achieved. Make sure that the operator's back is against the back of the seat.

Make sure that the machine is equipped with a lighting system that is adequate for the job conditions. Ensure that all lights are in proper working condition.

Make sure that there are no personnel in the area before you start the engine. Make sure that there are no personnel in the area before you move the machine. Make sure that there are no personnel on the machine, underneath the machine, or around the machine.

Private Network For SIS Licensees.

Fri Apr 12 09:32:00 UTC+0530 2024

i00080826

Product: BACKHOE LOADER

Model: 428C BACKHOE LOADER 8RN

Configuration: 428C Backhoe Loader 8RN00001-04088 (MACHINE) POWERED BY 3054 Engine

Operation and Maintenance Manual

416C, 426C, 428C, 436C and 438C Backhoe Loaders

Media Number -SEBU6873-06 Publication Date -01/07/2008 Date Updated -01/04/2019

Burn Prevention

SMCS - 7000

Do not touch any part of an operating engine. Allow the engine to cool before any maintenance is performed on the engine. Relieve all pressure in the air system, in the oil system, in the lubrication system, in the fuel system, or in the cooling system before any lines, fittings, or related items are disconnected.

Coolant

When the engine is at operating temperature, the engine coolant is hot. The coolant is also under pressure. The radiator and all lines to the heaters or to the engine contain hot coolant.

Any contact with hot coolant or with steam can cause severe burns. Allow cooling system components to cool before the cooling system is drained.

Check the coolant level only after the engine has been stopped.

Ensure that the filler cap is cool before removing the filler cap. The filler cap must be cool enough to touch with a bare hand. Remove the filler cap slowly to relieve pressure.

Cooling system conditioner contains alkali. Alkali can cause personal injury. Do not allow alkali to contact the skin, the eyes, or the mouth.

Oils

Hot oil and hot components can cause personal injury. Do not allow hot oil to contact the skin. Also, do not allow hot components to contact the skin.

Remove the hydraulic tank filler cap only after the engine has been stopped. The filler cap must be cool enough to touch with a bare hand. Follow the standard procedure in this manual to remove the hydraulic tank filler cap.

Batteries

i07746334

The liquid in a battery is an electrolyte. Electrolyte is an acid that can cause personal injury. Do not allow electrolyte to contact the skin or the eyes.

Do not smoke while checking the battery electrolyte levels. Batteries give off flammable fumes which can explode.

Always wear protective glasses when you work with batteries. Wash hands after touching batteries. The use of gloves is recommended.

This is the sample of the manual Click on the download link for complete Manual

Product: BACKHOE LOADER

Model: 428C BACKHOE LOADER 8RN

Configuration: 428C Backhoe Loader 8RN00001-04088 (MACHINE) POWERED BY 3054 Engine

Operation and Maintenance Manual

416C, 426C, 428C, 436C and 438C Backhoe Loaders

Media Number -SEBU6873-06 Publication Date -01/07/2008 Date Updated -01/04/2019

Crushing Prevention and Cutting Prevention

SMCS - 7000

Support the equipment properly when you work beneath the equipment. Do not depend on the hydraulic cylinders to hold up the equipment. An attachment can fall if a control is moved, or if a hydraulic line breaks.

Unless you are instructed otherwise, never attempt adjustments while the machine is moving. Also, never attempt adjustments while the engine is running.

Whenever there are attachment linkages, the clearance in the linkage area will increase or the clearance in the linkage area will decrease with movement of the attachment.

Stay clear of all rotating parts and all moving parts.

Keep objects away from moving fan blades. The fan blade will throw objects or the fan blade will cut objects.

Do not use a kinked wire rope cable or a frayed wire rope cable. Wear gloves when you handle wire rope cable.

When you strike a retainer pin with force, the retainer pin can fly out. The loose retainer pin can injure personnel. Make sure that the area is clear of people when you strike a retainer pin.

In order to avoid injury to your eyes, wear protective glasses when you strike a retainer pin.

Chips or other debris can fly off objects when you strike the objects. Ensure that an injury will not occur from flying debris before you hit any object.

Rollover Protective Structure (ROPS) or Falling Objects

Protective Structure (FOPS)

These guards are positioned above the operator's compartment and these guards are secured to the machine.

i00081360

To avoid the possible weakening of the ROPS or of the FOPS, consult a Caterpillar dealer before you alter the guards. Do not alter the structure by welding, cutting, adding weight, or drilling holes into the structure.

Any alteration that is not specifically authorized by Caterpillar invalidates the Caterpillar certification for the ROPS and for the FOPS. The protection that is offered by the ROPS will be impaired if the ROPS has structural damage. Damage to the structure can be caused by an overturn, falling objects, etc.

Do not weld brackets to the ROPS and do not drill holes in the ROPS in order to mount fire extinguishers, first aid kits, and lights to the ROPS structure. Consult your Caterpillar dealer for mounting guidelines.

Fri Apr 12 09:30:23 UTC+0530 2024

Product: BACKHOE LOADER

Model: 428C BACKHOE LOADER 8RN

Configuration: 428C Backhoe Loader 8RN00001-04088 (MACHINE) POWERED BY 3054 Engine

Operation and Maintenance Manual

416C, 426C, 428C, 436C and 438C Backhoe Loaders

Media Number -SEBU6873-06

Publication Date -01/07/2008

Electrical Storm Injury Prevention

SMCS - 7000

Date Updated -01/04/2019

i01122596

When lightning is striking in the vicinity of the machine, the operator should never attempt the following procedures:

• Mount the machine.

• Dismount the machine.

If you are in the operator's station during an electrical storm, stay in the operator's station. If you are on the ground during an electrical storm, stay away from the vicinity of the machine.

Private Network For SIS Licensees.

Fri Apr 12 09:31:45 UTC+0530 2024

Product: BACKHOE LOADER

Model: 428C BACKHOE LOADER 8RN

Configuration: 428C Backhoe Loader 8RN00001-04088 (MACHINE) POWERED BY 3054 Engine

Operation and Maintenance Manual

416C, 426C, 428C, 436C and 438C Backhoe Loaders

Media Number -SEBU6873-06

Engine Starting

SMCS - 1000; 7000

Publication Date -01/07/2008

Date Updated -01/04/2019

i00663584

If a warning tag is attached to the start switch or to the controls, do not start the engine. Also, do not move any controls.

Move all hydraulic controls to the HOLD position before you start the engine.

Move the transmission direction control lever to the NEUTRAL position.

Engage the parking brake.

Diesel engine exhaust contains products of combustion which can be harmful to your health. Always start the engine in a well ventilated area. Always operate the engine in a well ventilated area. If you are in an enclosed area, vent the exhaust to the outside.

Product: BACKHOE LOADER

Model: 428C BACKHOE LOADER 8RN

Configuration: 428C Backhoe Loader 8RN00001-04088 (MACHINE) POWERED BY 3054 Engine

Operation and Maintenance Manual

416C, 426C, 428C, 436C and 438C Backhoe Loaders

Media Number -SEBU6873-06

Engine Stopping

SMCS - 1000; 7000

Publication Date -01/07/2008

Date Updated -01/04/2019

Do not stop the engine immediately after the machine has been operated under load. Stopping the engine immediately can cause overheating and accelerated wear of engine components.

After the machine is parked and the parking brake is engaged, allow the engine to run at low idle for 5 minutes before shutdown. Running the engine allows hot areas of the engine to cool gradually.

i06299648

Product: BACKHOE LOADER

Model: 428C BACKHOE LOADER 8RN

Configuration: 428C Backhoe Loader 8RN00001-04088 (MACHINE) POWERED BY 3054 Engine

Operation and Maintenance Manual

416C, 426C, 428C, 436C and 438C Backhoe Loaders

Media Number -SEBU6873-06

Publication Date -01/07/2008

Equipment Lowering with Engine Stopped

SMCS - 7000

Date Updated -01/04/2019

Before lowering any equipment with the engine stopped, clear the area around the equipment of all personnel. The procedure to use will vary with the type of equipment to be lowered. Keep in mind most systems use a high pressure fluid or air to raise or lower equipment. The procedure will cause high pressure air, hydraulic, or some other media to be released in order to lower the equipment. Wear appropriate personal protective equipment and follow the established procedure in the Operation and Maintenance Manual, "Equipment Lowering with Engine Stopped" in the Operation Section of the manual.

Fri Apr 12 09:34:43 UTC+0530 2024

i08229294

Product: BACKHOE LOADER

Model: 428C BACKHOE LOADER 8RN

Configuration: 428C Backhoe Loader 8RN00001-04088 (MACHINE) POWERED BY 3054 Engine

Operation and Maintenance Manual

416C, 426C, 428C, 436C and 438C Backhoe Loaders

Media Number -SEBU6873-06

Publication Date -01/07/2008

Fire Extinguisher Location

SMCS - 7000; 7419

Date Updated -01/04/2019

Make sure that a fire extinguisher is on the machine. Make sure that you are familiar with the operation of the fire extinguisher. Inspect the fire extinguisher and service the extinguisher. Obey the recommendations on the instruction plate.

Mount the fire extinguisher in the battery box. Do not weld the ROPS in order to install the fire extinguisher. Also, do not drill holes in the ROPS in order to mount the fire extinguisher on the ROPS.

Fri Apr 12 09:31:13 UTC+0530 2024

i00980571

Product: BACKHOE LOADER

Model: 428C BACKHOE LOADER 8RN

Configuration: 428C Backhoe Loader 8RN00001-04088 (MACHINE) POWERED BY 3054 Engine

Operation and Maintenance Manual

416C, 426C, 428C, 436C and 438C Backhoe Loaders

Media Number -SEBU6873-06 Publication Date -01/07/2008 Date Updated -01/04/2019

Fire Prevention and Explosion Prevention

SMCS - 7000

Dust created during repair of fenders and/or hood on this machine can be explosive. Refer to Special Instruction, REHS0034, "Guideline for Repair of Non-metallic Fenders and Hoods" before attempting any repair.

All fuels, most lubricants, and some coolant mixtures are flammable.

Fuel that is leaking, fuel that is spilled onto hot surfaces, and fuel that is spilled onto electrical components can cause a fire.

Do not smoke while you refuel or while you are in a refueling area.

Do not smoke in battery charging areas or in areas that are used to store flammable material.

Batteries can be installed in separate compartments. When you use jump start cables, always connect the positive "(+)" cable to the positive "(+)" terminal of the battery that is connected to the terminal of the starter.

Note: block.

See the Operation Section of this manual for specific starting instructions.

Clean all electrical connections and tighten all electrical connections. Check the electrical wires daily for loose wires or for frayed wires. Tighten all loose wires before you operate the machine. Repair all frayed wires before you operate the machine.

i00837742

Store all fuels and lubricants in properly marked containers and away from all unauthorized persons.

Store all oily rags or other flammable material in a protective container.

Do not weld pipes that contain flammable fluids or tubes that contain flammable fluids. Do not flame cut pipes that contain flammable fluids or tubes that contain flammable fluids. Clean the pipes or tubes thoroughly with nonflammable solvent before you weld the pipes or tubes or you flame cut the pipes or tubes.

Remove all flammable materials (fuel, oil, debris, etc) before the flammable materials accumulate on the machine.

Do not expose the machine to flames or to brush that is burning.

Shields protect hot exhaust components from oil spray or fuel spray. Make sure that the shields are installed correctly in case a line, a tube, or a seal fails.

Ether

Do not spray ether into an engine when you use thermal starting aid to start the engine. Ether is not used on this machine.

Ether is poisonous and flammable. Inhaling ether vapors can cause personal injury. Do not allow ether to contact your skin repeatedly. Use ether only in well ventilated areas. Do not store ether cylinders in living areas or in the operator's compartment.

Do not store ether cylinders in direct sunlight or at temperatures above 40°C (102°F). Discard ether cylinders in an approved place. Do not puncture ether cylinders. Do not burn ether cylinders. Keep ether cylinders out of the reach of unauthorized personnel.

Lines, Tubes and Hoses

Do not bend high pressure lines. Do not strike high pressure lines. Do not install bent lines, bent tubes, or bent hoses. Do not install damaged lines, damaged tubes, or damaged hoses.

Repair loose lines, loose tubes, and loose hoses. Repair damaged lines, damaged tubes, and damaged hoses. Leaks can cause fires. See your Caterpillar dealer for repair or for replacement parts.

Check lines, tubes and hoses carefully. Do not use your bare hand to check for leaks. Use a board or cardboard to check for leaks. See Operation and Maintenance Manual, "Fluid Penetration" for more details. Tighten all connections to the recommended torque.

Replace the parts if any of the following conditions are present:

• The end fittings are damaged or leaking.

• The outer covering is chafed or cut.

• The wire shield is exposed.

• The outer covering is ballooning locally.

• The flexible part of the hose is kinked or crushed.

• The armoring is embedded in the outer cover.

• The end fittings are displaced.

Network For SIS Licensees. Fri Apr 12 09:30:56 UTC+0530 2024

Product: BACKHOE LOADER

Model: 428C BACKHOE LOADER 8RN

Configuration: 428C Backhoe Loader 8RN00001-04088 (MACHINE) POWERED BY 3054 Engine

Operation and Maintenance Manual

416C, 426C, 428C, 436C and 438C Backhoe Loaders

Media Number -SEBU6873-06

Publication Date -01/07/2008

General Hazard Information

SMCS - 7000

Date Updated -01/04/2019

Illustration 1

g00104545

Before you service the machine or before you repair the machine, attach a "Do Not Operate" warning tag or a similar warning tag to the start switch or to the controls. These warning tags Special Instruction, SEHS7332 are available from your Caterpillar dealer.

Know the width of your equipment in order to maintain proper clearance near fences, boundary obstacles, etc.

Wear a hard hat, protective glasses and other protective equipment in order to accommodate job conditions.

Do not wear loose clothing or jewelry that can catch on controls or on other parts of the machine.

Ensure that all protective guards and all covers are secured in place on the machine.

i00609983

Keep the machine free from foreign material. Check the deck, the walkways and the steps. Remove debris, oil, tools and other items.

Secure all loose items that are not a part of the machine. Secure lunch boxes, tools and other items.

Know the appropriate work site hand signals. Also, know the personnel that are authorized to give the hand signals. Accept signals from one person only.

Do not smoke when you service an air conditioner. Also, do not smoke if refrigerant gas may be present. Inhaling the fumes that are emitted from a flame that contacts air conditioner refrigerant can cause bodily harm or death. Inhaling gas from air conditioner refrigerant through a lighted cigarette can cause bodily harm or death.

Never put maintenance fluids into glass containers. Drain all liquids into a suitable container. When you discard liquids, obey all local regulations.

Use all cleaning solutions with care.

Report all necessary repairs.

Do not allow unauthorized personnel on the machine.

Unless you are instructed otherwise, perform the maintenance with the following conditions:

• The machine is parked on level ground.

• The attachment controls are in HOLD position.

• The transmission control is in NEUTRAL position and the neutral lock is in the ON position.

• The parking brake is engaged.

• Lower the loader bucket until the loader bucket exerts a slight downward pressure onto the ground.

• The engine is stopped.

• The engine start switch in the OFF position and the key is removed.

Pressure Air

Pressure air can cause personal injury. When pressure air is used for cleaning, wear a protective face shield, protective clothing and protective shoes.

The maximum air pressure must be below 205 kPa (30 psi) for cleaning purposes.

Trapped Pressure

Pressure can be trapped in a hydraulic system. Trapped pressure can cause sudden machine movement or attachment movement. Use caution if you disconnect hydraulic lines or fittings.

High pressure oil that is released can cause a hose to whip. High pressure oil that is released can cause oil to spray. Fluid penetration can cause serious injury and possible death.

Fluid Penetration

When you check for a leak, use a board or cardboard. Leaking fluid that is under pressure can penetrate body tissue. Fluid penetration can cause serious injury and possible death. A pin hole leak can cause severe injury. If fluid is injected into your skin, you must obtain treatment immediately. Seek treatment from a doctor that is familiar with this type of injury.

Asbestos Information

Caterpillar equipment and replacement parts that are shipped from Caterpillar are asbestos free. Caterpillar recommends the use of only genuine Caterpillar replacement parts. If any replacement parts that contain asbestos are used, the following guidelines should be used in handling these parts and asbestos debris.

Use caution. Avoid inhaling dust that might be generated when you handle components that contain asbestos fibers. If this dust is inhaled, it can be hazardous to your health. The components that may contain asbestos fibers are brake pads, brake bands, lining material, clutch plates, and some gaskets. The asbestos that is used in these components is usually bound in a resin or sealed in some way. Normal handling is not hazardous, unless airborne dust that contains asbestos is generated.

If dust which can contain asbestos is present, there are several guidelines that should be followed:

• Never use compressed air for cleaning.

• Avoid sweeping materials that contain asbestos.

• Also avoid grinding materials that contain asbestos.

• Use a wet method in order to clean up asbestos materials.

• You may also use a vacuum that is equipped with a highly efficient filter that cleans particulate air.

• Use exhaust ventilation on permanent machining jobs.

• Wear an approved respirator if there is no other way to control the dust.

• Comply with applicable rules and regulations for the work place. In the USA, use Occupational Safety and Health Administration requirements. These OSHA requirements can be found in "29 CFR 1910.1001".

• Obey environmental rules for the disposal of asbestos and obey environmental regulations for the disposal of asbestos.

• Stay away from areas that might have asbestos particles in the air.

Product: BACKHOE LOADER

Model: 428C BACKHOE LOADER 8RN

Configuration: 428C Backhoe Loader 8RN00001-04088 (MACHINE) POWERED BY 3054 Engine

Operation and Maintenance Manual

416C, 426C, 428C, 436C and 438C Backhoe Loaders

Media Number -SEBU6873-06

Operation

SMCS - 7000

Publication Date -01/07/2008

Date Updated -01/04/2019

Always engage the parking brake and transmission neutral lock before dismounting the machine, operating the backhoe or engaging the boom lock for the transport position. Failure to do so could allow unexpected machine movement, resulting in personal injury or death.

Machine Operating Temperature Range

The standard machine configuration is intended for use within an ambient temperature range of26 °C to 43 °C (-15 °F to 110 °F). The temperature range is dependent upon several operating conditions: technique, environment and cooling system condition. Special configurations for different ambient temperatures may be available. Consult your Caterpillar dealer for additional information on special configurations of your machine.

Safety Information

When you operate the backhoe, engage the parking brake. Also, place the transmission in NEUTRAL and engage the transmission neutral lock.

Only operate the machine while you are in a seat. The seat belt must be fastened while you operate the machine. Only operate the controls while the engine is running.

While you operate the machine slowly in an open area, check for proper operation of all controls and all protective devices.

Before you move the machine, ensure that no one will be endangered.

i01955170

This is the sample of the manual Click on the download link for complete Manual
