420F Caterpillar Backhoe Loader Operation and Maintenance Manual by quality service repair manual

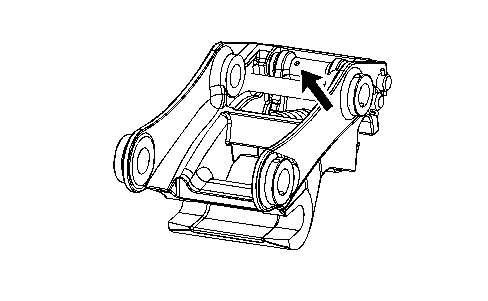

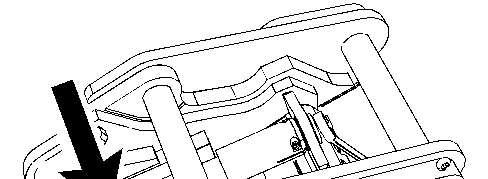

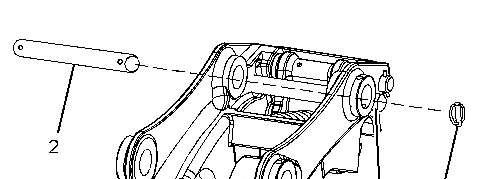

DualLockingQuickCoupler

SatApr223:04:36UTC+05302022

i04587970

SatApr223:04:19UTC+05302022

This is the sample of the manual Click on the download link for complete Manual

NOTICE

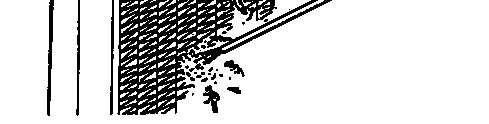

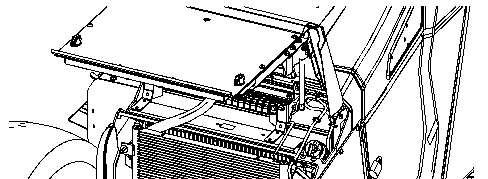

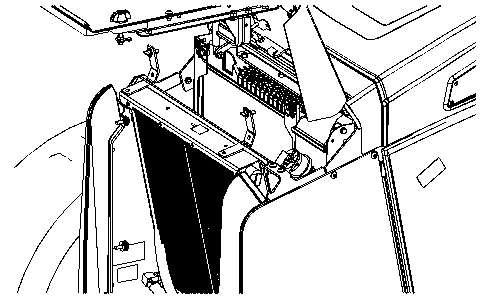

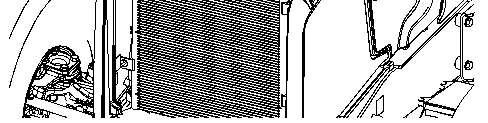

Donotsprayhigh-pressurewaterintotheradiatorwhilethe engineisrunning.

Note:

Product:BACKHOELOADER

Model:420FBACKHOELOADERLKH

Configuration:420FBackhoeLoaderLKH00001-UP(MACHINE)POWEREDBYC4.4Engine

OperationandMaintenanceManual 416F,420Fand430FBackhoeLoaders

MediaNumber-SEBU8714-04PublicationDate-01/02/2015DateUpdated-25/02/2015

ParkingBrake-Check/Adjust

SMCS-4267-025;4267-535

i05061429

Note:Theparkingbrakecanalsobereferredtoasthesecondarybrake.Theparkingbrakeis referredtoasthesecondarybrakewhenusedinastoppingapplication.Theparkingbrakeis referredtoastheparkingbrakewhenusedinaholdingapplication.

Note:Theseatmustbefacingforwardtocompletethecheckandadjustmentprocedure.

CheckProcedure

Checktheareaaroundthemachine.Makesurethatthemachineisclearofpersonnelandclearof obstacles.

Checkthebrakesonadry,levelsurface.

Fastentheseatbeltbeforeyoucheckthebrakes.

Thefollowingcheckisusedtodetermineiftheparkingbrakeisfunctional.Thischeckisnot intendedtomeasurethemaximumbrakeholdingeffort.Thebrakeholdingeffortthatisrequired tosustainamachineataspecificenginerpmvariesdependingonthemachine.Thevariationsare thedifferencesintheenginesetting,inthepowertrainefficiency,andinthebrakeholdingability, etc.

1.Starttheengine.Raisethebucketslightly.

2.Engagetheparkingbrake.

3.Ifthemachineisequippedwiththedirectdrivetransmission,movethetransmissionspeed shiftlevertoTHIRDgear.MovethetransmissiondirectioncontrollevertoFORWARD,to NEUTRAL,andbacktoFORWARD.Ifthemachineisequippedwithapowershift transmissionmovethetransmissioncontrollevertoTHIRDSPEEDFORWARD,to NEUTRAL,andbacktoTHIRDSPEEDFORWARD.Thisisdoneinordertooverridethe transmissionneutralizerforthistest.

Note:Placemachinesthatareequippedwithallwheeldriveintotwo-wheeldrivemode.

Note:Theparkingbrakeindicatorlightshouldcomeonandtheparkingbrakealarmshould sound.

4.Graduallyincreasetheenginespeedto2000rpm.Themachineshouldnotmove.

Ifthemachinebeginstomove,reducetheenginespeedimmediatelyand applytheservicebrakepedal.

5.Reducetheenginespeed.MovethetransmissiontoNEUTRAL.Lowerthebuckettothe ground.Stoptheengine.

AdjustmentProcedure

Ifthemachinemovedduringthetest,performthefollowingprocedureinordertoadjustthe parkingbrake.

1.Applytheservicebrakes.

2.Disengagetheparkingbrake.

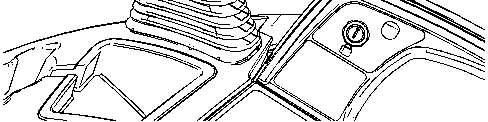

3.Asyouviewtheparkingbrakeadjusterknobfromtheoperatorseat,turntheknob clockwiseforonehalfofaturn.

4.Starttheengine.Raisethebucketslightly.

5.Engagetheparkingbrake.

6.Ifthemachineisequippedwiththedirectdrivetransmission,movethetransmissionspeed controltoTHIRDgear.MovethetransmissiondirectioncontroltotheFORWARD,tothe NEUTRALpositionandbacktotheFORWARDposition.Ifthemachineisequippedwitha powershifttransmission,movethetransmissionspeedcontroltotheTHIRDSPEED FORWARDposition,totheNEUTRALpositionandbacktotheTHIRDSPEED FORWARDposition.Thisisdoneinordertooverridethetransmissionneutralizer.

7.Graduallyincreasetheenginespeedtohighidle.Themachineshouldnotmove.

8.Reducetheenginespeed.MovethetransmissiondirectioncontroltotheNEUTRAL position.Lowerthebuckettotheground.

9.Stoptheengine.

Ifthemachinemovesduringtheparkingbraketest,thenperformtheadjustmentprocedureagain. Ifyourunoutofadjustmentontheparkingbrakeadjusterknob,refertoSystemsOperation, TestingandAdjusting,"ParkingBrakeControl-Adjust"foryourmachine.

AllRightsReserved. PrivateNetworkForSISLicensees.

SatApr223:04:04UTC+05302022

Product:BACKHOELOADER

Model:420FBACKHOELOADERLKH

Configuration:420FBackhoeLoaderLKH00001-UP(MACHINE)POWEREDBYC4.4Engine

OperationandMaintenanceManual 416F,420Fand430FBackhoeLoaders

MediaNumber-SEBU8714-04PublicationDate-01/02/2015DateUpdated-25/02/2015

OilFilter-Inspect

SMCS-1318-040;3067-040;5068-040

InspectaUsedFilterforDebris

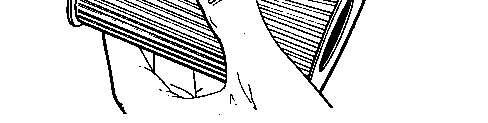

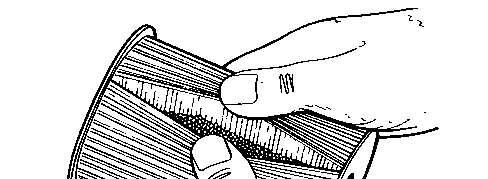

Useafiltercuttertocutthefilterelementopen.Spreadapartthepleatsandinspecttheelementfor metalandforotherdebris.Anexcessiveamountofdebrisinthefilterelementcanindicatea possiblefailure.

Ifmetalsarefoundinthefilterelement,amagnetcanbeusedtodifferentiatebetweenferrous metalsandnonferrousmetals.

i02106227

Ferrousmetalscanindicatewearonsteelpartsandoncastironparts.

Nonferrousmetalscanindicatewearonthealuminumpartsoftheenginesuchasmainbearings, rodbearings,orturbochargerbearings.

Smallamountsofdebrismaybefoundinthefilterelement.Thiscouldbecausedbyfrictionand bynormalwear.ConsultyourCaterpillardealerinordertoarrangeforfurtheranalysisifan excessiveamountofdebrisisfound.

UsinganoilfilterelementthatisnotrecommendedbyCaterpillarcanresultinsevereengine damagetoenginebearings,tothecrankshaft,andtootherparts.Thiscanresultinlargerparticles inunfilteredoil.Theparticlescouldenterthelubricatingsystemandtheparticlescouldcause damage.

SatApr223:03:51UTC+05302022

Product:BACKHOELOADER

Model:420FBACKHOELOADERLKH

Configuration:420FBackhoeLoaderLKH00001-UP(MACHINE)POWEREDBYC4.4Engine

Personalinjurycanresultfromcontactwithrefrigerant.

Contactwithrefrigerantcancausefrostbite.Keepfaceand handsawaytohelppreventinjury.

Protectivegogglesmustalwaysbewornwhenrefrigerantlines areopened,evenifthegaugesindicatethesystemisemptyof refrigerant.

Alwaysuseprecautionwhenafittingisremoved.Slowlyloosen thefitting.Ifthesystemisstillunderpressure,releaseitslowly inawellventilatedarea.

Personalinjuryordeathcanresultfrominhalingrefrigerant throughalitcigarette.

Inhalingairconditionerrefrigerantgasthroughalitcigaretteor othersmokingmethodorinhalingfumesreleasedfromaflame contactingairconditionerrefrigerantgas,cancausebodily harmordeath.

Donotsmokewhenservicingairconditionersorwherever refrigerantgasmaybepresent.

Useacertifiedrecoveryandrecyclingcarttoproperlyremove therefrigerantfromtheairconditioningsystem.

NOTICE

Iftherefrigerantsystemhasbeenopentotheoutsideair (withoutbeingplugged)formorethan30minutes,thereceiverdryermustbereplaced.Moisturewillenteranopenrefrigerant systemandcausecorrosionwhichwillleadtocomponent failure.

SatApr223:03:46UTC+05302022

Product:BACKHOELOADER

Model:420FBACKHOELOADERLKH

Configuration:420FBackhoeLoaderLKH00001-UP(MACHINE)POWEREDBYC4.4Engine

OperationandMaintenanceManual 416F,420Fand430FBackhoeLoaders

MediaNumber-SEBU8714-04PublicationDate-01/02/2015DateUpdated-25/02/2015

i05633255

LoaderBucket,Cylinder,andLinkageBearings-Lubricate

SMCS-5457-086-BD;6001-086-BD;6513-086-BD

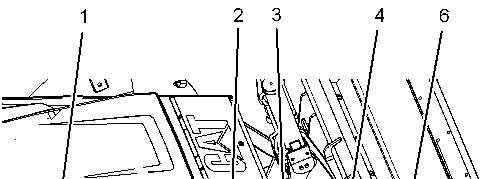

SingleTiltMachines

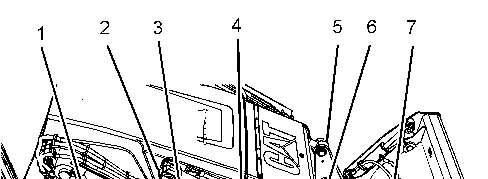

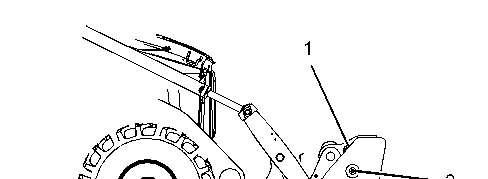

Applylubricanttothegreasefitting(1)forthepivotforthelinkageofbucketpositionerandlift kickout.

Applylubricanttothegreasefittings(2)fortherodendoftheliftcylinder.Thereisagrease fittingforeachsideofthemachine.

Applylubricanttothegreasefittings(3)forthepivotpinattheloaderliftarm.Thereisagrease fittingforeachsideofthemachine.

Applylubricanttothegreasefitting(4)fortherodendofthetiltcylinder.

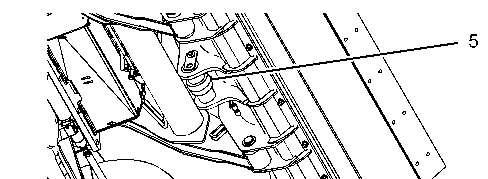

Applylubricanttothegreasefittings(5)fortheupperpivotpin.Thereisagreasefittingforeach sideofthemachine.

Applylubricanttothegreasefittings(6)forthelowerpivotpins.Thereisagreasefittingforeach sideofthemachine.

Applylubricanttothegreasefitting(7)forthepivotforthelinkageofbucketpositionerandlift kickout.

Applylubricanttothegreasefittings(8)fortheheadendoftheliftcylinder.Thereisagrease fittingforeachsideofthemachine.

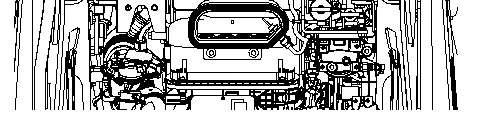

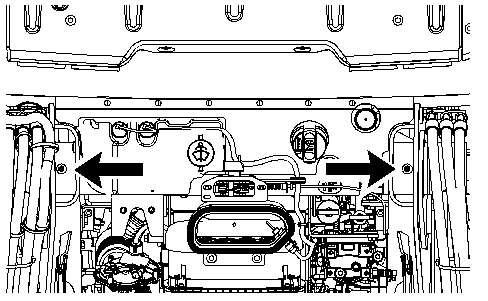

Opentheengineaccessdooronthetopofthemachine.

Illustration3g02793168

Applylubricanttothegreasefittingsforthepivotpointfortheliftarms.

ParallelLiftMachines

Applylubricanttothegreasefittings(1)fortheframeandfortheparallellinkarm.Thereisa greasefittingforeachsideofthemachine.

Applylubricanttothegreasefittings(2)fortheheadendofthetiltcylinder.Thereisagrease fittingforeachsideofthemachine.

Applylubricanttothegreasefittings(3)forthecenterpivotpinoftheparallellinkage.Thereisa greasefittingforeachsideofthemachine.

Applylubricanttothegreasefittings(4)fortherodendofthetiltcylinder.Thereisagrease fittingforeachsideofthemachine.

Applylubricanttothegreasefittings(5)fortheupperpivotpinofthetiltlinkage.Thereisa greasefittingforeachsideofthemachine.

Applylubricanttothegreasefittings(6)fortheupperpivotpinofthebucket/quickcoupler.There isagreasefittingforeachsideofthemachine.

Applylubricanttothegreasefittings(7)forthelowerpivotpinofthebucket/quickcoupler.There isagreasefittingforeachsideofthemachine.

Applylubricanttothegreasefittings(8)forthelowerpivotpinofthetiltlinkage.Thereisa greasefittingforeachsideofthemachine.

Applylubricanttothegreasefittings(9)fortherodendoftheliftcylinder.Thereisagrease fittingforeachsideofthemachine.

Applylubricanttothegreasefittings(10)fortheheadendoftheliftcylinder.Thereisagrease fittingforeachsideofthemachine.

Applylubricanttothegreasefittings(11)fortheheadendoftheliftcylinder.Thereisagrease fittingforeachsideofthemachine.

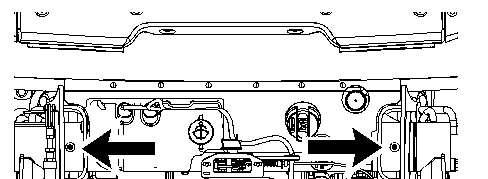

Opentheengineaccessdooronthetopofthemachine.

Illustration5g02793151

Applylubricanttothegreasefittingsforthepivotpointfortheliftarms.

MultiPurposeBucket

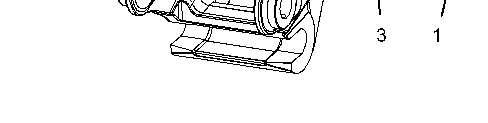

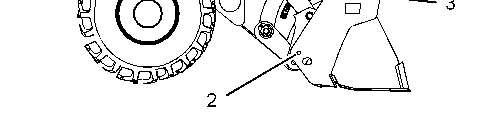

Illustration6g01495053

Applylubricanttothegreasefittings(1)fortherodendoftheliftcylinder.Thereisagrease fittingforeachsideofthebucket.

Applylubricanttothegreasefittings(2)fortheheadendoftheliftcylinder.Thereisagrease fittingforeachsideofthebucket.

Applylubricanttothegreasefittings(3)forthebuckethingepin.Thereisagreasefittingforeach sideofthebucket.

Thereisatotalofsixgreasefittings.

SatApr223:03:35UTC+05302022
