329F L Caterpillar Excavator Operation and Maintenance Manual by quality service repair manual

Product:EXCAVATOR

Model:329FLEXCAVATORERL

Configuration:329FLExcavatorERL00001-UP(MACHINE)POWEREDBYC7.1Engine

OperationandMaintenanceManual 329Fand330FExcavators

MediaNumber-SEBU8094-12PublicationDate-01/06/2015DateUpdated-26/02/2019

Foreword

CaliforniaProposition65Warning

s03548206

DieselengineexhaustandsomeofitsconstituentsareknowntotheStateofCaliforniato causecancer,birthdefects,andotherreproductiveharm.

WARNING-Thisproductcanexpose youtochemicalsincludingethylene glycol,whichisknowntotheStateof Californiatocausebirthdefectsorother reproductiveharm.Formoreinformation goto:

www.P65Warnings.ca.gov

Donotingestthischemical.Washhandsafterhandlingtoavoidincidentalingestion.

WARNING-Thisproductcanexpose youtochemicalsincludingleadandlead compounds,whichareknowntothe StateofCaliforniatocausecancer,birth defects,orotherreproductiveharm.For moreinformationgoto:

www.P65Warnings.ca.gov

Washhandsafterhandlingcomponentsthatmaycontainlead.

LiteratureInformation

Thismanualshouldbestoredintheoperator'scompartmentintheliteratureholderorseatback literaturestoragearea.

Thismanualcontainssafetyinformation,operationinstructions,transportationinformation, lubricationinformation,andmaintenanceinformation.

Somephotographsorillustrationsinthispublicationshowdetailsorattachmentsthatcanbe differentfromyourmachine.Guardsandcoversmighthavebeenremovedforillustrative purposes.

Continuingimprovementandadvancementofproductdesignmighthavecausedchangestoyour machinewhicharenotincludedinthispublication.Read,study,andkeepthismanualwiththe machine.

Wheneveraquestionarisesregardingyourmachine,orthispublication,pleaseconsultyourCat dealerforthelatestavailableinformation.

Safety

Thesafetysectionlistsbasicsafetyprecautions.Inaddition,thissectionidentifiesthetextand locationsofwarningsignsandlabelsusedonthemachine.

Readandunderstandthebasicprecautionslistedinthesafetysectionbeforeoperatingor performinglubrication,maintenance,andrepaironthismachine.

Operation

Theoperationsectionisareferenceforthenewoperatorandarefresherfortheexperienced operator.Thissectionincludesadiscussionofgauges,switches,machinecontrols,attachment controls,transportation,andtowinginformation.

Photographsandillustrationsguidetheoperatorthroughcorrectproceduresofchecking,starting, operating,andstoppingthemachine.

Operatingtechniquesoutlinedinthispublicationarebasic.Skillandtechniquesdevelopasthe operatorgainsknowledgeofthemachineanditscapabilities.

Maintenance

Themaintenancesectionisaguidetoequipmentcare.TheMaintenanceIntervalSchedule(MIS) liststheitemstobemaintainedataspecificserviceinterval.Itemswithoutspecificintervalsare listedunderthe"WhenRequired"serviceinterval.TheMaintenanceIntervalScheduleliststhe pagenumberforthestep-by-stepinstructionsrequiredtoaccomplishthescheduledmaintenance. UsetheMaintenanceIntervalScheduleasanindexor"onesafesource"forallmaintenance procedures.

MaintenanceIntervals

Usetheservicehourmetertodetermineservicingintervals.Calendarintervalsshown(daily, weekly,monthly,etc.)canbeusedinsteadofservicehourmeterintervalsifthecalendarintervals

providemoreconvenientservicingschedulesandapproximatetheindicatedservicehourmeter reading.Performtherecommendedserviceattheintervalthatoccursfirst.

Undersevere,dusty,orwetoperatingconditions,morefrequentlubricationthanisspecifiedinthe maintenanceintervalschartmightbenecessary.

Performserviceonitemsatmultiplesoftheoriginalrequirement.Forexample,atevery500 servicehoursor3months,alsoservicethoseitemslistedunderevery250servicehoursor monthlyandevery10servicehoursordaily.

CertifiedEngineMaintenance

Propermaintenanceandrepairareessentialtokeeptheengineandmachinesystemsoperating correctly.Astheheavy-dutyoff-roaddieselengineowner,youareresponsibleforthe performanceoftherequiredmaintenancelistedintheOwnerManual,OperationandMaintenance Manual,andServiceManual.

Itisprohibitedforanypersonengagedinthebusinessofrepairing,servicing,selling,leasing,or tradingenginesormachinestoremove,alter,ortorenderinoperative,anyemission-relateddevice orelementofdesigninstalledonorinanengineormachinethatisincompliancewithall applicableregulationsoftheintendedcountrytowhichithasbeenshipped.Certainelementsof themachineandenginesuchastheexhaustsystem,fuelsystem,electricalsystem,intakeair system,andcoolingsystemmaybeemission-relatedandshouldnotbealteredunlessapprovedby Caterpillar.

MachineCapacity

Additionalattachmentsormodificationsmayexceedmachinedesigncapacitywhichcan adverselyaffectperformancecharacteristics.Includedwouldbestabilityandsystemcertifications suchasbrakes,steering,androlloverprotectivestructures(ROPS).ContactyourCatdealerfor furtherinformation.

ProductIdentificationNumber

EffectiveFirstQuarter2001theProductIdentificationNumber(PIN)haschangedfrom8to17 characters.Toprovideuniformequipmentidentification,constructionequipmentmanufacturers aremovingtocomplywiththelatestversionoftheproductidentificationnumberingstandard. Non-roadmachinePINsaredefinedbyISO10261.ThenewPINformatwillapplytoall machinesandgeneratorsets.ThePINplatesandframemarkingwilldisplaythe17characterPIN. Thenewformatwilllooklikethefollowing:

Where:

1.WorldManufacturingCode(characters1-3)

2.MachineDescriptor(characters4-8)

3.CheckCharacter(character9)

4.MachineIndicatorSection(MIS)orProductSequenceNumber(characters10-17).Thesewere previouslyreferredtoastheSerialNumber.

MachinesandgeneratorsetsproducedbeforeFirstQuarter2001willmaintaintheir8character PINformat.

Componentssuchasengines,transmissions,axles,andworktoolswillcontinuetousean8 characterSerialNumber(S/N).

ThuJan420:03:22UTC+05302024

Product:EXCAVATOR

Model:329FLEXCAVATORERL

Configuration:329FLExcavatorERL00001-UP(MACHINE)POWEREDBYC7.1Engine

AdditionalMessages

SMCS-7000;7405

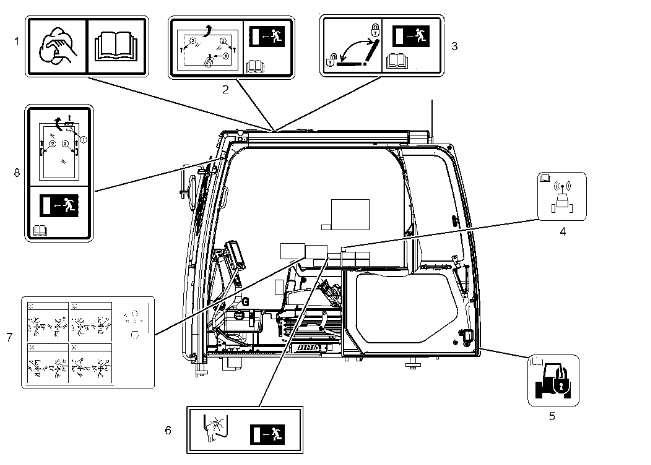

Thereareseveralspecificmessagesonthismachine.Theexactlocationofthemessagesandthe descriptionoftheinformationarereviewedinthissection.Pleasebecomefamiliarwithallmessages.

Makesurethatallofthemessagesarelegible.Cleanthemessagesorreplacethemessagesifyou cannotreadthewords.Replacetheillustrationsiftheillustrationsarenotlegible.Whenyoucleanthe messages,useacloth,water,andsoap.Donotusesolvent,gasoline,orotherharshchemicalstoclean themessages.Solvents,gasoline,orharshchemicalscouldloosentheadhesivethatsecuresthe messages.Looseadhesivewillallowthemessagestofall.

Replaceanymessagethatisdamaged,ormissing.Ifamessageisattachedtoapartthatisreplaced, installamessageonthereplacementpart.AnyCatdealercanprovidenewmessages.

Thismessageislocatedinthecabonthepolycarbonatewindows.

Illustration3g01134495

NOTICE

Cleanwindowswithawetclothorsponge.Dryclothorspongemay scratchwindowmaterial.

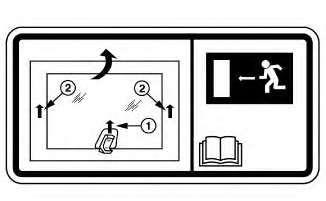

AlternateExit(2)

Ifequipped,thismessageislocatedontheroofhatch.

Illustration4g02052833

IfthePrimaryexitsareblocked,exitthemachinethroughtheopening.

Formoreinformation,refertoOperationandMaintenanceManual,"AlternateExit".

AlternateExitLock/Unlock(3)

Ifequipped,thismessageislocatedontheroofhatch.

NOTICE

Unlockalternateexitwindowduringmachineoperations.

MovethelevertothelefttotheUNLOCKposition.MovethelevertotherighttotheLOCK position.Exitthroughtheopening.

Formoreinformation,refertoOperationandMaintenanceManual,"AlternateExit".

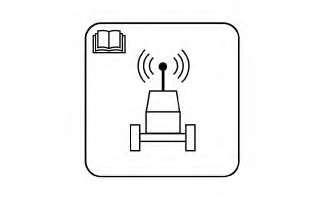

DataPrivacy(4)

TheProductLinkSystemisasatellitecommunicationdevicethattransmitsinformationregardingthe machinebacktoCaterpillarandCatdealersandcustomers.Allloggedeventsanddiagnosticcodes thatareavailabletotheCatElectronicTechnician(ET)ontheCatdatalinkcanbesenttothe

Illustration6g01418953

satellite.InformationcanalsobesenttotheProductLinkSystem.Theinformationisusedtoimprove CatproductsandCatservices.

RefertoOperationandMaintenanceManual,"ProductLink"formoreinformation.

MachineSecuritySystem(5)

Thismessageislocatedonthebottomcornerofthecabdoor.

Illustration7g00951606

Thismachinemaybeequippedwithasecuritysystem.ReadtheOperationandMaintenanceManual beforeyouoperatethemachine.

RefertoOperationandMaintenanceManual,"MachineSecuritySystem"formoreinformation.

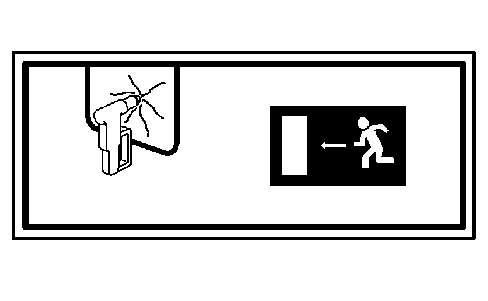

AlternateExit(6)

Ifequipped,thismessageislocatedontherightsidewindowofthecab.

Illustration8g01069768

Breakglassinordertoexit.

RefertoOperationandMaintenanceManual,"AlternateExit"forfurtherinformation.

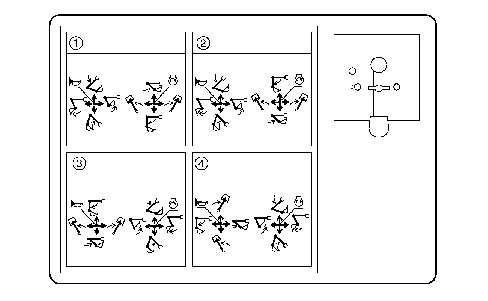

JoystickControlsAlternatePatterns(7)

Ifequipped,thismessageislocatedontherightsidewindowofthecab.

Illustration9g03094696

RefertoOperationandMaintenanceManual,"JoystickControlsAlternatePatterns"forfurther information.

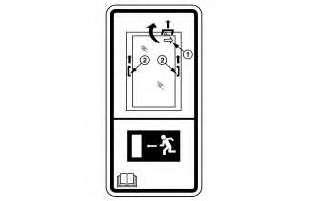

AlternateExit(8)

Ifequipped,thismessageislocatedonthefrontwindowofthecabintheupperleft-handcorner.

This is the sample of the manual Click on the download link for complete Manual

Illustration10g02052913

Movethelevertotherightinordertounlockthefrontwindow.Raisethewindowintothestorage position.Exitthroughtheopening.

RefertoOperationandMaintenanceManual,"AlternateExit"forfurtherinformation.

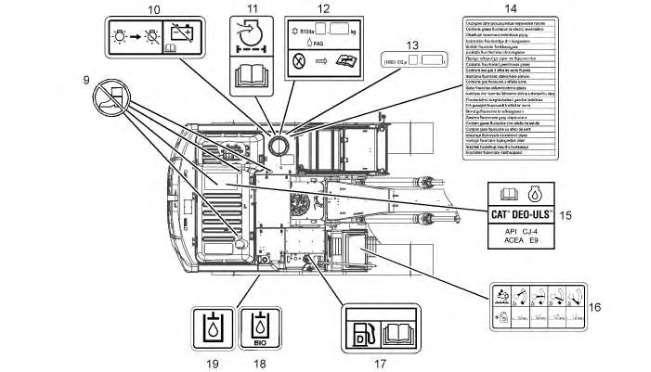

NoStep(9)

Thismessageislocatedontheenginehoodonthetopofthemachine.Thismessageisalsolocated ontheleftsideofthemachinebehindthecab,aswellasontheenginevalvecover.

Illustration11g00911158

Donotstepinthisarea.

DEFPurgeIndicatorLamp(10)

Thismessageislocatedbehindthecabnearthedisconnectswitch.

NOTICE

Aftertheengineisshutdownapplythebatterydisconnectswitch. ApplyingthebatterydisconnecttoosoonwillpreventtheDEFsystem frombeingpurgedandcouldcauseDEFtofreezeinthelines.

RadialSealAirFilters(11)

Thismessageislocatedontheaircleaner. Illustration13g03732507

Toavoidenginedamage,useonlyCatradialsealairfilters.Otherfilterswillnotsealproperly.Read theOperationandMaintenanceManual.

RefertoOperationandMaintenanceManual,"EngineAirFilterPrimaryElement-Clean/Replace".

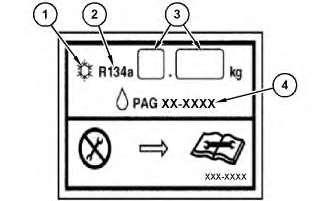

AirConditioner(12),(13),(14)

Thesemessagesarepositionedontheleftdoorbehindthecab.

Illustration14g06155396

(1)Airconditioningsymbol (2)R134a(Refrigeranttypecommonname) (3)Thesystemcontains0.9kgofrefrigerant

(4)ThelubricatingoiltypeforthissystemisPAG(polyalkyleneglycol)

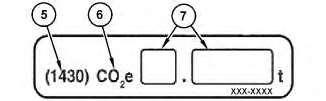

Illustration15g06155409

Ifequipped,thisplateprovidesthebelowadditionalEuropeanUnionrequiredgreenhousegasinformation. (5)(1430)-ThisistheGlobalWarmingPotentialofR134a (6)CO2equivalent

(7)Thesystemcontains1.287metrictonneofCO2equivalent

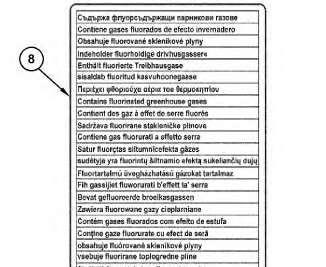

Illustration16g06155418 (8)Ifequipped,thisfilmprovidestherequiredlanguagetranslationsofthetext"Containsfluorinatedgreenhousegases" fortheEuropeanUniongreenhousegasregulation.

Thesemessagesfortheairconditionersystemhavetheappropriateinformationforthefollowing services:theairconditionerlubricant,therefrigerantcharge,andtherefrigerantcapacity.

EngineOilRequirements(15)

Thismessageislocatedontopoftheengine.

Illustration17g02176761

RefertoOperationandMaintenanceManual,"LubricantViscosities".

DieselExhaustFluidFill(16)

Thismessageislocatedontherightsideofthemachinenearthestoragebox.

Illustration18g03650401

ThisfilmprovidesanestimateofdieselexhaustfluidneededtofilltheDEFtank.

RefertoOperationandMaintenanceManual,"LubricantViscosities"andOperationandMaintenance Manual,"DieselExhaustFluid-Fill"formoreinformation.

DieselFuelRequirements(17)

Thismessageislocatedbythefueltank.

Illustration19g03218956 (A)NACDfilm (B)EAMEfilm (C)Japanfilm

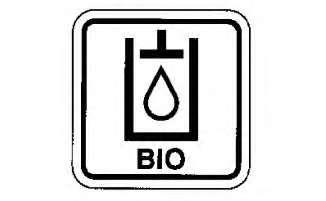

OilBiodegradable(18)

Thismessageislocatedontheleftsideofthemachinebythefueltank.

Illustration20g03621717

RefertoOperationandMaintenanceManual,"LubricantViscosities"formoreinformationaboutthe oil.

HydraulicOil(19)

Thismessageislocatedontheleftsideofthemachinebythefueltank.

Illustration21g03621736

RefertoOperationandMaintenanceManual,"LubricantViscosities"formoreinformationaboutthe oil.

ThuJan420:05:22UTC+05302024

Product:EXCAVATOR

Model:329FLEXCAVATORERL

Configuration:329FLExcavatorERL00001-UP(MACHINE)POWEREDBYC7.1Engine

OperationandMaintenanceManual 329Fand330FExcavators

MediaNumber-SEBU8094-12PublicationDate-01/06/2015DateUpdated-26/02/2019

BeforeOperation

SMCS-7000

Clearallpersonnelfromthemachineandfromthearea.

Clearallobstaclesfromthemachine'spath.Bewareofhazards(wires,ditches,etc).

Besurethatallwindowsareclean.Securethedoorsandthewindowsintheopenpositionorin theshutposition.

Adjusttherearviewmirrors(ifequipped)forthebestvisibilityclosetothemachine.Makesure thatthehorn,thetravelalarm(ifequipped),andallotherwarningdevicesareworkingproperly.

Fastentheseatbeltsecurely.

Warmuptheengineandthehydraulicoilbeforeoperatingthemachine.

Beforemovingthemachine,checkthepositionoftheundercarriage.Thenormaltravelpositionis withtheidlerwheelstothefrontunderthecabandthedrivesprocketstotherear.Whenthe undercarriageisinthereversedposition,thedirectionalcontrolsmustbeoperatedinopposite directions.

ThuJan420:13:29UTC+05302024

Product:EXCAVATOR

Model:329FLEXCAVATORERL

Configuration:329FLExcavatorERL00001-UP(MACHINE)POWEREDBYC7.1Engine

OperationandMaintenanceManual 329Fand330FExcavators

MediaNumber-SEBU8094-12PublicationDate-01/06/2015DateUpdated-26/02/2019

BeforeStartingEngine

SMCS-1000;7000

i00771840

Starttheengineonlyfromtheoperatorcompartment.Nevershortacrossthestarterterminalsor acrossthebatteries.Shortingcoulddamagetheelectricalsystembybypassingtheengineneutral startsystem.

Inspecttheconditionoftheseatbeltandofthemountinghardware.Replaceanypartsthatare wornordamaged.Regardlessofappearance,replacetheseatbeltafterthreeyearsofuse.Donot useaseatbeltextensiononaretractableseatbelt.

Adjusttheseatsothatfullpedaltravelcanbeachievedwiththeoperator'sbackagainsttheback oftheseat.

Makesurethatthemachineisequippedwithalightingsystemthatisadequateforthejob conditions.Makesurethatallmachinelightsareworkingproperly.

Beforeyoustarttheengineandbeforeyoumovethemachine,makesurethatnooneisunderneath themachine,aroundthemachine,oronthemachine.Makesurethattheareaisfreeofpersonnel.

ThuJan420:12:10UTC+05302024

Product:EXCAVATOR

Model:329FLEXCAVATORERL

Configuration:329FLExcavatorERL00001-UP(MACHINE)POWEREDBYC7.1Engine

OperationandMaintenanceManual 329Fand330FExcavators

MediaNumber-SEBU8094-12PublicationDate-01/06/2015DateUpdated-26/02/2019

BurnPrevention

SMCS-7000

Donottouchanypartofanoperatingengine.Allowmachinesystemstocoolbeforeany maintenanceisperformed.Relieveallpressureintheairsystem,intheoilsystem,inthe lubricationsystem,inthefuelsystem,orinthecoolingsystembeforeanylines,fittings,orrelated itemsaredisconnected.

InductionSystem

SulfuricAcidBurnHazardmaycauseseriouspersonalinjuryordeath.

Theexhaustgascoolermaycontainasmallamountofsulfuricacid.The useoffuelwithsulfurlevelsgreaterthan15ppmmayincreasethe amountofsulfuricacidformed.Thesulfuricacidmayspillfromthe coolerduringserviceoftheengine.Thesulfuricacidwillburntheeyes, skinandclothingoncontact.Alwaysweartheappropriatepersonal protectiveequipment(PPE)thatisnotedonamaterialsafetydatasheet (MSDS)forsulfuricacid.Alwaysfollowthedirectionsforfirstaidthat arenotedonamaterialsafetydatasheet(MSDS)forsulfuricacid.

Coolant

Whentheengineisatoperatingtemperature,theenginecoolantishot.Thecoolantisalsounder pressure.Theradiatorandalllinestotheheatersortotheenginecontainhotcoolant.

Anycontactwithhotcoolantorwithsteamcancausesevereburns.Allowcoolingsystem componentstocoolbeforethecoolingsystemisdrained.

i07399130

Checkthecoolantlevelonlyaftertheenginehasbeenstopped.

Ensurethatthefillercapiscoolbeforeremovingthefillercap.Thefillercapmustbecoolenough totouchwithabarehand.Removethefillercapslowlytorelievepressure.

Coolingsystemconditionercontainsalkali.Alkalicancausepersonalinjury.Donotallowalkali tocontacttheskin,theeyes,orthemouth.

Oils

Hotoilandhotcomponentscancausepersonalinjury.Donotallowhotoiltocontacttheskin. Also,donotallowhotcomponentstocontacttheskin.

Removethehydraulictankfillercaponlyaftertheenginehasbeenstopped.Thefillercapmustbe coolenoughtotouchwithabarehand.Followthestandardprocedureinthismanualtoremove thehydraulictankfillercap.

Batteries

Theliquidinabatteryisanelectrolyte.Electrolyteisanacidthatcancausepersonalinjury.Do notallowelectrolytetocontacttheskinortheeyes.

Donotsmokewhilecheckingthebatteryelectrolytelevels.Batteriesgiveoffflammablefumes whichcanexplode.

Alwayswearprotectiveglasseswhenyouworkwithbatteries.Washhandsaftertouching batteries.Theuseofglovesisrecommended.

ThuJan420:08:11UTC+05302024

Product:EXCAVATOR

Model:329FLEXCAVATORERL

Configuration:329FLExcavatorERL00001-UP(MACHINE)POWEREDBYC7.1Engine

OperationandMaintenanceManual 329Fand330FExcavators

MediaNumber-SEBU8094-12PublicationDate-01/06/2015DateUpdated-26/02/2019 i01359664

CrushingPreventionandCuttingPrevention

SMCS-7000

Supporttheequipmentproperlybeforeyouperformanyworkormaintenancebeneaththat equipment.Donotdependonthehydrauliccylinderstoholduptheequipment.Equipmentcan fallifacontrolismoved,orifahydrauliclinebreaks.

Donotworkbeneaththecabofthemachineunlessthecabisproperlysupported.

Unlessyouareinstructedotherwise,neverattemptadjustmentswhilethemachineismovingor whiletheengineisrunning.

Neverjumpacrossthestartersolenoidterminalsinordertostarttheengine.Unexpectedmachine movementcouldresult.

Wheneverthereareequipmentcontrollinkagestheclearanceinthelinkageareawillchangewith themovementoftheequipmentorthemachine.Stayclearofareasthatmayhaveasuddenchange inclearancewithmachinemovementorequipmentmovement.

Stayclearofallrotatingandmovingparts.

Ifitisnecessarytoremoveguardsinordertoperformmaintenance,alwaysinstalltheguardsafter themaintenanceisperformed.

Keepobjectsawayfrommovingfanblades.Thefanbladewillthrowobjectsorcutobjects.

Donotuseakinkedwirecableorafrayedwirecable.Weargloveswhenyouhandlewirecable.

Whenyoustrikearetainerpinwithforce,theretainerpincanflyout.Thelooseretainerpincan injurepersonnel.Makesurethattheareaisclearofpeoplewhenyoustrikearetainerpin.To avoidinjurytoyoureyes,wearprotectiveglasseswhenyoustrikearetainerpin.

Chipsorotherdebriscanflyoffanobjectwhenyoustriketheobject.Makesurethatnoonecan beinjuredbyflyingdebrisbeforestrikinganyobject.

ThuJan420:07:55UTC+05302024

Product:EXCAVATOR

Model:329FLEXCAVATORERL

Configuration:329FLExcavatorERL00001-UP(MACHINE)POWEREDBYC7.1Engine

OperationandMaintenanceManual 329Fand330FExcavators

MediaNumber-SEBU8094-12PublicationDate-01/06/2015DateUpdated-26/02/2019

Demolition

SMCS-6700

i07749631

Theremaybelocalregulationsand/orgovernmentregulationsthatgoverntheuseofmachines whicharedesignedandusedasdemolitionmachinery.

Note:Obeyalllocalandgovernmentregulations.

Demolitionmachineryisdesignedfordemolishingbypushingorpulling,orfragmenting. Demolitionisdonebycrushingorshearing,buildingsand/orothercivilengineeringstructuresand componentpartsand/orseparatingtheresultantdebris.

IfthismachineisusedfordemolitionwithinanareathatiscontrolledbytheEuropeanDirective 2006/42/EC,themachinemustbeequippedwith:

•RolloverProtectiveStructure(ROPS,notrequiredfordemolitionexcavators)

•BoomLoweringControlValve(BLCV)/StickLoweringControlValve(SLCV)

•TopGuard/FrontGuard

•Bottom/Motor/SwivelGuard

•EN356classP5Afrontwindowglass

•Ifaroofwindowisusedtoprovidevisibilitytotheworkingarea,thenroofwindowshallbe equippedwithmotorizedwindscreenwipersandwashers.

Demolitionapplicationsmaygenerateflyingdebris.Ensurethattherearenopersonnelinthearea aroundthemachinewhereflyingdebrismaytravel.

Demolitionapplicationsmaygenerateairbornedustthatcanbehazardoustoyourhealth.Ifyou operatethemachineinadustgeneratingapplications,useappropriatesafeguardingoradequate ventilationtominimizerisk.

ThuJan420:14:49UTC+05302024

Product:EXCAVATOR

Model:329FLEXCAVATORERL

Configuration:329FLExcavatorERL00001-UP(MACHINE)POWEREDBYC7.1Engine

OperationandMaintenanceManual 329Fand330FExcavators

MediaNumber-SEBU8094-12PublicationDate-01/06/2015DateUpdated-26/02/2019 i01122596

ElectricalStormInjuryPrevention

SMCS-7000

Whenlightningisstrikinginthevicinityofthemachine,theoperatorshouldneverattemptthe followingprocedures:

•Mountthemachine.

•Dismountthemachine.

Ifyouareintheoperator'sstationduringanelectricalstorm,stayintheoperator'sstation.Ifyou areonthegroundduringanelectricalstorm,stayawayfromthevicinityofthemachine.

ThuJan420:11:56UTC+05302024

This is the sample of the manual Click on the download link for complete Manual
