Product: MINI HYD EXCAVATOR
Model: 309 MINI HYD EXCAVATOR GG9
Configuration: 309 CR Mini Hydraulic Excavator GG900001-UP (MACHINE) POWERED BY C3.3B Engine
Disassembly and Assembly
307.5, 308, 308.5, 309, and 310 Mini Hydraulic Excavator Machine Systems
Media Number -M0095130-08 Publication Date -01/10/2020 Date Updated -06/10/2020
Accumulator - Remove and Install
SMCS - 4263-010; 4331-010; 5077-010; 7336-010
S/N - GG81-UP
S/N - GG91-UP
S/N - GK81-UP
S/N - GW71-UP
S/N - GW81-UP
S/N - GW91-UP
S/N - GWT1-UP
S/N - GX81-UP
Removal Procedure
Table 1
Required Tools
Tool Part Number Part Description Qty
A 311-1362 Vacuum Gauge Gp 1
1. Release the hydraulic system pressure. Refer to Operation and Maintenance Manual, "System Pressure - Release."

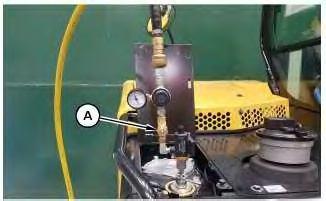

2. Install Tooling (A) onto the hydraulic tank. Attach an air supply hose onto Tooling (A). Apply 138 kPa (20 psi) to pull a vacuum on the hydraulic system.
Installation Procedure
1. Install accumulator (2) in the reverse order or removal.
Copyright 1993 - 2023 Caterpillar Inc. All Rights Reserved. Private Network For SIS Licensees.
Thu Oct 26 12:15:05 UTC+0530 2023
Product: MINI HYD EXCAVATOR
Model: 309 MINI HYD EXCAVATOR GG9
Configuration: 309 CR Mini Hydraulic Excavator GG900001-UP (MACHINE) POWERED BY C3.3B Engine
Disassembly and Assembly
307.5, 308, 308.5, 309, and 310 Mini Hydraulic Excavator Machine Systems
Media Number -M0095130-08 Publication Date -01/10/2020 Date Updated -06/10/2020
Actuator Motor (Water Valve) - Remove and Install
SMCS - 7304-010-MQ
Removal Procedure
NOTICE
Care must be taken to ensure that fluids are contained during performance of inspection, maintenance, testing, adjusting, and repair of the product. Be prepared to collect the fluid with suitable containers before opening any compartment or disassembling any component containing fluids.
Refer to Special Publication, PERJ1017, "Dealer Service Tool Catalog" for tools and supplies suitable to collect and contain fluids on Cat® products.
Dispose of all fluids according to local regulations and mandates.

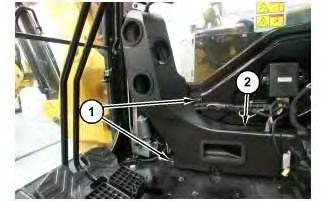

Illustration 1 g06455132

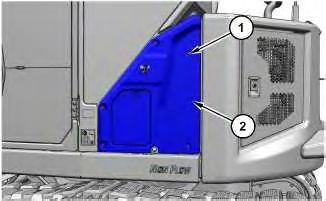

1. Remove bolts (1) and cover assembly (2).
Illustration 2

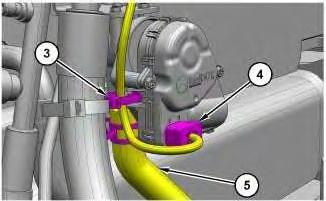

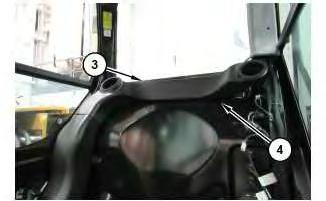

2. Remove cable strap (3) and disconnect harness assembly (4).
3. Disconnect hose (5).
Illustration 3

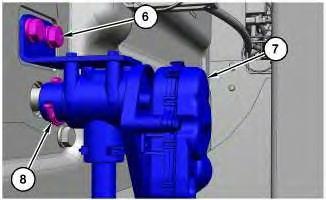

4. Remove clip (8).
5. Remove bolts (6) and actuator valve (7).
g06455134
This is the sample of the manual
Click on the download link for complete Manual
Illustration 4

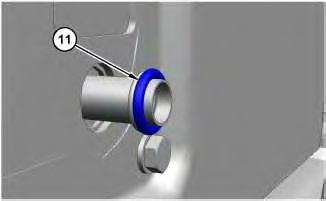

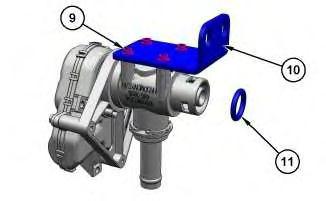

6. Remove O-ring seal (11).
g06455135

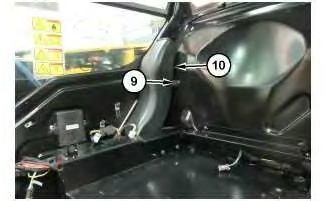

7. Remove screws (9) and mounting plate (10).
Installation Procedure
Table 1
Required Tools
A 465-7614 Clip 1
B - Silicone Dielectric lubricant -
Illustration 5
g06455179

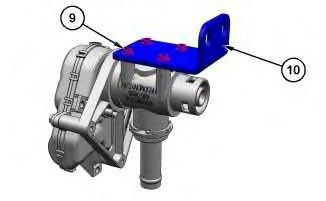

1. Install mounting plate (10) and screws (9).
6
2. Apply Tooling (B) to O-ring seal (11). Install O-ring seal (11) onto the conditioner tube.
7

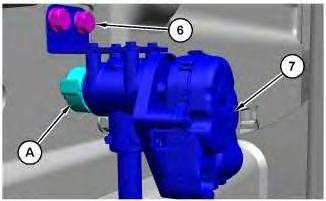

3. Install Tooling (A) onto actuator valve (7). Install actuator valve (7).
4. Install bolts (6). Tighten bolts (6) to a torque of 15 ± 3 N.m (133 ± 27 lb in).
Illustration 8
5. Remove Tooling (A) and install clip (8).
9

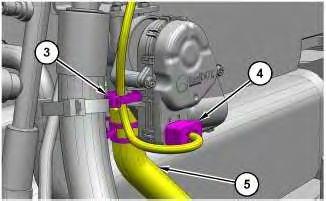

6. Connect hose (5).
7. Connect harness assembly (4) and install cable strap (3).
Illustration 10
8. Install cover assembly (2) and bolts (1).
Copyright 1993 - 2023 Caterpillar Inc. All Rights Reserved. Private Network For SIS Licensees. Thu Oct 26 11:46:37 UTC+0530 2023
Product: MINI HYD EXCAVATOR
Model: 309 MINI HYD EXCAVATOR GG9
Configuration: 309 CR Mini Hydraulic Excavator GG900001-UP (MACHINE) POWERED BY C3.3B Engine
Disassembly and Assembly
307.5, 308, 308.5, 309, and 310 Mini Hydraulic Excavator Machine Systems
Media Number -M0095130-08 Publication Date -01/10/2020 Date Updated -06/10/2020
Blower Motor (Air Conditioner, Heater) - Remove and Install
SMCS - 7304-010-BW; 7309-010-BW; 7320-010-BW
S/N - GG81-UP
S/N - GG91-UP
S/N - GK81-UP
S/N - GW71-UP
S/N - GW81-UP
S/N - GW91-UP
S/N - GWT1-UP
S/N - GX81-UP
Removal Procedure
Start By:
a. Remove the hydraulic lockout control
b. Remove the joystick control assembly
c. Remove the seat
1. Turn the battery disconnect switch to the OFF switch.
5.
1
4
6. Remove screw (9) and duct (10).
5

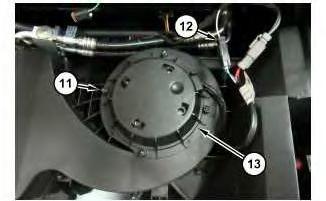

7. Remove four screws (11).
8. Disconnect harness assemblies (12).
9. Remove blower motor (13).
Installation Procedure
1. Install blower motor (13) in the reverse order of removal. Copyright 1993 - 2023 Caterpillar Inc.
Network For SIS Licensees. Thu Oct 26 11:46:17 UTC+0530 2023
Product: MINI HYD EXCAVATOR
Model: 309 MINI HYD EXCAVATOR GG9
Configuration: 309 CR Mini Hydraulic Excavator GG900001-UP (MACHINE) POWERED BY C3.3B Engine
Disassembly and Assembly
307.5, 308, 308.5, 309, and 310 Mini Hydraulic Excavator Machine Systems
Boom - Remove and Install
SMCS - 6501-010
Removal Procedure Table 1
Required Tooling
Start By:
Personal injury can result from hydraulic oil pressure and hot oil.
Hydraulic oil pressure can remain in the hydraulic system after the machine has been stopped. Serious injury can be caused if this pressure is not released before any service is done on the hydraulic system.
Make sure all the attachments have been lowered, and the oil is cool, before removing any components or lines. Remove the oil filler cap only when the filler cap is cool enough to touch with your bare hand.
a. Remove the stick cylinder.
b. Remove the stick.
Illustration 1

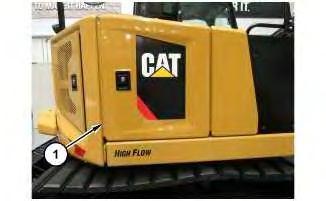

1. Remove bolt (1) and guard (2).
Illustration 2
g06415502

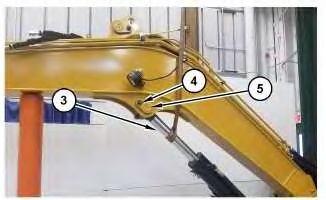

2. Attach a suitable lifting device to the rod end of boom cylinder (3).
3. Remove bolt (4) and pin assembly (5).
Illustration 3
4. Lower the rod end of the boom cylinder (3) onto Tooling (A).
Illustration 4
g06415582
5. Disconnect harness assembly (6). Repeat for the opposite side of the boom.
Illustration 5

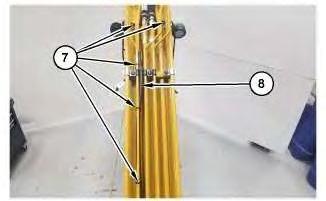

6. Cut cable straps (7).
g06415646
7. Position harness assembly (8) out of the way.
Illustration 6
g06415666

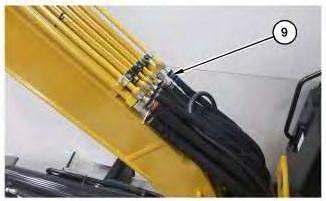

Note: Note the orientation of hose assemblies (9) for installation purposes.
8. Disconnect hose assemblies (9).
Illustration 7
Note: Note the orientation of hose assemblies (10) for installation purposes.

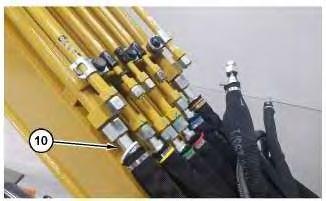

9. Disconnect hose assemblies (10).
Illustration 8
g06415880

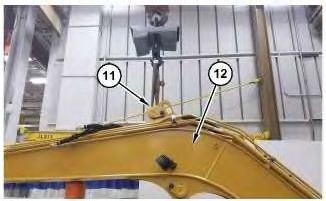

10. Attach a suitable lifting device to pin assembly (11) on top of boom (12).
The weight of the boom is approximately 458 kg (1010 lb).
Illustration 9 g06415882
Note: Note the number of shims for installation purposes.
11. Remove bolt (13), pin assembly (14), and the shims.
Illustration 10 g06415883

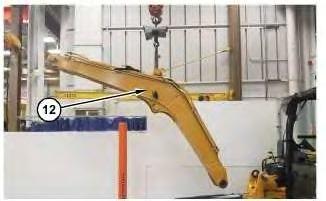

12. Remove boom (12).
Installation Procedure
1. Install boom (12) in the reverse order of removal.
a. Install the shims as required to adjust lateral clearance to 0.6 mm (0.024 inch).
b. Coat all bores and sealing lips with Tooling (B) prior to assembly. After assembly lubricate all joints from the joint fittings.
1993 - 2023 Caterpillar Inc.
Thu Oct 26 11:36:24 UTC+0530 2023
Product: MINI HYD EXCAVATOR
Model: 309 MINI HYD EXCAVATOR GG9
Configuration: 309 CR Mini Hydraulic Excavator GG900001-UP (MACHINE) POWERED BY C3.3B Engine
Disassembly and Assembly
307.5, 308, 308.5, 309, and 310 Mini Hydraulic Excavator Machine Systems
Media Number -M0095130-08
Boom Cylinder - Assemble
SMCS - 5456-016
Assemble
Table 1
Required Tools
Illustration 1

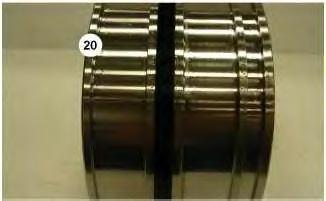

1. Install O-ring seal (20).

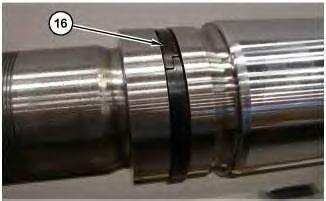

2

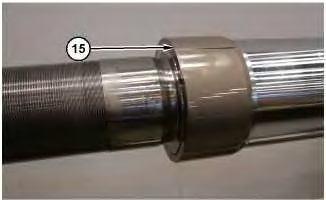

3
Illustration 5

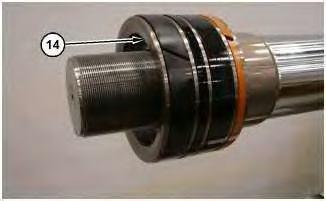

5. Install piston (14).
6

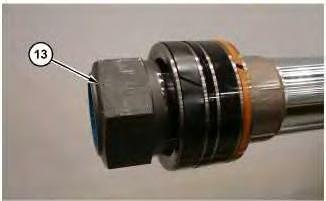

Install nut (13)
7
7. Use Tooling (B) to tighten nut (13). Refer to Table 2 for the correct torque specification.
M45 2058 ± 80 N·m (1518 ± 60 lb ft)
M50 2865 ± 142 N·m (2113 ± 105 lb ft)
M52 3000 ± 165 N·m (2213 ± 122 lb ft)
M56 4000 N·m (2950 lb ft)

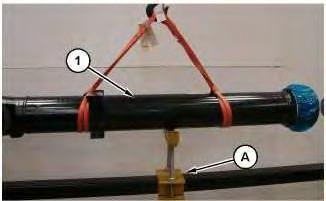

8. Use a suitable lifting device to install boom cylinder (1) on to Tooling (A).

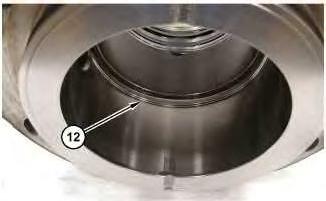

9
9. Install seals (12).
Illustration 10

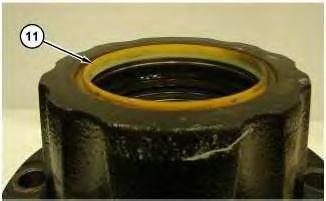

10. Install seal (11).
Illustration 11

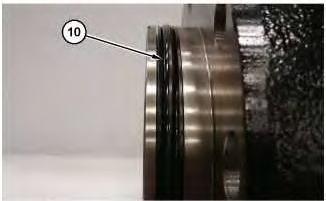

11. Install O-ring seal (10).
12

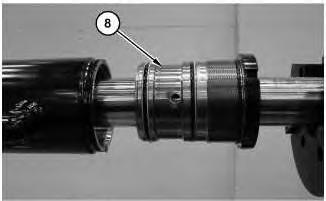

12. Install cylinder head (8) onto cylinder rod (9).
Illustration 13
g06608394

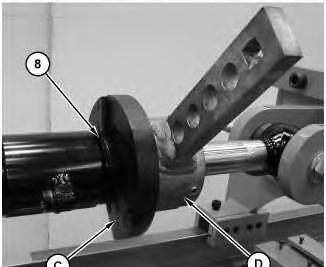

13. Use Tooling (C) and Tooling (D) to tighten cylinder head (8). Refer to Table 3 for the correct torque specification for cylinder head (8).
Table 3
Cylinder Head Size
M100
M105
M115
M120
Cylinder Head Torque Specification
550 ± 50 N·m (406 ± 37 lb ft)
650 ± 65 N·m (480 ± 48 lb ft)
850 ± 90 N·m (627 ± 66 lb ft)
900 ± 90 N·m (664 ± 66 lb ft)
M125 1020 ± 100 N·m (752 ± 74 lb ft)
Illustration 14
g06608405

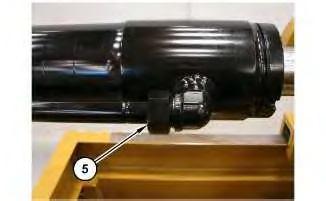

14. Install tube assembly (5). Tighten tube assembly (5) to a torque of 110 ± 10 N·m (8 ± 7 lb ft).
15

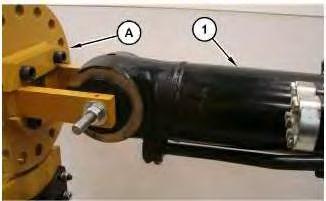

15. Attach a suitable lifting device to boom cylinder (1) and remove from Tooling (A). Boom cylinder (1) weighs approximately 88 kg (195 lb).
Install the boom cylinder
Copyright 1993 - 2023 Caterpillar Inc.
All Rights Reserved.
Private Network For SIS Licensees.
Oct 26 11:36:06 UTC+0530 2023
This is the sample of the manual
Click on the download link for complete Manual
Product: MINI HYD EXCAVATOR
Model: 309 MINI HYD EXCAVATOR GG9
Configuration: 309 CR Mini Hydraulic Excavator GG900001-UP (MACHINE) POWERED BY C3.3B Engine
Disassembly and Assembly
307.5, 308, 308.5, 309, and 310 Mini Hydraulic Excavator Machine Systems
Media Number -M0095130-08
Boom Cylinder - Disassemble
SMCS - 5456-015
Disassemble
Start By: a. Remove the
