Product: MINI HYD EXCAVATOR
Model: 307D MINI HYD EXCAVATOR DSG
Configuration: 307D Mini Hydraulic Excavator DSG00001-UP (MACHINE) POWERED BY 4M40 Engine
Disassembly and Assembly 4M40 DIESEL ENGINE SHOP MANUAL
Media Number -KENR5078-00
General
SMCS - 1809
Information Location
Publication Date -01/11/2007
Date Updated -01/12/2014
KENR50780012
This shop manual is published for the information and guidance of personnel responsible for maintenance of Mitsubishi 4M40 series diesel engine, and includes procedures for adjustment and maintenance services. We earnestly look forward to seeing that this manual is made full use of in order to perform correct services with no wastage.
Disassembly and Assembly information is located under General Service Information.
Copyright 1993 - 2020 Caterpillar Inc. All Rights Reserved. Private Network For SIS Licensees.
Fri Dec 11 16:42:50 UTC+0530 2020
Product: MINI HYD EXCAVATOR
Model: 307D MINI HYD EXCAVATOR DSG
Configuration: 307D Mini Hydraulic Excavator DSG00001-UP (MACHINE) POWERED BY 4M40 Engine
Disassembly and Assembly
307D Excavator Engine Supplement
i03007177
Aftercooler - Remove and Install
SMCS - 1063-010
Removal Procedure
Note: Cleanliness is an important factor. Before you begin the removal procedure, the exterior of the components should be thoroughly cleaned. This will help to prevent dirt from entering the internal mechanism.
Illustration 1
g01523578

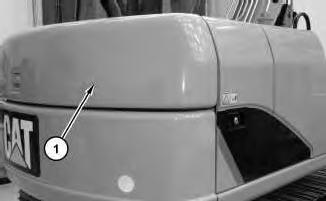

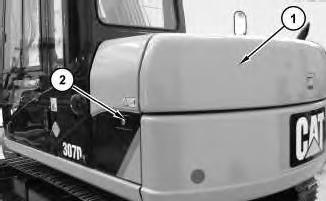

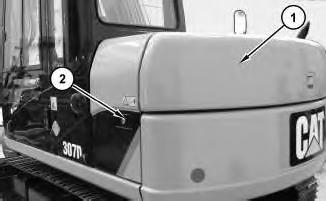

1. Open door assembly (2). Raise hood assembly (1) .
2

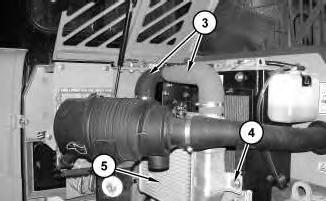

2. Remove hoses (3). Remove bolts (4) and remove aftercooler (5) .
Installation Procedure
Note: Cleanliness is an important factor. Before you begin the installation procedure, the exterior of the components should be thoroughly cleaned. This will help to prevent dirt from entering the internal mechanism.
3
1. Position aftercooler (5) and install bolts (4). Install hoses (3) .
Illustration 4 g01523578
Copyright 1993 - 2020 Caterpillar Inc. All Rights Reserved. Private Network For SIS Licensees. Fri Dec 11 16:48:36 UTC+0530 2020
Product: MINI HYD EXCAVATOR
Model: 307D MINI HYD EXCAVATOR DSG
Configuration: 307D Mini Hydraulic Excavator DSG00001-UP (MACHINE) POWERED BY 4M40 Engine
Disassembly and Assembly
307D Excavator Engine Supplement
i03007176
Air Cleaner - Remove and Install
SMCS - 1051-010; 1054-010
Removal Procedure
Illustration 1 g01523578
This is the sample of the manual
Click on the download link for complete Manual
2
2. Remove cover assembly (3) .
3
4

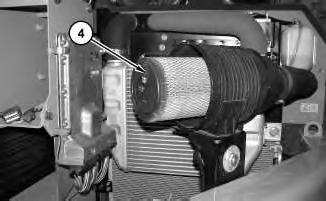

3. Remove primary air filter element (4). Remove secondary air filter element (5) .

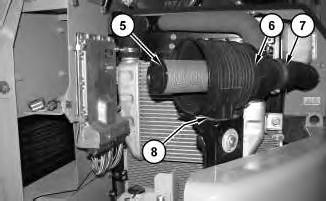

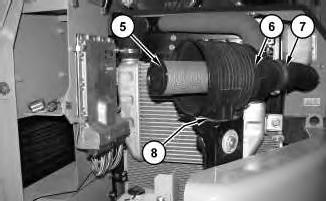

4. Remove hose (7). Remove bolts (8) and remove air cleaner (6) .
Installation Procedure
Note: Refer to Operation and Maintenance Manual, SEBU8340, "Engine Air Filter ElementClean/Replace" for information on servicing the filter elements.
1. Position air cleaner (6) and install bolts (8). Install hose (7) .
2. Install secondary air filter element (5). Install primary air filter element (4) .
7
Install cover assembly (3) .
8
Lower hood assembly (1). Close door assembly (2) .
Copyright 1993 - 2020 Caterpillar Inc. All Rights Reserved. Private Network For SIS Licensees. Fri Dec 11 16:48:19 UTC+0530 2020
Product: MINI HYD EXCAVATOR
Model: 307D MINI HYD EXCAVATOR DSG
Configuration: 307D Mini Hydraulic Excavator DSG00001-UP (MACHINE) POWERED BY 4M40 Engine
Disassembly and Assembly
307D Excavator Engine Supplement
i03162789
Alternator - Remove and Install
SMCS - 1405-010
Removal Procedure
Illustration 1 g01622066
1. Open hood (1) .
2. Turn the battery disconnect switch to the OFF position.
2
Illustration 4

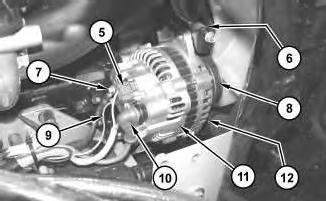

5. Remove belts (8) from alternator (11). Refer to Operation and Maintenance Manual, "Belts Inspect/Adjust/Replace".
6. Disconnect harness assemblies (5), (7), (9), and (10) .
7. Remove bolts (6) and (12). Remove alternator (11) .
Installation Procedure
Illustration 5 g01622076
1. Position alternator (11) and install bolts (6) and (12) .
2. Connect harness assemblies (5), (7), (9), and (10) .
3. Install belts (8) to alternator (11). Refer to Operation and Maintenance Manual, "Belts Inspect/Adjust/Replace".
Illustration 6
4. Tighten bolts (4) .
Illustration 7 g01622074

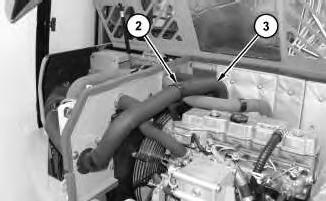

5. Connect hose (3) and clamp (2) .
6. Turn the battery disconnect switch to the ON position.
Illustration 8 g01622066

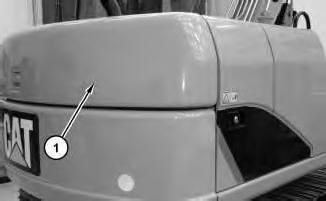

7. Close hood (1) . Copyright 1993 - 2020 Caterpillar Inc.
Product: MINI HYD EXCAVATOR
Model: 307D MINI HYD EXCAVATOR DSG
Configuration: 307D Mini Hydraulic Excavator DSG00001-UP (MACHINE) POWERED BY 4M40 Engine
Disassembly and Assembly
307D Excavator Engine Supplement
i03006651
Battery - Remove and Install
SMCS - 1401-010
Removal Procedure
1 g01523508
2

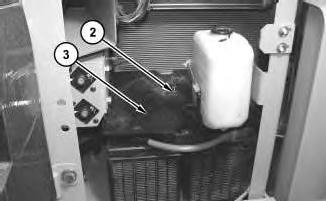

2. Remove nut (2). Remove cover (3) .
3

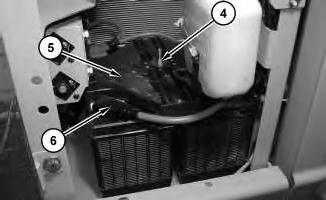

3. Remove nut (4). Remove battery hold-down (5). Disconnect cable assembly (6) .
Illustration 4

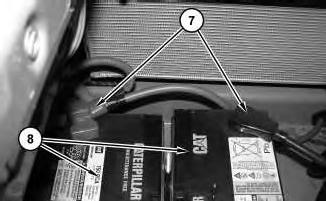

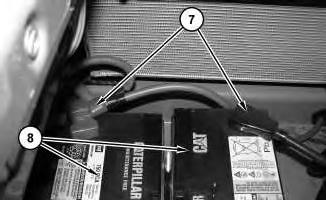

4. Disconnect cable assemblies (7) .
5. Use two people in order to remove each battery (8). The weight of battery (8) is approximately 25 kg (55 lb).
Installation Procedure
Illustration 5
g01523522
1. Use two people in order to position each battery (8). The weight of battery (8) is approximately 25 kg (55 lb).
2. Connect cable assemblies (7) .
Illustration 6
g01523518
3. Position battery hold-down (5). Install nut (4). Connect cable assembly (6) .
7
8
Copyright 1993 - 2020 Caterpillar Inc. All Rights Reserved. Private Network For SIS Licensees. Fri Dec 11 16:45:15 UTC+0530 2020
Product: MINI HYD EXCAVATOR
Model: 307D MINI HYD EXCAVATOR DSG
Configuration: 307D Mini Hydraulic Excavator DSG00001-UP (MACHINE) POWERED BY 4M40 Engine
Disassembly and Assembly
307D Excavator Engine Supplement
i03006647
Electric Starting Motor - Remove and Install
SMCS - 1453-010
Removal Procedure
1. Turn the battery disconnect switch to the OFF position.
Illustration 1 g01523176

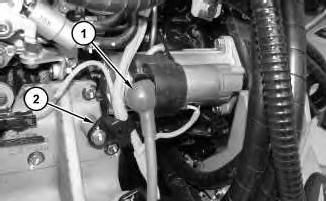

2. Disconnect harness assembly (1). Disconnect clip (2) .
2

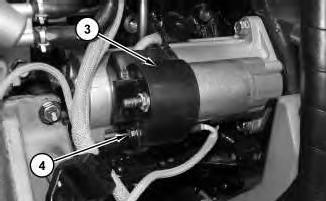

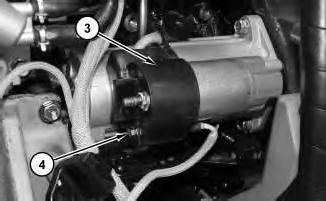

3. Remove bolt (4) and cover (3) .
3

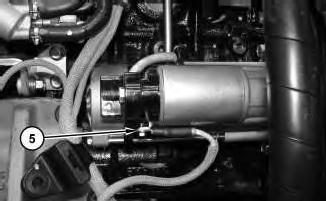

4. Disconnect harness assembly (5) .
Illustration 4

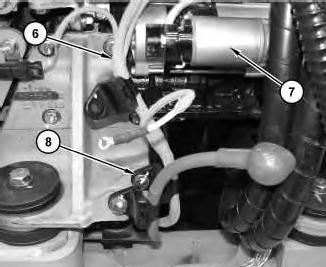

5. Disconnect clip (8). Pull harness assembly (6) away from electric starting motor (7) .
5

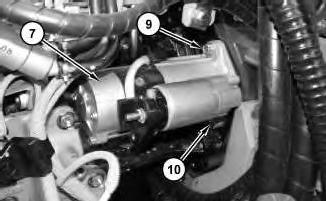

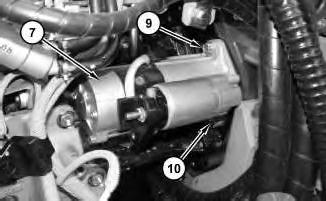

6. Remove bolts (9) and (10). Remove electric starting motor (7) .
Installation Procedure
2.
6
7
5. Connect clip (2). Connect harness assembly (1) .
6. Turn the battery disconnect switch to the ON position.
Product: MINI HYD EXCAVATOR
Model: 307D MINI HYD EXCAVATOR DSG
Configuration: 307D Mini Hydraulic Excavator DSG00001-UP (MACHINE) POWERED BY 4M40 Engine
Disassembly and Assembly
307D Excavator Engine Supplement
i03007155
Electronic Control Module - Remove and Install
SMCS - 1901-010
Removal Procedure
Illustration 1 g01523508

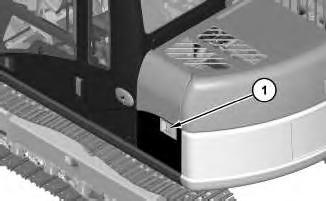

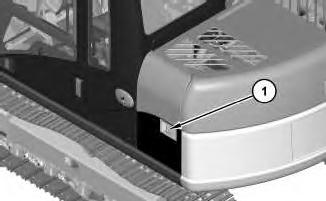

1. Open door (1) .
2. Turn the battery disconnect switch to the OFF position.
2

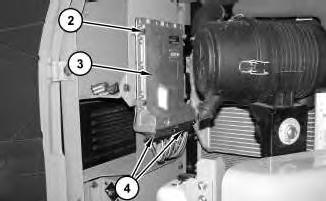

3. Disconnect harness assemblies (4). Remove bolts (2). Remove electronic control module (3) .
Installation Procedure
Illustration 3
1. Position electronic control module (3). Install bolts (2). Connect harness assemblies (4) .
2. Turn the battery disconnect switch to the ON position.
4
Copyright 1993 - 2020 Caterpillar Inc. All Rights Reserved. Private Network For SIS Licensees. Fri Dec 11 16:46:01 UTC+0530 2020
Product: MINI HYD EXCAVATOR
Model: 307D MINI HYD EXCAVATOR DSG
Configuration: 307D Mini Hydraulic Excavator DSG00001-UP (MACHINE) POWERED BY 4M40 Engine
Disassembly and Assembly
307D Excavator Engine Supplement
i03076877
Engine - Install
SMCS - 1000-012
Installation Procedure
Table 1
Required Tools
A 138-7575 Link Bracket 2
This is the sample of the manual
Click on the download link for complete Manual
Illustration 1
g01560292
Note: Reposition the remote oil filter base and the hoses during the installation of the engine.

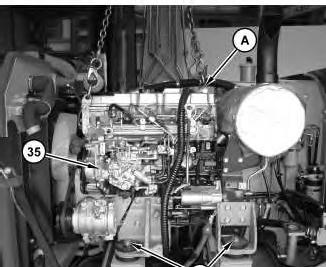

1. Attach Tooling (A) and a suitable lifting device to engine (35). The weight of engine (35) is approximately 333 kg (735 lb).
2. Position engine (35) and install bolts (36). Tighten bolts (36) to a torque of 155 ± 10 N·m (114 ± 7 lb ft).
Illustration 2
g01560291

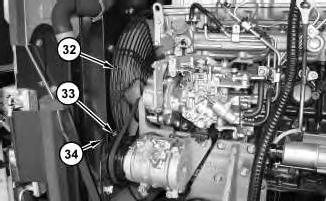

3. Install fan guards (32). Position cable assembly (34) and install bolt (33) .
Illustration 3

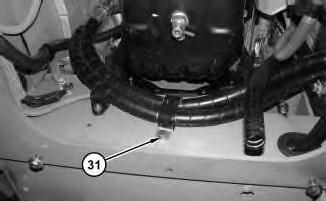

4. Install bolt (31) .
g01560290
