307D Caterpillar Mini Hyd Excavator Operation and Maintenance Manual by quality service repair manual

PreviousScreen

Product:MINIHYDEXCAVATOR

Model:307DMINIHYDEXCAVATORDSG

Configuration:307DMiniHydraulicExcavatorDSG00001-UP(MACHINE)POWEREDBY4M40Engine

OperationandMaintenanceManual

307DExcavator

MediaNumber-SEBU8340-07PublicationDate-01/08/2011DateUpdated-23/08/2011

Foreword

SMCS-7606

LiteratureInformation

Thismanualshouldbestoredintheoperator'scompartmentintheliteratureholderorseatback literaturestoragearea.

Thismanualcontainssafetyinformation,operationinstructions,transportationinformation, lubricationinformationandmaintenanceinformation.

Somephotographsorillustrationsinthispublicationshowdetailsorattachmentsthatcanbedifferent fromyourmachine.Guardsandcoversmighthavebeenremovedforillustrativepurposes.

Continuingimprovementandadvancementofproductdesignmighthavecausedchangestoyour machinewhicharenotincludedinthispublication.Read,studyandkeepthismanualwiththe machine.

Wheneveraquestionarisesregardingyourmachine,orthispublication,pleaseconsultyourCat dealerforthelatestavailableinformation.

Safety

Thesafetysectionlistsbasicsafetyprecautions.Inaddition,thissectionidentifiesthetextand locationsofwarningsignsandlabelsusedonthemachine.

Readandunderstandthebasicprecautionslistedinthesafetysectionbeforeoperatingorperforming lubrication,maintenanceandrepaironthismachine.

Operation

s00037320

Theoperationsectionisareferenceforthenewoperatorandarefresherfortheexperiencedoperator. Thissectionincludesadiscussionofgauges,switches,machinecontrols,attachmentcontrols, transportationandtowinginformation.

Photographsandillustrationsguidetheoperatorthroughcorrectproceduresofchecking,starting, operatingandstoppingthemachine.

Operatingtechniquesoutlinedinthispublicationarebasic.Skillandtechniquesdevelopasthe operatorgainsknowledgeofthemachineanditscapabilities.

Maintenance

Themaintenancesectionisaguidetoequipmentcare.TheMaintenanceIntervalSchedule(MIS)lists theitemstobemaintainedataspecificserviceinterval.Itemswithoutspecificintervalsarelisted underthe"WhenRequired"serviceinterval.TheMaintenanceIntervalScheduleliststhepage numberforthestep-by-stepinstructionsrequiredtoaccomplishthescheduledmaintenance.Usethe MaintenanceIntervalScheduleasanindexor"onesafesource"forallmaintenanceprocedures.

MaintenanceIntervals

Usetheservicehourmetertodetermineservicingintervals.Calendarintervalsshown(daily,weekly, monthly,etc.)canbeusedinsteadofservicehourmeterintervalsiftheyprovidemoreconvenient servicingschedulesandapproximatetheindicatedservicehourmeterreading.Recommendedservice shouldalwaysbeperformedattheintervalthatoccursfirst.

Underextremelysevere,dustyorwetoperatingconditions,morefrequentlubricationthanisspecified inthemaintenanceintervalschartmightbenecessary.

Performserviceonitemsatmultiplesoftheoriginalrequirement.Forexample,atevery500service hoursor3months,alsoservicethoseitemslistedunderevery250servicehoursormonthlyandevery 10servicehoursordaily.

CaliforniaProposition65Warning

DieselengineexhaustandsomeofitsconstituentsareknowntotheStateofCaliforniatocause cancer,birthdefects,andotherreproductiveharm.

Batteryposts,terminalsandrelatedaccessoriescontainleadandleadcompounds.Washhandsafter handling.

CertifiedEngineMaintenance

Propermaintenanceandrepairisessentialtokeeptheengineandmachinesystemsoperating correctly.Astheheavydutyoff-roaddieselengineowner,youareresponsiblefortheperformanceof therequiredmaintenancelistedintheOwnerManual,OperationandMaintenanceManual,and ServiceManual.

Itisprohibitedforanypersonengagedinthebusinessofrepairing,servicing,selling,leasing,or tradingenginesormachinestoremove,alter,orrenderinoperativeanyemissionrelateddeviceor elementofdesigninstalledonorinanengineormachinethatisincompliancewiththeregulations (40CFRPart89).Certainelementsofthemachineandenginesuchastheexhaustsystem,fuel system,electricalsystem,intakeairsystemandcoolingsystemmaybeemissionrelatedandshould notbealteredunlessapprovedbyCaterpillar.

MachineCapacity

Additionalattachmentsormodificationsmayexceedmachinedesigncapacitywhichcanadversely affectperformancecharacteristics.Includedwouldbestabilityandsystemcertificationssuchas brakes,steering,androlloverprotectivestructures(ROPS).ContactyourCatdealerforfurther information.

CatProductIdentificationNumber

EffectiveFirstQuarter2001theCatProductIdentificationNumber(PIN)haschangedfrom8to17 characters.Inanefforttoprovideuniformequipmentidentification,Caterpillarandotherconstruction equipmentmanufacturersaremovingtocomplywiththelatestversionoftheproductidentification numberingstandard.Non-roadmachinePINsaredefinedbyISO10261.ThenewPINformatwill applytoallCatmachinesandgeneratorsets.ThePINplatesandframemarkingwilldisplaythe17 characterPIN.Thenewformatwilllooklikethefollowing:

2.MachineDescriptor(characters4-8)

3.CheckCharacter(character9)

4.MachineIndicatorSection(MIS)orProductSequenceNumber(characters10-17).Thesewere previouslyreferredtoastheSerialNumber.

MachinesandgeneratorsetsproducedbeforeFirstQuarter2001willmaintaintheir8characterPIN format.

Componentssuchasengines,transmissions,axles,etc.andworktoolswillcontinuetousean8 characterSerialNumber(S/N).

SatDec1211:26:01UTC+05302020

PreviousScreen

Product:MINIHYDEXCAVATOR

Model:307DMINIHYDEXCAVATORDSG

Configuration:307DMiniHydraulicExcavatorDSG00001-UP(MACHINE)POWEREDBY4M40Engine

OperationandMaintenanceManual

307DExcavator

MediaNumber-SEBU8340-07PublicationDate-01/08/2011DateUpdated-23/08/2011

i02897017

PreviousScreen

Product:MINIHYDEXCAVATOR

Model:307DMINIHYDEXCAVATORDSG

Configuration:307DMiniHydraulicExcavatorDSG00001-UP(MACHINE)POWEREDBY4M40Engine

OperationandMaintenanceManual

307DExcavator

MediaNumber-SEBU8340-07PublicationDate-01/08/2011DateUpdated-23/08/2011

i01520787

AirConditioner/CabHeaterFilter(Recirculation)Inspect/Replace

SMCS-1054-040-A/C;1054-510-A/C

NOTICE

Anairrecirculationfilterelementpluggedwithdustwillresultin decreasedperformanceandservicelifetotheairconditionerorcab heater.

Topreventdecreasedperformance,cleanthefilterelement,as required.

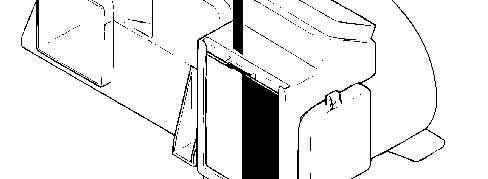

Illustration1g00685718

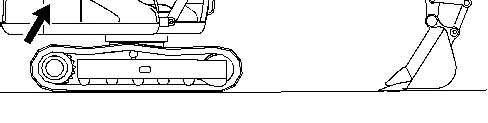

Therecirculationfilterisonthelowerleftsideofthecab.

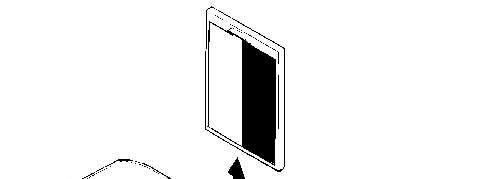

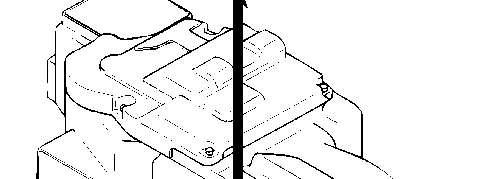

1.Toremovethefilterelement,slidetheelementstraightup.

2.RefertoOperationandMaintenanceManual,"GeneralHazardInformation"beforeusing pressureairtocleantheairfilterelement.

3.Cleanthefilterelementwithamaximumof200kPa(30psi)pressureair.

4.Afteryoucleanthefilterelement,inspectthefilterelement.Ifthefilterelementisdamagedor badlycontaminated,useanewfilterelement.Makesurethatthefilterelementisdry.

SatDec1212:07:24UTC+05302020

PreviousScreen

Product:MINIHYDEXCAVATOR

Model:307DMINIHYDEXCAVATORDSG

Configuration:307DMiniHydraulicExcavatorDSG00001-UP(MACHINE)POWEREDBY4M40Engine

OperationandMaintenanceManual

307DExcavator

MediaNumber-SEBU8340-07PublicationDate-01/08/2011DateUpdated-23/08/2011

Battery-Clean

SMCS-1401-070

Cleanthebatterysurfacewithacleancloth.Keeptheterminalscleanandkeeptheterminalscoated withpetroleumjelly.Installthepostcoverafteryoucoattheterminalpostwithpetroleumjelly.

SatDec1212:07:37UTC+05302020

i00934864

PreviousScreen

Product:MINIHYDEXCAVATOR

Model:307DMINIHYDEXCAVATORDSG

Configuration:307DMiniHydraulicExcavatorDSG00001-UP(MACHINE)POWEREDBY4M40Engine

OperationandMaintenanceManual

307DExcavator

MediaNumber-SEBU8340-07PublicationDate-01/08/2011DateUpdated-23/08/2011

Battery-Recycle

SMCS-1401-561

Alwaysrecycleabattery.Neverdiscardabattery.

Alwaysreturnusedbatteriestooneofthefollowinglocations:

•Abatterysupplier

•Anauthorizedbatterycollectionfacility

•Recyclingfacility

i06543763

SatDec1212:09:54UTC+05302020

PreviousScreen

Product:MINIHYDEXCAVATOR

Model:307DMINIHYDEXCAVATORDSG

Configuration:307DMiniHydraulicExcavatorDSG00001-UP(MACHINE)POWEREDBY4M40Engine

OperationandMaintenanceManual

307DExcavator

MediaNumber-SEBU8340-07PublicationDate-01/08/2011DateUpdated-23/08/2011

BatteryHold-Down-Tighten

SMCS-7257

Tightenthehold-downsforthebatteryinordertopreventthebatteriesfrommovingduringmachine operation.

SatDec1212:10:07UTC+05302020

i00934872

This is the sample of the manual Click on the download link for complete Manual

PreviousScreen

Product:MINIHYDEXCAVATOR

Model:307DMINIHYDEXCAVATORDSG

Configuration:307DMiniHydraulicExcavatorDSG00001-UP(MACHINE)POWEREDBY4M40Engine

OperationandMaintenanceManual

307DExcavator

MediaNumber-SEBU8340-07PublicationDate-01/08/2011DateUpdated-23/08/2011

BatteryorBatteryCable-Inspect/Replace

SMCS-1401-040;1401-510;1401-561;1401;1402-040;1402-510

Personalinjurycanresultfrombatteryfumesorexplosion. Batteriesgiveoffflammablefumesthatcanexplode.Electrolyteisan acidandcancausepersonalinjuryifitcontactstheskinoreyes.

Preventsparksnearthebatteries.Sparkscouldcausevaporstoexplode. Donotallowjumpercableendstocontacteachotherortheengine. Improperjumpercableconnectionscancauseanexplosion.

Alwayswearprotectiveglasseswhenworkingwithbatteries.

1.TurnalloftheswitchestotheOFFposition.TurntheenginestartswitchkeytotheOFF position.

2.TurnthebatterydisconnectswitchtotheOFFposition.Removethekey.

3.Disconnectthenegativebatterycableatthebattery.

4.Disconnectthepositivebatterycableatthebattery.

5.Disconnectthebatterycablesatthebatterydisconnectswitch.Thebatterydisconnectswitchis connectedtothemachineframe.

6.Makenecessaryrepairsorreplacethebattery.

i04064489

7.Connectthebatterycableatthebatterydisconnectswitch.

8.Connectthepositivebatterycableofthebattery.

9.Connectthenegativebatterycableofthebattery.

10.InstallthekeyandturnthebatterydisconnectswitchtotheONposition.

SatDec1212:10:20UTC+05302020

PreviousScreen

Product:MINIHYDEXCAVATOR

Model:307DMINIHYDEXCAVATORDSG

Configuration:307DMiniHydraulicExcavatorDSG00001-UP(MACHINE)POWEREDBY4M40Engine

OperationandMaintenanceManual

307DExcavator

MediaNumber-SEBU8340-07PublicationDate-01/08/2011DateUpdated-23/08/2011 i01914481

Belts-Inspect/Adjust/Replace

SMCS-1357-025;1357-040;1357-510;1357;1358-025;1358-510;1359-510-BE;1359-510;1359025-BE;1359-025;1359-040-BE;1359-040;1361-040;1361-510-BE;1361-510;1361-025-BE;1361 -025;1361-040-BE;1397-510;1397-025;1397-040;1405-510-BE;1405-025-BE;1405-510;1405025;1405-036;1405-040-BE;1405-040;1802-025;1802-510

NOTICE

TheV-beltmustbetensionedcorrectly.Failuretotensionthebelt properlycouldcausedamagetothebeltand/ortotheairconditioner compressor.

Yourenginecanbeequippedwithawaterpump,withafandrive,andwithanalternator.Yourengine canalsobeequippedwithaccessorydrivebelts.Formaximumengineperformanceandmaximum utilizationofyourengine,inspectthebeltsforwearandforcracking.Checkthebelttension.Adjust thebelttensioninordertominimizebeltslippage.Beltslippagewilldecreasethebeltlife.Belt slippagewillalsocausepoorperformanceofthealternatorandofanydrivenequipment.

Ifnewbeltsareinstalled,recheckthebeltadjustmentafter30minutesofoperation.Iftwobeltsor morearerequiredforanapplication,replacethebeltsinbeltsets.Ifonlyonebeltofapairisreplaced, thenewbeltwillcarrymoreload.Thisisduetothefactthattheolderbeltsarestretched.The additionalloadonthenewbeltcouldcausethenewbelttobreak.

WaterPumpBelt,FanDriveBelt,andAlternatorBelt

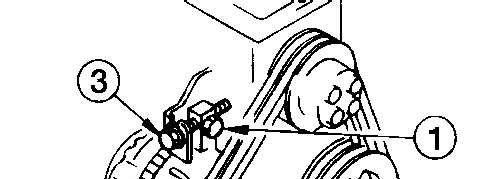

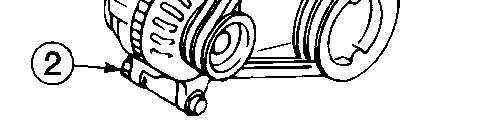

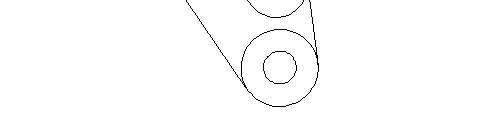

Illustration2g00418343 (1)Alternatormountingbolt (2)Nut (3)Adjustingbolt

1.Opentheenginehood.

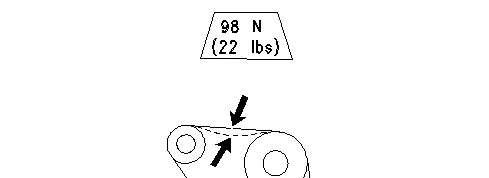

2.Applyapproximately98N(22lb)offorcemidwaybetweenthepulleys.

3.Measurethedeflectionofthebelt.Thebeltshoulddeflect8to11mm(5/16to7/16inch).

4.Ifthedeflectionisnotcorrect,loosenalternatormountingbolt(1)andnut(2).Turnadjusting bolt(3)inordertoadjustthebelttension.

5.Whentheadjustmentiscorrect,tightenbolt(1)toatorqueof21±4N·m(15±3lbft).Tighten nut(2)toatorqueof41±8N·m(30±6lbft).

6.Checkthedeflectionofthebeltagain.

Note:Ifanewbeltisinstalled,checkthebeltadjustmentagainafter30minutesofengine operationattheratedenginespeed.

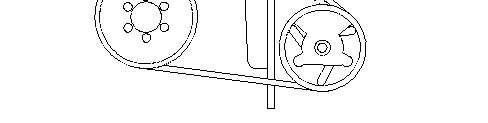

AirConditionerBelt

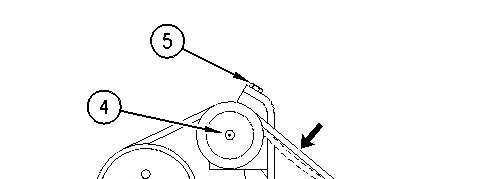

(4)Collar (5)Adjustingbolt

1.Applyapproximately98N(22lb)offorcemidwaybetweenthepulleys.

2.Measurethedeflectionofthebelt.Thebeltshoulddeflect7to10mm(1/4to3/8inch).

3.Ifthedeflectionisnotcorrect,loosencollar(4).Turnadjustingbolt(5)inordertoadjustthe belttension.

4.Whentheadjustmentiscorrect,tightencollar(4)toatorqueof100±20N·m(75±15lbft).

5.Checkthedeflectionagain.

Note:Ifanewbeltisinstalled,recheckthebeltadjustmentagainafter30minutesofoperation.

6.Closetheenginehood.

SatDec1212:11:38UTC+05302020

PreviousScreen

Product:MINIHYDEXCAVATOR

Model:307DMINIHYDEXCAVATORDSG

Configuration:307DMiniHydraulicExcavatorDSG00001-UP(MACHINE)POWEREDBY4M40Engine

OperationandMaintenanceManual

307DExcavator

MediaNumber-SEBU8340-07PublicationDate-01/08/2011DateUpdated-23/08/2011

BladeCuttingEdges-Inspect/Replace

SMCS-6801

S/N-DSG1-UP

i01914958

Personalinjuryordeathcanresultfromafallingblade.

Blockthebladebeforechangingthecuttingedgesandtheendbits.

Checkthecuttingedgeofthebladeandtheendbitsofthebladeforwear.Ifanyofthepartshave signsofunusualwearordamage,replacethepart.

1.Raisethebladeandplaceblockingunderneaththeblade.

2.Lowerthebladeontotheblocking.

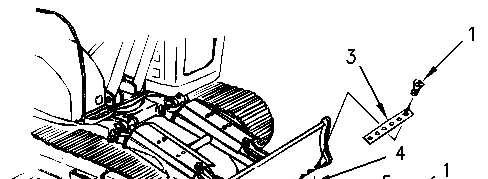

3.Removebolts(1),washers(4)andnuts(5).

4.Removecuttingedge(2)andendbits(3).

5.Cleanthesurfacebetweenthecuttingedgeandtheendbits.

6.Turnthecuttingedgeand/ortheendbitsupside-downifthoseedgesarenotworn.

7.Ifbothsidesofthecuttingedgeandtheendbitsareworn,replacethepartswithnewparts.

8.Installthenewpartsortherotatedpartswithbolts(1).Tightentheboltstoatorqueof 270±40N·m(200±30lbft).

9.Raisethebladeandremovetheblocking.

10.Lowerthebladetotheground.

11.Afterafewhoursofoperation,tightenbolts(1)tothetorquethatisspecifiedinStep8.

PreviousScreen

Product:MINIHYDEXCAVATOR

Model:307DMINIHYDEXCAVATORDSG

Configuration:307DMiniHydraulicExcavatorDSG00001-UP(MACHINE)POWEREDBY4M40Engine

OperationandMaintenanceManual

307DExcavator

MediaNumber-SEBU8340-07PublicationDate-01/08/2011DateUpdated-23/08/2011

BladeLinkage-Lubricate

SMCS-6060-086

S/N-DSG1-UP

i02055581

Note:Caterpillarrecommendstheuseof5%molybdenumgreaseforlubricatingthebladelinkage. RefertoSpecialPublication,SEBU6250,"CaterpillarMachineFluidsRecommendations"formore informationonmolybdenumgrease.

Wipeallfittingsbeforeyouapplylubricant.

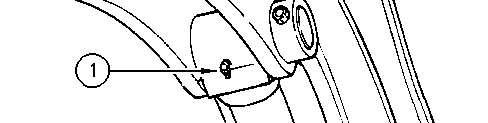

1.Applylubricantthroughfitting(1).Thisfittingislocatedontheheadendofthebladecylinder.

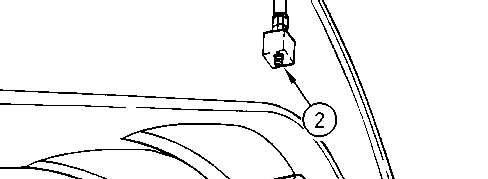

2.Applylubricantthroughfitting(2).Thisfittingislocatedontherodendofthebladecylinder.

Illustration2g00413982

3.Applylubricantthroughfitting(3)andthroughfitting(4).Thesefittingsarelocatedonthebar thatsupportstheblade.

SatDec1212:12:06UTC+05302020

PreviousScreen

Product:MINIHYDEXCAVATOR

Model:307DMINIHYDEXCAVATORDSG

Configuration:307DMiniHydraulicExcavatorDSG00001-UP(MACHINE)POWEREDBY4M40Engine

OperationandMaintenanceManual

307DExcavator

MediaNumber-SEBU8340-07PublicationDate-01/08/2011DateUpdated-23/08/2011

BoomandStickLinkage-Lubricate

SMCS-6501-086;6502-086

i02898044

Note:Caterpillarrecommendstheuseof5%molybdenumgreaseforlubricatingtheboomandthe sticklinkage.RefertoSpecialPublication,SEBU6250,"CaterpillarMachineFluids Recommendations"formoreinformationongrease.

Applylubricantthroughallfittingsafteroperationunderwater.

Wipeallfittingsbeforeyouapplylubricant.

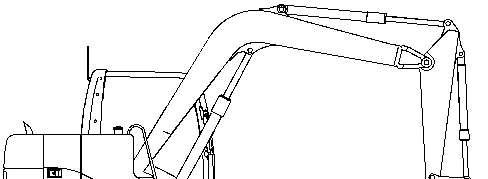

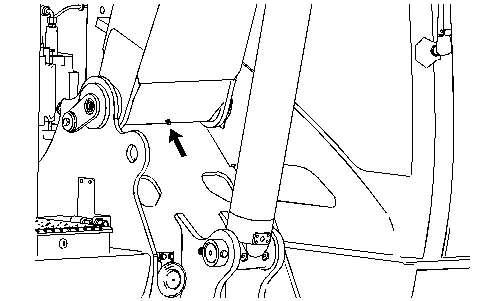

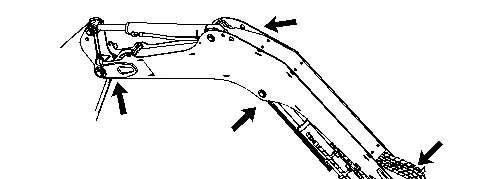

1.Applylubricantthroughthefittingatthebaseoftheboom.

Illustration2g01443163

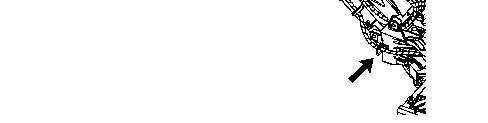

2.Applylubricantthroughthefittingsatthebaseoftheboomcylinder.

Illustration3g00746217

3.Applylubricantthroughfitting(1).Thisfittingislocatedontherodendoftheboomcylinder.

4.Applylubricantthroughfitting(2).Thisfittingislocatedontheheadendofthestickcylinder.

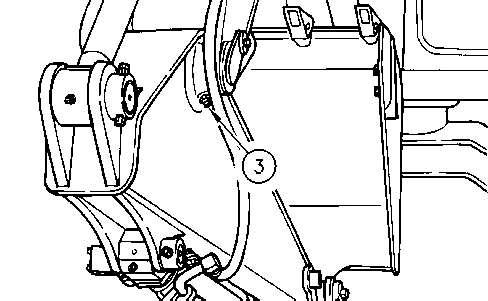

5.Applylubricantthroughfitting(3).Thisfittingislocatedatthejunctionoftheboomandthe stick.

Illustration4g00746218

Illustration5g00746219

6.Applylubricantthroughfitting(4).Thisfittingislocatedontherodendofthestickcylinder.

7.Applylubricantthroughfitting(5).Thisfittingislocatedatthejunctionoftheboomandthe stick.

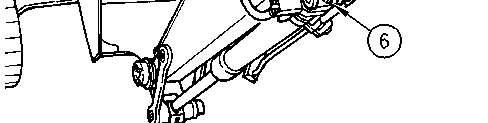

8.Applylubricantthroughfitting(6).Thisfittingislocatedontheheadendofthebucket cylinder.

SatDec1212:12:19UTC+05302020

PreviousScreen

Product:MINIHYDEXCAVATOR

Model:307DMINIHYDEXCAVATORDSG

Configuration:307DMiniHydraulicExcavatorDSG00001-UP(MACHINE)POWEREDBY4M40Engine

OperationandMaintenanceManual

307DExcavator

MediaNumber-SEBU8340-07PublicationDate-01/08/2011DateUpdated-23/08/2011

Boom,Stick,andFrame-Inspect

SMCS-6501;6502;6506

i04518297

Allearthmovingequipmentispronetoahighdegreeofwear.Regularinspectionsforstructural damagearenecessary.

Theintervalbetweentheseinspectionsdependsonthefactorsthatfollow.

•Theageofthemachine

•Theseverityoftheapplication

•Theloadsthathavebeencarriedonthemachine

•Theamountofroutineservicingthathasbeencarriedout

Ifthemachinehasbeeninvolvedinanykindofaccident,themachinemustbeinspectedthoroughly. Inspectthemachineregardlessofthedateofthelastinspection.

Themachinemustbecleanbeforethemachineisinspected.

Properrepairofframesandstructuresrequiresspecificknowledgeofthefollowingsubjects.

•Materialsthathavebeenusedtomanufacturetheframemembers

•Framememberconstruction

•Repairtechniquesthatarerecommendedbythemanufacturer.

ConsultyourCaterpillardealerifrepairsarenecessary.YourCaterpillardealerisqualifiedtocarry outrepairsonyourbehalf.

AllrepairsshouldbecarriedoutbyaCaterpillardealer.Ifyoucarryoutyourownrepairs,contact yourCaterpillardealerforadviceaboutproperrepairtechniques.

Particularattentionshouldbegiventoallweldedstructures.Thefollowingitemsshouldbe thoroughlyinspectedforcracksandfordefects:

•Boom

•Stick

•Blade(ifequipped)

•Liftingpoints

•Upperframe

•Lowerframe

Theareashighlightedareofparticularimportancebutotherareas mustnotbeneglected.Theentirestructuremustbecarefully examined. Boom

Illustration1g01425291

Typicalexample

This is the sample of the manual Click on the download link for complete Manual
