AccessDoorandCoverLocations

EngineHood

i05892844

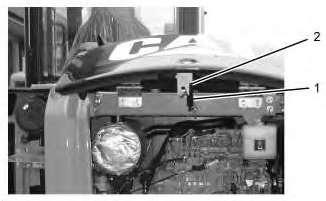

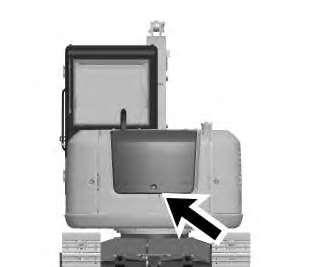

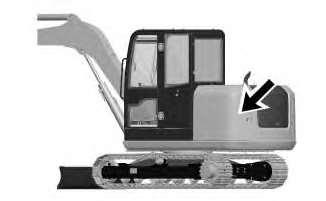

1.Fullyopentheenginehood.

Note:Whenopeningtheenginehoodmakesuregasspring(1)locksintoplace.

OperationofthePushButtonReleasefortheAccessDoor

Whenclosingtheaccessdoor,onlyoperatethepush-buttonreleaseby hand.

Failuretoremovehandsfromthepush-buttonreleasebeforeclosingthe accessdoorcouldresultinpersonalinjury.

Besuretoremovehandsfromthepush-buttonreleasebeforecompletely closingtheaccessdoor.

2.Inordertoclosetheenginehood,presspush-buttonrelease(2)inordertounlockthegas spring.

3.Releasethepushbuttonandslowlyclosetheenginehood.

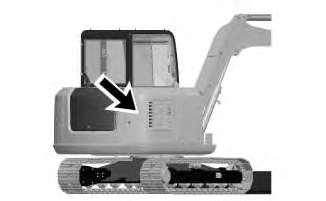

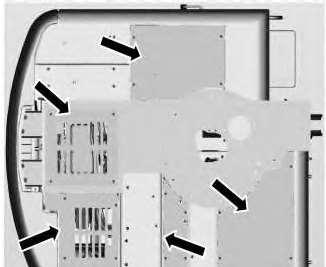

Illustration3g03347434

Accessdoorforradiator,refrigerantcondenser,hydraulicoilsightgauge,fuelsystemprimaryfilter(waterseparator) element,andbattery.

Accessdoorforhydraulicoilfilter,hydraulicpump,engineairfilterelement,andwindowwasherreservoir.

PreviousScreen

Product:MINIHYDEXCAVATOR

Model:306E2MINIHYDEXCAVATORE2W

Configuration:306E2MiniHydraulicExcavatorE2W00001-UP(MACHINE)POWEREDBYC2.4Engine

OperationandMaintenanceManual

306E2MiniHydraulicExcavator

MediaNumber-SEBU9280-02PublicationDate-01/05/2015DateUpdated-17/03/2017 i05890107

AirCleanerDustValve-Clean/Inspect

SMCS-1051-571-VL

1.Opentheleftsideaccessdoor.

2.Theairfilterhousingislocatedontheleftsideoftheenginecompartment.

3.Checkthedustvalveafterevery10servicehoursorattheendofeachday.Actuatethevalve bysqueezingthelipsofthevalveinordertoremoveanyaccumulateddebris.

4.Closetheleftsideaccessdoor.

ThuDec311:53:59UTC+05302020

PreviousScreen

Product:MINIHYDEXCAVATOR

Model:306E2MINIHYDEXCAVATORE2W

Configuration:306E2MiniHydraulicExcavatorE2W00001-UP(MACHINE)POWEREDBYC2.4Engine

OperationandMaintenanceManual

306E2MiniHydraulicExcavator

MediaNumber-SEBU9280-02PublicationDate-01/05/2015DateUpdated-17/03/2017

i04723738

AirConditioner/CabHeaterFilter(Recirculation)Inspect/Replace

SMCS-1054-040-A/C;1054-510-A/C

NOTICE

Anairrecirculationfilterelementpluggedwithdustwillresultin decreasedperformanceandservicelifetotheairconditionerorcab heater.

Topreventdecreasedperformance,cleanthefilterelement,as required.

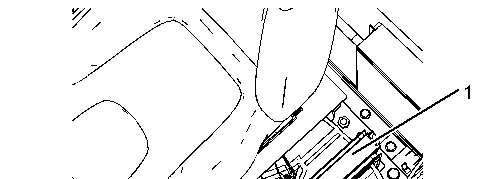

Therecirculationfilterisontheleftsideoftheoperatorseat.

1.Toremovethefilterelement,removecoverbolt(2)andcover(1).

2.Toremovethefilter,pullthefilteruptowardstheoperatorseat.

3.RefertoOperationandMaintenanceManual,"GeneralHazardInformation"beforeusing pressureairtocleantheairfilterelement.

4.Cleanthefilterelementwithamaximumof200kPa(30psi)pressureair.

5.Afteryoucleanthefilterelement,inspectthefilterelement.Ifthefilterelementisdamagedor badlycontaminated,useanewfilterelement.Makesurethatthefilterelementisdry.

ThuDec311:54:14UTC+05302020

PreviousScreen

Product:MINIHYDEXCAVATOR

Model:306E2MINIHYDEXCAVATORE2W

Configuration:306E2MiniHydraulicExcavatorE2W00001-UP(MACHINE)POWEREDBYC2.4Engine

OperationandMaintenanceManual

306E2MiniHydraulicExcavator

MediaNumber-SEBU9280-02PublicationDate-01/05/2015DateUpdated-17/03/2017 i01586674

Battery-Clean

SMCS-1401-070

Cleanthebatterysurfacewithacleancloth.Keeptheterminalscleanandkeeptheterminalscoated withpetroleumjelly.Installthepostcoverafteryoucoattheterminalpostwithpetroleumjelly.

ThuDec311:54:28UTC+05302020

PreviousScreen

Product:MINIHYDEXCAVATOR

Model:306E2MINIHYDEXCAVATORE2W

Configuration:306E2MiniHydraulicExcavatorE2W00001-UP(MACHINE)POWEREDBYC2.4Engine

OperationandMaintenanceManual

306E2MiniHydraulicExcavator

MediaNumber-SEBU9280-02PublicationDate-01/05/2015DateUpdated-17/03/2017

Battery-Recycle

SMCS-1401-561

Alwaysrecycleabattery.Neverdiscardabattery.

Alwaysreturnusedbatteriestooneofthefollowinglocations:

•Abatterysupplier

•Anauthorizedbatterycollectionfacility

•Recyclingfacility

i06543763

ThuDec311:54:40UTC+05302020

This is the sample of the manual Click on the download link for complete Manual

PreviousScreen

Product:MINIHYDEXCAVATOR

Model:306E2MINIHYDEXCAVATORE2W

Configuration:306E2MiniHydraulicExcavatorE2W00001-UP(MACHINE)POWEREDBYC2.4Engine

OperationandMaintenanceManual

306E2MiniHydraulicExcavator

MediaNumber-SEBU9280-02PublicationDate-01/05/2015DateUpdated-17/03/2017

BatteryHold-Down-Tighten

SMCS-7257

i01586700

Tightenthehold-downsforthebatteryinordertopreventthebatteriesfrommovingduringmachine operation.

ThuDec311:54:54UTC+05302020

PreviousScreen

Product:MINIHYDEXCAVATOR

Model:306E2MINIHYDEXCAVATORE2W

Configuration:306E2MiniHydraulicExcavatorE2W00001-UP(MACHINE)POWEREDBYC2.4Engine

OperationandMaintenanceManual

306E2MiniHydraulicExcavator

MediaNumber-SEBU9280-02PublicationDate-01/05/2015DateUpdated-17/03/2017

BatteryorBatteryCable-Inspect/Replace

SMCS-1401-561;1401-040;1401-510;1402-040;1402-510

Personalinjurycanresultfrombatteryfumesorexplosion.

Batteriesgiveoffflammablefumesthatcanexplode.Electrolyteisan acidandcancausepersonalinjuryifitcontactstheskinoreyes.

Preventsparksnearthebatteries.Sparkscouldcausevaporstoexplode. Donotallowjumpercableendstocontacteachotherortheengine. Improperjumpercableconnectionscancauseanexplosion.

Alwayswearprotectiveglasseswhenworkingwithbatteries.

1.TurntheenginestartswitchkeytotheOFFposition.TurnalloftheswitchestotheOFF position.Removethekey.

2.Disconnectthenegativebatterycableatthebattery.

3.Disconnectthepositivebatterycableatthebattery.

4.Disconnectthebatterycablesfromthemachineifnewcablesareneeded.

5.Makenecessaryrepairsorreplacethebattery.

6.Connectthebatterycablestothemachineifthebatterycableswereremoved.

i01999587

7.Connectthepositivebatterycableofthebattery.

8.Connectthenegativebatterycableofthebattery.

9.Installthekeyintotheenginestartswitch.

ThuDec311:55:08UTC+05302020

PreviousScreen

Product:MINIHYDEXCAVATOR

Model:306E2MINIHYDEXCAVATORE2W

Configuration:306E2MiniHydraulicExcavatorE2W00001-UP(MACHINE)POWEREDBYC2.4Engine

OperationandMaintenanceManual

306E2MiniHydraulicExcavator

MediaNumber-SEBU9280-02PublicationDate-01/05/2015DateUpdated-17/03/2017

Belts-Inspect/Adjust/Replace

i05508649

SMCS-1357-510;1357-025;1357-040;1358-025;1358-510;1359-025;1359-040-BE;1359-040; 1359-510-BE;1359-510;1359-025-BE;1361-025-BE;1361-025;1361-040-BE;1361-040;1361-510 -BE;1361-510;1397-025;1397-040;1397-510;1405-036;1405-040-BE;1405-040;1405-510-BE; 1405-025-BE;1405-510;1405-025;1802-025;1802-510

NOTICE

TheV-beltmustbetensionedcorrectly.Failuretotensionthebelt properlycouldcausedamagetothebeltand/ortotheairconditioner compressor.

Yourenginecanbeequippedwithawaterpump,withafandrive,andwithanalternator.Yourengine canalsobeequippedwithaccessorydrivebelts.Formaximumengineperformanceandmaximum utilizationofyourengine,inspectthebeltsforwearandforcracking.Checkthebelttension.Adjust thebelttensioninordertominimizebeltslippage.Beltslippagewilldecreasethebeltlife.Belt slippagewillalsocausepoorperformanceofthealternatorandofanydrivenequipment.

Ifnewbeltsareinstalled,recheckthebeltadjustmentafter30minutesofoperation.Iftwobeltsor morearerequiredforanapplication,replacethebeltsinbeltsets.Ifonlyonebeltofapairisreplaced, thenewbeltwillcarrymoreload.Thisisduetothefactthattheolderbeltsarestretched.The additionalloadonthenewbeltcouldcausethenewbelttobreak.

WaterPumpBelt,FanDriveBelt,andAlternatorBelt

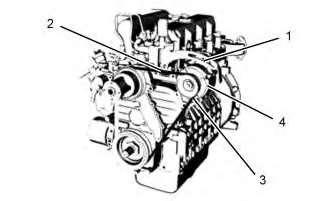

(1)Adjustingbolt (2)Belt

(3)Alternatormountingbolt (4)Alternator

1.Opentheenginehood.

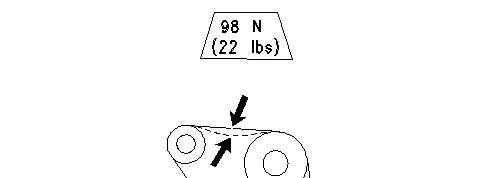

2.Applyapproximately98N(22lb)offorcemidwaybetweenthepulleys.

3.Measurethedeflectionofthebelt(2).Thebeltshoulddeflect8to11mm(5/16to7/16inch).

4.Ifthedeflectionisnotcorrect,loosenalternatormountingbolt(3)andadjustingbolt(1).Move thealternator(4)forwardorbackwardinordertoadjustthebelttension.

5.Whentheadjustmentiscorrect,tightenalternatormountingbolt(3)andadjustingbolt(1).

6.Checkthedeflectionofthebeltagain.

Note:Ifanewbeltisinstalled,checkthebeltadjustmentagainafter30minutesofengine operationattheratedenginespeed.

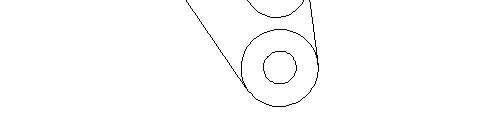

AirConditionerBelt

Illustration3g03485324

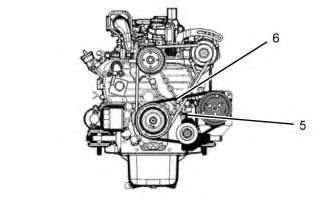

(5)Adjustingbolt (6)Belt

1.Applyapproximately98N(22lb)offorcemidwaybetweenthepulleys.

2.Measurethedeflectionofthebelt(6).Thebeltshoulddeflect7to10mm(1/4to3/8inch).

3.Ifthedeflectionisnotcorrect,turnadjustingbolt(5)inordertoadjustthebelttension.

4.Checkthedeflectionagain.

Note:Ifanewbeltisinstalled,recheckthebeltadjustmentagainafter30minutesofoperation.

5.Closetheenginehood.

ThuDec311:55:23UTC+05302020

PreviousScreen

Product:MINIHYDEXCAVATOR

Model:306E2MINIHYDEXCAVATORE2W

Configuration:306E2MiniHydraulicExcavatorE2W00001-UP(MACHINE)POWEREDBYC2.4Engine

OperationandMaintenanceManual

306E2MiniHydraulicExcavator

MediaNumber-SEBU9280-02PublicationDate-01/05/2015DateUpdated-17/03/2017

BladeLinkage-Lubricate

SMCS-6060-086

Loweralltheworktoolsandthebladetotheground. Wipeallgreasefittingsbeforelubricating.

Illustration1g01147519

i02292347

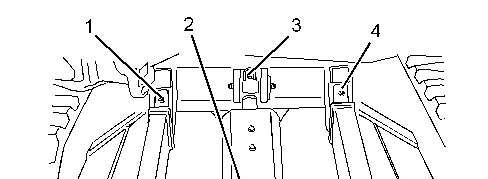

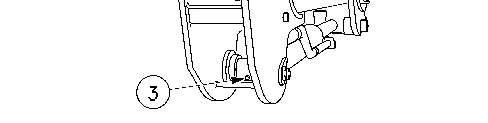

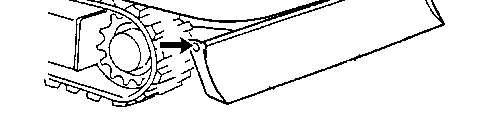

1.Applylubricanttogreasefitting(3)attheheadendofthebladecylinder.Applylubricantto greasefitting(2)attherodendofthebladecylinder.

2.Applylubricanttogreasefittings(1)and(4)forthebladelinkage.

PreviousScreen

Product:MINIHYDEXCAVATOR

Model:306E2MINIHYDEXCAVATORE2W

Configuration:306E2MiniHydraulicExcavatorE2W00001-UP(MACHINE)POWEREDBYC2.4Engine

OperationandMaintenanceManual

306E2MiniHydraulicExcavator

MediaNumber-SEBU9280-02PublicationDate-01/05/2015DateUpdated-17/03/2017 i05890110

BoomandStickLinkage-Lubricate

SMCS-6501-086;6502-086

Note:Caterpillarrecommendstheuseof5%MolybdenumGreaseforlubricatingtheboomandstick linkage.RefertoSpecialPublication,SEBU6250,"CaterpillarMachineFluidsRecommendations"for moreinformationonmolybdenumgrease.

Applylubricantthroughallfittingsafteroperationunderwater.

Wipeallfittingsbeforeyouapplylubricant.

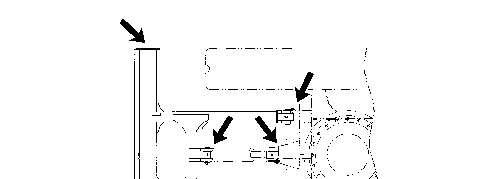

Illustration1g01148576 Fittingsareonthebacksideoftheboom.

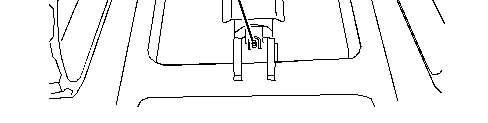

1.Applylubricantthroughthefittingsatthebaseoftheboom.

Illustration2g01148525

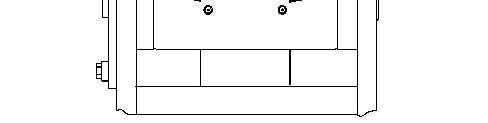

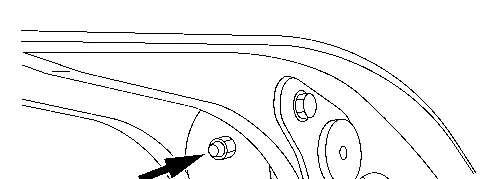

2.Applylubricantthroughthefittingattheboomcylinderheadend.

Illustration3g00823733

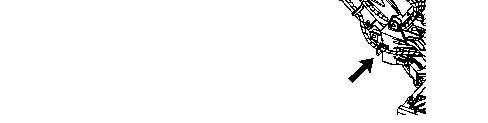

3.Applylubricantthroughthefittingattherodendoftheboomcylinder.

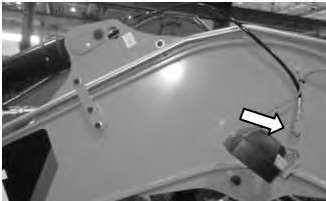

Illustration4g03712238

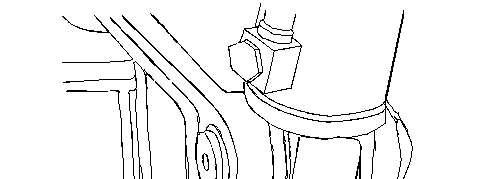

4.Applylubricantthroughtheremotegreaselineasshown.

Illustration5g00823741

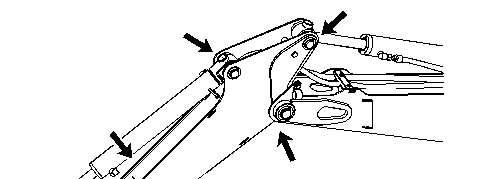

5.Applylubricantthroughthefollowingfittings:

(1)Thefittingthatislocatedbetweentheboomandthestick.

(2)Thefittingthatislocatedatthestickcylinderrodend.

(3)Thefittingthatislocatedatthebucketcylinderheadend.

ThuDec311:55:51UTC+05302020

PreviousScreen

Product:MINIHYDEXCAVATOR

Model:306E2MINIHYDEXCAVATORE2W

Configuration:306E2MiniHydraulicExcavatorE2W00001-UP(MACHINE)POWEREDBYC2.4Engine

OperationandMaintenanceManual

306E2MiniHydraulicExcavator

MediaNumber-SEBU9280-02PublicationDate-01/05/2015DateUpdated-17/03/2017

Boom,Stick,andFrame-Inspect

SMCS-6501;6502;6506

Allearthmovingequipmentispronetoahighdegreeofwear.Regularinspectionsforstructural damagearenecessary.

Theintervalbetweentheseinspectionsdependsonthefactorsthatfollow.

•Theageofthemachine

•Theseverityoftheapplication

•Theloadsthathavebeencarriedonthemachine

•Theamountofroutineservicingthathasbeencarriedout

Ifthemachinehasbeeninvolvedinanykindofaccident,themachinemustbeinspectedthoroughly. Inspectthemachineregardlessofthedateofthelastinspection.

Themachinemustbecleanbeforethemachineisinspected.

Properrepairofframesandstructuresrequiresspecificknowledgeofthefollowingsubjects.

•Materialsthathavebeenusedtomanufacturetheframemembers

•Framememberconstruction

•Repairtechniquesthatarerecommendedbythemanufacturer.

ConsultyourCaterpillardealerifrepairsarenecessary.YourCaterpillardealerisqualifiedtocarry outrepairsonyourbehalf.

AllrepairsshouldbecarriedoutbyaCaterpillardealer.Ifyoucarryoutyourownrepairs,contact yourCaterpillardealerforadviceaboutproperrepairtechniques.

i05890157

Particularattentionshouldbegiventoallweldedstructures.Thefollowingitemsshouldbe thoroughlyinspectedforcracksandfordefects:

•Boom

•Stick

•Blade

•Liftingpoints

•Upperframe

•Lowerframe NOTICE

Theareashighlightedareofparticularimportancebutotherareas mustnotbeneglected.Theentirestructuremustbecarefully examined.

Boom

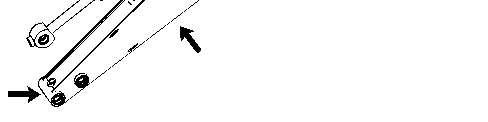

Illustration1g01425291

Checkallweldedjointsandcheckthemountingpointsforthecylinder.

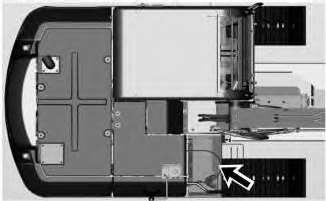

Illustration2g01425293

Checkallweldedjointsandcheckthemountingpointsforthecylinder.

Blade

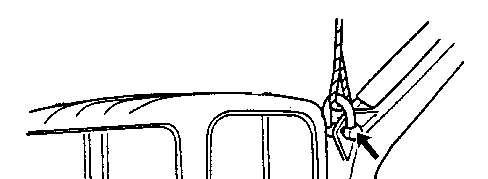

Illustration3g01425286

Checkallweldedjointsandcheckthemountingpointsforthecylinder.

LiftingPoints

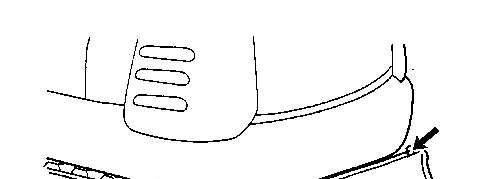

Illustration4g01425213

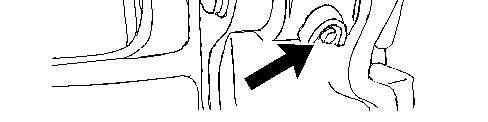

Illustration5g00309343

Checktheapprovedliftingpointscarefully.Checkthewelds.Checkthattheplatesarenot excessivelybent.Checkthattheliftingholesarenotdeformed.

This is the sample of the manual Click on the download link for complete Manual
