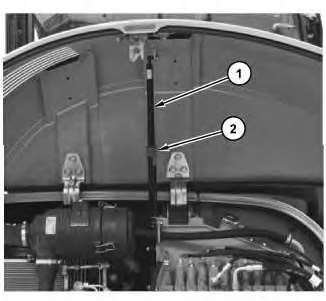

1.Unlatchtherightaccessdoorandfullyopen.
Note:Whenopeningright-handaccessdoormakesuregasspring(1)locksintoplace.
OperationofthePushButtonReleasefortheAccessDoor
Whenclosingtheaccessdoor,onlyoperatethepush-buttonreleaseby hand.
Failuretoremovehandsfromthepush-buttonreleasebeforeclosingthe accessdoorcouldresultinpersonalinjury.
Besuretoremovehandsfromthepush-buttonreleasebeforecompletely closingtheaccessdoor.
2.Inordertoclosetheright-handaccessdoor,presspush-buttonrelease(2)inordertounlockthe gasspring.
3.Releasethepushbuttonandslowlyclosetheright-handaccessdoor.
AccessCover(Battery)
Copyright1993-2020CaterpillarInc. AllRightsReserved. PrivateNetworkForSISLicensees.
WedAug2612:20:41UTC+05302020
PreviousScreen
Product:MINIHYDEXCAVATOR
Model:303ECRMINIHYDEXCAVATORCK3
Configuration:303ECRMiniHydraulicExcavatorCK300001-UP(MACHINE)POWEREDBYC1.3Engine
OperationandMaintenanceManual
303ECRMiniHydraulicExcavators
MediaNumber-M0073843-07PublicationDate-01/08/2015DateUpdated-03/11/2017
AirCleanerDustValve-Clean/Inspect
SMCS-1051-571-VL
1.Opentherightsideaccessdoor.

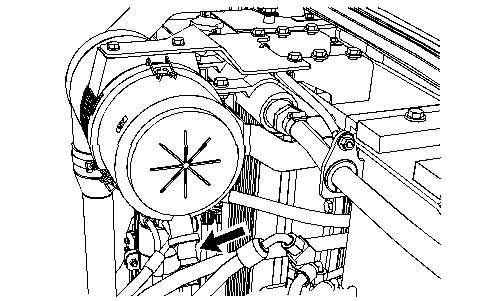

2.Theairfilterhousingislocatedontherightsideoftheenginecompartment. Illustration1g02792317
3.Checkthedustvalveafterevery10servicehoursorattheendofeachday.Actuatethevalve bysqueezingthelipsofthevalveinordertoremoveanyaccumulateddebris.
4.Closetherightsideaccessdoor.
PreviousScreen
Product:MINIHYDEXCAVATOR
Model:303ECRMINIHYDEXCAVATORCK3
Configuration:303ECRMiniHydraulicExcavatorCK300001-UP(MACHINE)POWEREDBYC1.3Engine
OperationandMaintenanceManual 303ECRMiniHydraulicExcavators
MediaNumber-M0073843-07PublicationDate-01/08/2015DateUpdated-03/11/2017
Battery-Clean
SMCS-1401-070
Cleanthebatterysurfacewithacleancloth.Keeptheterminalscleanandkeeptheterminalscoated withpetroleumjelly.Installthepostcoverafteryoucoattheterminalpostwithpetroleumjelly.
Copyright1993-2020CaterpillarInc. AllRightsReserved. PrivateNetworkForSISLicensees.
WedAug2612:24:01UTC+05302020
PreviousScreen
Product:MINIHYDEXCAVATOR
Model:303ECRMINIHYDEXCAVATORCK3
Configuration:303ECRMiniHydraulicExcavatorCK300001-UP(MACHINE)POWEREDBYC1.3Engine
OperationandMaintenanceManual
303ECRMiniHydraulicExcavators
MediaNumber-M0073843-07PublicationDate-01/08/2015DateUpdated-03/11/2017
Battery-Recycle
SMCS-1401-561
Alwaysrecycleabattery.Neverdiscardabattery.
Alwaysreturnusedbatteriestooneofthefollowinglocations:
•Abatterysupplier
•Anauthorizedbatterycollectionfacility
•Recyclingfacility
Copyright1993-2020CaterpillarInc. AllRightsReserved. PrivateNetworkForSISLicensees.
i06543763
WedAug2612:24:20UTC+05302020
PreviousScreen
Product:MINIHYDEXCAVATOR
Model:303ECRMINIHYDEXCAVATORCK3
Configuration:303ECRMiniHydraulicExcavatorCK300001-UP(MACHINE)POWEREDBYC1.3Engine
OperationandMaintenanceManual 303ECRMiniHydraulicExcavators
MediaNumber-M0073843-07PublicationDate-01/08/2015DateUpdated-03/11/2017
BatteryHold-Down-Tighten
SMCS-7257
i01586700
Tightenthehold-downsforthebatteryinordertopreventthebatteriesfrommovingduringmachine operation.
Copyright1993-2020CaterpillarInc. AllRightsReserved. PrivateNetworkForSISLicensees.
WedAug2612:24:42UTC+05302020
PreviousScreen
Product:MINIHYDEXCAVATOR
Model:303ECRMINIHYDEXCAVATORCK3
Configuration:303ECRMiniHydraulicExcavatorCK300001-UP(MACHINE)POWEREDBYC1.3Engine
OperationandMaintenanceManual 303ECRMiniHydraulicExcavators
MediaNumber-M0073843-07PublicationDate-01/08/2015DateUpdated-03/11/2017
BatteryorBatteryCable-Inspect/Replace
SMCS-1401-040;1401-510;1401-561;1402-040;1402-510
Personalinjurycanresultfrombatteryfumesorexplosion.
Batteriesgiveoffflammablefumesthatcanexplode.Electrolyteisan acidandcancausepersonalinjuryifitcontactstheskinoreyes.
Preventsparksnearthebatteries.Sparkscouldcausevaporstoexplode. Donotallowjumpercableendstocontacteachotherortheengine. Improperjumpercableconnectionscancauseanexplosion.
Alwayswearprotectiveglasseswhenworkingwithbatteries.
1.TurntheenginestartswitchkeytotheOFFposition.TurnalloftheswitchestotheOFF position.Removethekey.
2.Disconnectthenegativebatterycableatthebattery.
3.Disconnectthepositivebatterycableatthebattery.
4.Disconnectthebatterycablesfromthemachineifnewcablesareneeded.
5.Makenecessaryrepairsorreplacethebattery.
6.Connectthebatterycablestothemachineifthebatterycableswereremoved.
This is the sample of the manual Click on the download link for complete Manual
7.Connectthepositivebatterycableofthebattery.
8.Connectthenegativebatterycableofthebattery.
9.Installthekeyintotheenginestartswitch.
Copyright1993-2020CaterpillarInc. AllRightsReserved. PrivateNetworkForSISLicensees.
WedAug2612:25:07UTC+05302020
PreviousScreen
Product:MINIHYDEXCAVATOR
Model:303ECRMINIHYDEXCAVATORCK3
Configuration:303ECRMiniHydraulicExcavatorCK300001-UP(MACHINE)POWEREDBYC1.3Engine
OperationandMaintenanceManual
303ECRMiniHydraulicExcavators
MediaNumber-M0073843-07PublicationDate-01/08/2015DateUpdated-03/11/2017 i05326061
Belt-Inspect/Adjust/Replace
SMCS-1357-025;1357-040;1357-510;1397-025;1397-040;1397-510
NOTICE
TheV-beltmustbetensionedcorrectly.Failuretotensionthebelt properlycouldcausedamagetothebeltand/ortotheairconditioner compressor.
Formaximumengineperformanceandmaximumutilizationofyourengine,inspectthebeltsforwear andforcracking.Checkthebelttension.Adjustthebelttensioninordertominimizebeltslippage. Beltslippagewilldecreasethebeltlife.Beltslippagewillalsocausepoorperformanceofthe alternatorandofanydrivenequipment.
Ifnewbeltsareinstalled,recheckthebeltadjustmentafter30minutesofoperation.Iftwobeltsor morearerequiredforanapplication,replacethebeltsinbeltsets.Ifonlyonebeltofapairisreplaced, thenewbeltwillcarrymoreload.Thisisduetothefactthattheolderbeltsarestretched.The additionalloadonthenewbeltcouldcausethenewbelttobreak.
WaterPumpBelt,FanDriveBelt,andAlternatorBelt

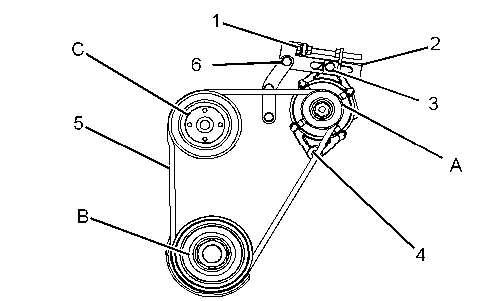

(1)Adjustingbolt (2)Adjustingbracket (3)Alternatormountingbolt (4)Alternatormountingbolt (5)Belt (6)Bolt (A)Alternatorpulley (B)Crankshaftpulley (C)Waterpumppulley
1.Opentheengineaccessdoor.
2.Removethefanguard.
3.Applyapproximately98N(22lb)offorcemidwaybetweenthepulleys.
4.Measurethedeflectionofthebelt.Thebeltshoulddeflect7to9mm(9/32to11/32inch).
5.Ifthedeflectionisnotcorrect,loosenbolt(6),andalternatormountingbolts(3)and(4).Turn adjustingbolt(1)counterclockwiseinordertomovethealternatorforwardtoadjustbelt(5)to thespecifiedtension.
6.Whentheadjustmentiscorrect,tightenbolt(6),andalternatormountingbolts(3)and(4) securely.
7.Checkthedeflectionofthebeltagain.
8.Closetheengineaccessdoor.
Note:Ifanewbeltisinstalled,checkthebeltadjustmentagainafter30minutesofengineoperation attheratedenginespeed.
WedAug2612:25:22UTC+05302020
PreviousScreen
Product:MINIHYDEXCAVATOR
Model:303ECRMINIHYDEXCAVATORCK3
Configuration:303ECRMiniHydraulicExcavatorCK300001-UP(MACHINE)POWEREDBYC1.3Engine
OperationandMaintenanceManual 303ECRMiniHydraulicExcavators
MediaNumber-M0073843-07PublicationDate-01/08/2015DateUpdated-03/11/2017
BladeLinkage-Lubricate
SMCS-6060-086
i02304927
Loweralltheworktoolsandthebladetotheground. Wipeallgreasefittingsbeforelubricating. Illustration1g00823677
1.Applylubricanttogreasefitting(2)attheheadendofthebladecylinder.Applylubricantto greasefitting(1)attherodendofthebladecylinder.
2.Applylubricanttogreasefittings(3)and(4)forthebladelinkage.
