Air Inlet and Exhaust System - Inspect
SMCS - 1050-040
Measuring exhaust manifold distortion
Date Updated -18/08/2015
i04020373

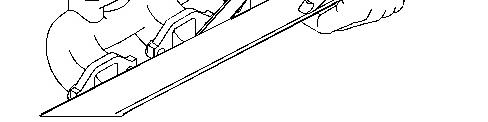

Illustration 1 g02239554
1. Check the flange for crack.
2. Check the flange surface for distortion. If the distortion exceeds the standard, retouch the surface.
Table 1
Item Standard
Exhaust manifold distortion Less than 0.150 mm (0.0059 inch)
Copyright 1993 - 2020 Caterpillar Inc. All Rights Reserved. Private Network For SIS Licensees. Thu Aug 6 12:58:20 UTC+0530 2020
Product: MINI HYD EXCAVATOR
Model: 303.5D MINI HYD EXCAVATOR RHP
Configuration: 303.5 D Mini Excavator RHP00001-UP (MACHINE) POWERED BY S3Q2 Engine
Disassembly and Assembly
S3Q2 and S3Q2-T Engines
Media Number -KENR6786-03
Publication Date -01/08/2015 Date Updated -18/08/2015
Air Inlet and Exhaust System - Install
SMCS - 1050-012
Installing inlet and exhaust system
i04116257

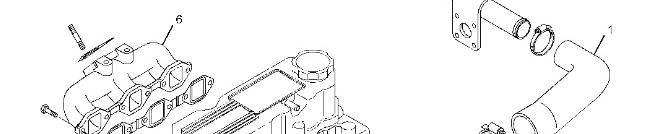

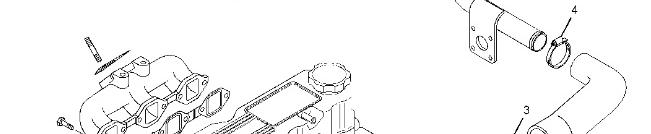

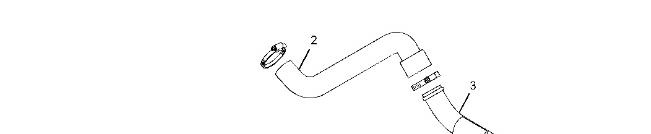

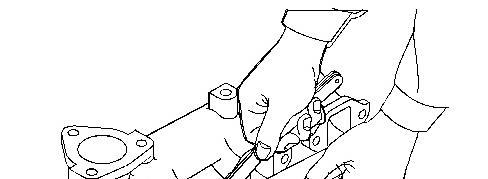

Illustration 1
1. Replace all the inlet and exhaust system gaskets.
2. Exhaust gasket installing at exhaust manifold side (1) .
3. Exhaust gasket installing at cylinder head side (2) .
4. Tighten the clamps(3) to 7 ± 1 N·m (62 ± 9 lb in).
5. Tighten the clamps(4) to 6 ± 1 N·m (53 ± 9 lb in).
6. Dimension for (A) 1.0 mm (0.04 inch).
7. Radius for (B) 5.0 mm (0.20 inch).
Thu Aug 6 12:58:34 UTC+0530 2020
Product: MINI HYD EXCAVATOR
Model: 303.5D MINI HYD EXCAVATOR RHP
Configuration: 303.5 D Mini Excavator RHP00001-UP (MACHINE) POWERED BY S3Q2 Engine
Disassembly and Assembly
S3Q2 and S3Q2-T Engines
Media Number -KENR6786-03
Publication Date -01/08/2015 Date Updated -18/08/2015
Air Inlet and Exhaust System - Remove
SMCS - 1050-011
Removing inlet and exhaust system
i04116179
This is the sample of the manual
Click on the download link for complete Manual

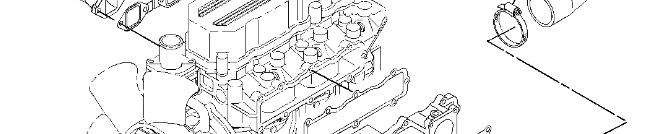

Illustration 1
Removing sequence
Air inlet elbow
Inlet manifold
Exhaust manifold
Copyright 1993 - 2020 Caterpillar Inc. All Rights Reserved. Thu Aug 6 12:58:06 UTC+0530 2020
Product: MINI HYD EXCAVATOR
Model: 303.5D MINI HYD EXCAVATOR RHP
Configuration: 303.5 D Mini Excavator RHP00001-UP (MACHINE) POWERED BY S3Q2 Engine
Disassembly and Assembly
S3Q2 and S3Q2-T Engines
Media Number -KENR6786-03
Publication Date -01/08/2015 Date Updated -18/08/2015
Cooling System - Disassemble/Inspect/Assemble
SMCS - 1350-040; 1350-017
Disassembling, inspecting, and reassembling water pump
i04020371

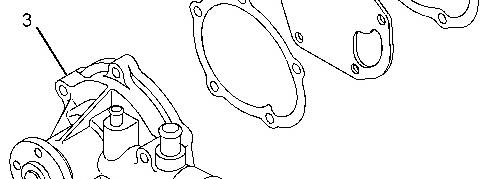

Illustration 1 g02239513
Disassemblingsequence
(1) Water pumpcover
(2) Gasket
(3) Water pump
Inspect the water pump cover (1) for crack, water leakage, and distortion. Replace both the gaskets (2) during assembly. Inspect the water pump (3) for crack, water leakage, damage, impeller, and shaft of rotation.
Inspecting water pump for smooth rotation

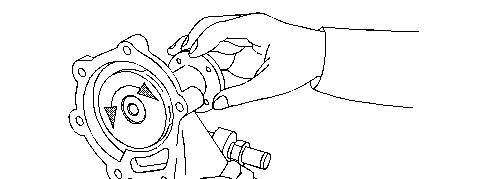

Illustration 2 g02239514
Check to make sure that the impeller and shaft of water pump rotate smoothly without noise and irregularities. If faulty, replace the water pump assembly.
Disassembling, inspecting, and reassembling thermostat

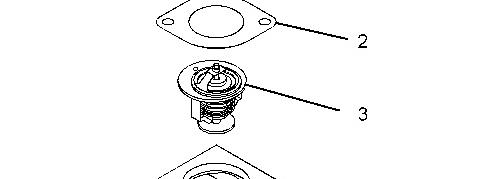

Illustration 3 g02239515
Disassemblingsequence
(1) Thermostat cover
(2) Gasket
(3) Thermostat
(4) Thermostat case
Inspecting thermostat
Note: Be careful of burns or a fire whenmeasuring temperature, as it involves a hightemperature and openflame.

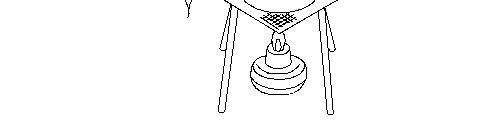

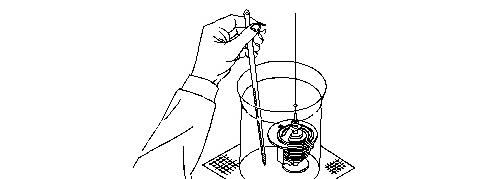

Illustration 4 g02239516
To test the thermostat operation, immerse the thermostat in a container filled with water. Heat the water, while measuring the water temperature. Record the temperature at the conditionsshown in the table below. If the temperatures are not within the standard range, replace the thermostat.
Note: Stir the water in the container with a stick to ensure uniform temperature distribution. Before installing the thermostat, be sure to check the valve opening temperature stamped on the thermostat valve side face.
Table 1
Item Standard
Temperature at which valve startsopening 75 to 78 °C (167 to 172 °F)
Temperature at which valve lift becomes 8.0 mm (0.31 inch) or more. 90 °C (194 °F)
Copyright 1993 - 2020 Caterpillar Inc.
Network For SIS Licensees. Thu Aug 6 12:57:38 UTC+0530 2020
Product: MINI HYD EXCAVATOR
Model: 303.5D MINI HYD EXCAVATOR RHP
Configuration: 303.5 D Mini Excavator RHP00001-UP (MACHINE) POWERED BY S3Q2 Engine
Disassembly and Assembly
S3Q2 and S3Q2-T Engines
Media Number -KENR6786-03
Publication Date -01/08/2015 Date Updated -18/08/2015
Cooling System - Install
SMCS - 1350-012
Installation cooling system
i04115784

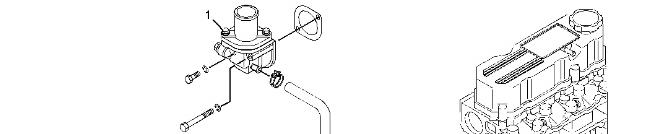

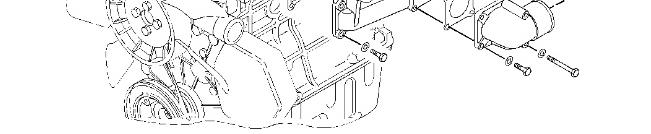

Illustration 1 g02317774
1. Replace all the gaskets, O-rings, and rubber hoses.
2. Tighten the thermostat cover bolts (1) to 18 ± 2 N·m (159 ± 18 lb in).
3. Tighten the water pump bolts (2) to 10 ± 1 N·m (88 ±9 lb in).
Copyright 1993 - 2020 Caterpillar Inc. All Rights Reserved. Private Network For SIS Licensees. Thu Aug 6 12:57:51 UTC+0530 2020
Product: MINI HYD EXCAVATOR
Model: 303.5D MINI HYD EXCAVATOR RHP
Configuration: 303.5 D Mini Excavator RHP00001-UP (MACHINE) POWERED BY S3Q2 Engine
Disassembly and Assembly
S3Q2 and S3Q2-T Engines
Media Number -KENR6786-03
Publication Date -01/08/2015 Date Updated -18/08/2015
Cooling System - Remove
SMCS - 1350-011
Removing cooling system
i04115713

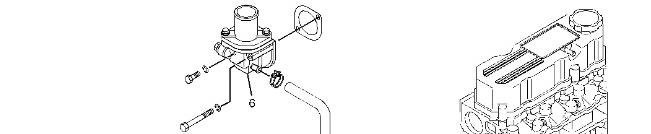

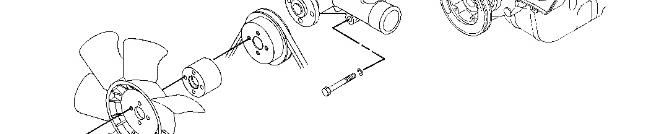

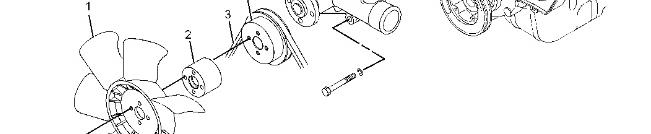

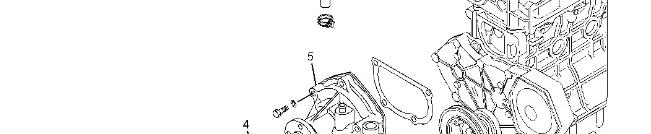

Illustration 1 g02317773
Removing sequence
(1) Cooling fan
(2) Fanspacer
(3) V-belt
(4) Water pumppulley
(5) Water pumpassembly
(6) Thermostat
Replace the gaskets during installation.
Inspect the rubber hoses for cracked, distortion, and damage.
Inspect the V-belt (3) cracked, elongation, wear, damage, aging
Inspect the water pump assembly (5) for crack, water leakage, and damage.
Inspect the thermostat (6) for crack and damage.
Copyright 1993 - 2020 Caterpillar Inc.
Rights Reserved.
Network For SIS Licensees. Thu Aug 6 12:57:23 UTC+0530 2020
Product: MINI HYD EXCAVATOR
Model: 303.5D MINI HYD EXCAVATOR RHP
Configuration: 303.5 D Mini Excavator RHP00001-UP (MACHINE) POWERED BY S3Q2 Engine
Disassembly and Assembly
S3Q2 and S3Q2-T Engines
Media Number -KENR6786-03 Publication Date -01/08/2015 Date Updated -18/08/2015
Cylinder Head and Valve Mechanism - Assemble
SMCS - 1100-016; 1102-016
Installing valve stem seal
i04112390

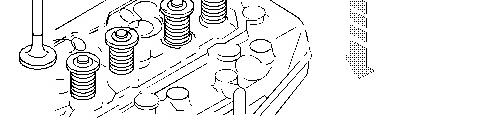

Note: Do not apply oil or liquidgasket to the inner side of stem seal that comes in contact with the valve guide.

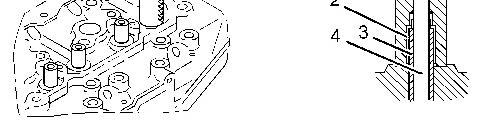

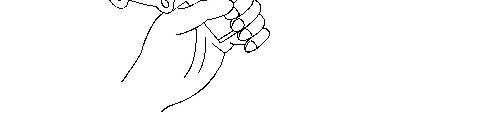

Illustration 1 g02237654 (1) Stem seal installer (P/N:32C91-10400)
(2) Valve stem seal
(3) Valve guide
(4) Valve
1. Apply engine oil to the lip of new valve stem seal.
2. Push the shoulder of the valve stem seal and fit the valve stem steal into the valve guide.
3. Insert the valve stem seal into the valve guide using the valve stem seal installer.
Installing valve and valve spring

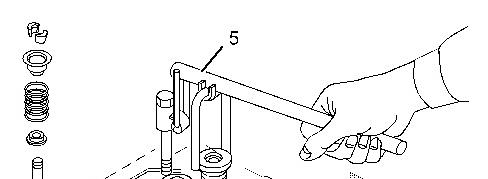

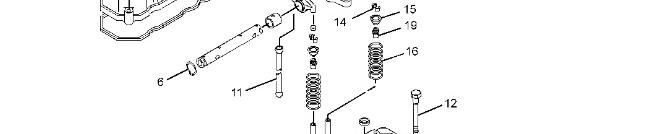

Illustration 2 g02237675
1. Install the valve spring and retainer on the valve guide. Install the valve cotter using a valve spring pusher (5) .

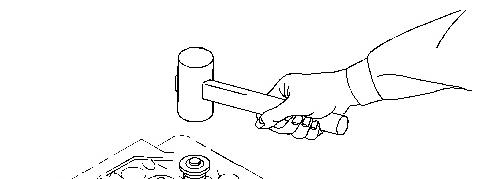

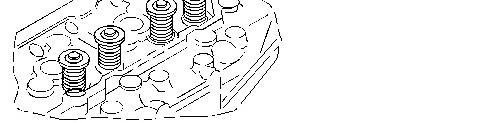

Illustration 3 g02237793
2. Tap the top of valve stem lightly several times with a soft hammer to make sure that the valve spring and valve cotter are properly installed and seated firmly.
Installing cylinder head gasket
Note: Do not use liquidgasket.

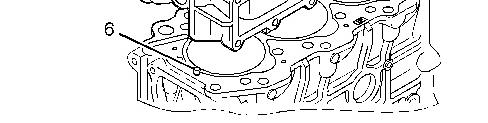

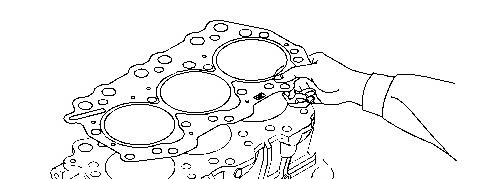

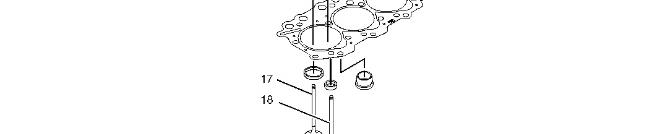

Illustration 4 g02315894
1. Wipe off oil, grease, and other stains from the cylinder head bottom surface and the crankcase upper surface with a shop towel.
2. Install the cylinder head gasket that has been coated with liquid gasket onto the crankcase with the dowel pin (6) and the hole in alignment.
Installing cylinder head assembly
Illustration 5 g02315895
Install the cylinder head on the crankcase by aligning the cylinder head with the dowel pins(6) .
Note: Be careful not to displace the cylinder gasket when installing.

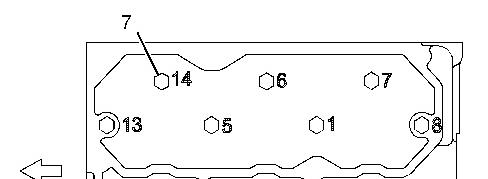

Tightening cylinder head bolts

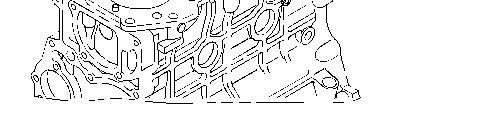

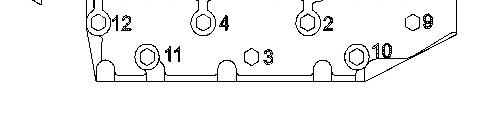

Illustration 6 g02315898
Tightening sequence of cylinderhead bolts.
White arrowshows front of engine.
Tighten the cylinder head bolts (7) in the numerical sequence to 118 ± 5 N·m (87 ± 4 lb ft).

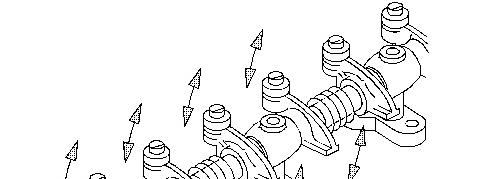

Reassembling rocker shaft assembly

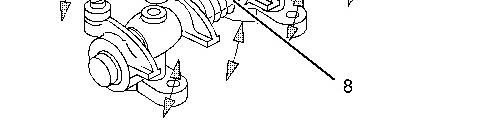

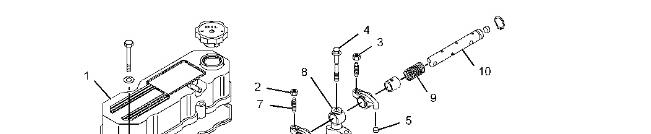

Illustration 7 g02237873 (8) Reassembling mark
1. Apply engine oil to the rocker shaft.
2. When reassembling, install the rocker shaft assembly in the original position.
Note: If the rocker shaft assembly is not installed in the original position, the clearance becomesdifferent. The different may result in a defect such as wear increase.
3. After reassembling, make sure the rocker arm and oil pipe move freely.
Inserting push rod
1. Insert each push rod into hole in the cylinder head.
2. Make sure that the ball end of each push rod is placed correctly on the tappet cup.
Installing rocker shaft assembly

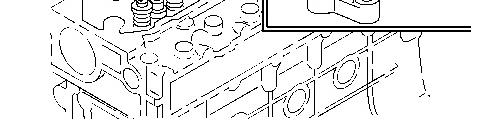

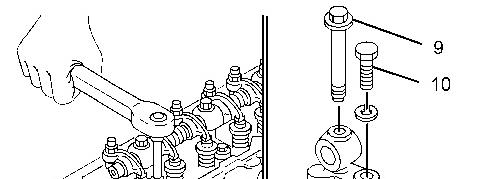

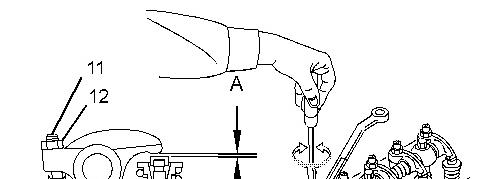

Illustration 8 g02237874
1. Install the valve capsto the valve heads.
2. Tighten the long bolts (9) of the rocker bracket to 15 ± 2 N·m (133 ±18 lb in).
3. Tighten the short bolts (10) of the rocker bracket to 11.3 ± 1.5 N·m (100.0 ± 13.0 lb in)
