Product: MINI HYD EXCAVATOR
Model: 301.7D MINI HYD EXCAVATOR LJ4
Configuration: 301.7D Mini Hydraulic Excavator LJ400001-UP (MACHINE)
Disassembly and Assembly
301.7D, 302.2D and 302.4D Mini Hydraulic Excavators
i05182587
Alternator - Remove and Install
SMCS - 1405-010
Removal Procedure
1. Disconnect the battery.
Illustration 1 g03322962
2. Slide seat forward and remove cover (1) .
2

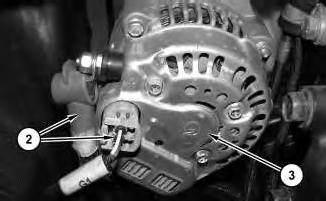

3. Disconnect harness assemblies (2) from alternator (3) .
3

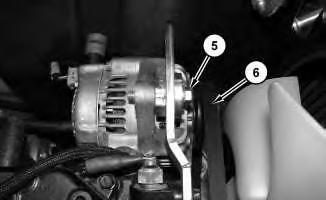

4. Remove bolt (5) and tensioner (4). Relocate belt (7). Remove bolt (6). Remove alternator (2) .
Installation Procedure
1. Install alternator (2) in the reverse order of removal.
Copyright 1993 - 2020 Caterpillar Inc.
Product: MINI HYD EXCAVATOR
Model: 301.7D MINI HYD EXCAVATOR LJ4
Configuration: 301.7D Mini Hydraulic Excavator LJ400001-UP (MACHINE)
Disassembly and Assembly
301.7D, 302.2D and 302.4D Mini Hydraulic Excavators
i05221768
Electric Starting Motor - Remove and Install
SMCS - 1453-010
Specifications

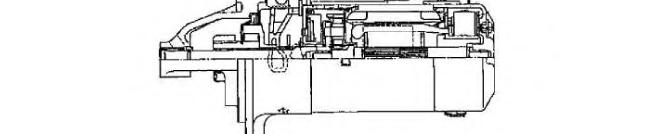

Illustration 1 g03340078
Table 1
Specification for 373-9707 Electric Starting Motor Item
1 - - Tighten the nut to 7.83 to 9.81 N·m (69.30 to 86.83 lb in).
No load performance at 20 °C (68 °F):
- - -
- - -
Minimum speed is 3000 rpm.
Maximum current drawis90 amp. Voltage is 11.5 V.
Load performance at 20 °C (68 °F):
Minimum speed is 1130 rpm.
Maximum current drawis230 amp.
Voltage is 8.7 V.
When the electric starting motor is viewed from the pinion end, the motor rotates in clockwise direction.
Operating voltage is 12 V.
Removal Procedure
Start By:
A. Remove the seat.
1. Disconnect the negative battery cable.
Illustration 2

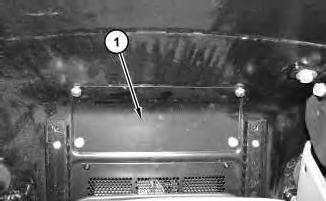

2. Remove upper cover (1) .
3

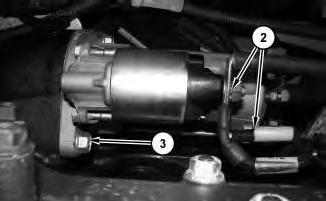

3. From the top side, disconnect harness assemblies (2). Remove bolt (3).
4

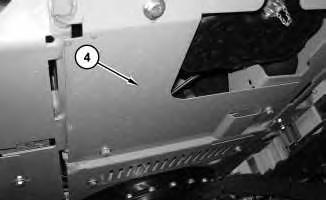

4. Remove lower cover (4) .
5

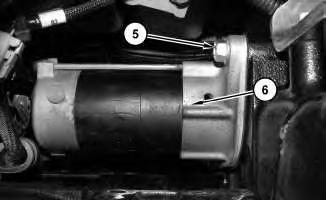

5. From the bottom, remove bolts(5). Remove electric starting motor (6).
Installation Procedure
1. Install electric starting motor (6) in the reverse order of removal.
Copyright 1993 - 2020 Caterpillar Inc. All Rights Reserved. Private Network For SIS Licensees. Wed Jul 8 09:23:14 UTC+0530 2020
This is the sample of the manual
Click on the download link for complete Manual
Product: MINI HYD EXCAVATOR
Model: 301.7D MINI HYD EXCAVATOR LJ4
Configuration: 301.7D Mini Hydraulic Excavator LJ400001-UP (MACHINE)
Disassembly and Assembly
301.7D, 302.2D and 302.4D Mini Hydraulic Excavators
Engine - Remove and Install
SMCS - 1000-010
Removal Procedure
Start By:
A. Remove cab.
B. Relocate trim.
C. Remove the counterweight.
D. Remove the muffler.
NOTICE
Care must be taken to ensure that fluidsare contained during performance of inspection, maintenance, testing, adjusting, andrepair of the product. Be prepared to collect the fluid with suitable containers before opening any compartment or disassembling any component containing fluids.
Refer to Special Publication, NENG2500, "Dealer Service Tool Catalog" for tools andsupplies suitable to collect andcontainfluids on Cat products.
Dispose of all fluids according to local regulationsand mandates.
i05230329
1. Drain Coolant. Refer to Operations and Maintenance Manual, "Cooling System Coolant (ELC) - Change" for the correct draining and filling procedures.
1
2. Remove hose assembly (1). Remove fan guard assembly (2) .
2

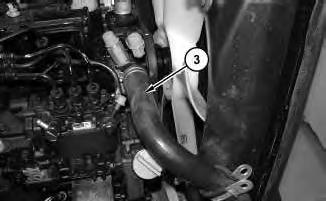

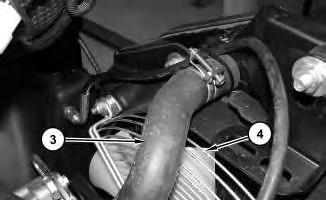

3. Remove hose assembly (3) .
https://127.0.0.1/sisweb/sisweb/techdoc/techdoc_print_page.jsp?returnurl=/sisweb/sisweb/m...
3
4
https://127.0.0.1/sisweb/sisweb/techdoc/techdoc_print_page.jsp?returnurl=/sisweb/sisweb/m...
Illustration 5
g03334004
Illustration 6
g03334002

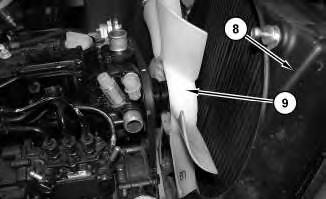

6. Loosen lower radiator mounting bolts (7). Tilt radiator (8) backwards in order to remove fan (9). Remove fan (9) .
Illustration 7

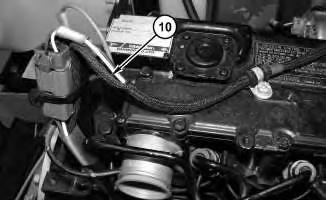

7. Disconnect harnessassembly (10) .
g03334006
8

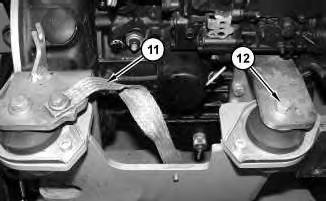

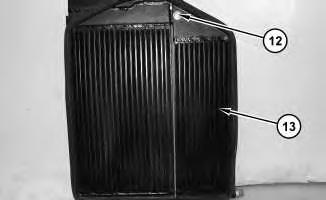

8. Disconnect ground strap (11). Remove mounting bolts (12) .
9

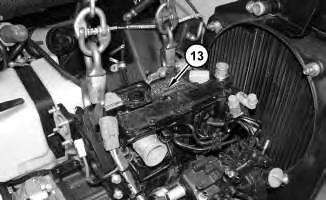

9. Use a suitable lifting device to remove engine (13). The weight of engine (13) is approximately 122 kg (270 lb).
Installation
1. Install engine (13) in the reverse order of removal.

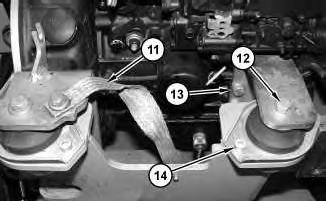

Illustration 10 g03340056
2. Tighten bolts (12) to a torque of 65 N·m (48 lb ft). Tighten bolts (13) to a torque of 45 N·m (33lb ft). Tighten bolts (14) to a torque of 25 N·m (18 lb ft)
Copyright 1993 - 2020 Caterpillar Inc. All Rights Reserved. Private Network For SIS Licensees. Wed Jul 8 09:25:16 UTC+0530 2020
https://127.0.0.1/sisweb/sisweb/techdoc/techdoc_print_page.jsp?returnurl=/sisweb/sisweb/m...
Product: MINI HYD EXCAVATOR
Model: 301.7D MINI HYD EXCAVATOR LJ4
Configuration: 301.7D Mini Hydraulic Excavator LJ400001-UP (MACHINE)
Disassembly and Assembly
301.7D, 302.2D and 302.4D Mini Hydraulic Excavators
i05221442
Fan - Remove and Install
SMCS - 1356-011; 1356-012
Removal Procedure
Start By:
A. Remove cab.
B. Raise Trim.
C. Remove counterweight.
1. Drain Coolant. Refer to Operations and Maintenance Manual, "Cooling System Coolant (ELC) - Change" for the correct draining and filling procedures.
Illustration 1

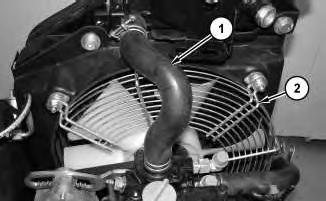

2. Remove hose (1) and fan guard (2) .
4

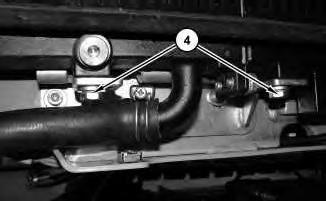

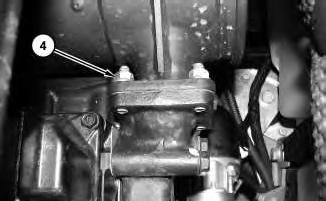

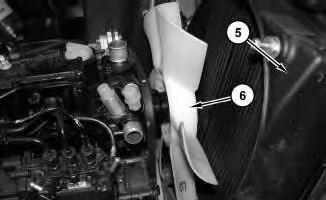

4. Loosen lower radiator mounting bolts (4). Lean radiator (5) outward in order to access the fan bolts. Remove fan (6) .
Installation Procedure
1. Install fan (6) in the reverse order of removal. Copyright 1993 - 2020 Caterpillar Inc. All Rights Reserved. Private Network For SIS Licensees.
Wed Jul 8 09:24:42 UTC+0530 2020
Product: MINI HYD EXCAVATOR
Model: 301.7D MINI HYD EXCAVATOR LJ4
Configuration: 301.7D Mini Hydraulic Excavator LJ400001-UP (MACHINE)
Disassembly and Assembly
301.7D, 302.2D and 302.4D Mini Hydraulic Excavators
i05212950
Flywheel - Remove and Install
SMCS - 1156-010
Removal Procedure
Start By:
A. Remove the pump drive coupling.
Illustration 1 g03335836

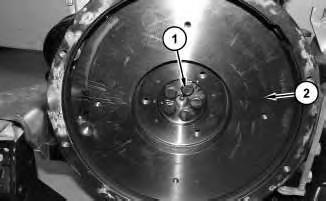

1. Remove bolts (1). Remove flywheel (2).
Installation Procedure
1. Install flywheel (2) in the reverse order of removal.
2. Tighten bolts (1) to a torque of 84 N·m (62 lb ft)
Copyright 1993 - 2020 Caterpillar Inc. All Rights Reserved. Private Network For SIS Licensees.
Wed Jul 8 09:25:31 UTC+0530 2020
Product: MINI HYD EXCAVATOR
Model: 301.7D MINI HYD EXCAVATOR LJ4
Configuration: 301.7D Mini Hydraulic Excavator LJ400001-UP (MACHINE)
Disassembly and Assembly
301.7D, 302.2D and 302.4D Mini Hydraulic Excavators Media
Fuel Filter and Water Separator - Remove and Install
SMCS - 1261-010; 1263-010
Specifications
i05190626
1
Table 1

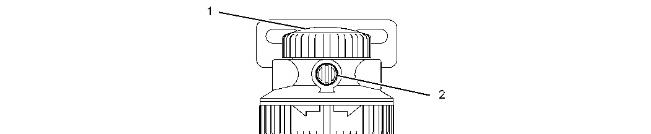

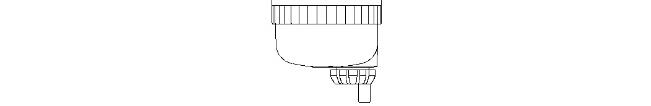

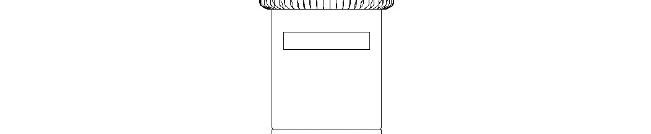

Specifications for 144-9962 Water Separator and Fuel Filter Gp Item Qty Part
1 1 118-8119 Nut
2 - -
Removal Procedure
Torque to 8.75 ±0.25 N·m (77.44 ± 2.21 lb in).
Torque plug to 1.5 ±0.1 N·m (13.3 ± 0.9 lb in).
Illustration 2
g03326360

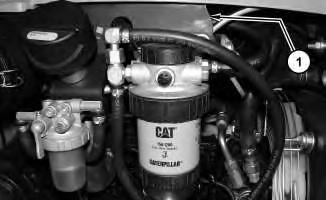

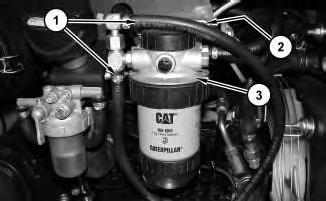

1. Disconnect hose assemblies(1). Remove bolts (2) and remove fuel filter and water separator (3) .
Installation Procedure
1. Install fuel filter and water separator (3) in the reverse order of removal.
Copyright 1993 - 2020 Caterpillar Inc. All Rights Reserved. Private Network For SIS Licensees. Wed Jul 8 09:24:00 UTC+0530 2020
Product: MINI HYD EXCAVATOR
Model: 301.7D MINI HYD EXCAVATOR LJ4
Configuration: 301.7D Mini Hydraulic Excavator LJ400001-UP (MACHINE)
Disassembly and Assembly
301.7D, 302.2D and 302.4D Mini Hydraulic Excavators
i05182847
Fuel Transfer Pump - Remove and Install
SMCS - 1256-010
Removal Procedure
Illustration 1 g03323194 For location purposes only.

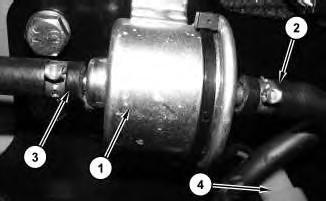

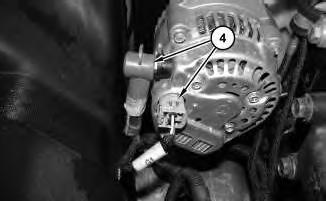

2. Disconnect hose assemblies(2) and (3). Disconnect harness assembly (4). Remove fuel transfer pump (1) .
Installation Procedure
1. Install fuel transfer pump (1) in the reverse order of removal.
Copyright 1993 - 2020 Caterpillar Inc. All Rights Reserved. Private Network For SIS Licensees.
Wed Jul 8 09:23:32 UTC+0530 2020
Product: MINI HYD EXCAVATOR
Model: 301.7D MINI HYD EXCAVATOR LJ4
Configuration: 301.7D Mini Hydraulic Excavator LJ400001-UP (MACHINE)
Disassembly and Assembly
301.7D, 302.2D and 302.4D Mini Hydraulic Excavators
i05188755
Muffler - Remove and Install
SMCS - 1062-010
Removal Procedure
Start By:
A. Remove cab.
B. Raise trim.
Illustration 1
g03325534

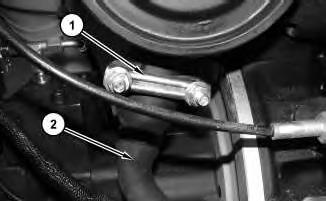

1. Disconnect clamp (1) and remove pipe (2) .
2
Remove nuts(4) .
3

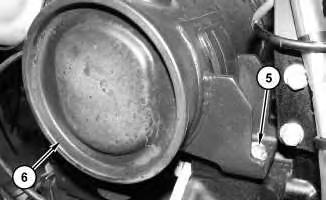

3. Remove bolts (5) and muffler (6) .
Installation Procedure
1. Install muffler (6) in the reverse order of removal.
Copyright 1993 - 2020 Caterpillar Inc. All Rights Reserved. Private Network For SIS Licensees.
Wed Jul 8 09:24:13 UTC+0530 2020
Product: MINI HYD EXCAVATOR
Model: 301.7D MINI HYD EXCAVATOR LJ4
Configuration: 301.7D Mini Hydraulic Excavator LJ400001-UP (MACHINE)
Disassembly and Assembly
301.7D, 302.2D and 302.4D Mini Hydraulic Excavators
Radiator and Hydraulic Oil Cooler - Remove and Install
SMCS - 1351-010; 1353-010; 1374-010
Removal Procedure
Start By:
A. Remove cab.
B. Remove counterweight.
Illustration 1

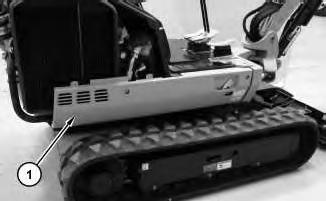

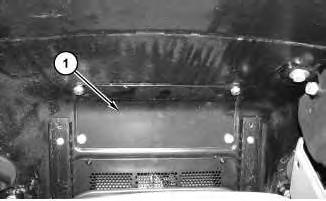

1. Remove panel (1) .
i05187130
2
Illustration 4
g03325062

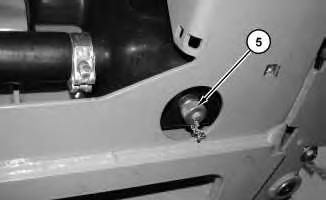

4. Drain hydraulic oil from hose assembly (5). Refer to Operation and Maintenance Manual, "Hydraulic Oil - Change" for the correct draining and filling procedures.
Illustration 5
g03325085

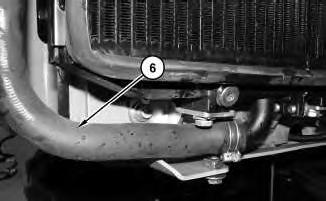

5. Remove lower radiator hose assembly (6) .
Illustration 6

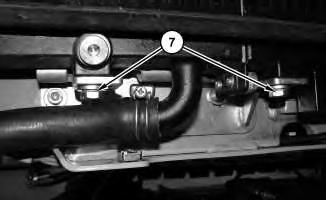

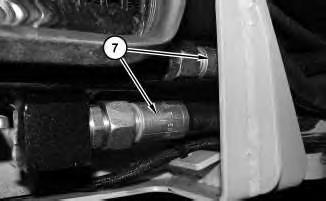

6. Disconnect hose assemblies(7) .
g03325087
This is the sample of the manual
Click on the download link for complete Manual
Illustration 7

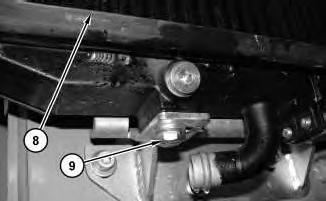

7. Remove bolts (9) and radiator and hydraulic oil cooler assembly (8) .
Illustration 8

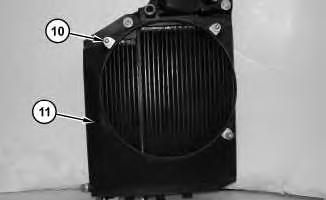

8. Remove bolts (10) and cover (11) .
g03325125
