PreviousScreen
Product: MINI HYD EXCAVATOR
Model: 300.9D MINI HYD EXCAVATOR LJM
Configuration: 300.9D Mini Hydraulic Excavator LJM00001-UP (MACHINE)
Specifications
300.9D Mini Hydraulic Excavator Media Number -UENR0478-06 Publication Date -01/04/2014 Date Updated -22/09/2016
Bank Valve
SMCS - 5051

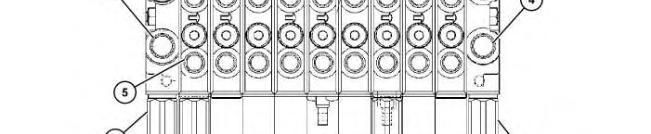

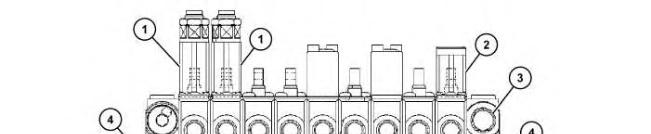

Main Control Valve
i05585784

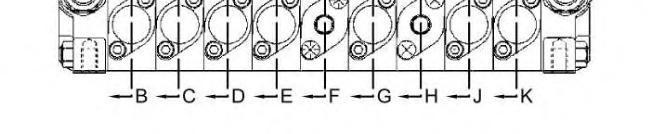

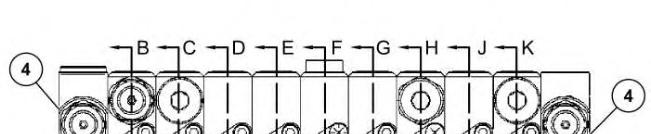

Illustration 2

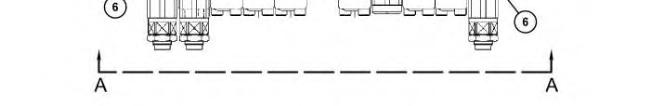

View A-A
(B-B) Swing (C-C) Arm
(D-D) Track (Left) (E-E)Dozer
(F-F)Auxiliary (G-G) Track (Right) (H-H) Boom swing (J-J) Bucket
(K-K) Boom

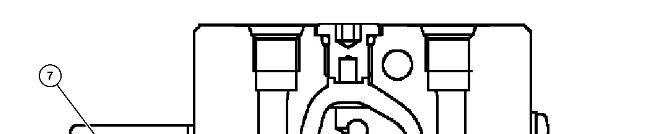

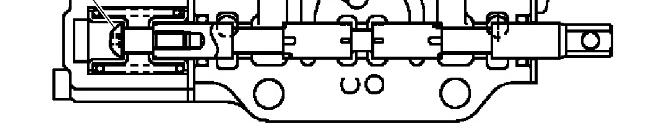

Illustration 3 g03545240
SectionD-D
SectionG-G
Item Qty Part
7 2
Screw
Table 2
SpecificationDescription
Before installation, apply blue Loctite 242 to the threads of the screws for all valve blocks Torque to 3.9 to 4.9 N·m (34.5 to 43.4 lb in). Swing

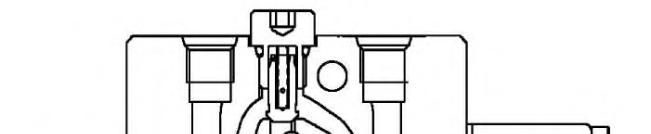

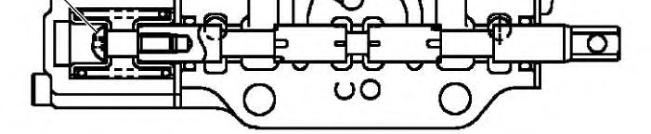

Illustration 4 g03545297
SectionB-B
Item Qty Part
8 1
Table 3
Specification Description
Screw Torque to 3.9 to 4.9 N·m (34.5 to 43.4 lb in).

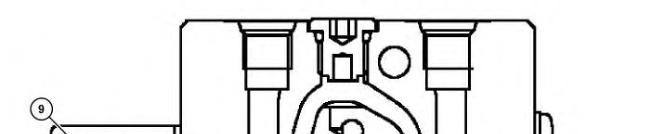

Illustration 5
SectionE-E
Table 4
Item Qty Part Specification
9 1 Screw Torque to 3.9 to 4.9 N·m (34.5 to 43.4 lb in).

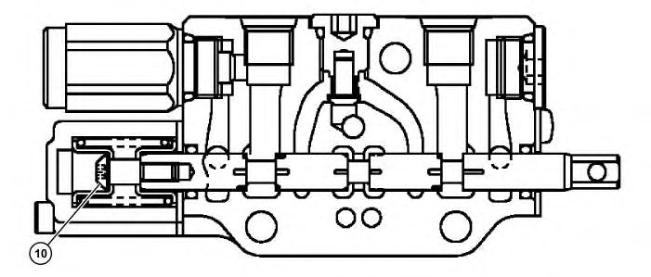

Bucket

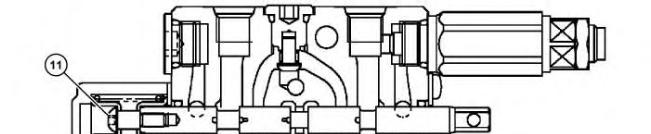

Illustration 6 g03545381
SectionJ-J
Table 5
11 1
Boom Swing
Table 6
Torque to 3.9 to 4.9 N·m (34.5 to 43.4 lb in).

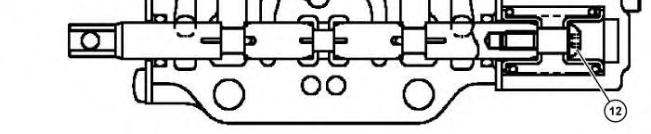

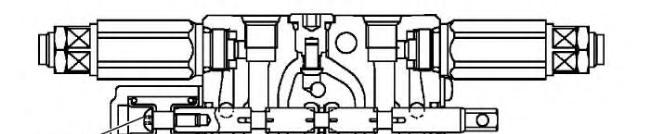

Illustration 8 g03545541
SectionH-H
This is the sample of the manual
Click on the download link for complete Manual
Table 7
Item Qty Part
Description 12 1 Screw Torque to 3.9 to 4.9 N·m (34.5 to 43.4 lb in).
Illustration 9 g03546976 SectionK-K
Table 8 Item Qty Part
Description 13 1
Torque to 3.9 to 4.9 N·m (34.5 to 43.4 lb in). Auxiliary
Illustration 10 g03546977
SectionF-F
PreviousScreen
Product: MINI HYD EXCAVATOR
Model: 300.9D MINI HYD EXCAVATOR LJM
Configuration: 300.9D Mini Hydraulic Excavator LJM00001-UP (MACHINE)
Specifications
300.9D Mini Hydraulic Excavator

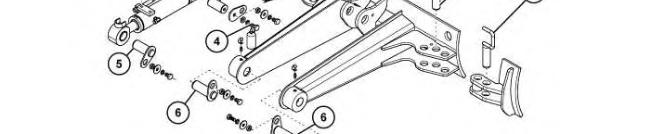

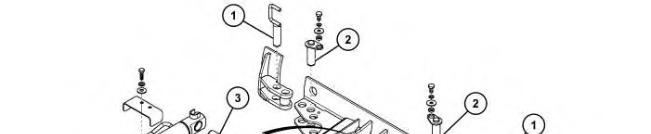

Blade and Mounting
SMCS - 6060-MT
2 372-7430 Pin As Diameter is 30 mm (1.2 inch).
Copyright 1993 - 2020 Caterpillar Inc. All Rights Reserved. Private Network For SIS Licensees.
Mon Feb 3 22:33:44 UTC+0530 2020
PreviousScreen
Product: MINI HYD EXCAVATOR
Model: 300.9D MINI HYD EXCAVATOR LJM
Configuration: 300.9D Mini Hydraulic Excavator LJM00001-UP (MACHINE)
Specifications
300.9D Mini Hydraulic Excavator
Blade Cylinder
SMCS - 5102
i05579570

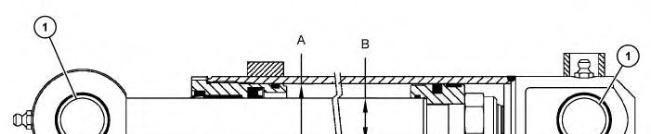

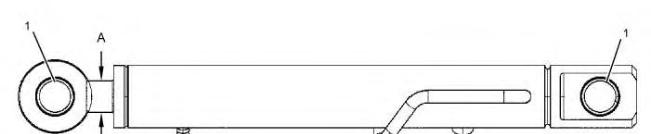

Illustration 1
Table 1 Specification for 372-7462 Blade Cylinder Gp
1 2 373-5760 Bushing Bore is 30.050 to 30.125 mm (1.1831 to 1.1860 inch).
A 1 - Diameter is 50 mm (2.0 inch).
B 1 - Diameter is 30 mm (1.2 inch).
PreviousScreen
Product: MINI HYD EXCAVATOR
Model: 300.9D MINI HYD EXCAVATOR LJM
Configuration: 300.9D Mini Hydraulic Excavator LJM00001-UP (MACHINE)
Specifications
300.9D Mini Hydraulic Excavator
Blade Valve and Mounting
i05585470
SMCS - 5051; 5136 Illustration 1
PreviousScreen
Product: MINI HYD EXCAVATOR
Model: 300.9D MINI HYD EXCAVATOR LJM
Configuration: 300.9D Mini Hydraulic Excavator LJM00001-UP (MACHINE)
Specifications
300.9D Mini Hydraulic Excavator
Media Number -UENR0478-06 Publication Date -01/04/2014 Date Updated -22/09/2016

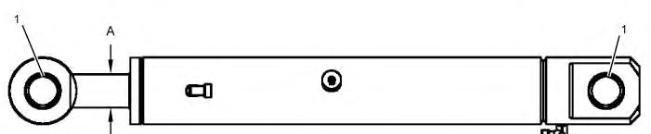

Boom Cylinder
SMCS - 5102; 5456
S/N- LJ21-UP
S/N- LJM1-UP
i05583698
Illustration 1
Table 1
Specificationfor 373-5695 Boom Cylinder Gp and373-5800 Cylinder As
Item Qty Part
SpecificationDescription
1 2 373-5760 Bushing Bore is 30.050 to 30.125 mm (1.1831 to 1.1860 inch). A 1 - Diameter is 35 mm (1.4 inch). - - - Stroke of the rod is 587.0 ±1.5 mm (23.11 ± 0.06 inch). Copyright 1993 - 2020 Caterpillar Inc. All Rights Reserved.
3 22:33:58 UTC+0530 2020
PreviousScreen
Product: MINI HYD EXCAVATOR
Model: 300.9D MINI HYD EXCAVATOR LJM
Configuration: 300.9D Mini Hydraulic Excavator LJM00001-UP (MACHINE)
Specifications
300.9D Mini Hydraulic Excavator Media
Bucket Cylinder
SMCS - 5457
Date -01/04/2014 Date Updated -22/09/2016
i05583651
Illustration 1
Table 1
Specificationfor 373-5798 Hydraulic Cylinder Gp Item Qty
1 2 373-5760 Bushing Bore is 30.050 to 30.125 mm (1.1831 to 1.1860 inch).
g03542657
A 1 - Diameter is 30 mm (1.2 inch). - - - Stroke of the rod is 520.00 ±1.50 mm (20.472 ± 0.059 inch). Copyright 1993 - 2020 Caterpillar Inc. All Rights Reserved. Private
Mon Feb 3 22:34:10 UTC+0530 2020
For SIS
PreviousScreen
Product: MINI HYD EXCAVATOR
Model: 300.9D MINI HYD EXCAVATOR LJM
Configuration: 300.9D Mini Hydraulic Excavator LJM00001-UP (MACHINE)
Specifications
300.9D Mini Hydraulic Excavator
Check Valve
SMCS - 5067
i05579512

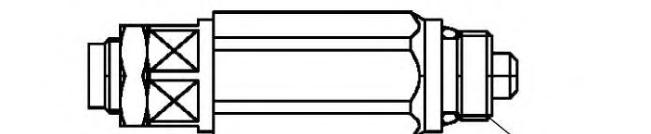

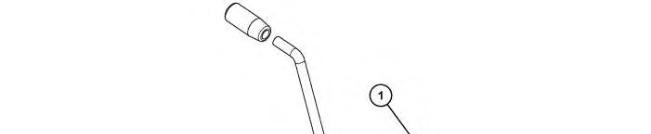

Illustration 1
Table 1
Specification for 373-9749 Check Valve and 373-9750 CheckValve
1 1 - Torque to 39.2 N·m (28.9 lb ft).
1993 - 2020 Caterpillar Inc. All Rights Reserved. Private Network For SIS Licensees.
PreviousScreen
Product: MINI HYD EXCAVATOR
Model: 300.9D MINI HYD EXCAVATOR LJM
Configuration: 300.9D Mini Hydraulic Excavator LJM00001-UP (MACHINE)
Specifications
300.9D Mini Hydraulic Excavator

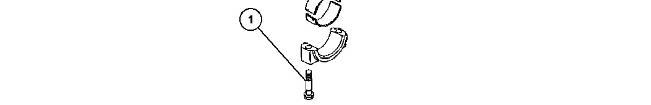

Connecting Rod
i05591570

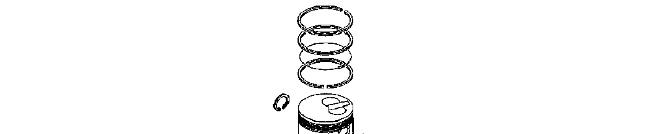

SMCS - 1218 Illustration 1
Table 1 Specification for Connecting Rod
This is the sample of the manual
Click on the download link for complete Manual
