Product: MULTI TERRAIN LOADER
Model: 277B MULTI TERRAIN LOADER MDH
Configuration: 267B, 277B and 287B Multi Terrain Loader MDH00001-UP (MACHINE) POWERED BY 3044C Engine
Disassembly and Assembly
267B, 277B and 287B Multi Terrain Loaders Engine Supplement
Media Number -RENR4883-01
Publication Date -01/11/2009
Air Cleaner - Remove and Install
SMCS - 1051-010
Removal Procedure
Date Updated -17/11/2009
i02049815
1. Tilt the radiator. Refer to Operation and Maintenance Manual, "Radiator Tilting".

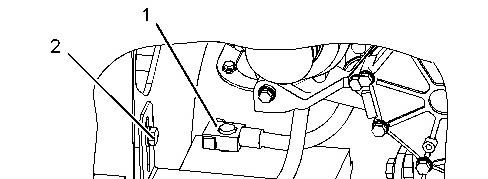

Illustration 1 g01038364
2. Disconnect harnessassembly (1) .

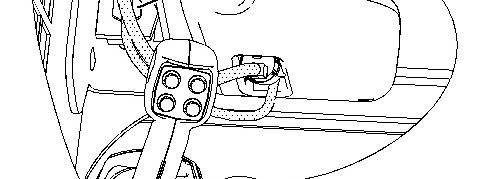

Illustration 2 g01038365

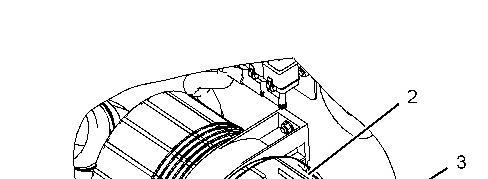

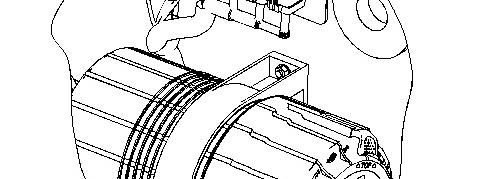

3. Release clamps (2). Remove cover (3) for the air cleaner.
Illustration 3 g01038368
Illustration 4 g01038369

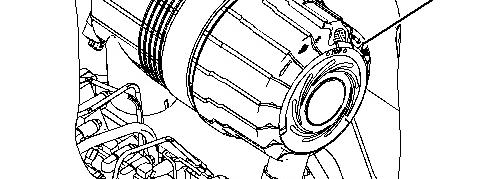

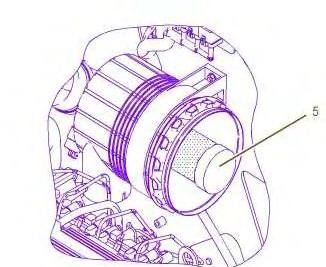

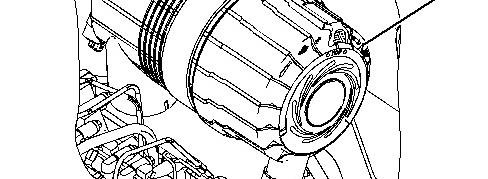

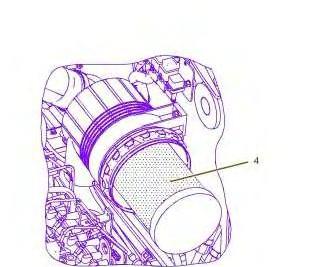

4. Remove primary air cleaner (4) and secondary air cleaner (5) .
Illustration 5 g01038372

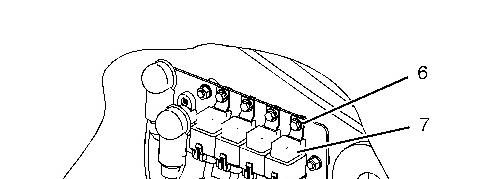

5. Remove bolt (6) and move fuse (7) out of the way.
Illustration 6 g01038385
This is the sample of the manual
Click on the download link for complete Manual

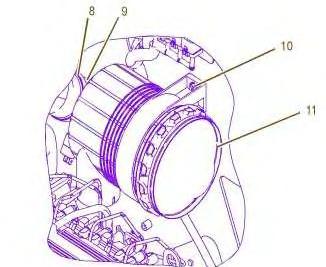

6. Loosen clamp (8) and disconnect hose (9). Remove bolts (10) and remove air cleaner housing (11) .
Installation Procedure
Illustration 7
g01038385
1. Install air cleaner housing (11) and install bolts (10). Connect hose (9) and tighten clamp (8) .
Illustration 8 g01038372
2. Move fuse (7) into position and install bolt (6) .
Illustration 9 g01038369
Illustration 10 g01038368
3. Install secondary air cleaner (5) and install primary air cleaner (4) .
Illustration 11 g01038365
4. Install cover (3) for the air cleaner. Secure clamps (2) .
Illustration 12 g01038364
5. Connect harness assembly (1) .
6. Tilt the radiator back to the original position. Refer to Operation and Maintenance Manual, "Radiator Tilting". Copyright 1993 - 2019 Caterpillar Inc. All Rights Reserved. Private Network For SIS Licensees. Tue Nov 12 12:41:25 UTC+0530 2019
Product: MULTI TERRAIN LOADER
Model: 277B MULTI TERRAIN LOADER MDH
Configuration: 267B, 277B and 287B Multi Terrain Loader MDH00001-UP (MACHINE) POWERED BY 3044C Engine
Disassembly and Assembly
267B, 277B and 287B Multi Terrain Loaders Engine Supplement
Media Number -RENR4883-01 Publication Date -01/11/2009 Date Updated -17/11/2009
Alternator - Remove and Install
SMCS - 1405-010
Removal Procedure
Start By:
A. Disconnect the battery. Refer to Disassembly and Assembly, "Battery and Battery CableSeparate and Connect".
Note: The muffler has been removed for clarity.
Illustration 1 g01050334

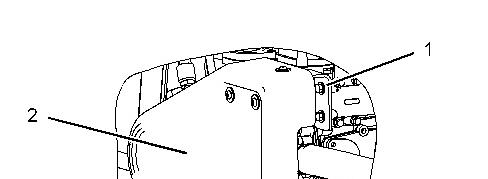

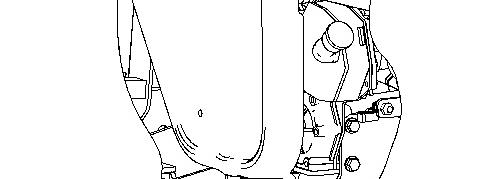

1. Remove bolts (1) and remove cover (2) .
Illustration 2 g01038433
2. Disconnect harnessassembly (3). Raise the boot and disconnect harnessassembly (4) .
Illustration 3 g01038438

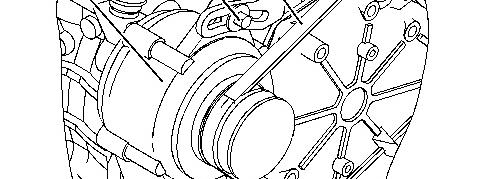

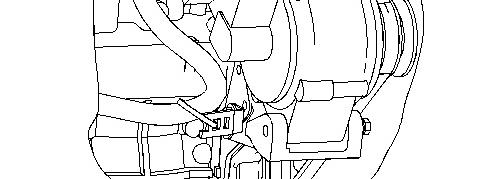

3. Loosen bolts (5) and (8). Remove belt (6) and remove alternator (7) .
Installation Procedure
Illustration 4 g01038438
1. Install alternator (7). Install belt (6). Refer to Operation and Maintenance Manual, "BeltInspect/Adjust/Replace" for more information. Tighten bolts (5) and (8) .
Illustration 5 g01038433
2. Connect harness assembly (3). Raise the boot and connect harnessassembly (4) .
3. Install cover (2) and install bolts (1) .
End By: Connect the battery. Refer to Disassembly and Assembly, "Battery and Battery CableSeparate and Connect".
Copyright 1993 - 2019 Caterpillar Inc. All Rights Reserved. Private Network For SIS Licensees. Tue Nov 12 12:38:24 UTC+0530 2019
Product: MULTI TERRAIN LOADER
Model: 277B MULTI TERRAIN LOADER MDH
Configuration: 267B, 277B and 287B Multi Terrain Loader MDH00001-UP (MACHINE) POWERED BY 3044C Engine
Disassembly and Assembly
267B, 277B and 287B Multi Terrain Loaders Engine Supplement
Media Number -RENR4883-01
Publication Date -01/11/2009
Date Updated -17/11/2009
Battery and Battery Cable - Separate and Connect
SMCS - 1401-029-KA
Removal Procedure
1. disconnect negative battery cable (4) .
2. Disconnect positive battery cable (1) .
Illustration 1 g01041274
3. Remove battery (5) and remove clamp (3). Remove bolts (2) and (6) .
Installation Procedure
Illustration 2 g01041274
1. Install battery (5) and install clamp (3). Install bolts (2) and (6) .
2. Connect positive battery cable (1) .
3. Connect negative battery cable (4) . Copyright 1993 - 2019 Caterpillar Inc. All Rights Reserved. Private Network For SIS Licensees. Tue Nov 12 12:38:04 UTC+0530 2019
Product: MULTI TERRAIN LOADER
Model: 277B MULTI TERRAIN LOADER MDH
Configuration: 267B, 277B and 287B Multi Terrain Loader MDH00001-UP (MACHINE) POWERED BY 3044C Engine
Disassembly and Assembly
267B, 277B and 287B Multi Terrain Loaders Engine Supplement Media
Cab - Tilt
SMCS - 7301-084
Procedure to Tilt the Cab
Start By:
A. Release the hydraulic system pressure. Refer to Disassembly and Assembly, "Hydraulic System Pressure - Release".

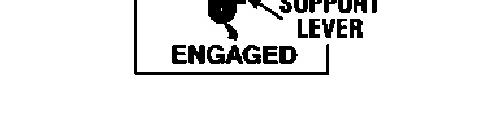

Do not go beneath cab unlesscabisempty and support lever is engaged.
Failure to follow the instructionsor heed the warnings could result in injury or death.
Note: Empty the water tank (if equipped) before you tilt the cab.
Illustration 1 g01049069
.

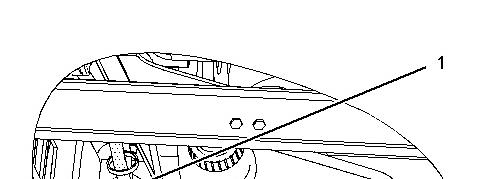

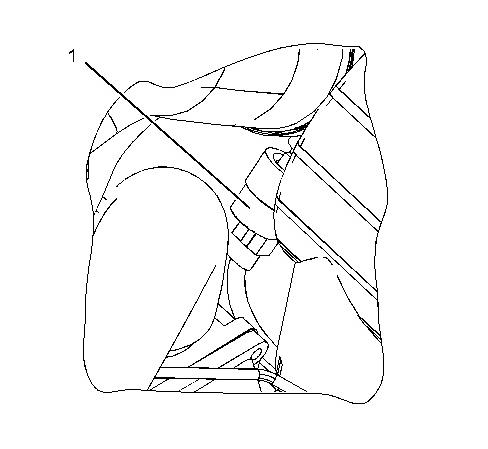

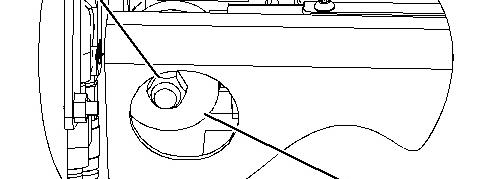

Note: Bolt (1) will be retained in the cab.
Illustration 2 g01049070
2. Remove nut (2) and large washer (3) from the inside of the cab.
3. Repeat Steps 1 and 2 on the opposite side of the cab.
Illustration 3 g01049074
Illustration 4 g00563598
Lower Procedure
Illustration 6 g00563674

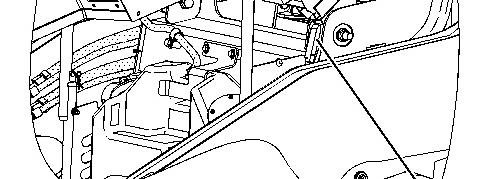

1. Tilt the cab upward.

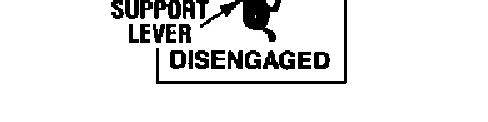

2. Disengage cab support lever (5) .

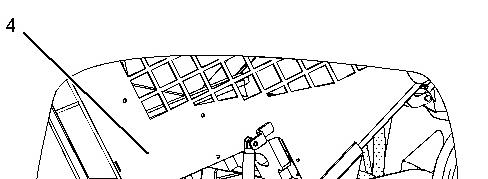

3. Lower cab (4) .
Illustration 7 g01049069
.
Illustration 8 g01049070
Note: Ensure that the large washer isbetween the nut and the rubber mounting.
5. Install large washer (3) and nut (2) from the inside of the cab. Tighten the nuts to a torque of 125 ± 10 N·m (92 ± 7 lb ft).
6. Repeat Steps 4 and 5 on the opposite side of the cab.
Copyright 1993 - 2019 Caterpillar Inc. All Rights Reserved. Private Network For SIS Licensees. Tue Nov 12 12:42:04 UTC+0530 2019
Product: MULTI TERRAIN LOADER
Model: 277B MULTI TERRAIN LOADER MDH
Configuration: 267B, 277B and 287B Multi Terrain Loader MDH00001-UP (MACHINE) POWERED BY 3044C Engine
Disassembly and Assembly
267B, 277B and 287B Multi Terrain Loaders Engine Supplement
Media Number -RENR4883-01 Publication Date -01/11/2009 Date Updated -17/11/2009
Electric Starting Motor - Remove and Install
SMCS - 1453-010
Removal Procedure
Start By:
i02048964
A. Disconnect the battery. Refer to Disassembly and Assembly, "Battery and Battery CableSeparate and Connect".
This is the sample of the manual
Click on the download link for complete Manual
Illustration 1 g01051380

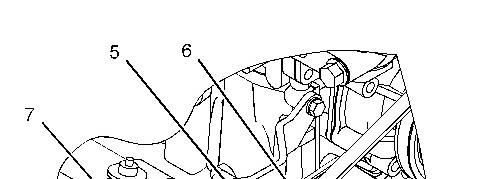

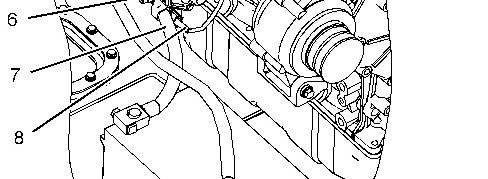

1. Disconnect cable assemblies (5), (6) and (7) .
2. Cut cable strap (1). Disconnect harness assembly (8).
3. Remove bolts (4) and remove electric starting motor (3) and heat shield (2) .
Installation Procedure
