252B Caterpillar Skid Steer Loader Service Repair Manual by quality service repair manual

Product: SKID STEER LOADER

Model: 252B SKID STEER LOADER SCP

Configuration: 236B 246B 252B 262B SKID STEER LOADER SCP00001-04599 (MACHINE) POWERED BY 3044C Engine

Disassembly and Assembly

236B, 246B, 246C, 252B, 256C, 262B, 262C, 262C2 and 272C

Skid Steer Loaders Engine Supplement

Media Number -KENR5114-03

Publication Date -01/04/2011

Air Cleaner - Remove and Install

SMCS - 1051-010

Removal Procedure

Date Updated -19/04/2011 i02667975

1. Tilt the radiator. Refer to Operation and Maintenance Manual, "Radiator Tilting".

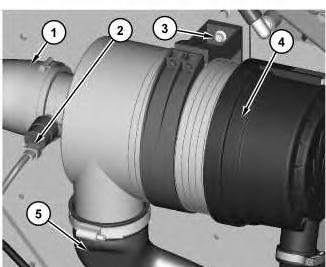

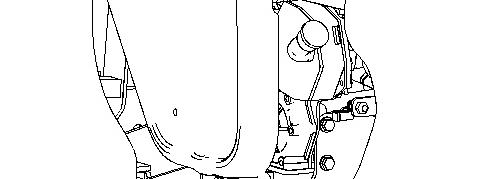

2. Disconnect harness assembly (2). Disconnect hoses (1) and (5). Remove bolts (3) and air cleaner (4) .

Installation Procedure

1. Tilt the radiator. Refer to Operation and Maintenance Manual, "Radiator Tilting".

2. Position air cleaner (4) and install bolts (3). Connect hoses (1) and (5). Connect harness assembly (2) .

3. Tilt the radiator back to the original position. Refer to Operation and Maintenance Manual, "Radiator Tilting".

Illustration

g01340815

Product: SKID STEER LOADER

Model: 252B SKID STEER LOADER SCP

Configuration: 236B 246B 252B 262B SKID STEER LOADER SCP00001-04599 (MACHINE) POWERED BY 3044C Engine

Disassembly and Assembly

236B, 246B, 246C, 252B, 256C, 262B, 262C, 262C2 and 272C

Skid Steer Loaders Engine Supplement

Media Number -KENR5114-03

Publication Date -01/04/2011

Alternator - Remove and Install

SMCS - 1405-010

S/N - HEN1-UP

S/N - PAT1-UP

S/N - PDT1-UP

S/N - SCP1-UP

Removal Procedure

Start By:

Date Updated -19/04/2011

i03037625

A. Disconnect the battery. Refer to Disassembly and Assembly, "Battery and Battery CableSeparate and Connect".

Note: The muffler has been removed for clarity.

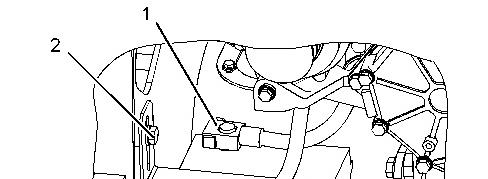

1 g01541413

Illustration

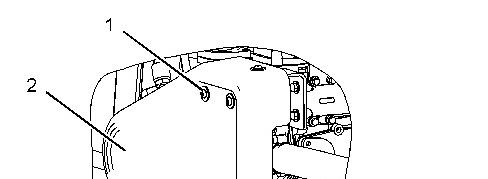

1. Remove bolts (1A) and screws (1) . Remove cover (2) .

Illustration 2 g01038433

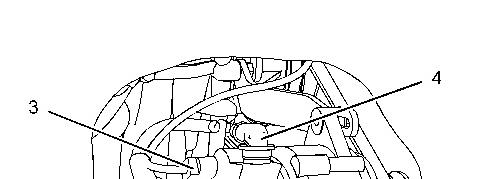

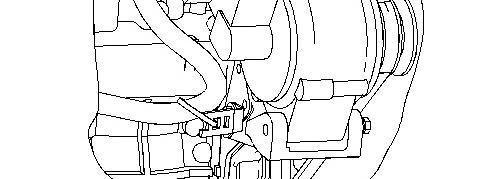

2. Disconnect harness assembly (3) . Raise the boot and disconnect harness assembly (4) .

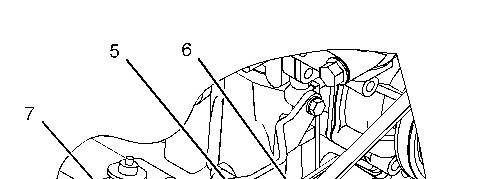

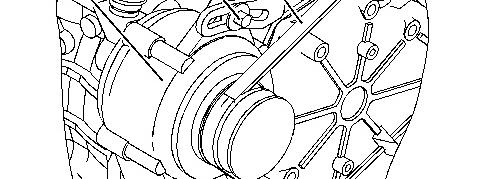

Illustration 3 g01038438

Installation Procedure

3. Loosen bolts (5) and (8) . Remove belt (6) and remove alternator (7) .

Illustration 4 g01038438

1. Install alternator (7) . Install belt (6) . Refer to Operation and Maintenance Manual, "BeltInspect/Adjust/Replace" for more information. Tighten bolts (5) and (8) .

This is the sample of the manual

Click on the download link for complete Manual

Illustration 5 g01038433

2. Connect harness assembly (3) . Raise the boot and connect harness assembly (4) .

Illustration 6 g01541413

3. Install cover (2) and install screws (1) . Tighten screws (1) to a torque of 6 ± 1 N·m (53 ± 9 lb in).

4. Install bolts (1A) . Tighten bolts (1A) to a torque of 15 ± 3 N·m (11 ± 2 lb ft).

End By: Connect the battery. Refer to Disassembly and Assembly, "Battery and Battery CableSeparate and Connect". Copyright 1993 - 2020 Caterpillar Inc. All Rights Reserved. Private Network For SIS Licensees.

Product: SKID STEER LOADER

Model: 252B SKID STEER LOADER SCP

Configuration: 236B 246B 252B 262B SKID STEER LOADER SCP00001-04599 (MACHINE) POWERED BY 3044C Engine

Disassembly and Assembly

236B, 246B, 246C, 252B, 256C, 262B, 262C, 262C2 and 272C

Skid Steer Loaders Engine Supplement

Media Number -KENR5114-03

Publication Date -01/04/2011

Date Updated -19/04/2011

Battery and Battery Cable - Separate and Connect

SMCS - 1401-029-KA

S/N - HEN1-UP

S/N - PAT1-UP

S/N - PDT1-UP

S/N - SCP1-UP

Removal Procedure

i02156742

Illustration 1 g01041274

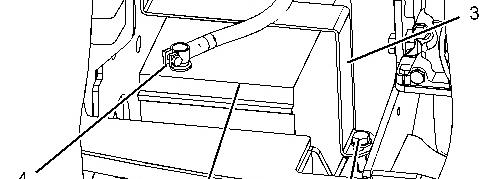

1. Disconnect negative battery cable (4) .

2. Disconnect positive battery cable (1) .

3. Remove bolts (2) and (6). Remove clamp (3) and remove battery (5). The weight of the battery is approximately 18 kg (40 lb).

Installation Procedure

Illustration 2 g01041274

1. Install battery (5). The weight of the battery is approximately 18 kg (40 lb). Install clamp (3). Install bolts (2) and (6) .

2. Connect positive battery cable (1) .

3. Connect negative battery cable (4) .

Product: SKID STEER LOADER

Model: 252B SKID STEER LOADER SCP

Configuration: 236B 246B 252B 262B SKID STEER LOADER SCP00001-04599 (MACHINE) POWERED BY 3044C Engine

Disassembly and Assembly

236B, 246B, 246C, 252B, 256C, 262B, 262C, 262C2 and 272C

Skid Steer Loaders Engine Supplement

Media Number -KENR5114-03

Publication Date -01/04/2011

Cab - Tilt

SMCS - 7301-084

S/N - HEN1-UP

S/N - PAT1-UP

S/N - PDT1-UP

S/N - SCP1-UP

Procedure to Tilt the Cab

Start By:

Date Updated -19/04/2011

A. Release the hydraulic system pressure. Refer to Disassembly and Assembly, "Hydraulic System Pressure - Release".

Do not go beneath cab unless cab is empty and support lever is engaged.

Failure to follow the instructions or heed the warnings could result in injury or death.

Note: Empty the water tank (if equipped) before you tilt the cab.

Illustration 1 g01049069

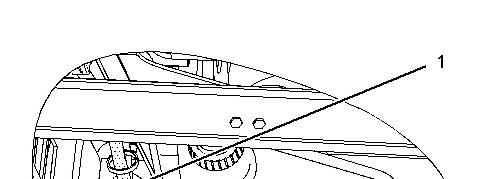

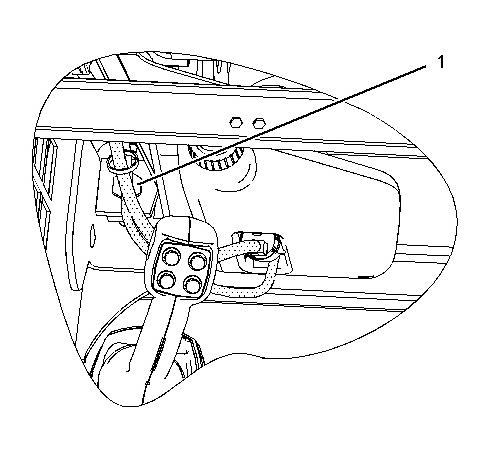

Note: Bolt (1) will be retained in the cab.

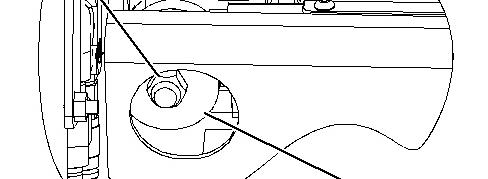

1. Loosen bolt (1) .

Illustration 2 g01049070

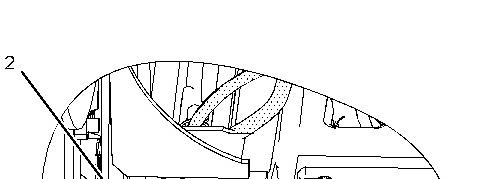

2. Remove nut (2) and large washer (3) from the inside of the cab.

3. Repeat Steps 1 and 2 on the opposite side of the cab.

3 g01049074

Illustration

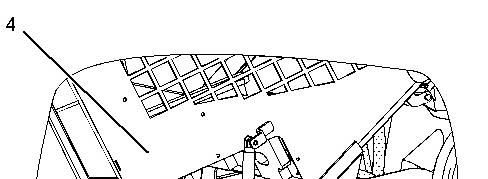

4. Raise cab (4) .

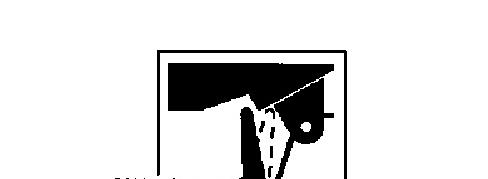

Illustration 4 g00563598

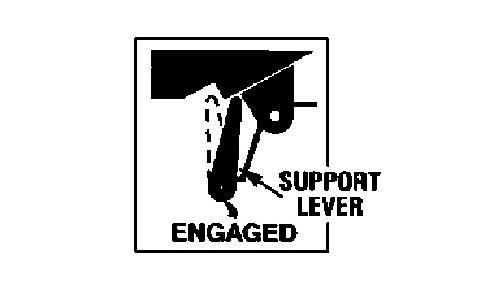

5. Engage cab support lever (5) .

Lower Procedure

Illustration 5 g01049074

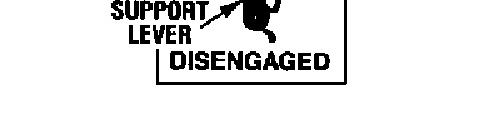

Illustration 6 g00563674

1. Tilt the cab upward.

2. Disengage cab support lever (5) .

3. Lower cab (4) .

7 g01049069

Illustration

4. Align bolt (1) .

Illustration 8 g01049070

Note: Ensure that the large washer is between the nut and the rubber mounting.

5. Install large washer (3) and nut (2) from the inside of the cab. Tighten the nuts to a torque of 125 ± 10 N·m (92 ± 7 lb ft).

Product: SKID STEER LOADER

Model: 252B SKID STEER LOADER SCP

Configuration: 236B 246B 252B 262B SKID STEER LOADER SCP00001-04599 (MACHINE) POWERED BY 3044C Engine

Disassembly and Assembly

236B, 246B, 246C, 252B, 256C, 262B, 262C, 262C2 and 272C

Skid Steer Loaders Engine Supplement

Media Number -KENR5114-03

Publication Date -01/04/2011

Electric Starting Motor - Remove and Install

SMCS - 1453-010

S/N - HEN1-UP

S/N - PAT1-UP

S/N - PDT1-UP

S/N - SCP1-UP

Removal Procedure

Start By:

Date Updated -19/04/2011

i02014524

A. Disconnect the battery. Refer to Disassembly and Assembly, "Battery and Battery CableSeparate and Connect".

Illustration 1 g01041496

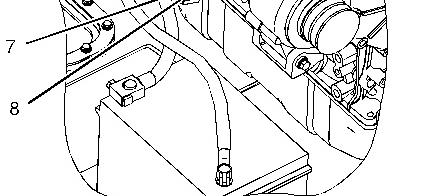

1. Disconnect cable assemblies (5), (6) and (7) .

2. Disconnect harness assembly (8) and cut cable strap (1) .

3. Remove bolts (4) and remove electric starting motor (3) and heat shield (2) .

Installation Procedure

Illustration 2 g01041496

1. Install electric starting motor (3) and heat shield (2). Install bolts (4).

2. Connect harness assembly (8) and install cable strap (1) .

3. Connect cable assemblies (5), (6) and (7) .

Product: SKID STEER LOADER

Model: 252B SKID STEER LOADER SCP

Configuration: 236B 246B 252B 262B SKID STEER LOADER SCP00001-04599 (MACHINE) POWERED BY 3044C Engine

Disassembly and Assembly

236B, 246B, 246C, 252B, 256C, 262B, 262C, 262C2 and 272C Skid Steer Loaders Engine Supplement

Media Number -KENR5114-03

Engine - Install

SMCS - 1000-012

S/N - HEN1-UP

S/N - PAT1-UP

S/N - PDT1-UP

S/N - SCP1-UP

Installation Procedure

Publication Date -01/04/2011 Date Updated -19/04/2011

i04351952

1 g01040665

Illustration

2 g02024973

Illustration

This is the sample of the manual

Click on the download link for complete Manual

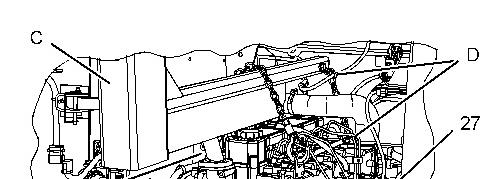

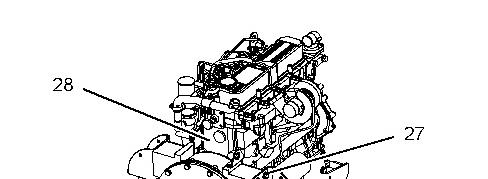

Illustration 3 g01040657

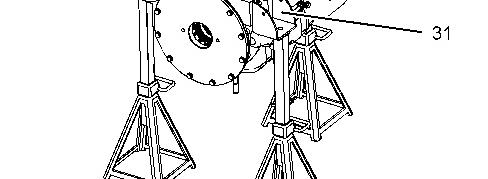

1. Attach Tooling (C) , Tooling (D) , Tooling (E) , and a suitable lifting device to engine (28) . The approximate weight of engine (28) is 320 kg (700 lb). Remove both brackets (31) that are used for mounting the engine.

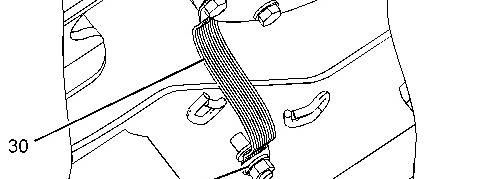

2. Install the engine. Install the engine far enough so that ground strap (30) can be connected. Connect ground strap (30) and install the nut and washer (30A) . Reposition brackets (31) onto the machine and install bolts (27) . Install bolt (29) . Tighten bolt (29) to a torque of 90 ± 10 N·m (66 ± 7 lb ft).
