232B Caterpillar Skid Steer Loader Service Manual

Page 1


Product: SKID STEER LOADER

Model: 232B SKID STEER LOADER SCH

Configuration: 216B 226B 232B 242B Skid Steer Loader SCH00001-02474 (MACHINE) POWERED BY 3024C Engine

Disassembly and Assembly

216B, 216B2, 226B, 226B2, 232B, 232B2, 242B and 242B2 Skid Steer Loaders Engine Supplement

Media Number -RENR4893-03 Publication Date -01/11/2009

Air Cleaner - Remove and Install

SMCS - 1051-010

Removal Procedure

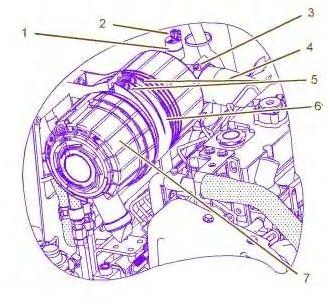

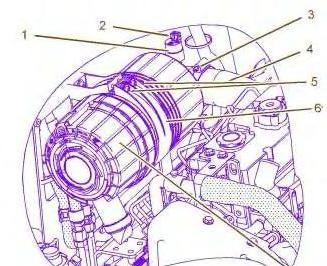

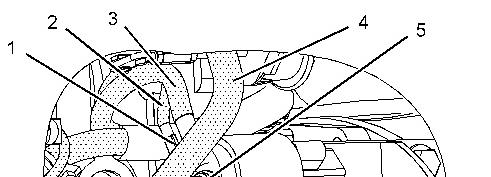

Illustration 1 g01048892

Date Updated -12/11/2009

1. Remove harness assembly (2). Loosen hose clamp (3). Disconnect hose (4) .

i02036664

2. Remove bolts (5). Rotate bracket (6). Remove air cleaner assembly (7). Remove service indicator (1) from air cleaner assembly (7) .

Installation Procedure

Table 1

RequiredTools

Tool Part Number Part Description Qty

A 5P-3413 Pipe Sealant 1

Illustration 2 g01048892

1. Apply Tooling (A) to service indicator (1). Install service indicator (1) .

2. Install air cleaner assembly (7) into position. Rotate bracket (6) into position in order to secure the air cleaner assembly. Install bolts(5) .

3. Connect hose (4) onto the air cleaner assembly. Install hose clamp (3). Torque clamp (3) to 4.5 卤 .5 N路m (40 卤 4 lb in).

4. Connect harness assembly (2) . Copyright 1993 - 2020 Caterpillar Inc.

Product: SKID STEER LOADER

Model: 232B SKID STEER LOADER SCH

Configuration: 216B 226B 232B 242B Skid Steer Loader SCH00001-02474 (MACHINE) POWERED BY 3024C Engine

Disassembly and Assembly

216B, 216B2, 226B, 226B2, 232B, 232B2, 242B and 242B2 Skid Steer Loaders Engine Supplement

Media Number -RENR4893-03 Publication Date -01/11/2009 Date Updated -12/11/2009

Alternator - Remove and Install

SMCS - 1405-010

Removal Procedure

Start By:

A. Disconnect the battery. Refer to Disassembly and Assembly, "Battery and Battery CableSeperate and Connect".

i02031955

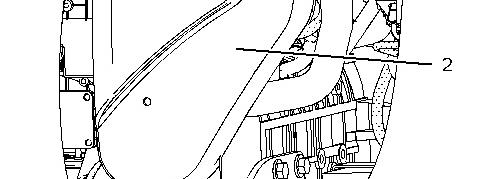

Illustration 1 g01047234

1. Remove bolts (1). Remove bolts (3). Remove cover (2).

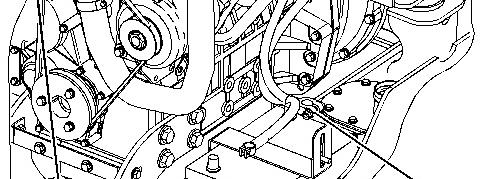

Illustration 2 g01047235

2. Loosen bolts (4) and (7). Move alternator (9) toward the engine in order to remove the V-belt. (8). Remove V-belt (8) .

3. Remove bolts (4) and (7). Remove alternator (9). Disconnect harness assembly (6). Disconnect harnessassembly (5).

Installation Procedure

Illustration 3 g01047235

1. Connect harness assembly (5) to alternator (9). Torque the nut to 8 卤 2 N路m (71 卤18 lb in). Connect harness assembly (6) to alternator (9) .

2. Place alternator (9) in position.

3. Install bolts (4) and (7). Do not tighten bolts (7) and (4) at this time.

Note: When you install the alternator, ensure that the alternator pulley is in alignment with the crankshaft pulley within 2.4 mm (0.09 inch).

4. Install V-belt (8). Refer to the Operation and Maintenance Manual, "BeltsInspect/Adjust/Replace" for the correct procedure.

5. Torque bolt (4) to 15 卤 3 N路m (11 卤2 lb ft).

6. Torque bolt (7) to 30 卤 7 N路m (22 卤5 lb ft).

This is the sample of the manual

Click on the download link for complete Manual

Illustration 4 g01047234

7. Place cover (2) in position.

8. Torque washers and bolts(3) to 15 卤 3 N路m (11 卤 2 lb ft).

9. Install washers and bolts (1) to a torque of 15 卤 3 N路m (11 卤 2 lb ft).

End By: Connect the battery. Refer to Disassembly and Assembly, "Battery and Battery CableSeperate and Connect".

Copyright 1993 - 2020 Caterpillar Inc. All Rights Reserved. Private Network For SIS Licensees.

Product: SKID STEER LOADER

Model: 232B SKID STEER LOADER SCH

Configuration: 216B 226B 232B 242B Skid Steer Loader SCH00001-02474 (MACHINE) POWERED BY 3024C Engine

Disassembly and Assembly

216B, 216B2, 226B, 226B2, 232B, 232B2, 242B and 242B2 Skid Steer Loaders Engine Supplement

Media Number -RENR4893-03 Publication Date -01/11/2009 Date Updated -12/11/2009

Battery and Battery Cable - Separate and Connect

SMCS - 1401-029-KA

Separation Procedure

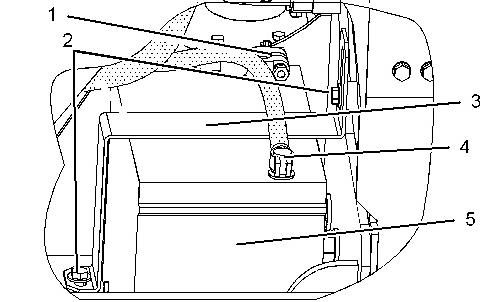

Illustration 1

g01047188

1. Raise the cover on the negative terminal of the battery. Disconnect negative terminal (4) of the battery. Place a protective cover on the negative terminal of the battery.

i02031923

2. Raise the cover on the positive terminal of the battery. Disconnect positive terminal (1) of the battery. Place a protective cover on the positive terminal of the battery.

3. Remove bolts (2). Remove bracket (3) .

4. Remove battery (5) .

Connection Procedure

Illustration 2 g01047188

1. Install battery (5) .

Note: Both battery terminals must be next to the engine.

2. Install bracket (3). Install bolts (2) .

3. Remove the protective cover from the positive terminal of the battery. Connect positive terminal (1). Lower the cover on the positive terminal of the battery.

4. Remove the protective cover from the negative terminal of the battery. Connect negative terminal (4). Lower the cover on the negative terminal of the battery. Copyright 1993 - 2020 Caterpillar Inc.

Fri Jun 19 13:24:52 UTC+0530 2020

Product: SKID STEER LOADER

Model: 232B SKID STEER LOADER SCH

Configuration: 216B 226B 232B 242B Skid Steer Loader SCH00001-02474 (MACHINE) POWERED BY 3024C Engine

Disassembly and Assembly

216B, 216B2, 226B, 226B2, 232B, 232B2, 242B and 242B2 Skid Steer Loaders Engine Supplement

Media Number -RENR4893-03

Cab - Tilt

SMCS - 7301-029

Procedure to Tilt the Cab

Start By:

-12/11/2009

A. Release the hydraulic system pressure. Refer to Disassembly and Assembly, "Hydraulic System Pressure - Release".

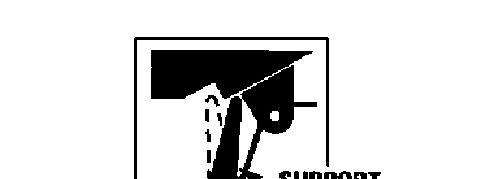

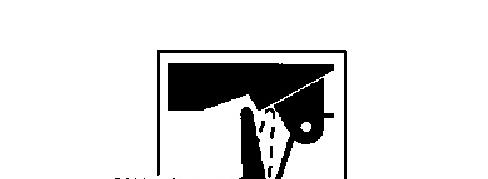

Do not go beneath cab unless cab is empty and support lever is engaged.

Failure to followthe instructions or heed the warnings could result in injury or death.

Note: Empty the water tank (if equipped) before you tilt the cab.

i02038431

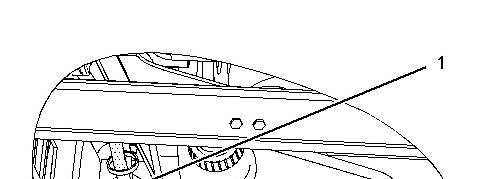

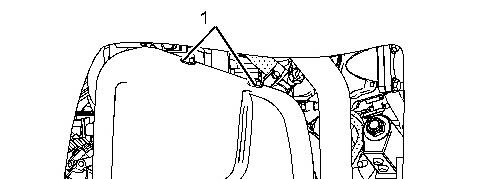

Illustration 1 g01049069

Note: Bolt (1) will be retained in the cab.

1. Loosen bolt (1) .

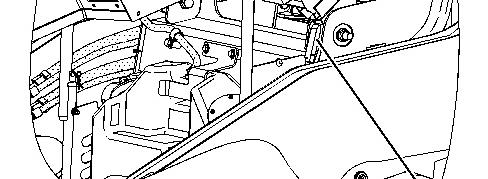

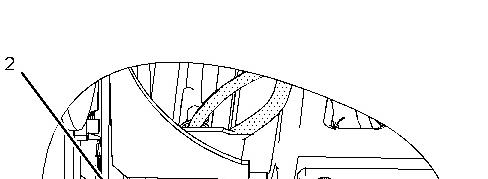

Illustration 2 g01049070

2. Remove nut (2) and large washer (3) from the inside of the cab.

3. Repeat Steps 1 and 2 on the opposite side of the cab.

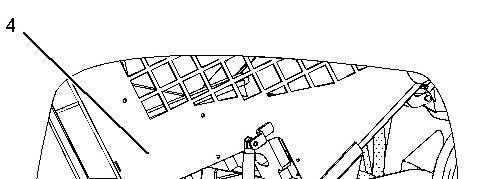

3 g01049074

Illustration
4. Raise cab (4) .

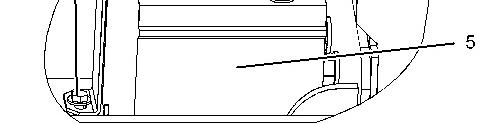

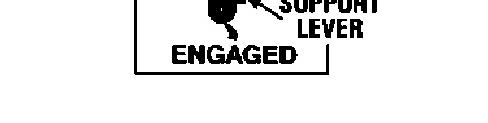

Illustration 4 g00563598

5. Engage cab support lever (5) .

Lower Procedure

Illustration 5 g01049074

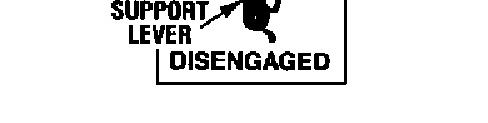

Illustration 6 g00563674

1. Tilt the cab upward.
2. Disengage cab support lever (5) .
3. Lower cab (4) .

7 g01049069

Illustration
4. Align bolt (1) .

Illustration 8 g01049070

Note: Ensure that the large washer isbetween the nut and the rubber mounting.

5. Install large washer (3) and nut (2) from the inside of the cab. Tighten the nuts to a torque of 125 卤 10 N路m (92 卤 7 lb ft).

6. Repeat Steps 4 and 5 on the opposite side of the cab. Copyright 1993 - 2020 Caterpillar Inc. All Rights Reserved. Private Network For SIS Licensees. Fri Jun 19 13:27:26 UTC+0530 2020

Product: SKID STEER LOADER

Model: 232B SKID STEER LOADER SCH

Configuration: 216B 226B 232B 242B Skid Steer Loader SCH00001-02474 (MACHINE) POWERED BY 3024C Engine

Disassembly and Assembly

216B, 216B2, 226B, 226B2, 232B, 232B2, 242B and 242B2 Skid Steer Loaders Engine Supplement

Media Number -RENR4893-03

Electric Starting Motor - Remove and Install

SMCS - 1453-010

Removal procedure

Start By:

A. Disconnect the battery. Refer to Disassembly and Assembly, "Battery and Battery CableSeperate and Connect".

Accidental machine starting can cause injury or death to personnel working on the machine.

To avoid accidental machine starting, turn the battery disconnect switch to the OFF position and remove the key. If the machine isnot equipped with a battery disconnect switch, disconnect the battery cables from the battery and tape the battery clamps.

Place a do not operate tag at the battery disconnect switch location to inform personnel that the machine is being worked on.

i02032638

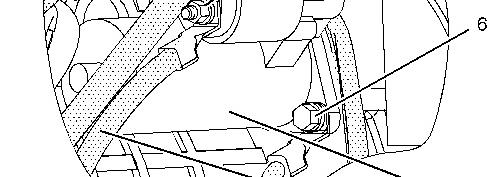

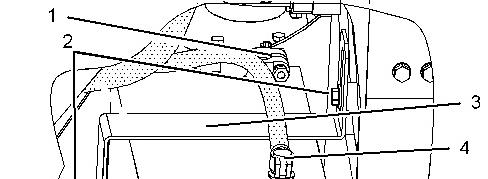

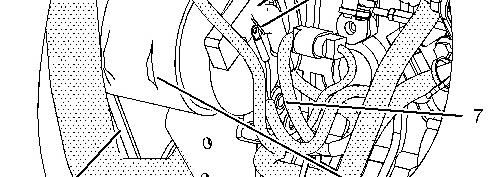

Illustration 1 g01047277

1. Slide the rubber cover aside in order to expose the connection.

2. Remove nut (1) and the washer. Remove cable assembly (2). Remove nut (5) and the lockwasher. Remove cable assembly (3) and (8) .

3. Remove bolts (6). Remove the cable assembly.

4. Remove electric starting motor (7) from the flywheel. Lower the electric starting motor around oil drain hose (4) .

Installation Procedure

Accidental machine starting can cause injury or death to personnel working on the machine.

To avoid accidental machine starting, turn the battery disconnect switch to the OFF position and remove the key. If the machine isnot

equipped with a battery disconnect switch, disconnect the battery cables from the battery and tape the battery clamps.

Place a do not operate tag at the battery disconnect switch location to inform personnel that the machine is being worked on.

Illustration 2

g01047277

1. Raise the electric starting motor around oil drain hose (4). Install electric starting motor (7). Install bolts (6) and the cable assembly.

2. Install cable assembly (3) and (8). Install the lockwasher. Install nut (5). Torque nut (5) to 21 卤 4 N路m (15 卤 3 lb ft).

3. Install cable assembly (2). Install the nut (1) and the washer.

4. Slide the rubber cover into position in order to protect the connection.

End By: Connect the battery. Refer to Disassembly and Assembly, "Battery and Battery CableSeperate and Connect".

Copyright 1993 - 2020 Caterpillar Inc. All Rights Reserved. Private Network For SIS Licensees.

Fri Jun 19 13:25:20 UTC+0530 2020

Product: SKID STEER LOADER

Model: 232B SKID STEER LOADER SCH

Configuration: 216B 226B 232B 242B Skid Steer Loader SCH00001-02474 (MACHINE) POWERED BY 3024C Engine

Disassembly and Assembly

216B, 216B2, 226B, 226B2, 232B, 232B2, 242B and 242B2 Skid Steer Loaders Engine Supplement

Media Number -RENR4893-03

Engine - Install

SMCS - 1000-012

Installation Procedure

Table 1

Required Tools

C-Frame Assembly 1

i04351956

1

1. Install Tooling (A) on each side of the engine.

Illustration 2

TypicalExample of Tooling (E) .

2. Attach a suitable lifting device and Tooling (D) and (E) to engine (19) . The weight of engine (19) is approximately 254 kg (560 lb).

3. Position engine (19) in the machine.

Illustration
g02022190
g02022241

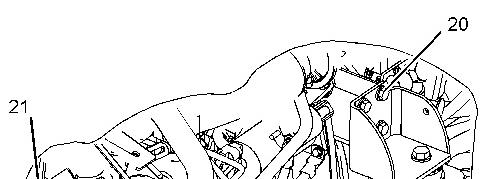

Illustration 3 g02022252

4. Install bolts (21) and (20) and the washers. Connect harness assemblies (22) . Remove Tooling (A) , Tooling (D) , Tooling (E) , and the suitable lifting device.

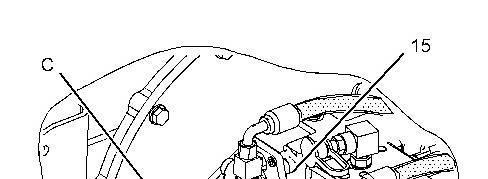

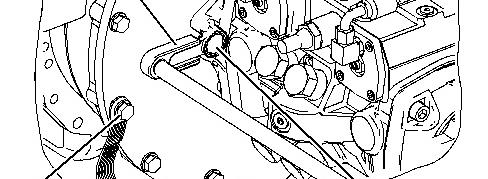

Illustration 4 g02022301

5

5. Position pump (15) . Install bolts (18) . Use Tooling (C) to tighten bolts (18) .
6. Install ground strap (17) and bolt (16) .
Illustration
g02022167

7. Connect clamp (14) .

Illustration 6

g02022170

8. Remove Tooling (A) and Tooling (B) from pump (15) .

Note: The engine has been removed in order to display the tooling.

This is the sample of the manual

Click on the download link for complete Manual

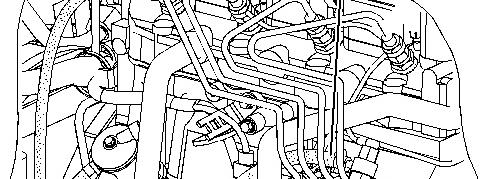

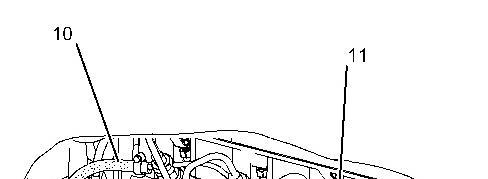

Illustration 7 g01051681
9. Connect hoses (10) , (11) , and (12) . Install cable (13) .
