AccessDoorsandCovers
SMCS-7251;7263;7273

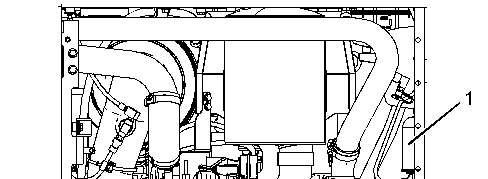

Illustration1g01393732

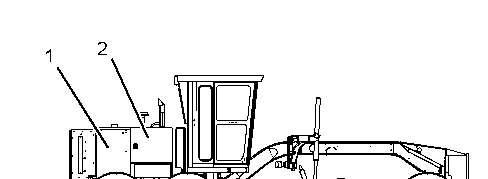

RightSideView

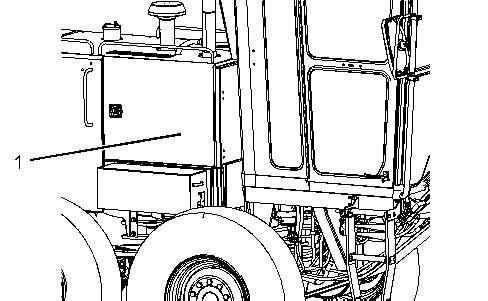

Openingaccessdoor(1)willallowaccesstothefollowingitems:
•Thecircuitbreakers
•Theairconditionercondenser(IfEquipped)
•Thefanbelt
•Thefanbeltdrive
Openingaccessdoor(2)willallowaccesstothefollowingitems:
i02789949
•Theairdryer(IfEquipped)
•Thecoolantsamplingvalve
•Theenginedrivebelt
•Theengineoilfilter
•Theethercylinder(IfEquipped)
•Thesamplingportfortheengineoil

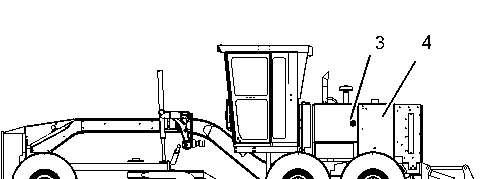

Illustration2g01393733
LeftSideView
Openingaccessdoor(3)willallowaccesstothefollowingitems:
•Thebatterydisconnectswitch
•Theengineairfilters
•Theengineairfilterserviceindicator
•Theenginecrankcasebreather
•Theengineoilfiller
•Thefuelprimingpump
•Theprimaryfuelfilterandwaterseparator
•Therefrigerantcompressor
•Thesecondaryfuelfilter
•Thetransmissiondipstick
•Thetransmissionoilfillertube
Openingaccessdoor(4)willallowaccesstothefollowingitems:
•Theradiator
Copyright1993-2024CaterpillarInc. AllRightsReserved.
PrivateNetworkForSISLicensees.
TueOct2209:27:34UTC+05302024
This is the sample of the manual Click on the download link for complete Manual
Product:MOTORGRADER
Model:140KMOTORGRADERSZL
Configuration:140KMotorGraderSZL00001-UP(MACHINE)POWEREDBYC7Engine
OperationandMaintenanceManual 12K,140Kand160KMotorGraders
MediaNumber-SEBU8249-17PublicationDate-01/07/2015DateUpdated-09/12/2019
AirDryerDesiccant-Replace
SMCS-4285-510
Theairlinestoandfromtheairdryermustbeatatmosphericpressure. Iftheairlinesarenotatatmosphericpressure,personalinjurycould result.Releasetheairpressurefromtheairsystemcompletelybefore performingmaintenance.
i07244085
RefertotheOperationandMaintenanceManual,"AccessDoorsandCovers"forthelocationof theservicepoints.
Illustration1g01463969
Type1
Illustration2g06263712
Type2

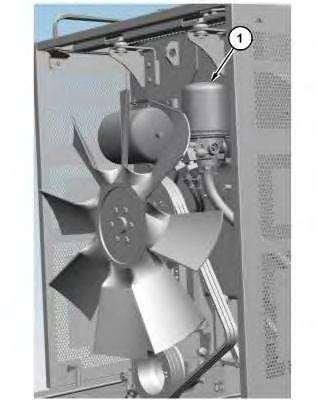

Airdryer(1)ispositionedontherightsideatthefrontofthemachine.
1.Opentheaccessdoortoservicetheairdryer.
2.Replacetheairdryerdesiccantcartridgewhenthewatercannotbeabsorbed.Consultyour Caterpillardealerforserviceorforreplacementparts.
3.Closetheaccessdoor.
Copyright1993-2024CaterpillarInc. AllRightsReserved. PrivateNetworkForSISLicensees.
TueOct2209:29:57UTC+05302024
Product:MOTORGRADER
Model:140KMOTORGRADERSZL
Configuration:140KMotorGraderSZL00001-UP(MACHINE)POWEREDBYC7Engine
OperationandMaintenanceManual 12K,140Kand160KMotorGraders
MediaNumber-SEBU8249-17PublicationDate-01/07/2015DateUpdated-09/12/2019
AirTankMoistureandSediment-Drain
SMCS-4272-543-M&S;5505-543
RefertotheOperationandMaintenanceManual,"AccessDoorsandCovers"forthelocationof theaccessdoors.
1.Opentheaccessdoorinordertoservicethedrainvalveformoistureandsediment.

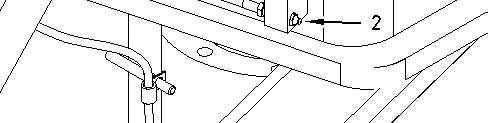

2.Theairtanksarelocatedattherearofthemachineundertheframe.Pulldowntheleverto opendrainvalve(1)inordertodrainoneairtank.Pulldownthelevertoopendrainvalve (2)inordertodraintheotherairtank.Closethedrainvalve.
3.Closetheaccessdoor.
Note:Smallamountsofmoisturemaybeinthesystemduetocondensationinthesystem. Moisturemayalsobeinthesystemifanairdryerisinstalledonamachinethathasbeenoperating withoutanairdryer.Severalweeksmayberequiredinordertocompletelydrythesystem.
Copyright1993-2024CaterpillarInc. AllRightsReserved. PrivateNetworkForSISLicensees.
TueOct2209:30:12UTC+05302024
Product:MOTORGRADER
Model:140KMOTORGRADERSZL
Configuration:140KMotorGraderSZL00001-UP(MACHINE)POWEREDBYC7Engine
OperationandMaintenanceManual 12K,140Kand160KMotorGraders
MediaNumber-SEBU8249-17PublicationDate-01/07/2015DateUpdated-09/12/2019
ArticulationBearings-Lubricate
SMCS-7057-086-BD
i01671010
Wipeallthefittingsbeforeyouapplylubricantthroughthefittings.Thefittingsforthearticulation bearingsarelocatedunderthecabontheleftsideofthemachine.

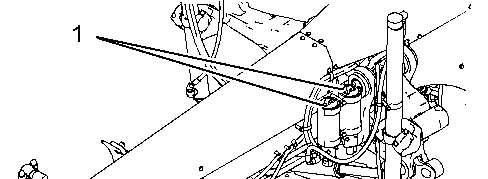

Theupperarticulationbearinghasonefitting(1).Inordertolubricatetheupperarticulation bearing,use183-3424GreaseCartridgetoapplylubricantthroughfitting(1).
Thelowerarticulationbearinghasonefitting(2).Inordertolubricatethelowerarticulation bearing,use183-3424GreaseCartridgetoapplylubricantthroughfitting(2).
Copyright1993-2024CaterpillarInc. AllRightsReserved. TueOct2209:30:26UTC+05302024
Product:MOTORGRADER
Model:140KMOTORGRADERSZL
Configuration:140KMotorGraderSZL00001-UP(MACHINE)POWEREDBYC7Engine
OperationandMaintenanceManual 12K,140Kand160KMotorGraders
MediaNumber-SEBU8249-17PublicationDate-01/07/2015DateUpdated-09/12/2019
AxleOscillationBearings-Lubricate
SMCS-3268;4313
i01671028
Thelubricationfittingislocatedinthemiddleofthefrontaxle.Wipethefittingbeforeyouapply lubricanttothefitting.
Inordertolubricatetheaxleoscillationbearings,use183-3424GreaseCartridgetoapply lubricanttotheonefitting.
Copyright1993-2024CaterpillarInc. AllRightsReserved. PrivateNetworkForSISLicensees.
TueOct2209:30:38UTC+05302024
Product:MOTORGRADER
Model:140KMOTORGRADERSZL
Configuration:140KMotorGraderSZL00001-UP(MACHINE)POWEREDBYC7Engine
OperationandMaintenanceManual 12K,140Kand160KMotorGraders
MediaNumber-SEBU8249-17PublicationDate-01/07/2015DateUpdated-09/12/2019 i02307698
BackupAlarm-Test
SMCS-7406-081
TurntheenginestartswitchtotheONpositioninordertoperformthetest.
Applytheservicebrake.Movethetransmissioncontrol(lever)totheREVERSEposition. Thebackupalarmshouldsoundimmediately.Thebackupalarmshouldcontinuetosounduntil thetransmissioncontrol(lever)ismovedtotheNEUTRALpositionortoanyFORWARD position.
Thebackupalarmislocatedattherearofthemachine.
Copyright1993-2024CaterpillarInc. AllRightsReserved. PrivateNetworkForSISLicensees.
TueOct2209:30:52UTC+05302024
Product:MOTORGRADER
Model:140KMOTORGRADERSZL
Configuration:140KMotorGraderSZL00001-UP(MACHINE)POWEREDBYC7Engine
OperationandMaintenanceManual 12K,140Kand160KMotorGraders
MediaNumber-SEBU8249-17PublicationDate-01/07/2015DateUpdated-09/12/2019
BatteryorBatteryCable-Inspect/Replace
SMCS-1401-510;1402-510
i01770781
1.TurntheenginestartswitchkeytotheOFFposition.TurnalltheswitchestotheOFF position.
2.TurnthekeyforthebatterydisconnectswitchtotheOFFposition.Removethekey.
3.Disconnectthenegativebatterycableatthebatterydisconnectswitch.Thebattery disconnectswitchisconnectedtothemachineframe.
Note:Donotallowthedisconnectedbatterycabletocontactthebatterydisconnectswitch orthemachine.
4.Disconnectthenegativebatterycablefromthebattery.
5.Disconnectthepositivebatterycablefromthebattery.
6.Inspectthebatteryterminalsforcorrosion.Inspectthebatterycablesforwearordamage.
7.Ifnecessary,makerepairs.Ifnecessary,replacethebatterycableorthebattery.
8.Connectthepositivebatterycableatthebattery.
9.Connectthenegativebatterycableatthebattery.
10.Connectthebatterycableatthebatterydisconnectswitch.
11.Installthekeyforthebatterydisconnectswitch.Turnthebatterydisconnectswitchtothe ONposition.
Copyright1993-2024CaterpillarInc. AllRightsReserved.
TueOct2209:31:06UTC+05302024
Product:MOTORGRADER
Model:140KMOTORGRADERSZL
Configuration:140KMotorGraderSZL00001-UP(MACHINE)POWEREDBYC7Engine
OperationandMaintenanceManual 12K,140Kand160KMotorGraders
MediaNumber-SEBU8249-17PublicationDate-01/07/2015DateUpdated-09/12/2019 i07498877
Belts-Inspect/Adjust/Replace
SMCS-1357-025;1357-040;1357-510
AirConditionerBelts
RefertoOperationandMaintenanceManual,"AccessDoorsandCovers"forthelocationofthe servicepoints.
Illustration2g01951149
1.Stoptheengine.

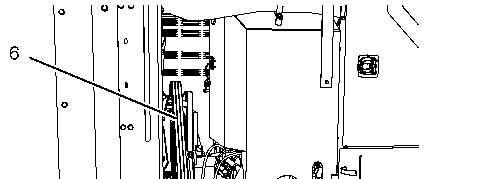

2.Openaccesscover(1).Removeboltsfrombeltaccesscover(2).Removethebeltaccess cover.

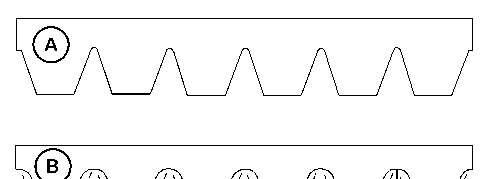

Illustration4g06114636 (A)Newbelt (B)Wornbelt

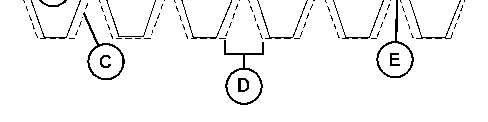

3.Inspecttheconditionofserpentinebelts(3)and(4).Overtimethebeltribswilllose material(C).Thespacebetweentheribswillincrease(D).Thelossofmaterialwillcause thepulleysheavetocontactthebeltvalley.Thiswillleadtobeltslippageandaccelerated wear(E).
