www.davrail.com A New Way Forward In Maintenance of Way
XO+ Specifications
Machine Data
Imperial
Features and Benefits
Gradient
1:5, 20%, 11° (Alarm Setting)
Noise Levels (High Engine Speed)
76.dB(A) @1M Engine Idle, 84.dB(A) @3.28 ft Engine Full

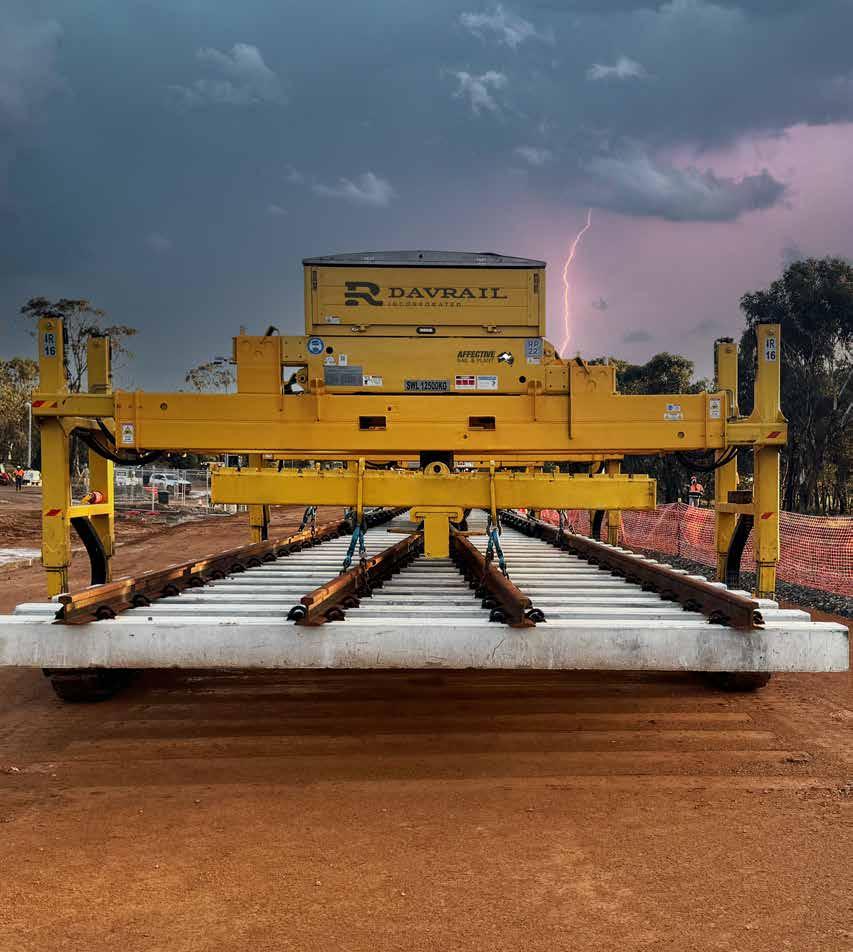

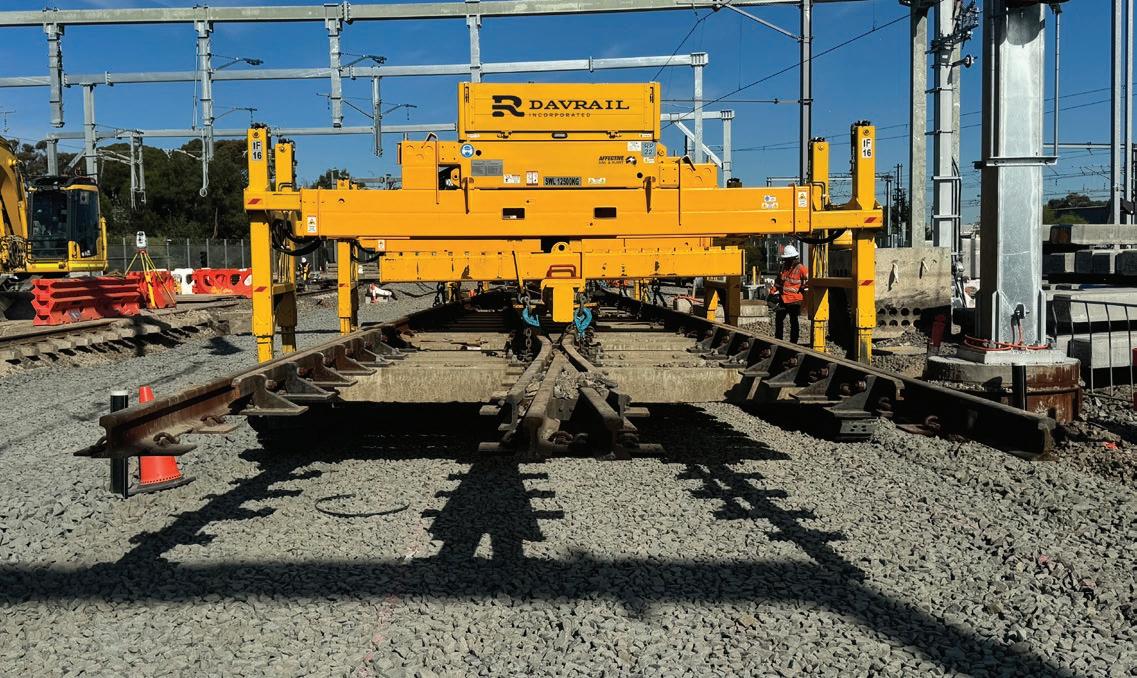

• I deal for removing and installing turnouts and panels on both single line and multiple line systems.
Engine Data
Imperial
Engine Type
Kubota 03 Series - V2403-CR-E5
• Can easily cross multiple tracks.
Cylinders
4 In-Line
Power Output
32 kW, 43 bhp @ 2,100 rpm
Emissions
EU Stage V, Tier 4 Final
Alternator
2-volt 40 amp
Battery
Type 017 – 12V, 90 Ah, 720A CCA.
Oil Type
Shell Rimula RT4X 15w-40
Oil Capacity
2.51 US gallons
9.5 litres
Coolant Capacity
2.25 US gallons
8.5 litres
Coolant
Valvoline Maxlife 50/50
Fuel Type
Diesel
Fuel Tank
26.4 US gallons
100 litres
Hydraulic Data
Imperial
Metric
System Pressure
160 Bar
Leg Ram Pressure
140 Bar
Oil Type
Shell Naturelle HFE 46 - Synthetic Biodegradable
Tank Capacity
16 gallons (Min) 53 US gallons (Max)
60 litres (Min) 200 litres (Max)
Pump
43.98 cc3/rev – 23 gallons/ min @ 2,100 rpm
43.98 cc3/rev - 88 Litres/ min @ 2,100 RPM
• 27,557lbs lifting capability per machine.

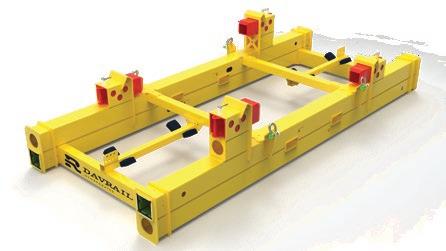

• C ompact size and maneuverability enables easy transportation, and rapid deployment to and from site. • Fully adjustable lifting beam setup. • D esigned to handle any gauge or composition of track panel. • Can safely perform work at gradients of up to 11°. • Lift Plan provided.
+1-717-DAV-RAIL contact@davrail.net DavRail Incorporated 6300 Ridglea Place, Suite 1208 Fort Worth, Texas 76116
