Quorum Fan Catalog 2026

Quorum "an appropriate number of members of a body that when duly assembled, is rightfully able to conduct business."

Our success is the result of dedication, sacrifice, and the strength of a collective mindset. The story of Quorum began in the early days with a group of passionate individuals—a community united by the drive to take risks, break the mold, and embrace new opportunities.

Exceptional design, attention to detail, and quality craftsmanship are embedded in the DNA of every product we create. Our products are designed with our customers in mind, as we strive to deliver products that our customers are proud to purchase.

We have an in-house design team of seasoned industrial designers who are the driving force behind our creations. Our acclaimed team collaborates closely to bring ideas to life, drawing inspiration from the world around us and applying it practically to the world of lighting and fans. With a focus on innovation, they explore new directions in design and finishes, ensuring that each product is a functional work of art.

From the beginning, our focus has been on lighting the way, moving air, and enhancing spaces. Fueled by a desire to create, we’ve developed a diverse range of lighting and fan solutions suitable for any style, space, or environment. These designs are crafted to transform spaces and elevate lifestyles, ensuring we meet the unique needs of every project.

Now, over forty years later, Quorum’s commitment to creativity and innovation remains stronger than ever. Our time-honored processes have earned us a reputation for quality and service that is trusted by customers worldwide. Every product we create is a reflection of our enduring values and the collective spirit of our team.

Welcome to the Quorum family.

The Quorum ceiling fan catalog has a NEW LOOK!

The new catalog is organized by style and each fan family shows all of the avaiable light kits, remotes and accessories that can be used with that particular family. Note that many of Quorum’s ceiling fan finishes are also applied to our decorative lighting fixture families that are found in our separate 2026 Quorum Lighting catalog or online at QuorumInternational.com.

How to Read the Specifications

On each product page, you will find basic specifications for each ceiling fan or light kit. The basic fan specifications include item number, fan finish, and blade finish.

Finish codes are found at the end of the item number

4525 -59

Matte Black metal finish

Weathered Gray | Matte Black Blades blade finish: side A | side B blade finish

Detailed Mechanical & Energy Specs

To help you learn more information about dimensions and energy usage, a detailed reference chart is provided for every fan family. This information is available on each family section or online at: QuorumInternational.com

Page Sample:

Reference Guide

Design is as much about movement as it is about light. Ceiling fans shape the air around us— circulating comfort, softening warmth, and creating balance throughout every season.

The key to ideal airflow lies in proportion. Begin by considering your room’s dimensions, ceiling height, and mounting type. These factors work together to determine the appropriate fan diameter, blade pitch, and motor strength for the space.

A larger room calls for wider blade spans to move air effectively, while smaller spaces benefit from compact designs that deliver comfort without overwhelming the scale. Mounting height is equally important—position your fan so that airfl ow feels natural, never forced.

Think of your ceiling fan as an architectural accent—one that unites form and function. When chosen thoughtfully, it not only regulates temperature but also completes the visual rhythm of a room.

While these guidelines provide a foundation, factors such as ceiling slope, room shape, and existing lighting all influence performance. For a truly balanced experience, consult a showroom professional to tailor a fan that fits your home’s needs and your personal style.

Ceiling Height

Make sure your ceiling fan is at an efficient height. For standard ceilings, the fan blades should typically be mounted at least 7 feet above the floor. For higher ceilings, consider using a downrod extension to lower the fan for optimal airflow.

Downrod Length

Ceiling Fan Size

Choose the right diameter of your ceiling fan based on the square footage of your space. Calculate the Diameter Diameter = 2 x Radius

Opt for Integrated Lighting: Consider ceiling fans with integrated lighting fixtures to provide both illumination and air circulation. This eliminates the need for separate lighting fixtures and can help save space, especially in smaller rooms.

Ceiling Fan Installation Guide

For proper installation type make sure the ceiling fan is at least 18" from walls and at least 7' from the ground to the base of the fan.

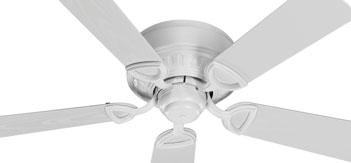

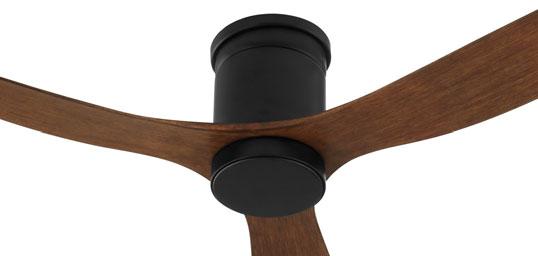

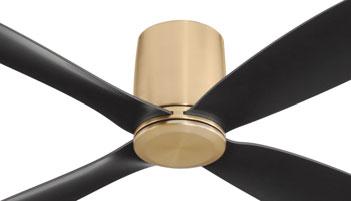

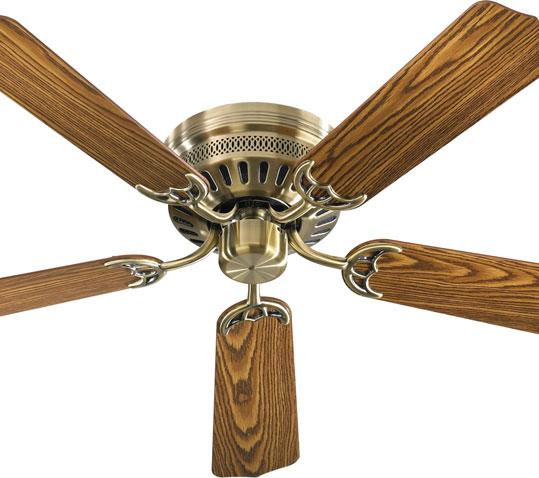

Flush Mount/Hugger Mount applications can be used for 7½’-9’ ceilings

Standard Mounting

Extended downrods are recommended for 9’+ ceilings

Ceiling Fan Control Choices

Choose the right control choices to meet your everyday lifestyle.

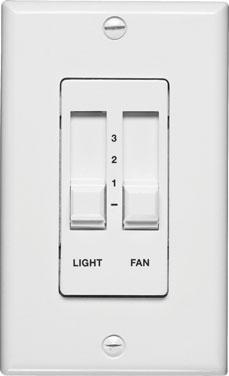

Wall Control

Control your fan and light from a wall control that integrates into your existing wall plate.

Remote Control

Offers increased convenience to control your device from a distance.

Smart Home

Control your fan and light from your smart phone or device.

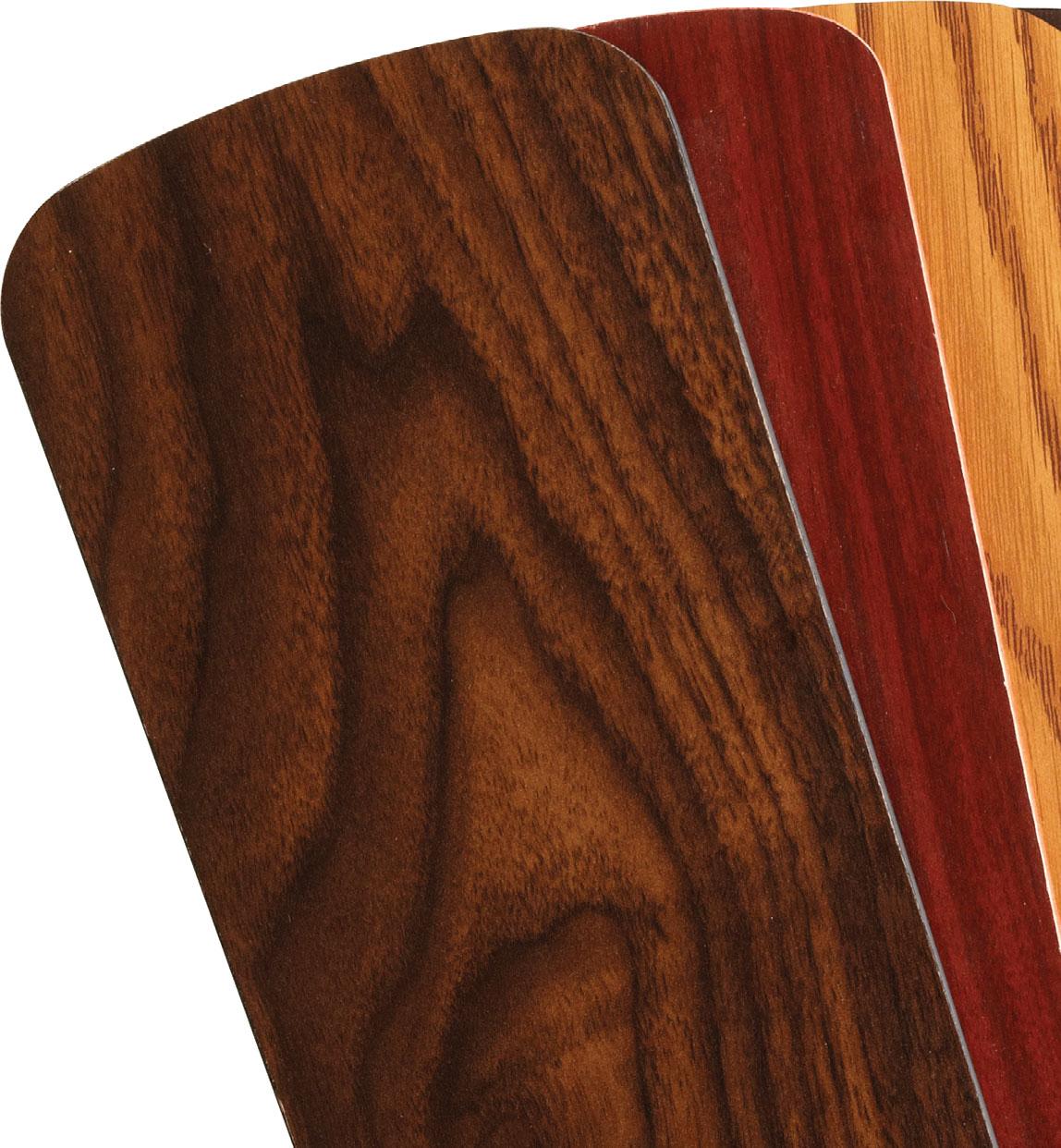

Consider Blade Finish: Pay attention to the finish and material of the fan blades. Wood blades can add warmth and texture to a space, while metal blades can provide a sleek and modern look. Choose a finish that complements other elements in the room, such as furniture, flooring, and lighting fixtures.

Ceiling Fan

Visual Table of Contents

Ceiling Fan

Visual Table of Contents

Ceiling Fan

Visual Table of Contents

Indoor/Outdoor - Damp

AVAILABLE LIGHT KIT OPTIONS

8-208-65

7.75"(w) x 2.125"(h) - (1) 18W, 120V, 3000k, 1543 Lumens, 90CRI, Dimmable LED (Included) Matte Satin Nickel | White Lens cUL damp

CONTROLS

Wall Control Included

8-208-59

7.75"(w) x 2.125"(h) - (1) 18W, 120V, 3000k, 1543 Lumens, 90CRI, Dimmable LED (Included) Matte Black | White Lens cUL damp

8-347 Optional

• Power On / Off / 6 fan speeds – DC motor

• Forward / Reverse

• Light On / Off / Dimming

AVAILABLE 1/2" DOWNRODS

HEIGHT CHART

FAN HEIGHT

Using 6" Downrod

● Distance of 15.25"

● Distance of 13.25"

GENERAL SPECS

3 Finishes Available

Lifetime Motor Warranty

Six ABS Blades

65" Blade Sweep

25-Degree Blade Pitch

80" Lead Wire

6" Downrod Included 1/2" Downrod Diameter

8-208-8

7.75"(w) x 2.125"(h) - (1) 18W, 120V, 3000k, 1543 Lumens, 90CRI, Dimmable LED (Included) Matte Studio White | White Lens cUL damp

• Power On / Off / 6 fan speeds – DC motor

• Forward / Reverse

• Light On / Off / Dimming

MECHANICAL SPECS

DC-165NM Motor

6 Speeds-Reversible w/ Wall Control

.35/.24/.17/.11/.07/.04 AMPS on H/M/L

28/19/13/8/5/3 WATTS on H/M/L

135/117/100/84/66/50 RPMS on H/M/L

Optional LED Light Kit Available

Wall Control Included

Remote Control Adaptable

ENERGY SPECS

Energy Information at High Speed

Airflow: 6225 Cubic Feet/Minute

Electricity Use: 28 Watts (Excludes Lights)

Airflow Efficiency: 222 Cubic Feet/Minute/Watt Visit QuorumInternational.com for DOE Energy Guide

AVAILABLE LIGHT KIT OPTIONS

8-208-65

7.75"(w) x 2.125"(h) - (1) 18W, 120V, 3000k, 1543 Lumens, 90CRI, Dimmable LED (Included) Matte Satin Nickel | White Lens cUL damp

CONTROLS

Wall Control Included

8-208-59

7.75"(w) x 2.125"(h) - (1) 18W, 120V, 3000k, 1543 Lumens, 90CRI, Dimmable LED (Included) Matte Black | White Lens cUL damp

8-347 Optional

• Power On / Off / 6 fan speeds – DC motor

• Forward / Reverse

• Light On / Off / Dimming

AVAILABLE 1/2" DOWNRODS

HEIGHT CHART

FAN HEIGHT

Using 6" Downrod

● Distance of 15.25"

● Distance of 13.25"

GENERAL SPECS

3 Finishes Available

Lifetime Motor Warranty

Six ABS Blades

80" Blade Sweep

25-Degree Blade Pitch

80" Lead Wire

6" Downrod Included 1/2" Downrod Diameter

8-208-8

7.75"(w) x 2.125"(h) - (1) 18W, 120V, 3000k, 1543 Lumens, 90CRI, Dimmable LED (Included) Matte Studio White | White Lens cUL damp

• Power On / Off / 6 fan speeds – DC motor

• Forward / Reverse

• Light On / Off / Dimming

MECHANICAL SPECS

DC-165NL Motor

6 Speeds-Reversible w/ Wall Control

.40/.32/.22/.17/.12/.08 AMPS on H/M/L

31/24/17/12/8/5 WATTS on H/M/L

95/87/78/69/60/51 RPMS on H/M/L

Optional LED Light Kit Available

Wall Control Included

Remote Control Adaptable

ENERGY SPECS

Energy Information at High Speed

Airflow: 8225 Cubic Feet/Minute

Electricity Use: 24 Watts (Excludes Lights)

Airflow Efficiency: 343 Cubic Feet/Minute/Watt Visit QuorumInternational.com for DOE Energy Guide

Zeus 65"

Indoor/Outdoor - Damp

AVAILABLE LIGHT KIT OPTIONS

8-10806-80

9.375"(w) x 2.5"(h)

(1) 24W, 3000k, 2113 Lumens, 90CRI Dimmable LED

Aged Brass | Matte White Acrylic cUL Damp

CONTROLS

Wall Mounted Pocket Remote Included

8-10806-65

9.375"(w) x 2.5"(h) (1) 24W, 3000k, 2113 Lumens, 90CRI Dimmable LED

Satin Nickel | Matte White Acrylic cUL Damp

• Power On / Off / 6 fan speeds – DC motor

• Forward / Reverse

• Light On / Off / Dimming

AVAILABLE 3/4" DOWNRODS

Downrod Finish

HEIGHT CHART

Bond Included

• Control Fan from Mobile Device

8-10806-59

9.375"(w) x 2.5"(h) (1) 24W, 3000k, 2113 Lumens, 90CRI Dimmable LED

Matte Black | Matte White Acrylic cUL Damp

8-10806-8

9.375"(w) x 2.5"(h) (1) 24W, 3000k, 2113 Lumens, 90CRI Dimmable LED

Studio White | Matte White Acrylic cUL Damp

FAN HEIGHT

Using 6" Downrod

● Distance of 17"

● Distance of 16.25"

GENERAL SPECS

4 Finishes Available

Lifetime Motor Warranty

Six ABS Blades

65" Blade Sweep

11.5-Degree Blade Pitch

80" Lead Wire

6" Downrod Included 3/4" Downrod Diameter

MECHANICAL SPECS

DC-168-25 Motor

6 Speeds-Reversible w/ Wall Control

8 Poles

.39/.27/.17/.11/.07/.06 AMPS on H/M/L

31/19/12/7/4/3 WATTS on H/M/L

140/118/96/74/52/30 RPMS on H/M/L

Optional light kit 8-10806-XX

Optional set (3) 96" stabilizing cables w/ hardware included

Wall Mounted Pocket Remote Included

SMART by BOND technology

ENERGY SPECS

Energy Information at High Speed

Airflow: 10021 Cubic Feet/Minute

Electricity Use: 34 Watts (Excludes Lights)

Airflow Efficiency: 295 Cubic Feet/Minute/Watt Visit QuorumInternational.com for DOE Energy Guide

Indoor/Outdoor - Damp

AVAILABLE LIGHT KIT OPTIONS

8-10806-80

9.375"(w) x 2.5"(h)

(1) 24W, 3000k, 2113 Lumens, 90CRI Dimmable LED

Aged Brass | Matte White Acrylic UL Damp

CONTROLS

Wall Mounted Pocket Remote Included

8-10806-65

9.375"(w) x 2.5"(h) (1) 24W, 3000k, 2113 Lumens, 90CRI Dimmable LED

Satin Nickel | Matte White Acrylic UL Damp

• Power On / Off / 6 fan speeds – DC motor

• Forward / Reverse

• Light On / Off / Dimming

AVAILABLE 3/4" DOWNRODS

Downrod Finish

Bond Included

• Control Fan from Mobile Device

8-10806-59

9.375"(w) x 2.5"(h) (1) 24W, 3000k, 2113 Lumens, 90CRI Dimmable LED

Matte Black | Matte White Acrylic UL Damp

8-10806-8

9.375"(w) x 2.5"(h) (1) 24W, 3000k, 2113 Lumens, 90CRI Dimmable LED

Studio White | Matte White Acrylic UL Damp

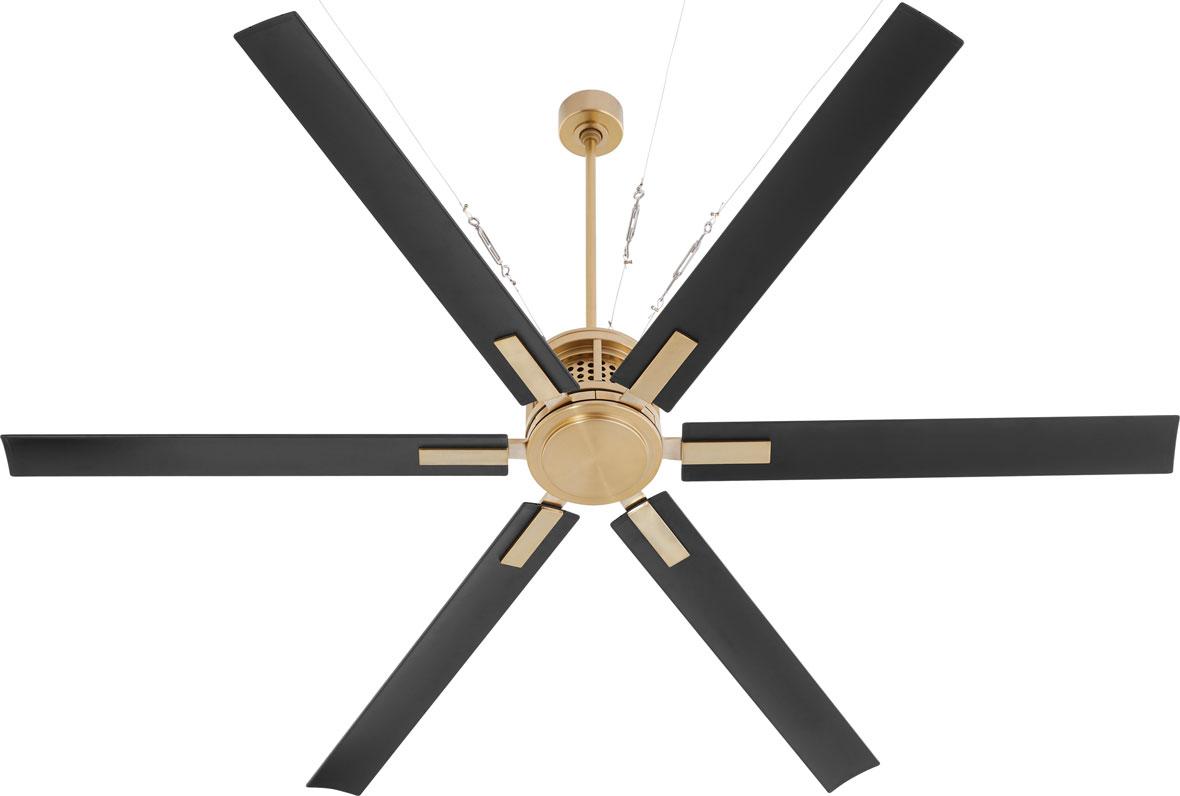

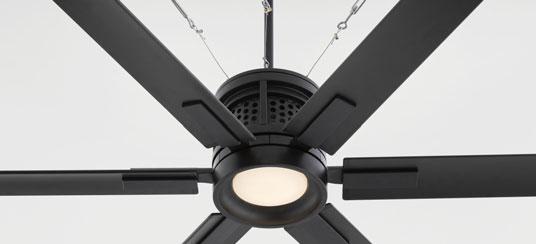

DETAIL SHOWING STABILIZING CABLES

HEIGHT CHART

FAN HEIGHT

Using 10" Downrod

● Distance of 21"

● Distance of 19.25"

GENERAL SPECS

4 Finishes Available

Lifetime Motor Warranty

Six ABS Blades

80" Blade Sweep

11.5-Degree Blade Pitch

80" Lead Wire

10" Downrod Included 3/4" Downrod Diameter

MECHANICAL SPECS

DC-168NL Motor

6 Speeds-Reversible w/ Wall Control

8 Poles

.60/.39/.23/.12/.07/.05 AMPS on H/M/L

49/30/17/9/5/3 WATTS on H/M/L

120/100/80/60/40/20 RPMS on H/M/L

Optional light kit 8-10806-XX

Optional set (3) 96" stabilizing cables w/ hardware included

Wall Mounted Pocket Remote Included

SMART by BOND technology

ENERGY SPECS

Energy Information at High Speed

Airflow: 17436 Cubic Feet/Minute

Electricity Use: 54 Watts (Excludes Lights)

Airflow Efficiency: 322 Cubic Feet/Minute/Watt Visit QuorumInternational.com for DOE Energy Guide

AVAILABLE LIGHT KIT OPTIONS

8-10806-80

9.375"(w) x 2.5"(h) (1) 24W, 3000k, 2113 Lumens, 90CRI Dimmable LED

Aged Brass | Matte White Acrylic UL Damp

CONTROLS

Wall Mounted Pocket Remote Included

8-10806-65

9.375"(w) x 2.5"(h) (1) 24W, 3000k, 2113 Lumens, 90CRI Dimmable LED

Satin Nickel | Matte White Acrylic UL Damp

• Power On / Off / 6 fan speeds – DC motor

• Forward / Reverse

• Light On / Off / Dimming

AVAILABLE 3/4" DOWNRODS

HEIGHT CHART

Bond Included

• Control Fan from Mobile Device

8-10806-59

9.375"(w) x 2.5"(h) (1) 24W, 3000k, 2113 Lumens, 90CRI Dimmable LED

Matte Black | Matte White Acrylic UL Damp

8-10806-8

9.375"(w) x 2.5"(h) (1) 24W, 3000k, 2113 Lumens, 90CRI Dimmable LED

Studio White | Matte White Acrylic UL Damp

FAN HEIGHT

Using 10" Downrod

● Distance of 21"

● Distance of 19.25"

GENERAL SPECS

4 Finishes Available

Lifetime Motor Warranty

Six ABS Blades

120" Blade Sweep

11.5-Degree Blade Pitch

80" Lead Wire

10" Downrod Included 3/4" Downrod Diameter

MECHANICAL SPECS

DC-168NL Motor

6 Speeds-Reversible w/ Wall Control

8 Poles

1/.65/.38/.21/.11/.06 AMPS on H/M/L

89/53/29/15/7/4 WATTS on H/M/L

75/64/53/42/31/20 RPMS on H/M/L

Optional light kit 8-1806-XX

Optional set (3) 96" stabilizing cables w/ hardware included

Wall Mounted Pocket Remote Included SMART by BOND technology

Revel 80"

Indoor/Outdoor - Damp

AVAILABLE FINISHES

AVAILABLE LIGHT KIT OPTIONS

8-80805

(1) 24W, 3000k, 2227 Lumens, 90CRI Dimming 120V LED w/ White Acrylic Diffuser cUL Damp Light Kit shown on 80805-8059 ceiling fan

CONTROLS

Wall Control Included

• Power On / Off / 6 fan speeds – DC motor

• Forward / Reverse

• Light On / Off / Dimming

AVAILABLE 1/2" DOWNRODS

8-80805

(1) 24W, 3000k, 2227 Lumens, 90CRI Dimming 120V LED w/ White Acrylic Diffuser cUL Damp Light Kit shown on 80805-59 ceiling fan

8-1400 Optional

• Power On / Off / 6 fan speeds – DC motor

• Forward / Reverse

• Light On / Off / Dimming

• For use with WiFi fans

8-80805

(1) 24W, 3000k, 2227 Lumens, 90CRI Dimming 120V LED w/ White Acrylic Diffuser cUL Damp Light Kit shown on 80805-808 ceiling fan

Bond Included • Control Fan from Mobile Device

AVAILABLE 45 DEGREE SLOPE CEILING ADAPTERS FOR 1/2" DOWNRODS (INDOOR USE ONLY)

HEIGHT CHART

FAN HEIGHT

Using 6" Downrod

● Distance of 14.25"

● Distance of 12.25"

GENERAL SPECS

3 Finishes Available

Lifetime Motor Warranty

Five ABS Blades

80" Blade Sweep

9-Degree Blade Pitch

80" Lead Wire

6" Downrod Included 1/2" Downrod Diameter

MECHANICAL SPECS

DC-30NS Motor

6 Speeds-Reversible w/ Wall Control

16 Poles

.36/.23/.15/.09/.07/.04 AMPS on H/M/L

27/17/10/6/4/3 WATTS on H/M/L

96/83/70/57/45/33 RPMS on H/M/L

Dimmable Light Kit

LED Light Kit is 24W, 3000k, 2227 Lumens, 90CRI Wall Control Included

Remote Control Adaptable SMART by BOND technology

ENERGY SPECS

Energy Information at High Speed

Airflow: 10578 Cubic Feet/Minute

Electricity Use: 33 Watts (Excludes Lights) Airflow

Spree 84"

Indoor/Outdoor - Wet

AVAILABLE LIGHT KIT OPTIONS (INCLUDED)

UL Wet

35846-59 shown with optional light kit (included)

CONTROLS Optional LED Light Kit (included) (1) 20W, 5CCT, 90CRI 120V LED w/ White Acrylic Diffuser, 2700/3000/3500/4000/5000k, 1694 Lumens @ 3000k

Wall Control Included

• Power On / Off / 6 fan speeds – DC motor

• Forward / Reverse

• Light On / Off / Dimming

AVAILABLE 3/4" DOWNRODS

Downrod Finish

8-1405 Optional

Optional LED Light Kit (included) (1) 20W, 5CCT, 90CRI 120V LED w/ White Acrylic Diffuser, 2700/3000/3500/4000/5000k, 1694 Lumens @ 3000k UL Wet

35846-47 shown with optional light kit (included)

• Power On / Off / 6 fan speeds – DC motor

• Forward / Reverse

• Light On / Off / Dimming

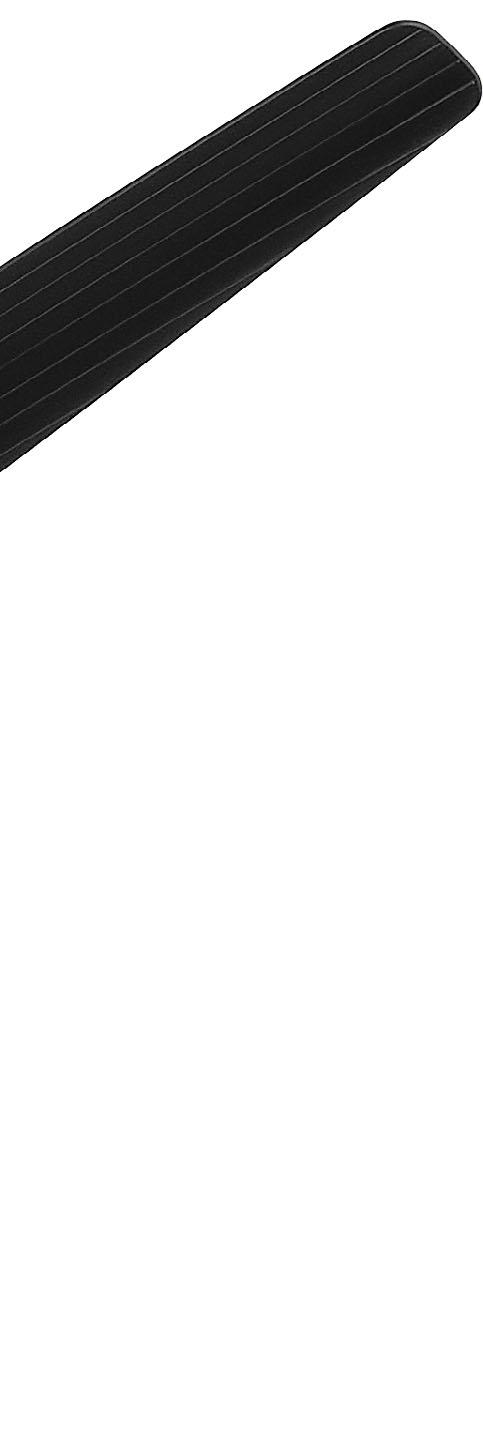

Ridged blade top design for increased air flow

HEIGHT CHART

FAN HEIGHT

Using 6" Downrod

● Distance of 15.5"

● Distance of 12.25"

GENERAL SPECS

Lifetime Motor Warranty

Six ABS Blades

84" Blade Sweep

16-Degree Blade Pitch

80" Lead Wire

6" Downrod Included 3/4" Downrod Diameter

MECHANICAL SPECS

DCS-165NL Motor

6 Speeds-Reversible with Wall Control

6 Poles

.39/.30/.19/.11/.07/.05 AMPS on H/M/L

31/25/14/9/5/3 WATTS on H/M/L

73/67/58/49/40/30 RPMS on H/M/L

6 Speed Wall Control Included

Remote Control Adaptable

Light Kit Uses (1) 20W, 5CCT, 1694 Lumens, 90CRI LED

UL Wet Listed

ENERGY SPECS

Energy Information at High Speed

Airflow: 8871 Cubic Feet/Minute

Electricity Use: 31 Watts (Excludes Lights)

Airflow Efficiency: 286 Cubic Feet/Minute/Watt Visit QuorumInternational.com for DOE Energy Guide

AVAILABLE LIGHT KIT OPTIONS

3-9-129-23

(1) 40W, 5CCT, 90CRI, Dimmable LED

2700/3000/4000/5000/6500k, 1896 Lumens @ 3000k

Classic Nickel

Matte White Polycarbonate Diffuser

cETL Wet Light Kit shown on 3-129-23 ceiling fan

CONTROLS

Wall Mounted Pocket Remote Included

• Power On / Off / 6 fan speeds – DC motor

• Forward / Reverse

• Light On / Off / Dimming

AVAILABLE 3/4" DOWNRODS

HEIGHT CHART

Bond Included • Control Fan from Mobile Device

3-9-129-15

(1) 40W, 5CCT, 90CRI, Dimmable LED

2700/3000/4000/5000/6500k, 1896 Lumens @ 3000k

Matte Black

Matte White Polycarbonate Diffuser cETL Wet Light Kit shown on 3-129-15 ceiling fan

FAN HEIGHT

Using 10" Downrod

● Distance of 22"

● Distance of 20.5"

GENERAL SPECS

2 Finishes Available Lifetime Motor Warranty

Six ABS Blades

78" Blade Sweep

11.5-Degree Blade Pitch

10" Downrod Included 3/4" Downrod Diameter

MECHANICAL SPECS

DC-168NL Motor

6 Speeds Reversible w/ Wall Mounted Pocket Remote

8 Poles

.5/.3/.19/11/.07/.06 AMPS on H/M/L

39/23/13/7/4/3 WATTS on H/M/L

125/105/83/62/41/20 RPMS on H/M/L

3 Optional 96" Stabilizing Cables Included

Wall Mounted Pocket Remote Included SMART by BOND technology

ENERGY SPECS

Energy Information at High Speed

Airflow: 14400 Cubic Feet/Minute

Electricity Use: 31 Watts (Excludes Lights)

Airflow Efficiency: 465 Cubic Feet/Minute/Watt Visit QuorumInternational.com for DOE Energy Guide

LIGHT SOURCE

WiFI Capable

AVAILABLE LIGHT KIT OPTIONS

3-9-129-23

(1) 40W, 5CCT, 90CRI, Dimmable LED

2700/3000/4000/5000/6500k, 1896 Lumens @ 3000k

Classic Nickel

Matte White Polycarbonate Diffuser cETL Wet Light Kit shown on 3-130-23 ceiling fan

CONTROLS

Wall Mounted Pocket Remote Included

• Power On / Off / 6 fan speeds – DC motor

• Forward / Reverse

• Light On / Off / Dimming

AVAILABLE 3/4" DOWNRODS

HEIGHT CHART

Bond Included • Control Fan from Mobile Device

3-9-129-15

(1) 40W, 5CCT, 90CRI, Dimmable LED

2700/3000/4000/5000/6500k, 1896 Lumens @ 3000k

Matte Black

Matte White Polycarbonate Diffuser cETL Wet Light Kit shown on 3-130-15 ceiling fan

FAN HEIGHT

Using 10" Downrod

● Distance of 22"

● Distance of 20.5"

GENERAL SPECS

2 Finishes Available Lifetime Motor Warranty

Six ABS Blades

100" Blade Sweep

11.5-Degree Blade Pitch

10" Downrod Included 3/4" Downrod Diameter

MECHANICAL SPECS

DC-168-30NL Motor

6 Speeds Reversible w/ Wall Mounted Pocket Remote

8 Poles

.65/.45/.24/.14/.08/.06 AMPS on H/M/L

54/35/17/10/5/3 WATTS on H/M/L

93/80/62/49/34/20 RPMS on H/M/L

3 Optional 96" Stabilizing Cables Included Wall Mounted Pocket Remote Included SMART by BOND technology

SOURCE

Indoor/Outdoor - Damp

AVAILABLE LIGHT KIT OPTION

3-9-100 (1) 18W, 3000k, 90CRI, Dimmable LED Matte White Glass cETL Damp

3-9-100 Shown on 3-100-15 Fan

CONTROLS

Wall Control Included

• Power On / Off / 6 fan speeds – DC motor

• Forward / Reverse

• Light On / Off / Dimming

AVAILABLE 1/2" DOWNRODS

3-8-2000-0 Optional

• Power On / Off / 6 fan speeds – DC motor

• Forward / Reverse

• Light On / Off / Dimming

AVAILABLE 45 DEGREE SLOPE CEILING ADAPTERS FOR 1/2" DOWNRODS

HEIGHT CHART

FAN HEIGHT

Using 4" Downrod

● Distance of 13.5"

● Distance of 10.25"

GENERAL SPECS

3 Finishes Available Lifetime Motor Warranty

Eight Blades

70" Blade Sweep

14-Degree Blade Pitch

4" & 6" Downrods Included 1/2" Downrod Diameter

MECHANICAL SPECS

165mm DC Motor

6 Speeds Reversible w/ Wall Control

8 Poles

.40/.28/.19/.13/.08/.05 AMPS on H/M/L

32/21/14/9/6/3 WATTS on H/M/L

119/104/91/77/63/49 RPMS on H/M/L

Wall Control Included Remote Control Adaptable

ENERGY SPECS

Energy Information at High Speed

Airflow: 9448 Cubic Feet/Minute

Electricity Use: 35 Watts (Excludes Lights)

Airflow Efficiency: 270 Cubic Feet/Minute/Watt Visit QuorumInternational.com for DOE Energy Guide

Indoor/Outdoor - Damp

AVAILABLE LIGHT KIT OPTIONS

8-827-80

(1) 18W, 3000k, 1347 Lumens, 90CRI Dimmable LED w/ White Acrylic Diffuser Light Kit shown on 82725-80 ceiling fan

CONTROLS

Wall Control Included

• Power On / Off / 6 fan speeds – DC motor

• Forward / Reverse

• Light On / Off / Dimming

AVAILABLE 1/2" DOWNRODS

8-827-65

(1) 18W, 3000k, 1347 Lumens, 90CRI Dimmable LED w/ White Acrylic Diffuser Light Kit shown on 82725-65 ceiling fan

8-1400 Optional

• Power On / Off / 6 fan speeds – DC motor

• Forward / Reverse

• Light On / Off / Dimming

• For use with WiFi fans

8-827-8

(1) 18W, 3000k, 1347 Lumens, 90CRI Dimmable LED w/ White Acrylic Diffuser Light Kit shown on 82725-8 ceiling fan

Bond Included

• Control Fan from Mobile Device

AVAILABLE 45 DEGREE SLOPE CEILING ADAPTERS FOR 1/2" DOWNRODS (INDOOR USE ONLY) Item#

7-1745-8 Studio

HEIGHT CHART

FAN HEIGHT

Using 6" Downrod

● Distance of 15.75"

● Distance of 13.5"

GENERAL SPECS

3 Finishes Available Lifetime Motor Warranty

Five ABS Blades

72" Blade Sweep

13-Degree Blade Pitch

80" Lead Wire

6" Downrod Included 1/2" Downrod Diameter

MECHANICAL SPECS

DC-165NM Motor

6 Speeds-Reversible with Wall Control

14 Poles

.30/.24/.20/.15/.11/.08 AMPS on H/M/L

25/19/15/11/8/5 WATTS on H/M/L

90/82/74/60/59/52 RPMS on H/M/L

4 Speed Wall Control Included Remote Control Adaptable SMART by BOND technology

ENERGY SPECS

Energy Information at High Speed

Airflow: 6495 Cubic Feet/Minute

Electricity Use: 27 Watts (Excludes Lights)

Airflow

240 Cubic Feet/Minute/Watt Visit

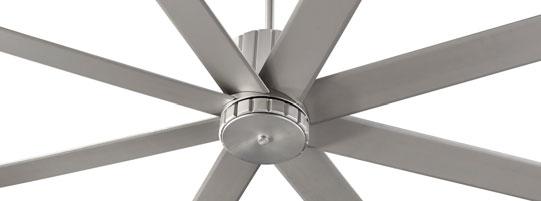

Proxima 60"

Indoor

AVAILABLE FINISHES

CONTROLS

Wall Control Included

• Power On / Off / 6 fan speeds – DC motor

• Forward / Reverse

• Light On / Off / Dimming

AVAILABLE 1/2" DOWNRODS

8-9860-0 Optional

• Power On / Off / 6 fan speeds – DC motor

• Forward / Reverse

• Light On / Off / Dimming

AVAILABLE 45 DEGREE SLOPE CEILING ADAPTERS FOR 1/2" DOWNRODS

AVAILABLE HUGGER ADAPTERS

HEIGHT CHART

FAN HEIGHT

Using 4" downrod

● Distance of 15.5"

● Distance of 12.5"

GENERAL SPECS

2 Finishes Available Lifetime Motor Warranty

Eight Blades

60" Blade Sweep

14 Degree Blade Pitch

80" Lead Wire

4" & 6" Downrods Included 1/2" Downrod Diameter

MECHANICAL SPECS

DC-165M Motor

6 Speeds-Reversible w/Wall Control

6 Poles

.44/.29/.20/.14/.09/.06 AMPS on H/M/L

31/20/13/9/6/4 WATTS on H/M/L

153/128/110/91/72/53 RPMS on H/M/L

Wall Control Included Remote Control Adaptable Not Able to be Wired in Series Not Light Kit Adaptable

ENERGY SPECS

Energy Information at High Speed Airflow: 8151 Cubic Feet/Minute

Electricity Use: 34 Watts (Excludes Lights)

239 Cubic

Proxima 60"

Indoor/Outdoor - Wet AVAILABLE FINISHES

CONTROLS

Wall Control Included

• Power On / Off / 6 fan speeds – DC motor

• Forward / Reverse

• Light On / Off / Dimming

AVAILABLE 1/2" DOWNRODS

8-9860-0 Optional

• Power On / Off / 6 fan speeds – DC motor

• Forward / Reverse

• Light On / Off / Dimming

AVAILABLE 45 DEGREE SLOPE CEILING ADAPTERS FOR 1/2" DOWNRODS (INDOOR USE ONLY)

AVAILABLE HUGGER ADAPTERS (INDOOR USE ONLY)

HEIGHT CHART

FAN HEIGHT

Using 4" Downrod

● Distance of 16"

● Distance of 13"

GENERAL SPECS

2 Finishes Available (Powder Coated)

Lifetime Motor Warranty

Eight ABS Blades

60" Blade Sweep

14-Degree Blade Pitch

80" Lead Wire

4" & 6" Downrods Included 1/2" Downrod Diameter

MECHANICAL SPECS

DC-165NM Motor

6 Speeds-Reversible w/ Wall Control

6 Poles

.45/.30/.21/.14/.10/.07 AMPS on H/M/L

32/20/14/9/6/4 WATTS on H/M/L

147/125/109/91/73/53 RPMS on H/M/L

UL Wet Listed

Remote Control Adaptable Not Light Kit Adaptable

ENERGY SPECS

Energy Information at High Speed Airflow: 7449 Cubic Feet/Minute

Electricity Use: 32 Watts (Excludes Lights) Airflow

Proxima 72"

CONTROLS

Wall Control Included

• Power On / Off / 6 fan speeds – DC motor

• Forward / Reverse

• Light On / Off / Dimming

AVAILABLE 1/2" DOWNRODS

8-9860-0 Optional

• Power On / Off / 6 fan speeds – DC motor

• Forward / Reverse

• Light On / Off / Dimming

AVAILABLE 45 DEGREE SLOPE CEILING ADAPTERS FOR 1/2" DOWNRODS

Item#

Black

AVAILABLE HUGGER ADAPTERS

Item#

7-1600-65 Satin Nickel 7-1600-69 Textured Black

HEIGHT CHART

7-1600-86 Oiled Bronze

FAN HEIGHT

Using 4" downrod

● Distance of 15.5"

● Distance of 12.5"

GENERAL SPECS

3 Finishes Available Lifetime Motor Warranty

Eight Blades

72" Blade Sweep

14 Degree Blade Pitch

80" Lead Wire

4" & 6" Downrods Included 1/2" Downrod Diameter

MECHANICAL SPECS

DC-165L Motor

6 Speeds-Reversible w/Wall Control

6 Poles

.20/.14/.11/.09/.07/.05 AMPS on H/M/L

33/19/12/7/4/3 WATTS on H/M/L 84/73/63/53/43/33 RPMS on H/M/L

Wall Control Included Remote Control Adaptable Not Able to be Wired in Series Not Light Kit Adaptable

ENERGY SPECS

Energy Information at High Speed Airflow: 9082 Cubic Feet/Minute Electricity Use: 34 Watts (Excludes Lights) Airflow Efficiency: 267 Cubic Feet/Minute/Watt Visit

Proxima 72"

CONTROLS

Wall Control Included

• Power On / Off / 6 fan speeds – DC motor

• Forward / Reverse

• Light On / Off / Dimming

AVAILABLE 1/2" DOWNRODS

Downrod Finish

Textured Black NA

8-9860-0 Optional

• Power On / Off / 6 fan speeds – DC motor

• Forward / Reverse

• Light On / Off / Dimming

AVAILABLE 45 DEGREE SLOPE CEILING ADAPTER FOR 1/2" DOWNRODS (INDOOR USE ONLY)

Item# Finish 7-1745-69 Textured Black

AVAILABLE HUGGER ADAPTER (INDOOR USE ONLY)

Item# Finish 7-1600-69 Textured Black

HEIGHT CHART

FAN HEIGHT

Using 4" Downrod

● Distance of 16"

● Distance of 13"

GENERAL SPECS

1 Finish Available (Powder Coated)

Lifetime Motor Warranty

Eight ABS Blades

72" Blade Sweep

14-Degree Blade Pitch

80" Lead Wire

4" & 6" Downrods Included 1/2" Downrod Diameter

MECHANICAL SPECS

DC-165L Motor

6 Speeds-Reversible w/Wall Controller

6 Poles

.47/.29/.19/.13/.09/.06 AMPS on H/M/L

33/20/13/8/5/3 WATTS on H/M/L

94/79/66/55/42/32 RPMS on H/M/L

UL Wet Listed

Remote Control Adaptable Not Light Kit Adaptable

ENERGY SPECS

Energy Information at High Speed

Airflow: 9793 Cubic Feet/Minute

Electricity Use: 34 Watts (Excludes Lights)

Airflow Efficiency: 288 Cubic Feet/Minute/Watt Visit QuorumInternational.com for DOE Energy Guide

Niles 64"

Indoor/Outdoor - Wet

133645-59

Matte Black | Satin Opal Glass

Black ABS Blades (1) 9W, 3000k, 780 Lumens, 80CRI, LED

AVAILABLE 1/2" DOWNRODS Downrod Finish

Matte Black

HEIGHT CHART

FAN HEIGHT

Using 6" Downrod

● Distance of 20.25"

● Distance of 12.25"

GENERAL SPECS

Lifetime Motor Warranty

Five ABS Blades

64" Blade Sweep

12-Degree Blade Pitch

80" Lead Wire

6" Downrod Included 1/2" Downrod Diameter

MECHANICAL SPECS

188x25 Motor Size

3 Speeds w/ Pull Chain Switch

Reversible w/ Manual Reverse Switch

16 Poles

.60/.44/.34 AMPS on H/M/L

72/38/21 WATTS on H/M/L

118/84/60 RPMS on H/M/L

Triple Capacitor

Not Remote Control Adaptable

UL Wet Listed

ENERGY SPECS

Energy Information at High Speed

Airflow: 6652 Cubic Feet/Minute

Electricity Use: 77 Watts (Excludes Lights)

Airflow Efficiency: 86 Cubic Feet/Minute/Watt

Visit QuorumInternational.com for DOE Energy Guide

LIGHT SOURCE

Medium Frosted LED Included

Fleet 56"

Indoor/Outdoor - Damp

AVAILABLE FINISHES

3-112-40

Aged Brass

Matte Black ABS Blades

3-112-1515

Black

Black ABS Blades

*provided with Aged Brass (shown) and Black Blade hardware

AVAILABLE LIGHT KIT OPTIONS

3-9-108-40

Aged Brass

Matte White Glass (1) 18W, 3000k, 1444 Lumens, 90CRI Dimmable LED, Title 24

3-9-108-6

White

Matte White Glass

(1) 18W, 3000k, 1444 Lumens, 90CRI Dimmable LED, Title 24

3-1084-15

Black

Matte White Glass

(1) 18W, 3000k, 1508 Lumens, 90CRI Dimmable LED, Title 24

3-112-24

Satin Nickel Silver ABS Blades

3-112-6

White

White ABS Blades

*provided with Aged Brass (shown) and White Blade hardware

3-9-108-24

Satin Nickel

Matte White Glass (1) 18W, 3000k, 1444 Lumens, 90CRI Dimmable LED, Title 24

3-1084-40

Aged Brass

Matte White Glass

(1) 18W, 3000k, 1508 Lumens, 90CRI Dimmable LED, Title 24

3-1084-6

White

Matte White Glass (1) 18W, 3000k, 1508 Lumens, 90CRI Dimmable LED, Title 24

3-112-15

Black Weathered Gray ABS Blades

3-9-108-15

Black

Matte White Glass (1) 18W, 3000k, 1444 Lumens, 90CRI Dimmable LED, Title 24

3-1084-24

Satin Nickel

Matte White Glass (1) 18W, 3000k, 1508 Lumens, 90CRI Dimmable LED, Title 24

Remote Control Included

• Power On / Off / 6 fan speeds – DC motor

• Forward / Reverse

• Light On / Off / Dimming

AVAILABLE 1/2" DOWNRODS

HEIGHT CHART

FAN HEIGHT

Using 4" Downrod

● Distance of 13"

● Distance of 11"

GENERAL SPECS

5 Finish Combinations Available Lifetime Motor Warranty

Eight ABS Blades

56" Blade Sweep

13-Degree Blade Pitch

4" & 6" Downrods Included 1/2" Downrod Diameter

MECHANICAL SPECS

DC Motor

6 Speeds Reversible w/ Remote Control

8 Poles

.36/.25/.16/.10/.06/.04 AMPS on H/M/L

28/19/12/7/4/3 WATTS on H/M/L

155/133/112/92/71/50 RPMS on H/M/L

Remote Control Included

ENERGY SPECS

Energy Information at High Speed

Airflow: 7662 Cubic Feet/Minute

Electricity Use: 30 Watts (Excludes Lights)

Airflow Efficiency: 248 Cubic Feet/Minute/Watt Visit

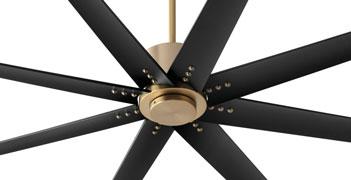

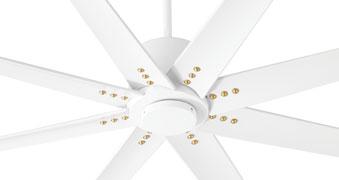

Fleet 72"

Indoor/Outdoor - Damp

3-108-6

Shown with optional 3-9-108-40 light kit

AVAILABLE FINISHES

3-108-40

Aged Brass Matte Black ABS Blades

3-108-1515

Black

Black ABS Blades

*provided with Aged Brass and Black (shown) Blade hardware

AVAILABLE LIGHT KIT OPTIONS

3-9-108-40

Aged Brass

Matte White Glass (1) 18W, 3000k, 1444 Lumens, 90CRI Dimmable LED, Title 24

3-9-108-6

White

Matte White Glass (1) 18W, 3000k, 1444 Lumens, 90CRI Dimmable LED, Title 24

3-1084-15

Black

Matte White Glass (1) 18W, 3000k, 1508 Lumens, 90CRI Dimmable LED, Title 24

3-108-24

Satin Nickel Silver ABS Blades

3-108-6

White

White ABS Blades

*provided with Aged Brass and White (shown) Blade hardware

3-9-108-24

Satin Nickel

Matte White Glass (1) 18W, 3000k, 1444 Lumens, 90CRI Dimmable LED, Title 24

3-1084-40

Aged Brass

Matte White Glass

(1) 18W, 3000k, 1508 Lumens, 90CRI Dimmable LED, Title 24

3-1084-6

White

Matte White Glass

(1) 18W, 3000k, 1508 Lumens, 90CRI Dimmable LED, Title 24

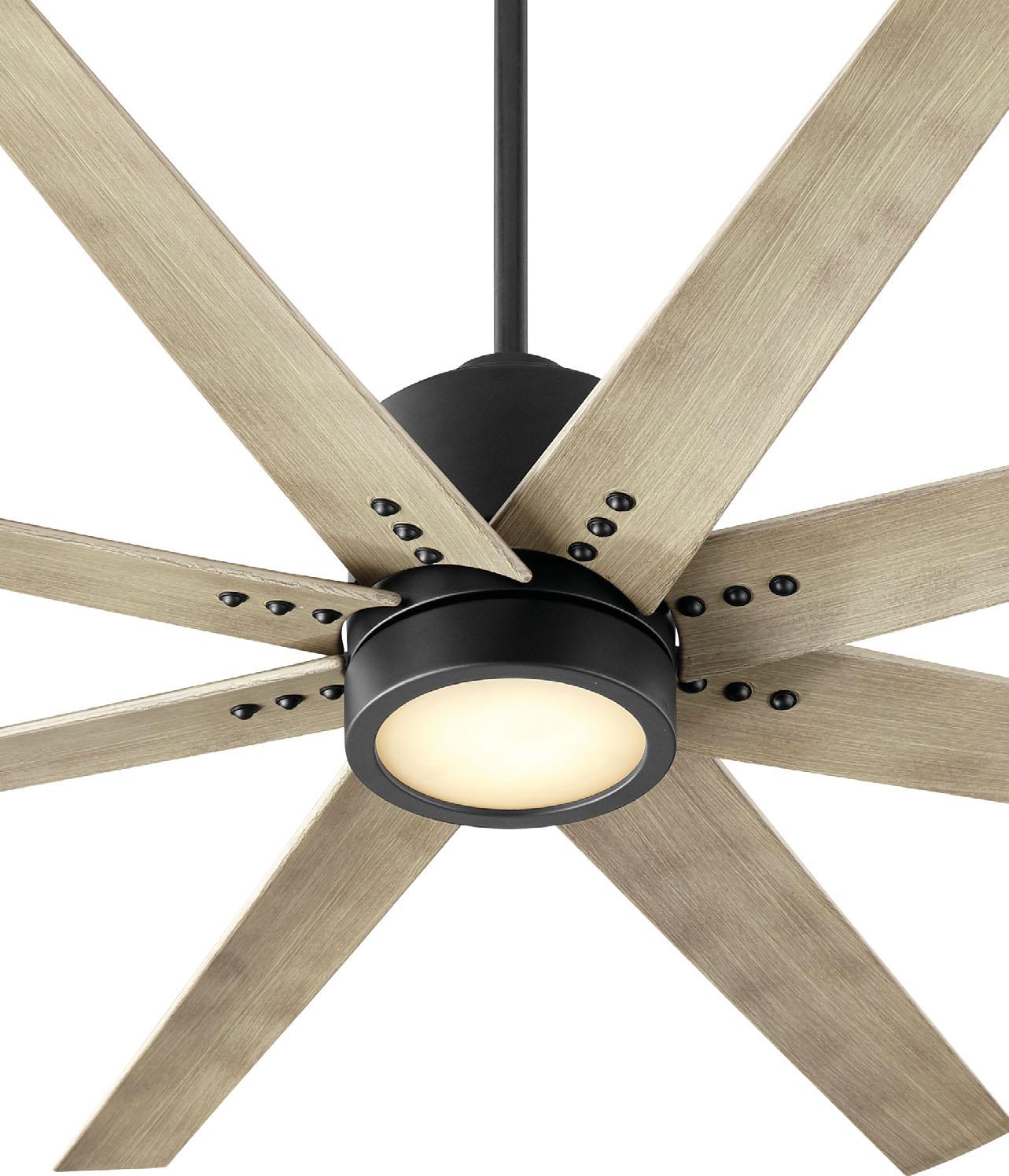

3-108-15

Black Weathered Gray ABS Blades

3-9-108-15

Black

Matte White Glass

(1) 18W, 3000k, 1444 Lumens, 90CRI Dimmable LED, Title 24

3-1084-24

Satin Nickel

Matte White Glass

(1) 18W, 3000k, 1508 Lumens, 90CRI Dimmable LED, Title 24

Remote Control Included

• Power On / Off / 6 fan speeds – DC motor

• Forward / Reverse

• Light On / Off / Dimming

AVAILABLE 1/2" DOWNRODS

HEIGHT CHART

FAN HEIGHT

Using 6" Downrod

● Distance of 15"

● Distance of 13"

GENERAL SPECS

5 Finish Combinations Available Lifetime Motor Warranty

Eight ABS Blades

72" Blade Sweep

13-Degree Blade Pitch

6" Downrod Included 1/2" Downrod Diameter

MECHANICAL SPECS

DC Motor

6 Speeds Reversible w/ Remote Control

6 Poles

.30/.26/.19/.13/.09/.06 AMPS on H/M/L

28/20/14/9/6/4 WATTS on H/M/L

100/90/80/70/60/50 RPMS on H/M/L

Remote Control Included

ENERGY SPECS

Energy Information at High Speed

Airflow: 9280 Cubic Feet/Minute

Electricity Use: 30 Watts (Excludes Lights)

Airflow Efficiency: 307 Cubic Feet/Minute/Watt Visit QuorumInternational.com for DOE Energy Guide

Rosales 60"

Indoor/Outdoor - Damp

AVAILABLE LIGHT KIT OPTIONS (INCLUDED)

Optional LED Light Kit

(1) 20W, 5CCT, 90CRI 120V LED w/ White Polycarbonate Diffuser

2700/3000/4000/5000/6500k

33608-80 shown with optional light kit (included)

CONTROLS

Wall Control Included

• Power On / Off / 6 fan speeds – DC motor

• Forward / Reverse

• Light On / Off / Dimming

Bond Included

• Control Fan from Mobile Device

Optional LED Light Kit (1) 20W, 5CCT, 90CRI 120V LED w/ White Polycarbonate Diffuser

2700/3000/4000/5000/6500k

33608-59 shown with optional light kit (included)

AVAILABLE 45 DEGREE SLOPE CEILING ADAPTERS FOR 1/2" DOWNRODS (INDOOR USE ONLY)

HEIGHT CHART

FAN HEIGHT

Using 6" Downrod

● Distance of 14.5"

● Distance of 12"

GENERAL SPECS

2 Finish Combinations Available Lifetime Motor Warranty

Eight ABS Blades

60" Blade Sweep

11-Degree Blade Pitch

80" Lead Wire

6" Downrod Included

1/2" Downrod Diameter

MECHANICAL SPECS

DC-30NS Motor

6 Speeds-Reversible

9 Poles

.32/.23/.15/.10/.07/.04 AMPS on H/M/L

28/19/12/8/5/3 WATTS on H/M/L

125/107/93/79/65/51 RPMS on H/M/L

Supplied with Optional LED Kit or Cover Plate for use with no Light Kit

SMART by BOND technology

UL Damp Listed

ENERGY SPECS

Energy Information at High Speed Airflow: 7384 Cubic Feet/Minute

Electricity Use: 29 Watts (Excludes

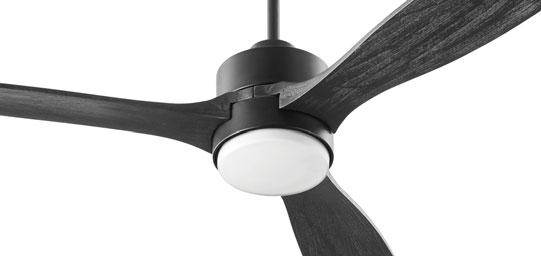

Brisa 60"

Indoor/Outdoor - Damp

AVAILABLE LIGHT KIT OPTIONS (INCLUDED)

Optional LED Light Kit (included)

(1) 20W, 5CCT, 90CRI LED w/ White Acrylic Diffuser, 2700/3000/4000/5000/6500k, 1510 Lumens @ 3000k

61603-59 ceiling fan shown with optional light kit (included)

CONTROLS

Wall Control Included

• Power On / Off / 6 fan speeds – DC motor

• Forward / Reverse

• Light On / Off / Dimming

AVAILABLE 1/2" DOWNRODS

Optional LED Light Kit (included)

(1) 20W, 5CCT, 90CRI LED w/ White Acrylic Diffuser, 2700/3000/4000/5000/6500k, 1510 Lumens @ 3000k

61603-8 ceiling fan shown with optional light kit (included)

Bond Included • Control Fan from Mobile Device

BLADE DETAIL

AVAILABLE 45 DEGREE SLOPE CEILING ADAPTERS FOR 1/2" DOWNRODS (INDOOR USE ONLY)

HEIGHT CHART

FAN HEIGHT

Using 6" Downrod

● Distance of 14.75"

● Distance of 10"

GENERAL SPECS

2 Finish Combinations Available (Powder Coated)

Lifetime Motor Warranty

Three ABS Blades

60" Blade Sweep

12-Degree Blade Pitch

80" Lead Wire

6" Downrod Included 1/2" Downrod Diameter

MECHANICAL SPECS

DC-15NS Motor

6 Speeds-Reversible 9 Poles

.27/.19/.13/.09/.06/.04 AMPS on H/M/L

20/15/9/6/4/3 WATTS on H/M/L

110/99/87/75/63/50 RPMS on H/M/L

Supplied with Optional LED Kit or Cover Plate for use with no Light Kit

SMART by BOND technology

UL Damp Listed

ENERGY SPECS

Energy Information at High Speed

Airflow: 5894 Cubic Feet/Minute

Electricity Use: 21 Watts (Excludes Lights) Airflow

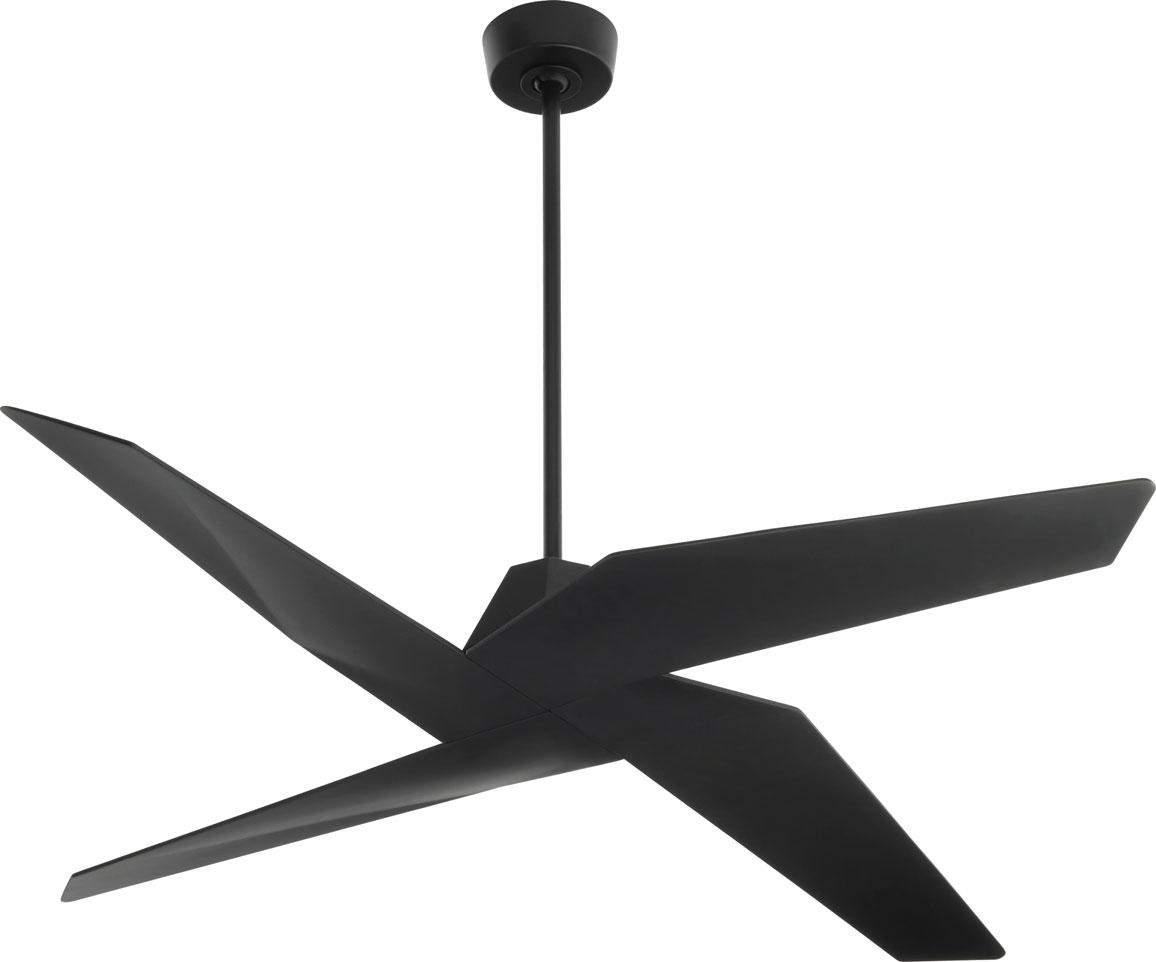

Samaran 60"

Indoor/Outdoor

AVAILABLE LIGHT KIT OPTION

CONTROLS

Wall Control Included

3-9-116

(1) 18W, 3000k, 1638 Lumens, 90CRI Dimmable LED

Matte White Polycarbonate *shown on 3-116-40 ceiling fan

• Power On / Off / 6 fan speeds – DC motor

• Forward / Reverse

• Light On / Off / Dimming

AVAILABLE 1/2" DOWNRODS

3-8-2001-0 Optional

• Power On / Off / 6 fan speeds – DC motor

• Forward / Reverse

• Light On / Off / Dimming

AVAILABLE 45 DEGREE SLOPE CEILING ADAPTERS FOR 1/2" DOWNRODS

Bond Included

• Control Fan from Mobile Device

HEIGHT CHART

FAN HEIGHT

Using 6" Downrod

● Distance of 14"

● Distance of 6.75"

GENERAL SPECS

4 Finishes Available Lifetime Motor Warranty

Four Blades

60" Blade Sweep

21-Degree Blade Pitch

80" Lead Wire

6" Downrod Included 1/2" Downrod Diameter

MECHANICAL SPECS

DC-30NC Motor

6 Speeds Reversible w/ Wall Control

9 Poles

.40/.31/.22/.15/.09/.06 AMPS on H/M/L

33/24/15/10/6/4 WATTS on H/M/L

114/104/90/78/64/51 RPMS on H/M/L

Wall Control Included Remote Control Adaptable SMART by BOND technology

ENERGY SPECS

Energy Information at High Speed

Airflow: 5697 Cubic Feet/Minute

Electricity Use: 30 Watts (Excludes Lights)

Airflow Efficiency: 189 Cubic Feet/Minute/Watt Visit QuorumInternational.com for DOE Energy Guide

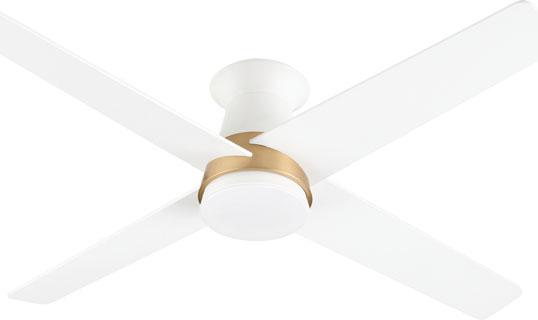

Ophelia 60"

Indoor

AVAILABLE

23605-0847

Studio White/Brushed Brass Studio White Blades (1) 16W, 2700/3000/4000/5000/6500k, 90CRI Dimmable LED (Included) 1315 Lumens @ 3000k

CONTROLS

Wall Control Included

• Power On / Off / 6 fan speeds – DC motor

• Forward / Reverse

• Light On / Off / Dimming

AVAILABLE 3/4" DOWNRODS

8-1405 Optional

• Power On / Off / 6 fan speeds – DC motor

• Forward / Reverse

• Light On / Off / Dimming

AVAILABLE 45 DEGREE SLOPE CEILING ADAPTER FOR 3/4" DOWNRODS

Item# Finish 7-1945-47 Brushed Brass

HEIGHT CHART

FAN HEIGHT

Using 6" Downrod

● Distance of 14.375"

● Distance of 14.25"

GENERAL SPECS

Lifetime Motor Warranty

Five Blades

60" Blade Sweep

14-Degree Blade Pitch

80" Lead Wire

6" Downrod Included 3/4" Downrod Diameter

MECHANICAL SPECS

DCS-22NS Motor

6 Speeds Reversible w/ Wall Control

9 Poles

.44/.30/.18/.11/.07/.04 AMPS on H/M/L

33/21/13/7/4/2 WATTS on H/M/L

146/127/108/89/70/50 RPMS on H/M/L

Wall Control Included Remote Control Adaptable

ENERGY SPECS

Energy Information at High Speed

Airflow: 6221 Cubic Feet/Minute

Electricity Use: 32 Watts (Excludes Lights)

Airflow Efficiency: 194 Cubic Feet/Minute/Watt Visit QuorumInternational.com for DOE Energy Guide

Levant 62"

Indoor/Outdoor - Damp

AVAILABLE FINISH

11986

Aged Brass/Rattan

Matte Black ABS Blades (1) 15W, 3000k, 1461 Lumens @ 3000k, 90CRI Dimmable LED (Included)

AVAILABLE 3/4" DOWNRODS

Downrod Finish

Matte Black

Aged Brass

HEIGHT CHART

FAN HEIGHT

Using 6" Downrod

● Distance of 14"

● Distance of 11.5"

GENERAL SPECS

Lifetime Motor Warranty

Three Blades

62" Blade Sweep

16-Degree Blade Pitch

80" Lead Wire

6" Downrod Included

3/4" Downrod Diameter

MECHANICAL SPECS

120DC x 20mm Motor

Wall Mounted Pocket Remote Included

• Power On / Off / 6 fan speeds – DC motor

• Forward / Reverse

• Light On / Off / Dimming

6 Speeds Reversible w/ Remote Control

8 Poles

.38/.25/.19/.14/.09/.07 AMPS on H/M/L

30/20/13/9/5/3 WATTS on H/M/L

128/112/99/84/71/57 RPMS on H/M/L

Wall Mounted Pocket Remote Included

ENERGY SPECS

Energy Information at High Speed

Airflow: 7441 Cubic Feet/Minute

Electricity Use: 34 Watts (Excludes Lights)

Airflow Efficiency: 219 Cubic Feet/Minute/Watt Visit QuorumInternational.com for DOE Energy Guide

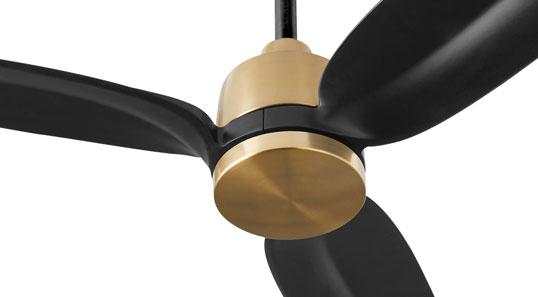

Shamal 60"

Indoor/Outdoor - Damp

AVAILABLE FINISH

11975

Aged Brass/Rattan

Matte Black ABS Blades (1) 15W, 3000k, 1461 Lumens @ 3000k, 90CRI Dimmable LED (Included)

AVAILABLE 3/4" DOWNRODS Downrod

HEIGHT CHART

FAN HEIGHT

Using 6" Downrod

● Distance of 14.625"

● Distance of 11.25"

GENERAL SPECS

Lifetime Motor Warranty

Three Blades

60" Blade Sweep

16-Degree Blade Pitch

80" Lead Wire

6" Downrod Included 3/4" Downrod Diameter

MECHANICAL SPECS

108DC x 20mm Motor

Wall Mounted Pocket Remote Included

• Power On / Off / 6 fan speeds – DC motor

• Forward / Reverse

• Light On / Off / Dimming

6 Speeds Reversible w/ Remote Control

12 Poles

.5/.35/.22/.16/.11/.09 AMPS on H/M/L

36/24/15/9/5/3 WATTS on H/M/L

140/121/106/90/73/58 RPMS on H/M/L

Wall Mounted Pocket Remote Included

ENERGY SPECS

Energy Information at High Speed

Airflow: 6894 Cubic Feet/Minute

Electricity Use: 36 Watts (Excludes Lights)

Airflow Efficiency: 192 Cubic Feet/Minute/Watt Visit QuorumInternational.com for DOE Energy Guide

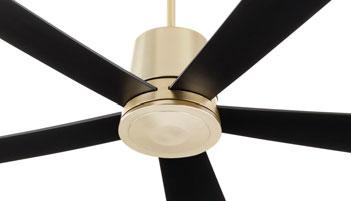

Temple 56"

Indoor/Outdoor - Damp

AVAILABLE FINISHES

3-115-640

White/Aged Brass

White ABS Blades (1) 24W, 3000k, 1950 Lumens, 90CRI, Dimmable LED (Included), White Polycarbonate Diffuser

CONTROLS

Wall Control Included

• Power On / Off / 6 fan speeds – DC motor

• Forward / Reverse

• Light On / Off / Dimming

AVAILABLE 1/2" DOWNRODS

3-115-24

Satin Nickel

Weathered Gray ABS Blades (1) 24W, 3000k, 1950 Lumens, 90CRI, Dimmable LED (Included), White Polycarbonate Diffuser

3-8-2001-0 Optional

• Power On / Off / 6 fan speeds – DC motor

• Forward / Reverse

• Light On / Off / Dimming

3-115-15

Black

Matte Black ABS Blades (1) 24W, 3000k, 1950 Lumens, 90CRI, Dimmable LED (Included), White Polycarbonate Diffuser

AVAILABLE 45 DEGREE SLOPE CEILING ADAPTER FOR 1/2" DOWNRODS

Item#

7-1745-59 Matte Black 7-1745-65 Satin Nickel

HEIGHT CHART

FAN HEIGHT

Using 4.5" Downrod

● Distance of 13"

● Distance of 9.5"

GENERAL SPECS

3 Finishes Available Lifetime Motor Warranty

Five Blades

56" Blade Sweep

80" Lead Wire

16-Degree Blade Pitch

4.5" Downrod Included 1/2" Downrod Diameter

7-1745-80 Aged Brass

MECHANICAL SPECS

125mm DC Motor

6 Speeds Reversible w/ Wall Control

8 Poles

.37/.26/.17/.11/.07/.05 AMPS on H/M/L 20/17/11/7/3/2 WATTS on H/M/L

150/130/108/89/70/50 RPMS on H/M/L

Wall Control Included Remote Control Adaptable

ENERGY SPECS

Energy Information at High Speed

Airflow: 6339 Cubic Feet/Minute

Electricity Use: 31 Watts (Excludes Lights) Airflow Efficiency: 204 Cubic Feet/Minute/Watt Visit QuorumInternational.com for

Apogee 60"

Indoor/Outdoor - Damp

OPTIONAL LIGHT KIT (INCLUDED)

(1) 20W, 5CCT, 90CRI, LED w/ Case Glass Style Diffuser, 2700/3000/4000/5000/6500k, 1483 Initial Lumens @ 3000k

(1) 20W, 5CCT, 90CRI, LED w/ Case Glass Style Diffuser, 2700/3000/4000/5000/6500k, 1483 Initial Lumens @ 3000k

CONTROL

Wall Control Included

• Power On / Off / 6 fan speeds – DC motor

• Forward / Reverse

• Light On / Off / Dimming

AVAILABLE 3/4" DOWNRODS

3-8-1405 Optional

• Power On / Off / 6 fan speeds – DC motor

• Forward / Reverse

• Light On / Off / CCT / Dimming

AVAILABLE 45 DEGREE SLOPE CEILING ADAPTERS FOR 3/4" DOWNRODS

HEIGHT CHART

FAN HEIGHT

Using 6" Downrod

● Distance of 14.25"

● Distance of 12"

GENERAL SPECS

2 Finishes Available Lifetime Motor Warranty

Three Blades

60" Blade Sweep

16-Degree Blade Pitch

6" Downrod Included 3/4" Downrod Diameter

MECHANICAL SPECS

DC-15NS Motor

6 Speeds Reversible w/ Wall Control

9 Poles

.29/.19/.12/.08/.05/.03 AMPS on H/M/L

21/14/8/5/3/2 WATTS on H/M/L

135/118/102/85/68/51 RPMS on H/M/L

Wall Control Included

ENERGY SPECS

Energy Information at High Speed

Airflow: 6411 Cubic Feet/Minute

Electricity Use: 19 Watts (Excludes Lights)

Airflow Efficiency: 337 Cubic Feet/Minute/Watt Visit QuorumInternational.com for DOE Energy Guide

Xega 60"

Indoor/Outdoor - Damp

OPTIONAL LIGHT KIT (INCLUDED)

(1) 20W, 5CCT, 90CRI, LED w/ Matte White Polycarbonate Diffuser, 2700/3000/4000/5000/6500k, 1510 Lumens @ 3000k

CONTROLS

Wall Control Included

• Power On / Off / 6 fan speeds – DC motor

• Forward / Reverse

• Light On / Off / Dimming

AVAILABLE 1/2" DOWNRODS

3-8-1405 Optional

(1) 20W, 5CCT, 90CRI, LED w/ Matte White Polycarbonate Diffuser, 2700/3000/4000/5000/6500k, 1510 Lumens @ 3000k

• Power On / Off / 6 fan speeds – DC motor

• Forward / Reverse

• Light On / Off / CCT / Dimming

AVAILABLE 45 DEGREE SLOPE CEILING ADAPTERS FOR 1/2" DOWNRODS

Bond Included • Control Fan from Mobile Device

HEIGHT CHART

FAN HEIGHT

Using 6" Downrod

● Distance of 15"

● Distance of 9.75"

GENERAL SPECS

2 Finishes Available

Lifetime Motor Warranty

Three Blades

60" Blade Sweep

80" Lead Wire

17-Degree Blade Pitch

6" Downrod Included 1/2" Downrod Diameter

MECHANICAL SPECS

DC-15NS Motor

6 Speeds Reversible w/ Wall Control

9 Poles

.43/.26/.17/.11/.06/.04 AMPS on H/M/L

36/21/13/7/4/3 WATTS on H/M/L

124/111/96/81/66/50 RPMS on H/M/L

Wall Control Included SMART by BOND technology

ENERGY SPECS

Energy Information at High Speed

Airflow: 6354 Cubic Feet/Minute

Electricity Use: 35 Watts (Excludes Lights)

Airflow Efficiency: 182 Cubic Feet/Minute/Watt Visit QuorumInternational.com for DOE Energy Guide

Ridley 58" Indoor/Outdoor - Damp

AVAILABLE LIGHT KIT OPTION

CONTROLS

Wall Control Included

• Power On / Off / 6 fan speeds – DC motor

• Forward / Reverse

• Light On / Off / Dimming

AVAILABLE 1/2" DOWNRODS

Bond Included

• Control Fan from Mobile Device

3-9-123 (1) 15W, 3000k, 90CRI Dimmable LED Kit w/ Matte White Polycarbonate Diffuser *shown on 3-123-1540 ceiling fan

AVAILABLE 45 DEGREE SLOPE CEILING ADAPTERS FOR 1/2" DOWNRODS Item#

HEIGHT CHART

FAN HEIGHT

Using 6" Downrod

● Distance of 13.25"

● Distance of 7.5"

GENERAL SPECS

3 Finish Combinations Available Lifetime Motor Warranty

Three Blades

58" Blade Sweep

16-Degree Blade Pitch

6" Downrod Included 1/2" Downrod Diameter

MECHANICAL SPECS

120 DC Motor

6 Speeds Reversible w/ Wall Control

8 Poles

.36/.24/.15/.11/.07/.05 AMPS on H/M/L

30/19/11/8/5/3 WATTS on H/M/L

125/110/95/80/65/50 RPMS on H/M/L

Wall Control Included SMART by BOND technology

ENERGY SPECS

Energy Information at High Speed

Airflow: 6386 Cubic Feet/Minute

Electricity Use: 34 Watts (Excludes Lights)

Airflow Efficiency: 187 Cubic Feet/Minute/Watt Visit QuorumInternational.com for DOE Energy Guide

Alpha 60" Indoor

AVAILABLE HOUSING & BLADE OPTIONS

3-105-024 Satin Nickel

3-8-61306 White Blades

3-105-024 Satin Nickel

3-8-61324 Silver Blades

HOW TO ORDER

A. First Pick the Housing/Motor Finish from below:

3-105-06 White

3-105-024 Satin Nickel

B. Then Select the Blade Finish for below:

3-8-61306 White

3-8-61324 Silver

*Note - Housing/Motor and Blades options will ship separately.

3-105-06 White

3-8-61306 White Blades

CONTROLS

Wall Control Included

• Power On / Off / 6 fan speeds – DC motor

• Forward / Reverse

• Light On / Off / Dimming

3-105-06 White

3-8-61324 Silver Blades

HEIGHT CHART

FAN HEIGHT

• Distance of 18"

● Distance of 16.25"

GENERAL SPECS

4 Finish Combinations Available Lifetime Motor Warranty

Three Blades

60" Blade Sweep

18-Degree Blade Pitch

58" Lead Wire

MECHANICAL SPECS

DC 125 S Motor

6 Speeds Reversible w/ Wall Control

12 Poles

.37/.27/.18/.12/.08/.05 AMPS on H/M/L

32/21/14/8/5/3 WATTS on H/M/L

157/134/117/93/72/50 RPMS on H/M/L

Wall Control Included

Remote Control Adaptable

Supplied with GU10 LED Bulb & Finished Socket Cover for use w/o Bulb

ENERGY SPECS

Energy Information at High Speed

Airflow: 8200 Cubic Feet/Minute

Electricity Use: 32 Watts (Excludes Lights)

Airflow Efficiency: 256 Cubic Feet/Minute/Watt Visit QuorumInternational.com for DOE Energy Guide

3-8-2001-0 Optional

• Power On / Off / 6 fan speeds – DC motor

• Forward / Reverse

• Light On / Off / Dimming

LIGHT SOURCE

GU10 LED Bulb Included

Province 56"

Indoor/Outdoor - Damp

AVAILABLE LIGHT KIT OPTION

3-9-122 (1) 15W, 3000k, 90CRI Dimmable LED Kit w/ Matte White

Polycarbonate Diffuser

*shown on 3-122-1540 ceiling fan

CONTROLS

Wall Control Included

• Power On / Off / 6 fan speeds – DC motor

• Forward / Reverse

• Light On / Off / Dimming

AVAILABLE 1/2" DOWNRODS

Bond Included

• Control Fan from Mobile Device

AVAILABLE 45 DEGREE SLOPE CEILING ADAPTERS FOR 1/2" DOWNRODS

Item#

7-1745-59 Matte Black

HEIGHT CHART

FAN HEIGHT

Using 6" Downrod

● Distance of 13.75"

● Distance of 9.5"

GENERAL SPECS

3 Finish Combinations Available Lifetime Motor Warranty

Three Blades

56" Blade Sweep

16-Degree Blade Pitch

6" Downrod Included 1/2" Downrod Diameter

MECHANICAL SPECS

120 DC Motor

6 Speeds Reversible w/ Wall Control

8 Poles

.36/.28/.20/.13/.08/.06 AMPS on H/M/L

30/23/15/9/5/3 WATTS on H/M/L

142/126/110/93/76/59 RPMS on H/M/L

Wall Control Included SMART by BOND technology

ENERGY SPECS

Energy Information at High Speed

Airflow: 5697 Cubic Feet/Minute

Electricity Use: 30 Watts (Excludes Lights)

Airflow Efficiency: 189 Cubic Feet/Minute/Watt Visit QuorumInternational.com for DOE Energy Guide

AVAILABLE LIGHT KIT OPTION (INCLUDED)

(1) 20W, 5CCT, 90CRI, Dimmable LED w/ Matte White Polycarbonate Diffuser, 2700/3000/4000/5000/6500k, 1365 Lumens @ 3000k

CONTROLS

Wall Control Included

• Power On / Off / 6 fan speeds – DC motor

• Forward / Reverse

• Light On / Off / Dimming

AVAILABLE 1/2" DOWNRODS

3-8-1405 Optional

(1) 20W, 5CCT, 90CRI, Dimmable LED w/ Matte White Polycarbonate Diffuser, 2700/3000/4000/5000/6500k, 1365 Lumens @ 3000k

• Power On / Off / 6 fan speeds – DC motor

• Forward / Reverse

• Light On / Off / CCT / Dimming

Bond Included

• Control Fan from Mobile Device

AVAILABLE 45 DEGREE SLOPE CEILING ADAPTERS FOR 1/2" DOWNRODS Item#

HEIGHT CHART

FAN HEIGHT

Using 6" Downrod

● Distance of 14.5"

● Distance of 8.75"

GENERAL SPECS

2 Finishes Available

Lifetime Motor Warranty

Three Blades

56" Blade Sweep

11-Degree Blade Pitch

80" Lead Wire

6" Downrod Included 1/2" Downrod Diameter

MECHANICAL SPECS

DC-15NS Motor

6 Speeds Reversible w/ Wall Control

14 Poles

.33/.21/.14/.09/.07/.05 AMPS on H/M/L

26/17/11/7/4/3 WATTS on H/M/L

111/99/87/75/63/51 RPMS on H/M/L

Wall Control Included SMART by BOND technology

ENERGY SPECS

Energy Information at High Speed

Airflow: 5486 Cubic Feet/Minute

Electricity Use: 28 Watts (Excludes Lights)

Airflow Efficiency: 196 Cubic Feet/Minute/Watt Visit QuorumInternational.com for DOE Energy Guide

Exodus 58"

Indoor/Outdoor - Damp

AVAILABLE LIGHT KIT OPTIONS (INCLUDED)

Optional LED Light Kit (included)

(1) 20W, 5CCT, 90CRI Dimmable LED w/ Clear/White Acrylic Diffuser, 2700/3000/3500/4000/5000k

1483 Lumens @ 3000k

34583-80 shown with optional light kit (included)

CONTROLS

Wall Control Included

• Power On / Off / 6 fan speeds – DC motor

• Forward / Reverse

• Light On / Off / Dimming

AVAILABLE 3/4" DOWNRODS

8-1405 Optional

Optional LED Light Kit (included) (1) 20W, 5CCT, 90CRI Dimmable LED w/ Clear/White Acrylic Diffuser, 2700/3000/3500/4000/5000k

1483 Lumens @ 3000k

34583-59 shown with optional light kit (included)

• Power On / Off / 6 fan speeds – DC motor

• Forward / Reverse

• Light On / Off / Dimming

AVAILABLE 45 DEGREE SLOPE CEILING ADAPTERS FOR 3/4" DOWNRODS (INDOOR USE ONLY)

HEIGHT CHART

FAN HEIGHT

Using 6" Downrod

● Distance of 15.5"

● Distance of 12.5"

GENERAL SPECS

2 Finishes Available

Lifetime Motor Warranty

Three ABS Blades

58" Blade Sweep

13-Degree Blade Pitch

80" Lead Wire

6" Downrod Included 3/4" Downrod Diameter

MECHANICAL SPECS

DCS-15NS Motor

6 Speeds-Reversible with Wall Control

9 Poles

.28/.18/.11/.08/.05/.03 AMPS on H/M/L

21/13/8/5/3/2 WATTS on H/M/L

156/136/115/93/72/51 RPMS on H/M/L

6 Speed Wall Control Included

Remote Control Adaptable

Light Kit Uses (1) 20W, 5CCT, 90CRI LED

UL Damp Listed

ENERGY SPECS

Energy Information at High Speed

Airflow: 6538 Cubic Feet/Minute

Electricity Use: 23 Watts (Excludes Lights)

Airflow Efficiency: 284 Cubic Feet/Minute/Watt Visit QuorumInternational.com for DOE Energy Guide

Dynamo 54"

Indoor/Outdoor - Damp

3-8-2001-0 Included

• Power On / Off / 6 fan speeds – DC motor

• Forward / Reverse

• Light On / Off / Dimming

AVAILABLE 1/2" DOWNRODS

AVAILABLE 45 DEGREE SLOPE CEILING ADAPTERS FOR 1/2" DOWNRODS

HEIGHT CHART

FAN HEIGHT

Using 4" Downrod

● Distance of 14"

● Distance of 12"

GENERAL SPECS

4 Finish Combinations Available Lifetime Motor Warranty

Three Blades

60" Blade Sweep

80" Lead Wire

20-Degree Blade Pitch

4" & 6" Downrods Included 1/2" Downrod Diameter

MECHANICAL SPECS

125mm DC Motor

6 Speeds Reversible w/ Remote Control

8 Poles

.37/.26/.17/.10/.07/.05 AMPS on H/M/L

30/19/12/7/4/3 WATTS on H/M/L

155/136/115/94/74/52 RPMS on H/M/L

Remote Control Included Not Light Kit Adaptable

ENERGY SPECS

Energy Information at High Speed

Airflow: 5850 Cubic Feet/Minute

Electricity Use: 33 Watts (Excludes Lights)

Airflow Efficiency: 178 Cubic Feet/Minute/Watt Visit

Alisio 58"

Indoor/Outdoor - Damp

11981

Aged Brass Dark Walnut ABS Blades (1) 15W, 3000k, 1461 Lumens, 90CRI w/ Clear/White Acrylic Diffuser, Dimmable LED (Included)

CONTROL

Wall Mounted Pocket Remote Included

• Power On / Off / 6 fan speeds – DC motor

• Forward / Reverse

• Light On / Off / Dimming

AVAILABLE 3/4" DOWNRODS

Downrod Finish

Aged Brass

AVAILABLE 45 DEGREE SCOPE CEILING ADAPTER FOR 3/4" DOWNRODS

Item# Finish 7-1945-80 Aged Brass

HEIGHT CHART

FAN HEIGHT

Using 6" Downrod

● Distance of 14.5"

● Distance of 9"

GENERAL SPECS

Lifetime Motor Warranty

Three Blades

58" Blade Sweep

18-Degree Blade Pitch

80" Lead Wire

6" Downrod Included 3/4" Downrod Diameter

MECHANICAL SPECS

108DC x 20mm Motor

6 Speeds Reversible w/ Remote Control

12 Poles

.47/.28/.19/.14/.09/.06 AMPS on H/M/L

36/22/14/9/5/3 WATTS on H/M/L

160/138/119/101/81/62 RPMS on H/M/L

Wall Mounted Pocket Remote Included

ENERGY SPECS

Energy Information at High Speed

Airflow: 6356 Cubic Feet/Minute

Electricity Use: 36 Watts (Excludes Lights)

Airflow Efficiency: 177 Cubic Feet/Minute/Watt Visit QuorumInternational.com for DOE Energy Guide

Strato 60"

Indoor/Outdoor - Damp

AVAILABLE FINISHES

3-117-415

Aged Brass Matte Black Blades

CONTROLS

Wall Control Included

3-117-406 Aged Brass White Blades

3-117-115 Gloss Black Matte Black Blades

3-8-2001-0 Optional

• Power On / Off / 6 fan speeds – DC motor

• Forward / Reverse

• Light On / Off / Dimming Bond Included • Control Fan from Mobile Device

AVAILABLE 1/2" DOWNRODS

• Power On / Off / 6 fan speeds – DC motor

• Forward / Reverse

• Light On / Off / Dimming

AVAILABLE 45 DEGREE SLOPE CEILING ADAPTERS FOR 1/2" DOWNRODS

HEIGHT CHART

FAN HEIGHT

Using 6" Downrod

● Distance of 16"

● Distance of 14.25"

GENERAL SPECS

3 Finish Combinations Available Lifetime Motor Warranty

Three Blades

60" Blade Sweep

20-Degree Blade Pitch

6" Downrod Included 1/2" Downrod Diameter

MECHANICAL SPECS

DC-15NS Motor

6 Speeds Reversible w/ Wall Control

9 Poles

.40/.31/.23/.14/.10/.06 AMPS on H/M/L

31/24/17/10/7/4 WATTS on H/M/L

102/94/84/73/62/50 RPMS on H/M/L

Wall Control Included Remote Control Adaptable SMART by BOND technology Not Light Kit Adaptable

ENERGY SPECS

Energy Information at High Speed

Airflow: 7281 Cubic Feet/Minute

Electricity Use: 31 Watts (Excludes Lights)

Airflow Efficiency: 234 Cubic Feet/Minute/Watt

Halcyon 56"

Indoor

AVAILABLE FINISHES

3-131-40

Aged Brass Black Blades

CONTROL

Wall Mounted Pocket Remote Included

3-131-24 Satin Nickel Walnut Blades

• Power On / Off / 6 fan speeds – DC motor

• Forward / Reverse

• Light On / Off / Dimming

• 2, 4 or 8 hour power off timer

AVAILABLE 3/4" DOWNRODS

3-131-15 Black Walnut Blades

AVAILABLE 45 DEGREE SLOPE CEILING ADAPTERS FOR 3/4" DOWNRODS

Black

HEIGHT CHART

FAN HEIGHT

Using 6" Downrod

● Distance of 13.25"

● Distance of 11.5"

GENERAL SPECS

3 Finishes Available Lifetime Motor Warranty

Three Blades

56" Blade Sweep

14-Degree Blade Pitch

80" Lead Wire

6" Downrod Included

3/4" Downrod Diameter

MECHANICAL SPECS

108mm DC Motor

6 Speeds Reversible w/ Wall Mounted Pocket Remote

12 Poles

.43/.29/.18/.11/.07/.05 AMPS on H/M/L

35/21/12/7/3/2 WATTS on H/M/L

186/160/135/110/83/58 RPMS on H/M/L

Wall Mounted Pocket Remote Included Not Light Kit Adaptable

ENERGY SPECS

Energy Information at High Speed

Airflow: 5331 Cubic Feet/Minute

Electricity Use: 36 Watts (Excludes Lights)

Airflow Efficiency: 148 Cubic Feet/Minute/Watt Visit QuorumInternational.com for DOE

Buran 58"

Indoor/Outdoor - Damp

CONTROL

Wall Mounted Pocket Remote Included

• Power On / Off / 6 fan speeds – DC motor

• Forward / Reverse

• Light On / Off / Dimming

• 2, 4 or 8 hour power off timer

AVAILABLE 3/4" DOWNRODS

AVAILABLE 45 DEGREE SLOPE CEILING ADAPTERS FOR 3/4" DOWNRODS

MECHANICAL SPECS

108 DC x 20mm Motor

6 Speeds Reversible w/ Wall Control

12 Poles

.50/.24/.16/.12/.09/.07 AMPS on H/M/L

36/14/10/7/5/3 WATTS on H/M/L

145/115/100/87/75/60 RPMS on H/M/L

Wall Mounted Pocket Remote Included Not Light Kit Adaptable

ENERGY SPECS

Energy Information at High Speed

Airflow: 6357 Cubic Feet/Minute

Electricity Use: 38 Watts (Excludes Lights)

Airflow Efficiency: 167 Cubic Feet/Minute/Watt Visit QuorumInternational.com for DOE Energy Guide

6" Downrod Included 3/4" Downrod Diameter

Method 60"

Indoor/Outdoor - Wet

CONTROLS

Wall Control Included

• Power On / Off / 6 fan speeds – DC motor

• Forward / Reverse

• Light On / Off / Dimming

AVAILABLE 1/2" DOWNRODS

3-8-1405 Optional

• Power On / Off / 6 fan speeds – DC motor

• Forward / Reverse

• Light On / Off / CCT / Dimming

Bond Included

• Control Fan from Mobile Device

AVAILABLE 45 DEGREE SLOPE CEILING ADAPTER FOR 1/2" DOWNRODS (FOR INDOOR USE ONLY)

Item# Finish 77-1745-59 Matte Black

AVAILABLE HUGGER ADAPTER *NOT FOR USE WITH OPTIONAL CONTROL SHOWN

Item#

7-1600-59

HEIGHT CHART

FAN HEIGHT

Using 6" Downrod

● Distance of 13"

● Distance of 11"

GENERAL SPECS

Lifetime Motor Warranty

Four Blades

60" Blade Sweep

80" Lead Wire

11-Degree Blade Pitch

6" Downrod Included 1/2" Downrod Diameter

Black

MECHANICAL SPECS

DC-15NS Motor

6 Speeds Reversible w/ Wall Control

9 Poles

.42/.24/.15/.10/.06/.04 AMPS on H/M/L

32/18/11/7/4/3 WATTS on H/M/L

141/123/105/87/69/50 RPMS on H/M/L

Wall Control Included SMART by BOND technology Not Light Kit Adaptable

ENERGY SPECS

Energy Information at High Speed

Airflow: 5738 Cubic Feet/Minute

Electricity Use: 32 Watts (Excludes Lights)

Airflow Efficiency: 179 Cubic Feet/Minute/Watt Visit QuorumInternational.com for DOE Energy Guide

Fury 65

Indoor/Outdoor - Damp

AVAILABLE LIGHT KIT OPTIONS

8-41655-59

(1) 24W, 3000k, 2227 Lumens, 90CRI LED w/ White Acrylic Diffuser Light Kit shown on 41655-59 ceiling fan

CONTROLS

Wall Control Included

• Power On / Off / 6 fan speeds – DC motor

• Forward / Reverse

• Light On / Off / Dimming

AVAILABLE 1/2" DOWNRODS

8-1400 Optional

8-41655-8

(1) 24W, 3000k, 2227 Lumens, 90CRI LED w/ White Acrylic Diffuser Light Kit shown on 41655-8 ceiling fan

• Power On / Off / 6 fan speeds – DC motor

• Forward / Reverse

• Light On / Off / Dimming

• For use with WiFi fans

Bond Included

• Control Fan from Mobile Device

AVAILABLE 45 DEGREE SLOPE CEILING ADAPTER FOR 1/2" DOWNRODS (INDOOR USE ONLY)

HEIGHT CHART

FAN HEIGHT

Using 4" Downrod

● Distance of 12.25"

● Distance of 8"

GENERAL SPECS

2 Finishes Available

Limited Lifetime Motor Warranty

Five ABS Blades

65" Blade Sweep

13-Degree Blade Pitch

80" Lead Wire

4" & 6" Downrods Included 1/2" Downrod Diameter

MECHANICAL SPECS

DC30 Motor

6 Speeds-Reversible w/ Wall Control

.33/.26/.20/.15/.11/.08 AMPS on H/M/L

27/19/14/10/7/5 WATTS on H/M/L

90/82/74/66/59/50 RPMS on H/M/L

Wall Control Included

Remote Control Adaptable

SMART by BOND technology

Integral LED Light Kit is 18W, 3000k, 1274 Lumens, 90CRI (dimmable)

ENERGY SPECS

Energy Information at High Speed

Airflow: 6622 Cubic Feet/Minute

Electricity Use: 33 Watts (Excludes Lights)

Airflow Efficiency: 200 Cubic Feet/Minute/Watt Visit QuorumInternational.com for DOE Energy Guide

Aerovon 52"

Indoor/Outdoor - Damp

60523-59

Matte Black

Matte Black ABS Blades

Wall Control Included

• Power On / Off / 4 fan speeds – AC motor AVAILABLE FINISHES

60523-8

Studio White

Studio White ABS Blades

AVAILABLE 1/2" DOWNRODS

HEIGHT CHART

FAN HEIGHT

Using 4" Downrod

● Distance of 9.5"

● Distance of 8"

GENERAL SPECS

2 Finishes Available

Limited Lifetime Motor Warranty

Three ABS Blades

22-Degree Blade Pitch

80" Lead Wire

4" & 6" Downrods Included 1/2" Downrod Diameter

MECHANICAL SPECS

153 x 15 Motor Size

4 Speeds w/ Wall Control

Forward Speed Only - Non-Reversible

.34/.29/.23/.18 AMPS on H/M/L

41/30/19/11 WATTS on H/M/L

175/145/116/85 RPMS on H/M/L

4 Speed Wall Control Included Not Remote Control Adaptable Not Light Kit Adaptable

UL Damp Listed

ENERGY SPECS

Energy Information at High Speed

Airflow: 3937 Cubic Feet/Minute

Electricity Use: 39 Watts (Excludes Lights)

Airflow Efficiency: 100 Cubic Feet/Minute/Watt Visit QuorumInternational.com for DOE Energy Guide

Aerovon 60"

Indoor/Outdoor - Damp

60603-65

Satin Nickel Silver ABS Blades

60603-59

Matte Black

Matte Black ABS Blades

60603-8

Studio White

Studio White ABS Blades

CONTROL

Wall Control Included

• Power On / Off / 4 fan speeds – AC motor

AVAILABLE 1/2" DOWNRODS

Black

HEIGHT CHART

FAN HEIGHT

Using 6" Downrod

● Distance of 15.5"

● Distance of 11.25"

GENERAL SPECS

3 Finishes Available

Limited Lifetime Motor Warranty

Three ABS Blades

60" Blade Sweep

22-Degree Blade Pitch

80" Lead Wire

6" Downrod Included

1/2" Downrod Diameter

MECHANICAL SPECS

172 x 20 Motor Size

4 Speeds w/ Wall Control

16 Poles

Forward Speed Only - Non-Reversible

.38/.30/.23/.17 AMPS on H/M/L

45/29/17/9 WATTS on H/M/L

142/110/83/58 RPMS on H/M/L

4 Speed Wall Control Included

Not Remote Control Adaptable

Not Light Kit Adaptable

UL Damp Listed

ENERGY SPECS

Energy Information at High Speed

Airflow: 4961 Cubic Feet/Minute

Electricity Use: 43 Watts (Excludes Lights)

Airflow Efficiency: 115 Cubic Feet/Minute/Watt

Visit

Indoor/Outdoor - Wet

AVAILABLE FINISH

15583-59

Matte Black

Matte Black ABS Blades

OPTIONAL COVER (INCLUDED)

Optional Cover (included)

15583-59 fan provided with Matte Black and Brushed Brass (shown) bottom cover options for use without light kit

AVAILABLE LIGHT KIT (INCLUDED)

Optional LED Light Kit (included) (1) 20W, 5CCT, 90CRI 120V LED kit w/ Clear/White Acrylic Diffuser, 2700/3000/3500/4000/5000k, 1483 Lumens @ 3000k

CONTROLS

Wall Control Included

• Power On / Off / 6 fan speeds – DC motor

• Forward / Reverse

• Light On / Off / Dimming

AVAILABLE 3/4" DOWNRODS

8-1405 Optional

• Power On / Off / 6 fan speeds – DC motor

• Forward / Reverse

• Light On / Off / Dimming

Bond Included

• Control Fan from Mobile Device

AVAILABLE 45 DEGREE SLOPE CEILING ADAPTERS FOR 3/4" DOWNRODS (INDOOR USE ONLY)

HEIGHT CHART

FAN HEIGHT

Using 4" Downrod

● Distance of 14.25"

● Distance of 12"

GENERAL SPECS

Lifetime Motor Warranty

Three ABS Blades

58" Blade Sweep

14-Degree Blade Pitch

80" Lead Wire

4 & 6" Downrods Included 3/4" Downrod Diameter

MECHANICAL SPECS

DCS-15NS Motor

6 Speeds-Reversible with Wall Control

9 Poles

.29/.19/.12/.08/.05/.03 AMPS on H/M/L

21/14/9/5/3/2 WATTS on H/M/L

145/127/107/88/69/50 RPMS on H/M/L

Wall Control Included

Remote Control Adaptable

SMART by BOND technology

Light Kit Uses (1) 20W, 3000k, 1483 Lumens, 90CRI LED

UL Wet Listed

ENERGY SPECS

Energy Information at High Speed

Airflow: 6173 Cubic Feet/Minute

Electricity Use: 19 Watts (Excludes Lights)

Airflow Efficiency: 325 Cubic Feet/Minute/Watt Visit QuorumInternational.com for DOE Energy Guide

Marino 54"

Indoor/Outdoor - Damp

AVAILABLE FINISHES

97543-59

Matte Black | Satin Opal Glass

Matte Black ABS Blades (1) 18W, 120V, 3000k, 1116 Lumens, 90CRI, Dimmable LED (Included)

CONTROLS

Wall Control Included

• Power On / Off / 6 fan speeds – DC motor

• Forward / Reverse

• Light On / Off / Dimming

AVAILABLE 1/2" DOWNRODS

8-347 Optional

97543-8

Studio White | Satin Opal Glass

Studio White ABS Blades (1) 18W, 120V, 3000k, 1116 Lumens, 90CRI, Dimmable LED (Included)

• Power On / Off / 6 fan speeds – DC motor

• Forward / Reverse

• Light On / Off / Dimming

AVAILABLE 45 DEGREE SLOPE CEILING ADAPTERS FOR 1/2" DOWNRODS (INDOOR USE ONLY)

HEIGHT CHART

FAN HEIGHT

Using 4" Downrod

● Distance of 12.25"

● Distance of 10.25"

GENERAL SPECS

2 Finishes Available

Lifetime Motor Warranty

Three ABS Blades

54" Blade Sweep

14-Degree Blade Pitch

80" Lead Wire

4" & 6" Downrods Included 1/2" Downrod Diameter

MECHANICAL SPECS

DC Motor

6 Speeds-Reversible w/ Wall Control

8 Poles

.22/.16/.11/.07/.06/.05 AMPS on H/M/L

16/11/7/5/3/2 WATTS on H/M/L

165/147/127/101/73/52 RPMS on H/M/L

18W LED Light Kit Included

Wall Control Included

Remote Control Adaptable

ENERGY SPECS

Energy Information at High Speed

Airflow: 6088 Cubic Feet/Minute

Electricity Use: 19 Watts (Excludes Lights)

Airflow Efficiency: 320 Cubic Feet/Minute/Watt

Visit QuorumInternational.com for DOE Energy Guide

LIGHT SOURCE LED MODULE

66565-8

Studio White | White Acrylic Diffuser

Studio White Blades (1) 15W, 3000k, 986 Lumens, 90CRI Dimmable LED kit

CONTROL

Wall Control Included

• Power On / Off / 3 fan speeds – AC motor

• Forward / Reverse

• Light On / Off / Dimming

AVAILABLE 1/2" DOWNRODS

66565-65

Satin Nickel | White Acrylic Diffuser

Silver Blades (1) 15W, 3000k, 986 Lumens, 90CRI Dimmable LED kit

AVAILABLE 45 DEGREE SLOPE CEILING ADAPTER FOR 1/2" DOWNRODS

White

HEIGHT CHART

FAN HEIGHT

Using 4.5" Downrod

● Distance of 13.5"

● Distance of 10.75"

GENERAL SPECS

2 Finishes Available Lifetime Motor Warranty

Five Blades

56" Blade Sweep

16-Degree Blade Pitch

80" Lead Wire

4.5" Downrod Included 1/2" Downrod Diameter

MECHANICAL SPECS

120DC-25mm Motor

6 Speeds-Reversible w/ Wall Control

8 Poles

.25/.23/.20/.15/.10/.07 AMPS on H/M/L

24/19/12/9/6/4 WATTS on H/M/L

178/164/141/121/100/83 RPMS on H/M/L

6 Speed Wall Control Included LED Light Kit is 15W, 3000k, 986 Lumens, 90CRI (dimmable)

ENERGY SPECS

Energy Information at High Speed Airflow: 5560 Cubic Feet/Minute

Electricity Use: 31 Watts (Excludes Lights)

Airflow Efficiency: 179 Cubic Feet/Minute/Watt Visit QuorumInternational.com for DOE Energy Guide

Kress 60"

Indoor

74603-86

Oiled Bronze Oiled Bronze Blades

CONTROL

Wall Control Included

• Power On / Off / 3 fan speeds – AC motor

• Forward / Reverse

• Light On / Off / Dimming

AVAILABLE 1/2" DOWNRODS

HEIGHT CHART

FAN HEIGHT

Using 4.5" Downrod

● Distance of 12.5"

● Distance of 9.75"

GENERAL SPECS

1 Finish Available

Lifetime Motor Warranty

Three Blades

60" Blade Sweep

16-Degree Blade Pitch

80" Lead Wire

4.5 Downrod Included 1/2" Downrod Diameter

MECHANICAL SPECS

120DC-25mm Motor

6 Speeds-Reversible w/ Wall Control

8 Poles

.28/.20/.15/.10/.07/.05 AMPS on H/M/L

19/13/9/6/4/2 WATTS on H/M/L

200/173/151/123/100/77 RPMS on H/M/L

6 Speed Wall Control Included

ENERGY SPECS

Energy Information at High Speed

Airflow: 5876 Cubic Feet/Minute

Electricity Use : 21 Watts (Excludes Lights)

Airflow Efficiency: 279 Cubic Feet/Minute/Watt Visit QuorumInternational.com for DOE Energy Guide

Oslo 52"

Indoor/Outdoor - Damp

AVAILABLE LIGHT KIT OPTION

CONTROLS

Wall Control Included

3-9-101

Matte White Glass (1) 24W, 3000k, 90CRI, Dimmable LED

• Power On / Off / 3 fan speeds – AC motor

• Forward / Reverse

• Light On / Off / Dimming

AVAILABLE 1/2" DOWNRODS

3-8-1000-0 Optional

• Power On / Off / 3 fan speeds – AC motor

• Forward / Reverse

• Light On / Off / Dimming

• 2, 4 or 8 hour power off timer

AVAILABLE 45 DEGREE SLOPE CEILING ADAPTERS FOR 1/2" DOWNRODS

7-1745-8 Studio White 7-1745-59 Matte Black 7-1745-62 Polished Nickel

HEIGHT CHART

FAN HEIGHT

Using 4" Downrod

● Distance of 14.5"

● Distance of 11.5"

GENERAL SPECS

6 Finishes Available Lifetime Motor Warranty

Four Blades

52" Blade Sweep

14-Degree Blade Pitch

80" Lead Wire

4" & 6" Downrods Included 1/2" Downrod Diameter

7-1745-65 Satin Nickel 7-1745-80 Aged Brass 7-1745-86 Oiled Bronze

MECHANICAL SPECS

153x18 AC Motor

3 Speeds Reversible w/ Manual Switch 14 Poles

.50/.41/.27 AMPS on H/M/L

64/40/16 WATTS on H/M/L

147/121/72 RPMS on H/M/L Wall Control Included Remote Control Adaptable

ENERGY SPECS

Energy Information at High Speed

Airflow: 4990 Cubic Feet/Minute

Electricity Use: 64 Watts (Excludes Lights)

Airflow Efficiency: 77 Cubic Feet/Minute/Watt Visit QuorumInternational.com for DOE Energy Guide

Maxwell 52" Indoor

AVAILABLE FINISHES

CONTROLS

7-1307-0

• Power On / Off / 3 fan speeds – AC motor

• Forward / Reverse

• Light On / Off / Dimming – Screw base LED bulb

AVAILABLE 1/2" DOWNRODS

7-501-0 Optional

• Power On / Off / 3 fan speeds – AC motor

• Forward / Reverse

• Light On / Off / Dimming

• 2, 4 or 8 hour power off timer

8-223 Optional • Via BOND app

• Power On / Off / 3 fan speeds – AC motor

• Forward / Reverse

• Light On / Off / Dimming

AVAILABLE 45 DEGREE SLOPE CEILING ADAPTERS FOR 1/2" DOWNRODS

AVAILABLE HUGGER ADAPTERS *NOT FOR USE WITH OPTIONAL CONTROLS SHOWN

HEIGHT CHART

FAN HEIGHT

Using 4" Downrod

● Distance of 16.75"

● Distance of 10.25"

GENERAL SPECS

2 Finishes Available

Lifetime Motor Warranty

Five Blades

52" Blade Sweep

12.5-Degree Blade Pitch

80" Lead Wire

4" & 6" Downrods Included 1/2" Downrod Diameter

MECHANICAL SPECS

153x17 Motor Size

3 Speeds w/ Pull Chain Switch

Reversible w/ Manual Reverse Switch

14 Poles

.48/.32/.21 AMPS on H/M/L

57/26/11 WATTS on H/M/L

175/120/78 RPMS on H/M/L

LED Light Kit is (2) 9W M, 3000k, 80CRI (non-dimmable)

Triple Capacitor

Remote Control Adaptable

ENERGY SPECS

Energy Information at High Speed

Airflow: 4442 Cubic Feet/Minute

Electricity Use: 58 Watts (Excludes Lights)

Airflow Efficiency: 76 Cubic Feet/Minute/Watt Visit QuorumInternational.com for

Allegro 52" Indoor

AVAILABLE FINISHES

3-119-40

Aged Brass Black Blades

AVAILABLE LIGHT KIT OPTIONS

3-9-119-40

Aged Brass

Matte White Glass (1) 18W, 3000k, 1481 Lumens, 90CRI, Dimmable LED

3-119-24

Satin Nickel Silver/Walnut Blades

3-119-15

Black Matte Black Blades

3-9-119-24

Satin Nickel

Matte White Glass (1) 18W, 3000k, 1481 Lumens, 90CRI, Dimmable LED

3-9-119-15

Black

Matte White Glass (1) 18W, 3000k, 1481 Lumens, 90CRI, Dimmable LED

3-119-6

White White/Weathered Grey Blades

3-9-119-6

White

Matte White Glass (1) 18W, 3000k, 1481 Lumens, 90CRI, Dimmable LED

8-223 Optional

• Via BOND app

• Power On / Off / 3 fan speeds – AC motor

• Forward / Reverse

• Light On / Off / Dimming

AVAILABLE 1/2" DOWNRODS Downrod

AVAILABLE 45 DEGREE SLOPE CEILING ADAPTERS FOR 1/2" DOWNRODS

Item# Finish

7-1745-8 Studio White

Item# Finish

7-1745-65 Satin Nickel 7-1745-80 Aged Brass

AVAILABLE HUGGER ADAPTERS *NOT FOR USE WITH OPTIONAL CONTROL SHOWN

Item# Finish

7-1600-8

Studio White 7-1600-59 Matte Black

HEIGHT CHART

FAN HEIGHT

Using 4" Downrod

● Distance of 12.25"

● Distance of 8.25"

GENERAL SPECS

4 Finishes Available

Lifetime Motor Warranty

Three Blades

52" Blade Sweep

12-Degree Blade Pitch

80" Lead Wire

4" & 6" Downrods Included 1/2" Downrod Diameter

Item#

Finish

7-1600-65 Satin Nickel 7-1600-80 Aged Brass

MECHANICAL SPECS

153x17 AC Motor

3 Speeds Reversible w/ Manual Switch

16 Poles

.49/.34/.21 AMPS on H/M/L 59/27/11 WATTS on H/M/L

182/124/76 RPMS on H/M/L

ENERGY SPECS

Energy Information at High Speed

Airflow: 4584 Cubic Feet/Minute

Electricity Use: 56 Watts (Excludes Lights)

Airflow Efficiency: 81 Cubic Feet/Minute/Watt Visit QuorumInternational.com for DOE Energy Guide

Adora 52"

Indoor/Outdoor - Wet

AVAILABLE FINISHES

3-9-110-24

Satin Nickel

Matte White Glass

18w, 3000k, 1414 Initial Lumens, 90CRI, Dimmable LED, Wet Listed

CONTROLS

Wall Control Included

• Power On / Off / 3 fan speeds – AC motor

• Forward / Reverse

• Light On / Off / Dimming

AVAILABLE 1/2" DOWNRODS

3-9-110-15

Black

Matte White Glass

18w, 3000k, 1414 Initial Lumens, 90CRI, Dimmable LED, Wet Listed

3-8-110-0 Optional

• Power On / Off / 3 fan speeds – AC motor

• Forward / Reverse

• Light On / Off / Dimming

3-9-110-6

White

Matte White Glass

18w, 3000k, 90CRI, Dimmable LED Wet Listed 1414 Initial Lumens

AVAILABLE 45 DEGREE SLOPE CEILING ADAPTERS FOR 1/2" DOWNRODS Item#

Black

AVAILABLE HUGGER ADAPTERS *NOT FOR USE WITH OPTIONAL CONTROL SHOWN Item#

White

Black

HEIGHT CHART

FAN HEIGHT

Using 4" Downrod

● Distance of 13.5"

● Distance of 11.5"

GENERAL SPECS

3 Finishes Available Lifetime Motor Warranty

Three Blades

52" Blade Sweep

80" Lead Wire

20-Degree Blade Pitch

4" & 6" Downrods Included 1/2" Downrod Diameter

MECHANICAL SPECS

153x18 AC Motor

3 Speeds Reversible w/ Manual Reverse Switch

14 Poles

.39/.34/.25 AMPS on H/M/L

47/36/19 WATTS on H/M/L

130/113/76 RPMS on H/M/L Wall Control Included Remote Control Adaptable

ENERGY SPECS

Energy Information at High Speed

Airflow: 4822 Cubic Feet/Minute

Electricity Use: 47 Watts (Excludes Lights)

Airflow Efficiency: 102 Cubic Feet/Minute/Watt Visit QuorumInternational.com for DOE Energy Guide LIGHT SOURCE

Axis

AVAILABLE

26544-80

Aged Brass

Matte Black Blades

(1) 24W, 3000k, 1599 Lumens, 90CRI Dimmable LED (Included)

CONTROLS

Wall Control Included

• Power On / Off / 6 fan speeds – DC motor

• Forward / Reverse

• Light On / Off / Dimming

AVAILABLE 1/2" DOWNRODS Downrod Finish

Aged Brass NA

8-347 Optional

• Power On / Off / 6 fan speeds – DC motor

• Forward / Reverse

• Light On / Off / Dimming

AVAILABLE 45 DEGREE SLOPE CEILING ADAPTERS FOR 1/2" DOWNRODS

Item# Finish 7-1745-80 Aged Brass

HEIGHT CHART

FAN HEIGHT

Using 4" Downrod

● Distance of 12.25"

● Distance of 7.25"

GENERAL SPECS

Lifetime Motor Warranty

Four Blades

54" Blade Sweep

16-Degree Blade Pitch

4" & 6" Downrods Included 1/2" Downrod Diameter

MECHANICAL SPECS

DC153 Motor

6 Speeds-Reversible

80" Lead Wire

8 Poles

.33/.23/.15/.09/.06/.04 AMPS on H/M/L

26/17/11/6/4/2 WATTS on H/M/L

145/123/106/88/68/50 RPMS on H/M/L

Integral LED Light Kit is 24W, 3000k, 1599 Lumens, 90CRI (dimmable)

Wall Control Included

Remote Control Adaptable

ENERGY SPECS

Energy Information at High Speed

Airflow: 3970 Cubic Feet/Minute

Electricity Use: 32 Watts (Excludes Lights)

Airflow Efficiency: 124 Cubic Feet/Minute/Watt Visit QuorumInternational.com for DOE Energy Guide

Juno 60" Indoor

AVAILABLE FINISHES

3-109-40

Aged Brass Black/Weathered Oak Blades

3-109-15

Black Black/Weathered Gray Blades

AVAILABLE LIGHT KIT OPTIONS

3-9-109-40

Aged Brass | Matte White Glass (1) 18W, 3000k, 90CRI, Dimmable LED Kit 1143 Lumens @ 3000k

3-109-22

Oiled Bronze Oiled Bronze/Weathered Oak Blades

3-109-6 White White Blades

3-9-109-22

Oiled Bronze | Matte White Glass (1) 18W, 3000k, 90CRI, Dimmable LED Kit 1143 Lumens @ 3000k

3-9-109-15

Black | Matte White Glass

(1) 18W, 3000k, 90CRI, Dimmable LED Kit 1143 Lumens @ 3000k

3-109-24

Satin Nickel Silver/Weathered Gray Blades

3-9-109-24

Satin Nickel | Matte White Glass (1) 18W, 3000k, 90CRI, Dimmable LED Kit 1143 Lumens @ 3000k

3-9-109-6

White | Matte White Glass (1) 18W, 3000k, 90CRI, Dimmable LED Kit 1143 Lumens @ 3000k

CONTROLS

Wall Control Included

• Power On / Off / 6 fan speeds – DC motor

• Forward / Reverse

• Light On / Off / Dimming

AVAILABLE 1/2" DOWNRODS

3-8-347 Optional

• Power On / Off / 6 fan speeds – DC motor

• Forward / Reverse

• Light On / Off / Dimming

AVAILABLE 45 DEGREE SLOPE CEILING ADAPTERS FOR 1/2" DOWNRODS

Item#

7-1745-8

7-1745-59

Finish

Studio White

Matte Black

7-1745-65 Satin Nickel

Item# Finish 7-1745-80 Aged Brass 7-1745-86 Oiled Bronze

AVAILABLE HUGGER ADAPTERS *NOT FOR USE WITH OPTIONAL CONTROL SHOWN

Item#

7-1600-8

7-1600-59

Finish

Studio White

Matte Black 7-1600-65 Satin Nickel

HEIGHT CHART

FAN HEIGHT

Using 4" Downrod

● Distance of 15.75"

● Distance of 13.75"

GENERAL SPECS

5 Finishes Available Lifetime Motor Warranty

Three Blades

60" Blade Sweep

16-Degree Blade Pitch

80" Lead Wire

4" & 6" Downrods Included 1/2" Downrod Diameter

Item#

Finish

7-1600-80 Aged Brass 7-1600-86 Oiled Bronze

MECHANICAL SPECS

125mm DC Motor

6 Speeds Reversible w/ Wall Control .39/.29/.19/.13/.08/.05 AMPS on H/M/L 31/21/14/9/5/3 WATTS on H/M/L 119/105/92/78/64/49 RPMS on H/M/L Wall Control Included Remote Control Adaptable

ENERGY SPECS

Energy Information at High Speed Airflow: 5789 Cubic Feet/Minute Electricity Use: 36 Watts (Excludes Lights) Airflow Efficiency: 161 Cubic Feet/Minute/Watt Visit QuorumInternational.com for DOE Energy Guide

Coda 56" Indoor

3-103-24

CONTROLS

Wall Control Included

• Power On / Off / 3 fan speeds – AC motor

• Forward / Reverse

• Light On / Off / Dimming

AVAILABLE 1/2" DOWNRODS

3-8-3000 Optional

• Power On / Off / 6 fan speeds – DC motor

• Forward / Reverse

• Light On / Off / Dimming

AVAILABLE 45 DEGREE SLOPE CEILING ADAPTERS FOR 1/2" DOWNRODS Item#

7-1745-62 Polished Nickel 7-1745-65 Satin Nickel

HEIGHT CHART

7-1745-86 Oiled Bronze

FAN HEIGHT

Using 4.5" Downrod

● Distance of 11"

● Distance of 8.5"

GENERAL SPECS

3 Finishes Available

Lifetime Motor Warranty

Three Blades

52" Blade Sweep

13.5-Degree Blade Pitch

80" Lead Wire

4.5" Downrods Included 1/2" Downrod Diameter

MECHANICAL SPECS

120DCx15 Motor

6 Speeds Reversible w/ Wall Control

8 Poles

.42/.34/.24/.16/.11/.08 AMPS on H/M/L

29/23/15/10/6/4 WATTS on H/M/L

166/153/133/112/90/72 RPMS on H/M/L

Wall Control Included Remote Control Adaptable

ENERGY SPECS

Energy Information at High Speed

Airflow: 6618 Cubic Feet/Minute

Electricity Use: 33 Watts (Excludes Lights) Airflow Efficiency: 200 Cubic Feet/Minute/Watt

Solis 56"

Indoor/Outdoor - Wet

AVAILABLE FINISHES

3-107-24 Satin Nickel Silver ABS Blades

CONTROLS

Wall Control Included

• Power On / Off / 4 fan speeds – AC motor

AVAILABLE 1/2" DOWNRODS

3-107-15 Black Matte Black ABS Blades

3-8-4000 Optional

• Power On / Off / 3 fan speeds – AC motor

• Light On / Off / Dimming • 2, 4 or 8 hour power off timer

3-107-6 White White ABS Blades

AVAILABLE 45 DEGREE SLOPE CEILING ADAPTERS FOR 1/2" DOWNRODS

HEIGHT CHART

FAN HEIGHT

Using 4.5" Downrod

● Distance of 11.5"

● Distance of 11"

GENERAL SPECS

3 Finishes Available Lifetime Motor Warranty Three Blades

56" Blade Sweep

15-Degree Blade Pitch

80" Lead Wire

4.5" Downrod Included 1/2" Downrod Diameter

MECHANICAL SPECS

188x18 Motor

4 Speeds Reversible w/ Manual Reverse Switch 16 Poles

.43/.34/.27/.17 AMPS on H/M/L

52/32/20/8 WATTS on H/M/L

157/120/96/58 RPMS on H/M/L

Wall Control Included Remote Control Adaptable Not Light Kit Adaptable

ENERGY SPECS

Energy Information at High Speed

Airflow: 6192 Cubic Feet/Minute

Electricity Use: 51 Watts (Excludes Lights)

Airflow Efficiency: 121 Cubic Feet/Minute/Watt Visit QuorumInternational.com for DOE Energy Guide

Sol 52"

AVAILABLE

CONTROLS

Wall Control Included

• Power On / Off / 3 fan speeds – DC motor

• Forward / Reverse

• Light On / Off / Dimming

AVAILABLE 1/2" DOWNRODS

3-8-3000 Optional

• Power On / Off / 6 fan speeds – DC motor

• Forward / Reverse

• Light On / Off / Dimming

AVAILABLE 45 DEGREE SLOPE CEILING ADAPTERS FOR 1/2" DOWNRODS

HEIGHT CHART

FAN HEIGHT

Using 4.5" Downrod

● Distance of 11.5"

● Distance of 8"

GENERAL SPECS

3 Finishes Available

Lifetime Motor Warranty

Three Blades

52" Blade Sweep

15-Degree Blade Pitch

80" Lead Wire

4.5" Downrod Included 1/2" Downrod Diameter

MECHANICAL SPECS

120mm DC Motor

6 Speeds Reversible w/ Wall Control

8 Poles

.36/.26/.19/.13/.09/.07 AMPS on H/M/L

24/16/11/8/5/3 WATTS on H/M/L

172/151/133/114/92/73 RPMS on H/M/L

Wall Control Included Remote Control Adaptable Not Light Kit Adaptable

ENERGY SPECS

Energy Information at High Speed

Airflow: 4644 Cubic Feet/Minute

Electricity Use: 23 Watts (Excludes Lights)

Airflow Efficiency: 202 Cubic Feet/Minute/Watt Visit QuorumInternational.com for

Expo 52" Indoor

AVAILABLE FINISHES

20523-80

Aged Brass | Satin Opal Glass

Matte Black | Walnut Oak Blades (2) 9W M, 3000k, 1600 Lumens, 80CRI Non-Dimmable LED Bulbs (Included)

20523-65

Satin Nickel | Satin Opal Glass

Silver | Weathered Gray Blades (2) 9W M, 3000k, 1600 Lumens, 80CRI Non-Dimmable LED Bulbs (Included)

20523-59

Matte Black | Satin Opal Glass

Matte Black | Weathered Gray Blades (2) 9W M, 3000k, 1600 Lumens, 80CRI Non-Dimmable LED Bulbs (Included)

20523-8

Studio White | Satin Opal Glass

White Blades (2) 9W M, 3000k, 1600 Lumens, 80CRI Non-Dimmable LED Bulbs (Included)

CONTROLS

7-1307-0 Optional

• Power On / Off / 3 fan speeds – AC motor

• Forward / Reverse

• Light On / Off / Dimming – Screw base LED bulb

AVAILABLE 1/2" DOWNRODS

7-501-0 Optional

• Power On / Off / 3 fan speeds – AC motor

• Forward / Reverse

• Light On / Off / Dimming

• 2, 4 or 8 hour power off timer

8-223 Optional

• Via BOND app

• Power On / Off / 3 fan speeds – AC motor

• Forward / Reverse

• Light On / Off / Dimming

AVAILABLE 45 DEGREE SLOPE CEILING ADAPTERS FOR 1/2" DOWNRODS

AVAILABLE HUGGER ADAPTERS *NOT FOR USE WITH OPTIONAL CONTROLS SHOWN Item#

HEIGHT CHART

FAN HEIGHT

Using 4" Downrod

● Distance of 13.25"

● Distance of 9"

GENERAL SPECS

4 Finishes Available

Lifetime Motor Warranty

Three Blades

52" Blade Sweep

12.5-Degree Blade Pitch

4" Downrod Included 1/2" Downrod Diameter

MECHANICAL SPECS

153x15 Motor Size

3 Speeds w/ Pull Chain Switch

Reversible w/ Manual Reverse Switch

80" Lead Wire

14 Poles

.48/.35/.21 AMPS on H/M/L

58/29/11 WATTS on H/M/L

185/130/75 RPMS on H/M/L

LED Light Kit is (2) 9W M, 3000k, 80CRI (non-dimmable)

Triple Capacitor

Remote Control Adaptable

ENERGY SPECS

Energy Information at High Speed Airflow: 4635 Cubic Feet/Minute Electricity Use: 56 Watts (Excludes Lights) Airflow Efficiency: 82 Cubic Feet/Minute/Watt

Expo 52" 4 Blade

Indoor

AVAILABLE FINISHES

20524-59

20524-8

CONTROLS

7-1307-0 Optional

• Power On / Off / 3 fan speeds – AC motor

• Forward / Reverse

• Light On / Off / Dimming – Screw base LED bulb

AVAILABLE 1/2" DOWNRODS

7-501-0 Optional

• Power On / Off / 3 fan speeds – AC motor

• Forward / Reverse

• Light On / Off / Dimming

• 2, 4 or 8 hour power off timer

8-223 Optional • Via BOND app

• Power On / Off / 3 fan speeds – AC motor

• Forward / Reverse

• Light On / Off / Dimming

AVAILABLE 45 DEGREE SLOPE CEILING ADAPTERS FOR 1/2" DOWNRODS

AVAILABLE HUGGER ADAPTERS *NOT FOR USE WITH OPTIONAL CONTROLS SHOWN

HEIGHT CHART

FAN HEIGHT

Using 4" Downrod

● Distance of 13.25"

● Distance of 9"

GENERAL SPECS

4 Finishes Available

Lifetime Motor Warranty

Four Blades

52" Blade Sweep

12.5-Degree Blade Pitch

4" Downrod Included 1/2" Downrod Diameter

MECHANICAL SPECS

153x17 Motor Size

3 Speeds w/ Pull Chain Switch

Reversible w/ Manual Reverse Switch

80" Lead Wire

14 Poles

.52/.34/.21 AMPS on H/M/L

63/29/11 WATTS on H/M/L

167/112/63 RPMS on H/M/L

LED Light Kit is (2) 9W M, 3000k, 80CRI (non-dimmable) Triple Capacitor Remote Control Adaptable

ENERGY SPECS

Energy Information at High Speed Airflow: 4533 Cubic Feet/Minute Electricity Use: 64 Watts (Excludes Lights)

Expo 60" Indoor

AVAILABLE FINISHES

20603-80

Aged Brass | Satin Opal Glass

Matte Black | Walnut Oak Blades (2) 9W M, 3000k, 1600 Lumens, 80CRI Non-Dimmable LED Bulbs (Included)

20603-65

Satin Nickel | Satin Opal Glass

Silver | Weathered Gray Blades (2) 9W M, 3000k, 1600 Lumens, 80CRI Non-Dimmable LED Bulbs (Included)

20603-59

Matte Black | Satin Opal Glass

Matte Black | Weathered Gray Blades (2) 9W M, 3000k, 1600 Lumens, 80CRI Non-Dimmable LED Bulbs (Included)

20603-8

Studio White | Satin Opal Glass

White Blades (2) 9W M, 3000k, 1600 Lumens, 80CRI Non-Dimmable LED Bulbs (Included)

CONTROLS

7-1307-0 Optional

• Power On / Off / 3 fan speeds – AC motor

• Forward / Reverse

• Light On / Off / Dimming – Screw base LED bulb

AVAILABLE 1/2" DOWNRODS

7-501-0 Optional

• Power On / Off / 3 fan speeds – AC motor

• Forward / Reverse

• Light On / Off / Dimming

• 2, 4 or 8 hour power off timer

8-223 Optional • Via BOND app

• Power On / Off / 3 fan speeds – AC motor

• Forward / Reverse

• Light On / Off / Dimming

AVAILABLE 45 DEGREE SLOPE CEILING ADAPTERS FOR 1/2" DOWNRODS

AVAILABLE HUGGER ADAPTERS *NOT FOR USE WITH OPTIONAL CONTROLS SHOWN

HEIGHT CHART

FAN HEIGHT

Using 6" Downrod

● Distance of 15.75"

● Distance of 11.5"

GENERAL SPECS

4 Finishes Available

Lifetime Motor Warranty

Three Blades

60" Blade Sweep

12.5-Degree Blade Pitch

80" Lead Wire

6" Downrod Included

1/2" Downrod Diameter

MECHANICAL SPECS

172x20 Motor Size

3 Speeds w/ Pull Chain Switch

Reversible w/ Manual Reverse Switch

16 Poles

.50/.40/.23 AMPS on H/M/L

61/37/12 WATTS on H/M/L

141/110/63 RPMS on H/M/L

LED Light Kit is (2) 9W M, 3000k, 80CRI (non-dimmable)

Triple Capacitor

Remote Control Adaptable

ENERGY SPECS

Energy Information at High Speed Airflow: 5560 Cubic Feet/Minute

Electricity Use: 59 Watts (Excludes Lights)

Airflow Efficiency: 94 Cubic Feet/Minute/Watt

Expo 60" 4 Blade

Indoor

AVAILABLE FINISHES

20604-80

20604-59

20604-8

CONTROLS

7-1307-0 Optional

• Power On / Off / 3 fan speeds – AC motor

• Forward / Reverse

• Light On / Off / Dimming – Screw base LED bulb

AVAILABLE 1/2" DOWNRODS

7-501-0 Optional

• Power On / Off / 3 fan speeds – AC motor

• Forward / Reverse

• Light On / Off / Dimming

• 2, 4 or 8 hour power off timer

8-223 Optional

• Via BOND app

• Power On / Off / 3 fan speeds – AC motor

• Forward / Reverse

• Light On / Off / Dimming

AVAILABLE 45 DEGREE SLOPE CEILING ADAPTERS FOR 1/2" DOWNRODS Item#

Black

AVAILABLE HUGGER ADAPTERS *NOT FOR USE WITH OPTIONAL CONTROLS SHOWN

Item# Finish 7-1600-8 Studio White 7-1600-59 Matte Black

HEIGHT CHART

FAN HEIGHT

Using 6" Downrod

● Distance of 15.75"

● Distance of 11.5"

GENERAL SPECS

4 Finishes Available

Lifetime Motor Warranty

Four Blades

60" Blade Sweep

12.5-Degree Blade Pitch

6" Downrod Included 1/2" Downrod Diameter

Item# Finish 7-1600-65 Satin Nickel 7-1600-80 Aged Brass

MECHANICAL SPECS

188x20 Motor Size

3 Speeds w/ Pull Chain Switch

Reversible w/ Manual Reverse Switch

80" Lead Wire

16 Poles

.58/.47/.28 AMPS on H/M/L

68/43/15 WATTS on H/M/L

154/120/67 RPMS on H/M/L

LED Light Kit is (2) 9W M, 3000k, 80CRI (non-dimmable)

Triple Capacitor

Remote Control Adaptable

Wall Control Adaptable

ENERGY SPECS

Energy Information at High Speed Airflow: 5310 Cubic Feet/Minute Electricity Use: 68 Watts (Excludes Lights)

Quest 52" Indoor

68524-65

Satin Nickel | Satin Opal Glass

Silver Blades

(1) 18W, 3000k, 1342 Lumens, 90CRI Dimmable LED

CONTROL

Wall Control Included

• Power On / Off / 3 fan speeds – AC motor

• Forward / Reverse

• Light On / Off / Dimming

AVAILABLE 1/2" DOWNRODS

HEIGHT CHART

FAN HEIGHT

Using 4" Downrod

● Distance of 14.25"

● Distance of 10.25"

GENERAL SPECS

Lifetime Motor Warranty

Five Blades

52" Blade Sweep

14-Degree Blade Pitch

80" Lead Wire

4" & 6" Downrods Included 1/2" Downrod Diameter

MECHANICAL SPECS

172 x 17 Motor Size

3 Speeds-Reversible/Manual Reverse Switch

16 Poles

.54/.50/.35 AMPS on H/M/L

64/43/17 WATTS on H/M/L

168/140/79 RPMS on H/M/L

Dimmable Light Kit

LED Light Kit is 18W, 3000k, 1342 Lumens, 90CRI

Wall Control Included

Remote Control Adaptable

ENERGY SPECS

Energy Information at High Speed

Airflow: 5067 Cubic Feet/Minute

Electricity Use: 64 Watts (Excludes Lights)

Airflow Efficiency: 79 Cubic Feet/Minute/Watt Visit QuorumInternational.com for DOE Energy Guide

Kimbo 60"

Indoor/Outdoor - Damp

AVAILABLE LIGHT KIT OPTIONS (INCLUDED)

Optional LED Light Kit (included)

(1) 20W, 5CCT, 90CRI 120V LED kit w/ White Polycarbonate Diffuser

2700/3000/4000/5000/6500k, 1365 Lumens @ 3000k

CONTROLS

Wall Control Included

• Power On / Off / 6 fan speeds – DC motor

• Forward / Reverse

• Light On / Off / Dimming

AVAILABLE 1/2" DOWNRODS

Bond Included

• Control Fan from Mobile Device

Optional LED Light Kit (included) (1) 20W, 5CCT, 90CRI 120V LED kit w/ White Polycarbonate Diffuser 2700/3000/4000/5000/6500k, 1365 Lumens @ 3000k

AVAILABLE 45 DEGREE SLOPE CEILING ADAPTERS FOR 1/2" DOWNRODS (INDOOR USE ONLY)

HEIGHT CHART

FAN HEIGHT

Using 6" Downrod

● Distance of 15"

● Distance of 11"

GENERAL SPECS

2 Finish Combinations Available Lifetime Motor Warranty

Six ABS Blades

60" Blade Sweep

12.5-Degree Blade Pitch

80" Lead Wire

6" Downrod Included 1/2" Downrod Diameter

MECHANICAL SPECS

DC-30NS Motor

6 Speeds-Reversible

9 Poles

.39/.20/.13/.09/.05/.04 AMPS on H/M/L

23/16/10/6/4/3 WATTS on H/M/L

135/118/101/84/67/50 RPMS on H/M/L

Remote Control Adaptable

Wall Control Included

SMART by BOND technology

Detachable Switch Cup

Supplied with Optional LED Kit or Cover Plate for use with no Light Kit

UL Damp Listed

ENERGY SPECS

Energy Information at High Speed Airflow: 7259 Cubic Feet/Minute Electricity Use: 24 Watts (Excludes

Reni 65" Indoor

AVAILABLE LIGHT KIT OPTIONS

8-21653

24W, 3000k, 1767 Lumens, 90CRI LED kit w/ White Glass Diffuser Light Kit shown on 21653-80 ceiling fan

Wall Control Included

• Power On / Off / 6 fan speeds – DC motor

• Forward / Reverse

• Light On / Off / Dimming

AVAILABLE 1/2" DOWNRODS

8-1400 Optional

8-21653

24W, 3000k, 1767 Lumens, 90CRI LED kit w/ White Glass Diffuser Light Kit shown on 21653-59 ceiling fan

• Power On / Off / 6 fan speeds – DC motor

• Forward / Reverse

• Light On / Off / Dimming

• For use with WiFi fans

AVAILABLE 45 DEGREE SLOPE CEILING ADAPTERS FOR 1/2" DOWNRODS

HEIGHT CHART

FAN HEIGHT

Using 4" Downrod

● Distance of 12.5"

● Distance of 9.25"

GENERAL SPECS

2 Finishes Available Lifetime Motor Warranty

Three Blades

65" Blade Sweep

11.5-Degree Blade Pitch

80" Lead Wire

4" & 6" Downrods Included 1/2" Downrod Diameter

MECHANICAL SPECS

DC-165NM Motor

6 Speeds-Reversible w/ Wall Control

6 Poles

.34/.23/.16/.10/.06/.04 AMPS on H/M/L

27/16/11/6/4/2 WATTS on H/M/L

151/130/114/92/72/51 RPMS on H/M/L

Wall Control Included Remote Control Adaptable

SMART by BOND technology

Dimmable Light Kit

LED Light Kit is 24W, 3000k, 1767 Lumens, 90CRI

ENERGY SPECS

Energy Information at High Speed Airflow: 7826 Cubic Feet/Minute Electricity Use: 32 Watts (Excludes Lights)

Bond Included

• Control Fan from Mobile Device

Portland 58"

Indoor/Outdoor - Wet

AVAILABLE LIGHT KIT OPTION

CONTROLS

Wall Control Included

• Power On / Off / 6 fan speeds – DC motor

• Forward / Reverse

• Light On / Off / Dimming

AVAILABLE 1/2" DOWNRODS

Bond Included

• Control Fan from Mobile Device

Optional Light Kit

9-12583

5.75"(w) x 1.5"(h) - (1) 15W, 3000k, 1318 Lumens, 90CRI, LED

Studio White | Satin Opal Glass

UL Wet

Shown on 12583-59 fan

AVAILABLE 45 DEGREE SLOPE CEILING ADAPTERS FOR 1/2" DOWNRODS (INDOOR USE ONLY)

HEIGHT CHART

FAN HEIGHT

Using 6" Downrod

● Distance of 14.5"

● Distance of 11.75"

GENERAL SPECS

2 Finishes Available

Lifetime Motor Warranty

Three ABS Blades

58" Blade Sweep

16-Degree Blade Pitch

80" Lead Wire

6" Downrod Included 1/2" Downrod Diameter

MECHANICAL SPECS

120DCx15 Motor

6 Speeds-Reversible

8 Poles

.35/.22/.15/.09/.06/.04 AMPS on H/M/L

29/18/11/6/4/3 WATTS on H/M/L

175/150/125/100/80/60 RPMS on H/M/L

Wall Control Included SMART by BOND technology

ENERGY SPECS

Energy Information at High Speed

Airflow: 6052 Cubic Feet/Minute

Electricity Use: 30 Watts (Excludes Lights)

Airflow Efficiency: 201 Cubic Feet/Minute/Watt Visit QuorumInternational.com for DOE Energy Guide

Capable

Twain 56"

Indoor/Outdoor - Damp

AVAILABLE FINISHES

30562-59

Matte Black

Walnut ABS Blades

30562-47

Brushed Brass

Walnut ABS Blades

Wall Control Included

• Power On / Off / 6 fan speeds – DC motor

• Forward / Reverse

• Light On / Off / Dimming

AVAILABLE 3/4" DOWNRODS

8-1405 Optional

• Power On / Off / 6 fan speeds – DC motor

• Forward / Reverse

• Light On / Off / Dimming

AVAILABLE 45 DEGREE

HEIGHT CHART

FAN HEIGHT

Using 6" Downrod

● Distance of 13"

● Distance of 13"

GENERAL SPECS

2 Finishes Available

Lifetime Motor Warranty

Two ABS Blades

56" Blade Sweep

14-Degree Blade Pitch

80" Lead Wire

4" & 6" Downrods Included

3/4" Downrod Diameter

MECHANICAL SPECS

DC-15NS Motor

6 Speeds-Reversible

9 Poles

.35/.22/.13/.09/.06/.04 AMPS on H/M/L

25/16/10/6/4/2 WATTS on H/M/L

136/119/102/85/67/50 RPMS on H/M/L

Remote Control Adaptable

Wall Control Included

Not Light Kit Adabtable

UL Damp Listed

ENERGY SPECS

Energy Information at High Speed

Airflow: 5937 Cubic Feet/Minute

Electricity Use: 30 Watts (Excludes Lights)

Airflow Efficiency: 198 Cubic Feet/Minute/Watt Visit QuorumInternational.com for

Zephyr 60"

Indoor

CONTROL

Wall Mounted Pocket Remote Included

• Power On / Off / 6 fan speeds – DC motor

• Forward / Reverse

• Light On / Off / Dimming

AVAILABLE 3/4" DOWNRODS

Downrod Finish

HEIGHT CHART

FAN HEIGHT

Using 6" Downrod

● Distance of 14.5"

● Distance of 13.25"

GENERAL SPECS

2 Finishes Available

Lifetime Motor Warranty

Three Blades

60" Blade Sweep

16-Degree Blade Pitch

80" Lead Wire

6" Downrod Included

3/4" Downrod Diameter

MECHANICAL SPECS

120DC x 20mm Motor

6 Speeds Reversible w/ Remote Control

8 Poles

.48/.34/.22/.14/.09/.06 AMPS on H/M/L

34/23/14/9/5/3 WATTS on H/M/L

168/150/130/110/88/67 RPMS on H/M/L

Wall Mounted Pocket Remote Included Not Light Kit Adaptable

ENERGY SPECS

Energy Information at High Speed

Airflow: 6098 Cubic Feet/Minute

Electricity Use: 36 Watts (Excludes Lights)

Airflow Efficiency: 169 Cubic Feet/Minute/Watt Visit

Zonda 62"

Indoor/Outdoor - Damp

AVAILABLE FINISH

11985

Oiled Bronze/Jute

Medium Oak ABS Blades (1) 15W, 3000k, 1461 Lumens @ 3000k, 90CRI Dimmable LED (Included)

AVAILABLE 3/4" DOWNRODS

Downrod Finish

Oiled Bronze

HEIGHT CHART

FAN HEIGHT

Using 6" Downrod

● Distance of 14"

● Distance of 11.5"

GENERAL SPECS

Lifetime Motor Warranty

Three Blades

62" Blade Sweep

16-Degree Blade Pitch

80" Lead Wire

6" Downrod Included

3/4" Downrod Diameter

CONTROL

Wall Mounted Pocket Remote Included

• Power On / Off / 6 fan speeds – DC motor

• Forward / Reverse

• Light On / Off / Dimming

MECHANICAL SPECS

120DC x 20mm Motor

6 Speeds Reversible w/ Remote Control

8 Poles

.38/.24/.19/.14/.09/.07 AMPS on H/M/L

30/20/13/9/5/3 WATTS on H/M/L

128/112/99/84/71/57 RPMS on H/M/L

Wall Mounted Pocket Remote Included

ENERGY SPECS

Energy Information at High Speed

Airflow: 7775 Cubic Feet/Minute

Electricity Use: 36 Watts (Excludes Lights)

Airflow Efficiency: 216 Cubic Feet/Minute/Watt Visit QuorumInternational.com for DOE Energy Guide

Kona 56"

Indoor/Outdoor - Damp

AVAILABLE FINISH

CONTROL

Wall Mounted Pocket Remote Included

• Power On / Off / 6 fan speeds – DC motor

• Forward / Reverse

AVAILABLE 3/4" DOWNRODS

HEIGHT CHART

FAN HEIGHT

Using 6" Downrod

● Distance of 14"

● Distance of 10.5"

GENERAL SPECS

Lifetime Motor Warranty

Three Blades

56" Blade Sweep

16-Degree Blade Pitch

80" Lead Wire

6" Downrod Included 3/4" Downrod Diameter

11978

Studio White/Ratan Natural Oak ABS Blades

MECHANICAL SPECS

108DC x 20mm Motor

6 Speeds Reversible w/ Remote Control

12 Poles

.51/.37/.25/.17/.12/.08 AMPS on H/M/L

34/23/16/10/7/4 WATTS on H/M/L

125/112/99/83/72/61 RPMS on H/M/L

Wall Mounted Pocket Remote Included

ENERGY SPECS

Energy Information at High Speed

Airflow: 5562 Cubic Feet/Minute

Electricity Use: 38 Watts (Excludes Lights)

Airflow Efficiency: 146 Cubic Feet/Minute/Watt Visit QuorumInternational.com for DOE Energy Guide

Bora Bora 62"

Indoor/Outdoor - Damp

CONTROL

Wall Mounted Pocket Remote Included

• Power On / Off / 6 fan speeds – DC motor

• Forward / Reverse AVAILABLE

AVAILABLE 3/4" DOWNRODS Downrod Finish

HEIGHT CHART

FAN HEIGHT

Using 6" Downrod

● Distance of 13.25"

● Distance of 11.5"

GENERAL SPECS

2 Finishes Available

Lifetime Motor Warranty

Three Blades

62" Blade Sweep

16-Degree Blade Pitch

80" Lead Wire

6" Downrod Included

3/4" Downrod Diameter

MECHANICAL SPECS

120DC x 20mm Motor

6 Speeds Reversible w/ Remote Control

8 Poles

.45/.29/.21/.15/.10/.07 AMPS on H/M/L

35/24/15/10/6/3 WATTS on H/M/L

140/126/110/94/77/61 RPMS on H/M/L

Wall Mounted Pocket Remote Included Not Light Kit Adaptable

ENERGY SPECS

Energy Information at High Speed

Airflow: 6424 Cubic Feet/Minute

Electricity Use: 36 Watts (Excludes Lights)

Airflow Efficiency: 178 Cubic Feet/Minute/Watt Visit QuorumInternational.com for

Avalon 52"

Indoor/Outdoor - Damp

AVAILABLE LIGHT KIT OPTION

CONTROLS

Wall Control Included

3-9-118 (1) 18W, 3000k, 1583 Lumens 90CRI, Dimmable LED Matte White Polycarbonate

3-8-2001-0 Optional

• Power On / Off / 6 fan speeds – DC motor

• Forward / Reverse

• Light On / Off / Dimming

AVAILABLE 1/2" DOWNRODS

• Power On / Off / 6 fan speeds – DC motor

• Forward / Reverse

• Light On / Off / Dimming

AVAILABLE 45 DEGREE SLOPE CEILING ADAPTERS FOR 1/2" DOWNRODS

Bond Included

• Control Fan from Mobile Device

HEIGHT CHART

FAN HEIGHT

Using 4" Downrod

● Distance of 11"

● Distance of 8.5"

GENERAL SPECS

4 Finish Combinations Available Lifetime Motor Warranty

Three Blades

52" Blade Sweep

14-Degree Blade Pitch

80" Lead Wire

4" & 6" Downrods Included 1/2" Downrod Diameter

MECHANICAL SPECS

DC-15NS Motor

6 Speeds Reversible w/ Wall Control

9 Poles

.40/.27/.15/.09/.05/.03 AMPS on H/M/L

32/20/11/6/3/2 WATTS on H/M/L

170/150/124/101/76/47 RPMS on H/M/L

Wall Control Included Remote Control Adaptable SMART by BOND technology

ENERGY SPECS

Energy Information at High Speed

Airflow: 6618 Cubic Feet/Minute

Electricity Use: 33 Watts (Excludes Lights)

Airflow Efficiency: 200 Cubic Feet/Minute/Watt Visit QuorumInternational.com for DOE

Mecca 64"

Indoor/Outdoor - Damp

CONTROLS

Wall Control Included

• Power On / Off / 6 fan speeds – DC motor

• Forward / Reverse

• Light On / Off / Dimming

AVAILABLE 1/2" DOWNRODS

Bond Included

• Control Fan from Mobile Device

AVAILABLE 45 DEGREE SLOPE CEILING ADAPTERS FOR 1/2" DOWNRODS

HEIGHT CHART

FAN HEIGHT

Using 6" Downrod

● Distance of 12.25"

● Distance of 8.5"

GENERAL SPECS

3 Finish Combinations Available Lifetime Motor Warranty

Three Blades

64" Blade Sweep

16-Degree Blade Pitch

80" Lead Wire

6" Downrod Included 1/2" Downrod Diameter

MECHANICAL SPECS

120 DC Motor

6 Speeds Reversible w/ Wall Control

8 Poles

.37/.31/.22/.14/.08/.05 AMPS on H/M/L

31/26/17/10/6/3 WATTS on H/M/L

127/118/101/84/67/50 RPMS on H/M/L

Wall Control Included SMART by BOND technology Not Light Kit Adaptable

ENERGY SPECS

Energy Information at High Speed

Airflow: 7087 Cubic Feet/Minute

Electricity Use: 31 Watts (Excludes Lights)

Airflow Efficiency: 229 Cubic Feet/Minute/Watt Visit QuorumInternational.com for DOE Energy Guide

Indoor/Outdoor - Damp

CONTROLS

Wall Control Included

• Power On / Off / 6 fan speeds – DC motor

• Forward / Reverse

• Light On / Off / Dimming

AVAILABLE 1/2" DOWNRODS

Bond Included

• Control Fan from Mobile Device

AVAILABLE 45 DEGREE SLOPE CEILING ADAPTERS FOR 1/2" DOWNRODS

HEIGHT CHART

FAN HEIGHT

Using 6" Downrod

● Distance of 12.25"

● Distance of 8.5"

GENERAL SPECS

3 Finish Combinations Available Lifetime Motor Warranty

Three Blades

72" Blade Sweep

16-Degree Blade Pitch

80" Lead Wire

6" Downrod Included 1/2" Downrod Diameter

MECHANICAL SPECS

120 DC Motor

6 Speeds Reversible w/ Wall Control

8 Poles

.33/.26/.19/.12/.07/.05 AMPS on H/M/L

28/21/13/8/5/3 WATTS on H/M/L

99/91/78/66/53/40 RPMS on H/M/L

Wall Control Included SMART by BOND technology Not Light Kit Adaptable

ENERGY SPECS

Energy Information at High Speed

Airflow: 7161 Cubic Feet/Minute

Electricity Use: 27 Watts (Excludes Lights)

Airflow Efficiency: 265 Cubic Feet/Minute/Watt Visit QuorumInternational.com for DOE Energy Guide

Papillon 66" Indoor

AVAILABLE LIGHT KIT OPTIONS

CONTROLS

8-288-59

(1) 24W, 3000k, 1662 Lumens, 90CRI Dimmable LED

Matte Black

White Acrylic Diffuser

Wall Control Included

• Power On / Off / 6 fan speeds – DC motor

• Forward / Reverse

• Light On / Off / Dimming

AVAILABLE 1/2" DOWNRODS

8-1400 Optional

8-288-8 (1) 24W, 3000k, 1662 Lumens, 90CRI Dimmable LED

Studio White

White Acrylic Diffuser

• Power On / Off / 6 fan speeds – DC motor

• Forward / Reverse

• Light On / Off / Dimming

• For use with WiFi fans

AVAILABLE 45 DEGREE SLOPE CEILING ADAPTERS FOR 1/2" DOWNRODS

HEIGHT CHART

FAN HEIGHT

Using 6" Downrod

● Distance of 13.5"

● Distance of 10"

GENERAL SPECS

2 Finishes Available Lifetime Motor Warranty

Four Blades

66" Blade Sweep

20-Degree Blade Pitch

80" Lead Wire

6" Downrod Included 1/2" Downrod Diameter

MECHANICAL SPECS

DC165L Motor

6 Speeds-Reversible w/ Wall Control

6 Poles

.39/.29/.22/.17/.11/.07 AMPS on H/M/L

30/22/18/12/8/5 WATTS on H/M/L

106/96/84/73/62/50 RPMS on H/M/L

6 Speed Wall Control Included Remote Control Adaptable

SMART by BOND technology

Optional LED Light Kit is 24W, 3000k, 90CRI (dimmable)

ENERGY SPECS

Energy Information at High Speed

Airflow: 7660 Cubic Feet/Minute

Electricity Use: 29 Watts (Excludes Lights)

Airflow Efficiency: 264 Cubic Feet/Minute/Watt Visit QuorumInternational.com for DOE Energy Guide

Bond Included

• Control Fan from Mobile Device

Papillon 80"

AVAILABLE LIGHT KIT OPTIONS

CONTROLS

Wall Control Included

8-288-65 (1) 24W, 3000k, 1662 Lumens

90CRI Dimmable LED

Satin Nickel

White Acrylic Diffuser

8-1400 Optional

• Power On / Off / 6 fan speeds – DC motor

• Forward / Reverse

• Light On / Off / Dimming

AVAILABLE 1/2" DOWNRODS

8-288-59 (1) 24W, 3000k, 1662 Lumens

90CRI Dimmable LED

Matte Black

White Acrylic Diffuser

• Power On / Off / 6 fan speeds – DC motor

• Forward / Reverse

• Light On / Off / Dimming

• For use with WiFi fans

AVAILABLE 45 DEGREE SLOPE CEILING ADAPTERS FOR 1/2" DOWNRODS

8-288-8 (1) 24W, 3000k, 1662 Lumens

90CRI Dimmable LED

Studio White

White Acrylic Diffuser

HEIGHT CHART

FAN HEIGHT

Using 8" Downrod

● Distance of 15.5"

● Distance of 12"

GENERAL SPECS

3 Finishes Available Lifetime Motor Warranty

Four Blades

80" Blade Sweep

20-Degree Blade Pitch

80" Lead Wire

8" Downrod Included 1/2" Downrod Diameter

MECHANICAL SPECS

DC165L Motor

6 Speeds-Reversible w/ Wall Control

6 Poles

.40/.27/.17/.11/.08/.05 AMPS on H/M/L

32/20/12/7/5/3 WATTS on H/M/L

82/72/61/52/42/32 RPMS on H/M/L

6 Speed Wall Control Included Remote Control Adaptable

SMART by BOND technology

Optional LED Light Kit is 20W, 3000k, 90CRI (dimmable)

ENERGY SPECS

Energy Information at High Speed

Airflow: 8172 Cubic Feet/Minute

Electricity Use: 32 Watts (Excludes Lights)

Airflow Efficiency: 255 Cubic Feet/Minute/Watt Visit QuorumInternational.com for DOE Energy Guide

Bond Included

• Control Fan from Mobile Device

Lurus 64" Indoor

30643-65

AVAILABLE LIGHT KIT OPTIONS

CONTROLS

Wall Control Included

30643-59

8-306-65 (1) 18W, 3000k, 1549 Lumens 90CRI, Dimmable LED

Satin Nickel Satin Opal Glass

30643-8

8-306-59 (1) 18W, 3000k, 1549 Lumens 90CRI, Dimmable LED

Matte Black Satin Opal Glass

8-347 Optional

• Power On / Off / 6 fan speeds – DC motor

• Forward / Reverse

• Light On / Off / Dimming

AVAILABLE 1/2" DOWNRODS

HEIGHT CHART - DOWNROD

• Power On / Off / 6 fan speeds – DC motor

• Forward / Reverse

• Light On / Off / Dimming

8-306-8 (1) 18W, 3000k, 1549 Lumens 90CRI, Dimmable LED

Studio White Satin Opal Glass

FAN HEIGHT

Using 6" Downrod

● Distance of 14.25"

● Distance of 12.25"

HEIGHT CHART - HUGGER

FAN HEIGHT

● Distance of 9.25"

● Distance of 7.25"

GENERAL SPECS

3 Finishes Available

Lifetime Motor Warranty

Three Blades

64" Blade Sweep

14-Degree Blade Pitch

80" Lead Wire

6" Downrod Included

1/2" Downrod Diameter

MECHANICAL SPECS

DC-165NL Motor

6 Speeds-Reversible

8 Poles

.38/.27/.19/.12/.08/.05 AMPS on H/M/L

30/20/13/8/5/3 WATTS on H/M/L

140/123/105/86/69/50 RPMS on H/M/L

Optional LED Light Kit Available

Wall Control Included

Remote Control Adaptable

ENERGY SPECS - DOWNROD

Energy Information at High Speed

Airflow: 9567 Cubic Feet/Minute

Electricity Use: 33 Watts (Excludes Lights)

Airflow Efficiency: 289 Cubic Feet/Minute/Watt

Visit QuorumInternational.com for DOE Energy Guide

ENERGY SPECS - HUGGER

Energy Information at High Speed

Airflow: 8113 Cubic Feet/Minute

Electricity Use: 33 Watts (Excludes Lights)

Airflow Efficiency: 246 Cubic Feet/Minute/Watt Visit QuorumInternational.com for DOE Energy Guide

OPTIONAL LIGHT SOURCE

Trinity 52" Indoor

CONTROLS

Wall Control Included

• Power On / Off / 6 fan speeds – DC motor

• Forward / Reverse

• Light On / Off / Dimming

AVAILABLE 1/2" DOWNRODS

8-9860-0 Optional

• Power On / Off / 6 fan speeds

• Forward / Reverse

• Light On / Off / Dimming

AVAILABLE 45 DEGREE SLOPE CEILING ADAPTERS FOR 1/2" DOWNRODS

AVAILABLE HUGGER ADAPTERS *NOT FOR USE WITH OPTIONAL CONTROLS SHOWN

HEIGHT CHART

FAN HEIGHT

Using 6" Downrod

● Distance of 15.75"

● Distance of 11.75"

GENERAL SPECS

2 Finishes Available

Limited Lifetime Motor Warranty

Three Blades

52" Blade Sweep

18-Degree Blade Pitch

80" Lead Wire

6" Downrod Included 1/2" Downrod Diameter

MECHANICAL SPECS

125mm Motor Size

6 Speeds-Reversible w/ Wall Control

.39/.26/.17/.11/.09/.08 AMPS on H/M/L

30/18/11/6/4/2 WATTS on H/M/L

167/143/120/96/73/49 RPMS on H/M/L

Wall Control Included Remote Control Adaptable Integral LED Light Kit is 18W, 3000k, 1313 Lumens, 90CRI (dimmable)

ENERGY SPECS

Energy Information at High Speed Airflow: 4617 Cubic Feet/Minute

Electricity Use: 29 Watts (Excludes Lights) Airflow

159 Cubic Feet/Minute/Watt Visit QuorumInternational.com for DOE Energy Guide

AVAILABLE LIGHT KIT OPTIONS

8-356-69

(1) 18W, 3000k, 986 Lumens, 90 CRI Dimmable LED

Textured Black

White Acrylic Diffuser Light Kit shown on 35603-69 ceiling fan

CONTROLS

Wall Control Included

• Power On / Off / 6 fan speeds

• Forward / Reverse

• Light On / Off / Dimming

AVAILABLE 1/2" DOWNRODS

8-9860-0 Optional

• Power On / Off / 6 fan speeds

• Forward / Reverse

• Light On / Off / Dimming

8-356-65 (1) 18W, 3000k, 986 Lumens, 90 CRI Dimmable LED

Satin Nickel

White Acrylic Diffuser Light Kit shown on 35603-65 ceiling fan

AVAILABLE 45 DEGREE SLOPE CEILING ADAPTERS FOR 1/2" DOWNRODS

HEIGHT CHART

FAN HEIGHT

Using 6" Downrod

● Distance of 13.75"

● Distance of 11.25"

GENERAL SPECS

2 Finishes Available

Limited Lifetime Motor Warranty

Three Blades

60" Blade Sweep

14-Degree Blade Pitch

80" Lead Wire

6" Downrod Included 1/2" Downrod Diameter

MECHANICAL SPECS

125mm Motor Size

6 Speeds-Reversible w/ Wall Control

.41/.26/.17/.11/.06/.03 AMPS on H/M/L

33/20/13/8/4/2 WATTS on H/M/L

149/128/109/89/69/50 RPMS on H/M/L

Wall Control Included

Remote Control Adaptable

Optional LED Light Kit is 18W, 3000k, 986 Lumens, 90CRI (dimmable)

ENERGY SPECS

Energy Information at High Speed

Airflow: 6987Cubic Feet/Minute

Electricity Use: 36 Watts (Excludes Lights)

Airflow

194 Cubic Feet/Minute/Watt Visit QuorumInternational.com for DOE Energy Guide

Hawkeye 52"

Indoor

31523-69

Textured Black

Weathered Oak Wood Blades

CONTROLS

Wall Control Included

• Power On / Off / 6 fan speeds

• Forward / Reverse

• Light On / Off / Dimming

AVAILABLE 1/2" DOWNRODS

8-9860-0 Optional

• Power On / Off / 6 fan speeds

• Forward / Reverse

• Light On / Off / Dimming

31523-65

Satin Nickel

Weathered Oak Wood Blades

AVAILABLE 45 DEGREE SLOPE CEILING ADAPTER FOR 1/2"

HEIGHT CHART

FAN HEIGHT

Using 6" Downrod

● Distance of 18.5"

● Distance of 13.5"

GENERAL SPECS

2 Finishes Available Lifetime Motor Warranty

Three Blades

52" Blade Sweep

45 Degree Blade Pitch

80" Lead Wire

6" Downrod Included 1/2" Downrod Diameter

MECHANICAL SPECS

125mm Motor Size

6 Speeds-Reversible w/ Wall Control .39/.26/.17/.11/.09/.08 AMPS on H/M/L

30/18/10/6/4/2WATTS on H/M/L

167/143/120/96/73/49 RPMS on H/M/L

Wall Control Included Remote Control Adaptable Not Light Kit Adaptable

ENERGY SPECS

Energy Information at High Speed

Airflow: 5774 Cubic Feet/Minute

Electricity Use: 32 Watts (Excludes Lights)

Airflow Efficiency: 180 Cubic Feet/Minute/Watt Visit QuorumInternational.com for

AVAILABLE LIGHT KIT OPTIONS

CONTROL

1902-86

Oiled Bronze

Clear Seeded Glass (1) 6W M, 2700k, 800 Lumen, 80CRI, Dimmable LED (Included) UL Damp

1974-86

Oiled Bronze

Clear Hammered Glass (1) 6W M, 2700k, 800 Lumens, 80CRI, Dimmable LED (Included) UL Damp

Remote Control Included

• Power On / Off / 6 fan speeds - DC Motor

• Forward / Reverse

• Light On / Off / Dimming

AVAILABLE 1/2" DOWNRODS

Oiled Bronze

HEIGHT CHART

FAN HEIGHT

Using 6" Downrod

● Distance of 16.5"

● Distance of 11.5"

GENERAL SPECS

Lifetime Motor Warranty

Ten Blades

44" Blade Sweep

30-Degree Blade Pitch

80" Lead Wire

6" Downrod Included

1/2" Downrod Diameter

1904-86

Oiled Bronze Satin Opal Glass (1) 18W, 3000k, 1543 Lumens, 90CRI, Dimmable LED (Included) UL Damp

1975-86

Oiled Bronze

Clear Hammered Glass (1) 6W M, 2700k, 800 Lumens, 80CRI, Dimmable LED (Included) UL Damp

1905-86

Oiled Bronze (3) 6W M, 2700k, 2400 Lumens, 80CRI, Dimmable LED (Included) UL Damp

MECHANICAL SPECS

DC-125 Motor

6 Speeds-Reversible w/ Remote Control

8 Poles

.39/.29/.20/.13/.11/.05 AMPS on H/M/L

32/22/15/10/7/3 WATTS on H/M/L

100/90/80/70/60/50 RPMS on H/M/L

Light Kit Adaptable Remote Control Included Not Hugger Adaptable Not Slope Ceiling Kit Adaptable

Maximum 25° Slope with Minimum 18" Downrod

Maximum Length Optional Downrod 48"

ENERGY SPECS

Energy Information at High Speed

Airflow: 2574 Cubic Feet/Minute

Electricity Use: 26 Watts (Excludes Lights)

Airflow Efficiency: 99 Cubic Feet/Minute/Watt Visit QuorumInternational.com for DOE Energy Guide

INSTALLATION NOTE

Multiple fans installed on the same circuit require individual wall controls and switch legs. The power supply wire from the control to the fans can not be shared.

INSTALLATION INSTRUCTIONS

Visit www.quoruminternational.com/pages/faqs

Indoor/Outdoor - Damp

AVAILABLE LIGHT KIT OPTIONS

CONTROL

1902-9

Galvanized

Clear Seeded Glass (1) 6W M, 2700k, 800 Lumens, 80CRI, Dimmable LED (Included) UL Damp

1974-9

Galvanized

Clear Hammered Glass (1) 6W M, 2700k, 800 Lumens, 80CRI, Dimmable LED (Included) UL Damp

Remote Control Included

• Power On / Off / 6 fan speeds - DC Motor

• Forward / Reverse

• Light On / Off / Dimming

AVAILABLE 1/2" DOWNRODS

1904-9

Galvanized

Satin Opal Glass (1) 18W, 3000k, 1543 Lumens, 90CRI, Dimmable LED (Included) UL Damp

1975-9

Galvanized

Clear Hammered Glass (1) 6W M, 2700k, 800 Lumens, 80CRI, Dimmable LED (Included) UL Damp

1905-9

Galvanized (3) 6W M, 2700k, 2400 Lumens, 80CRI, Dimmable LED (Included) UL Damp

HEIGHT CHART

FAN HEIGHT

Using 6" Downrod

● Distance of 16.5"

● Distance of 11.5"

GENERAL SPECS

Lifetime Motor Warranty

Ten ABS Blades

44" Blade Sweep

30-Degree Blade Pitch

80" Lead Wire

6" Downrod Included 1/2" Downrod Diameter

MECHANICAL SPECS

DC-125 Motor

6 Speeds-Reversible w/ Remote Control

8 Poles

.39/.29/.20/.13/.11/.05 AMPS on H/M/L

32/22/15/10/7/3 WATTS on H/M/L

100/90/80/70/60/50 RPMS on H/M/L

Light Kit Adaptable

Remote Control Included

Not Hugger Adaptable

Not Slope Ceiling Kit Adaptable

Maximum 25° Slope with Minimum 18" Downrod

Maximum Length Optional Downrod 48"

ENERGY SPECS

Energy Information at High Speed

Airflow: 2574 Cubic Feet/Minute

Electricity Use: 26 Watts (Excludes Lights) Airflow Efficiency: 99 Cubic Feet/Minute/Watt Visit QuorumInternational.com for DOE Energy Guide

INSTALLATION NOTE

Multiple fans installed on the same circuit require individual wall controls and switch legs. The power supply wire from the control to the fans can not be shared.

INSTALLATION INSTRUCTIONS

Visit www.quoruminternational.com/pages/faqs

Windmill 52"

AVAILABLE LIGHT KIT OPTIONS

1902-9

Galvanized

Clear Seeded Glass

(1) 6W M, 2700k, 800 Lumens, 80CRI, Dimmable LED (Included) UL Damp

1904-9

Galvanized Satin Opal Glass

(1) 18W, 3000k, 1543 Lumens, 90CRI, Dimmable LED (Included) UL Damp

1905-9

Galvanized (3) 6W M, 2700k, 2400 Lumens, 80CRI, Dimmable LED (Included) UL Damp

1974-9

Galvanized

Clear Hammered Glass (1) 6W M, 2700k, 800 Lumens, 80CRI, Dimmable LED (Included) UL Damp

1975-9

Galvanized

Clear Hammered Glass (1) 6W M, 2700k, 800 Lumens, 80CRI, Dimmable LED (Included) UL Damp

AVAILABLE 1/2" DOWNRODS

Textured Black

Oiled Bronze

HEIGHT CHART

FAN HEIGHT

Using 6" Downrod

● Distance of 16.5"

● Distance of 11.5"

GENERAL SPECS

3 Finishes Available

Lifetime Motor Warranty

Ten Blades

52" Blade Sweep

30-Degree Blade Pitch

80" Lead Wire

6" Downrod Included 1/2" Downrod Diameter

1902-69

Textured Black

Clear Seeded Glass (1) 6W M, 2700k, 800 Lumens, 80CRI, Dimmable LED (Included) UL Damp

1904-69

Textured Black Satin Opal Glass

(1) 18W, 3000k, 1543 Lumens, 90CRI, Dimmable LED (Included) UL Damp

1905-69

Textured Black (3) 6W M, 2700k, 2400 Lumens, 80CRI, Dimmable LED (Included) UL Damp

1974-69

Textured Black

Clear Hammered Glass (1) 6W M, 2700k, 800 Lumens, 80CRI, Dimmable LED (Included) UL Damp

1975-69

Textured Black

Clear Hammered Glass (1) 6W M, 2700k, 800 Lumens, 80CRI, Dimmable LED (Included) UL Damp

1902-86

Oiled Bronze

Clear Seeded Glass (1) 6W M, 2700k, 800 Lumen, 80CRI, Dimmable LED (Included) UL Damp

1904-86

Oiled Bronze Satin Opal Glass (1) 18W, 3000k, 1543 Lumens, 90CRI, Dimmable LED (Included) UL Damp

1905-86

Oiled Bronze (3) 6W M, 2700k, 2400 Lumens, 80CRI, Dimmable LED (Included) UL Damp

1974-86

Oiled Bronze

Clear Hammered Glass (1) 6W M, 2700k, 800 Lumens, 80CRI, Dimmable LED (Included) UL Damp

1975-86

Oiled Bronze

Clear Hammered Glass (1) 6W M, 2700k, 800 Lumens, 80CRI, Dimmable LED (Included) UL Damp

MECHANICAL SPECS

DC-165M Motor

6 Speeds-Reversible w/ Remote Control

8 Poles

.39/.26/.17/.12/.07/.04 AMPS on H/M/L

32/20/12/9/5/3 WATTS on H/M/L

84/74/64/51/41/31 RPMS on H/M/L

Light Kit Adaptable

Remote Control Included

Not Hugger Adaptable

Not Slope Ceiling Kit Adaptable

Maximum 25° Slope with Minimum 18" Downrod

Maximum Length Optional Downrod 48"

ENERGY SPECS

Energy Information at High Speed

Airflow: 2881 Cubic Feet/Minute

Electricity Use: 26 Watts (Excludes Lights)

Airflow Efficiency: 110 Cubic Feet/Minute/Watt Visit QuorumInternational.com for DOE Energy Guide

INSTALLATION NOTE

Multiple fans installed on the same circuit require individual wall controls and switch legs. The power supply wire from the control to the fans can not be shared.

INSTALLATION INSTRUCTIONS Visit www.quoruminternational.com/pages/faqs

Windmill 52"

AVAILABLE LIGHT KIT OPTIONS

1902-9

Galvanized

Clear Seeded Glass

(1) 6W M, 2700k, 800 Lumens, 80CRI, Dimmable LED (Included) UL Damp

1904-9

Galvanized Satin Opal Glass

(1) 18W, 3000k, 1543 Lumens, 90CRI, Dimmable LED (Included) UL Damp

1905-9

Galvanized (3) 6W M, 2700k, 2400 Lumens, 80CRI, Dimmable LED (Included) UL Damp

1974-9

Galvanized

Clear Hammered Glass (1) 6W M, 2700k, 800 Lumens, 80CRI, Dimmable LED (Included) UL Damp

1975-9

Galvanized

Clear Hammered Glass (1) 6W M, 2700k, 800 Lumens, 80CRI, Dimmable LED (Included) UL Damp

AVAILABLE 1/2" DOWNRODS

Textured Black

Oiled Bronze

HEIGHT CHART

FAN HEIGHT

Using 6" Downrod

● Distance of 16.5"

● Distance of 11.5"

GENERAL SPECS

3 Finishes Available

Lifetime Motor Warranty

Ten ABS Blades

52" Blade Sweep

30-Degree Blade Pitch

80" Lead Wire

6" Downrod Included 1/2" Downrod Diameter

1902-69

Textured Black

Clear Seeded Glass

(1) 6W M, 2700k, 800 Lumens, 80CRI, Dimmable LED (Included) UL Damp

1904-69

Textured Black Satin Opal Glass (1) 18W, 3000k, 1543 Lumens, 90CRI, Dimmable LED (Included) UL Damp

1905-69

Textured Black (3) 6W M, 2700k, 2400 Lumens, 80CRI, Dimmable LED (Included) UL Damp

1974-69

Textured Black

Clear Hammered Glass (1) 6W M, 2700k, 800 Lumens, 80CRI, Dimmable LED (Included) UL Damp

1975-69

Textured Black

Clear Hammered Glass (1) 6W M, 2700k, 800 Lumens, 80CRI, Dimmable LED (Included) UL Damp

1902-86

Oiled Bronze

Clear Seeded Glass (1) 6W M, 2700k, 800 Lumen, 80CRI, Dimmable LED (Included) UL Damp

1904-86

Oiled Bronze Satin Opal Glass (1) 18W, 3000k, 1543 Lumens, 90CRI, Dimmable LED (Included) UL Damp

1905-86

Oiled Bronze (3) 6W M, 2700k, 2400 Lumens, 80CRI, Dimmable LED (Included) UL Damp

1974-86

Oiled Bronze

Clear Hammered Glass (1) 6W M, 2700k, 800 Lumens, 80CRI, Dimmable LED (Included) UL Damp

1975-86

Oiled Bronze

Clear Hammered Glass (1) 6W M, 2700k, 800 Lumens, 80CRI, Dimmable LED (Included) UL Damp

MECHANICAL SPECS

DC-165M Motor

6 Speeds-Reversible w/ Remote Control

8 Poles

.39/.26/.17/.12/.07/.04 AMPS on H/M/L

32/20/12/9/5/3 WATTS on H/M/L

84/74/64/51/41/31 RPMS on H/M/L

Light Kit Adaptable

Remote Control Included

Not Hugger Adaptable

Not Slope Ceiling Kit Adaptable

Maximum 25° Slope with Minimum 18" Downrod

Maximum Length Optional Downrod 48"

ENERGY SPECS

Energy Information at High Speed

Airflow: 2881 Cubic Feet/Minute

Electricity Use: 26 Watts (Excludes Lights)

Airflow Efficiency: 110 Cubic Feet/Minute/Watt Visit QuorumInternational.com for DOE Energy Guide

INSTALLATION NOTE

Multiple fans installed on the same circuit require individual wall controls and switch legs. The power supply wire from the control to the fans can not be shared.

INSTALLATION INSTRUCTIONS Visit www.quoruminternational.com/pages/faqs

AVAILABLE LIGHT KIT OPTIONS

1902-69

Textured Black Clear Seeded Glass (1) 6W M, 2700k, 800 Lumens, 80CRI, Dimmable LED (Included) UL Damp

1904-86

Oiled Bronze Satin Opal Glass (1) 18W, 3000k, 1543 Lumens, 90CRI, Dimmable LED (Included) UL Damp

1974-69

Textured Black Clear Hammered Glass (1) 6W M, 2700k, 800 Lumens, 80CRI, Dimmable LED (Included) UL Damp

1975-86

Oiled Bronze Clear Hammered Glass (1) 6W M, 2700k, 800 Lumens, 80CRI, Dimmable LED (Included) UL Damp

AVAILABLE 1/2" DOWNRODS

Textured

HEIGHT CHART

FAN HEIGHT

Using 6" Downrod

● Distance of 16.5"

● Distance of 11.5"

GENERAL SPECS

2 Finishes Available

Lifetime Motor Warranty

Fifteen Blades

60" Blade Sweep

30-Degree Blade Pitch

80" Lead Wire

6" Downrod Included

1/2" Downrod Diameter

1902-86

Oiled Bronze Clear Seeded Glass (1) 6W M, 2700k, 800 Lumen, 80CRI, Dimmable LED (Included) UL Damp

1905-69

Textured Black (3) 6W M, 2700k, 2400 Lumens, 80CRI, Dimmable LED (Included) UL Damp

1974-86

Oiled Bronze Clear Hammered Glass (1) 6W M, 2700k, 800 Lumens, 80CRI, Dimmable LED (Included) UL Damp

1904-69

Textured Black Satin Opal Glass (1) 18W, 3000k, 1543 Lumens, 90CRI, Dimmable LED (Included) UL Damp

1905-86

Oiled Bronze (3) 6W M, 2700k, 2400 Lumens, 80CRI, Dimmable LED (Included) UL Damp

1975-69

Textured Black Clear Hammered Glass (1) 6W M, 2700k, 800 Lumens, 80CRI, Dimmable LED (Included) UL Damp

MECHANICAL SPECS

DC-165L Motor

6 Speeds-Reversible w/ Remote Control

8 Poles

.42/.27/.21/.17/.11/.08 AMPS on H/M/L

30/19/14/11/7/5 WATTS on H/M/L

65/53/47/41/37/33 RPMS on H/M/L

Light Kit Adaptable

Remote Control Included

Not Hugger Adaptable

Not Slope Ceiling Kit Adaptable

Maximum 25° Slope with Minimum 18" Downrod

Maximum Length Optional Downrod 48"

ENERGY SPECS

Energy Information at High Speed

Airflow: 3472 Cubic Feet/Minute

Electricity Use: 33 Watts (Excludes Lights)

Airflow Efficiency: 105 Cubic Feet/Minute/Watt Visit QuorumInternational.com for DOE Energy Guide

INSTALLATION NOTE

Multiple fans installed on the same circuit require individual wall controls and switch legs. The power supply wire from the control to the fans can not be shared.

INSTALLATION INSTRUCTIONS Visit www.quoruminternational.com/pages/faqs

AVAILABLE LIGHT KIT OPTIONS

1902-9

Galvanized

Clear Seeded Glass

(1) 6W M, 2700k, 800 Lumens, 80CRI, Dimmable LED (Included) UL Damp

1904-9

Galvanized Satin Opal Glass

(1) 18W, 3000k, 1543 Lumens, 90CRI, Dimmable LED (Included) UL Damp

1905-9

Galvanized (3) 6W M, 2700k, 2400 Lumens, 80CRI, Dimmable LED (Included) UL Damp

1974-9

Galvanized

Clear Hammered Glass (1) 6W M, 2700k, 800 Lumens, 80CRI, Dimmable LED (Included) UL Damp

1975-9

Galvanized

Clear Hammered Glass (1) 6W M, 2700k, 800 Lumens, 80CRI, Dimmable LED (Included) UL Damp

AVAILABLE 1/2" DOWNRODS

Galvanized

Textured Black

Oiled Bronze

HEIGHT CHART

FAN HEIGHT

Using 6" Downrod

● Distance of 16.5"

● Distance of 11.5"

GENERAL SPECS

3 Finishes Available

Lifetime Motor Warranty

Fifteen ABS Blades

60" Blade Sweep

30-Degree Blade Pitch

80" Lead Wire

6" Downrod Included 1/2" Downrod Diameter

1902-69

Textured Black

Clear Seeded Glass (1) 6W M, 2700k, 800 Lumens, 80CRI, Dimmable LED (Included) UL Damp

1904-69

Textured Black Satin Opal Glass (1) 18W, 3000k, 1543 Lumens, 90CRI, Dimmable LED (Included) UL Damp

1905-69

Textured Black (3) 6W M, 2700k, 2400 Lumens, 80CRI, Dimmable LED (Included) UL Damp

1974-69

Textured Black

Clear Hammered Glass (1) 6W M, 2700k, 800 Lumens, 80CRI, Dimmable LED (Included) UL Damp

1975-69

Textured Black

Clear Hammered Glass (1) 6W M, 2700k, 800 Lumens, 80CRI, Dimmable LED (Included) UL Damp

1902-86

Oiled Bronze

Clear Seeded Glass (1) 6W M, 2700k, 800 Lumen, 80CRI, Dimmable LED (Included) UL Damp

1904-86

Oiled Bronze Satin Opal Glass (1) 18W, 3000k, 1543 Lumens, 90CRI, Dimmable LED (Included) UL Damp

1905-86

Oiled Bronze (3) 6W M, 2700k, 2400 Lumens, 80CRI, Dimmable LED (Included) UL Damp

1974-86

Oiled Bronze

Clear Hammered Glass (1) 6W M, 2700k, 800 Lumens, 80CRI, Dimmable LED (Included) UL Damp

1975-86

Oiled Bronze

Clear Hammered Glass (1) 6W M, 2700k, 800 Lumens, 80CRI, Dimmable LED (Included) UL Damp

MECHANICAL SPECS

DC-165L Motor

6 Speeds-Reversible w/ Remote Control

8 Poles

.42/.27/.21/.17/.11/.08 AMPS on H/M/L

30/19/14/11/7/5 WATTS on H/M/L

65/53/47/41/37/33 RPMS on H/M/L

Light Kit Adaptable

Remote Control Included

Not Hugger Adaptable

Not Slope Ceiling Kit Adaptable

Maximum 25° Slope with Minimum 18" Downrod

Maximum Length Optional Downrod 48"

ENERGY SPECS

Energy Information at High Speed

Airflow: 3472 Cubic Feet/Minute

Electricity Use: 33 Watts (Excludes Lights)

Airflow Efficiency: 105 Cubic Feet/Minute/Watt Visit QuorumInternational.com for DOE Energy Guide

INSTALLATION NOTE

Multiple fans installed on the same circuit require individual wall controls and switch legs. The power supply wire from the control to the fans can not be shared.

INSTALLATION INSTRUCTIONS Visit www.quoruminternational.com/pages/faqs

Windmill 72"

AVAILABLE LIGHT KIT OPTIONS

1902-9

Galvanized

Clear Seeded Glass

(1) 6W M, 2700k, 800 Lumens, 80CRI, Dimmable LED (Included) UL Damp

1904-9

Galvanized Satin Opal Glass

(1) 18W, 3000k, 1543 Lumens, 90CRI, Dimmable LED (Included) UL Damp

1905-9

Galvanized (3) 6W M, 2700k, 2400 Lumens, 80CRI, Dimmable LED (Included) UL Damp

1974-9

Galvanized

Clear Hammered Glass (1) 6W M, 2700k, 800 Lumens, 80CRI, Dimmable LED (Included) UL Damp

1975-9

Galvanized

Clear Hammered Glass (1) 6W M, 2700k, 800 Lumens, 80CRI, Dimmable LED (Included) UL Damp

AVAILABLE 1/2" DOWNRODS

Textured Black

Oiled Bronze

HEIGHT CHART

FAN HEIGHT

Using 6" Downrod

● Distance of 16.5"

● Distance of 11.5"

GENERAL SPECS

3 Finishes Available

Lifetime Motor Warranty

Fifteen Blades

72" Blade Sweep

30-Degree Blade Pitch

80" Lead Wire

6" Downrod Included 1/2" Downrod Diameter

1902-69

Textured Black

Clear Seeded Glass

(1) 6W M, 2700k, 800 Lumens, 80CRI, Dimmable LED (Included) UL Damp

1904-69

Textured Black Satin Opal Glass (1) 18W, 3000k, 1543 Lumens, 90CRI, Dimmable LED (Included) UL Damp

1905-69

Textured Black (3) 6W M, 2700k, 2400 Lumens, 80CRI, Dimmable LED (Included) UL Damp

1974-69

Textured Black

Clear Hammered Glass (1) 6W M, 2700k, 800 Lumens, 80CRI, Dimmable LED (Included) UL Damp

1975-69

Textured Black

Clear Hammered Glass (1) 6W M, 2700k, 800 Lumens, 80CRI, Dimmable LED (Included) UL Damp

1902-86

Oiled Bronze

Clear Seeded Glass (1) 6W M, 2700k, 800 Lumen, 80CRI, Dimmable LED (Included) UL Damp

1904-86

Oiled Bronze Satin Opal Glass (1) 18W, 3000k, 1543 Lumens, 90CRI, Dimmable LED (Included) UL Damp

1905-86

Oiled Bronze (3) 6W M, 2700k, 2400 Lumens, 80CRI, Dimmable LED (Included) UL Damp

1974-86

Oiled Bronze

Clear Hammered Glass (1) 6W M, 2700k, 800 Lumens, 80CRI, Dimmable LED (Included) UL Damp

1975-86

Oiled Bronze

Clear Hammered Glass (1) 6W M, 2700k, 800 Lumens, 80CRI, Dimmable LED (Included) UL Damp

MECHANICAL SPECS

DC-165L Motor

6 Speeds-Reversible w/ Remote Control

8 Poles

.47/.33/.24/.17/.11/.07 AMPS on H/M/L

34/25/16/12/8/5 WATTS on H/M/L

43/38/35/31/27/23 RPMS on H/M/L

Light Kit Adaptable

Remote Control Included

Not Hugger Adaptable

Not Slope Ceiling Kit Adaptable

Maximum 25° Slope with Minimum 18" Downrod

Maximum Length Optional Downrod 48"

ENERGY SPECS

Energy Information at High Speed

Airflow: 2826 Cubic Feet/Minute

Electricity Use: 37 Watts (Excludes Lights)

Airflow Efficiency: 76 Cubic Feet/Minute/Watt Visit QuorumInternational.com for DOE Energy Guide

INSTALLATION NOTE

Multiple fans installed on the same circuit require individual wall controls and switch legs. The power supply wire from the control to the fans can not be shared.

INSTALLATION INSTRUCTIONS Visit www.quoruminternational.com/pages/faqs

Windmill 72"

Indoor/Outdoor - Damp

AVAILABLE LIGHT KIT OPTIONS

1902-9

Galvanized

Clear Seeded Glass

(1) 6W M, 2700k, 800 Lumens, 80CRI, Dimmable LED (Included) UL Damp

1904-9

Galvanized Satin Opal Glass

(1) 18W, 3000k, 1543 Lumens, 90CRI, Dimmable LED (Included) UL Damp

1905-9

Galvanized (3) 6W M, 2700k, 2400 Lumens, 80CRI, Dimmable LED (Included) UL Damp

1974-9

Galvanized

Clear Hammered Glass (1) 6W M, 2700k, 800 Lumens, 80CRI, Dimmable LED (Included) UL Damp

1975-9

Galvanized

Clear Hammered Glass (1) 6W M, 2700k, 800 Lumens, 80CRI, Dimmable LED (Included) UL Damp

AVAILABLE 1/2" DOWNRODS

Galvanized

Textured Black

Oiled Bronze

HEIGHT CHART

FAN HEIGHT

Using 6" Downrod

● Distance of 16.5"

● Distance of 11.5"

GENERAL SPECS

3 Finishes Available

Lifetime Motor Warranty

Fifteen ABS Blades

72" Blade Sweep

30-Degree Blade Pitch

80" Lead Wire

6" Downrod Included 1/2" Downrod Diameter

1902-69

Textured Black

Clear Seeded Glass (1) 6W M, 2700k, 800 Lumens, 80CRI, Dimmable LED (Included) UL Damp

1904-69

Textured Black Satin Opal Glass (1) 18W, 3000k, 1543 Lumens, 90CRI, Dimmable LED (Included) UL Damp

1905-69

Textured Black (3) 6W M, 2700k, 2400 Lumens, 80CRI, Dimmable LED (Included) UL Damp

1974-69

Textured Black

Clear Hammered Glass (1) 6W M, 2700k, 800 Lumens, 80CRI, Dimmable LED (Included) UL Damp

1975-69

Textured Black

Clear Hammered Glass (1) 6W M, 2700k, 800 Lumens, 80CRI, Dimmable LED (Included) UL Damp

1902-86

Oiled Bronze

Clear Seeded Glass (1) 6W M, 2700k, 800 Lumen, 80CRI, Dimmable LED (Included) UL Damp

1904-86

Oiled Bronze Satin Opal Glass (1) 18W, 3000k, 1543 Lumens, 90CRI, Dimmable LED (Included) UL Damp

1905-86

Oiled Bronze (3) 6W M, 2700k, 2400 Lumens, 80CRI, Dimmable LED (Included) UL Damp

1974-86

Oiled Bronze

Clear Hammered Glass (1) 6W M, 2700k, 800 Lumens, 80CRI, Dimmable LED (Included) UL Damp

1975-86

Oiled Bronze

Clear Hammered Glass (1) 6W M, 2700k, 800 Lumens, 80CRI, Dimmable LED (Included) UL Damp

MECHANICAL SPECS

DC-165L Motor

6 Speeds-Reversible w/ Remote Control

8 Poles

.47/.33/.24/.17/.11/.07 AMPS on H/M/L

34/25/16/12/8/5 WATTS on H/M/L

43/38/35/31/27/23 RPMS on H/M/L

Light Kit Adaptable

Remote Control Included

Not Hugger Adaptable

Not Slope Ceiling Kit Adaptable

Maximum 25° Slope with Minimum 18" Downrod

Maximum Length Optional Downrod 48"

ENERGY SPECS

Energy Information at High Speed

Airflow: 2826 Cubic Feet/Minute

Electricity Use: 37 Watts (Excludes Lights)

Airflow Efficiency: 76 Cubic Feet/Minute/Watt Visit QuorumInternational.com for DOE Energy Guide

INSTALLATION NOTE

Multiple fans installed on the same circuit require individual wall controls and switch legs. The power supply wire from the control to the fans can not be shared.

INSTALLATION INSTRUCTIONS Visit www.quoruminternational.com/pages/faqs

Indoor/Outdoor - Damp

AVAILABLE LIGHT KIT OPTIONS

CONTROLS

Wall Control Included

1902-69

Textured Black

Clear Seeded Glass (1) 6W M, 2700k, 800 Lumens, 80CRI, Dimming LED (Included) UL Damp

1974-69

Textured Black Clear Hammered Glass (1) 6W M, 2700k, 800 Lumens, 80CRI, Dimming LED (Included) UL Damp

8-347 Optional

• Power On / Off / 6 fan speeds – DC motor

• Forward / Reverse

• Light On / Off / Dimming

AVAILABLE 1/2" DOWNRODS

1904-69

Textured Black Satin Opal Glass (1) 18W, 3000k, 1543 Lumens, 90CRI, Dimming LED (Included) UL Damp

1975-69

Textured Black Clear Hammered Glass (1) 6W M, 2700k, 800 Lumens, 80CRI, Dimming LED (Included) UL Damp

• Power On / Off / 6 fan speeds – DC motor

• Forward / Reverse

• Light On / Off / Dimming

AVAILABLE 45 DEGREE SLOPE CEILING ADAPTER FOR 1/2" DOWNRODS (INDOOR USE ONLY)

Black

HEIGHT CHART

FAN HEIGHT

Using 6" Downrod

● Distance of 15.75"

● Distance of 14.125"

GENERAL SPECS

Lifetime Motor Warranty

Eight ABS Blades

60" Blade Sweep

13-Degree Blade Pitch

80" Lead Wire

6" Downrod Included 1/2" Downrod Diameter

MECHANICAL SPECS

DC153 DC Motor

6 Speeds-Reversible

8 Poles

.41/.30/.21/.13/.09/.06 AMPS on H/M/L

32/22/15/9/6/4 WATTS on H/M/L

115/103/88/75/64/51 RPMS on H/M/L

Remote Control Adaptable

Wall Control Included

Light Kit Adaptable

Detachable Switch Cup

UL Damp Listed

ENERGY SPECS

Energy Information at High Speed

Airflow: 8316 Cubic Feet/Minute

Electricity Use: 32 Watts (Excludes Lights)

Airflow Efficiency: 259 Cubic Feet/Minute/Watt Visit QuorumInternational.com for DOE Energy Guide

1905-69

Textured Black (3) 6W M, 2700k, 2400 lumens, 80CRI, Dimming LED (Included) UL Damp

Indoor/Outdoor -

AVAILABLE LIGHT KIT OPTIONS

CONTROLS

Wall Control Included

1902-69

Textured Black

Clear Seeded Glass (1) 6W M, 2700k, 800 Lumens, 80CRI, Dimming LED (Included) UL Damp

1974-69

Textured Black Clear Hammered Glass (1) 6W M, 2700k, 800 Lumens, 80CRI, Dimming LED (Included) UL Damp

8-347 Optional

• Power On / Off / 6 fan speeds – DC motor

• Forward / Reverse

• Light On / Off / Dimming

AVAILABLE 1/2" DOWNRODS

1904-69

Textured Black Satin Opal Glass (1) 18W, 3000k, 1543 Lumens, 90CRI, Dimming LED (Included) UL Damp

1975-69

Textured Black Clear Hammered Glass (1) 6W M, 2700k, 800 Lumens, 80CRI, Dimming LED (Included) UL Damp

• Power On / Off / 6 fan speeds – DC motor

• Forward / Reverse

• Light On / Off / Dimming

AVAILABLE 45 DEGREE SLOPE CEILING ADAPTER FOR 1/2" DOWNRODS (INDOOR USE ONLY)

Black

HEIGHT CHART

FAN HEIGHT

Using 6" Downrod

● Distance of 15.75"

● Distance of 14.125"

GENERAL SPECS

Lifetime Motor Warranty

Eight ABS Blades

72" Blade Sweep

13-Degree Blade Pitch

80" Lead Wire

6" Downrod Included 1/2" Downrod Diameter

MECHANICAL SPECS

DC168 DC Motor

6 Speeds-Reversible

8 Poles

.42/.35/.25/.19/.13/.09 AMPS on H/M/L

32/25/19/13/9/7 WATTS on H/M/L

88/83/75/67/59/51 RPMS on H/M/L

Remote Control Adaptable

Wall Control Included

Light Kit Adaptable

Detachable Switch Cup

UL Damp Listed

ENERGY SPECS

Energy Information at High Speed

Airflow: 9936 Cubic Feet/Minute

Electricity Use: 31 Watts (Excludes Lights)

Airflow Efficiency: 320 Cubic Feet/Minute/Watt Visit QuorumInternational.com for DOE Energy Guide

1905-69

Textured Black (3) 6W M, 2700k, 2400 lumens, 80CRI, Dimming LED (Included) UL Damp

Cirque 60"

Indoor/Outdoor - Damp

AVAILABLE FINISHES

46012-5942

Matte Black

Weathered Grey ABS Blades (1) 18W, 3000k, 1589 Lumens, 90CRI Dimmable LED (Included)

CONTROLS

Wall Control Included

• Power On / Off / 6 fan speeds – DC motor

• Forward / Reverse

• Light On / Off / Dimming

AVAILABLE 1/2" DOWNRODS

8-347 Optional

46012-59

Matte Black

Matte Black ABS Blades (1) 18W, 3000k, 1589 Lumens, 90CRI Dimmable LED, (Included)

• Power On / Off / 6 fan speeds – DC motor

• Forward / Reverse

• Light On / Off / Dimming

AVAILABLE 45 DEGREE SLOPE CEILING ADAPTER FOR 1/2" DOWNRODS (INDOOR USE ONLY)

Item# Finish 7-1745-59 Matte Black

HEIGHT CHART

FAN HEIGHT

Using 6" Downrod

● Distance of 15"

● Distance of 12.5"

GENERAL SPECS

2 Finishes Available

Lifetime Motor Warranty

Twelve ABS Blades

60" Blade Sweep

14-Degree Blade Pitch

80" Lead Wire

6" Downrod Included 1/2" Downrod Diameter

MECHANICAL SPECS

DC153-20NS Motor

6 Speeds-Reversible w/ Wall Control

8 Poles

.39/.26/.20/.14/.09/.07 AMPS on H/M/L

31/21/14/12/9/5 WATTS on H/M/L

100/90/80/70/60/50 RPMS on H/M/L

18W LED Light Kit Included

Wall Control Included

Remote Control Adaptable

Not Hugger Adaptable

ENERGY SPECS

Energy Information at High Speed

Airflow: 7130 Cubic Feet/Minute

Electricity Use: 31 Watts (Excludes Lights)

Airflow Efficiency: 230 Cubic Feet/Minute/Watt

Visit QuorumInternational.com for DOE Energy Guide

INSTALLATION NOTE

Multiple fans installed on the same circuit require individual wall controls and switch legs. The power supply wire from the control to the fans cannot be shared.

Cirque 72"

Indoor/Outdoor - Damp

AVAILABLE FINISHES

47212-5942

Matte Black

Weathered Grey ABS Blades (1) 18W, 3000k, 1589 Lumens, 90CRI Dimming LED (Included)

47212-59

Matte Black

Matte Black ABS Blades (1) 18W, 3000k, 1589 Lumens, 90CRI Dimming LED (Included)

CONTROLS

Wall Control Included

• Power On / Off / 6 fan speeds – DC motor

• Forward / Reverse

• Light On / Off / Dimming

AVAILABLE 1/2" DOWNRODS

8-347 Optional

• Power On / Off / 6 fan speeds – DC motor

• Forward / Reverse

• Light On / Off / Dimming

AVAILABLE 45 DEGREE SLOPE CEILING ADAPTER FOR 1/2" DOWNRODS (INDOOR USE ONLY)

Item# Finish 7-1745-59 Matte Black

HEIGHT CHART

FAN HEIGHT

Using 6" Downrod

● Distance of 15"

● Distance of 12.5"

GENERAL SPECS

2 Finishes Available

Lifetime Motor Warranty

Twelve ABS Blades

72" Blade Sweep

14-Degree Blade Pitch

80" Lead Wire

6" Downrod Included 1/2" Downrod Diameter

MECHANICAL SPECS

DC-165NL Motor

6 Speeds-Reversible w/ Wall Control

8 Poles

.38/.24/.16/.11/.06/.04 AMPS on H/M/L

30/18/12/8/4/2 WATTS on H/M/L

81/70/60/51/41/30 RPMS on H/M/L

18W LED Light Kit Included

Wall Control Included

Remote Control Adaptable

Not Hugger Adaptable

ENERGY SPECS

Energy Information at High Speed

Airflow: 8739 Cubic Feet/Minute

Electricity Use: 28 Watts (Excludes Lights)

Airflow Efficiency: 312 Cubic Feet/Minute/Watt

Visit QuorumInternational.com for DOE Energy Guide

INSTALLATION NOTE

Multiple fans installed on the same circuit require individual wall controls and switch legs. The power supply wire from the control to the fans cannot be shared.

Bandit 24"

Indoor/Outdoor - Damp

AVAILABLE FINISH

22245-69

Textured Black

Weathered Grey ABS Blades (1) 18W, 3000k, 1266 Lumens, 90CRI Dimmable LED (Included)

CONTROL

Wall Control Included

• Power On / Off / 4 fan speeds – AC motor

• Light On / Off / Dimming

AVAILABLE 1/2" DOWNRODS

FAN HEIGHT

Using 6" Downrod

● Distance of 21.25" Distance of 24"

● Distance of 27.5"

GENERAL SPECS

Lifetime Motor Warranty

Five ABS Blades

24" Blade Sweep

80" Lead Wire

6" Downrod Included

1/2" Downrod Diameter

16-Degree Blade Pitch

Fan Housing Swivels 22.5° and 45° either Direction

Height at 22.5° Swivel is 24"

Height at 45° Swivel is 27.75"

MECHANICAL SPECS

153x15 Motor Size

4 Speeds-Reversible

14 Poles

.26/.21/.16/.13 AMPS on H/M/L

32/20/11/7 WATTS on H/M/L

364/328/250/200 RPMS on H/M/L

Triple Capacitor

4 Speed Wall Control Included

ENERGY SPECS

Energy Information at High Speed

Airflow: 1659 Cubic Feet/Minute

Electricity Use: 29 Watts (Excludes Lights)

Airflow Efficiency: 57 Cubic Feet/Minute/Watt

Visit QuorumInternational.com for DOE Energy Guide

LIGHT SOURCE

Chateaux 52"

Indoor

AVAILABLE FINISHES

78525-95

Old World Walnut | Rosewood Blades

78525-67

Antique White Antique White Blades

AVAILABLE LIGHT KIT OPTIONS

1011-908

Studio White | Satin Opal Glass (1) 18W, 3000k, 1520 Lumens, 90CRI Dimmable LED Module UL Damp

1141-9108

Studio White

Satin Opal Glass (1) 12W, 3000k, 1067 Lumens, 90CRI Dimmable LED Module

1180-808

Studio White

Satin Opal Glass (2) 9W, 3000k, 1560 Lumens, 80CRI M LED

2303-9108

Studio White (3) 9W, 3000k, 2340 Lumens, 80CRI M LED

2401-8086

Oiled Bronze (4) 9W, 3000k, 3120 Lumens, 80CRI M LED

2444-8070

Persian White (4) 9W, 3120 Lumens, M LED

78525-86

Oiled Bronze Walnut | Oiled Bronze Blades

78525-8

Studio White

Studio White Blades

1012-908

Studio White

Satin Opal Glass (1) 24W, 3000k, 1832 Lumens, 90CRI, LED, UL Damp

1165-4486*

Toasted Sienna | Oiled Bronze

Clear Seeded Glass (2) 7W M, 2700k, 1600 Lumens, 80CRI M, Dimmable LED

1180-886

Oiled Bronze

Satin Opal Glass (2) 9W, 3000k, 1560 Lumens, 80CRI M LED

2303-9186

Oiled Bronze (3) 9W, 3000k, 2340 Lumens, 80CRI M LED

2401-8095

Old World (4) 9W, 3000k, 3120 Lumens, 80CRI M LED

2444-8086

Oiled Bronze (4) 9W, 3120 Lumens, M LED

78525-70

Persian White Distressed Weathered Pine Blades

1012-986

Oiled Bronze

Satin Opal Glass (1) 24W, 3000k, 1832 Lumens, 90CRI, LED, UL Damp

1166-801*

Satin Nickel | Gloss White

Faux Alabaster Glass (2) 9W M, 3000k, 1560 Lumens, 80CRI LED

1232-801*

Toasted Sienna | Old World

Amber Scavo Glass (2) 9W M, 3000k, 1560 Lumens, 80CRI LED

2401-808

Studio White (4) 9W, 3000k, 3120 Lumens, 80CRI M LED

2444-8067

Antique White (4) 9W, 3120 Lumens, M LED

7-1305-0 Optional

• Power On / Off / 3 fan speeds – AC motor

• Forward / Reverse

• Light On / Off / Dimming – Incandescent lamp

AVAILABLE 1/2" DOWNRODS

8-223 Optional

• Via BOND app

• Power On / Off / 3 fan speeds – AC motor

• Forward / Reverse

• Light On / Off / Dimming

AVAILABLE 45 DEGREE SLOPE CEILING ADAPTERS FOR 1/2" DOWNRODS Item#

AVAILABLE HUGGER ADAPTERS *NOT FOR USE WITH OPTIONAL CONTROLS SHOWN

7-1600-8

7-1600-67

7-1600-70

Studio White

Antique White

Persian White Item#

7-1600-86 Oiled Bronze

7-1600-95 Old World

*AVAILABLE BOWL KIT END CAPS

Item#

7-1100-08

7-1100-067

7-1100-070

HEIGHT CHART

FAN HEIGHT

Using 3.5" Downrod

● Distance of 11"

● Distance of 9.75"

GENERAL SPECS

5 Finishes Available

Lifetime Motor Warranty

Five Blades

52" Blade Sweep

14-Degree Blade Pitch

80" Lead Wire

3.5" & 6" Downrods Included 1/2" Downrod Diameter

Studio White

Antique White

Persian White Item#

7-1100-086 Oiled Bronze

7-1100-095 Old World

MECHANICAL SPECS

188 x 15 Motor Size

3 Speeds w/ Pull Chain Switch

Reversible w/ Manual Reverse Switch

16 Poles

.58/.38/.24 AMPS on H/M/L

68/29/12 WATTS on H/M/L

179/115/68 RPMS on H/M/L

Triple Capacitor

Remote Control Adaptable

Detachable Switch Cup

Skirted Blade Arms

ENERGY SPECS

Energy Information at High Speed

Airflow: 5375 Cubic Feet/Minute

Electricity Use: 78 Watts (Excludes Lights)

Airflow Efficiency: 68 Cubic Feet/Minute/Watt Visit QuorumInternational.com for DOE

Chateaux 52" Uni-Pack

Indoor

78525-1970

Persian White | Clear Seeded Glass

Distressed Weathered Pine Blades (3) 9W M, 3000k, 1500 Lumens, 80CRI, Non-Dimmable LED (Included)

CONTROLS

7-1305-0 Optional

• Power On / Off / 3 fan speeds – AC motor

• Forward / Reverse

• Light On / Off / Dimming – Incandescent lamp

AVAILABLE BLADE OPTIONS

Use indoor blade type 4-52 - See page 364

AVAILABLE 1/2" DOWNRODS

8-223 Optional

• Via BOND app

• Power On / Off / 3 fan speeds – AC motor

• Forward / Reverse

• Light On / Off / Dimming

AVAILABLE 45 DEGREE SLOPE CEILING ADAPTER FOR 1/2" DOWNRODS

Item#

AVAILABLE HUGGER ADAPTER *NOT FOR USE WITH OPTIONAL CONTROLS SHOWN

White

HEIGHT CHART

FAN HEIGHT

Using 3.5" Downrod

● Distance of 18.75"

● Distance of 10"

GENERAL SPECS

Lifetime Motor Warranty

Five Blades

52" Blade Sweep

14-Degree Blade Pitch

80" Lead Wire

3.5" & 6" Downrods Included 1/2" Downrod Diameter

MECHANICAL SPECS

188 x 15 Motor Size

3 Speeds w/ Pull Chain Switch

Reversible w/ Manual Reverse Switch

16 Poles

.65/.42/.22 AMPS on H/M/L

78/33/9 WATTS on H/M/L

184/114/53 RPMS on H/M/L

Triple Capacitor

Remote Control Adaptable

Light Kit uses (3) 9W M LED Bulbs (Included)

Skirted Blade Arms

ENERGY SPECS

Energy Information at High Speed

Airflow: 5168 Cubic Feet/Minute

Electricity Use: 80 Watts (Excludes Lights)

Airflow Efficiency: 64 Cubic Feet/Minute/Watt Visit QuorumInternational.com for

LIGHT SOURCE Medium Clear LED Included

Chateaux 60"

Indoor

78605-86

Oiled Bronze

Walnut | Oiled Bronze Blades

AVAILABLE LIGHT KIT OPTIONS

1012-986

Oiled Bronze

Satin Opal Glass (1) 24W, 3000k, 1832 Lumens, 90CRI, LED, UL Damp

1180-886

Oiled Bronze

Satin Opal Glass (2) 9W, 3000k, 1560 Lumens, 80CRI M LED

2401-8086

Oiled Bronze (4) 9W, 3000k, 3120 Lumens, 80CRI M LED

1165-4486*

Toasted Sienna | Oiled Bronze

Clear Seeded Glass (2) 7W M, 2700k, 1600 Lumens, 80CRI M, Dimmable LED

1232-801*

Toasted Sienna | Old World

Amber Scavo Glass (2) 9W M, 3000k, 1560 Lumens, 80CRI LED

2444-8086

Oiled Bronze (4) 9W, 3120 Lumens, M LED

1166-801*

Satin Nickel | Gloss White

Faux Alabaster Glass (2) 9W M, 3000k, 1560 Lumens, 80CRI LED

2303-9186

Oiled Bronze (3) 9W, 3000k, 2340 Lumens, 80CRI M LED

CONTROLS

7-1305-0 Optional

• Power On / Off / 3 fan speeds – AC motor

• Forward / Reverse

• Light On / Off / Dimming – Incandescent lamp

8-223 Optional

• Via BOND app

• Power On / Off / 3 fan speeds – AC motor

• Forward / Reverse

• Light On / Off / Dimming

AVAILABLE 1/2" DOWNRODS

Oiled Bronze

AVAILABLE 45 DEGREE SLOPE CEILING ADAPTER FOR 1/2" DOWNRODS

Item# Finish 7-1745-86 Oiled Bronze

AVAILABLE HUGGER ADAPTER *NOT FOR USE WITH OPTIONAL CONTROLS SHOWN

Item# Finish 7-1600-86 Oiled Bronze

*AVAILABLE BOWL KIT END CAP

Item# Finish 7-1100-086 Oiled Bronze

HEIGHT CHART

FAN HEIGHT

Using 3.5" Downrod

● Distance of 13.5"

● Distance of 10.25"

GENERAL SPECS

Lifetime Motor Warranty

Five Blades

60" Blade Sweep

14-Degree Blade Pitch

80" Lead Wire

3.5" & 6" Downrods Included 1/2" Downrod Diameter

MECHANICAL SPECS

188 x 25 Motor Size

3 Speeds w/ Pull Chain Switch

Reversible w/ Manual Reverse Switch

16 Poles

.59/.43/.26 AMPS on H/M/L

70/37/14 WATTS on H/M/L

117/82/45 RPMS on H/M/L

Triple Capacitor

Remote Control Adaptable

Detachable Switch Cup

Skirted Blade Arms

ENERGY SPECS

Energy Information at High Speed

Airflow: 5118 Cubic Feet/Minute

Electricity Use: 71 Watts (Excludes Lights)

Airflow Efficiency: 72 Cubic Feet/Minute/Watt Visit QuorumInternational.com for DOE Energy Guide

CONTROLS

Wall Control Included

• Power On / Off / 4 fan speeds – AC motor

• Forward / Reverse

AVAILABLE 1/2" DOWNRODS

Downrod Finish

Oiled Bronze

Wall Control 7-1305-0 Optional

• Power On / Off / 3 fan speeds – AC motor

• Forward / Reverse

• Light On / Off / Dimming – Incandescent lamp

AVAILABLE 45 DEGREE SLOPE CEILING ADAPTER FOR 1/2" DOWNRODS

Item# Finish 7-1745-86 Oiled Bronze

AVAILABLE HUGGER ADAPTER *NOT FOR USE WITH OPTIONAL CONTROLS SHOWN

Item#

Finish 7-1600-86 Oiled Bronze

HEIGHT CHART

FAN HEIGHT

Using 4" Downrod

● Distance of 17.5"

● Distance of 13.25"

GENERAL SPECS

1 Finish Available

Lifetime Motor Warranty

Two Blades

68" Blade Sweep

16-Degree Blade Pitch

80" Lead Wire

4" & 6" Downrods Included 1/2" Downrod Diameter

MECHANICAL SPECS

153 x 20 Motor Size

4 Speeds - Reversible w/ Manual Reverse Switch

14 Poles

.42/.30/.22/.16 AMPS on H/M/M/L

51/26/15/8 WATTS on H/M/M/L

90/65/50/43 RPM on H/M/M/L

Triple Capacitor

4 Speed Wall Control Included

Remote Control Adaptable w/ Manual Reverse

Not Light Kit Adaptable

ENERGY SPECS

Energy Information at High Speed

Airflow: 4450 Cubic Feet/Minute

Electricity Used: 51 Watts (Excludes Lights)

Airflow Efficiency: 87 Cubic Feet/Watt

Visit QuorumInternational.com for DOE Energy Guide

Empress 52" Indoor

35525-8

Studio White

Studio White Blades

AVAILABLE LIGHT KIT OPTIONS

1011-908

Studio White | Satin Opal Glass

(1) 18W, 3000k, 1520 Lumens, 90CRI Dimmable LED Module UL Damp

1165-4486*

Toasted Sienna | Oiled Bronze

Clear Seeded Glass (2) 7W M, 2700k, 1600 Lumens, 80CRI M, Dimmable LED

1232-801*

Toasted Sienna | Old World

Amber Scavo Glass (2) 9W M, 3000k, 1560 Lumens, 80CRI LED

1012-908

Studio White

Satin Opal Glass (1) 24W, 3000k, 1832 Lumens, 90CRI, LED, UL Damp

1166-801*

Satin Nickel | Gloss White Faux Alabaster Glass (2) 9W M, 3000k, 1560 Lumens, 80CRI LED

2303-9108

Studio White (3) 9W, 3000k, 2340 Lumens, 80CRI M LED

1141-9108

Studio White

Satin Opal Glass (1) 12W, 3000k, 1067 Lumens, 90CRI Dimmable LED Module

1180-808

Studio White

Satin Opal Glass (2) 9W, 3000k, 1560 Lumens, 80CRI M LED

2401-808

Studio White (4) 9W, 3000k, 3120 Lumens, 80CRI M LED

CONTROLS

Wall Control 7-1305-0 Optional

• Power On / Off / 3 fan speeds – AC motor

• Forward / Reverse

• Light On / Off / Dimming – Incandescent lamp

AVAILABLE 1/2" DOWNRODS

8-223 Optional

• Via BOND app

• Power On / Off / 3 fan speeds – AC motor

• Forward / Reverse

• Light On / Off / Dimming

AVAILABLE 45 DEGREE SLOPE CEILING ADAPTER FOR 1/2" DOWNRODS

Item# Finish

7-1745-8

Studio White

AVAILABLE HUGGER ADAPTER *NOT FOR USE WITH OPTIONAL CONTROLS SHOWN

Item# Finish

7-1600-8 Studio White

*AVAILABLE BOWL KIT END CAP

Item#

White

HEIGHT CHART

FAN HEIGHT

Using 4" Downrod

● Distance of 14.25"

● Distance of 13.25"

GENERAL SPECS

Lifetime Motor Warranty

Five Blades

52" Blade Sweep

14-Degree Blade Pitch

80" Lead Wire

4" & 6" Downrods Included 1/2" Downrod Diameter

MECHANICAL SPECS

188 x 15 Motor Size

3 Speeds w/ Pull Chain Switch

Reversible w/ Manual Reverse Switch

16 Poles

.65/.44/.23 AMPS on H/M/L

75/33/9 WATTS on H/M/L

154/102/57 RPMS on H/M/L

Triple Capacitor

Remote Control Adaptable

Detachable Switch Cup

Skirted Blade Arms

ENERGY SPECS

Energy Information at High Speed

Airflow: 5042 Cubic Feet/Minute

Electricity Use: 70 Watts (Excludes Lights)

Airflow Efficiency: 72 Cubic Feet/Minute/Watt

AVAILABLE LIGHT KIT OPTIONS

CONTROLS

Wall Control Included

2384-9186

Oiled Bronze Satin Opal Glass (2) 4.5W C LED

2383-9186 Oiled Bronze (3) 9W M, 3000k, 90 CRI LED

• Power On / Off / 3 fan speeds – AC motor

• Forward / Reverse

• Light On / Off / Dimming – Screw base LED bulb

AVAILABLE 1/2" DOWNRODS

Oiled Bronze

8-1402 Remote Control Optional

AVAILABLE BLADE OPTIONS

Use indoor blade type 5-56 - See page 370

• Power On / Off / 3 fan speeds – AC motor

• Forward / Reverse

• Up & Down Light On / Off / Dimming

AVAILABLE 45 DEGREE SLOPE CEILING ADAPTER FOR 1/2" DOWNRODS

Item# Finish 7-1745-86 Oiled Bronze

HEIGHT CHART

FAN HEIGHT

Using 12" Downrod

● Distance of 22.5"

● Distance of 18.75"

GENERAL SPECS

Lifetime Motor Warranty

Five Blades

56" Blade Sweep

14-Degree Blade Pitch

80" Lead Wire

4" & 12" Downrods Included 1/2" Downrod Diameter

MECHANICAL SPECS

188 x 15 Motor Size

3 Speeds-Reversible w/ Wall Control

16 Poles

.68/.50/.28 AMPS on H/M/L

66/31/9 WATTS on H/M/L

150/90/50 RPMS on H/M/L

Wall Control Included Remote Control Adaptable

Up-Light - (3) 4.5W C LED Bulbs (Included) Skirted Blade Arms

ENERGY SPECS

Energy Information at High Speed

Airflow: 5314 Cubic Feet/Minute

Electricity Use: 66 Watts (Excludes Lights)

Airflow Efficiency: 80 Cubic Feet/Minute/Watt Visit QuorumInternational.com for DOE Energy Guide

LIGHT SOURCE LED Candelabra Included

Monaco 52"

Indoor/Outdoor - Wet

AVAILABLE FINISHES

135525-65

Satin Nickel Maple ABS Blades

135525-8

Studio White Studio White ABS Blades

AVAILABLE LIGHT KIT OPTIONS

1011-908

Studio White | Satin Opal Glass (1) 18W, 3000k, 1520 Lumens, 90CRI Dimmable LED Module UL Damp

1370-8

Studio White Clear Seeded Glass (2) 7W M, 3000k, 1600 Lumens, 80CRI, Non-Dimming LED, UL Wet

2314-65

Satin Nickel (3) 6W M, 2700k, 2400 Lumens, 80CRI, Non-Dimming LED, UL Damp

1011-965

Satin Nickel Satin Opal Glass (1) 18W, 3000k, 1520 Lumens, 90CRI Dimmable LED, UL Damp

1395-808

Studio White Faux Alabaster Glass (2) 9W M, 3000k, 1560 Lumens, 80CRI, Non-Dimming LED, UL Wet

2314-8

Studio White (3) 6W M, 2700k, 2400 Lumens, 80CRI, Non-Dimming LED, UL Damp

1370-65

Satin Nickel Clear Seeded Glass (2) 7W M, 3000k, 1600 Lumens, 80CRI, Non-Dimming LED, UL Wet

1456-65

Satin Nickel Satin Opal Glass (1) 18W, 3000k, 1471 Lumens, 90CRI, LED, UL Wet

CONTROL

7-1305-0 Optional

• Power On / Off / 3 fan speeds – AC motor

• Forward / Reverse

• Light On / Off / Dimming – Incandescent lamp

AVAILABLE 1/2" DOWNRODS

AVAILABLE 45 DEGREE SLOPE CEILING ADAPTERS FOR 1/2" DOWNRODS (INDOOR USE ONLY)

AVAILABLE HUGGER ADAPTERS (INDOOR USE ONLY) *NOT FOR USE WITH OPTIONAL CONTROLS SHOWN

HEIGHT CHART

FAN HEIGHT

Using 4" Downrod

● Distance of 16.75"

● Distance of 13.5"

GENERAL SPECS

2 Finishes Available (Powder Coated)

Lifetime Motor Warranty

Five ABS Blades

52" Blade Sweep

14-Degree Blade Pitch

80" Lead Wire

4" & 6" Downrods Included 1/2" Downrod Diameter

MECHANICAL SPECS

188 x 15 Motor Size

3 Speeds w/ Pull Chain Switch

Reversible w/ Manual Reverse Switch

16 Poles

.52/.38/.26 AMPS on H/M/L

67/38/18 WATTS on H/M/L

170/120/78 RPMS on H/M/L

Triple Capacitor

Remote Control Adaptable

Detachable Switch Cup

Skirted Blade Arms

UL Wet Listed

ENERGY SPECS

Energy Information at High Speed

Airflow: 5151 Cubic Feet/Minute

Electricity Use: 67 Watts (Excludes Lights)

Airflow Efficiency: 76 Cubic Feet/Minute/Watt Visit

Georgia 52"

Indoor/Outdoor - Wet

AVAILABLE FINISHES

CONTROLS

Wall Control Included

• Power On / Off / 4 fan speeds – AC motor

• Forward / Reverse

AVAILABLE 1/2" DOWNRODS

7-1305-0 Optional

• Power On / Off / 3 fan speeds – AC motor

• Forward / Reverse

• Light On / Off / Dimming – Incandescent lamp

174525-995

Old World | Clear Hammered Glass Walnut ABS Blades (3) 4.5W, 1500 Lumens, C LED Bulbs (Included)

HEIGHT CHART

FAN HEIGHT

Using 4" Downrod

● Distance of 21.75"

● Distance of 10"

GENERAL SPECS

Lifetime Motor Warranty

Five ABS Blades

52" Blade Sweep

14-Degree Blade Pitch

80" Lead Wire

4" & 6" Downrods Included

1/2" Downrod Diameter

MECHANICAL SPECS

172 x 17 Motor Size

4 Speeds-Reversible / Manual Reverse

16 Poles

.54/.36/.26/.12 AMPS on H/M/L

60/35/19/8 WATTS on H/M/L

162/109/81/43 RPMS on H/M/L

4 Speed Wall Control Included Remote Control Adaptable w/ Manual Reverse

Skirted Blade Arms

Light Kit Uses (3) 4.5W C LED Bulbs (Included)

UL Wet Listed

ENERGY SPECS

Energy Information at High Speed

Airflow: 5135 Cubic Feet/Minute

Electricity Use: 60 Watts (Excludes Lights)

Airflow Efficiency: 85 Cubic Feet/Minute/Watt

Visit QuorumInternational.com for DOE Energy Guide

LIGHT SOURCE

LED Candelabra Included

Portico 60"

Indoor/Outdoor - Wet

AVAILABLE FINISHES

14605-86

Oiled Bronze

Weathered Oak ABS Blades (1) 9W, 780 Lumens, M LED

Non-Dimming Bulb (Included)

CONTROL

Wall Control Included

• Power On / Off / 3 fan speeds – AC motor

• Light On / Off

AVAILABLE 1/2" DOWNRODS

HEIGHT CHART

FAN HEIGHT

Using 4" Downrod

● Distance of 19.5"

● Distance of 10.75"

GENERAL SPECS

2 Finishes Available

Lifetime Motor Warranty

Five ABS Blades

60" Blade Sweep

13.5-Degree Blade Pitch

80" Lead Wire

4" & 6" Downrods Included 1/2" Downrod Diameter

14605-69

Textured Black Walnut ABS Blades (1) 9W, 780 Lumens, M LED

Non-Dimming Bulb (Included)

MECHANICAL SPECS

188 x 25 Motor Size

3 Speeds w/ Included Wall Control

Reversible w/ Manual Reverse Switch

16 Poles

.64/.45/.34 AMPS on H/M/L

75/38/22 WATTS on H/M/L

134/91/70 RPMS on H/M/L

Wall Control Included

Light Kit Uses (1) 14W M 2700k CFL (Included)

Bulb Provided is Non-Dimming

UL Wet listed

ENERGY SPECS

Energy Information at High Speed

Airflow: 6261 Cubic Feet/Minute

Electricity Use: 77 Watts (Excludes Lights)

Airflow Efficiency: 81 Cubic Feet/Minute/Watt

Visit QuorumInternational.com for DOE Energy Guide

Galveston 52" Indoor

AVAILABLE FINISHES

CONTROLS

Wall Control Included

• Power On / Off / 3 fan speeds – AC motor

• Light On / Off

AVAILABLE 1/2" DOWNRODS

7-1307-0 Optional

• Power On / Off / 3 fan speeds – AC motor

• Forward / Reverse

• Light On / Off / Dimming – Screw base LED bulb

AVAILABLE 45 DEGREE SLOPE CEILING ADAPTERS FOR 1/2" DOWNRODS

7-501-0 Optional

• Power On / Off / 3 fan speeds – AC motor

• Forward / Reverse

• Light On / Off / Dimming

• 2, 4 or 8 hour power off timer

AVAILABLE HUGGER ADAPTERS *NOT FOR USE WITH OPTIONAL CONTROLS SHOWN

HEIGHT CHART

FAN HEIGHT

Using 4" Downrod

● Distance of 18.25"

● Distance of 10.5"

GENERAL SPECS

2 Finishes Available Lifetime Motor Warranty

Five Blades

52" Blade Sweep

80" Lead Wire

13.5-Degree Blade Pitch

4" & 6" Downrods Included 1/2" Downrod Diameter

MECHANICAL SPECS

172x17 Motor Size

3 Speeds-Reversible w/ Manual Reverse Switch 16 Poles

.48/.35/.25 AMPS on H/M/L

67/35/21 WATTS on H/M/L

169/120/92 RPMS on H/M/L

Remote Control Adaptable w/ Manual Reverse

Wall Control Included

Light Kit uses (1) 9W M LED Bulb (Included) Bulb Provided is Non-Dimming

ENERGY SPECS

Energy Information at High Speed Airflow: 4778 Cubic Feet/Minute Electricity Use: 68 Watts (Excludes Lights) Airflow Efficiency: 70 Cubic Feet/Minute/Watt Visit

Frosted LED Included

Galveston 52"

Indoor/Outdoor - Wet

AVAILABLE FINISHES

13525-86

Oiled Bronze

Walnut ABS Blades (1) 9W M 3000k, 780 Lumens, LED Bulb (Included)

13525-69

Textured Black

Weathered Oak ABS Blades (1) 9W M 3000k, 780 Lumens, LED Bulb (Included)

13525-9

Galvanized

Walnut ABS Blades (1) 9W M 3000k, 780 Lumens, LED Bulb (Included)

13525-8

Studio White

White ABS Blades (1) 9W M 3000k, 780 Lumens, LED Bulb (Included)

CONTROLS

Wall Control Included

• Power On / Off / 3 fan speeds – AC motor

• Light On / Off

AVAILABLE 1/2" DOWNRODS Downrod Finish

7-1307-0 Optional

• Power On / Off / 3 fan speeds – AC motor

• Forward / Reverse

• Light On / Off / Dimming – Screw base LED bulb

7-501-0 Optional

• Power On / Off / 3 fan speeds – AC motor

• Forward / Reverse

• Light On / Off / Dimming

• 2, 4 or 8 hour power off timer

HEIGHT CHART

FAN HEIGHT

Using 4" Downrod

● Distance of 18.5"

● Distance of 10.75"

GENERAL SPECS

4 Finishes Available (Powder Coated)

Lifetime Motor Warranty

Five ABS Blades

52" Blade Sweep

80" Lead Wire

13.5-Degree Blade Pitch

4" & 6" Downrods Included 1/2" Downrod Diameter

MECHANICAL SPECS

172x17 Motor Size

3 Speeds w/ Included Wall Control Reversible w/ Manual Reverse Switch

14 Poles

.48/.35/.25 AMPS on H/M/L

57/30/15 WATTS on H/M/L

171/120/84 RPMS on H/M/L

Remote Control Adaptable w/ Manual Reverse

Wall Control Included

Light Kit uses (1) 9W M 3000k LED Bulb (Included) Bulb Provided is Non-Dimming UL Wet listed

ENERGY SPECS

Energy Information at High Speed

Airflow: 5308 Cubic Feet/Minute

Electricity Use: 60 Watts (Excludes Lights) Airflow

Visit QuorumInternational.com for DOE Energy Guide

Breeze 52"

1011-908

White

Satin Opal Glass (1) 18W, 3000k, 1520 Lumens, 90CRI Dimmable LED Module UL Damp

1012-908

Studio White

Satin Opal Glass (1) 24W, 3000k, 1832 Lumens, 90CRI, LED, UL Damp

1012-986

Oiled Bronze

Satin Opal Glass (1) 24W, 3000k, 1832 Lumens, 90CRI, LED, UL Damp

1141-9165

Satin Nickel

Satin Opal Glass (1) 12W, 3000k, 1067 Lumens, 90CRI Dimmable LED

1166-801*

Satin Nickel | Gloss White

Faux Alabaster Glass (2) 9W M, 3000k, 1560 Lumens, 80CRI LED

1180-880

Aged Brass

Satin Opal Glass (2) 9W, 3000k, 1560 Lumens, 80CRI M LED

1370-8

Studio White

Clear Seeded Glass (2) 7W M, 3000k, 1600 Lumens, 80CRI, Non-Dimming LED

2303-9108

Studio White (3) 9W, 3000k, 2340 Lumens, 80CRI M LED

2303-9186

Oiled Bronze (3) 9W, 3000k, 2340 Lumens, 80CRI M LED

2401-8086

Oiled Bronze (4) 9W, 3000k, 3120 Lumens, 80CRI M LED

1011-965

Satin Nickel

Satin Opal Glass (1) 18W, 3000k, 1520 Lumens, 90CRI Dimmable LED Module UL Damp

1012-965

Satin Nickel

Satin Opal Glass (1) 24W, 3000k, 1832 Lumens, 90CRI, LED, UL Damp

1141-869

Textured Black

Satin Opal Glass (1) 9W, 3000k, 780 Lumens, 80CRI M LED

1141-9180

Aged Brass

Satin Opal Glass (1) 12W, 3000k, 1067 Lumens, 90CRI Dimmable LED

1180-808

Studio White

Satin Opal Glass (2) 9W, 3000k, 1560 Lumens, 80CRI M LED

1180-886

Oiled Bronze

Satin Opal Glass (2) 9W, 3000k, 1560 Lumens, 80CRI M LED

1456-80

Aged Brass

Satin Opal Glass (1) 18W, 3000k, 1471 Lumens, 90CRI, LED

2303-9165

Satin Nickel (3) 9W, 3000k, 2340 Lumens, 80CRI M LED

2401-8065

Satin Nickel (4) 9W, 3000k, 3120 Lumens, 80CRI M LED

2444-8069

Textured Black (4) 9W, 3120 Lumens, M LED

1011-980

Aged Brass

Satin Opal Glass (1) 18W, 3000k, 1520 Lumens, 90CRI Dimmable LED Module UL Damp

1012-980

Aged Brass

Satin Opal Glass (1) 24W, 3000k, 1832 Lumens, 90CRI, LED, UL Damp

1141-9108

Studio White

Satin Opal Glass (1) 12W, 3000k, 1067 Lumens, 90CRI Dimmable LED

1165-4486*

Toasted Sienna | Oiled Bronze

Clear Seeded Glass (2) 7W M, 2700k, 1600 Lumens, 80CRI M, Dimmable LED

1180-865

Satin Nickel

Satin Opal Glass (2) 9W, 3000k, 1560 Lumens, 80CRI M LED

1232-801*

Toasted Sienna | Old World

Amber Scavo Glass (2) 9W M, 3000k, 1560 Lumens, 80CRI LED

1858-9165

Satin Nickel

Cream Fabric Shade (2) 9W M, 3000k, 1560 Lumens, 80CRI LED

2303-9169

Textured Black (3) 9W, 3000k, 2340 Lumens, 80CRI M LED

2401-808

Studio White (4) 9W, 3000k, 3120 Lumens, 80CRI M LED

2444-8086

Oiled Bronze (4) 9W, 3120 Lumens, M LED

CONTROLS

7-1305-0 Optional

• Power On / Off / 3 fan speeds – AC motor

• Forward / Reverse

• Light On / Off / Dimming – Incandescent lamp

AVAILABLE 1/2" DOWNRODS

7-501-0 Optional

• Power On / Off / 3 fan speeds – AC motor

• Forward / Reverse

• Light On / Off / Dimming

• 2, 4 or 8 hour power off timer

8-223 Optional

• Via BOND app

• Power On / Off / 3 fan speeds – AC motor

• Forward / Reverse

• Light On / Off / Dimming

AVAILABLE 45 DEGREE SLOPE CEILING ADAPTERS FOR 1/2" DOWNRODS Item#

7-1745-8

White

7-1745-65 Satin Nickel 7-1745-69 Textured Black

AVAILABLE HUGGER ADAPTERS *NOT FOR USE WITH OPTIONAL CONTROLS SHOWN

7-1600-8

7-1600-65

7-1600-69

Studio White

Satin Nickel

Textured Black

*AVAILABLE BOWL KIT END CAPS

Item#

7-1100-08

7-1100-065

7-1100-069

HEIGHT CHART

FAN HEIGHT

Using 3.5" Downrod

● Distance of 11.75"

● Distance of 9.75"

GENERAL SPECS

5 Finish Combinations Available Lifetime Motor Warranty

Five Blades

52" Blade Sweep

12-Degree Blade Pitch

80" Lead Wire

3.5" & 6" Downrods Included 1/2" Downrod Diameter

Finish

Studio White

Satin Nickel

Textured Black

MECHANICAL SPECS

153 x 15 Motor Size

3 Speeds w/ Pull Chain Switch

Reversible w/ Manual Reverse Switch

14 Poles

.55/.39/.22 AMPS on H/M/L

66/33/10 WATTS on H/M/L

173/122/64 RPMS on H/M/L

Detachable Switch Cup

Triple Capacitor

Light Kit Adaptable

Remote Control Adaptable Skirted Blade Arms

ENERGY SPECS

Energy Information at High Speed Airflow: 4449 Cubic Feet/Minute

7-1600-80 Aged Brass

7-1600-86 Oiled Bronze

Item# Finish

7-1100-080 Aged Brass

7-1100-086 Oiled Bronze

AVAILABLE BLADE OPTIONS

Use indoor blade type 9-52 - See page 368

Breeze 52"

Indoor/Outdoor - Wet

AVAILABLE FINISHES

17052-86

Oiled Bronze Oiled Bronze ABS Blades

AVAILABLE LIGHT KIT OPTIONS

1011-908

17052-69

Textured Black Weathered Oak ABS Blades

Studio White | Satin Opal Glass (1) 18W, 3000k, 1520 Lumens, 90CRI Dimmable LED Module UL Damp

1012-965

Satin Nickel

Satin Opal Glass (1) 24W, 3000k, 1832 Lumens, 90CRI, LED, UL Damp

1370-69

Textured Black

Clear Seeded Glass (2) 7W M, 3000k, 1600 Lumens, 80CRI, Non-Dimming LED, UL Wet

1374-886

Oiled Bronze

Clear Hammered Glass (1) 9W M, 3000k, 800 Lumens, 80CRI, Non-Dimming LED, UL Wet

1456-65

Satin Nickel

Satin Opal Glass (1) 18W, 3000k, 1471 Lumens, 90CRI, LED, UL Wet

2314-8

Studio White (3) 6W M, 2700k, 2400 Lumens, 80CRI, Non-Dimming LED, UL Damp

17052-65

Satin Nickel Silver ABS Blades

1011-965

Satin Nickel

Satin Opal Glass (1) 18W, 3000k, 1520 Lumens, 90CRI Dimmable LED Module UL Damp

1012-986

Oiled Bronze

Satin Opal Glass (1) 24W, 3000k, 1832 Lumens, 90CRI, LED, UL Damp

1370-8

Studio White

Clear Seeded Glass (2) 7W M, 3000k, 1600 Lumens, 80CRI, Non-Dimming LED, UL Wet

1375-886

Oiled Bronze

Clear Hammered Glass (1) 9W M, 3000k, 800 Lumens, 80CRI, Non-Dimming LED

1456-8

Studio White

Satin Opal Glass (1) 18W, 3000k, 1471 Lumens, 90CRI, LED, UL Wet

2314-86

Oiled Bronze (3) 6W M, 2700k, 2400 Lumens, 80CRI, Non-Dimming LED, UL Damp

17052-8

Studio White

Studio White ABS Blades

1012-908

Studio White

Satin Opal Glass (1) 24W, 3000k, 1832 Lumens, 90CRI, LED, UL Damp

1370-65

Satin Nickel

Clear Seeded Glass (2) 7W M, 3000k, 1600 Lumens, 80CRI, Non-Dimming LED, UL Wet

1370-86

Oiled Bronze

Clear Seeded Glass (2) 7W M, 3000k, 1600 Lumens, 80CRI, Non-Dimming LED, UL Wet

1395-808

Studio White

Faux Alabaster Glass (2) 9W M, 3000k, 1560 Lumens, 80CRI, Non-Dimming LED, UL Wet

2314-65

Satin Nickel (3) 6W M, 2700k, 2400 Lumens, 80CRI, Non-Dimming LED, UL Damp

CONTROLS
