PL+ Specifications
Features and Benefits
• 27,557 lbs lifting capability per PL+, multiple units increase lifting capability; for example three units would lift approximately 82,671 lbs.
• Fully certified to work across the rail network , including under live Overhead Line Equipment (OLE), Any Line Open working (ALO), and Catenary.
• A fully loaded Panel Lifter System can turn in any direction while in motion.

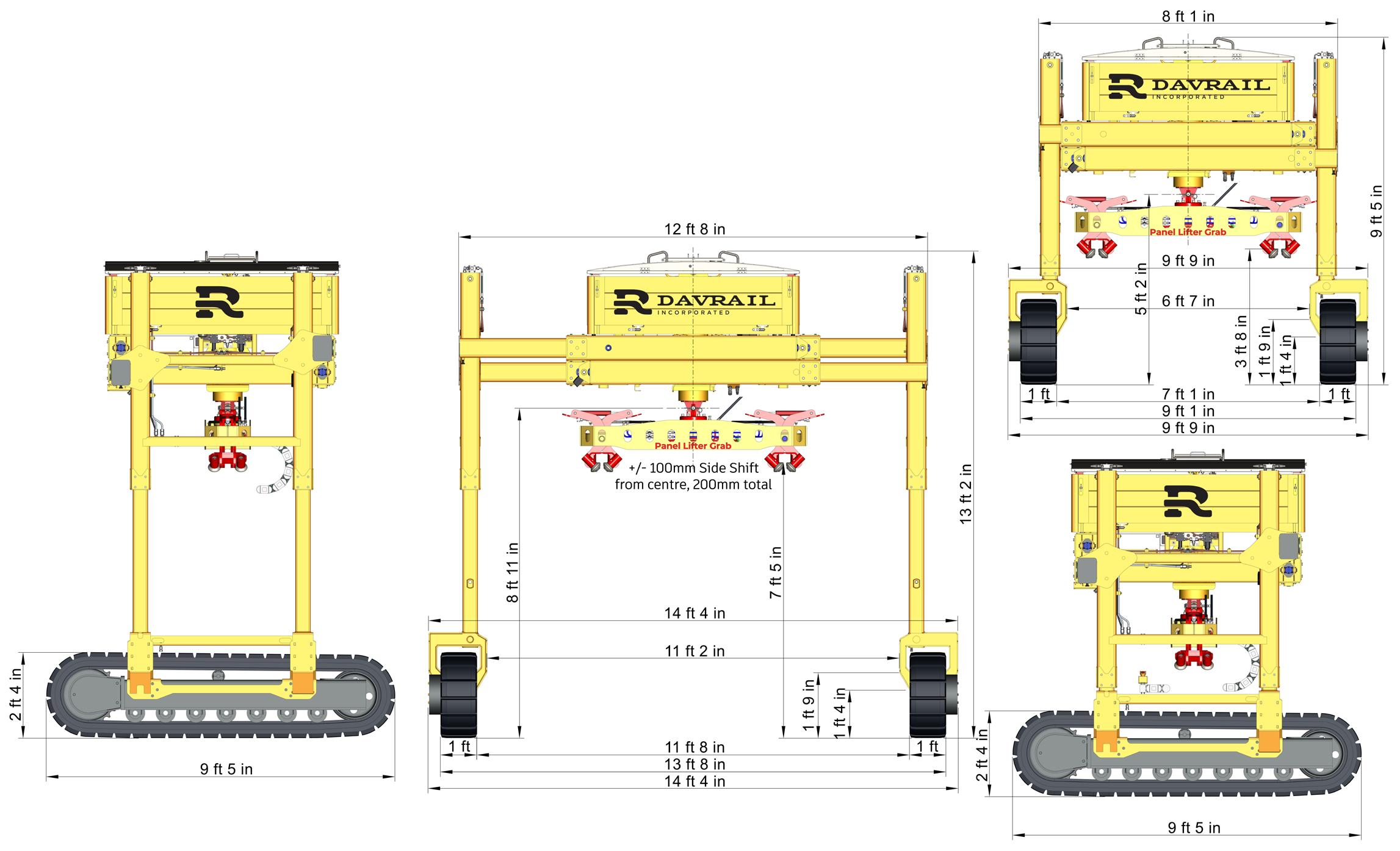

• Variable track width allows access and use in narrow environments like bridges, tunnels, and narrow right of way.
• Ideal for removing and installing panels on main line, repairs, and challenging new builds or crossings
• Can easily cross multiple tracks without damaging the rail.
• Can grab all gauges of track.
• Compact size and maneuverability enables easy transportation, rapid deployment, and demobilization.

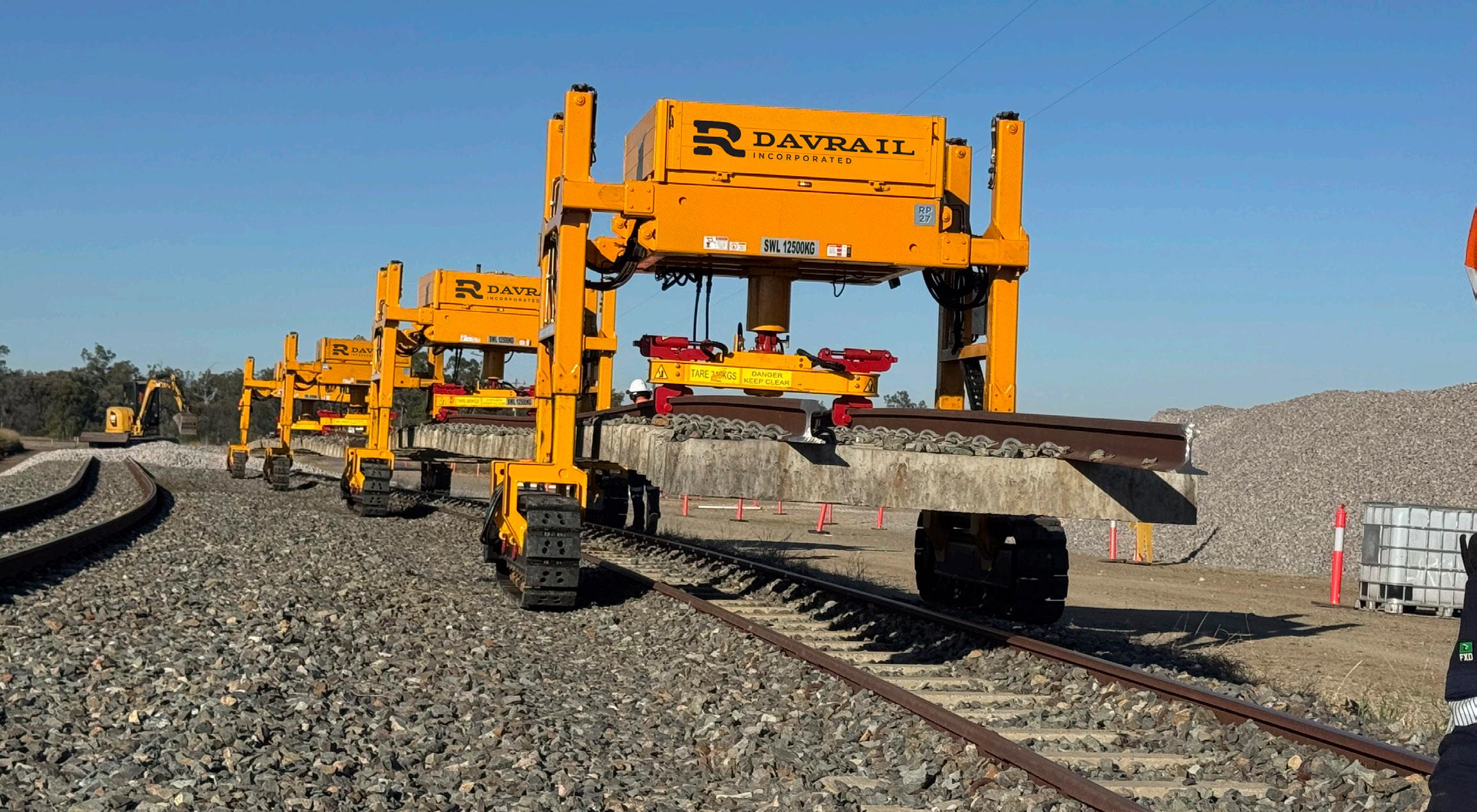

• A panel lifter system of two machines can be used to move panel lengths on average 80ft long. More machines can be added to move longer panels.
